Owner’s Manual

i
WELCOME TO ZODIAC
Congratulations on your purchase from the Zodiac range of pool care
products.
A trusted name in aeronautical and marine sectors, Zodiac now delivers
its expertise to a full range of pools, automatic pool cleaners and water
treatment systems.
Backed by world famous Baracuda technology, the Zodiac T5 Duo is your
assurance of top quality in terms of design and performance.
All Zodiac products are designed so you can spend more time enjoying your
pool and less on maintenance. The result is a simply sparkling pool.

i
IMPORTANT INFORMATION
YOU MUST READ THIS INFORMATION BEFORE
INSTALLATION. ALWAYS READ THE OPERATION
MANUAL BEFORE USING.
REMEMBER TO REGISTER YOUR WARRANTY
WITHIN FOURTEEN (14) DAYS FROM DATE OF
PURCHASE.

ii
1
THIS KIT CONTAINS
Qty: Description:
1 Zodiac T5 Duo machine head, complete with disc set
1 Hose protector mesh
12 Genuine Zodiac long life Twist-Lock Hose Section
1 Wheel Deflector
1 Blue hose weight
1 T5 Quick Connector
1 AD Flow Valve
1 Universal Weir Cuff
1 Pool Pulse
0 1 2 3 4 5 6
6 5 4 3 2 1 0
Pool Pulse
Cleaner Head
Disc
Twist-Lock
Hose Section
Hose Weight
Valve Cuff
Quick Connector
Wheel Deflector
AD Flow Valve
Hose protector
mesh
AD Flow Valve

ii
1
QUICK START INSTALLATION GUIDE
PAGE
SECTION 1 – INSTALLATION 2
SECTION 2 – ACCESSORIES 7
SECTION 3 – CARE AND MAINTENANCE 8
SECTION 4 – POOL PULSE 12
SECTION 5 – PARTS DIAGRAM 13
SECTION 6 – TROUBLESHOOTING 14
SECTION 7 – WARRANTY INFORMATION 15

2
3
While the Zodiac T5 Duo is designed for easy assembly, some preliminary
steps will assist the installation process.
Where possible, assembly should take place as close to the pool’s skimmer
box as possible.
BEFORE YOU START
1. If your main drain is connected to the skimmer box, block off access.
2. Manually vacuum the pool.
3. Following manufacturer’s instructions, clean the filter and empty the
skimmer and the pump strainer basket.
4. Ensure circulation system is operating at maximum water flow, or you
will need to re-adjust when it comes time to clean the filter and baskets.
5. Adjust the water flow, from all return inlets: –
(a) Downward and toward each other OR
(b) Downward and toward the centre of the pool.
SECTION 1 – INSTALLATION
If return inlet directional fittings can’t be directed far enough down to
prevent water flow affecting the natural movement of the Zodiac hose, you
will need to install Zodiac return line diverters. These are available from your
local Zodiac dealer.
For pools with return inlet “eyeballs” face the inlets “eyeball” down.

2
3
SECTION 1 – INSTALLATION
With your preparation complete, you are ready to begin installation.
If hoses are difficult to connect, soften and expand the plastic by dipping the
end in a bucket of warm water.
1. Connect the first length of
hose to the quick connector
joint male cuff.
2. Push the quick connector joint
onto the head of the cleaner,
until it locks into place.
3. Clip the hose weight onto
the end of your first length of
hose (approximately 1 metre
from the quick connector).
Submerging each length as you go, continue attaching hose lengths until you
reach the required length for your pool. Use enough hose sections to reach
the farthest point of the pool, then add another two (2) sections as shown
in the diagram below.
The hose is now ready to be attached to the fittings in the skimmer box.
Skimmer Box
Step 1
Step 2
Step 3

4
5
SECTION 1 – INSTALLATION
CONNECT THE CLEANER
1. Submerge the cleaner and flood it with water.
2. When bubbles stop coming out of the extension pipe, connect the hose
to the cleaner by pushing the quick connector onto the outer extension
pipe until it locks into position with a clicking sound.
3. Allow the cleaner to drift to the bottom of the pool. Installation is
complete. Turn on the pool pump and begin cleaning.
WHEEL DEFLECTOR
The Deflector ring can be used to
help direct the T5 Duo around steps
and other obstacles in the pool.
Attach the ring by inserting the end
of the cleaner hose through the outer
ring and push the quick connector
over the hose. Attach the ring just
above the first hose cuff.

4
5
SECTION 1 – INSTALLATION
FINE TUNING CLEANER PERFORMANCE
The T5 Duo™ cycles on/off with the pool filtration pump vacuuming and
cleaning all surfaces randomly throughout the pool. The coverage of the
cleaner is dependent on the pool’s shape and available water flow. In some
applications, adjustments may be necessary to optimize cleaning coverage.
A properly balanced hose will create a 45º angle to the cleaner and the
bottom of the pool.
POOL COVERAGE
While the return line water flow should not affect the natural movement of
the hose, there are occasions where it can be beneficial.
Return line pressure can be used to balance cleaning coverage, and guide
the cleaner away from steps and corners.
A return line located anywhere along the shaded area, can gently push the
hose – allowing the unit to free itself from any in-pool obstacles.
Correct
Balance
Incorrect
Incorrect

6
7
SECTION 1 – INSTALLATION
OTHER BRAND SKIMMER BOX
Insert the AD Flow Valve directly into the Weir Cuff.
FACTORY SETTINGS
The AD Flow Valve has three settings. High (3) Medium (2) and Low (1).
To deliver maximum pool cleaning efficiency, the AD Flow Valve comes preset
at a factory setting of 2.
You will only need to adjust the AD Flow Valve when and if a problem occurs.
AD FLOW VALVE TROUBLE SHOOTING
AD FLOW VALVE
The AD Flow Valve works by regulating the flow of water to the pump
through the pool cleaner. As the filter collects debris, the valve automatically
maintains the correct flow.
The use of the AD Flow Valve is recommended for: –
1. Pools with only one skimmer box/suction point.
2. Situations where the filtration system needs to be in operation, but the
pool cleaner does not e.g. whilst the pool is in use.
The installation of the AD Flow Valve will depend upon the type of skimmer
box. It is either installed from the top or the bottom of the skimmer.
See below.
WATERCO SKIMMER BOX
Screw in the AD
Flow Valve connector
from the top of the
skimmer plate.
POOLRITE SKIMMER BOX
Screw in the AD Flow
Valve connector from
the bottom of the
skimmer plate.
DESCRIPTION
1. AD Flow Valve
2. Universal Weir Cuff
3. Hose Protector Mesh
1
2
3
AD Flow Valve
AD Flow Valve
Connector
PROBLEM SOLUTION
The Zodiac Pool Cleaner is performing too fast
and/or climbing above the level of the water. Reduce AD Flow Valve to Setting 1
The Zodiac Pool Cleaner is performing slowly
and/or is not climbing the pool walls. Increase AD Flow Valve to Setting 3

6
7
SECTION 2 – ACCESORIES
ZODIAC ACCESSORIES:
PART ILLUSTRATION PART NO.
W22800
Return Line Diverter
Use when no other return inlet
directional fittings exist
PART ILLUSTRATION PART NO.
W70116
The Leaf Eater
Use when heavy debris
or leaf situations exist
2
1

8
9
SECTION 3 – CARE AND MAINTENANCE
Sunlight, water and pool chemical create a harsh environment. With care and
regular maintenance your Zodiac T5 Duo will remain in the best possible
condition.
To properly care for your unit: –
1. Remove the Zodiac T5 Duo from the
pool before Super Chlorinating and
reinstall at least four hours later.
2. Before backwashing your filter,
always disconnect the hose from the
skimmer or vacuum line.
3. Never “coil” the hose and always
store the hose straight. A coiled hose
can be straightened by applying hot
water or by laying it straight, in direct
sunlight for several hours.
4. Large foreign objects, such as toys
and branches should be removed
manually.
Zodiac recommends the following water chemistry readings for optimal
performance of any pool equipment
* When using chemicals, always follow manufacturers directions and follow the advice of your
pool professional. Always use protective clothing, gloves and glasses. Store and use chemicals
out of the reach of children.
incorrect
correct
X
Free Chlorine pH Total Alkalinity
(ppm)
Calcium
Hardness (ppm)
Cyanuric Acid
(ppm)
Australian
Standard 1 – 3 ppm 7.2 – 7.8 80 – 300 90 – 300 30 – 50
Ideal
reading/range 1 – 3 ppm 7.5 80 – 140 150 – 175 50
To increase*
Add chlorine or
increase output of
equipment
Add buffer or
soda ash
(sodium carbonate)
Add sodium
bicarbonate
Add sodium
calcium chloride
Add
cyanuric acid
To decrease* Add muriatic
acid
Add muriatic
acid or dry acid
Partially drain
& refill pool
Partially drain
& refill pool

8
9
SECTION 3 – CARE AND MAINTENANCE
CLEARING LARGE DEBRIS FROM THE DIAPHRAGM
If the cleaner stops, turn off the suction
pump for the cleaner, remove the
cleaner from the water, and then check
the diaphragm for blockage.
1. Turn cleaner over (see Figure 1).
2. Inspect diaphragm and push
through debris or obstacles to clear.
If not blocked, check the
diaphragm for wear or damage.
TO ACCESS OR REMOVE THE DIAPHRAGM:
1. Unthread the handnut
(see Figure 2).
2. Remove the handnut, engine, and
upper thrust washer from the
body (see Figure 3).
3. Set aside the handnut and
the upper thrust washer.
Figure 1
Figure 2
Handnut
Upper Thrust Washer
Outer Extension Tube
Figure 3

10
11

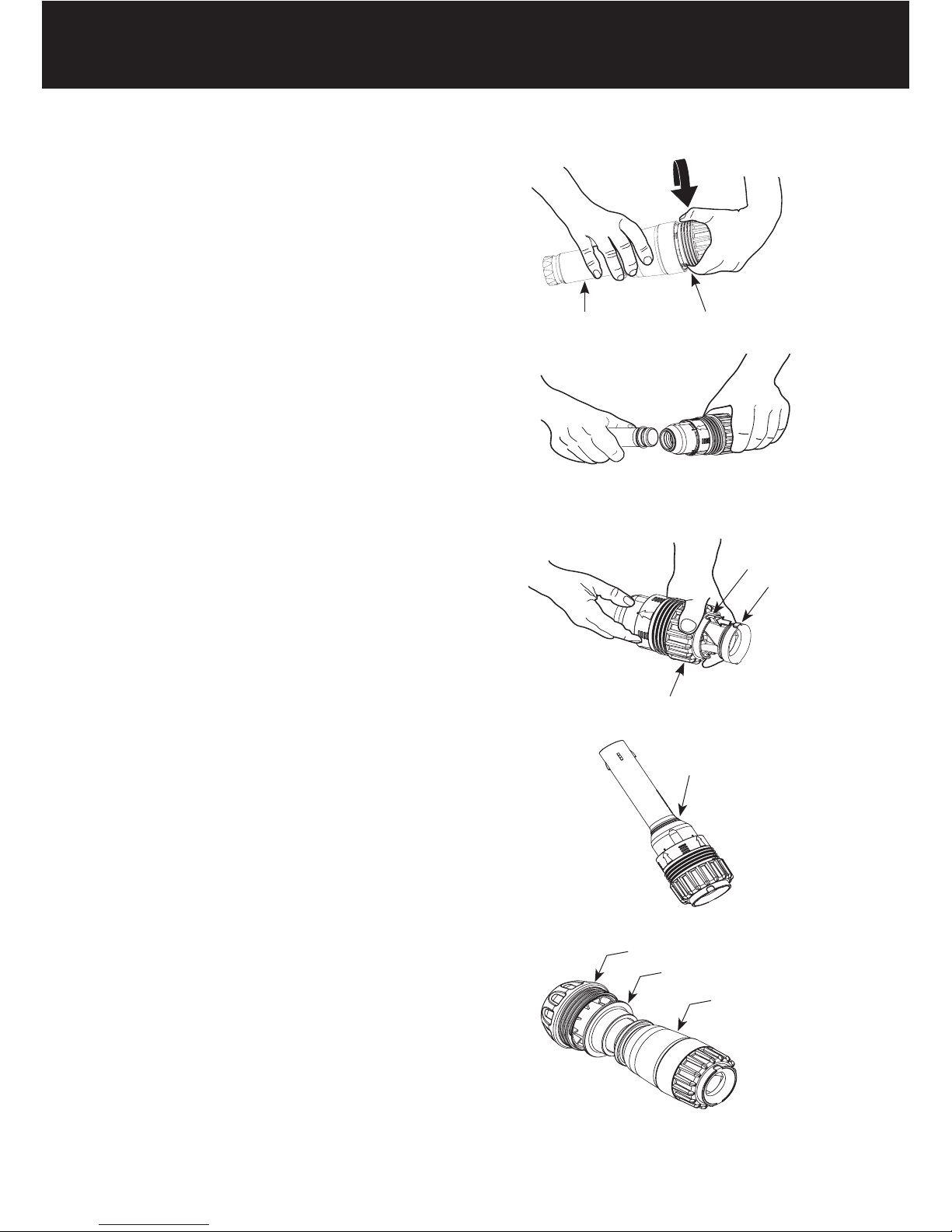

SECTION 3 – CARE AND MAINTENANCE
4. Unscrew the outer extension
tube from the cup assembly
(see Figure 4).
5. Separate the inner extension
tube and pull out the diaphragm
(see Figure 5).
6. Inspect the diaphragm for wear
and rinse it thoroughly with
water. Replace it if necessary.
TO REINSTALL DIAPHRAGM:
1. Attach diaphragm to inner
extension tube.
2. Insert inner pipe and
diaphragm into cup assembly.
Align diaphragm tabs with
notches and pull straight through
(do not twist) until the edge of
the diaphragm is visible
(see Figures 6 and 7).
3. Thread on the outer extension
tube and slide the thrust washer
and the handnut over the outer
extension tube (see Figure 8).
Handnut
Upper Thrust Washer
Outer Extension Tube
Figure 8
Edge of
Diaphragm
Figure 7
Notch
Cup Assembly
Tab
Figure 6
Figure 5
Figure 4
Outer Extension Tube Cup Assembly

10
11
SECTION 3 – CARE AND MAINTENANCE
4. Insert the engine into the body and
thread the handnut down tight
(see Figure 9).
5. Make sure the extension tube swivels
freely by spinning it (see Figure 10).
Figure 9
Figure 10

12
13
SECTION 4 – POOL PULSE
The Pool Pulse® is a flow meter that measures the volume of water flowing
through your Zodiac cleaner.
It can be a useful diagnostic tool for when the cleaner isn’t running
properly.
The Pool Pulse® can only be used if the filtration system is on.
TO SET THE POOL PULSE:
1. Disconnect the quick connector from cleaner.
2. Attach the Pool Pulse® to the quick connector and keep it under water.
3. Ensure the Pool Pulse® is in the ideal range (Setting = Number 3) when
viewed from the side.
3. Keeping the quick connector and hose under water, remove the
Pool Pulse®
4. Submerge the cleaner head. When the bubbles stop coming from the
extension pipe, attach the hose.
0 1 2 3 4 5 6
6 5 4 3 2 1 0
0 1 2 3 4 5 6
6 5 4 3 2 1 0
IDEAL
Showing Setting 3
TOO HIGH
Showing Setting 4
TOO LOW
Showing Setting 2

12
13
SECTION 5 – PARTS DIAGRAM
Includes
12, 13 and 14
No. Part # Description Qty
1 W78009 T5 Hand Nut 1
2 W78004 T5 Thrust Washer Upper/Lower 1
3 W78006 T5 Float Cover 1
4 W78014 T5 Float 1
5 W78003 T5 Main Body Cover 1
6 W78017 T5 Outer Extension Pipe Top 1
7 W78065 T5 Outer Extension Pipe Bottom 1
8 W78018 T5 Inner Extension Pipe Tube 1
9 W73010 T5 Diaphragm 1
10 W78029 Engine Assembly Complete 1
11 W78001 T5 Lower Body Assembly 1
12 W78038 T5 Skid Plate 1
13 W78008 T5 Duo Flexifeet (set) 2
14 W70007 T5 Front and Rear Discs 1
15 W70008 T5 Disc Complete 1
16 W70281 AD Flow Valve 1
17 W78034 T5 Quick Connector 1
18 W30160 Twist Lock Hose (1 metre) 12
19 W70335 Pool Pulse 1
20 W70263 Universal Weir Cuff 1
21 W70105 Hose Weight 1
22 W78070 Wheel Deflector 1
23 W78005 Thrust Washer Lower 1
24 W33900 Hose Protector Mesh 1

14
15
Note: If the automatic pool cleaner is climbing the walls excessively, that is
an indication that the flow is too high. Review the installation procedures
and ensure the AD Flow Valve is set at setting #1.
For additional assistance contact our customer service department on
1800 688 552.
TROUBLESHOOTING
PROBLEM SOLUTION
Cleaner stops
and starts
Check diaphragm for blockage or damage.
Use Pool Pulse® to determine proper flow.
Check hoses for leaks.
Cleaner is patterning
Divert return inlets downward.
Lay hose in a straight line in the sun to relax memory.
Confirm proper hose length – add 1 or 2 extra hose sections.
Cleaner isn’t
covering opposite
end of pool
Divert return inlets downward.
Use flow to move cleaner to opposite end.
Check if sufficient hose and add if necessary.
Cleaner flips
over
Use Pool Pulse® to ensure proper flow.
Check swivel on cleaner is not jammed.
Cleaner climbs walls
excessively
Use Pool Pulse® to ensure proper flow.
Ensure AD Flow Valve is on setting #1.
Reduce flow to cleaner head.
Cleaner won’t climb
walls
Use Pool Pulse® and increase flow to setting #3 on AD Flow Valve.
Confirm proper hose length.
Adjust hose weight, so it is further away from the cleaner head.
Cleaner won’t leave
edge or rim of pool
Use Pool Pulse® and lower flow to low setting #1.
Utilise return flow to move cleaner.
Adjust hose weight.
Note: In cold water of 12 degrees or less, water flow through the cleaner must be
increased to compensate for the reduced flexibility of the hose and diaphragm.
IF ASSISTANCE IS REQUIRED, PLEASE CALL OUR
CUSTOMER SERVICE DEPARTMENT ON 1800 688 552
SECTION 6 – TROUBLESHOOTING
W90076

14
15
SECTION 7 – WARRANTY INFORMATION
YOUR ZODIAC WARRANTY
This ZODIAC T5 Duo was carefully inspected before shipment from our warehouse.
ZODIAC GROUP AUSTRALIA WARRANTS THE ZODIAC T5 DUO POOL CLEANER TO BE
FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF TWO (2)
YEARS FROM DATE OF PURCHASE. THE ZODIAC HOSE IS WARRANTED FOR TWO (2)
YEARS AGAINST MANUFACTURING DEFECTS AND ULTRAVIOLET BREAKDOWN.
Upon unpacking, if any part is missing or found to be defective, please notify your dealer immediately.
Only the original purchaser may submit a claim under this limited warranty.
Purchaser’s claims against Zodiac Group Australia Pty Ltd shall be limited to those claims that may
be asserted under the limited warranty relating to any defect, malfunction or wear of the ZODIAC
T5 Duo.
REPAIRS
To obtain warranty replacement or repair, the unit should be returned to the place of purchase.
When submitting a claim, always produce evidence of purchase date, retailer and a brief description
of the problems/defects encountered.
EXCLUSIONS
This limited warranty excludes the following: –
1. Discolouration of the Zodiac pool cleaner caused by reaction to chemicals used in the pool water.
As discolouration does not affect the operating ability of the pool cleaner, this limited warranty
does not cover the replacement of discoloured parts.
2. Damage to or malfunction of the unit resulting from excess chlorination or improper water
chemistry balance.
3. Replacement of parts, which fail or become defective as a result of improper installation,
negligence, misuse, abuse or tampering by unauthorised repair personnel.
4. Age, pool water imbalance, and improper installation can cause pool liners to become brittle or
unduly wrinkled. Corrosion of the supporting walls and/or irregularities in the pool base may
also cause liner failure. The use of this product in such an environment is at the pool owner’s
risk. Therefore, the pool owner hereby releases the manufacturer from any and all claims for
damage where these conditions exist.
5. Abrasion to the hose or damage caused by misuse or improper installation.
6. If parts other than ‘genuine’ parts as supplied by Zodiac have been used, or if repairs or
alterations have been made without Zodiac’s authority.
Zodiac Group Australia Pty. Ltd. reserves the right to repair or replace all defective or worn parts
covered by this warranty, through the place of purchase. Where the purchaser sends units to the
place of purchase by post or courier for repair or replacement, freight is the responsibility of the
purchaser.
Zodiac Group Australia Pty. Ltd. assumes no responsibility for any warranties or representations
made by other individuals or businesses beyond the express terms contained in this limited
warranty.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
This warranty will remain the property of Zodiac Group Australia Pty. Ltd.
W90076

Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd
ABN 87 002 641 965
ZODIAC CUSTOMER SERVICE CENTRE
Zodiac Group Australia:
219 Woodpark Rd, Smithfield,
NSW 2164 Australia
Tel: [phone]
Fax: [phone]
Email: [e-mail].
www.zodiac.com.au
Due to constant developments and improvements,
specifications may change without notice.
Improper use could affect performance and void warranty.
© Copyright Zodiac Australian Ltd 2010
W90076
