Zoeller Basement Sentry STBS700 User manual

1
© 2020. All rights reserved.
INTELLIGENT SUMP
HIGH VOLUME
WiFi SUMP PUMP
MODEL #STBS700
BY
BasementSentry.com
Zoeller® is a registered trademark of Zoeller Co.
All Rights Reserved.
Purchase Date
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at 1-800-584-8089, 7:30 a.m. - 5:00 p.m., EST, Monday - Friday.
ATTACH YOUR RECEIPT HERE
SW1589 A
Español p. 17

2
© 2020. All rights reserved.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
NOTE: Pumps with the “UL” Mark and pumps with the “US” mark are tested to UL Standard UL778. CSA certied pumps
are certied to CSA Standard C22.2 No. 108. (CUS.)
DANGER
• FIRE/EXPLOSION HAZARD.
Pump only clear water. Do not pump flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. Do not
use in a flammable and/or explosive atmosphere. Failure to follow these warnings could result in death or serious
injury and/or property damage.
• RISK OF ELECTRIC SHOCK.
These pumps have not been investigated for use in swimming pool and marine areas.
• RISK OF ELECTRIC SHOCK.
Always disconnect power source before attempting to install, service, or maintain the pump. Never handle a pump
with wet hands or when standing on wet or damp surface or in water. Fatal electrical shock could occur.
• RISK OF ELECTRIC SHOCK.
Keep pump out of reach of children.

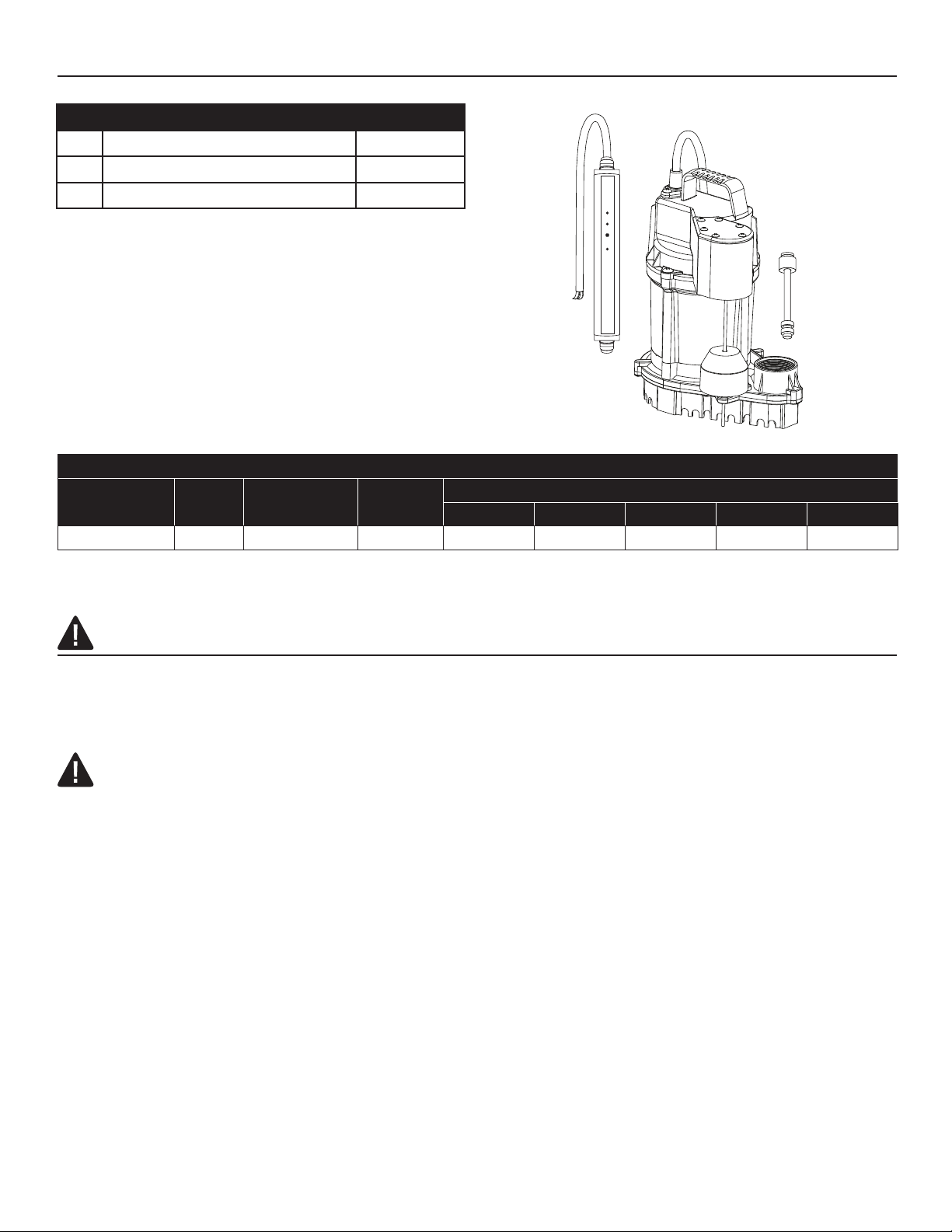

PACKAGE CONTENTS
DESCRIPTION QUANTITY
A Pump 1
B Controller 1
CDual float 1
A
B
C
EG
SPECIFICATIONS
MODEL HP DISCHARGE AMPS PERFORMANCE IN GALLONS PER MINUTE
0 FT. 5 FT. 10 FT. 15 FT. 20 FT.
STBS700 3/4 1-1/2 in. 9.0 80 72 62 50 35

3
© 2020. All rights reserved.
WARNING
• ELECTRICAL SHOCK ALERT.
Before installing this product, have the electrical circuit checked by an electrician to ensure proper grounding. All
electrical installations must conform to the National Electric Code and all local codes.
• ELECTRICAL SHOCK ALERT.
Connect this product to a properly-grounded 115 volt circuit equipped with a Ground Fault Circuit Interrupter (GFCI)
device. Make sure the electrical supply circuit is equipped with fuses or circuit breakers with a minimum capacity of 15
amps.
• ELECTRICAL SHOCK ALERT.
Never use an extension cord.
• ELECTRICAL SHOCK ALERT.
These pumps are supplied with a 3-prong grounded plug to help protect you against the possibility of electrical shock.
DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE GROUND PIN.
• ELECTRICAL SHOCK ALERT.
Do not remove or replace the power cord.
• ELECTRICAL SHOCK ALERT.
Protect electrical cord from sharp objects, hot surfaces, oil, and chemicals. Avoid kinking the cord.
• PROP65 WARNING FOR CALIFORNIA RESIDENTS:
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CAUTION
• PERSONAL INJURY OR PRODUCT DAMAGE MAY RESULT.
This pump operates on 115 volts. Make certain that the power source conforms to the requirements of your
equipment.
• PRODUCT DAMAGE MAY RESULT.
The continuous operating water temperature for this pump must not exceed 104°F (40°C).
• PRODUCT DAMAGE MAY RESULT.
This pump is designed to pump water only. It has not been evaluated for pumping chemicals or corrosive materials.
• PRODUCT DAMAGE MAY RESULT.
Inspect the pump regularly for damage and perform routine maintenance as needed. Remove any debris that may
build up around the on/off operation of the float.
• PROPERTY DAMAGE MAY RESULT.
This product requires a 3/16-in vent hole to be drilled in the discharge pipe, level with the top of the pump. The
vent hole should be checked periodically for clogs. It is normal for water to come out of this vent hole during pump
operation.
• PROPERTY OR PRODUCT DAMAGE MAY RESULT.
This pump is not designed for pumping effluent or sewage.
• PRODUCT DAMAGE MAY RESULT.
This pump is not designed for continuous operation.
•
SAFETY INFORMATION (CONTINUED)

4
© 2020. All rights reserved.
1
21mm
252mm
Reset:
Press for 3 seconds
SILENCE
ALARM
SW1590 A
POWER
B Y
INTELLIGENT
SUMP
CONNECTS TO
MOBILE
DEVICES
This LED should be off
when STBS700 pump is
in AP mode.
When user is connected
to STBS700 pump to set
up WIFI, LED will blink.
When STBS700 pump is
connected to router and
the Basement Sentry
app, this LED will be
solid.

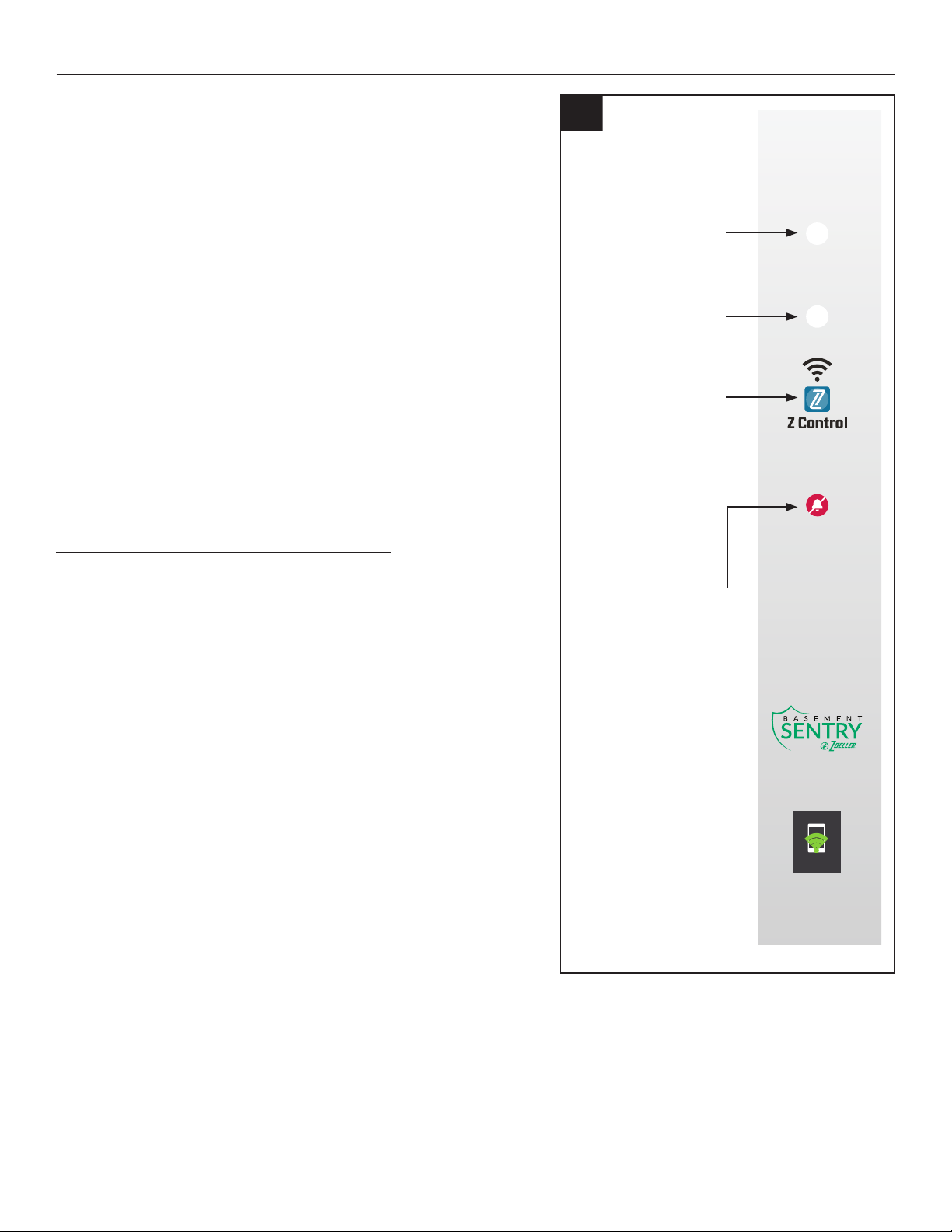

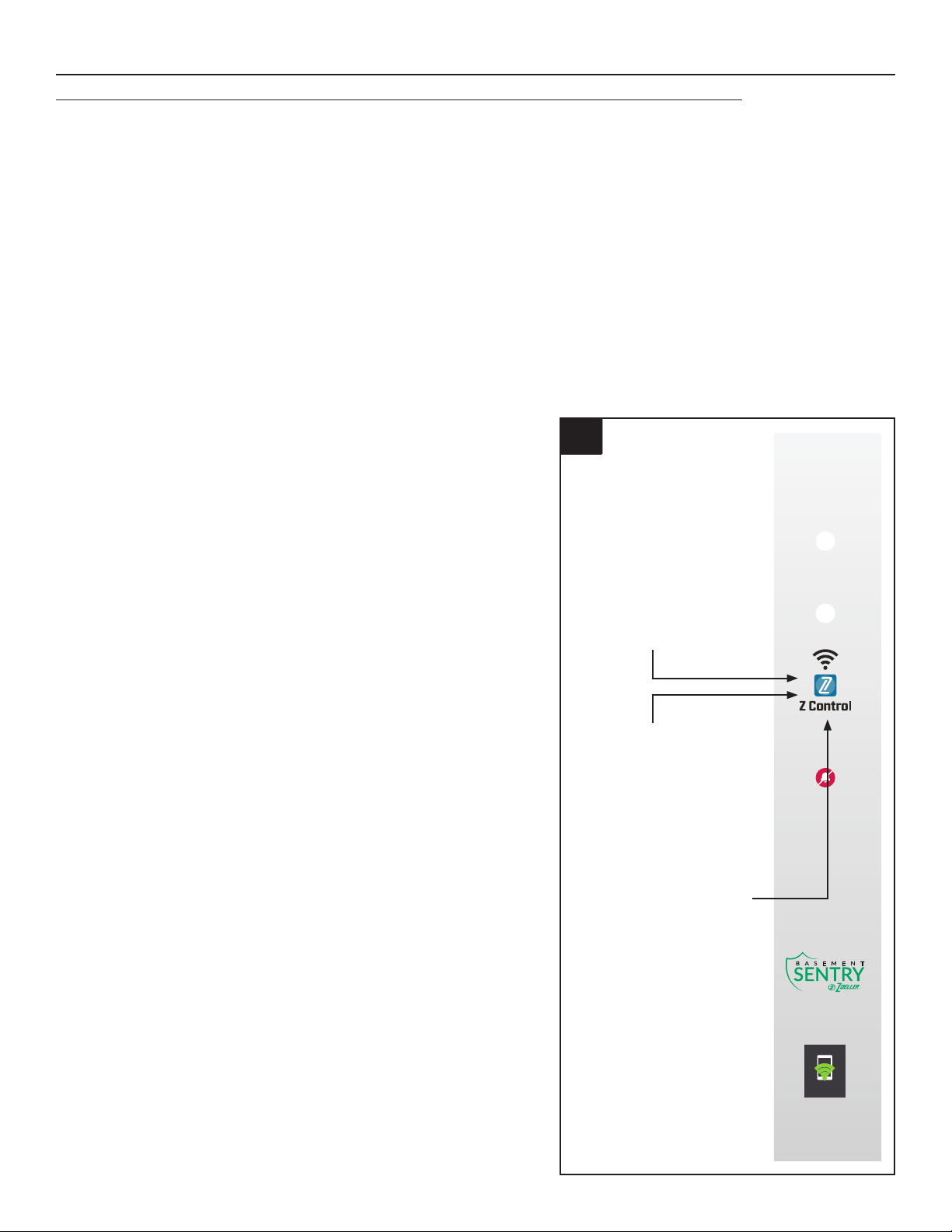

CONNECTING THE STBS700 PUMP TO THE CONTROLLER
Green Power LED
Red Alarm LED
Silence / Reset / Link Button
By connecting the STBS700 pump to the Basement Sentry app
using the built-in WIFI, the user can set up free alert messages
via email and mobile app “push” notifications. In addition, the user
can verify the STBS700 pump readiness, remotely silence alarms,
reset the unit, configure settings, and modify how notifications are
sent. Other visual information such as pump status are available
through the web and app interfaces.
Before you begin:
• Download the Z Control®App, set up account, or go to
zcontrolcloud.com and create account.
• Know your WIFI network’s name (SSID) and the password.
Double check that you know the correct password and exactly
how it is spelled, including capitalization. This will prevent the
most common troubleshooting issue.
• Verify your WIFI router is connected to the internet.
• Verify your phone, tablet, or computer has working WIFI, can
connect to your WIFI router, and that you can be close to the
STBS700 pump during the installation process.
• Locate and note the STBS700 pump Device ID on the silver
sticker on the back of the pump.
Option 1 - Use the Mobile App (iOS and Android)
Before you begin:
• Know what the WiFi router is named (i.e. SSID) and
password. To prevent the most common troubleshooting
issues, double check to be sure you know exactly how the
password is spelled, including capitalization.
• Verify that your mobile device has working WiFi with a strong
signal when you are standing next to the Basement Sentry
controller. If the signal is questionable, the controller may not
be able to maintain a stable connection.
• Verify your WiFi router is connected to the internet and that it
is broadcasting a visible, secure, 2.4Ghz network.
• 2.4 Ghz network is required. If you only see 5 Ghz networks,
you may need to log into your dual band router to choose to
broadcast the networks separately.
• Band steering may need to be temporarily turned off during
setup.
• The 2.4Ghz network must use WPA or WPA2 security. WEP
and open networks are not acceptable.
• Any VPNs or other network controls may need to be
temporarily turned off during setup.
• Locate the Basement Sentry Device ID located on the bottom
of the controller.
• Like most internet connected devices, the Basement Sentry
controller WiFi connectivity should be used behind the security
of a firewall. Most routers have a firewall built into them.
Consult a networking professional for specific questions about
firewalls.
NOTE: The list above will also help troubleshoot connectivity
issues.

5
© 2020. All rights reserved.
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

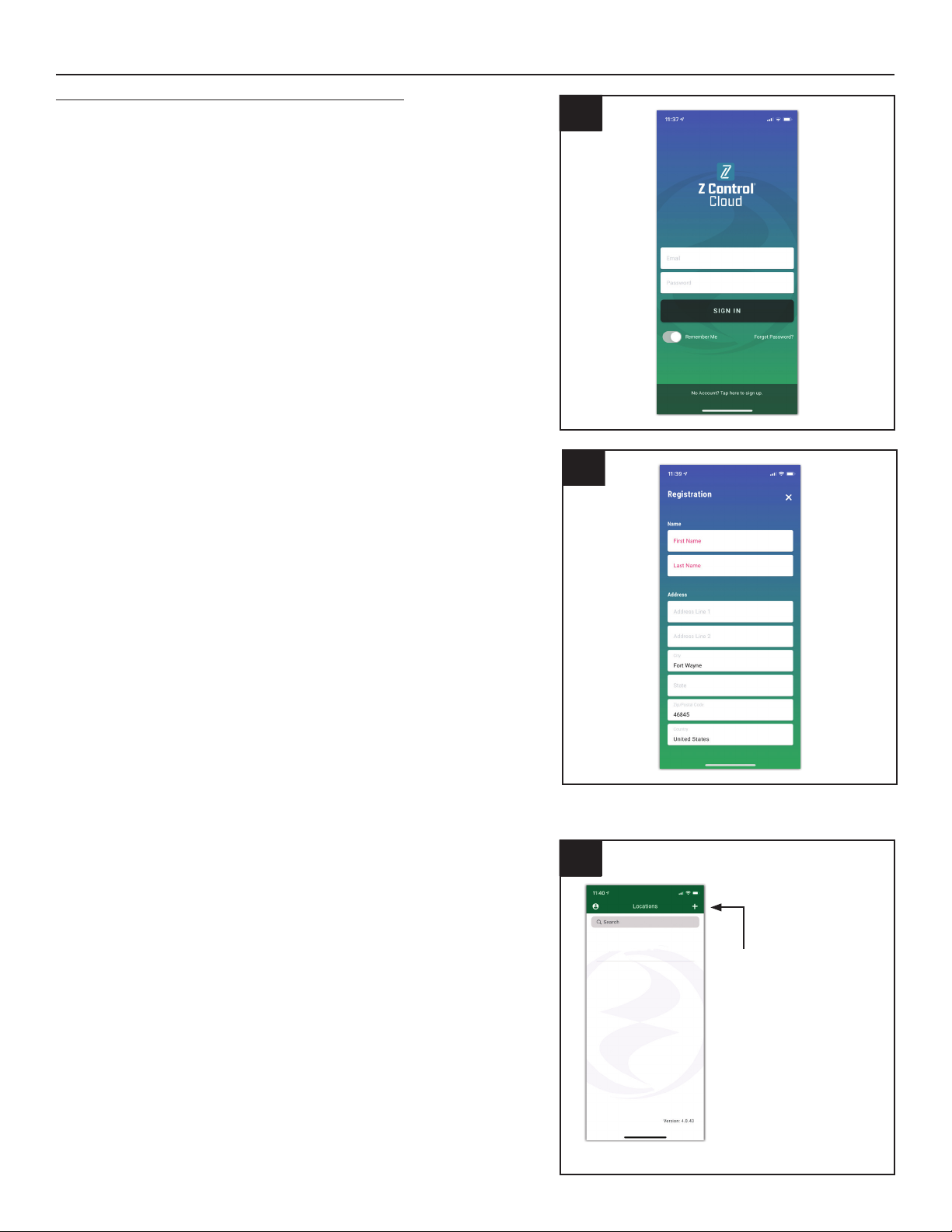

These instructions provide an overview of what the app will
do. You may find additional steps needed.

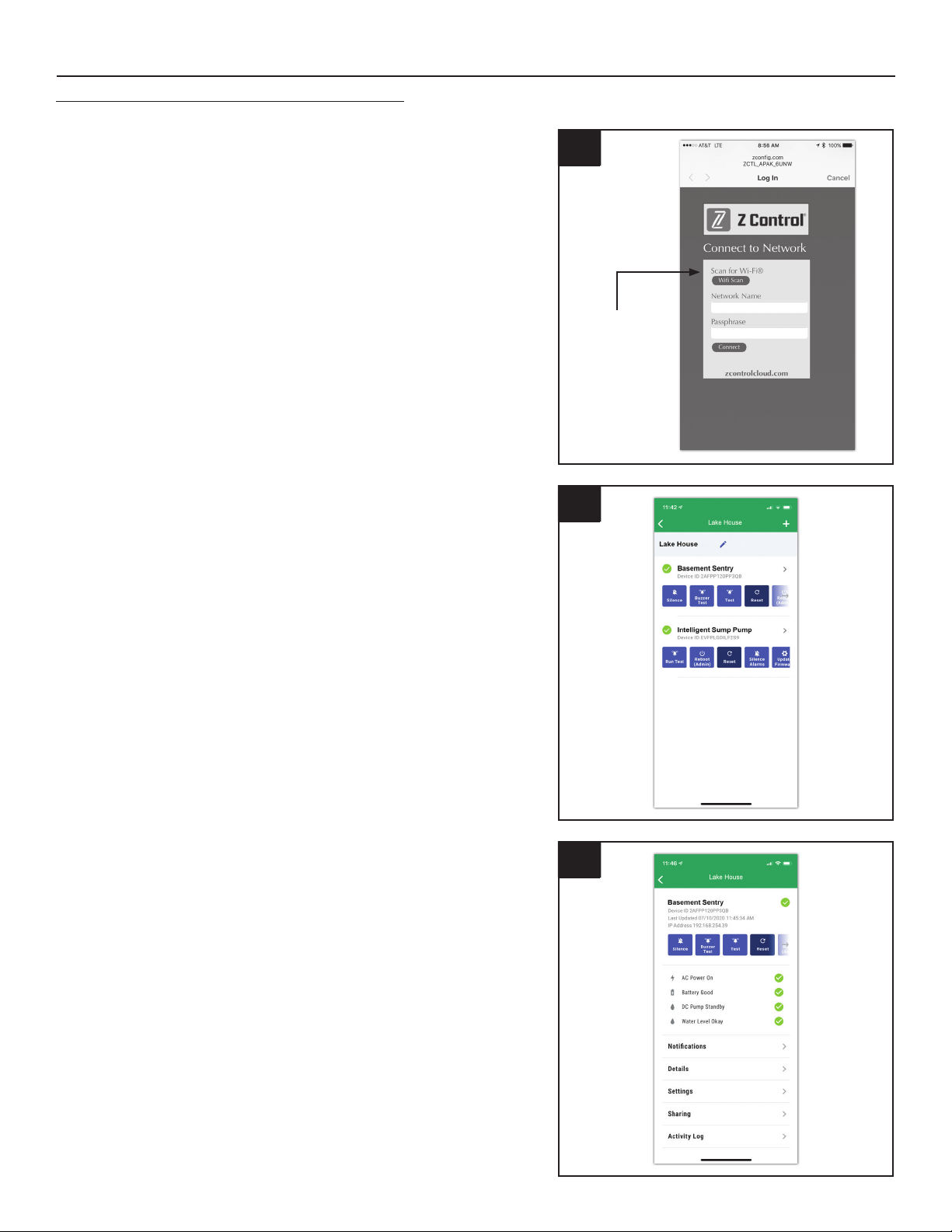

1. Open the app and sign in to your account, If you do not
have an account, you will need to click the link at the
bottom of the home screen to create an account.
1
2
3. Once you’re logged in to your account, create locations by
touching the “+ “ from the Locations screen.
3
2. Open your profile to set up any additional phone numbers
or email addresses where notifications should be sent.
Touch + to create
locations
Use the Mobile App (iOS and Android) (Continued)

6
© 2020. All rights reserved.
Use the Mobile App (iOS and Android) (Continued)
4

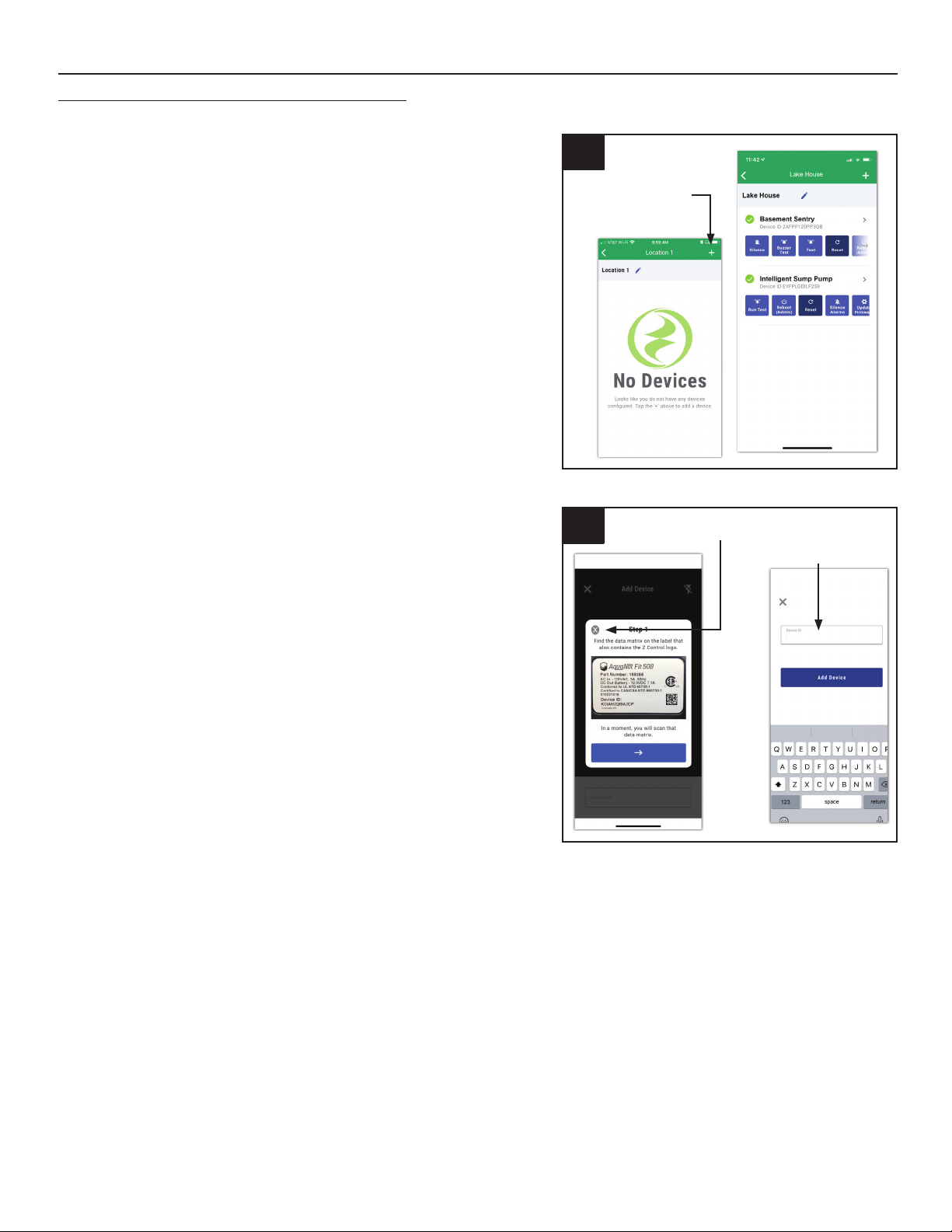

4. Once a location is created, you will need to add a device. To
add a device, choose the desired location name and then
touch the “+” to start adding a device. Allow access to the
camera so you can scan the data matrix. Touch + to
add a device
5
5. The app will ask you to scan the data matrix QR code on the
controller. You can also bypass this step and manually input
the SSID of the controller, which is found on the controller
label.
Click to manually input SSID
SSID input eld
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

7
© 2020. All rights reserved.
Use the Mobile App (iOS and Android) (Continued)
6. When the captive screen opens, use the WiFi Scan button to find
the WiFi network you want the controller to use, select it from the
list provided at the bottom of the screen (you may need to scroll),
and type the password in the field. The Z Control®LED should be
solid within a minute indicating successful connection to the router
and the Z Control®Cloud. Upon first connecting to the cloud, the
Basement Sentry controller may immediately update its firmware
over-the-air (OTA), if an update is available. If an update is taking
place, the Z Control®LED will flicker for up to one minute while
the update is downloaded. The Z Control®LED will be solid and
all other LEDs will turn off while the update is being installed. After
up to one minute, the controller will restart and return to normal
operation. The controller alert history on the Z Control®Cloud will
also be updated with the firmware update information, and any
email accounts that are set up will be notified.
7
7. You can now return to the Z Control®app to find your new
device set up in the location you previously selected. You can
always change a device to a different location in your account.
6
Click WiFi
Scan button
8
8. Open the Basement Sentry app to explore current status,
configuration settings, and commands available, such as
Pump Test, Buzzer Test, Silence, etc. Perform these test to be
sure everything works as expected. Reset all alarms when you
are finished.
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

8
© 2020. All rights reserved.
Option 2 - Use your mobile device or computer to connect directly to the Basement Sentry controller
Instead of using a mobile device and the Z Control®app,
you can also use your mobile device or computer to directly
connect to the controller.
Before you begin:
• Know what the WiFi router is named (i.e. SSID)
and password. To prevent the most common
troubleshooting issues, double check to be sure you
know exactly how the password is spelled, including
capitalization.
• Verify that your mobile device has working WiFi
with a strong signal when you are standing next
to the Basement Sentry controller. If the signal is
questionable, the controller may not be able to maintain
a stable connection.
• Verify your WiFi router is connected to the internet
and that it is broadcasting a visible, secure, 2.4Ghz
network.
• 2.4 Ghz network is required. If you only see 5 Ghz
networks, you may need to log into your dual band
router to choose to broadcast the networks separately.
• Band steering may need to be temporarily turned off
during setup.
• The 2.4Ghz network must use WPA or WPA2 security.
WEP and open networks are not acceptable.
• Any VPNs or other network controls may need to be
temporarily turned off during setup.
• Create a free account at zcontrolcloud.com.
• Locate the Basement Sentry Device ID located on the
top of the controller.
NOTE: The above list also helps to troubleshoot
connectivity issues.
If the controller still will not connect after trying the
above suggestions, follow the same steps to connect the
controller to a mobile phone hotspot instead of the home
WiFi router. If the controller successfully connects to the
cloud through the hotspot, then the conflict is probably
related to router settings.
*AP Mode is when the controller is broadcasting its “name”, or SSID.
The SSID is in a format similar to ZCTL_SSUMP_XXXX where “xxxx”
is the first 4 digits of your controller device ID (See Figure 2). The
Basement Sentry controller SSID will show up in your phone/tablet/
computer’s list of available WiFi options, and selecting it will give you
direct connectivity to the controller. This is required in order to give
your controller the password credentials needed to connect to the
WiFi of your choice.
1
21mm
252mm
Reset:
Press for 3 seconds
SILENCE
ALARM
SW1590 A
POWER
B Y
INTELLIGENT
SUMP
CONNECTS TO
MOBILE
DEVICES
Apply AC power to the
controller. The Z Control®
LED will blink and then
turn off, indicating the
controller is in AP Mode*
and is transmitting an
SSID.
If the LED is blinking and
not in AP mode, press the
Z Control® button for 12
seconds and let go.
The LED will now be off,
indicating the controller
is in AP Mode. A pen or
toothpick or similar is
required to press the Z
Control®button.
1. Plug the controller into AC outlet. The Power LED will illuminate.
The alarm LED and white Z Control will ash once, indicating the
controller is transmitting
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

9
© 2020. All rights reserved.
2. Standing near the controller, use your phone, tablet, or computer to
look for the Basement Sentry controller SSID in your WiFi settings.
It will look similar to “ZCTL_SSUMP_XXXX” where “xxxx” is the
first 4 digits of your controller device ID. Select this, and be sure
your device displays a check mark or similar indicator that you
are connected to the controller local network. If so, two things will
happen:
A. The Z Control®LED will flash quickly.
B. A Z Control® setup screen (Figure 3) will open. This may take
up to 30 seconds.
If the setup screen does not appear, open a browser on the same
device and type “192.168.125.1” in the address bar. If the setup
screen appears but is not used (canceled or otherwise closed), the
controller will return to AP mode and the Z Control®LED will turn
off until the next WiFi setup attempt. If the setup screen still does
not appear, verify your device is still connected to the controller
SSID. If it isn’t, repeat Step 2 and be sure your device’s WiFi
stays connected to the controller. If your device shows a warning
message about no internet or no security on the controller network,
ignore this and connect to it anyway.
2
3. On the setup screen, press the WiFi Scan button, scroll down to
see the list of WiFi signals found, and choose the WiFi you want
the Basement Sentry controller to use for internet connectivity.
Enter the password for the router you chose in the field
indicated. If the password is correct, the controller will connect
to the router and start sending status updates to zcontrolcloud.
com. You will see the Z Control®LED go from blinking to solid.
This could take up to a minute or so.
If the LED does not turn solid, then the password entered is
incorrect, the router’s security is insufficient (see note below**),
or some other network restriction is in place (see your network
administrator). The controller will return to standby mode if
the connection to router is not successful. If you need to force
the controller into AP mode again, press the Z Control®button
for 12 seconds (See Figure 1). This will cause the controller
to re-enter AP mode and begin transmitting the SSID again.
Repeat Steps 2 and 3.
Select the
Basement Sentry
SSID.
The last 4 digits
(underlined) will
match the rst
4 digits of the
controller
Device ID.
3
Click WiFi
Scan button
Connecting with your mobile device or computer (Continued)
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

10
© 2020. All rights reserved.
4
Click WiFi
Scan button
The controller will not connect to routers
with ‘WEP’ or ‘OPEN’ security.
Available
WiFi will
show here.
Choose the
one you
want.
4. Once the controller LED is solid, log in to your account (or
create one) at zcontrolcloud.com. Choose the Add New
Device button next to the location you want the controller
(see Figure D). Follow the directions to add your controller
by either auto-detect or entering the Device I.D. When
successful, a Basement Sentry product tile will appear in your
account.
Connecting with your mobile device or computer (Continued)
Controller Set-Up
Your Basement Sentry controller is now online. Be sure you
have added the contact information for phone numbers and
email addresses that should receive notification. This can
done by selecting “Manage Contacts” from the main menu
(the square with 3 lines in the upper right corner). You can
also edit how each device sends out notifications from the
devices
“Alarm Settings” tab. You can now open the product’s
configuration by clicking the “View” button to modify the
controller device and notification settings. You can also
install the Z Control®mobile app on your mobile device
(Android and iOS versions available, search
“Z Control®” in the app stores).
Firmware Updates
The Basement Sentry controller is capable of OTA, or over-
the-air firmware updates. It’s possible that the controller
could perform an update immediately if one is available
at the Z Control®Cloud. If an update is taking place, the
Z Control®LED will flicker for up to one minute while the
update is downloaded. The Z Control®LED will be solid
and all other LEDs will turn off while the update is being
installed. After up to one minute, the controller will restart
and return to normal operation. The controller’s alert
history on the Z Control®Cloud will also be updated with
the firmware upgrade information, and notification to email
accounts will occur.
CONNECTING THE STBS700 PUMP TO THE CONTROLLER (CONTINUED)

11
© 2020. All rights reserved.
Z Control LED and
Alarm Behaviors
Power LED Power LED is on when AC power is present.
Alarm Input LED on solid.
Alarm triple beeps continuously.
Z Control LED LED is solid when connected to router and Basement Sentry app.
LED is off when STBS700 controller is in AP mode.*
LED blinks when WIFI setup is in process.
LED blinks faster if STBS700 controller is attempting to reconnect to a
known router.
LED alternates blinking fast then slow when STBS700 controller is
connected to router, but internet is lost.
Silence Button Press/release Silences alarms. LED that is in alarm stays on (or blinks) until
STBS700 controller is reset.
Hold 3 seconds Resets any active alarms and returns STBS700 controller to standby
mode.
Hold 4 seconds Initiates an LED and Alarm Test. Will flash and double beep 3 times.
Hold while applying AC to
STBS700 controller
STBS700 controller will enter AP mode.* For STBS700 controller to
revert to previous WIFI settings, power cycle again.
Hold 12 seconds Complete reset of STBS700 controller to factory settings, including
erasing WIFI settings. STBS700 controller will enter AP mode.*
Communications Communication with
Basement Sentry app
Communication is nearly continuous.
Communication with
Basement Sentry app lost
Notification sent to user after 10 minutes of no communication.
Alarm condition present Immediate communication to Basement Sentry app.
STBS700 PUMP LED, BUTTON, ALARM, AND CONTROLLER BEHAVIORS
Product information presented here reflects conditions at time of publication. Consult factory regarding discrepancies or inconsistencies.

12
© 2020. All rights reserved.
PREPARATION
Estimated Installation Time: 15 minutes
Materials required for assembly: Sump basin, inlet piping, discharge piping (PVC, poly pipe or galvanized steel), check
valve, and 2-step PVC glue system (primer and sealer).
This pump is designed to be installed in a sump basin for
removing clear drain water and will usually pass small
particles suspended in water. Heavy mud, sand, or pea
gravel can clog the pump, which can usually be cleaned
out by back-flushing with a garden hose through the pump
discharge.
The sump basin must be at least 18-in deep and 10-in
diameter.
Dual float operation:
The pump will turn on when the large, primary float is in the
up position and off when the primary float is in the down
position.
If the pump runs for more than 25 seconds (primary float is
high) and the small backup float is in the down position, the
primary float will be temporarily disabled. If the primary float
moves to the down position or three minutes have elapsed,
the primary float is re-enabled.
If the backup float moves up, the pump will turn on. When
the backup float moves down, a 10 second timer will be
enabled. The pump will run until the primary float drops
down and the 10 second timer has expired.
On / O󰀨 Levels - Primary Float Switch
Primary Float Switch
On Level 7 in.
Off Level 3 in.
These pumps are equipped with a vertical float switch.
The pump will turn on automatically when the water level
in the sump reaches the float switch “on” level and turn off
when the water drops to the float switch “off” level.
IL1950
Backup
Float/Alarm
‘ON’ Level
High Water
Float
Pump ‘ON’
Level
Pump ‘OFF’
Level
Check Valve
To Power Supply
STBS700 Controller

13
© 2020. All rights reserved.
IL2016
3

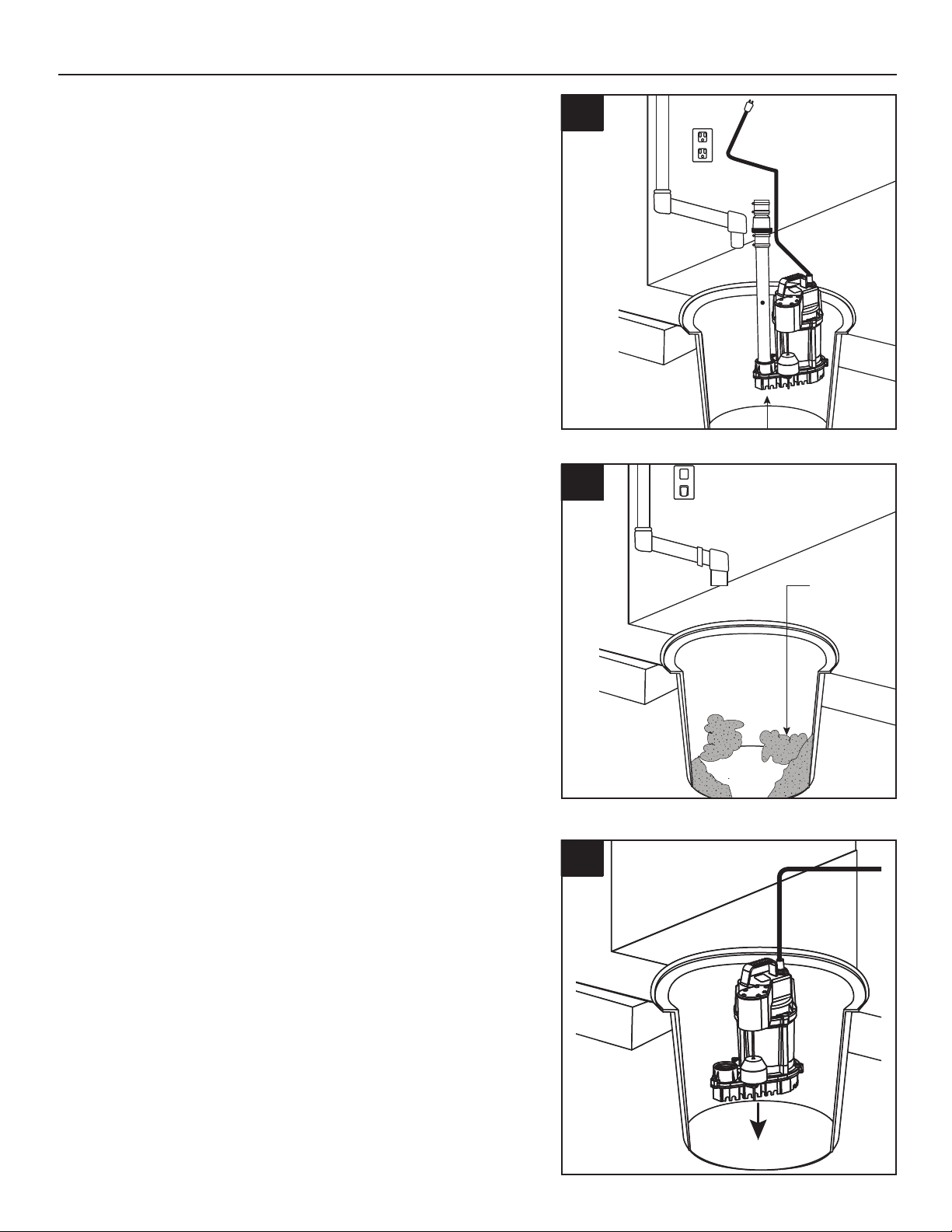

3. Place the STBS700 pump in the sump basin.
Remove
debris
2
115 V
GFCI outlet
1
2. Remove any dirt or accumulated debris from the sump pit
and surrounding area.
1. CAUTION: For your safety, turn off the electrical power at
the service entrance to avoid any possible electrical shock
hazards. Before installing the pump in the sump pit, be sure
to unplug the pump from the outlet.
Disconnect the existing pump from the power source.
Disconnect or cut the main discharge pipe and separate
the primary sump pump from the discharge pipe. Remove
the pump from the sump basin.
WARNING: Never handle a pump with wet hands or
when standing on wet or damp surface or in water.
Fatal electrical shock could occur.
SUMP PUMP INSTALLATION

14
© 2020. All rights reserved.
3/16-in
Vent hole
5
5. Drill a 3/16-in vent hole in the discharge pipe, level with the
top of pump. It is normal for water to spray from this hole
when the pump is operating.
Discharge pipe
and ttings
Check
valve
4
4. Connect the discharge pipe, fittings, and check valve (not
provided) to pump discharge. The discharge pipe should be the
same size as the discharge of pump (1-1/2-in) or larger.
A check valve must be installed in the discharge pipe to keep water
from draining back into the sump basin when it is not operating.
NOTE: Make sure there is enough room in the basin for the float to
move freely. If the float is restricted, the pump will not operate.
SUMP PUMP INSTALLATION (CONTINUED)

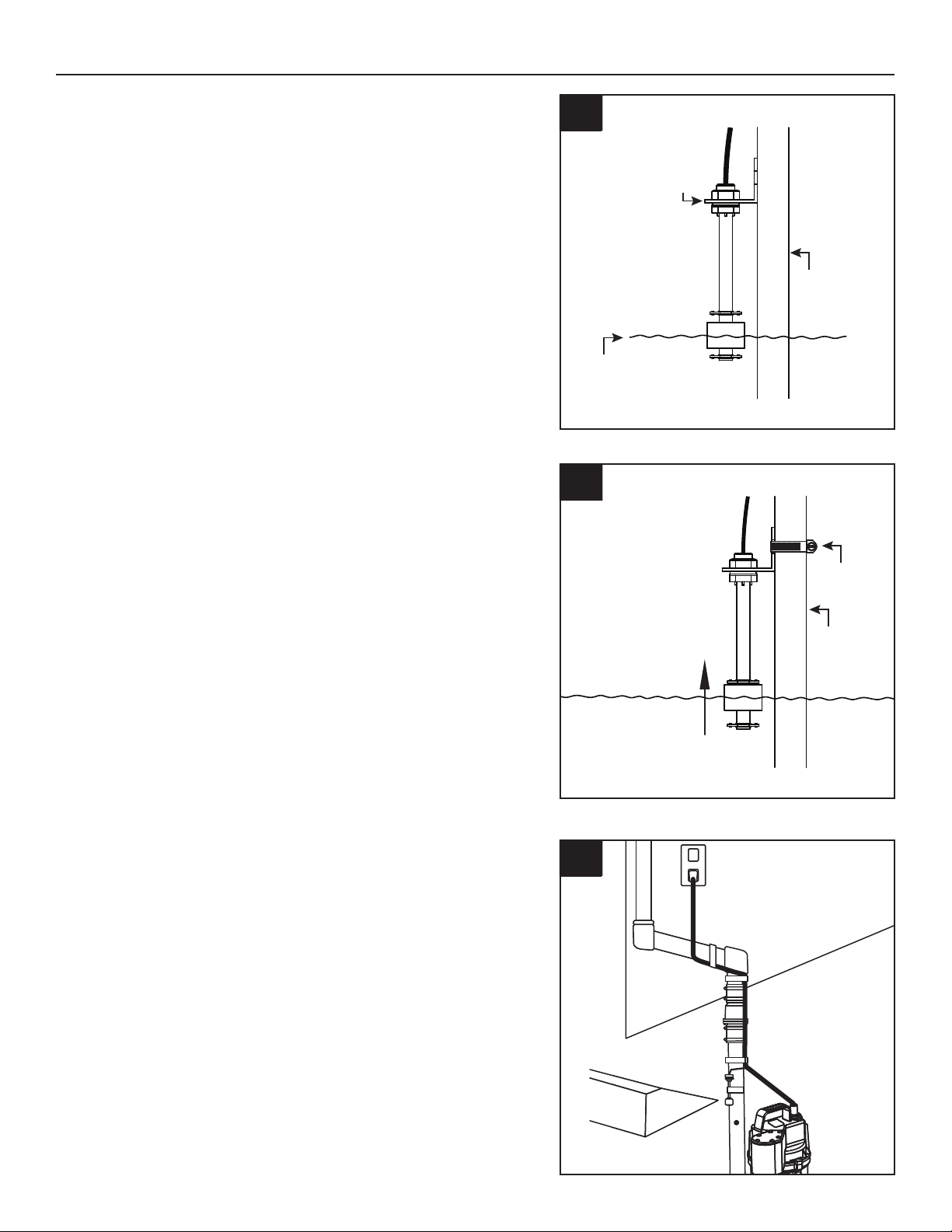

6. A. Fasten second float to right-angle mounting bracket
by unthreading plastic nut. Re-tighten plastic nut after
inserting sensor stem in bracket.
Plastic Nut
Right-angle
Mounting
Bracket
Sensor
Stem
6A

15
© 2020. All rights reserved.
7. Make sure your hands are dry and you are not standing
in water. Connect the pump to a properly-grounded, GFCI
electrical outlet.
WARNING: Do not use an extension cord.
NOTE: Tape the electrical cord to the discharge pipe to
prevent it from interfering with the motion of the float.
115 V
GFCI outlet
7
Hose
Clamp
Discharge
Pipe
6C
6. C. Attach mounting bracket to the discharge pipe as shown,
using hose clamp (included).
WARNING: DO NOT install high water float in direct line
of incoming water or close to the vent hole.
On level
Discharge
Pipe
Right-angle
Mounting
Bracket
6B
6. B. Position second float float at desired ‘on level’ on the
discharge pipe.
SUMP PUMP INSTALLATION (CONTINUED)

16
© 2020. All rights reserved.
WARRANTY
This product is warranted for three years from the date of purchase. Subject to the conditions hereinafter set forth,
the manufacturer will repair or replace to the original consumer any portion of the product which proves defective due
to defective materials or workmanship. To obtain warranty service, contact the dealer from whom the product was
purchased. The manufacturer retains the sole right and option to determine whether to repair or replace defective
equipment, parts, or components. Damage due to conditions beyond the control of the manufacturer is not covered by this
warranty.
THIS WARRANTY WILL NOT APPLY: (a) To defects or malfunctions resulting from failure to properly install, operate,
or maintain the unit in accordance with printed instructions provided; (b) to failures resulting from abuse, accident, or
negligence, or use of inappropriate chemicals or additives in the water; (c) to normal maintenance services and the parts
used in connection with such service; (d) to units which are not installed in accordance with normal applicable local codes,
ordinances, and good trade practices; and (e) if the unit is used for purposes other than for what it was designed and
manufactured.
RETURN OF WARRANTED COMPONENTS: Any item to be repaired or replaced under this warranty must be returned to
the manufacturer at Kendallville, Indiana or such other place as the manufacturer may designate, freight prepaid.
THE WARRANTY PROVIDED HEREIN IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES, AND MAY NOT BE
EXTENDED OR MODIFIED BY ANYONE. ANY IMPLIED WARRANTIES SHALL BE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY AND THEREAFTER ALL SUCH IMPLIED WARRANTIES ARE DISCLAIMED AND
EXCLUDED. THE MANUFACTURER SHALL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE FOR INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, SUCH AS, BUT NOT LIMITED TO DAMAGE TO, OR LOSS OF,
OTHER PROPERTY OR EQUIPMENT, LOSS OF PROFITS, INCONVENIENCE, OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY TYPE OR NATURE. THE LIABILITY OF THE MANUFACTURER SHALL NOT
EXCEED THE PRICE OF THE PRODUCT UPON WHICH SUCH LIABILITY IS BASED.
This warranty gives you specic legal rights, and you may have other rights which vary from state to state. Some states
do not allow limitations on duration of implied warranties or exclusion of incidental or consequential damages, so the
above limitations may not apply to you.
In those instances where damages are incurred as a result of an alleged pump failure, the Homeowner must retain
possession of the pump for investigation purposes.

1
© 2020. Todos los derechos reservados.
SUMIDERO INTELIGENTE
BOMBA DE SUMIDERO DE
GRAN VOLUMEN CON WiFi
MODELO #STBS700
BY
BasementSentry.com
Zoeller®es una marca registrada de
Zoeller Co. Todos derechos reservados.
SW1589S A
Fecha de compra
¿Preguntas, problemas, partes faltantes? Antes de acudir al minorista, llame a nuestro departamento de
servicio al cliente al 1-800-584-8089, de lunes a viernes de 7:30 a.m. a 5:00 p.m., EST.
ADJUNTE SU RECIBO AQUÍ

2
© 2020. Todos los derechos reservados.
ESPECIFICACIONES
MODELO HP DESCARGA AMPERIOS RENDIMIENTO EN GALONES POR MINUTO
0 PIES 5 PIES 10 PIES 15 PIES 20 PIES
STBS700 3/4 1-1/2” 9.0 80 72 62 50 35
CONTENIDO DEL PAQUETE
DESCRIPCIÓN CANTIDAD
A Bomba de 12 V con junta tórica 1
B Controlador 1
CFlotador doble 1
A
B
C
INFORMACIÓN DE SEGURIDAD
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto.
NOTA: Las bombas que exhiban la marca “UL”, así como aquéllas que exhiban la marca “US”, satisfacen la norma UL778
de Underwriters Laboratory. Las bombas certicadas por la Asociación Canadiense de Normalización (CSA) satisfacen la
norma C22.2 de la CSA. 108.
PELIGRO
• PELIGRO DE INCENDIO O EXPLOSIÓN.
Bombee solo agua limpia. No bombee líquidos inflamables o explosivos como gasolina, gasoil, queroseno, etc. No
la utilice en una atmósfera inflamable o explosiva. No seguir estas instrucciones puede provocar la muerte, lesiones
graves o daños a la propiedad.
• RIESGO DE DESCARGA ELÉCTRICA.
No se ha verificado el uso de estas bombas en piscinas.
• RIESGO DE DESCARGA ELÉCTRICA.
Desconecte siempre la fuente de alimentación antes de intentar instalar, reparar o realizarle mantenimiento a la
bomba. Nunca manipule una bomba con las manos mojadas ni cuando esté parado sobre una superficie húmeda o
en el agua. Podría ocurrir una descarga eléctrica fatal.
• RIESGO DE DESCARGA ELÉCTRICA.
Mantenga la bomba alejada del alcance de los niños.

3
© 2020. Todos los derechos reservados.
ADVERTENCIA
• ALERTA DE DESCARGA ELÉCTRICA.
Antes de instalar este producto, haga que un electricista revise su circuito para asegurarse de que la puesta a tierra
sea adecuada. Todas las instalaciones eléctricas deben cumplir con el Código Nacional de Electricidad (NEC, por sus
siglas en inglés) y con todos los códigos locales.
• ALERTA DE DESCARGA ELÉCTRICA.
Conecte el adaptador de CA a un circuito de 115 V con la debida conexión a tierra equipado con un interruptor de
circuito con protección de falla a tierra (GFCI, por sus siglas en inglés). Asegúrese de que el circuito de suministro
eléctrico esté equipado con fusibles o disyuntores con una capacidad mínima de 15 amperios.
• ALERTA DE DESCARGA ELÉCTRICA.
Nunca utilice una extensión eléctrica.
• ALERTA DE DESCARGA ELÉCTRICA.
Estas bombas se suministran con un enchufe de tres terminales con conexión de tierra, para ayudar a proteger al usuario contra
un posible choque eléctrico. BAJO NINGUNA CIRCUNSTANCIA ELIMINE EL TERMINAL DE TIERRA.
• ALERTA DE DESCARGA ELÉCTRICA.
No retire ni reemplace el cable eléctrico.
• ALERTA DE DESCARGA ELÉCTRICA.
Proteja el cable eléctrico de objetos afilados, superficies calientes, aceite y otras sustancias químicas. Evite torcer el
cable.
• ADVERTENCIA DE PROPOSICIÓN 65 PARA RESIDENTES DE CALIFORNIA :
Advertencia: Cáncer y Daño Reproductivo – www.P65Warnings.ca.gov
PRECAUCIÓN
• PODRÍAN PRODUCIRSE LESIONES PERSONALES O DAÑOS AL PRODUCTO.
El adaptador de CA opera a 115 V. Asegúrese de que la fuente de alimentación cumpla con los requisitos de su
equipo.
• PRODUCT DAMAGE MAY RESULT.
La temperatura de funcionamiento continuo del agua para las bombas de modelo estándar no debe exceder los 40
°C (104 °F).
• PUEDE PROVOCAR DAÑO AL PRODUCTO.
Esta bomba fue diseñada solo para bombear agua. No se ha probado su uso para bombear productos químicos ni
materiales corrosivos.
• PUEDE PROVOCAR DAÑO AL PRODUCTO.
Revise de manera regular que la bomba no presente daños y realícele mantenimiento de rutina cuando sea
necesario.
• PROPERTY DAMAGE MAY RESULT.
This product requires a 3/16-in vent hole to be drilled in the discharge pipe, level with the top of the pump. The
vent hole should be checked periodically for clogs. It is normal for water to come out of this vent hole during pump
operation.
• PROPERTY OR PRODUCT DAMAGE MAY RESULT.
This pump is not designed for pumping effluent or sewage.
• PRODUCT DAMAGE MAY RESULT.
This pump is not designed for continuous operation.
INFORMACIÓN DE SEGURIDAD (CONTINUACIÓN)

4
© 2020. Todos los derechos reservados.
1
21mm
252mm
Reset:
Press for 3 seconds
SILENCE
ALARM
SW1590 A
POWER
B Y
INTELLIGENT
SUMP
CONNECTS TO
MOBILE
DEVICES
Este LED debe estar
apagado cuando la
bomba STBS700 está en
modo AP.
Cuando el usuario
esté conectado a la
bomba STBS700 para
configurar el WiFi, el
LED parpadeará.
Cuando la bomba
STBS700 esté
conectada al router
y a la aplicación
Basement Sentry, el LED
estará continuamente
iluminado.
CONECTAR LA BOMBA STBS700 AL CONTROLADOR
LED de alimentación
verde
LED rojo de alarma
Silenciar / restablecer /
botón de enlace
Al conectar la bomba STBS700 a la aplicación Basement Sentry
mediante el WiFi integrado, el usuario puede configurar mensajes
de alerta gratuitos por correo electrónico y notificaciones “push”
de la aplicación móvil. Además, el usuario puede verificar la
disponibilidad de la bomba STBS700, silenciar alarmas de
manera remota, restablecer la unidad, ajustar las configuraciones
y modificar la forma de envío de las notificaciones. También
hay otros tipos de informaciones visuales, como el estado de la
bomba, disponibles por Internet y a través de las interfaces de la
aplicación.
Antes de comenzar:
• Descargue la aplicación Z Control®, configure la cuenta o
ingrese en zcontrolcloud.com y cree una cuenta.
• Sepa cuál es el nombre (es decir, el SSID) y la contraseña
de su router WiFi. Vuelva a verificar la contraseña para saber
cómo se escribe exactamente, incluido si tiene mayúsculas o
minúsculas.
• Verifique que su router de WiFi esté conectado a Internet.
• Verifique que su teléfono, tableta o computadora tenga WiFi
en funcionamiento, que pueda conectarse a su enrutador de
WiFi y que usted pueda estar cerca del controlador Basement
Sentry durante el proceso de instalación.
• Localice y anote la identificación del dispositivo de la bomba
STBS700 en la calcomanía plateada que se encuentra en la
parte trasera de la bomba.
Opción 1 - Utilizar la aplicación móvil (iOS y Android)
Antes de comenzar:
• Sepa cuál es el nombre (es decir, el SSID) y la contraseña
de su router WiFi. Para evitar uno de los problemas más
comunes, vuelva a verificar la contraseña para saber cómo
se escribe exactamente, incluido si tiene mayúsculas o
minúsculas.
• Verifique que su dispositivo móvil tenga WiFi en
funcionamiento con una señal fuerte cuando esté junto al
controlador Basement Sentry. Si la señal es dudosa, es
posible que el controlador no pueda mantener una conexión
estable.
• Verifique que su router WiFi esté conectado a Internet y que
esté transmitiendo una red visible y segura de 2.4 GHz.
• Se requiere una red de 2.4 GHz. Si solo ve redes de 5 GHz,
puede que tenga que iniciar sesión en su router de banda
dual para elegir transmitir las redes por separado.
• Es probable que sea necesario apagar temporalmente el
direccionamiento de banda durante la configuración.
• La red de 2.4 GHz debe utilizar seguridad WPA o WPA2. No
se aceptan redes WEP ni abiertas.
• Puede ser necesario apagar temporalmente cualquier VPN u
otros controles de red durante la configuración.
• Localice el ID de dispositivo del Basement Sentry situado en
la parte superior del controlador.
• A igual que la mayoría de los dispositivos
conectados a Internet, la conectividad WiFi
del controlador Basement Sentry debe estar
protegida por un firewall. La mayoría de los
routers cuentan con un firewall integrado.
Consulte a un profesional de redes por
preguntas específicas sobre los firewalls.
NOTA: La lista anterior también puede ayudar a
solucionar problemas de conectividad.
