ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 1of 10
Operator’s Guide
ZOLL Medical Corporation
269 Mill Road
Chelmsford, MA USA
01824-4105
Attn: Technical Service Department
Tel: [phone]
Fax: [phone]
ZOLL International Holding B.V.
Newtonweg 18
6662 PV ELST
The Netherlands
Tel: [phone]
Fax: [phone]
International Service: Contact your local distributor.
© 2018 ZOLL Medical Corporation
TRAINING USE ONLY –NOT FOR CLINICAL USE

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 2of 10
The ZOLL AED 3TM Trainer is used to demonstrate and practice complete Sudden Cardiac Arrest rescue
simulations, including delivering shocks and performing CPR.
The following items are included in the shipping box:
Qty 1: ZOLL AED 3 Trainer
Qty 1: ZOLL AED 3 Trainer CPR Uni-padzTM Electrode Training Harness, Electrode Pads, and Liners
Qty 4: D-cell Batteries
Qty 1: ZOLL AED 3 Trainer Operator’s Guide
Features of the ZOLL AED 3 Trainer
Integrated Real CPR Help®: The ZOLL AED 3 Trainer incorporates real-time compression feedback
(rate and depth) during compressions when using the ZOLL AED 3 Trainer CPR Uni-padz.
”Pads On” manikin detection: The ZOLL AED 3 Trainer moves to the “analysis” state once the
trainee places the CPR Uni-padz on the manikin.
Active LCD Display: The full color display mimics the ZOLL AED 3 and displays rescue images along
with the real-time compression bar when the trainee is performing compressions.
Easy Configuration: Configuration is performed directly on the trainer. There is no need for a
remote control. Available options include:
oTraining scenario
oOperating mode (SEMI-AUTOMATIC or FULLY AUTOMATIC)
oLay Rescuer Prompts (ON/OFF)
oCheck Breathing Prompts (ON/OFF)
oReal CPR Help Prompts (ON/OFF)
oVolume
oLanguage (select models only)
Adult/Child Operation
Semi-Automatic/Fully Automatic: One trainer for both types of devices. The ZOLL AED 3 Trainer can
easily convert from a Semi-Automatic mode to a Fully Automatic mode.
Long lasting training pad: The electrode pads are designed to last for a minimum of 50 training
classes. The electrode harness is designed to last for a minimum of 100 training classes.
USB Software Updates: The trainer’s software is easily updated using a USB flash drive with
preloaded software.
oNOTE: Leaving a USB flash drive installed in the USB Connector during training will reduce the
battery life and impact the performance of the ZOLL AED 3 Trainer.

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 3of 10
ZOLL AED 3 Trainer
Front of ZOLL AED 3 Trainer
1 –ON/OFF Button
2 –Replicated Status Indicator
3 –Training Electrode Connector
4 –Shock Button
5 –Child Button
6 - Speaker
Rear of ZOLL AED 3 Trainer
1 –USB Connector
2 –Device Identification Label
3 –Device Serial Number Label
4 –Battery Compartment Door
5 –Support Kick-stand

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 4of 10
ZOLL AED 3 Trainer Operational Buttons
1 –Training Scenario Pause Button
2 –Device Configuration Menu Selection Button
3 –Device Configuration Menu Scroll Button
4 –Device Configuration Option Selection Button

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 5of 10

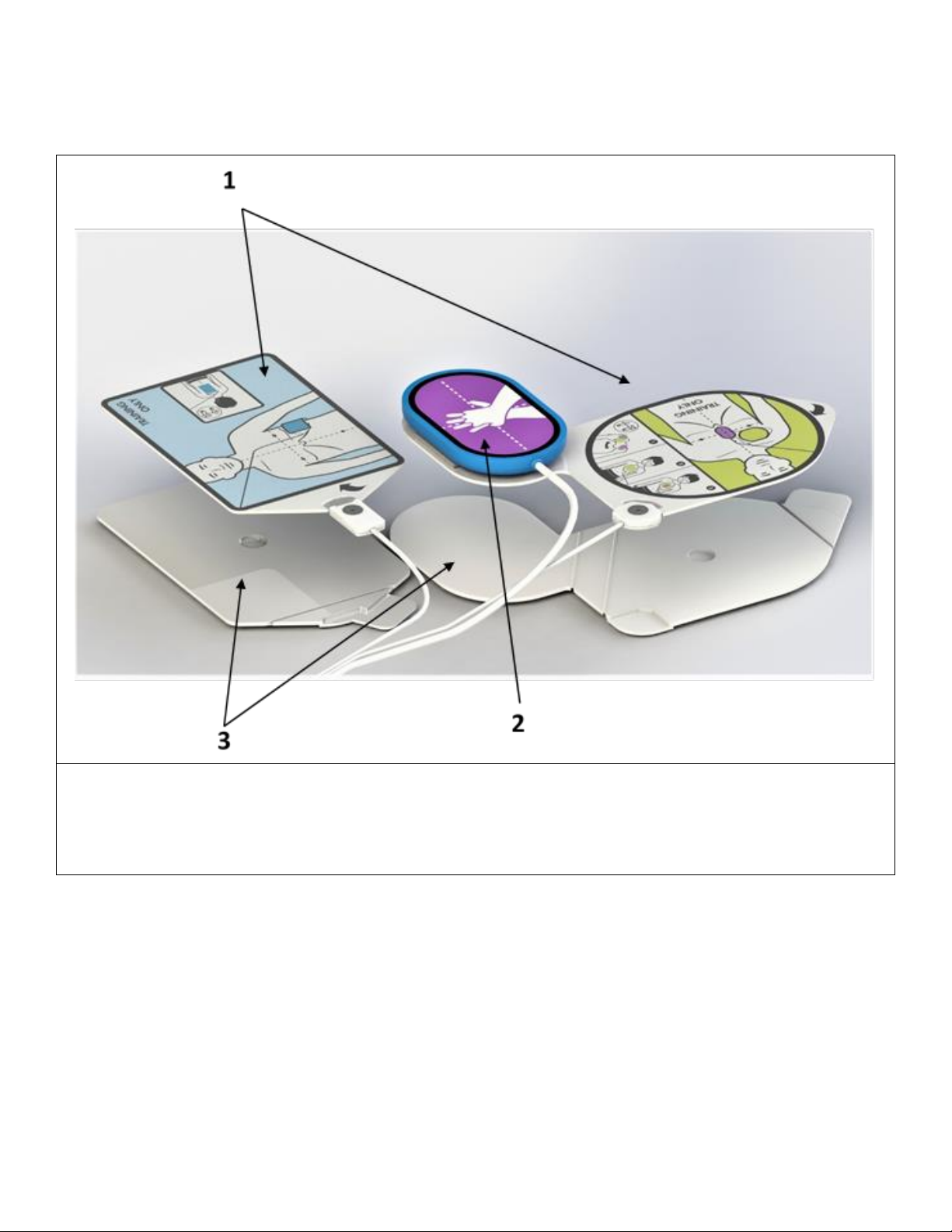

ZOLL AED 3 Trainer CPR Uni-padz Training Electrodes
1 –ZOLL AED 3 Trainer CPR Uni-padz Electrode Pads
2 –ZOLL AED 3 Trainer CPR Uni-padz Electrode Training Harness
3 –ZOLL AED 3 Trainer CPR Uni-padz Electrode Liners
When you receive your ZOLL AED 3 Trainer the training electrodes will need to be assembled. Please refer to
the ZOLL AED 3 Trainer Electrode Attachment Guide (P/N 9650-000864-40) for assembly instructions.

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 6of 10
Setting up your ZOLL AED 3 Trainer
Installing Batteries
(1)
(2)
(3)
(4)

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 7of 10
Insert CPR Uni-padz Electrodes into Training Electrode Connector
(1)
(2)
(3)

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 8of 10
Configuring the ZOLL AED 3 Trainer
Enter the Setup/Configuration menu by pressing the Device Configuration Menu Selection Button.
Navigation Instructions:
(1) Use the “Device Configuration Menu Scroll Button” button to progress from option to option.
(2) Use the “Device Configuration Option Selection Button” button to adjust a configuration option.
(3) When setup is complete press the “Device Configuration Menu Selection Button” to turn the
trainer off.
Configurable options:
(1) Select your Training Scenario from the four options ( =Shock Icon, =No Shock Icon)
a. Shock / Shock / Shock
b. No Shock / Shock / Shock
c. Shock / No Shock / No Shock
d. No Shock / No Shock / No Shock
(2) Device Operation / Shock Type:
a. SEMI‐AUTOMATIC
b. FULLY AUTOMATIC
(3) Lay Rescuer Prompts (“CHECK RESPONSIVENESS” / “CALL FOR HELP”)
a. ON
b. OFF
(4) Check Breathing Prompts (“OPEN AIRWAY” / “CHECK BREATHING”):
a. ON
b. OFF
(5) Real CPR Help Prompts ( “PUSH HARDER” / “GOOD COMPRESSIONS”):
a. ON
b. OFF
(6) Volume (Low, Medium, High -- indicated by Icon):
a. - Low
b. - Medium
c. - High
(7) Language (specified by model)

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 9of 10
Troubleshooting
Real CPR Help prompts and Software Updates will not function in low battery conditions. The prompt
“CHANGE BATTERY” will be displayed in the setup menu when the battery is low.
Maintenance
The ZOLL AED 3 Trainer should be kept clean, undamaged, and free of excessive wear.
Verify that there are no cracks or loose parts in ZOLL AED 3 Trainer.
The ZOLL AED 3 Trainer CPR Uni-padz Electrode Training Harness should be replaced as necessary.
The ZOLL AED 3 Trainer CPR Uni-padz Electrode Pads should be replaced as necessary.
The ZOLL AED 3 Trainer CPR Uni-padz Electrodes Liners should be replaced as necessary.
Cleaning
The ZOLL AED 3 Trainer may be cleaned with a soft, damp cloth using soap and water, then wiped dry
immediately.
DO NOT:
Immerse any part of the trainer in water.
Use ketones (e.g., MEK, acetone) to clean the trainer
Use abrasives on any surface.
Sterilize the ZOLL AED 3 Trainer.
Accessories
The following ZOLL AED 3 Trainer accessories may be ordered from the ZOLL Customer Service
Department or your local distributor:
8028-000010: ZOLL AED 3 Trainer CPR Uni-padz Electrode Training Harness
8028-000012: ZOLL AED 3 Trainer CPR Uni-padz Electrode Pads, Qty 5
8028-000013: ZOLL AED 3 Trainer CPR Uni-padz Electrode Replacement Liners, Qty 1
Warnings
The ZOLL AED 3 Trainer is intended for indoor use only.
The ZOLL AED 3 Trainer is intended for training purposes only. It will not deliver defibrillation energy.
Do not attempt to plug the AED Simulator into the connector of ZOLL AED 3 Trainer.
Do not attempt to take the ZOLL AED 3 Trainer apart.
Remove battery compartment doors only to replace batteries.

ZOLL AED 3 Trainer –Operator’s Guide
REF 9650-000861-01 Rev A Page 10 of 10
Symbols
Any or all of the following symbols may be used in this manual or on this device:
Conformité Européenne - Complies with Low Voltage Directive
73/23/EEC.
Consult instructions for use.
Return to a collection site intended for waste electrical and
electronic equipment (WEEE). Do not dispose of in unsorted trash.
Catalogue Number.
Manufacturer.
Authorized representative in the European Community.
