ZoneVu ZoneVu ZVR-130 User manual

USER and CONFIGURATION MANUAL
ZVR-130
Telemetry Receiver and
camera interface
Issue 05

Contents
SAFETY PRECAUTIONS .......................................................................................................................................................................................3
INTRODUCTION.....................................................................................................................................................................................................4
ZVR-130 OVERVIEW..............................................................................................................................................................................................5
TELEMETRY DATA NETWORK.............................................................................................................................................................................6
CAMERA HEAD PRE-ASSEMBLY AND TESTING................................................................................................................................................7
CONFIGURING THE ZVR-130..............................................................................................................................................................................11
ZVR-130 LOGIN ...................................................................................................................................................................................................15
MAIN MENU .........................................................................................................................................................................................................15
DISPLAY SETUP MENU ......................................................................................................................................................................................16
ALARM SETUP MENU.........................................................................................................................................................................................20
INSTALLATION MENU.........................................................................................................................................................................................22
AUDITING MENU .................................................................................................................................................................................................23
APPROVALS AND STANDARDS ........................................................................................................................................................................24
SPECIFICATION ..................................................................................................................................................................................................25
MOUNTING TEMPLATE.......................................................................................................................................................................................28
SERVICING AND SUPPORT................................................................................................................................................................................30
WARRANTY.........................................................................................................................................................................................................32

Safety Precautions
1. Carefully read this Product Manual prior to commencing installation and configuration.
2. Before working on this product, power it down and remove the power leads. Removing
the module or PCB’s from their environmental enclosure may cause damage to the
product and present an electric shock and fire hazard.
3. To reduce the risk of electric shock and fire hazard do not operate this product without the
protection of a suitable environmental enclosure.
4. Do not install or operate the product near water.
5. Do not install or operate this equipment outside, unless it is fitted inside a suitable
environmental enclosure E.G. IP rated camera housing.
6. Only install this equipment into a suitable environmental enclosure.
7. If work is carried out on the product with environmental enclosure panels and covers
removed ensure full electrostatic handling procedures are adhered to.
8. Ensure the product is operated in a suitably temperature controlled environment within
the specification limits.
9. Do not operate the product in humidity greater then 90%.
10. Do not drop objects of any kind onto the product when installing it. This may cause
electric shock, fire hazard or product malfunction.
11. Avoid liquid spillages on the product. This may cause electric shock, fire hazard or
product malfunction.
12. Never attempt to service this product yourself. This product contains no serviceable parts.
Refer all servicing requirements to the Meyertech Service Centre or appointed Meyertech
Service Agent
13. Do not operate this product if
13.1. Any product power leads are damaged.
13.2. If the product has been exposed to rain.
13.3. If the product has been dropped or the assembly has been damaged.
13.4. If liquid has been spilt on the product.
13.5. If the product has malfunctioned or is not operating to its functional specification.
14. This product must only be operated with the power supply provided or if supplied without
a power supply, by the type of power source indicated in the specification.
15. Follow all warnings and instructions marked on the product and in this manual.
.
WARNING: This product may be used to switch hazardous mains voltages. When working
on this product use extreme caution and observe Health and Safety at work practices.
THIS PRODUCT MUST BE EARTHED!
!

ZVR-130 User Manual Issue 05 Page 4 of 33
Introduction
Thank you for purchasing this product. The following instructions will guide you through the installation and
configuration of your ZoneVu ZVR-130 telemetry receiver. Please carefully read the rest of this manual before
attempting to operate this product. This will ensure that the best performance is obtained.
Meyertech’s ZVR-130 receiver continues in the tradition of Meyertech telemetry receivers.
Building on the virtues of the ZVR-110 and features of the ZVR-530, the ZVR-130 does not disappoint.
What is a ZVR-130?
A fusing together of the ZVR-530 and ZVR-110
features made possible by the harnessing of
leading-edge embedded CPU technology coupled
with precisely developed firmware to deliver a
blend of performance and refinement which will
challenge your concept of camera control.
Enhanced alarm management facilities now mean
that alarms can be handled locally by the ZVR-
130, reported centrally to a site or reported
Intersite when managed by the ZoneVu Site
Controller family of products.
With the complexity of today’s camera heads one
of the ZVR-130’s raison d’etre is the ability to
remotely configure and backup the plethora of
features today’s digital cameras offer.
K E Y F E A T U R E S
Compact camera housing design
2-wire or 4 wire
Support for digital camera configuration and
backup
2 Relays
Static captions
3 Contact alarms
Video loss alarm
Local alarm handling
Remote alarm reporting
Diagnostic facilities
Remote configuration and backup via
Meyertech’s Mpower software
16-bit embedded processing power
The features described in this manual refer to :
Version 1.6.0.1 of the ZVR-130 firmware
The information in this manual is believed to be accurate and reliable. However,
Meyertech Limited assumes no responsibility or liability for its use, or for any
infringement of patents or other rights of third parties, which may result from its use.
No license is granted by implication or otherwise under any patent or other rights of
Meyertech. All specifications are subject tochange without prior notice.
MEYERTECH LIMITED are committed to continuous product development and
therefore reserve the right to change
specifications without notice.
2003-16 ALL RIGHTS RESERVED.

ZVR-130 User Manual Issue 06 Page 5 of 33
5
ZVR-130
ZVR-130 Overview

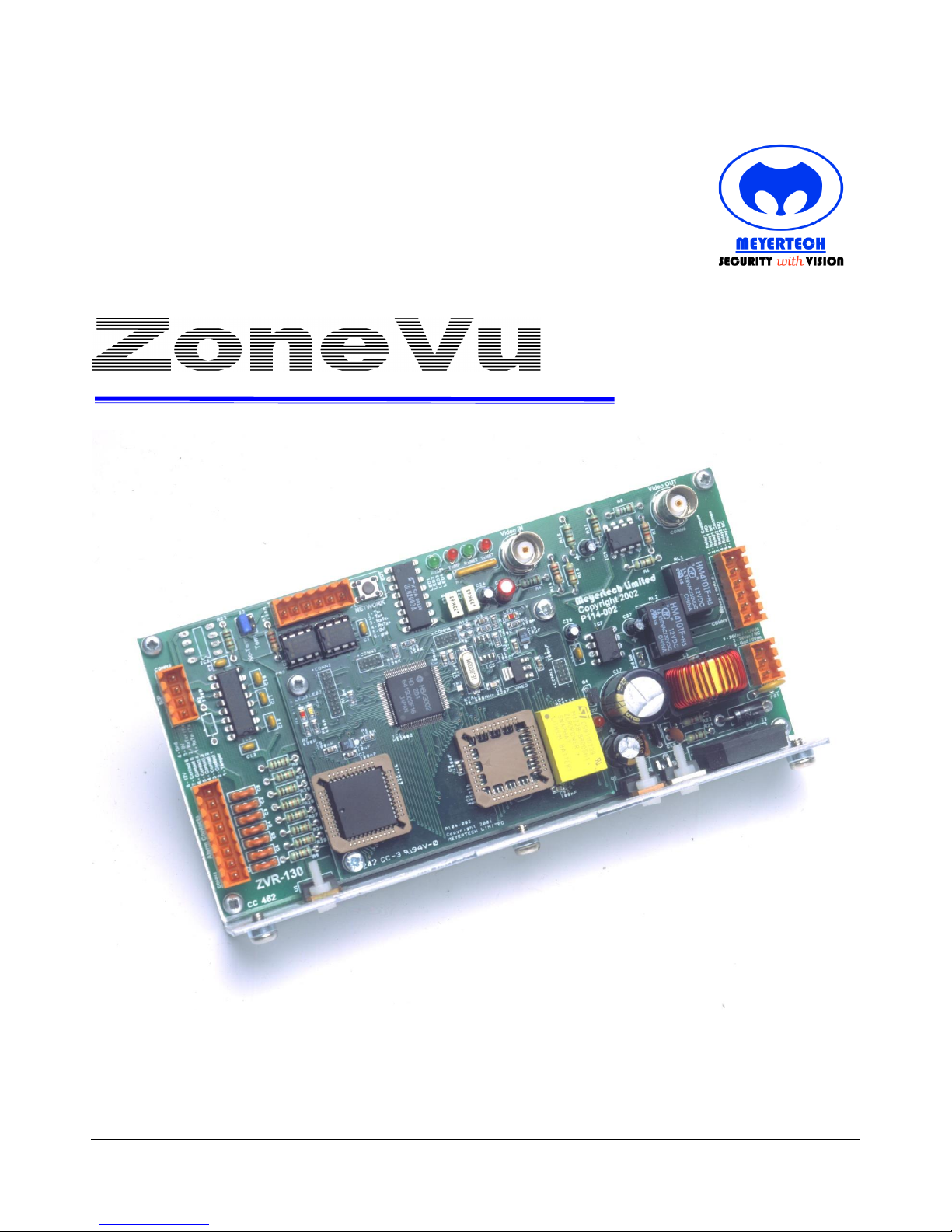

The ZoneVu ZVR-130 telemetry receiver is a composite assemblycomprising four PCBs:
P104 PCB Microprocessor board
P114 PCB Motherboard
The P104 board contains the CPU, ROM and RAM circuitry. It is a SMD multi-layer PCB.
The P114 is the Motherboard. It contains the power circuitry, glue logic, serial communications ports, alarm processing
circuitry and various relays for camera auxiliary functions. The P104 plugs into the P114 and secures with screws.
The whole ZVR-130 assembly is mounted onto an aluminium bracket.The bracket serves three purposes:
1. The easy to install bracket incorporates universal mountings allowing it to be mounted either horizontally or vertically.
2. It acts as a heat sink for the various PSU components. It also provides an earth bonding point.
3. Provides mechanical rigidityfor the ZVR-130 assembly.

ZVR-130 User Manual Issue 06 Page 6 of 33
6
ZVR-130
Telemetry Data Network
The ZoneVu telemetry data network can be either RS422 (4 wire) or RS485 (2 wire) and either Simplex or Half-Duplex.
Depending on which type of network you have or intend to have will determine how the receivers will be connected. For an
RS485 network, the receivers MUST be wired in a ‘daisy-chain’ fashion to preserve the characteristics of the RS485 network.
RS422 is generally more tolerant and in some circumstances can be either ‘daisy-chain’ or ‘star’ wired.
Correct Termination of the data line is also very important to prevent ‘standing waves’ and reflection:
1. For RS422 daisy chain connection, terminate the last ZVR-130 RX input on the line into 120R.
2. For RS485 daisy-chain connection, terminate the last ZVR-130 RX input on the line into 120R.
3. For RS422 star connection, terminate all ZVR-130 RX input’s on the line into 120R x the number of receivers
connected EG for 10 receivers terminate each one into 1K2 and ensure the on-board ZVR-130 termination is
switched off on all receivers.
Note the ZVR-130 has an on board 120R termination resistor which can be remotely switched on or off.
The ZoneVu equipment driving the telemetry network will be one of the following models:
ZVM-164 which can drive up to 16 ZVR-130’s RS422 simplex only
ZVM-328 which can drive up to 32 ZVR-130’s RS422 simplex only
ZSC-500 which can drive up to 128 ZVR-130’s RS422 simplex/half duplex RS485 half duplex
ZSC-1000 which can drive up to 256 ZVR-130’s RS422 simplex/half duplex RS485 half duplex
ZVS-MSI-48 which can drive up to 192 ZVR-130’s RS422 simplex/half duplex RS485 half duplex
ZVK-007 which can drive up to 64 ZVR-130’s RS422 simplex only
ZVK-77D which can drive up to 64 ZVR-130’s RS422 simplex only
It should be remembered at this point exactly how important the network cabling is to the overall performance of any system
and, indeed to the quoted performance of any particular piece of equipment connected to the network, including telemetry
receivers. Care should therefore be taken to plan cabling routes properly and the use of the correct type of data cable is
imperative. Meyertech recommend:
RS422 / RS485 - Beldon 1-pair 9841, 2-pair 9502, 1-pair 8761 or equivalent
A common misconception with RS422 and RS485 networks is that no 0V connection is required between the transmitting
equipment and the receiving equipment, and that only the data pair is required! Well actually this WILL work on your bench,
but when you come to install it in the field it may or maynot work. The reason for this is basic electrical principles. It will work
on the bench because the earth potential difference will be within that specified by the IC manufacturers. In the field it may
well be outside the specification, all be it intermittently. Any electrical circuit requires a ‘return-path’ to work. On the bench this
is achieved via the mains earth circuit. In the field there maybe a potential difference between the two earth points of 50 volts
or more, which is well outside the IC specification for it to function correctly. Normally the outer screen of the data cable can
be used as the 0VDC cable but in noisier environments it is important to use a separate cable even If it means a third pair. In
this instance the outer shield should be connected to ‘dirty’ earth at one end only!
VICTA-ZoneVu ‘down the coax’ telemetry, is not directly supported by the ZVR-130. If you want to be able to control the
ZVR-130 via VICTA (which may be the case if you are using a ZVM-328 matrix) you will require a ZVD-V42-ZV VICTA to
RS422 ZoneVu driver module, which should be located at the receiver end. Note. When controlling the ZVR-130 via VICTA
certain advanced feature and functionalitywill not be available EG alarm reporting, camera configuration ETC.

ZVR-130 User Manual Issue 06 Page 7 of 33
7
ZVR-130
Turnaround time
The ZVR-130 has a data turnaround time of approximately 1ms
Camera Head Pre-assembly and Testing
It is important to consider the time and expense that can be saved by pre-assembling and testing the ZVR-130 prior to
installation on-site. Pre-assemblynormallyinvolves the following tasks (in no particular order):
1. Fixing the camera and lens into the camera housing.
2. Fixing the ZVR-130 into the camera housing.
3. Producing the wiring harness for the ZVR-130, auxiliary devices (e.g. wiper, heater or lamps) and Camera.
4. Initial self test
5. Network configuration and testing
Installation
The ZVR-130-PCB has been designed to be installed within the camera housing. There are a number of technical and non-
technical reasons for this. Firstly from a performance perspective it is important to understand that the best performance of
the receiver is achieved when it is located as close as possible to the camera. The reasoning behind this is that the further
away the ZVR-130 is located E.G. in a weatherproof box tens of meters away, the longer the cable needed to connect back
to the camera functions. Long cable runs will introduce potential differences and noise, both of which will affect performance.
Secondlythe temperature and humidity are controlled inside a camera housing which is a good environment for the ZVR-130
to live in. Thirdly the appearance of the complete camera head assembly is cleaner and more aesthetically pleasing. Finally it
willsave you money! Meyertech therefore strongly recommend installing the ZVR-130 inside the camera housing.
Installing the ZVR-130 is straightforward due to the universal mounting bracket it is attached to. A template for the universal
bracket can be found towards the end of the manual.
If the ZVR-130 is installed inside a weatherproof box the cabling to the ZVR-130 MUST be segregated according to their
function E.G. you would not want to mix mains with the communications cabling. The correct type of cables should also be
chosen according to function EG you would a coax cable for the video. Never be tempted to run all the functions in a
multicore cable. To help wire the ZVR-130 use the connection diagram provided with this manual.
The ZVR-130 should be powered from 24VAC 50Hz +/-10%. Meyertech can supply, a suitable toroidal transformer, Part
number ZVR-130-PSU, or from a 12Vdc, 600mA supply. Note that the 12Vdc output is not available unless AC input is used.
Once all the cabling has been connected to the ZVR-130 and camera it can be tested using the self-test which allows the
receiver to be exercised without the need for it to be connected to a ZoneVu controller.
To do this simply plug a monitor into the video output of the receiver and press the self-test button once to activate the
Installation Menu.

ZVR-130 User Manual Issue 06 Page 8 of 33
8
ZVR-130
Test Facilities
From the Test Facilities menu you can manually test the two relays, the display or the communications.
Selecting Relays will display a menu similar to the one shown below.
To exercise each function manuallycycle through the menu until the
option you require is flashing. Now select the function. The ZVR-130
will toggle the function once.
Selecting Communications will display a further menu with the option to select Network port or SIP port.
Before selecting the port to test, you should bridge the Receive & Transmit together for that port.
When started the receiver performs a short loopback test on the selected port.
If the test data is correctly received a ‘PASSED’ message is displayed, else the receiver shows ‘FAILED’.
Press the button to return to the Communications test menu.
Before the ZVR-130 can be connected to a ZoneVu controller (see Telemetry Data Network) some basic network
configuration needs to be carried out. The simplest wayto do this is on the bench with a monitor connected the video output
of the ZVR-130.
Navigation of the menus using the self-test button is easily
achieved by following these simple guidelines
Press and release the button once to display the Installation Menu.
To cycle down the menu press and release the button again.
To select a menu option press and hold down the button for a
second before releasing it.
To exit a menu or complete a setting, cycle through the menu until FINISH starts flashing.
Now press and hold down the button for 1sec before releasing it.
TEST FACILITIES
Relays
Display
Communications
FINISH
RELAY TEST FACILITIES
Relay 1: OFF
Relay 2: OFF
FINISH

ZVR-130 User Manual Issue 06 Page 9 of 33
9
ZVR-130
Setting the Address
As with all equipment which communicates over a network, ZVR-130 requires a unique network address. The valid address
range for the ZVR-130 is 1 to 4096. To set the address, first highlight and select the Address option in the Installation Menu.
Once selected the current address is re-displayed as a 4-digit number,
with the first digit flashing.
To change the first digit, press the button repeatedly until the correct
number is displayed.
To move onto the next digit, press and hold the button down for 1 second.
After the last digit has been changed, press and hold the button down for
1 second to return to the installation menu. The address is set
immediately.
If you make a mistake, simply repeat the procedure.
Network Settings
The network settings of the ZVR-130 can be configured to interface to different types of data transmission network. Both the
network type and BAUD rate can be altered here. Navigate the menu as previously to select and configure each setting.
The MODE can be set to either RS485, which requires a single
half-duplex data link or to RS422 which requires a full-duplex
data link with a separate transmit and receive channel.
The Baud rate can be manually set to either 9600, 19200 or 38400
Baud. Alternatively the Baud rate can be set to auto for Meyertech
equipment which supports auto selection. With this option set the
ZVR-130 auto detects the Baud rate.
The ZVR-130 incorporates on-board termination to terminate the data
line when the network is either daisy chained or a single receiver is
connected to a driver.
The menu displays the current position of the termination link on the
PCB. It is not possible to change this setting in the menu.
INSTALLATION MENU
Address : 006
0
Test Facilities
Network Settings
Serial camera
Factory Settings
FINISH
NETWORK SETTINGS
Mode : RS485
Baud Rate : 9600
Termination : On
FINISH

ZVR-130 User Manual Issue 06 Page 10 of 33
10
ZVR-130
Setting the camera interface
The ZVR-130 supports a serial interface to specified camera types.
To configure this interface, select the Serial Camera menu.
The range of cameras supported is constantly under development.
Details of currently supported models and features supported can be
found in the Meyertech document ZVR-x30 Supported Cameras
or by contacting the Meyertech sales department.
To select the protocol you require, press the button until you reach
the line “Camera type” then press and hold the button. You will now
be able to cycle through the supported cameras. Once you have
selected the desired interface, press and hold the self test button to
save.
The communications type is defaulted to the normal format for the interface. E.g. Panasonic support an RS485 (2-wire)
interface and JVC support an RS422 (4-wire) interface.
It is possible to change between 2-wire and
4-wire formats, by changing the “Mode”
option.
Load Factory Defaults
If you become unsure of the current configuration then the
should onlybe done as ZVR-130 can be restored to it’s factory settings. This should only
be done as a last resort though because ALL previously
configured data will be lost. IE factorydefaults will be restored
including the address.
To load factory defaults select Confirm, otherwise select Cancel
to return to the Installation Menu.
LOAD FACTORY DEFAULTS
Cancel
Confirm
When you use the self-test button to load
factory defaults, ALL configured data is lost,
including the receiver address.
When you load factory defaults over the network, IE
when the ZVR-130 is connected to a ZoneVu
network the receiver address is not restored to its
default value. This may save you a trip out to the
receiver site!
SERIAL CAMERA
Camera Type : JVC
Mode : RS422
FINISH
When using a camera with a RS-232 interface i.e. Philips
LTC0500 or LTC0600 cameras you will need to use a
RS-422 to RS-232 converter.
Within the menu, RS-422 format should be selected.

ZVR-130 User Manual Issue 06 Page 11 of 33
11
ZVR-130
Configuring the ZVR-130
The advanced features of ZVR-130 configuration are achieved when connected to a ZoneVu controller. This maybe in a
ZoneVu system on-site or when connected directlyto a keyboard.
To configure the advanced features of the ZVR-130 you will require access to a System keyboard such as the ZVK-007 or
ZVK-77 connected either directly to the receiver or via a ZoneVu controller such as the ZSC-1000 or ZVM-328. When
connected via a video matrix be sure to first select the receiver to a monitor within your view as configuration is via on screen
menus.
Configuration using a ZVK-77
To configure the ZVR-130 using a ZVK-77 system keyboard you will first need to access the two ZVR Config. Menus shown
below. To do this you will need to log onto the keyboard at the relevant level which permits access to the Program / Setup
option. For further details please refer to the relevant section in the ZVK-77 User and configuration manual for how to access
the ZVR Config. Menus.
ZVK-77 LCD SCREEN (Menu A)
Menu Option
Description
Engineer
The name of the current user logged onto the ZVK-77
ZVR Config.
The current menu
Type ZVR-x30
Press this to cycle through the receiver types
Start config
Select to start configuration
Select Camera
Select this option if you wish to configure a different ZVR-130
Change Monitor
Select this option if you want to change to displaythe ZVR-130 menus on a different
monitor
Select Site
Select this option if you want to configure aZVR-130on a different site
Toggle Pot Display
Turn on the displaying of the feedback potentiometer values
Engineer ZVR Config
Type Site (local)
ZVR-x30 Monitor 1
Camera 1
Start
Config
Change Select Select Toggle pot
Monitor Camera Site display

ZVR-130 User Manual Issue 06 Page 12 of 33
12
ZVR-130
ZVK-77 SCREEN (Menu B)
Menu Option
Description
Engineer
The name of the current user logged onto the ZVK-77
ZVR Config.
The current menu
Last Menu
Select to display the last ZVR-130 configuration menu (or exit)
Left
Navigate the on screen menu. Move Left
Up
Navigate the on screen menu. Move Up
Select
Select the menu option
Down
Navigate the on screen menu. Move Down
Right
Navigate the on screen menu. Move Right
Enter caption
This option only applies when a caption option has been selected from the receiver
menu. It gives an alternative method to selecting each letter through the menu.
Restart config
Return to the top level menu
Site
Displays the current site you are on
Engineer ZVR Config
Last Restart
Menu config
Left Up Select Down Right
Enter
caption

ZVR-130 User Manual Issue 06 Page 13 of 33
13
ZVR-130
Configuration using a ZVK-007
To configure the ZVR-130 using a ZVK-007 system keyboard you will first need to access the ZVR Config. Menu . To do this
you will need to log onto the keyboard at the Supervisor Level, which permits access to programming functions such as ZVR
Config. For further details on how to do this please refer to the relevant section in the ZVK-007 User Manual. Then follow the
‘ZVK-007 Users Manual-Addendum’ instructions given below. Note the ZVK-007 refers to the ZVR-530.
ZVK-007 USERS MANUAL
ZVR CONFIG allows camera receivers to be configured from the comfort of the keyboard by utilizing the camera receiver
OSD (On Screen Display)
The display will show
SUPERVISOR CONFIGURATION
LEVEL ZVR CONFIG
STEP 1 Press the ENT keythe display will show
SUPERVISOR 510 CONFIG MONITOR-1
LEVEL ESC TO EXIT CAMERA -1
STEP 2 Select the camera you want to configure using the numeric keypad and pressing the ENT key.
STEP 3 Press the MODE key. The display will change to
SUPERVISOR 510 CONFIG MONITOR-1
LEVEL PROG TO SELECT CAMERA -1
STEP 4 Press the PROG key to select the type of receiver: ZVR-510, ZVR-130, or ZVR-500
STEP 5 Press the MODE key. The display will change to
SUPERVISOR 530 CONFIG MONITOR-1
LEVEL PROG TO CONFIG CAMERA -1
STEP 6 Press the PROG key to access the camera receiver OSD. The display will show
ACCESS GRANTED and then ZVR TALK MODE
STEP 7-8 The operation of the menus varies according to the receiver type.
ZVR-130 Navigation
STEP 7 Follow the OSD Menus to configure the camera receiver.

ZVR-130 User Manual Issue 06 Page 14 of 33
14
ZVR-130
The currently selected option is shown in flashing text: Use UP and DOWN tomove the selection, and press
SELECT to choose the current selection.
Selecting a menu displays different options, selecting an option allows it to be changed. Options, which
require text or numeric input, will clear ready for input when selected. Otherwise the option toggles through
the choices each time it is selected.
Text and numbers can be entered directly from the keypad. The Shift keytoggles between text and numeric
modes and the DEC key between upper and lowercase text.
To cancel input or return to the previous menu, use the CANCEL key. Note: using CANCEL in the main
menu screen, exits configuration mode.
STEP 8 When you have completed configuring the receiver, press the ESC key to exit ZVR CONFIG.
ZVR-130 Menu
Navigation
ZVK-007 Key
UP
LIVE / Joystick up
DOWN
ENC / Joystick down / DEL
LEFT
PIP / Joystick left
RIGHT
ACT / Joystick right
SELECT
ENT / Zoom in
CANCEL
HOLD / Zoom out

ZVR-130 User Manual Issue 06 Page 15 of 33
15
ZVR-130
ZVR-130 Login
If the ZVR-130 Configuration Protection feature has been enabled you will see the menu below which asks you to enter a
PIN. This feature protects the ZVR-130 from any unauthorised configuration.
Using the Numeric keypad of your keyboard enter the PIN
for that particular receiver. Failure to enter the correct PIN will
result in the error message ‘Access Denied’ being displayed.
If the ZVR-130 Configuration Protection feature is disabled the firstmenu you will see is the Main Menu.
Main Menu
The first menu you will see once you have successfully logged in is the Main Menu (shown below). From this menu you can
access the rich arrayof features the ZVR-130 has to offer.Whenever you configure an option the ZVR-130 internal database
is updated and the change takes effect immediately. All configuration data is stored in what is commonly referred to as non-
volatile memory, which simply means that when power to the ZVR-130 is removed the configuration data is not lost. Typically
configured data in the ZVR-130 can be retained for up to ten years without loss!
The latest generation of ZoneVu ZSC products allow the full ZVR-130 database to be downloaded to a PC using Mpower, a
PC application which allows you to configure, backup and restore ZoneVu system data. Once downloaded the database can
be archived for future use by service and maintenance personnel.
Each option shown in the Main Menu will have a number of sub-menus associated with it. The number of sub-menus will
depend on the complexity of the feature to be configured. You can exit ZVR-130 configuration from any menu, you do not
have to return to the Main menu.
MAIN MENU
Display Setup
Alarm Setup
Relay Functions
Installation menu
Auditing
LOGIN
Access Denied
Enter PIN code: 8888
Menus which have configuration data fields display
the currently set status.
When you change the configuration of a particular
parameter, the implementation is immediate.

ZVR-130 User Manual Issue 06 Page 16 of 33
16
ZVR-130
Display Setup Menu
The Display Menu allows you to Options are also provided to
configure the On Screen Display displaytelemetry command
(OSD) features of the ZVR-130. confirmation. Also the whole
displayarea can be moved and
From this sub-menu you have it’s size set.
options to program a descriptive
camera caption, decide where the
caption will be displayed on screen,
where alarm information will be
displayed, and the brightness of
the overlay.
Edit Caption
A descriptive caption can be programmed into the ZVR-130 which is displayed at all times. The caption provides unique
identification of the camera signal anywhere in the system. Another benefit of labelling the camera ‘at source’ is the caption is
not susceptible to interference (often seen on the screen as tearing or bouncing captions) due to long cable runs and
transmission paths.
The caption can be up to 14 characters long. When you enter
the Edit Caption menu a cursor will be flashing at the end of the
current caption. To delete characters from the caption use the
Clear button on the keyboard.
LOWER –Select this option to toggle between Uppercase and
Lowercase.
SPACE - Select to insert a space
DONE - When you are happy with the caption you have
Entered select Done to save your new caption. You
Will also be returned to the previous menu.
QUIT - Lets you exit the menu without having to configure a
New caption.
As an alternative to selecting letters on the character grid on screen, the ‘Enter caption’ option on some keyboards allows the
caption to be edited on the keyboard before being sent to the receiver. Don’t forget to delete the previous caption first !
Caption Display
The caption can independentlybe configured to be displayed or not.
simplyselect the Display option to toggle the caption On and Off.
The caption can be positioned anywhere on the screen using the
Set Position option.
DISPLAY MENU
Edit Caption
Caption Display
Alarm Display
Command Display
Set Display Area
Set Text Colour
Set Character Border
Caption: Mtech ZVR-130
A B C D E F G
H I J K L M N
O P Q R S T U
V W X Y Z 0 1
2 3 4 5 6 7 8
9 * . ‘ : + -
LOWER SPACE DONE QUIT
SETUP TEXT DISPLAY
Display : ON
Set Position

ZVR-130 User Manual Issue 06 Page 17 of 33
17
ZVR-130
Selecting Set Position will display the menu shown to the right.
the text area display is configured as two columns of 14 characters
each by 16 rows. The position of the caption can be moved to the
desired position by using the navigation keys Down, Up, Left and
Right.
To exit the menu select either the Last Menu key or Cancel key.
Alarm Display
Selecting Set Position will display the menu shown to the right.
the text area display is configured as two columns of 14 characters
each by 16 rows. The position of the Alarm Text can be moved to the
desired position by using the navigation keys Down, Up, Left and Right.
To exit the menu select either the Last Menu key or Cancel key.
Text Position
SETUP TEXT DISPLAY
Display : ON
Set Position
Text Position
The Alarm Text can independently be configured to be
displayed or not.
Simply select the Display option to toggle Alarm Text
On and Off.
The Alarm Text can be positioned anywhere on the
screen using the
Set Position option.

ZVR-130 User Manual Issue 06 Page 18 of 33
18
ZVR-130
Command Display
Command Display refers to the displaying of camera commands as
they are received from the ZoneVu controller as confirmation of the
operator action. This display can be switched on or off. If you do not
want to display the camera commands simplyselect the Display
option to toggle the caption off, toggling it again will switch Display
back on.
The Command Displaycan be positioned anywhere on the
screen using the Set Position option.
Selecting Set Position will display
the menu shown to the right.
The text area displayis configured
as two columns of 14 characters
each by 16 rows. The position of
the Command Display can be moved to
the desired position by using the
navigation keys Down, Up, Left and Right.
To exit the menu select either the
Last Menu keyor Cancel key.
Set Display Area
Set DisplayArea allows the user to configure over what area of the monitor textual information will be displayed.
Set Text Colour
SETUP TEXT DISPLAY
Display : ON
Set Position







1 TO EXIT 






Text Position
The overallsize and position of the OSD is indicated by the
white chequered pattern.
Using the navigation keys Down, Up, Left and Right, the
displaycan be set to the particular size required.

ZVR-130 User Manual Issue 06 Page 19 of 33
19
ZVR-130
Allows you to adjust the greyscale level of the captioning including all text on the screen.
Sample text is displayed on the screen and you are prompted to ‘Pan to change colour’. The left & right keys can also be
used.
The current colour setting is also displayed in the range 0 to 15.
Moving left or right increases or decreases the colour setting & updates the sample text in real time.
Set Character Border
Adjusts the greyscale level of the fringing around the edges of each character.
Sample text is displayed on the screen and you are prompted to ‘Pan to change colour’. The left & right keys can also be
used.
The current colour setting is also displayed in the range 0 to 15.
Moving left or right increases or decreases the colour setting & updates the sample text in real time.
WARNING: Character Colour & Border affects all text display from the receiver.
Setting both to a shade indistinguishable from the background will result in the
inability to view the setup menus.

ZVR-130 User Manual Issue 06 Page 20 of 33
20
ZVR-130
Alarm Setup Menu
Provided as standard on the ZVR-130 are two contact type alarm inputs, a dedicated Tamper contact type alarm input and a
video fail alarm, which automatically detects the loss of video from the camera.
Alarm inputs can be independentlyconfigured to trigger on contact closure or contact opening. Each alarm input can also be
disabled to eliminate false alarms when work is being carried out in the alarmed area. When an alarm occurs the
programmed alarm caption is displayed on screen. If more than one alarm is active at any one time the OSD cycles between
the alarm captions displaying each one in turn for a period of time.
Alarms can be managed centrally when the ZVR-130 is connected to a ZSC-500 or ZSC-1000 ZoneVu Site Controller. For
example certain alarm inputs mayrequire the action of another camera to provide full coverage of the incident. In this
instance the ZSC-XXXX would be configured to request alarm status from the camera on a regular basis. Upon receipt of the
alarm the ZSC-XXXX could instruct a PT camera to recall a preset or execute a patrol to monitor the area in alarm.
Alarm - Used to select one of the four alarms available,
Tamper, Alarm 1, Alarm 2 and Video Loss.
Press the Select keyto cycle
through the and view the settings of each alarm.
To configure alarm input settings, first cycle
through until the alarm you wish to configure is
displayed, then select the option you wish to change.
Trigger State - Use the Select keyto set the Trigger State to either
Closed, Disabled or Open.
Trigger Time - The Trigger Time parameter is used to reduce the number of false alarms due to ‘contact bounce’ from the
alarm source. The trigger time is important as it validates the alarm source. After the alarm is initially
triggered the source is checked again after the Trigger Time. If the alarm is STILL triggered after the Trigger
time has elapsed the alarm is accepted as a valid alarm. To set the Trigger Time select Trigger Time and
enter a time period in the range of 10 to 990ms.
Text - Each alarm input can be programmed with its own unique text label (14 characters maximum)
Display - Using this option you can enable and disable the Alarm Text display. If set to on the alarm Text is displayed
when an alarm is activated. Use the Select key to Enable and Disable the displayof alarm text.
ALARM MENU
Alarm : Tamper
Trigger State : Closed
Trigger Time : 50mS
Text : Tamper
Display : Enabled
