ZoneVu ZVR-410 User manual

ZVR-410
SECURITY with VISION
TELEMETRY RECEIVER
USERS MANUAL

        
LIMITED
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page2
CONTENTS
1. ZVR-410 WELCOME .................................................................................................................................. 3
2. FEATURES .................................................................................................................................................... 3
INSTALLATION................................................................................................................................................... 4
2.1 LINK SETTINGS ....................................................................................................................................4
2.2 CONNECTING THE ZVR-410...............................................................................................................5
2.3 CAMERA NUMBER ASSIGNMENT ....................................................................................................5
3. SELF TEST DIAGNOSTICS........................................................................................................................6
4. SPECIFICATIONS .......................................................................................................................................6
4.1 ELECTRICAL .........................................................................................................................................6
4.2 PHYSICAL..............................................................................................................................................6
5. CONNECTION DIAGRAM .........................................................................................................................7
6. TROUBLE SHOOTING GUIDE ................................................................................................................. 8
7. DECLARATION OF CONFORMITY ........................................................................................................ 9
8. PRODUCT WARRANTY...........................................................................................................................10
9. DOCUMENT HISTORY ............................................................................................................................11
Whilst every effort has been made to confirm the information in this document is correct,
MEYERTECH LIMITED cannot accept any liability for any errors, omissions and or incorrect
information contained within this document.
No part of this document may be reproduced or distributed in any form or by any means
without prior written consent from MEYERTECH LIMITED.
MEYERTECH LIMITED are committed to continuous product development and therefore reserve
the right to change specifications without notice.
 2002 ALL RIGHTS RESERVED.

               
ISSUE 02
Page 3
1. ZVR-410 WELCOME
Thank you for purchasing our ZoneVu ZVR-410 Telemetry Receiver.
The ZVR-410 is a powerful, low cost telemetry receiver offering all the standard camera control
functions required for AC heads plus Pan, tilt, Zoom and Focus presets.
With the ability to operate over coax or twisted pair RS-422, the ZVR-410 is compact enough to be
mounted easily inside a camera housing and on board self-test and diagnostic facilities minimize
installation and commissioning time.
MEYERTECH are dedicated to customer service and support. If you have any questions or problems,
our staff will be pleased to assist you on the technical help lines listed on page 14.
2. FEATURES
♦Pan, Tilt, Zoom and Focus.
♦Simultaneous Pan ,Tilt and Zoom.
♦Wash, Wipe and Lamp/Auxiliary Relay Outputs.
♦Function and PSU LED’s.
♦Anti Tamper Alarm.
♦Coaxial or RS-422 Telemetry.
♦Compatible with the full range of ZoneVu products.
♦Self Test Diagnostics.
3 I

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page4
ALLATION
INSTALLATION
To obtain the optimum performance from your ZVR-410 please take time to read this manual before
commencing installation. If you have any questions or problems our staff will be pleased to assist you
on the technical help lines listed on page 14.
Unpack the ZVR-410 and check the contents against the list below.
♦ ZVR-410 PCB
♦ 12V 3VA Transformer
2.1 LINK SETTINGS
The ZVR-410 PCB is populated with a number of jumper links which require setting at installation.
These are all located down one side of the PCB as indicated below ( also see Connection Diagram on
page 7).
The following links require setting.
1 Address range +100 Fit for camera addresses above 99 but below 200
2 Address range +200 Fit for camera addresses above 199 but below 300
3 Lens Direction Fit to reverse the Zoom direction
4 Lamp or Aux 1 Fit to action Lamp commands.
5 P-ZF Fit if you do not have a preset head and camera lens
6 Not used
7 Lens Voltage 6V or 12V lens
8 Telemetry RS422 (link IN) or VICTA Telemetry (link IN)
CONFIGURATION
LINKS
RS422
VICTA
+100
LD
ZVR-410 PCB
12V LENS
6V LENS
1
2
3
4
5
+200
L / A
P-ZF
A46 7
8

               
ISSUE 02
Page 5
2.2 CONNECTING THE ZVR-410
Connect up the ZVR-410 in accordance with the accompanying wiring diagram, paying special
attention to the maximum ratings and the notes below.
1. The ZVR-410 MUST be earthed at the AC input supply terminal.
2. NEVER run cables directly under the PCB as this may interfere with the operation of the
Telemetry ZVR-410 and other camera head equipment.
3. ALWAYS use Screened cables for low voltage and signal cables ensuring the screen is
connected to 0V or Earth.
4. AVOID looming cables of differing characteristics together E.G. Video cables with cables
carrying mains power.
5. If the ZVR-410 is to be operated over twisted pair cable ensure the screen is connected to 0V.
6. The maximum cable run for Twisted Pair is typically 2Km.
7. The maximum cable run for VICTA is typically 350m for RG59 and 750m for RG11. The cable
run must be unbroken.
8. The maximum number of Telemetry Receivers that can be connected to a driver output is 32.
9. The cable used to wire the secondary of the transformer should be a minimum of 0-5mm
2
.
2.3 CAMERA NUMBER ASSIGNMENT
When operating the ZVR-410 using RS-422 telemetry, a receiver address must be set up which
corresponds to the connected matrix output. The ZVR-410 receiver address can be set in the range 1-
299. If operating the ZVR-410 over Meyertech VICTA coax telemetry, no receiver address is
necessary.
To set the ZVR-410 receiver address:
1. If the camera address is in the hundreds fit the appropriate links +100 or +200. Only one of
these links should be fitted.
2. Set the tens switch.
3. Set the units switch.

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page6
3. SELF TEST DIAGNOSTICS
The ZVR-410 features a self-test to sequence through the receiever function. Press once to
activate.
4. SPECIFICATIONS
4.1 ELECTRICAL
POWER INPUT - 12VAC Power Supply.
- Separate input for Pan and Tilt Supply.
CURRENT CONSUMPTION - 35mA
RELAYS - Normally Open 5A max.
4.2 PHYSICAL
DIMENSIONS - 117mm x 100mm x 25mm (WxDxH) without CCM fitted
WEIGHT - 140g
TEMPERATURE - Operational 0 Degrees to 40 Degrees C
- Storage minus 20 Degrees to plus 60 Degrees C
- Humidity 10% to 95% (Non-condensing)
VIDEO I/O - 2-part screw terminal plug & socket
PAN & TILT - 2-part screw terminal plug & socket
SUPPLY
PAN & TILT
DRIVE - 2-part screw terminal plug & socket
WASH, WIPE, LAMP - 2-part screw terminal plug & socket
PRESET
FEEDBACK - Screw terminals
LENS DRIVE - Screw terminals
TAMPER - 2 pin header
DATA - Screw terminals
PROTOCOL - VICTAcoax telemetry.
ZoneVu RS422 twisted pair

               
ISSUE 02
Page 7

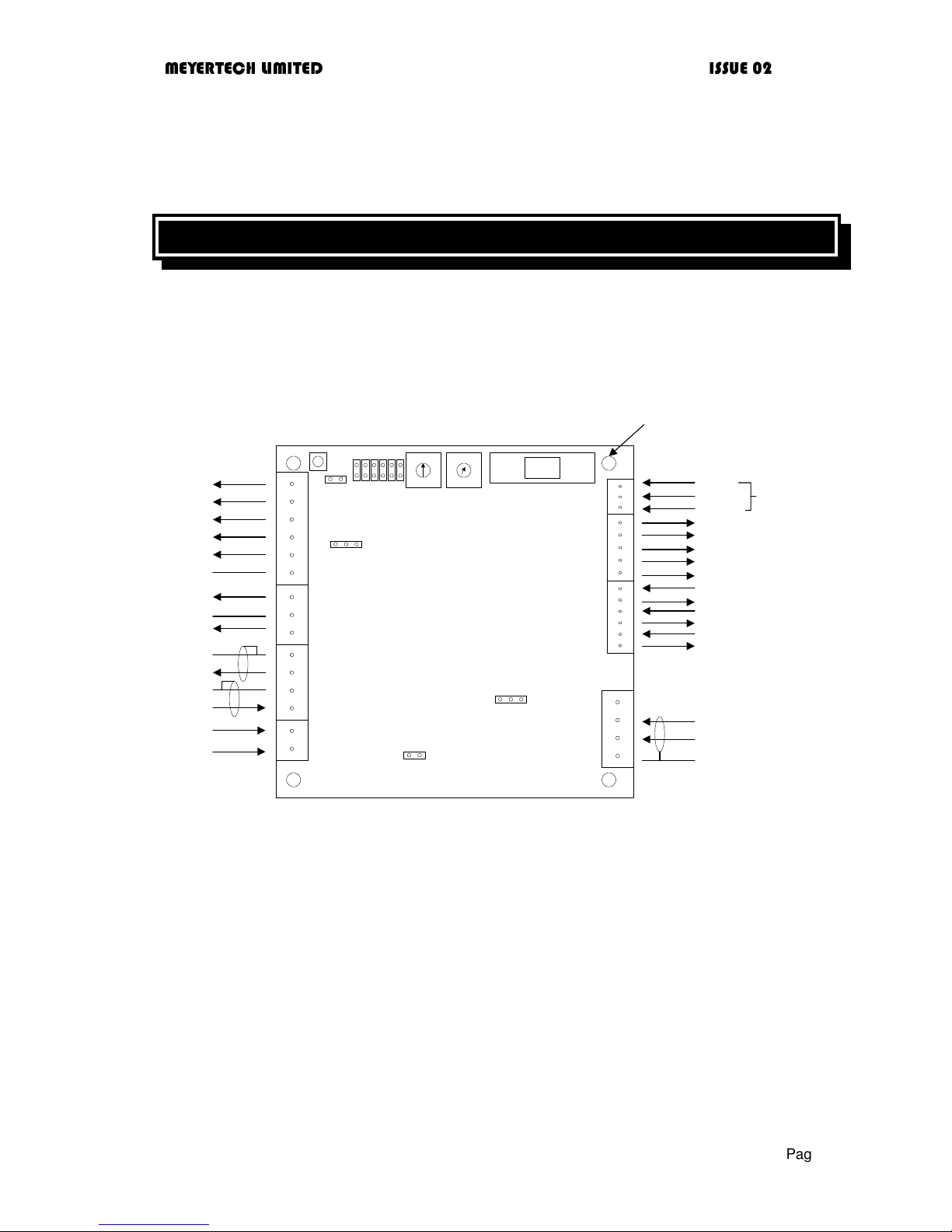

5. CONNECTION DIAGRAM
ZoneVu ZVR-410
(PCB FORMAT)
BCD
SET CAMERA
ADDRESS
TEST
SWITCH
P&T Fuse
LENS COMMON
ZOOM
RS-422
TELEMETRY
Rx+
Rx-
SCREEN
12V AC 50Hz
SUPPLY
(PCB ONLY)
EARTH
PAN RIGHT
PAN LEFT
TILT UP
TILT DOWN
WASH N/O
CONTACT
WIPE N/O
CONTACT
LAMP/AUX N/O
CONTACT
4 X MOUNTING
HOLES 4mm dia.
BCD
+VE
-VE
VIDEO IN
VIDEO OUT
FOR VICTA COAX
TELEMETRY ONLY
FOCUS
PAN F/B
TILT F/B
ZOOM F/B
FOCUS F/B
PRESET
POT. +5V
PRESET
POT. 0V
6V / 12V
+100 +200 LD L / A P-ZF A4
UNITSTENS
RS422
TAMPER
VICTA
AUX 2 O/C
LIVE
NEUTRAL
NEUTRAL
PAN & TILT
SUPPLY

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page8
6. TROUBLE SHOOTING GUIDE
This Trouble Shooting Guide should be used in the first instance of encountering any problems with the
ZVR-410. If problems persist, contact MEYERTECH’s support line 01724 278833.
Symptom Solution

               
ISSUE 02
Page 9
7. DECLARATION OF CONFORMITY
Manufacture’s Name: MEYERTECH DIVISION
Manufacture’s Address: MEYERTECH Division
Office Block One
Southlink Business Park
Oldham
OL4 1DE
declares, that the product(s):
Product Name : ZVR-410 Telemetry Receiver
Model(s) : All
Product Options : All
conforms to the following Product Specifications :
EN55022 CLASS B
EN50093
Supplementary Information :
MEYERTECH declare under our sole responsibility that the product to which this declaration
relates, is in conformity with the protection requirements of council directive 89/336/EEC on
the approximation of the laws of the member states relating to electromagnetic compatibility.
SIGNED -
S K MEYERS
Director MEYERTECH DIVISION
ISSUED THIS DAY : 20-10-1999
Meyertech Division (Head Office), Office Block One, Southlink Business
Park, Oldham, England, OL4 1DE.
EC DECLARATION OF CONFORMITY ACCORDING
TO ARTICLE 10 OF COUNCIL DIRECTIVE 89/336/EEC

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page10
8. PRODUCT WARRANTY
MEYERTECH LIMITED warrants that at the time of shipment the products manufactured by
Meyertech will be free from defects in material and workmanship.
Should any defects appear within twelve months from date of shipment, Meyertech Limited shall at it’s
sole discretion repair or replace the defective material. Such material shall not be accepted for return
or repair without prior notification of Meyertech Limited.
Return shipments to Meyertech Limited shall be at the customersexpense. Meyertech Limited will
return said equipment prepaid via best way.
This warranty is in lieu of and excludes any and all other expressed or implied warranties of
merchantability or fitness, or otherwise. Items manufactured by any supplier other than Meyertech
Limited shall bear only the warranty made by the manufacturer of that product, and Meyertech Limited
assumes no responsibility for the performance or reliability of that product.
Meyertech Limited will not be liable for any special or consequential damages, or for loss, damages, or
expense directly or indirectly arising from the use of the products, or any inability to use them either
separately or in combination with any other equipment or material or from any other cause.
This warranty does not extend to any product manufactured by Meyertech Limited which has been
subject to misuse, neglect, accident, war, civil disturbance, terrorist acts, improper installation, act of
God, or in violation of the instructions supplied by Meyertech Limited.

               
ISSUE 02
Page 11
9. DOCUMENT HISTORY
ZVR-410 Telemetry Receiver Users Manual
ISSUE DATE CHANGE RECORD
01 March 2002 First Issue

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page12
NOTES

               
ISSUE 02
Page 13
NOTES

               
Z:\PRODUCTSarchive\Product Manuals\ZoneVu\Current Life Cycle\ZVR-410\internal\ZVR-410 User and
Configuration Manual.doc
Page14
MEYERTECH LIMITED
SECURITY with VISION
Zebra Court
Whitemoss View
Greenside Way
Manchester
M24 1UN
Sales Support
 [phone]
 [phone]
Email : [e-mail]
Technical Support
Email: [email protected]
