Zoom Power Drive PD-01 User manual

ZOOM Power Drive PD-01
Operation Manual
INDEX
Features--------------------------------------------------------------------------------------------------------------------------------2
Parts and Functions------------------------------------------------------------------------------------------------------4
Connections----------------------------------------------------------------------------------------------------------------------6

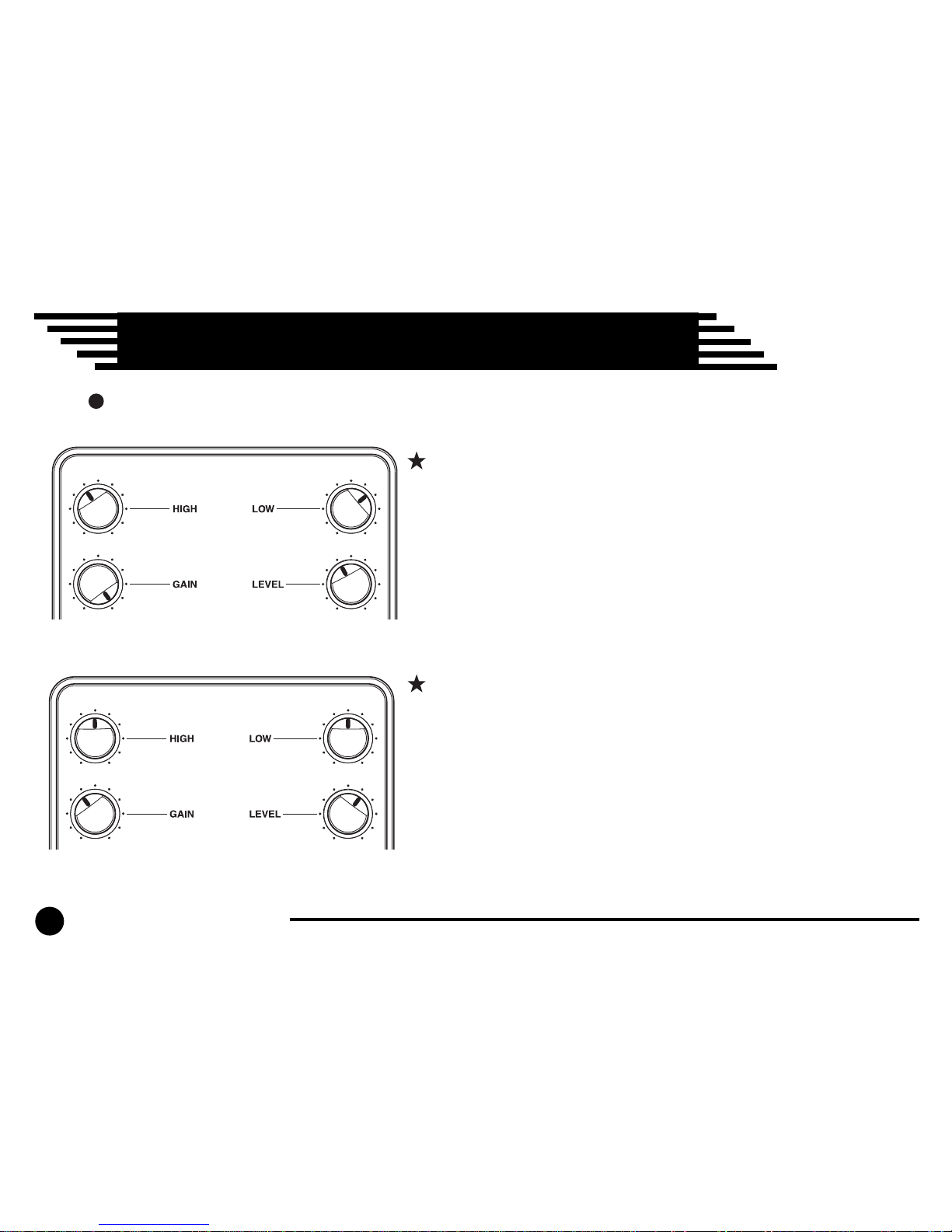

Sound Samples--------------------------------------------------------------------------------------------------------------8
PD-01 and Compact Effects---------------------------------------------------------------------------------10

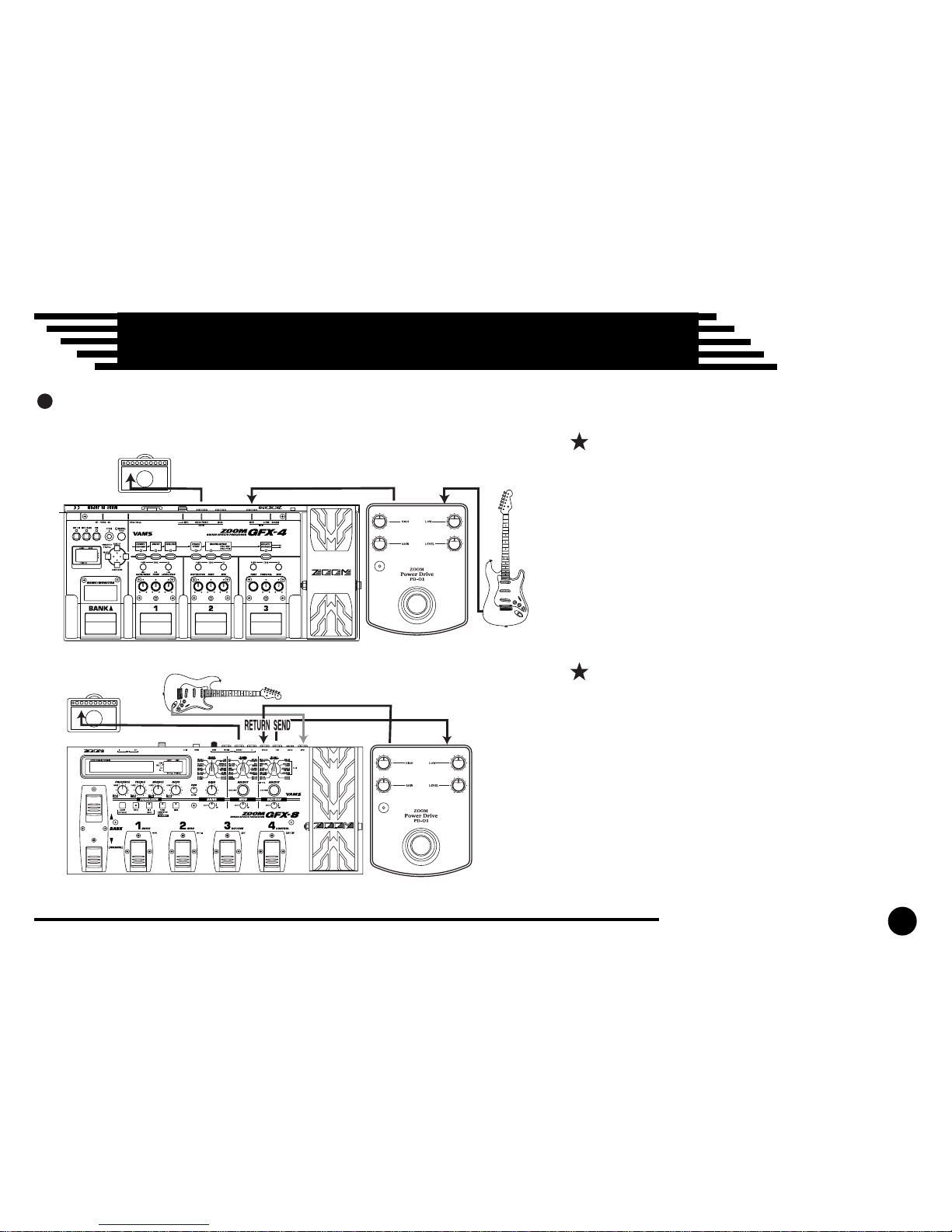

PD-01 and Multi-Effects-------------------------------------------------------------------------------------------11
Troubleshooting------------------------------------------------------------------------------------------------------------12
Specifications-----------------------------------------------------------------------------------------------------------------14
Usage Precautions------------------------------------------------------------------------------------------------------15
Safety Precautions-------------------------------------------------------------------------------------------------------16

2
ZOOM Power Drive PD-01
Features
Unprecedented warm and full overdrive
A specially developed analog circuit provides totally unmuffled, natural-sounding distortion without any trace of stickiness or
hollowness. This results in natural-sounding distortion which fully brings out picking nuances. Inherent noise is also kept very
low.
The Zoom Power Drive PD-01 is a dedicated overdrive unit with the following features.
Use as full-fledged booster
With the GAIN control set to zero, the PD-01 gives superb clean sound. The output stage can deliver up to 20 Vp-p, which
drive the amplifier to overdrive with fat, full-bodied sound.
Mechanical switch for on/off and true bypass
On/off switching is performed using a mechanical foot switch. In the bypass position, the guitar signal is passed through
without any alteration.

Sturdy metal chassis
The rock-solid case made of aluminum not only looks good, it also can withstand the rigors of use on stage. It's low profile
provides excellent stability.
HIGH/LOW equalizer provides versatility
The PD-01 features separate HIGH and LOW controls. This gives you more flexibility in creating your own sound with
options, ranging from a mild drive tone to a sharp, bright distortions.
3
ZOOM Power Drive PD-01

4
ZOOM Power Drive PD-01
7
Parts and Functions
This section explains the various parts of the PD-01.
6
4 5
8
9
2
10
1
3

IN jack
The input of the unit acts as a power switch. When you connect the plug of the cable from the guitar here, the unit is turned on.
OUT jack
This is the output of the unit. Connect the plug of the cable going to the guitar amplifier or other effect device here.
AC adapter jack
When powering the unit from the AC adapter, insert the plug from the adapter into this jack. Be sure to use only an AC adapter rated for 9 V
DC, center negative, 300 mA (Zoom AD-0006). When the AC adapter is connected, the PD-01 will always be ON, regardless of whether a
cable is plugged into the IN jack.
GAIN control
Turning this control clockwise increases the drive effect. In the zero position, there is no distortion.
LEVEL control
This control adjusts the output signal level. Turning the control clockwise increases the level.
HIGH control
This control adjusts the high frequency range.
LOW control
This control adjusts the low frequency range.
Indicator
Illuminates when the PD-01 is active.
Foot switch
Switches the PD-01 effect on and off.
Battery compartment
A 9V battery (6F22) can be inserted here.
5
ZOOM Power Drive PD-01
1
2
3
4
5
6
7
8
9
10
