Advanced GPS Dog Locator
User Guide
z

Zoombak Services
Advanced GPS Dog Locator
www.zoombak.co.uk
COPYRIGHTS
© 2008 Zoombak. All rights reserved.
Zoombak is a trademark of Zoombak, Ltd.
NOTICES
This document neither grants any license nor conveys any rights with
respect to the subject matter hereof or otherwise. Zoombak expressly
retains all intellectual and other property rights with respect to this
document and all matters set forth herein. This document is neither an
offer nor an acceptance. Neither party will be obligated with respect to
the subject matter hereof unless and until such party has entered into
a denitive agreement, and then only in accordance with the terms
of such agreement. Some technical assertions of capability included
herein are estimates based on limited information gathered from past
experience.
TRADEMARKS
Zoombak™ and the Zoombak logo are trademarks owned by Zoombak,
LLC and protected in the United States and other countries.
Zoombak Dog Locator V. 1.0

Table of Contents
Introduction ................................................................................................... 1
Getting Started ............................................................................................ 2
Key Functions ............................................................................................... 2
Zoombak Dog Locator Package Contents............................................... 3
Using the Dog Locator................................................................................4
Charging the Battery ..................................................................................4
Battery Life................................................................................................... 5
Powering the Dog Locator ON/OFF.......................................................... 6
Monitoring the Dog Locator Status..........................................................6
Placing the Locator on Your Dog.............................................................. 7
Safety and Warranty Information .............................................................8
Safey Information........................................................................................8
Zoombak WEEE Compliance Statement.................................................10
WEEE Marking .............................................................................................10
Information for Users.................................................................................10
Warranty Information..................................................................................11
Service After Expiration of Warranty ......................................................11
Warranty Limitations ..................................................................................11
Water Resistance.........................................................................................11
Contacting Customer Care .......................................................................12
Specications and Certications ............................................................13
Dog Locator Specications.......................................................................13
Certications...............................................................................................14
AC Wall Charger Specications ...............................................................14
Important Coverage Information.............................................................14

Introduction
Thank you for purchasing the Zoombak Dog Locator. Zoombak is
focused on the development and marketing of breakthrough mobile
communications solutions that leverage the power of wireless
technology and location-based services to provide people with new
ways to connect to each other and their world.
This Guide will introduce you to all of the features of your Zoombak
Dog Locator device. If you have any questions, please contact
Zoombak Customer Care on freephone 0800 028 0101 or visit our
website at www.zoombak.co.uk.
In addition to this Zoombak Dog Locator User Guide, included in your
package is a Zoombak Dog Locator Quick Start Guide. The Quick Start
Guide will briey walk you through activating your service, using your
service, and setting up your safety zones and alerts. For more detailed
instructions on using your service, please visit www.zoombak.co.uk.
Please read this Zoombak Dog Locator User Guide and the
accompanying Quick Start Guide before setting up your account prior
to use. Activation and use of the Zoombak Locator are subject to
Zoombak’s customer agreement, plans, terms and conditions, which
can be found at www.zoombak.co.uk/terms.
The Zoombak Dog Locator User Guide is divided into ve main
sections:
• Section 1. Getting Started
• Section 2. Using the Dog Locator
• Section 3. Safety and Warranty Information
• Section 4. Contacting Customer Care
• Section 5. Specications and Certications
1
zoombak.co.uk

Getting Started
This section addresses two primary areas:
• Zoombak Dog Locator Features
• Zoombak Dog Locator Package Contents

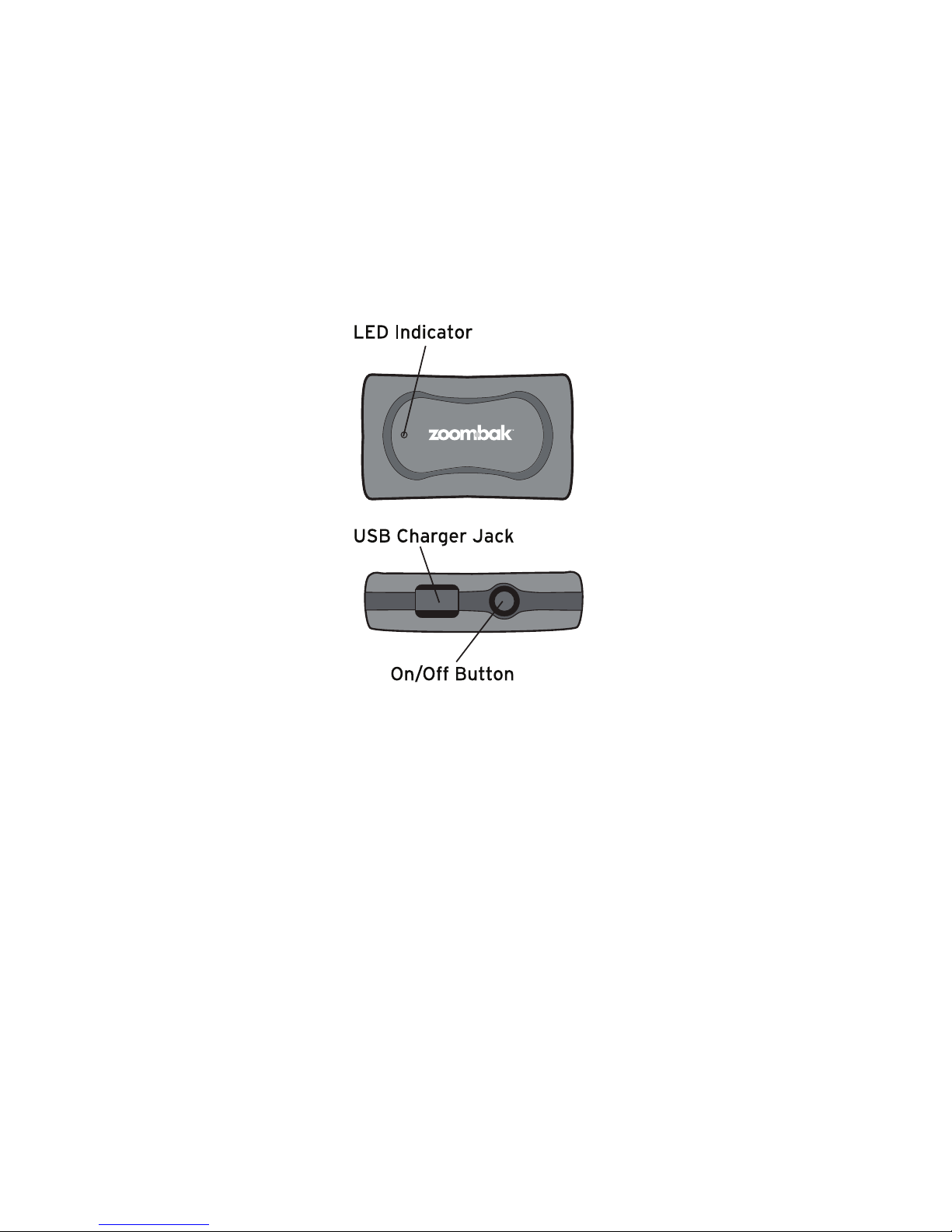

Front/Aerial View of Locator
Key Functions
• USB Charger Jack—Connects the Zoombak Dog Locator
to the AC Wall Charger (included)
• Locator Status LED Indicator—Allows you to monitor
(at a glance) the power and battery status of your
Zoombak Dog Locator
2zoombak.co.uk

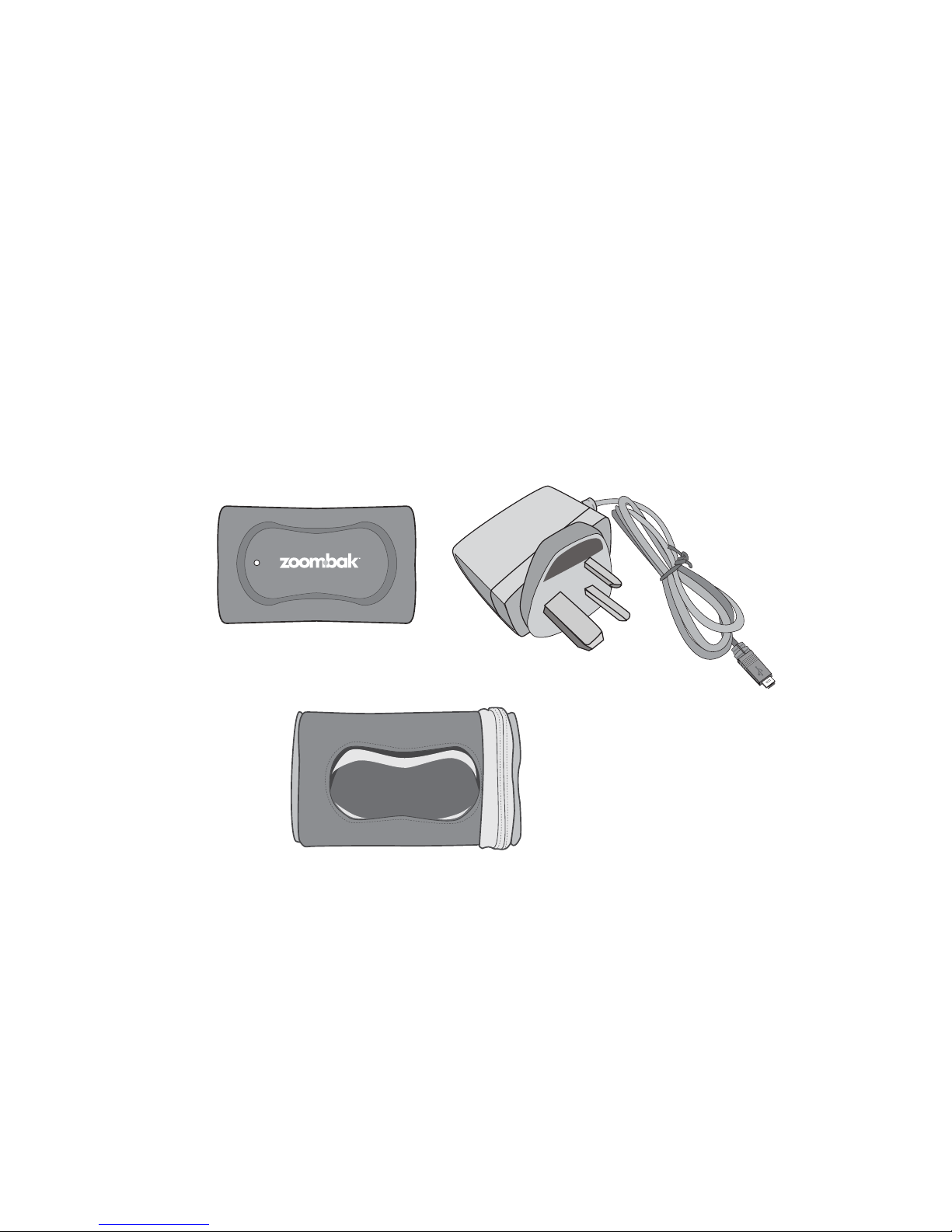

Zoombak Dog Locator Package Contents
When you purchase the Zoombak Dog Locator,
the package should contain the following:
• Zoombak Dog Locator
• Zoombak Dog Locator Pouch
(to attach the Locator to your dog’s collar)
• AC Wall Charger
• Zoombak Dog Locator Quick Start Guide
• Zoombak Dog Locator User Guide
Zoombak Dog Locator
Zoombak Dog Locator Pouch
AC Wall Charger
If any of these items are missing from your package, please contact
Zoombak Customer Care on freephone 0800 028 0101.
3
zoombak.co.uk

Using the Dog Locator
This section addresses ve primary areas:
• Charging the Battery
• Battery Life
• Powering the Dog Locator ON/OFF
• Monitoring the Dog Locator Status
• Placing the Locator on Your Dog
Charging the Battery
Before using the Zoombak Dog Locator for the rst time, you will need
to fully charge the battery. Follow these simple instructions to charge
the battery. The initial battery charge time will be 6 hours; each
subsequent battery charge will be approximately 4 hours.
1. Remove the Zoombak Dog Locator and AC Wall Charger from the
Zoombak Dog Locator package.
2. Plug the AC Wall Charger into a wall outlet.

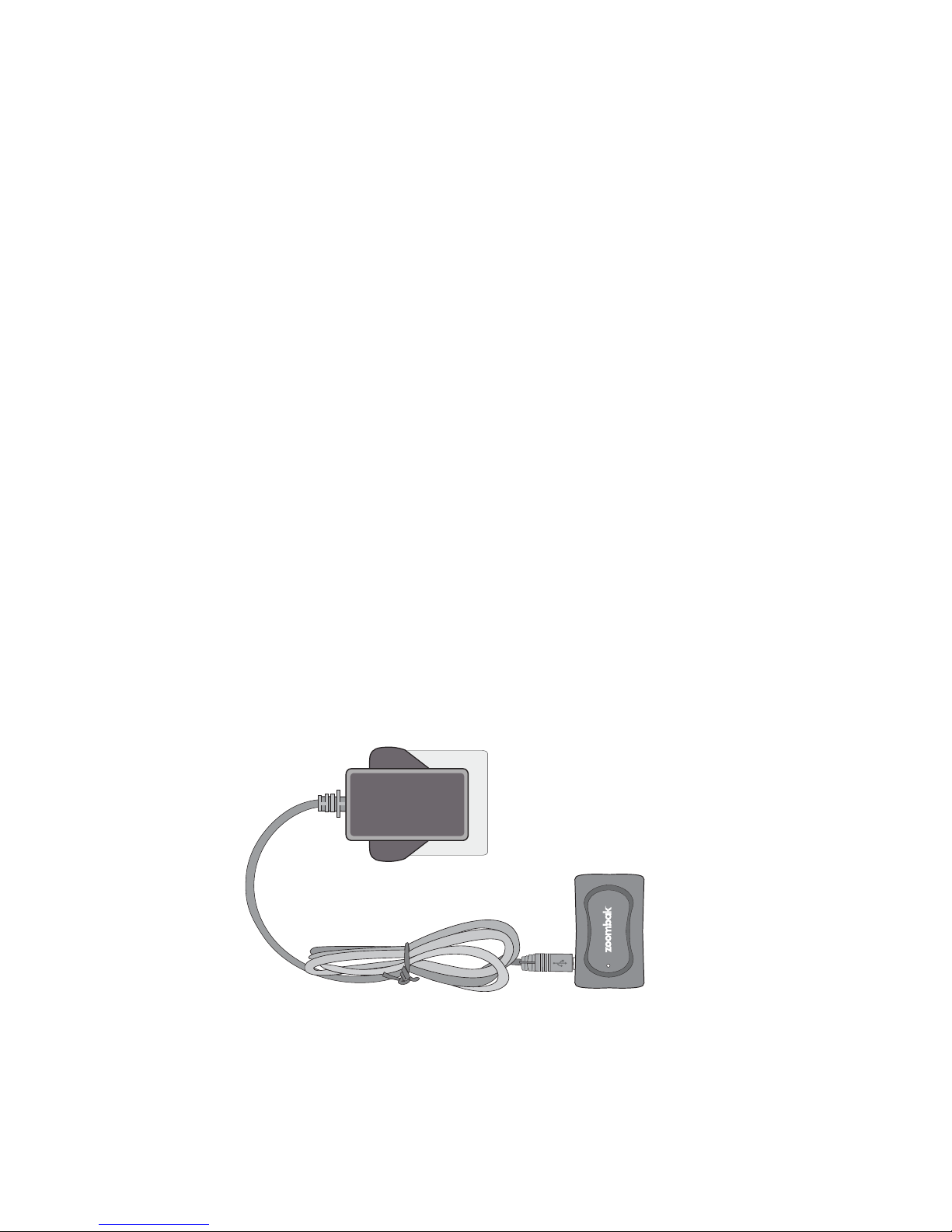

3. Attach the Zoombak Dog Locator to the AC Wall Charger via the
USB Charger Jack on the Zoombak Dog Locator.
4. The Locator Status LED Indicator will glow amber (yellow),
indicating that the Zoombak Dog Locator is charging.
5. Once the Locator Status LED Indicator glows green, this will
signal that the Zoombak Dog Locator is fully charged.
4zoombak.co.uk

Battery Life
Mode Battery Life
Standby Up to 120 hours or 5 days
Active Locator Service Up to 150 Location Requests
Battery life depends on several factors including temperature,
network, signal strength and Locator service features used.
Location requests include the following Zoombak Locator
service features: “Find Now,” “Safety Zones” mode and
“Continuous Tracking” mode. When your Zoombak Locator indicates
low battery (blinking amber LED), recharge your battery as dened in
the section of this User Guide titled “Charging the Battery.”
Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. The Zoombak Locator battery is
not user replaceable; it can only be replaced by an authorized
service provider. For more information, go to: www.zoombak.co.uk.
5
zoombak.co.uk

6
Powering the Dog Locator ON/OFF
In order to power the Zoombak Dog Locator on or off, follow these
simple instructions:
1. Power ON—Press and hold the Power Button until the Locator
Status LED Indicator begins to glow (approximately two
seconds). Blinking green indicates operation OK.
2. Power OFF—Press and hold the Power Button until the
Locator Status LED Indicator begins to ash quickly
(approximately two seconds). Locator Status LED Indicator
will shut OFF when the Locator has properly shut down. A key
feature of your Zoombak Dog Locator during the power off
process is that the Locator will determine its current location
and send a power off notication via email and/or mobile text
message with its current location and time/date information
(see the Zoombak Dog Locator Quick Start Guide for details on
setting up your alerts). The Locator Status LED Indicator will
continue to blink during the power off process, which may take up
to 2 minutes to complete this important notication feature.
Monitoring the Dog Locator Status
Refer to the following list in order to determine the status of your
Zoombak Dog Locator LED Indicator at any time.
BLINKING GREEN Indicates Power ON
BLINKING AMBER (YELLOW-ORANGE) Indicates Low Battery
GREEN Indicates Fully Charged (When Charging)
AMBER (YELLOW-ORANGE) Indicates Charging
NO COLOR Indicates Power OFF
or Battery Needs to Be Charged
zoombak.co.uk

Placing the Locator on Your Dog
In order for the Zoombak Dog Locator to help locate your dog, the
Locator must be attached to your dog’s collar. The Zoombak Dog
Locator is not recommended for dogs under 7kgs. Follow these
simple instructions to attach the Zoombak Dog Locator to your
dog’s collar:
1. Place the Zoombak Dog Locator in the Zoombak Dog
Pouch, as shown.
2. Once the Zoombak Dog Locator is in the pouch, place the
Zoombak Dog Locator Pouch on your dog’s collar, as indicated
below. Please note that the pouch will attach to any type, form
or size collar.
3. To detach the Locator from your dog, simply remove the
Zoombak Dog Locator from the pouch using the zipper,
without removing the entire pouch from your dog’s collar.
4. If your dog scratches at the Zoombak Dog Locator, allow
him/her time to get accustomed to wearing it. There may be
an adjustment period.
zoombak.co.uk 7

8
Safety and Warranty Information
This section addresses six primary areas:
• Safety Information
• Zoombak WEEE Compliance Statement
• WEEE Marking
• Information for Users
• Warranty Information
• Water Resistance
Safety Information
Your Zoombak Dog Locator contains a Lithium Ion (LI) battery pack.
Leakage of ingredients contained within the battery pack or the
combustion of ingredients can cause personal injury to you or your
dog as well as damage to your Zoombak Dog Locator. If battery
leakage occurs, avoid contact with skin. If contact occurs, immediately
wash thoroughly with soap and water. If liquid leaking from battery
pack comes in contact with your eyes, immediately ush your eyes
thoroughly with water and contact your doctor. In case of ingestion,
immediately contact your doctor and/or go to the emergency room.
If the battery leaks into your dog’s fur, immediately wash the affected
area with soap and water and wrap the area to prevent the dog from
licking the leakage from their fur. If liquid leaking from the battery
pack comes in contact with your dog’s eyes, immediately ush them
with water and contact your veterinarian. If your dog ingests battery
uid, DO NOT induce vomiting (as this can further damage your dog’s
GI tract).
zoombak.co.uk

To avoid battery leakage:
• Do not expose battery to excessive vibration,
physical shock or liquids.
• Do not disassemble, attempt to repair or deform the battery.
• Do not dispose of battery pack in re.
• Do not peel or damage the battery label.
zoombak.co.uk 9

Zoombak WEEE Compliance Statement
The European Union’s Waste Electrical and Electronic Equipment
(WEEE) Directive has been implemented in member states during
2006. There are a number of obligations imposed on Zoombak as a
supplier of mobile and electronic equipment. Zoombak’s compliance
approach for each of these obligations is provided below.
WEEE Marking
All products that are subject to the WEEE Directive supplied by
Zoombak are compliant with the WEEE marking requirements. Such
products are marked with the “crossed out wheelie bin” WEEE symbol
shown right in accordance with European Standard EN 50419.
Information for Users
According to the timelines and requirements of European Union
member state WEEE legislation, the following user information is
provided in English for all Zoombak supplied products subject to the
WEEE directive.
This symbol on the product or on its packaging indicates that the
product must not be disposed of with normal
household waste. Instead, it is your responsibility
to dispose of your waste equipment by arranging
to return it to a designated collection point for
the recycling of waste electrical and electronic
equipment. By separating and recycling your
waste equipment at the time of disposal you will
help to conserve natural resources and ensure
that the equipment is recycled in a manner that
protects human health and the environment.
For more information about how to recycle your
Zoombak, please contact our customer services department on 0800
028 0101 or visit www.zoombak.co.uk
zoombak.co.uk
10

Warranty Information
Zoombak, Ltd. warrants to the original purchaser that the Locator
shall be free from defects in material and workmanship for a period
of 12 months from date of activation. If a defect covered by this
warranty occurs during the warranty period, Zoombak will repair or
replace your Locator product or component free of charge. If your
Locator is replaced for a defect covered under warranty, you may
receive a refurbished Locator in exchange for your original Locator.
The replaced unit will carry the remaining warranty period from the
original Locator.
Service After Expiration of Warranty
Please visit our website at www.zoombak.co.uk or call our Customer
Care Centre on freephone 0800 028 0101 for troubleshooting
information and repair or replacement options. In most cases, it will
be necessary to ship the product to Zoombak. Please do not send
any products to Zoombak without rst contacting our Customer Care
Centre.
Warranty Limitations
THIS WARRANTY SHALL BE NULL AND VOID IF THIS PRODUCT:
(a) IS USED FOR COMMERCIAL PURPOSES; (b) IS MODIFIED, OPENED
OR TAMPERED WITH; (c) IS DAMAGED BY NEGLIGENCE, ACCIDENT,
UNREASONABLE USE OR OTHER CAUSES UNRELATED TO DEFECT IN
MATERIAL OR WORKMANSHIP.
Water Resistance
The Zoombak Dog Locator has a water resistance rating of IPX6.
The Locator will continue to function when subjected to splashes
of water. This Locator is not waterproof and will not function when
submerged in water. DO NOT allow your dog to swim with the
Zoombak Dog Locator.
zoombak.co.uk 11

Contacting Customer Care
Need help troubleshooting or operating your Zoombak Dog Locator?
Contact Zoombak Customer Care via the internet at
www.zoombak.co.uk or call on freephone 0800 028 0101,
Monday – Sunday, 24 hours a day (times subject to change) to speak
to a Customer Care representative.
zoombak.co.uk
12

Specications and Certications
This section provides the following detailed Specications and
Certications:
• Dog Locator Specications
• Certications
• AC Wall Charger Specications
Dog Locator Specications
Feature Specication
Size 72.9 x 43.1 x (19.07 ~ 20.07) mm
Weight 71 grams
Frequency
Model Number ZB100
GSM 850 = ZB-100
824 – 849 MHz (Tx)
925 – 960 MHz (Rx)
GSM 1800
1710 – 1785 MHz (Tx)
1805 – 1865 MHz (Rx)
GSM 1900
1850 – 1910 MHz (Tx)
1930 – 1990 MHz (Rx)
Model Number ZB101
GSM 900 = ZB-101
880 – 915 MHz (Tx)
869 – 894 MHz (Rx)
GSM 1800
1710 – 1785 MHz (Tx)
1805 – 1865 MHz (Rx)
GSM 1900
1850 – 1910 MHz (Tx)
1930 – 1990 MHz (Rx)
Transmit Power Up to 2W
Battery Voltage 3.7 v
Operating Temp. -20oC to +60oC
Water Resistance IPX6
zoombak.co.uk 13

Certications
CE FCC: U2I-ZB100
IC: 6950A-ZB100 PTCRB
CTIA ETSI
GCF UL, UK (battery and charger)
AC Wall Charger Specications
Input: 90 - 264 VAC, 47 - 63 Hz
Output: 5.4 VDC @ 1.2A, short-circuit protected
Operating Temperature: -5° C to +45° C
Important Coverage Information
Our coverage maps provide high-level estimates of our coverage areas
when using your device outdoors under optimal conditions. Coverage
isn’t available everywhere. Estimating wireless coverage and signal
strength is not an exact science.
There are gaps in coverage within our estimated coverage areas that,
along with other factors (network problems, software, signal strength,
your wireless device, structures, buildings, weather, geography,
topography, etc.), will result in dropped and blocked connections,
slower data speeds, or otherwise impact the quality of services.
Services that rely on location information depend on your device’s
ability to acquire satellite signals (often not available indoors) and
network coverage. Estimated future coverage subject to change.
See www.zoombak.co.uk for coverage map and details.
14 zoombak.co.uk

www.zoombak.co.uk
z
