ZOSI C696 User manual

Quick Start Guide
C696 Wireless IP Camera
This guide willget you going with your camera. For more details and
information of the camera, please visit our official website:
www.zositech.com
V6.W.02.Z

English
CONTENTS
01
01

01 What’s in the Box
Camera USB Cable Mounting Screws
Mounting Bracket
Quick Start Guide
NOTE:
Reset Needle Warning Sticker
01 English

Wall Mount
Magnetic Mount
Power Switch
Charge Indicator
Micro SD Card Slot
Reset Hole
DC 5V Power Port
HD Lens
IR LEDs
Status Indicator
Microphone
Spotlights
PIR Sensor
Speaker
Power SwitchHold 3-5 seconds Turn ON/OFF
Reset Button
Slow Flashing Red Light
Fast Flashing Red Light
Solid Red Light
Solid Blue Light
Solid Blue Light
Status Indicator
Charge Indicator
Hold 3-5 seconds Device Reset
Waiting for connection
Device connecting
Connection succeeded
Camera’s charging
Camera’s fully charged
NOTE:
02 Gallery & Specs
English 02

Press and hold the power switch on the back of the camera for 3
seconds, the network indicator lights blink red. Power on the NVR, the
camera network indicator’s blinking red lights will turn into solid blue
lights, and the NVR will automatically connect and display video.
NOTE: It is recommended to test that each camera can work normally
before installation, if not, please contact us.
1. Do not charge the camera when the temperature is higher than 45
℃or lower than 0℃.
2. Please do not charge with an adapter in a humid environment.
3. If using a power adapter to charge, please use a certified power
adapter.
4. After fully charged, please plug the power port with the rubber
plug to prevent moisture or water.
Cameras come with batteries with partial charge when it leaves the
factory. Before using it for the first time, please fully charge the camera
with USB cable and charger before first use. Built-in battery, non-re-
movable.
Battery Charging：
Solid Red Light：Camera’s charging Solid Blue Light：Camera’s fully charged
Press and hold
Power Switch Charge Indicator
Power-ON
Precautions
Battery Charging
03 Power-ON
04 Battery Charging
03 English

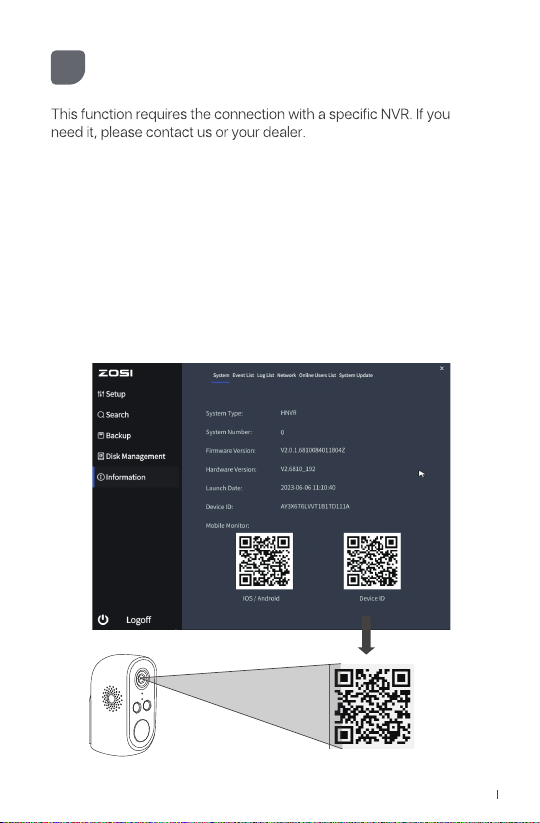

05 Add Extra Devices
NOTE: The camera system has been matched before shipment. After
the camera is powered on, the system will automatically connect and
display video.
If you want to add or reset a camera, follow the steps below.
• Press and hold the power switch on the back of the camera for 3
seconds, and you will hear "Device is waiting to connect", and the
network indicator light will flash red slowly.
• Right-click the mouse, click the Menu - Main Menu - Information -
System, aim the camera at the QR code on the bottom right at a
distance of 30-100cm, and scan the QR code to start pairing.
English 04

06 Add Device to App
Tutorial Video
6.1 Account Registration
Zosi Smart iOS/Android
•When you hear "wireless configuration succeed" from the camera,
the network indicator light comes solid red for about 20 seconds, the
camera will be automatically added to the system and display video.

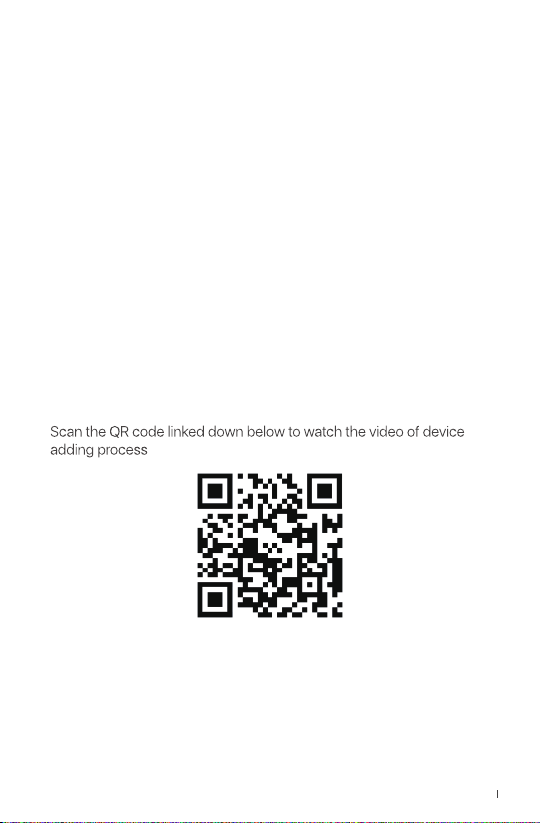

The operation video is as follows:
The following steps take Android system as an example. The interface
of iOS system will be slightly different.
• Use your mobile browser to scan the QR code above to download
Zosi Smart (both iphone and Android phone can scan and download.
iOS users can use your mobile camera to scan QR code or directly
search for "Zosi Smart" in App Store to download.
• Tap Register to register your Zosi account.
05 English

6.2 Add Device via QR Code
1. Press and hold the camera switch, and you will hear "Device is
waiting to connect", and the network status indicator light start flashing
red slowly.
2. Tap the Scan QR Code button and scan the QR Code on the
camera.
3. Enter the device name on the device information page, and tap the
Add an Unconnected Device button.
4. On the Connect to WiFi page, select WiFi and enter the
corresponding WiFi password, and tap Next.
NOTE: Support 2.4GHz WiFi only, please do not select 5GHz WiFi.
5. Point the QR code generated on your phone towards the camera
lens to scan.
6. When you hear "Wireless Configuration Succeed" from the camera,
tap Next and Confirm. Tap the Done button on the Wireless Connec-
tion Succeed page, and the device has been successfully added to
the App.
NOTE: If it fails to add device, please check the following:
1. Hear "Wireless connection failed"? Please check if the WiFi
password is entered correctly.
2. Please check if the device is plugged in.
3. Make sure that the network connected to the mobile phone and
the device can access the Internet normally.
English 06

07 Camera Installation
Unscrew the Mount Base
Screw the Mount Base on the Wall
7.2 Install with Mounting Bracket
4. Confirm if there are firewall restrictions on your home network. It
may be due to network reasons that the equipment cannot be
connected to our server normally in result the device is not online.
5. If you cannot identify the cause, please reset the device and
reconfigure the device network. Insert the reset pin into the reset hole
on the back for 5 seconds, and then add the device again according
to the above steps
NOTE: camera should be reset in operating state.
7.1 Place it on any flat surface: table, chair, TV
cabinet,etc.
1. Unscrew the mount base, drill holes in accordance with the holes
on the base, and tap the drywall anchors into the wall and screw the
mount base.
2. Attach the bracket to the base.
3. Screw the camera to the bracket and adjust the camera angle.
07 English

7.3 Installation Environment
Attach the Bracket to the Base Adjust the Camera Angle
Distancia: 5-50 pies (1,5-15 m)
)m3-2(seip9-6:arutlA
Height: Install the camera 6-9 ft (2-3m) above the ground.
Distance: Best accuracy for objects within 5-50 ft (1.5-15 m).
Angle: Tilt the camera down about 30°-60°from the horizontal position.
It is suggested to adjust the angle between camera and detected
object larger than 10°.
NOTE: Wake-up of the camera will be affected by various factors,
such as the distance between the person and the camera, the height
of the person, the height and angle of the camera, etc.
English 08

08 Installation Precautions
09 FAQs
1. The camera cannot be turned on?
2. The camera fails to connect to the Internet?
• Do not face the camera to any light source.
• Do not point the camera at glass windows or reflective objects.
Otherwise, it may result in poor image performance due to reflections
from infrared LEDs, ambient lights or status lights.
• Do not mount the camera in shaded area, and point the camera
towards a well-lit area. For better image quality, make sure the camera
and the captured subject are at the same lighting conditions.
• For optimum performance, it is recommended that the camera be
installed as far away as possible from electronic devices such as
microwaves, televisions, radio phones and baby monitors to prevent
signal interference.
• It is recommended to clean the lens with a soft cloth from time to
time.
• Do not expose the power port to water or moisture, or blocked by
dirt or other things.
• Do not install the camera where rain and snow may hit the lens
directly.
• Camera may work in extremely cold conditions as low as -10°C as
it will produce heat when powered on. You may power the camera
indoors for a few minutes before installing it outdoors. (Only for
outdoor cameras)
• Is the camera fully charged? Charge for 5 minutes and try again.
• Is the camera indicator light on? If not, press and hold the power
switch for 3-5 seconds.
• If the problem persists, please contact us.
09 English

10 Notification of Compliance
3.
• Hear "wireless connection failed"? Please check whether the WiFi
password is entered correctly.
• Please check whether it is connected to 2.4GHz WiFi network,
5GHz WiFi is not supported.
• The network is not good, please move the device closer to the
router and try again.
CE Simplified EU Declaration of Conformity
ZOSI declares that product is in compliance with the essential
requirements and other relevant provisions of Directive 2014/53/EU.
This marking indicates that this product should not be disposed with
other household waste throughout the EU. To prevent harm to the
environment or human health from uncontrolled waste disposal and
promote the sustainable reuse of material resources, please recycle it
responsibly. To return your used device, please use the return and
collection system or contact the retailer from whom the product was
purchased. They can take this product for environmentally safe
recycling.
English 10
Correct Dispose of this product

NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
RF Exposure Warning Statements:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment shall be installed and
operated with minimum distance 20cm between the radiator & body.
11 English

This device contains licence-exempt transmitter(s)/receiver(s) that
comply withInnovation, Science and Economic DevelopmentCanada’s
licence-exempt RSS(s). Operation is subject to the following two
conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent
appareil est conforme aux CNR d’Innovation, Sciences et Développement
économique Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) L' appareil ne doit pas produire de brouillage;
(2) L' appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d' en compromettre le fonctionnement.
Radio Frequency Exposure Statement for IC
This equipment complies with IC exposure limits set forth for an
uncontrolled environment. The device can be used in portable exposure
conditions. This equipment shall be installed and operated with minimum
distance 20cm between the radiator & body.
Cet équipement est conforme aux limites d'exposition IC établies pour
un environnement non contrôlé. L'appareil peut être utilisé dans des
conditions d'exposition portables. Cet équipement doit être installé et
utilisé avec une distance minimale de 20 cm entre le radiateur et le corps.
English 12

www.zositech.com
[e-mail]
Support Email: [email protected]
Facebook: https://www.facebook.com/ZosiTechnology
Whatsapp: [phone]
UK Whatsapp:
Responsible Party:
Company name :Loocam Technology LLC
Address: 2205 Hutton Dr, Unit 100, Carrollton TX 75006
Tel: [phone]
E-mail: [email protected]
[phone]
Copyright © 2023 ZOSI Technology Co., Ltd.
No part of this publication may be reproduced in any way without the
written permission of ZOSI. The information in this publication is
believed to be accurate in all respects. ZOSI assumes no responsibility
for any consequences resulting from their use. As our products require
continuous improvement,ZOSI reserves the right to modify product
designs, specifications and priceswithout notice and without any
obligation. All rights reserved,and ZOSI reserves the final interpretation
right of this manual.
