ZOSI ZG1883M User manual

W4 Wireless
Security Camera System
Quick Start Guide
Thanks for your purchase at ZOSI.
This quick start guide will guide you thr stalla
and related se to following this guide, please visit
(h ps://zositech.com/) for more installa ps and detailed
informa
If you have any problems about our products, please visit our online
support center (support.zositech.com) or contact us before returning.
Pr a Wireless IP Camera
Model: ZG1883M
Manufacture Name: Ansjer Electronics Co.,Ltd
ZOSI Technology Co., Ltd.
3/F, Taitan Industrial Park,
Xiangzhou District, Zhuhai, Guangdong 519000, China

02
Contents
What's in the Box
Gallery & Specs
How the System Works
How to Connect the System
Camera Installaon Steps
Installaon Tips
Hard Drive Installaon
Remote View Sengs (App)
Remote View Sengs (AVSS Client)
New Camera Pairing
Warranty and Customer Service
This device contains licence-exempt transmier(s)/receiver(s) that comply with
Innovaon, Science and Economic Development Canada’s licence-exempt RSS(s).
Operaon is subject to the following two condions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause
undesired operaon of the device.
L’émeeur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovaon, Sciences et Développement économique Canada
applicables aux appareils radio exempts de licence. L’exploitaon est autorisée aux
deux condions suivantes :
(1) L' appareil ne doit pas produire de brouillage;
(2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est suscepble d' en compromere le fonconnement.
02
03
04
04
05
06
06
07
10
15
16

03
What's in the Box
01
4*Camera
1*Quick Start
Guide
1*12V/2A NVR
Power Adapter
4*12V/1A Camera
Power Adapter
1*1m Ethernet Cable
1*Mouse 1*Waterproof Lid
1*HDMI Cable 4*Mounting
Screw Bag
1*NVR 4*Mounting
Template
4*Warning
Sticker
Quick Start Guide
NOTE: there are 4pcs cameras kit and 8pcs cameras kit. The amount of cameras,
12V/1A camera power adapters, mounting templates, mounting screw bags and
warning stickers will be the same as the camera kit you purchase. For waterproof
lid, there is 1pc for the 4-camera kit and 2pcs for the 8-camera kit.

04
2.1 Network Video Recorder
①VGA port: connect monitor with VGA port to NVR via VGA cable
②HDMI port: connect monitor with HDMI port to NVR via HDMI cable
③Backup USB port: insert USB drive for backup or system upgrade
④Ethernet port: connect router or switch to NVR via Ethernet cable
⑤Mouse USB port: connect to mouse
⑥Power port: connect to power supply
⑦Audio port: audio signal output
⑧Antenna: transmit wireless signal
Gallery & Specs
02
NOTE: NVR with hard drive support 24/7 recording.
②HDMI port
①VGA port ⑦Audio port ⑤Mouse USB port ⑥Power port
④Ethernet port
⑧Antenna
③Backup USB port
2.2 Camera
①Lens: capture image and video
②Spotlights: illumination and light alarm
③IR-LEDs: provide night vision in dark
environment
④CDS: day and night auto switch
⑤Microphone: for voice intercom
⑥Speaker: for voice intercom and voice alarm
⑦Antenna: transmit wireless signal
①Lens ⑦Antenna
⑥ Speaker
⑤Microphone
④CDS
②Spotlights*2
③IR-LEDs*4

05
The wireless NVR system consists of two parts. One is the NVR connected to the
monitor, and the other is the IP cameras installed. Both NVR and IPC need
independent power supply to work. Users can watch the real-time video captured
by each IPC on the monitor. These images will also be saved in NVR for later
playback at any time.
How the System Works
03
To ensure that the product can work normally, we recommend that you connect
the whole system before installation to see if there is any damage during
transportation.
How to connect the system:
1. Connect NVR to router using a network cable.
2. Connect monitor to NVR via HDMI or VGA port(VGA cable is not included).
3. Connect the included USB mouse to the top USB port of NVR.
4. Connect NVR to power supply (12V power adapter)
6. The monitor will display live video of the camera.
5. After the system starts, connect camera to the system (maximum support 8
channels).
How to Connect the System
04

06
Backup USB port
Monitor
Router
1. Screw the antenna onto the camera. Please keep the antenna vertical for best
reception.
Note: fold the camera bracket before installing the antenna so you can easily
install the antenna as shown in the picture.
2. Drill a hole on the wall according to mounting template, and insert wall plugs
into the hole.
3. Align the mounting hole of the camera with the wall plugs, and then tighten
screws into the wall plugs.
4. Loosen the bracket screw and adjust the camera to a proper angle.
5. Tighten the screws.
Camera Installation Steps
05
1. Mount the antenna
4. Adjust the angle 5. Tighten screws
3. Install the camera2. Insert wall plugs into
the holes

07
Please refer to the picture down below for the ideal installation.
It is recommended to place the camera at least 7 feet (2.1m) above the ground
and tilted slightly downward towards the monitoring area, excluding any high-
traffic areas. (E.g.sidewalks or roadways).
1. Ensure that the camera’s view is open and free of obstructions.
2. Place the camera at no more than 20 feet (6.1m) to ensure that the area you
want to monitor is within the field of view.
3. Install the camera within the receiving range of the recorder (refer to the
camera specifications).
4. The camera can be used outdoors (protection rating IP66).
Installation Tips
06
Some camera kits may not contain hard drives, depending on the camera kit you
purchase. This kit support most 3.5” HDD.
NOTE: Please skip this step if your recorder has a pre-installed hard drive.
1. Power off the NVR, unscrew and remove the top cover of recorder.
2. Connect the power cable and data cable of the hard drive to the corresponding
ports in the recorder.
3. Put the hard disk into the recorder. All wires should cross up over the hard drive.
4. Hold the hard disk and the NVR, gently turn it over and line up the holes on the
hard disk with the holes on the NVR. Use a Phillips screwdriver, screw the included
screws into the holes.Assemble the cover.
You need to format the hard drive before recording. Right click mouse> Main
Menu> Hard Disk Management> select Hard Disk> Format> Apply.
Hard Drive Installation07

08
1. Remove the top cover
3. Fix Hard drive 4. Assemble the cover
2. Hard disk wiring
8.1 Run the App
1. Install ZOSI Smart App.Open the App and enter the login page, enter your
account and password to log in.
2. If you don't have an account yet, please tap Register, enter your email and
get the verification code.And then set a password, tap Register to finish the
registration.
3. Get to the main page and click the "+" in the middle to add device.
4. Select DVR -Wireless recorder.
Remote View Settings (App)
08
ZOSI APP (IOS/Android)

09
Login Register Add device icon

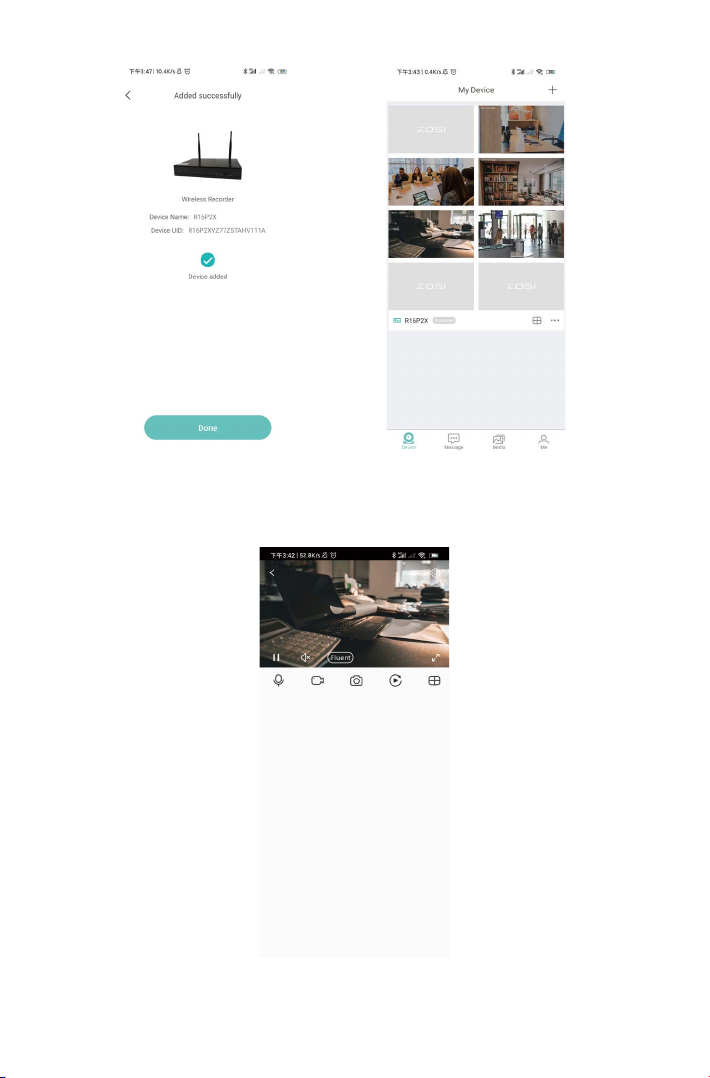

5. Scan the QR code or manually enter the ID number to add device.

10
Register
Device list
8.2 Two-way Audio
Enter the channel, long press the audio icon to start voice intercom.
Add device icon

11
9.1 Login
Install and open AVSS PC client, select the language and click Login.
1. Click Register Now to enter
the registration page
2. Enter the unregistered account
and password to sign in
Please register an account first if you don’t have one. It is recommended to log in
with the account of ZOSI Smart App, or choose local login (no account and
password is required).
AVSS PC client can be applied to DVR/NVR/IPC monitoring, with functions such
as live view, device management, and remote video playback etc..
Make sure that the device has completed the network configuration before
adding device on PC client. Download and install the AVSS client, follow the steps
below to start setup. Official Download: www.nsst.com/www.zositech.com.
Remote View Settings (AVSS Client)
09
xxxxxxxxxxx
9.2 Register
xxxxxxxxxxx

12

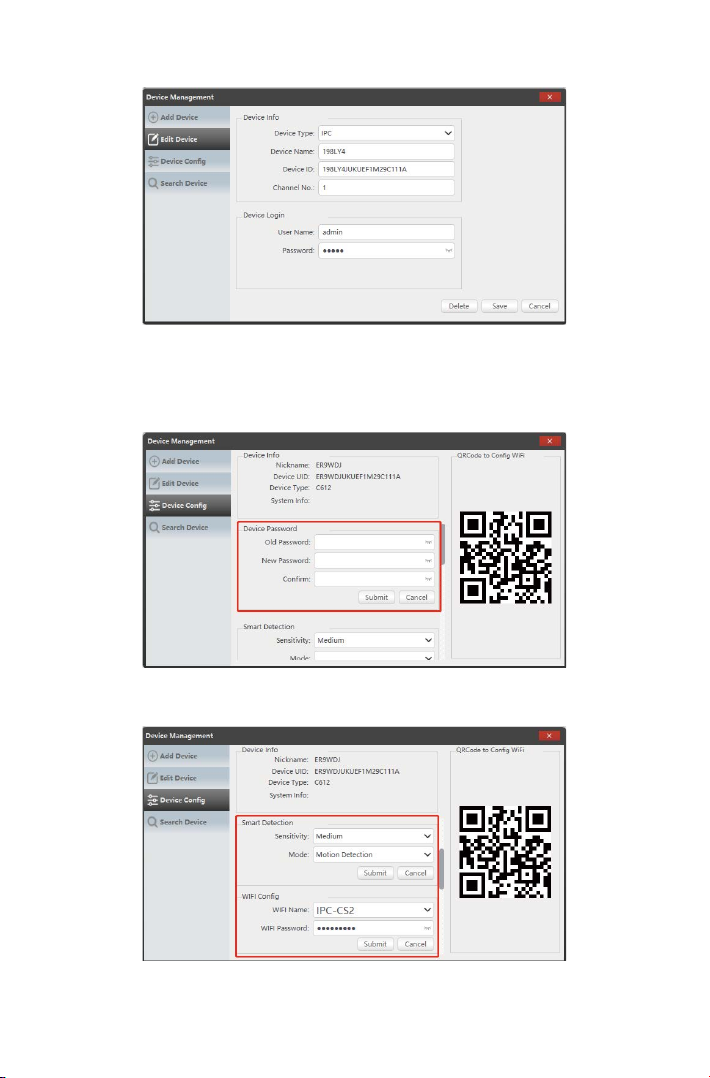

9.3 Device Management
9.3.1 Click Add Device below the device list to add device information
Select device type: NVR/DVR/IPC, etc., enter the device name, device ID or instant
identifier ID (Drag the device QR code or sharing codeinto the QR Code
Identification Zone), user name, device password and channel amount, and then
click Confirm to save the setup.
NOTE: The default user name is "admin", the default password of IPC is "admin",
NVR/DVR does not need to enter a password, the number of camera channels
should be the number of camer as, the default is 1.
9.3.2 Edit Device
Modify the device type, device name, device ID, channel number, login user
name and password, and save the modification.

13
9.3.3 Device Configuration
Get to the device configuration.
1. Modify the login password of the device
2. Set up intelligent detection, WiFi

14
3. Date and time
4. Mirror mode and recording mode.
Click Submit to apply after modifications.
9.3.4 Search Device
The device and AVSS client are connected to the same LAN, and the AVSS client
can search out the information of the device.

15

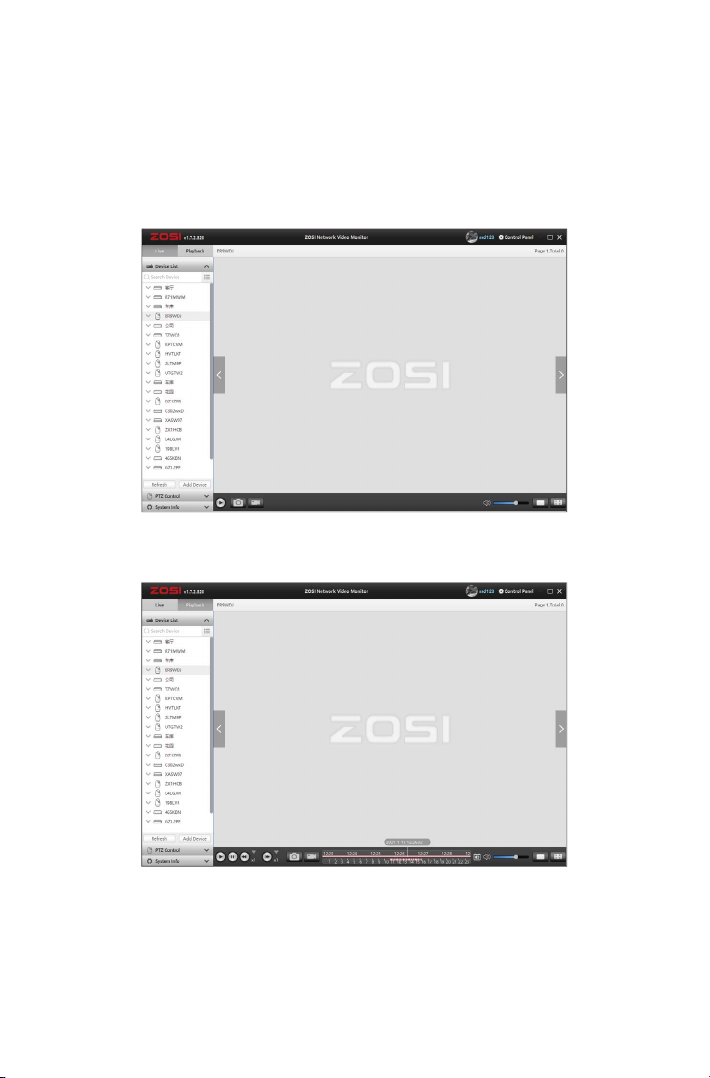

9.4 Live View
Live View
Select channel to watch live streaming.
9.5 Video Playback
Click Playback, select device, channel, date, time, click the play icon to start
replaying recorded footage.
Playback

16
The cameras have been paired before leaving the factory, NVR will automatically
display video after powering on the camera system. It is recommended that users
conduct a power-on test before installation to ensure that each camera can work
normally. If it fails, please contact our customer service.
If you want to add a new camera or reset the camera, please follow the following
steps. Take out the camera, install the antenna, connect NVR and camera with a
network cable. Make sure that NVR can display normally on the monitor, and then
perform the following operations:

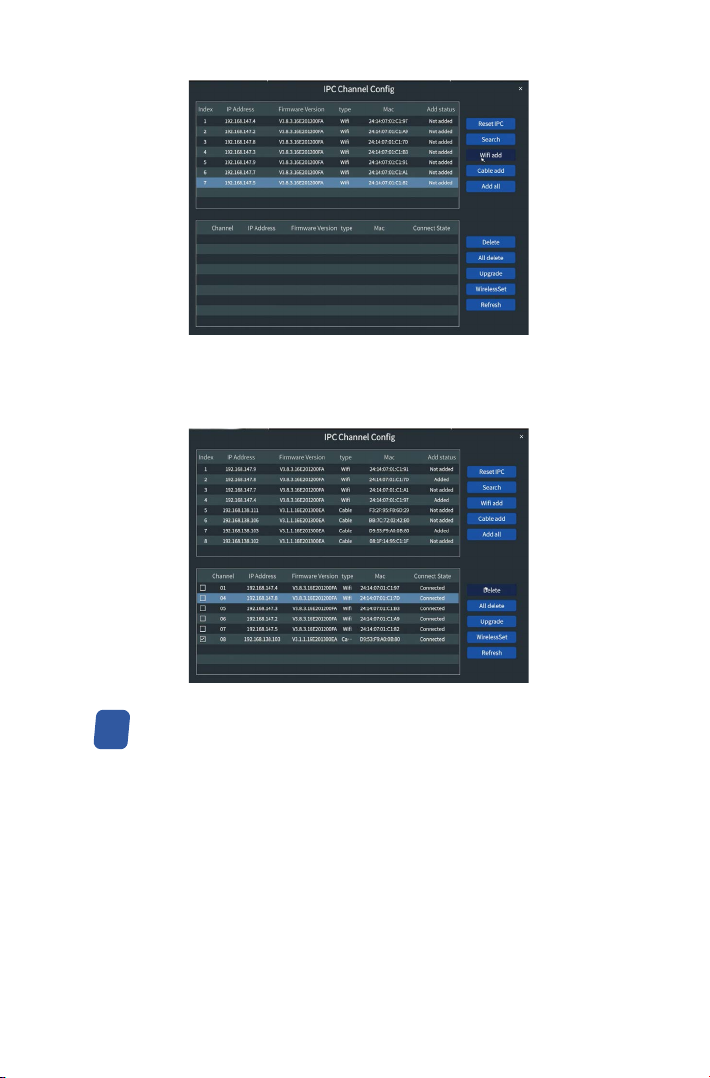

1. Right click the mouse, the main menu will come out.
2. Select and enter IPC Channel Config page.
3. Click the Search on the IPC Channel Config page to search for the
corresponding IPC.
New Camera Pairing
10
4. Double-click the searched cameras, or tick the camera and click WiFi Add. The
status of IPC connected shows at the bottom of the page, and the corresponding
monitoring video will display.

17
NOTE: If all eight IPC channels have been connected and you need to connect
other cameras, then you will need to delete one or more channels to add other
cameras.
Warranty & Customer Service
Please kindly note that product failures caused by the following conditions are
not covered by the warranty:
1. Product failure due to accident, negligence, disaster, improper operation or
misoperation.
2. Improper working environment or conditions, such as defaults due to power
failure, ambient temperature, lightning strikes, etc..
3. The product has been repaired by a maintenance not authorized by the
manufacturer.
4. Product purchased over 12 months from its original purchase date.
5. The product must be purchased from ZOSI official website or authorized
dealer to enjoy warranty service.
