Zte Axon 7 User manual

1
ZTE Axon 7
Quick Start Guide

2
LEGAL INFORMATION
Copyright © 2016 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted, reproduced, translated
or used in any form or by any means, electronic or mechanical,
including photocopying and microfilm, without the prior written
permission of ZTE Corporation.
Notice
ZTE Corporation reserves the right to make modifications on print
errors or update specifications in this guide without prior notice.
We offer self-service for our smart terminal device users. Please
visit the ZTE official website (at www.ztedevice.com) for more
information on self-service and supported product models.
Information on the website takes precedence.
Visit http://www.ztedevice.com to download the user manual. Just
click Support > Manuals from the home page and then select your
location, product type, and name to search for related support
information.
Disclaimer
ZTE Corporation expressly disclaims any liability for faults and
damages caused by unauthorized modifications of the software.
Images and screenshots used in this guide may differ from the
actual product. Content in this guide may differ from the actual
product or software.
Trademarks
ZTE and the ZTE logos are trademarks of ZTE Corporation.
Google and Android are trademarks of Google, Inc.
The Bluetooth®trademark and logos are owned by the Bluetooth
SIG, Inc. and any use of such trademarks by ZTE Corporation is
under license.
microSDHC Logo is a trademark of SD-3C, LLC.
Other trademarks and trade names are the property of their

3
respective owners.
Version No.: R1.0
Edition Time : March 31, 2016

4
Getting to Know Your Phone
Explore the premium features and refined design of Axon Pro at
zteusa.com/axon 7 . For more detailed information regarding your
Axon phone, please download the complete User Manual of
instructions and safety information at zteusa.com/axon 7#manual .

5
Earpiece
Touch Screen
Front Camera
Speaker
nano-SIM /
microSDHC
card tray
Speaker

6
Charging/ USB
Type-C
Headset Jack
Power Key
Back Camera
Volume Key
Flash
Fingerprint
sensor

7
Installing the nano-SIM Card(s) and the
microSDHC™Card
WARNING!
To avoid damage to the phone, do not use any other kind of
SIM cards, or any non-standard nano-SIM card cut from a SIM
card. You can get a standard nano-SIM card from your service
provider.
1. Insert the tip of the tray eject tool (included in the information
envelope inside the box) into the hole next to the
nano-SIM/microSDHC card tray and pull out the card tray.

8
2. Place the nano-SIM/microSDHC card (not included) on the
tray with the gold-colored contacts facing down, and then
carefully slide the tray back into place.
NOTE:
4G LTE words in both nano-SIM card slots individually, but not
simultaneously. If one slot works as 4G LTE, the other slot can
only word as 2G.
microSDHC
card tray
nano-SIM
card tray 1
nano-SIM
card tary 2

9
Charging the Battery
Your phone’s battery should have enough power for the phone to
turn on, find a signal, and make a fewcalls. You should fully charge
the battery as soon as possible.
WARNING!
Use only ZTE-approved chargers and cables. The use of
unapproved accessories could damage your phone or cause
the battery to explode.
CAUTION:
Do not change the built-in rechargeable battery in your phone by
yourself. The battery can only be changed by ZTE or ZTE
authorised service provider.

10
NOTE:
If the battery is extremely low, you may be unable to power on
the phone even when it is being charged. In this case, try again
after charging the phone for at least 20 minutes. Contact the
customer service if you still cannot power on the phone after
prolonged charging.
NOTE:
If the screen freezes or takes too long to respond, try pressing
and holding the Power key for about 10 seconds to restart the
phone.
Making a Call
With several convenient options for making a call, keeping in
touch with friends, family, and coworkers is quick and easy.
From the home screen, touch .
NOTE:
You can also touch the dialpad and enter the phone number or
contact name you want to call. Touch the matching contact or
Call [number] to place the call.

11
Sending a Message
Everyday life means staying connected through text, image, and
video messaging.
From the home screen, touch to send an SMS or MMS to
another mobile device.
Access settings
and other options
Opens the dial
pad Touch and
hold the 1 key to
check voicemail
Call a recently
dialed number
Check the details

12
Send your message
Dictate your
message
Opens your
contacts list
Touch to delete
Insert emoticons
Change to upper
or lowercase
letters
Attach a file
Add a contact

13
Playing Music
From the home screen, touch Google > Play Music to find
the song you want to play.
Number
Function
1
Song and artist information. Touch or drag down to
return to the music library.

14
2
Album artwork (if available). Slide left/right to switch to
the next/previous song in the playlist.
3
Use shuffle or repeat.
4
Give the song a thumbs-up.
5
Give the song a thumbs-down.
6
Playback control. Skip songs, pause and resume
playback, Drag the progress bar to jump to any part of
the song.
7
Touch to see the current playlist (queue).
8
Get more options.

15
Voice Recorder
Use Voice Recorder to record audio that can be shared with
others via email, text messaging, and more, or set the recording
as a ringtone for notifications on the phone.
From the home screen, touch Multimedia > Voice Recorder.
When recording, you can pause and resume by touching the
appropriate icon. Once you stop the recording, you can delete,
playback, or share the recording. Playback reveals additional
options such as trimming the clip or setting it as a ringtone.

16
List of all
recordings
Select more
formats
Touch to record

17

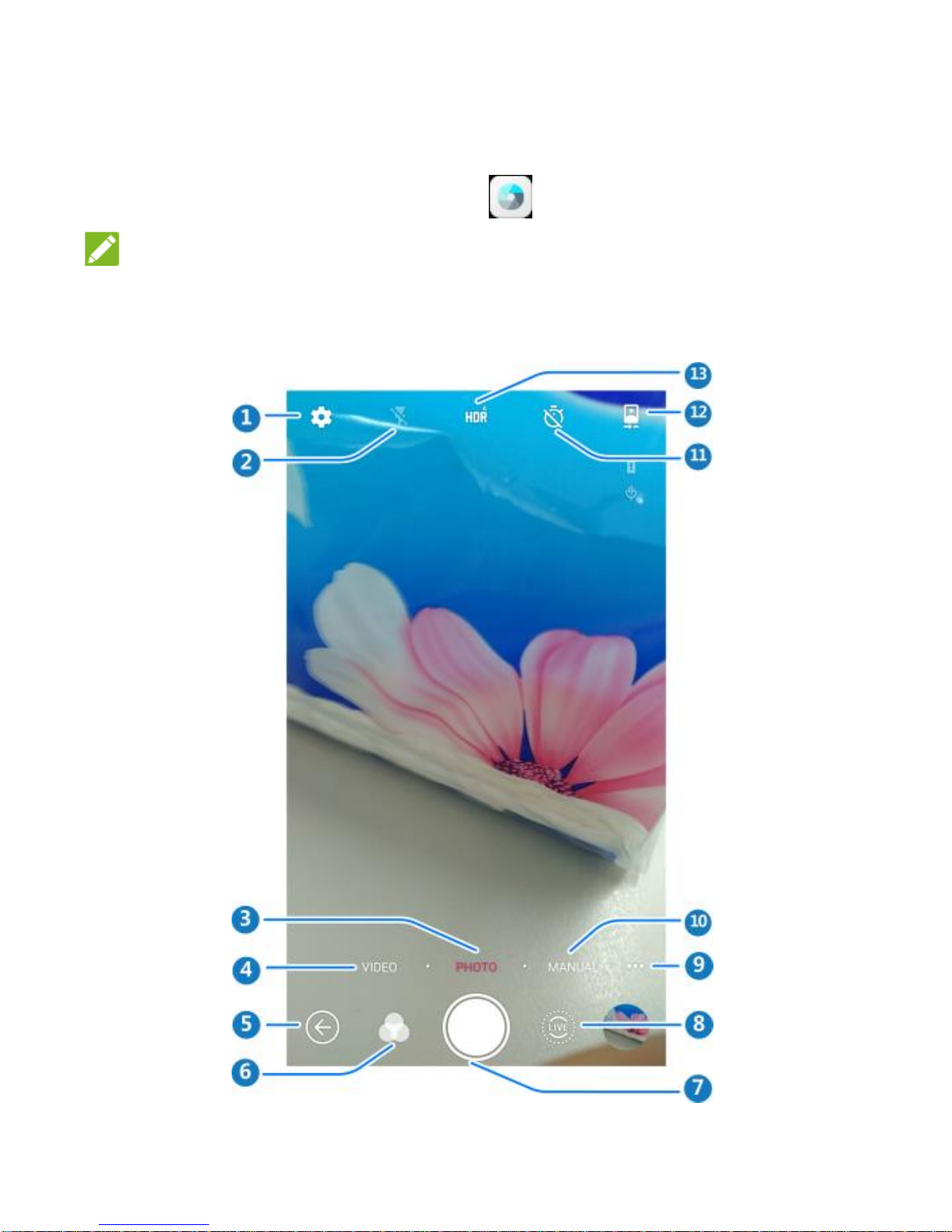

Taking a Photo
From the home screen, touch .
NOTE:
You can pinch or spread on the screen or press the Volume
Key to capture a photo.

18
Number
Function
1
Change the camera settings.
2
Change flash mode (only available for the back
camera).
3
Switch to photo mode (only available for the back
camera).
4
Switch to video mode.
5
Touch to return the last screen.
6
Set more filter mode.
7
Capture a photo.
8
Switch to live camera mode.
9
Switch to use panorama, blur, multi-exposure, long
exposure, timelapse, slow motion or special effects
(only available for the back camera).
10
Switch to Manual camera mode (only available for
the back camera).
11
Set a time delay before the camera takes a picture
automatically after you touch the shutter icon, or
turn off this feature.
12
Switch between the front and the back camera.
13
Switch to HDR mode.

19
WARNING!
Keep a safe distance when using the flash. Do not point
the flash toward people or animals’ eyes.
FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired operation.
This mobile phone has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.

20
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
FCC Note:
Caution: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This phone is designed and manufactured not to exceed
the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission of
the United States.
During SAR testing, this device was set to transmit at its
highest certified power level in all tested frequency bands,
and placed in positions that simulate RF exposure in usage
against the head with no separation, and near the body
with the separation of 10 mm. Although the SAR is
determined at the highest certified power level, the actual
