Zte ZXHN H108N Instruction sheet

H108N V2.1
Configuration Manual

ZTE H108N V.2.1 Configuration manual
Page i ZTE Proprietary and Confidential
Contents
1Accessing the Device ...................................................................................... 3
2Setup section................................................................................................... 4
2.1 Wizard................................................................................................. 4
2.2 Internet Setup...................................................................................... 9
2.2.1 Configuration for multi-device with dynamic IP..................... 9
2.2.2 Configuration for multi-device with static IP........................ 11
2.2.3 Configuration for standalone device with dynamic IP ......... 13
2.2.4 Configuration for standalone device with static IP .............. 14
2.2.5 Configuration for standalone device (generic).................... 16
2.2.6 Generic Configuration........................................................ 17
2.3 Wireless ............................................................................................ 21
2.3.1 Wireless Basics ................................................................. 22
2.3.2 Wireless Security............................................................... 24
2.4 Local Network ................................................................................... 28
2.5 Local IPv6 Network ........................................................................... 32
2.6 Time and Date................................................................................... 35
2.7 Logout............................................................................................... 36
3Advanced section .......................................................................................... 37
3.1 Advanced Wireless............................................................................ 37
3.1.1 Advanced Settings............................................................. 38
3.1.2 MAC Filtering..................................................................... 40
3.1.3 Security Settings ............................................................... 41
3.1.4 WPS Settings .................................................................... 42
3.2 SAMBA file share .............................................................................. 45
3.3 Port opening...................................................................................... 47
3.3.1 Automatic uPnP................................................................. 47
3.3.2 Port forwarding .................................................................. 48
3.3.3 Port filtering ....................................................................... 50
3.4 Other options..................................................................................... 51

ZTE H108N V.2.1 Configuration manual
Page ii ZTE Proprietary and Confidential
4Management section ..................................................................................... 52
4.1 Global IPv6 ....................................................................................... 52
4.2 System Management ........................................................................ 53
4.3 Firmware Update............................................................................... 54
5Hardware notice ............................................................................................ 56
5.1 Safety Precautions ............................................................................ 56
5.2 System Requirements ....................................................................... 57
5.3 Features............................................................................................ 57
© 2013 ZTE Corporation. All rights reserved.
ZTE CONFIDENTIAL: This document contains proprietary information of ZTE
and is not to be disclosed or used without the prior written permission of ZTE.
Due to update and improvement of ZTE products and technologies, information
in this document is subjected to change without notice.

ZTE H108N V.2.1 Configuration manual
Page 3 ZTE Proprietary and Confidential
1 Accessing the Device
The following is the detailed description of accessing the device for the first time.
Step 1 Open your browser and enter this address:
http://192.168.1.1:8000.
Step 2 The Login page shown in the following figure appears. Enter the
password and click Login. The user name and password of the super
user are 1234 and 1234.

ZTE H108N V.2.1 Configuration manual
Page 4 ZTE Proprietary and Confidential
2 Setup section

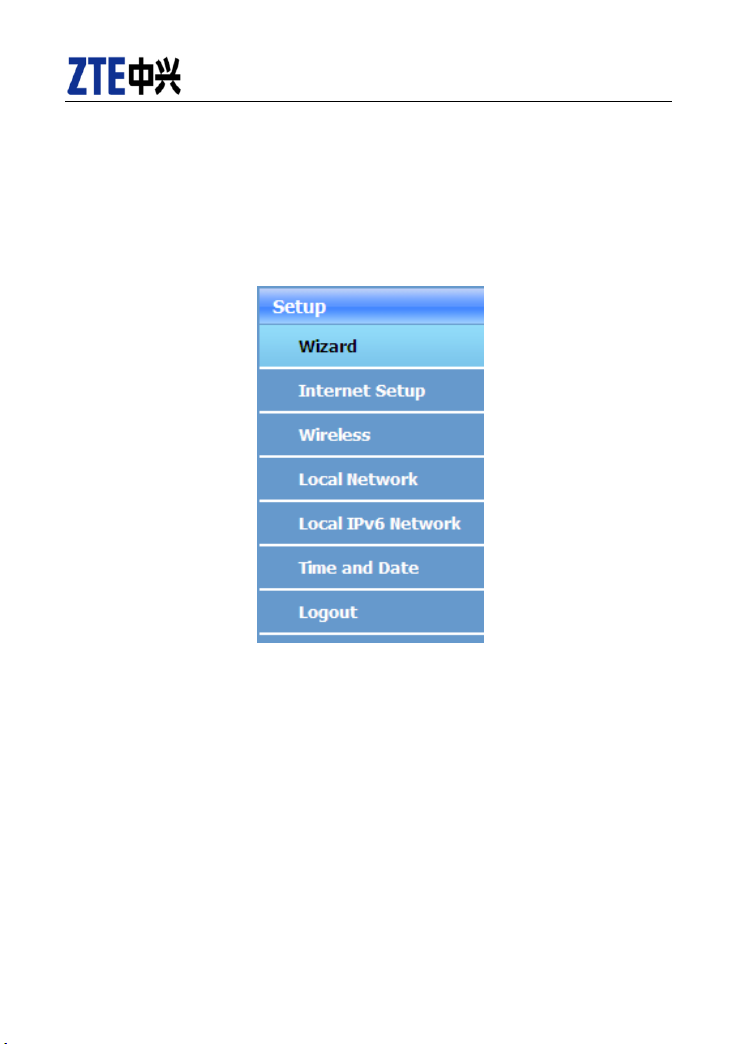

In the main interface, click Setup tab to enter the Setup menu as follow. In the
following pages we will discuss about the use of each function.
2.1 Wizard
The H108N V2.1 is customized with the configuration for your internet provider
(check the operator logo printed on the case of the router). In this way you don’t
have to worry because it should work automatically.
May you wish to configure it by yourself, the Wizard enables fast and easy
configuration of Internet connection and other important parameters. The
following sections describe the configuration of those parameters.
When subscribing to a broadband service, you should be aware of the method,
by which you are connected to the Internet. Technical information about the

ZTE H108N V.2.1 Configuration manual
Page 5 ZTE Proprietary and Confidential
properties of your Internet connection is provided by your Internet service
provider (ISP). For example, your ISP should inform you whether you are
connected to the Internet using a static or dynamic IP address, or the protocol,
such as PPPoA or PPPoE, that you use to communicate over the Internet.
Note:
The next chapter “Internet Setup” describes the scenarios for Movistar
Internet Provider in Spain, including the configuration values itself. If
this is your case we recommend you jump ahead to the chapter.
Choose Setup > Wizard. The page shown in the following figure appears.
Click Setup Wizard. The page shown in the following figure appears.

ZTE H108N V.2.1 Configuration manual
Page 6 ZTE Proprietary and Confidential
There are 4 steps to configure the device. Click Next to continue.
Step 1 Set the time and date in this page. After setting, click Next.

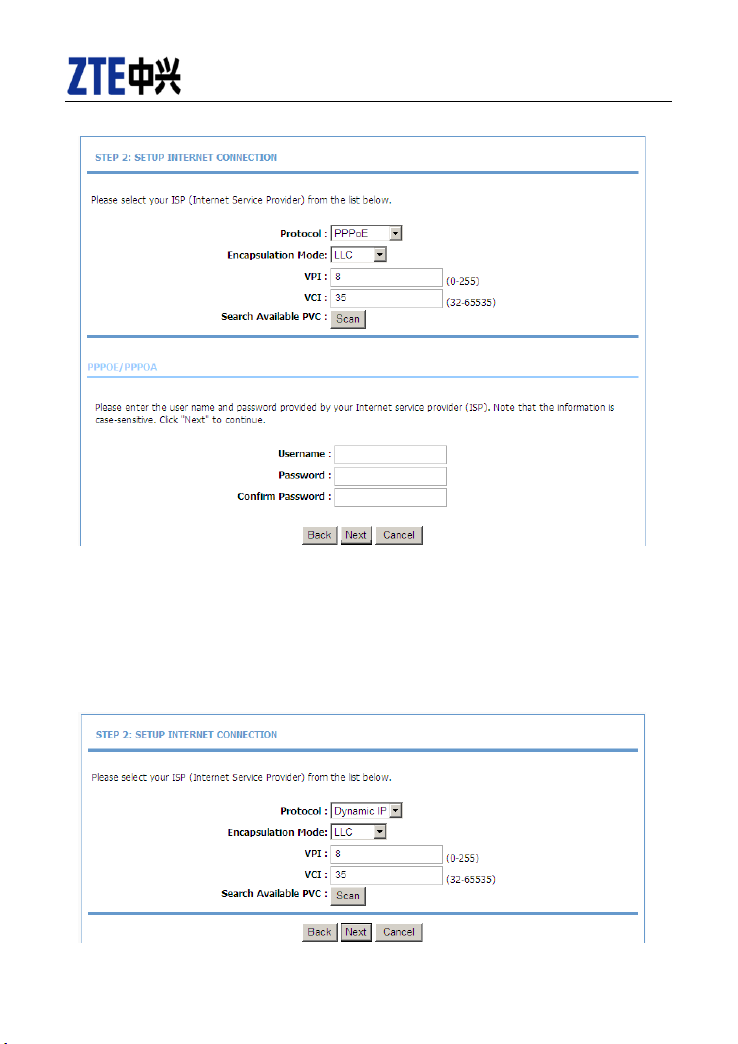

Step 2 Configure the Internet connection in this page.
(A) If the internet service you subscribed is PPPoE or PPPoA,choose the
Protocol as following figure appears.Set the VPI and VCI. Enter the user name
and password provided by your ISP.

ZTE H108N V.2.1 Configuration manual
Page 7 ZTE Proprietary and Confidential
(B) If the internet service you subscribed is Static IP or Dynamic IP, choose the
Protocol as following figure appears (this will match to the MER+LLC protocol).
The page shown in the following figure appears. For Static IP enter the IP
Address, Subnet Mask, Default Gateway and Primary DNS Server provided
by your ISP.

ZTE H108N V.2.1 Configuration manual
Page 8 ZTE Proprietary and Confidential

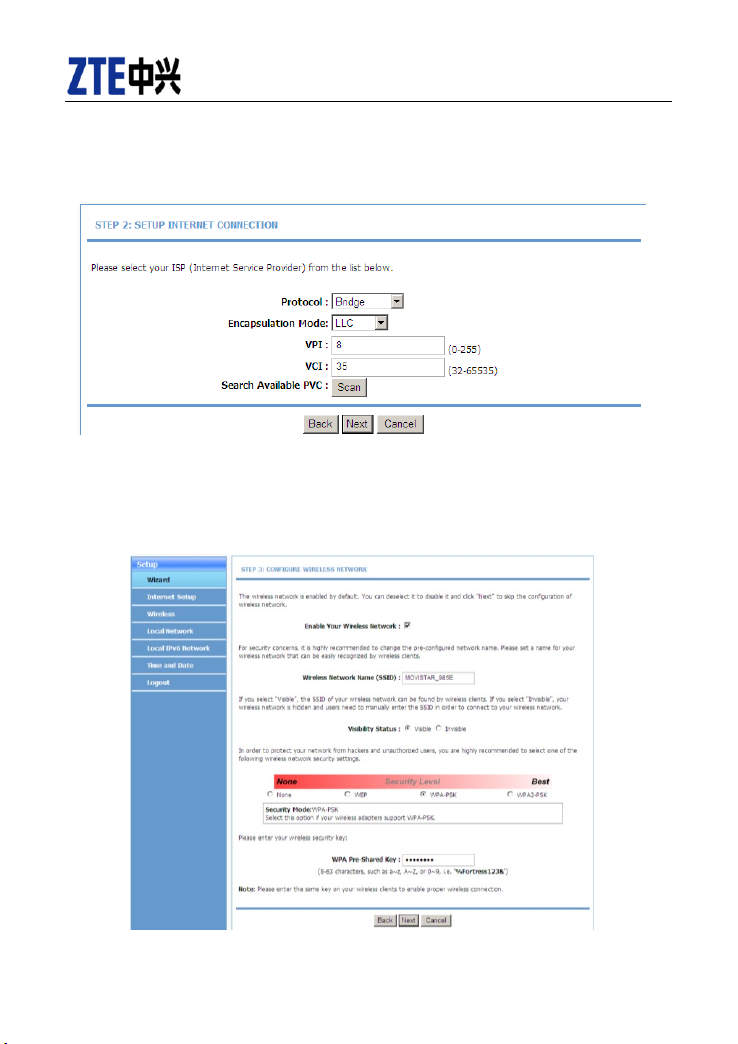

(C) If the protocol is set to be Bridge, the page shown in the following figure
appears.
Click Next. The page shown in the following page appears.
Step 3 Configure the wireless network. Enter the information and click Next.

ZTE H108N V.2.1 Configuration manual
Page 9 ZTE Proprietary and Confidential

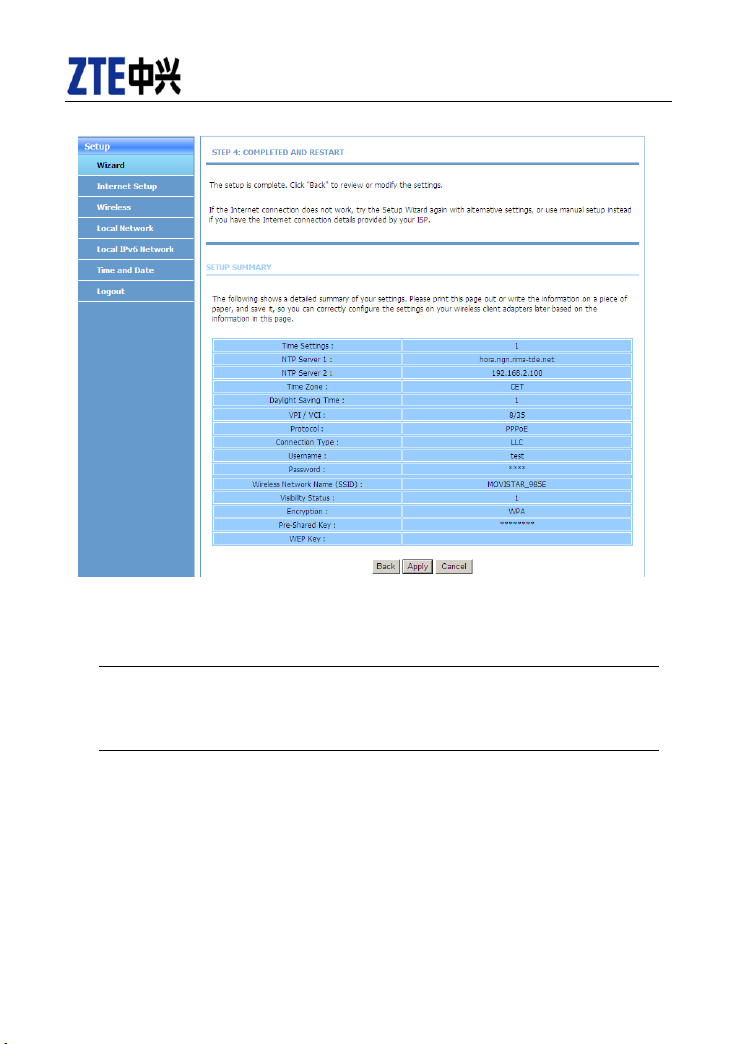

Step 4 Click Apply to save the settings.
Note:
In each step of the Wizard page, you can click Back to review or
modify the previous settings. Click Cancel to exit the wizard page.
2.2 Internet Setup
2.2.1 Configuration for multi-device with dynamic IP
Multiuser configuration allows you to create a network of multiple computers,
mobile phones, or tablets, with access to the Internet from all of them.

ZTE H108N V.2.1 Configuration manual
Page 10 ZTE Proprietary and Confidential
With dynamic addressing, the router will get the IP address required to access
Internet dynamically, each time you connect, during the time that the connection
remains active. The next time you log in, you will be assigned a different IP
address.
The advantage of this configuration is the security as to make use of NAT
(Network Address Translation) the private addresses of the computers on your
LAN are not visible from the outside internet, but translated into a single public IP
and valid from the Internet.

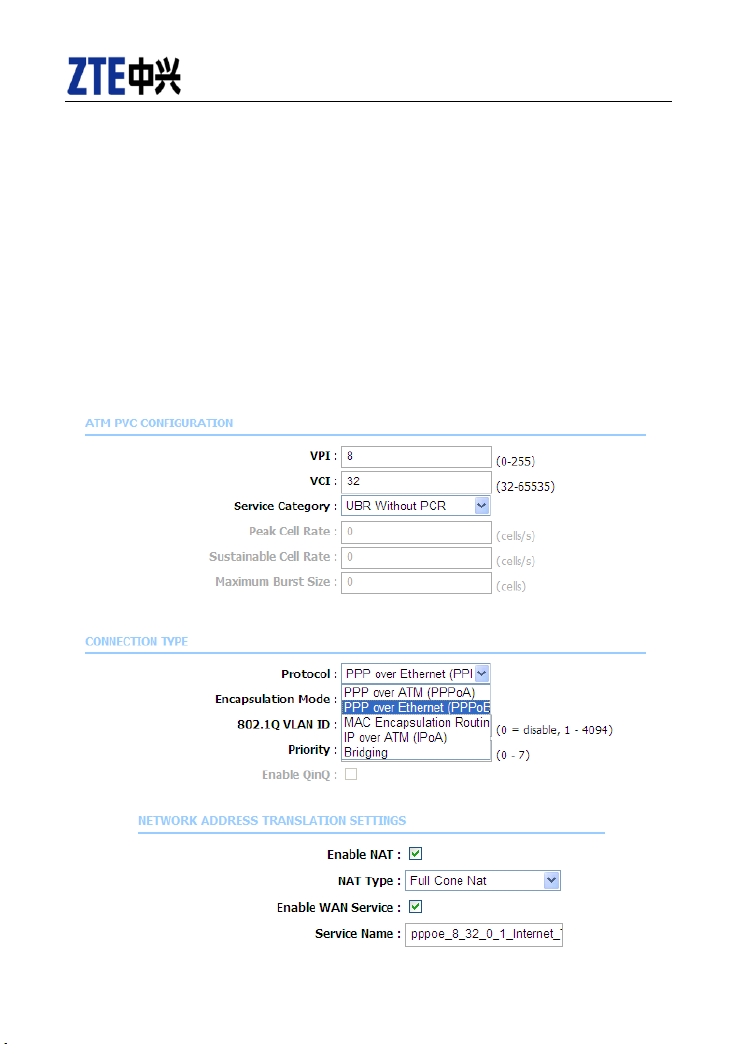

In management GUI, it can be set on Setup->Internet Setup:

ZTE H108N V.2.1 Configuration manual
Page 11 ZTE Proprietary and Confidential
Here is the WAN configuration to set in Setup->Internet Setup for the WAN1
connection ("connectivity default"):
VPI and VCI each: 8/32
Service Category (QoS): UBR without PCR
Connection Type: PPPoE
Encapsulation mode: LLC
PPPoE Username: adslppp@telefonicanetpa
PPPoE Password: adslppp
NAT enabled.
Then refer to the Advanced section:
Advanced -> QoS Configuration: these rules are already configured from
factory named as UP_Q_3 and traffic priority is given in the order of this list:
Traffic to the ACS: 80.58.63.192/255.255.255.192.
Traffic for public NGN: 81.47.224.0/255.255.252.0.
Advanced -> Routing -> RIP: rules for 8/32 are turned off.
Finally refer to the Management -> Access Controls -> Services, find the WAN
connection 8/32, and configure the following protection in the table:
Allow ICMP traffic from WAN for all IP address (zero).
Allow FTP, TELNET, HTTP (23, 21, 8000) traffic from WAN for these IP:
IP add = 193.152.37.192,80.58.63.128
Masks = 255.255.255.240,255.255.255.128
Deny all other WAN traffic
2.2.2 Configuration for multi-device with static IP
This configuration mode differs from the previous in that your router is assigned a
fixed IP address through which you will always access Internet.

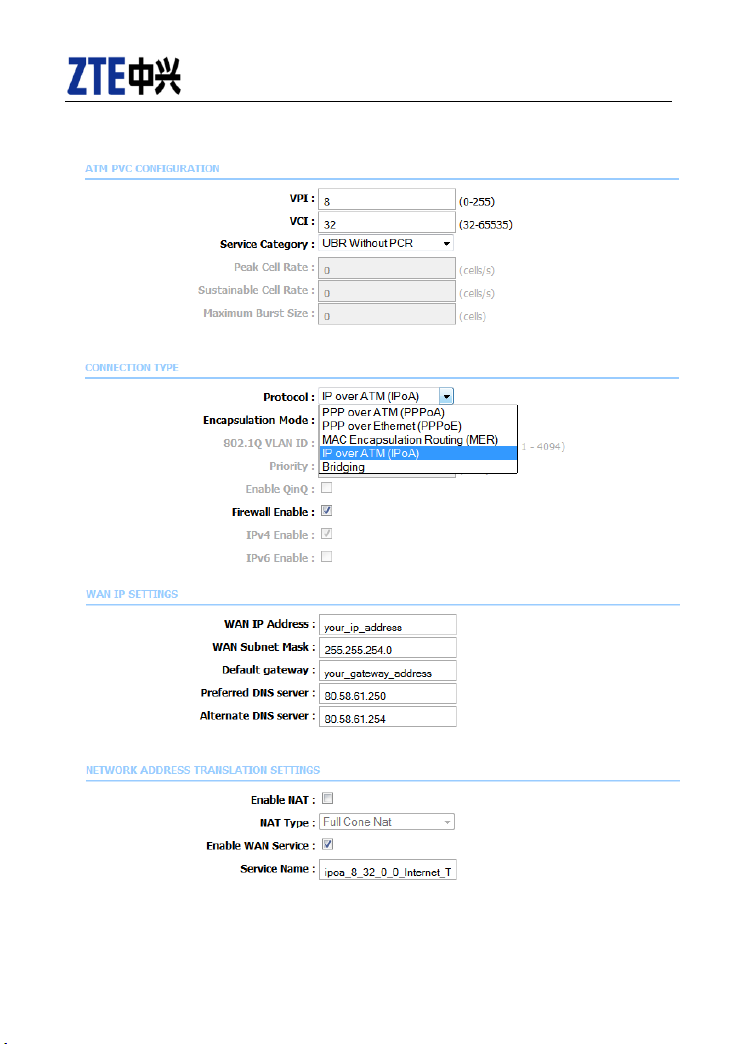

In management GUI, it can be set on Setup->Internet Setup:

ZTE H108N V.2.1 Configuration manual
Page 12 ZTE Proprietary and Confidential
Here is the WAN configuration to set in Setup->Internet Setup for the WAN1
connection ("connectivity default"):
VPI and VCI each: 8/32
Service Category (QoS): UBR without PCR

ZTE H108N V.2.1 Configuration manual
Page 13 ZTE Proprietary and Confidential
Connection Type: IPoA (also called static, RFC 2684, formerly 1483)
Encapsulation mode: LLC
WAN IP address: provided by your operator
WAN subnet mask: provided by your operator
Default gateway: provided by your operator
Preferred DNS server: by your operator (Movistar is 80.58.61.250)
Alternate DNS server: by your operator (Movistar is 80.58.61.254)
NAT enabled.
Then refer to the Advanced section (same config as last chapter):
Advanced -> QoS Configuration: these rules are already configured from
factory named as UP_Q_3 and traffic priority is given in the order of this list:
Traffic to the ACS: 80.58.63.192/255.255.255.192.
Traffic for public NGN: 81.47.224.0/255.255.252.0.
Advanced -> Routing -> RIP: rules for 8/32 are turned off.
Finally refer to the Management -> Access Controls -> Services, find the WAN
connection 8/32, and configure the following protection in the table (same config
as last chapter):
Allow ICMP traffic from WAN for all IP address (zero).
Allow FTP, TELNET, HTTP (23, 21, 8000) traffic from WAN for these IP:
IP add = 193.152.37.192,80.58.63.128
Masks = 255.255.255.240,255.255.255.128
Deny all other WAN traffic
2.2.3 Configuration for standalone device with dynamic IP
With standalone setup only one PC can be directly connected to the Internet, as it
does not use NAT. It is strongly recommended to use some kind of protection on
the computer: firewall and antivirus.
In this scenario, the router will transparently work in bridge mode, so your PC will
need to establish manually the PPPoE connection with your Internet Provider

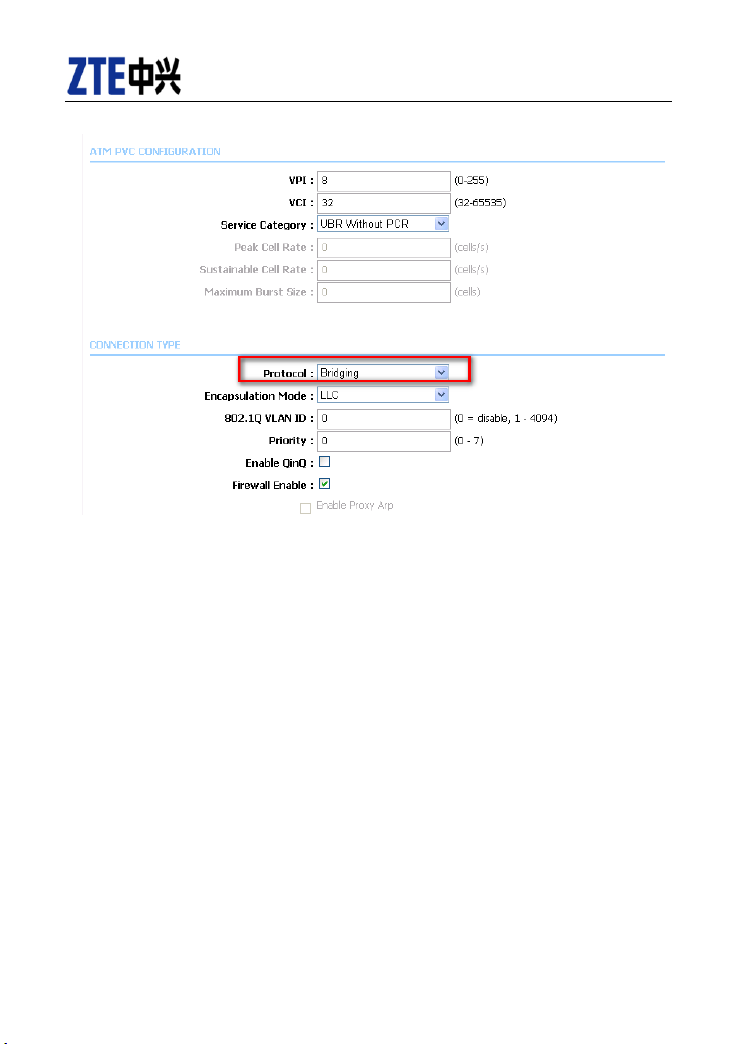

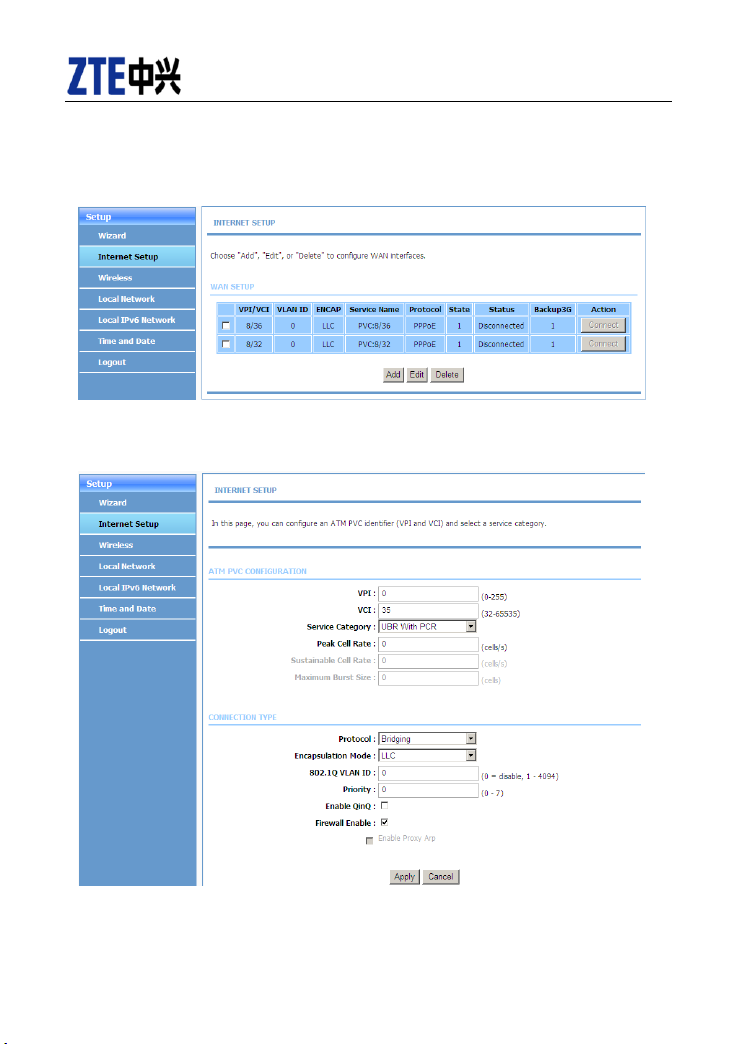

(ISP). In management GUI, it can be set on Setup->Internet Setup:

ZTE H108N V.2.1 Configuration manual
Page 14 ZTE Proprietary and Confidential
Here is the WAN configuration to set in Setup->Internet Setup for the WAN1
connection ("connectivity default"):
VPI and VCI each: 8/32
Service Category (QoS): UBR without PCR
Connection Type: bridging
Encapsulation mode: LLC
NAT disabled.
2.2.4 Configuration for standalone device with static IP
With standalone setup only one PC can be directly connected to the Internet, as it
does not use NAT. It is strongly recommended to use some kind of protection on
the computer: firewall and antivirus.
In the WAN side, the router will get a public IP for management. In the LAN side,
the router’s DHCP will provide to your PC a unique IP configured in the pool, that
will be the public line.

ZTE H108N V.2.1 Configuration manual
Page 15 ZTE Proprietary and Confidential
This configuration can be set on Setup->Internet Setup:
Here is the WAN configuration to set in Setup->Internet Setup for the WAN1
connection ("connectivity default"):

ZTE H108N V.2.1 Configuration manual
Page 16 ZTE Proprietary and Confidential
VPI and VCI each: 8/32
Service Category (QoS): UBR without PCR
Connection Type: IPoA (also called static, RFC 2684, formerly 1483)
Encapsulation mode: LLC
WAN IP address: provided by your operator (management IP)
WAN subnet mask: provided by your operator
Default gateway: provided by your operator
Preferred DNS server: by your operator (Movistar is 80.58.61.250)
Alternate DNS server: by your operator (Movistar is 80.58.61.254)
NAT disabled.
In the Setup->Local Network, find the section “DHCP settings”:
DHCP IP Address Range = [Start] = [End] = provided by your operator
DHCP IP mask = 255.255.255.252
DHCP gateway IP = first static address of the public WAN
Then refer to the Advanced -> Routing -> RIP and ensure rules for 8/32 are
turned off.
2.2.5 Configuration for standalone device (generic)
Based on your default factory configuration you can emulate the “standalone”
scenario with much easier configuration. Simply use the DMZ to expose your
computer to internet.
Refer to section Advanced > DMZ:

ZTE H108N V.2.1 Configuration manual
Page 17 ZTE Proprietary and Confidential
Select your connection VCI/VPI (probably 8/32). You can review the list of
connections in Setup > Internet Setup. The list will display which one is
connected.
Select enable DMZ (de-militarized zone)
Enter the IP of the computer or device that you want to expose to internet as
standalone system.
Click Apply.
On your computer you don’t need to take any action. It will have full
bi-directional communication with Internet. It is recommended to install a
firewall and antivirus software for basic protection.
2.2.6 Generic Configuration
The H108N V2.1 is customized with the configuration for your internet provider
(check the operator logo printed on the case of the router). In this way you don’t
have to worry because it should work automatically.

ZTE H108N V.2.1 Configuration manual
Page 18 ZTE Proprietary and Confidential
However, you can access and modify manually the configuration in the section
Setup > Internet Setup. The page shown in the following figure appears. In this
page, you can configure the WAN interface of the device.
Click Add and the page shown as the following figure appears.

ZTE H108N V.2.1 Configuration manual
Page 19 ZTE Proprietary and Confidential
The following table describes the parameters in the previous page.
Field
Description
PVC Settings
VPI: The virtual path between two points in an ATM
network and its valid value is from 0 to 255.
VCI: The virtual channel between two points in an ATM
network, ranging from 32 to 65535 (0 to 31 is reserved
for local management of ATM traffic).
Service
Category
You can select from the drop-down list.
Protocol
You can select from the drop-down list.
Please see the explanation note bellow this table for
more advanced information.
Encapsulation
Mode
Select the method of encapsulation provided by your
ISP. You can select LLC or VCMUX.
