ZTechnik Quantum Z5403 Installation instructions

Item Description Part No. Qty.
1 Headlight Guard with Quantum® Hardcoat 1
Bag#1154
2 Velcro Hook 77-771159-000 9
3 Velcro Loop 77-771160-000 9
CONTENTS OF KIT
ZTechnik PO Box 158 Maywood, IL 60153-0158 SA
708-343-0400 / Fax: [phone] / www.ztechnik.com / e-mail: [email protected]
©2016 National Cycle, Inc. Page 1 of 2 10-119993-000 05/16 Rev A 05/18
TOOLS REQUIRED:
T10 Torx
Grease Pencil or Crayon
Special notes and cautionary measures hich can prevent
damage to the accessory or motorcycle.
Tips for facilitation of operation, control and adjust-
ment, as ell as maintenance ork.
Note: Attention:
Thank you for purchasing a ZTechnik product. Read these instructions carefully and thoroughly before beginning work. Dealers,
if installing this windscreen for a customer, please give them this manual. It contains information needed to properly maintain
and use this product.
PREPARATION
The Velcro® Industrial grade fasteners will
securely hold your Quantum Hardcoated
olycarbonate Headlight Cover to the motorcy-
cle’s headlight.
For best performance and adhesion the
Headlight Cover and motorcycle surface
should be a minimum of 65 °F (18 °C)
Cleaning is critical. Be sure to clean the
headlight rim and remove all wax, clean-
ers, and protectants (Armor-All). These can
contaminate the adhesive causing it to fail.
Loop Hook
1
32
INSTALLATION AND O NER’S MANUAL
Quantum® Hardcoated Polycarbonate
Z5402 and Z5403 LED Headlight Guard for:
R1200GS/GSA ater Cooled

Figure 1
Figure 2
Figure 3
ZTechnik O Box 158 Maywood, IL 60153-0158 USA
708-343-0400 / Fax: [phone] / www.ztechnik.com / e-mail: [email protected]
©2016 National Cycle, Inc. age 2 of 2 10-119993-000 05/16 Rev A 05/18
Figure 4
Figure 5

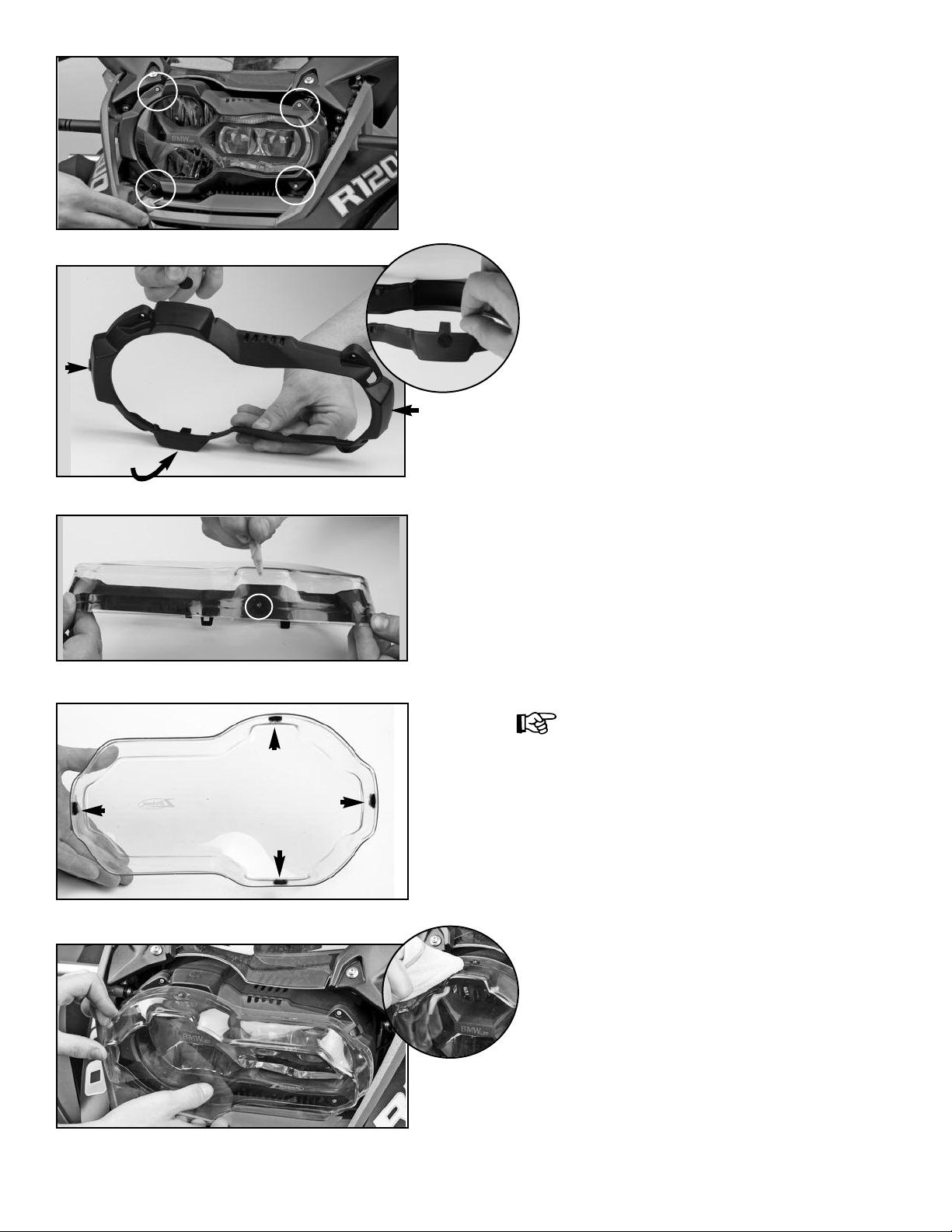

INSTALLATION
1. For ease of installation, it is recommend to
remove the Headlight Rim. (T10Torx) Figure 1
2. Apply 4 pieces of Velcro Loop to Rim.
osition Velcro Dot at inside edge of Rim as
shown in inset. Figure 2
3. Align the Headlight Cover to Rim. Make 4
marks on the outside of the Guard where the
Hook will match to the Loop. Figure 3 (Grease
Penci )
4. Install Hook at the mark on the inside of the
Guard. ress down to ensure good contact of
adhesive with Guard. Figure 4
Let Velcro Hook and Loop cure for 5 minutes
before installing Headlight Guard.
5. Re-install Rim to motorcycle. (T10 Torx)
6. Install Guard. Align Loop fastener with Hook
and press into place until fully engaged. Wipe
marks from Guard. Figure 5
CLEANING AND MAINTENANCE
To clean the guard, wash with a clean soft
cloth, plenty of warm water and if necessary, a
non-abrasive soap such as dishwashing liquid.
Flannel or soft chamois make good cleaning
cloths. aint, glue residue or tar removal:
Moisten cotton with naphtha or turpentine
fo owed by a wash as above.
Do not clean the guard with abrasive cleaners,
alcohol, or strong solvents. Except as recom-
mended above for paint, glue, or tar removal.
X
Inside Surface
