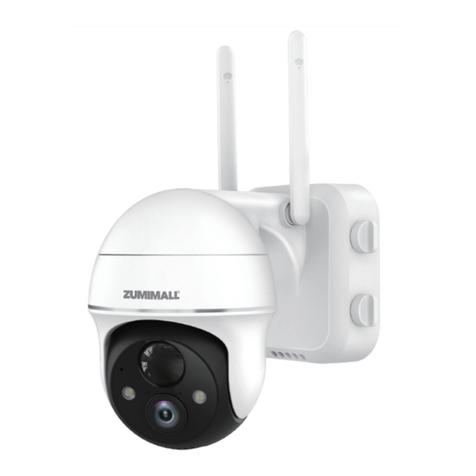

Zumimall A3K User manual

Get Smarter about your Security
QUICK START GUIDE
WIRELESS I WIFI I OUTDOOR I SECURITY [email protected]
A3K BATTERY POWERED CAMERA

Thank you for your order and your trust.
We will keep optimizing the product quality and enhancing your purchase
experience as much as we can. Zumimall will provide you an excellent
lifetime online service.
If you have any problem using our product, please contact us as soon
as possible via the email below. We will provide you with the best
possible solution within 24 hours. All your feedback, issues or problems
help improve our service and product quality.
Register via link below to get 3 Years Warranty Extension.
http://bit.ly/zuReg
Product Service
Email: [email protected]
Distributor: [email protected]
Cell/iMessage/SMS/Whatsapp/Wechat:[phone]
More About Us
Official Web: www.zumimall.com
Facebook: www.facebook.com/zumimalloffice
Amazon Office Store: www.amazon.com/zumimall
Warranty Service

1. What’s in the Box ------------------------------------------------------------------------------P1
2. Product Diagram ------------------------------------------------------------------------------P2
3. Download & Install App -----------------------------------------------------------------------P3
4. Account Registration ---------------------------------------------------------------------------P4
5. Add Camera to App -------------------------------------------------------------------------P4.5
5.1 Preparations for connection ---------------------------------------------------------------P4
5.2 Connect Camera to App ------------------------------------------------------------------P5
6. Camera Installation ---------------------------------------------------------------------------P6
7. Monitoring Area -------------------------------------------------------------------------------P7
8. Important Notes -------------------------------------------------------------------------------P7
9. Device Menu -----------------------------------------------------------------------------------P8
10. Camera Settings ------------------------------------------------------------------------------P9
11. PIR Body Detection ------------------------------------------------------------------------P9.10
11.1 Body Detection Alarm Setting ---------------------------------------------------------P9
11.2 Alarm Notifications --------------------------------------------------------------------P10
11.3 Records Playback & Delete -----------------------------------------------------------P10
12. Two-Way Audio ------------------------------------------------------------------------------P11
13. Battery Management -----------------------------------------------------------------------P11
14. Solar Panel ---------------------------------------------------------------------------P12.13.14
15. Multi Device Management -----------------------------------------------------------------P15
16. Reset ------------------------------------------------------------------------------------------P15
17. Trouble Shooting ------------------------------------------------------------------------P16.17
INDEX PAGE

ZUMIMALL Battery Camera*1 Solar Panel*1
Metal Mount( For Solar Panel)*1 Metal Mount( For Camera)*1
Iron Ball Wall Mount*1 Double-Sided Adhesive*2
Quick User Guide*1 Screws Set*2
USB Cable*1
1. What’s in the Box：
[email protected]
1
Get Smarter about your Security
QUICK START GUIDE
WIRELESS I WIFI I OUTDOOR I SECURITY [email protected]
A3K BATTERY POWERED CAMERA

2. Product Diagram：
[email protected]
Power Button
Reset Button
Blink Slowly in Red
Blink Fast in Red
Red Spot
Blue Spot
Blink Slowly in Blue
Keep pressing for 5 seconds to power on/power off
Keep pressing for 5 seconds to reset and restart
Awaiting Wi-Fi connection, ready for adding devices
Wi-Fi connecting
Network problem
Wi-Fi connected, camera running normally
AP mode
2
Camera Lens
PIR Sensor
LED Indicator
IR Lamp
Microphone
Speaker
SD Card Slot
USB Port
Iron Ball Wall Mount
Reset Hole
Power Button
1
2
3
47
8
9
10
11
5
6
3
46
7
8
9
10
11
5
2
1

[email protected]
3
Download ZUMIMALL App from Google Play™or App Store™.
Or scan the QR codes as below, with QR code scanner in your smart phone.
NOTE: Google Play™is a trademark of Google Inc.
App Store™is a service mark of Apple Inc.
Tips: Please turn on both of the following permissions.
1. Allow ZUMIMALL to access mobile cellular data and wireless LAN, otherwise it will
fail to connect the camera.
2. Allow ZUMIMALL to receive pushed messages, otherwise the phone will not receive
alarms when motion is detected.
*
3. Download & Install App：
ZUMIMALL AndroidiOS
>
>
<
Notifications
ZUMIMALL
ALERTS
Allow Notifications
9:41
Lock Screen
Banner Style
Sounds
Badges
OPTIONS
When Unlocked(Default)
Show Previews
Temporary
>
>
Automatic
Notification Grouping
>
NotificationCenter Banners
5:51
<
ZUMIMALL
Wireless Data
ALLOW”WIRELESS DATA”TO USE DATA
Off
WLAN
WLAN & Cellular Data
5:51

[email protected]
New user needs to sign up ’ZUMIMALL’ App with email. Click ‘Sign up’ to create a New
Account and follow the steps to complete registration.
4. Account Registration：
5. Add Camera to App：
5.1 Preparations for connection
5:51
Devices +
Devices Messages Me
060238708
2020-10-08 14:50:10
2.4G ONLY
5.1.1 Insert Mirco SD card (NOT included) when the camera is off, for saving videos
caused by motion detection automatically. (Supports up to128GB)
5.1.2 Camera only works with 2.4G Wi-Fi, not support 5G.
4
5:51
<
Sign up
United States +1 >
Email
Registrtion means agreement with the user
agreement and privacy agreement.
Next
5:51
<
Sign up
[email protected]
Account
Nickname
Password
Done
5:51
Log in
Forgot password?Remember password
>
Glad to meet you!
United States
Account
Passward
Sign Up
Step 1 Step 3
Step 2

[email protected]
5.2 Connect Camera to App
5
5:48
Devices
Devices Messages
Tap + to add a new device.
Me
5:48
Camera
Select Device
Get Smarter about your Smart Security
Battery Camera
Doorbell
Tap ‘+’ to Add Device Select ‘Battery Camera’ Tap ‘Next’ Reset it and Tap ‘Next’
5:49
Add Battery Camera
Press the [battery camera] button to wake the
device if it is asleep.
Hold the device power button to start the
device.
<
4
Please stay near to your router foe the best
signal.
Next
Hole the RESET button on your device for 4-5
seconds(please refer to the usea manual for
more on this).
Wait for a flashing RED indicator light.
Tap Next
5:49
Add Battery Camera
Please reset the device.
<
Next
Input Wi-Fi Password Prepare the Scanning Scan QR Code When Indicator
Flashing Slowly in Red Finished Installation
When Reaches 100%
5:50
Wi-Fi Setup
Select your Wi-Fi network
(Please select a 2.4G network, this device will
not work with 5G Wi-Fi networks)
Junan
cam2019@
Change WiFi
Hide Password
<
Next
5:50
Scan QR Code
<
Scan the QR code below with the
device at a distance of 5-8 inches.
A tone will be heard when
successfully scanned.
Help Nctificati...ne heard.
5:50
Connect Network
<
Please place the camera & phone
close to your router for the best
signal.
Device Found!
Connecting the device to the network...
Registering device...
12%
connecting...
Please remove all film from the lens.Tap
Next to show a QR code, and let your
device scan the code. Keep your phone 5-8
inches from the lens.
5:50
Operation instructions
<
Next
— — — — — — — — — — — — — — — —
15~25cm
5~5 in

[email protected]
6. Camera Installation：
6
Magnetic Ball Holder
Step 1:
Choose desired location for camera housing installation. Verify mounting structure and
surface is capable of supporting the camera. Select a flat, clean, and indoor surface, paste
the bracket mount on where you want to install the camera with a double-sided adhesive.
Step 2:
Leave the fasten bracket for at least 24 hours before you connect the camera with
the bracket.
Step 3:
Adjust the viewing angle of the camera.
Outdoor Metal Mount
Step 1:
Fix the bracket to where you want to install the camera with the supplied screw.
Step 2:
Connect the camera with the Joint Lock connected to the bracket, and secure the
Joint Lock to fix.
Step 3:
Adjust the viewing angle of the camera.
*Tips: For your safety, please fasten your camera on a flat, clean, and indoor surface.
If the location is undesirable (outdoor, rough, wooden, cement or ceramic tile surfaces),
please follow the instruction below.
*Tips: Secure the Joint Lock tightly to avoid the camera dropping down.

[email protected]
7
To reduce false alarms, please note that:
Do not install the camera in a position facing strong lights/mirror/window/swimming pool.
Do not place the camera too close to any angel with busy traffic.
Recommended distance between the camera and motion objects is within10M (32ft).
Stay away from the outlets, including air conditioner vents, humidifier outlets, the heat
transfer vents of the projectors, etc.
Keep the camera at least 1 meter away from any wireless devices to avoid interference,
such as microwave stove, Wi-Fi routers and etc.
8. Important Notes for Reducing False Alarms：
7. Monitoring Area：
It is not suggested to install the camera vertically towards the moving objects, otherwise
it may not detect the motion events or cause delay.
It is suggested to make the angular between PIR and detected objects more than
10 degrees. It's not suggested to make
the PIR sensor vertically
towards the moving objects
The path of the
moving object
Entrance
---------------------
---------------------
---------------------
>10°

[email protected]
8
9. Device Menu：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Device List
Add Camera
Real Time
Live View Button
Camera Name
History Playback
Cloud Storage
Messages
My Device List
Personal Homepage
Quit Live Viewing
Setting Manual
Battery Status
HD/SD Switch
Volume On/Off
Full Screen
Preview
Screenshot Button
Body Detection On/Off
Notification History
Cloud Storage
Record Video to Phone
Two-Way Talk
Zoom
Time Bar
History Screenshot
Alarm Record Album
Date of History Record
5:51
Devices +
Devices Messages Me
060238708
2020-10-08 14:50:10
12
4
6
7
10
3
5
8
9
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Intercom Record
History Cloud
<
11 12
13
14
16
20
21
22
23
19
18
17
15
5:51
060238708
2020-9-14 15:30:10
Live
Screenshot
Alert
Record
History Cloud
<
Calendar
14:00 15:00 16:00
27
28 26
25
24

[email protected]
9
10. Camera Settings：
5:51
Settings
<
Receive Alert Notifications
Device Share
>
Device Information
>
Basic Function
>
Alert Settings
>
SD Card
>
Cloud Storage Service
>
Delete the Device
Device Version
>
[email protected]
Device Name Rotate View
Turn on to Receive
Alarm Message
Share Camera to Others
Camera Sensitivity Setting
SD Capacity/Format
Activate Cloud Storage
Night Vision
Speaker Volume
Power Management
Camera Version
PIR "Body Detection" is default to be on ‘High’ level. But it is adjustable.
Please refer to the pictures below.
11.1 Body Detection Alarm Setting
11. PIR Body Detection：
Tap on ‘...’ Set it upSelect ‘Alarm Setting’
5:51
Settings
<
Receive Alert Notifications
Device Share
>
Device Information
>
Basic Function
>
Alert Settings
>
SD Card
>
Cloud Storage Service
>
Delete the Device
Device Version
>
29458******@qq.com
Device Name
5:50
Motion Detection
Medium
After enabling detection, the camera can detect motion
and sound around the canera and can select different
detection sensitivity accouding to different requirements.
Motion Detection
High
Low
<
Day Detection
The Alert will be triggerd only when
human motion is detected.
Night Detection
Alert Plan
Set the time period of the alarm, the device only triggers
an alarm event during this time period.
>
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Intercom Record
History Cloud
<

[email protected]
10
This camera is not designed for7x24 full day recording. It is only triggered when body
motion is detected. Here are system's reactions:
11.2.1 Alarm notifications with sounds from APP.
11.2.2 Pictures/videos automatically stored in SD Card or Cloud.
11.2 Alarm Notification
11.3.1 On ‘MESSAGES’ page, click ‘Alarm Messages’, you can view all the records listed.
11.3.2 Click the following buttons to playback or delete.
11.3 Records/Playback/Delete
Click to Delete
History
5:51
060238708
Motion Detection
2020-10-12 15:30:10
Motion Detection
2020-10-12
10:32:12
2020-10-12 15:30:10
<
2020-10-12 10:32:12
Noise Detection
92db
2020-10-12
10:32:09
2020-10-12 10:32:09
Noise Detection
75db
2020-10-12
08:53:53
2020-10-12 08:53:53
Noise Detection
73db
2020-10-12
2020-10-12 08:53:53
Click to Preview
the Snapshot
Click to Playback
Alarm Video
Sensitivity
Low
High
*Tips: Higher sensitivity offers longer detection distance and more alarms.
Detecting Distance (For moving and living objects)
Up to 5 meters (16ft)
Up to 8 meters (26ft)
5:51
Devices +
Devices Messages Me
060238708
2020-10-08 14:50:10
HD
Message-->
Alarm Message

[email protected]
11
12. Two - Way Audio：
13. Battery Management：
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Intercom Record
History Cloud
<
Hold to Talk
Step 1: Activate the audio option.
Step 2: Press and hold the intercom button to speak.
Step 3: Release the button to listen.
13.1 The camera has a built-in 6000mAh 18650 battery, which can be used for
2-5 months, assuming the camera wakes up15 times per day and plays video for
10 minutes.
13.2 When the battery level is less than 20%, the APP will send you reminding
messages for charging in time.
13.3 Charge the camera with DC 5V1A/2A phone charger, until it is fully charged
after 6 hours.
PS: (Adapter Not included)
*Tips: The battery durability depends on how frequently the camera is woke up.
The more it wakes up, the faster the battery level is consumed. It is recommended
to lower down the ‘Body Detection’ sensitivity or turn it off occasionally.

[email protected]
12
Please select a position with the most sunlight throughout the year for your solar panel.
The ZUMIMALL solar panel only needs a few hours of direct sunlight to sufficiently
power your camera daily. The amount of energy that the solar panel can produce is
affected by weather conditions, seasonal changes, geographic locations, etc.
Step 1:
14. Solar Panel：
Sun
The Northern Hemisphere The Ideal Angle=The Local Latitude + 5° The Southern Hemispher

[email protected]
13
Mount the bracket with the mounting template
and the screws provided in the package
Step 2:
Slot the solar panel into the bracket and
make sure it's secure
Step 3:
Step 4:
Loosen the adjusting control on the bracket
and adjust the angle of the solar panel to
make it receive direct sunlight, and then
retighten the adjusting control to secure your setting

[email protected]
14
Connect the solar panel to the ZUMIMALL Camera with the micro USB cable.
Step 5:
1. Make sure that there is NO blocking on the solar panel. The energy harvesting
efficiency drops drastically even when a small portion of the solar panel is blocked.
2. Please don’t install the solar panel completely horizontally. Otherwise your solar panel
might accumulate dust and other debris easily. It's advised to install the solar panel
angularly to make it receive direct sunlight.
3. Wipe the solar panel regularly to remove the dust or debris.
Important Notes:
1
The Waterproof
Wire Cover
Make sure the camera is
plugged in all the way and
that the waterproof wire
cover protects the interface
between the camera and
the solar panel
2
!

[email protected]
15
15. Multi Device Management：
16. Reset：
5:51
Devices +
Devices Messages Me
060238708
2020-10-08 14:50:10
2020-10-08 15:20:10
060552692
Add a Camera
5:51
Devices +
Devices Messages Me
060238708
2020-10-08 14:50:10
Tips
Are you sure you would like to
delete this device?
Ccancl OK
5:48
Devices
Devices Messages
Tap + to add a new device.
Me
Reset Hole
Keep pressing to
remove device
Press the reset button
for 3-5s, until hear the
‘Boogu’ sound Reconnect as before...

[email protected]
16
17. Trouble Shooting：
NO.
1
2
3
4
5
6
Unable to Connect
Reset
Change to a New Network
No person on Alarm Videos
Frequent Alarm
No Alarm when someone
passes by
Check your Wi-Fi name and password
Ensure your Wi-Fi is 2.4G. Not support 5G
Ensure your camera and phone close to router for set up
Keep pressing the reset button for 3~5 seconds
Hear ‘Boogu’
LED blink slowly in Red
Remove the camera in ZUMIMALL APP
Press the reset button to factory setting
Re-conenction
Adjust camera sensitivity to’HIGH‘. The moving objects may
appear from the corner of camera coverage, please adjust the
lens angle.
Adjust the camera alarm sensitivity to ‘Low’
Make sure motion detection is turned on.
Ensure motion happends beyond the range of PIR monitoring
area
7No Alarm Push Make sure Notification is turned on from ZUMIMALL and phone
8No Alarm Video Make sure insert a SD Card or activate Cloud Service.
Click triangle button to play videos.
9Device Offline Charge the camera and reconnect it.
Ensure the Wifi signal strength is good as above 75%.
10 Battery Durability Reduce frequency of Motion Detection, Two-way talk, and
frequency of viewing Live Feeds
Description Solution
