Zumimall F5K User manual

Get Smarter About Your Security
QUICK START GUIDE
FCC ID：2AXBN-Q3
WIRELESS I WIFI I OUTDOOR I SECURITY
F5K
BATTERY POWERED CAMERA

Thanks for your shopping and trust.
We have been optimizing our products and improve our lifetime
customer service to offer you a better shopping experience.
If you have any problems, please feel free to send us an E-mail.
We will solve your problems within 24 hours. In addition, your
advice or suggestions will be much appreciated and welcomed.
Register via link below to get 3 Years Warranty Extension.
http://bit.ly/zuReg
Product Service
Email: [email protected]
Distributor: [email protected]
More About Us
Web: www.zumimall.com
Facebook: www.facebook.com/zumimalloffice
Amazon Store: www.amazon.com/zumimall
Warranty Service

Brand Story
Founded in 2008, Zumimall focuses on the design and
research of intelligent security technology. Zumimall insists on
taking consumer needs as its core and strives to create smart
home products that lead a global home fashion trend for
consumers. Zumimall and technology changes life. With
high-quality products and first-class service, Zumimall won the
love and trust of millions of customers as soon as it went public.
Over the years, Zumimall has served 45 continents of America,
covering 80% of the population. Zumimall is the provider of a
smart lifestyle and a guardian of the wonderful moments of
your life.

1. What’s in the Box ---------------------------------- P1
2. Product Diagram --------------------------------- P2
3. Download and Install App -------------------------- P3
4. Account Registration ------------------------------ P4
5. Add Camera to App ------------------------------ P4
5.1 Preparations for Connection ---------------------- P4
5.2 Connect Camera to App ------------------------ P5
6. Camera Installation -------------------------------P7
7. Important Notes-----------------------------------P7
8. Monitoring Area -----------------------------------P8
9. Device Menu -------------------------------------P9
10. PIR Body Detection --------------------------------P10
10.1 Body Detection Alarm Setting ---------------------P10
10.2 Alarm Notifications -----------------------------P10
10.3 Record/Playback/Delete ------------------------P11
11. Two-Way Audio -----------------------------------P11
12. Power Saving Settings ------------------------------P12
12.1 Alarm Interval & Shooting Interval ------------------P12
12.2 Maximum Shooting Time & Recording Time ---------P12
12.3 Alarm Plan ------------------------------------P13
INDEX PAGE

INDEX PAGE
13. Solar Panel --------------------------------------P14
14. Battery Management ----------------------------- P16
15. Multi Device Management ------------------------- P16
15.1 Multi Camera Management ----------------------P16
15.2 Multi-User Sharing -----------------------------P17
16. Reset Camera----------------------------------- P19
17. ZUMIMALL FAQ ----------------------------------- P20

1
1. What’s in the Box
NOTE:Micro SD card and power adapter are not included.
ZUMIMALL Battery Camera
Outdoor Metal Mount
Quick User Guide
Solar Panel
Screws Set
USB Cable

2
2. Product Diagram
Camera Lens
PIR Sensor
LED Indicator
IR Lamp
Microphone
Speaker
SD Card Slot
USB Port
Reset Hole
Power Button
1
2
3
4
7
8
10
11
5
6
1
2
3
6
911
4
5
Power Button
Reset Button
Blink Slowly in Red
Blink Fast in Red
Solid in Red
Solid in Blue
Blink Slowly in Blue
Keep pressing for 5-10 seconds to power on/power off
Keep pressing for 5-10 seconds to reset
Awaiting Wi-Fi connection, ready for adding devices
Wi-Fi connecting
Network problem
Wi-Fi connected, camera running normally
Firmware update
7
8
10
9Charging Status

Download ZUMIMALL App from Google Play™ or App Store™.
Or scan the QR codes as below, with your smart phone.
NOTE: Google Play™ is a trademark of Google Inc.
App Store™ is a service mark of Apple Inc.
NOTE: Please turn on both of the following permissions.
①Allow ZUMIMALL App to access mobile cellular data and
wireless LAN,otherwise it will fail to connect the camera.
②Allow ZUMIMALL App to receive pushed messages, otherwise,
the phone willnot receive alarms when motion is detected.
3. Download and Install App
ZUMIMALL AndroidiOS
>
>
<
Notifications
ZUMIMALL
ALERTS
Allow Notifications
9:41
Lock Screen
Banner Style
Sounds
Badges
OPTIONS
When Unlocked(Default)
Show Previews
Temporary
>
>
Automatic
Notification Grouping
>
NotificationCenter Banners
5:51
<
ZUMIMALL
Wireless Data
ALLOW”WIRELESS DATA”TOUSE DATA
Off
WLAN
WLAN & Cellular Data
5:51
3

4. Account Registration
New user needs to sign up ZUMIMALL App with email address.
Click 'Sign up' to create a New Account and follow the steps to
complete registration.
5. Add Camera to App
5.1 Preparations for connection
①Insert a Micro SD Card into the camera to save video clips or
you can start the 7-day free cloud service. Without Micro SD Card o
r cloud service, no videowill be saved.
②The camera only works with 2.4GHz Wi-Fi, not support 5GHz.
③When connecting to the network, please take the camera close to
the router.
(Recommended within 10-15ft).
Step 1
Step 3
Step 2
5:51
Log in
Forgot password?Remember password
Welcome
United States
Account
Passward
No account yet? Sign up now
5:51
<
[email protected]
Account
Nickname
Password
Password: 8-16 digits, including two types of
numbers,upper or lower case letters and
characters at least
Sign Up
Done
5:51
<
Registration means agreement with the user
agreement and privacy agreement.
Sign Up
United States
Email
Next
4

5.2 Connect Camera to App
Tap 'Add Device'
Reset the Camera Input Wi-Fi Password Prepare the Scanning
Select 'Battery Camera' Turn on the Camera
Home
Homepage Messages Search
5:48
All Devices
Me
Living room Bedroom
Add Device
Quick Guide
5:48
Battery
Camera
Smart
Doorbell
Battery Camera
Power Plug
Camera
Baby
Camera
Floodlight
Camera
Doorbell
Kits
Select Device
5:49
Add Battery Camera
Press the [battery camera] button to
wake the device if it is asleep.
Hold the device power button to start
the device.
<
Please stay near to your router for the
best signal.
Next
Hold the RESET button on your device for
4-5 seconds(please refer to the user
manual for more on this).
Wait for a flashing RED indicator light.
Tap Next
5:49
Add Battery Camera
Please reset the device.
<
Next
5:50
Wi-Fi Setup
SELECT A 2.4GHZ WIFI NETWORK AND
ENTER Your Password
The Device Does Not Work with 5G Wifi NetWorks
Common Router Setup Methods
Junan
cam2019@
<
Next
Please remove all film from the lens.Tap
Next to show a QR code, and let your
device scan the code. Keep your phone
5-8 inches from the lens.
5:50
Operation Instructions
<
15-25cm
5-8 in
Next
5

6
5:50
Scan QR Code
<
Scan the QR code below with the device
at a distance of 5-8 inches. A tone will be
heard when successfully scanned.
Next
Help
Scan QR Code when Indicator
Flashing Slowly in Red Finished Installation When Reaches 100%
5:50
Connect Network
<
Make sure the device in an
energized state
02:06
Make sure the device is connected to
the router
Make sure the device and the phone are
on the same network
Search device Register to the cloud Device
initialization
Perform Network Diagnosis View Installation Tips
5:50
Network Diagnostic Skip
<
WIFI signal strength
High
Current Place is good, you can install
the camera.
02-15-2022 11:08:17 AM
6KB/s
Next
5:50
How to install camera
Install tips:
<
1.Please use outdoor mounting bracket if you
want to install camera outside.
2.It is recommended to install the camera at a
height of 2-3 meters.
3.Avoid direct sunlight to the camera lens.
4.Avoid placing the camera lens against the
wall and glass at close range.
Done

7
7. Important Notes
To reduce false alarms, please note that:
Do not install the camera in a position facing strong lights/
mirror/window/swimming pool.
Do not place the camera too close to any angle with busy
traffic.
Recommended distance between the camera and motion
objects is within 32ft.
Keep camera away from the outlets, including air conditioner
vents, humidifier outlets, the heat transfer vents of the
projectors, etc.
Keep the camera at least 1 meter away from
any wireless devices to avoid interference, such as microwave
stoves, Wi-Fi routers and etc.
6. Camera Installation
Step 1:
Fix the bracket to where you want to install the camera with
the supplied screw.
Step 2:
Fasten the camera on the metal mount, and fix them.
Step 3:
Adjust the viewing angle of the camera.

8
8. Monitoring Area
It is not suggested to install the camera vertically towards the
moving objects, otherwise, it may not detect the motion
events or cause delay.
It is suggested to make the angle between PIR Sensor and
detected objects more than10 degrees.
The Camera motion sensor is much more sensitive to
side-to-side movement across its field of view than to
movement directly toward or away from the camera.

9

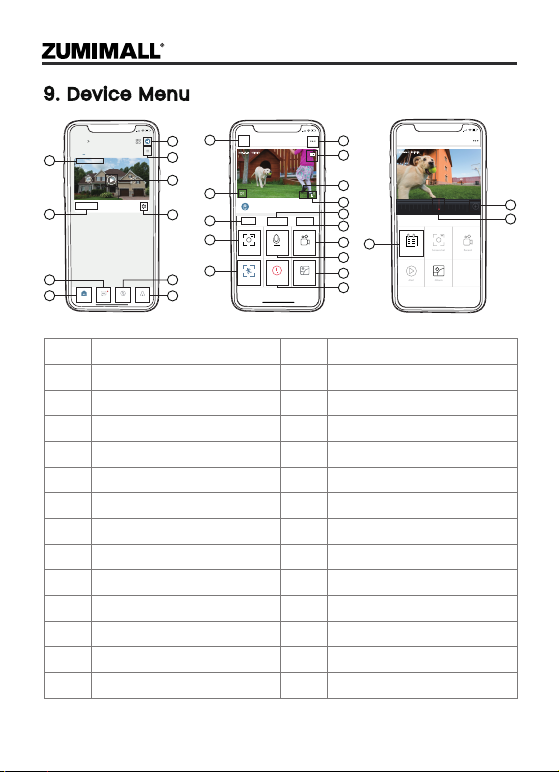

9. Device Menu
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Intercom Record
History Cloud
<
5:51
060238708
2020-9-14 15:30:10
Live
Screenshot
Alert
Record
History Cloud
<
Calendar
14:00 15:00 16:00
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Add Camera
Device List
Real Time
Live View Button
Camera Name
Settings
Device Homepage
Messages
Explore
Personal Homepage
Quit Live Viewing
Setting Manual
Battery Status
HD/SD Switch
Volume On/Off
Full Screen
View Live
Screenshot Button
Body Detection On/Off
Notification History
Cloud Storage
Record to Phone
Two-Way Talk
Album
Siren
Zoom
Time Bar
Date of History Record
Album
Siren Album
5:51
+
Home
Homepage Messages Search
All Devices
Me
Living room Bedroom
02-16-2022 01:56:08 PM
064958492
3
5
8
7
1
2
4
6
9
10
11
15
17
18
19
12
13
14
16
20
21
22
23
24
25
26
27
28

10
10. PIR Body Detection
10.1 Body Detection Alarm Setting
10.2 Alarm Notification
Tap on '...'Set it up Select 'Motion Setting'
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Record
History Cloud
<
Intercom
PIR 'Motion Detection' defaults to be 'High' level. But it is adjustable.
Please refer to the pictures below.
This camera does not support 7*24 hours all day recording, it is
an event recording camera. It is only triggered when motion is
detected. Here are system’s reactions:
10.2.1 Alarm notifications with sounds from App.
10.2.2 Pics/videos automatically stored in Micro SD Card or Cloud.
Sensitivity
Low
High
Detecting Distance (For moving and living objects)
Up to 5 meters (16ft)
Up to 10 meters (32ft)
NOTE: The higher the sensitivity is, the longer distance the PIR
can detect. Accordingly, the battery will drain faster.
5:51
Settings
<
Receive Alert Notifications
Device Share
>
Device Information
>
Installation Guide
>
Basic Function
>
Power Saving settings
>
Motion Detection
>
Recording management
>
Device Version
Delete the Device
>
Cloud Storage Service
>
5:50
Motion Detection
Medium
After enabling detection, the camera can detect motion
and sound around the canera and can select different
detection sensitivity accouding to different requirements.
Motion Detection
High
Low
<
Day Detection
The Alert will be triggerd only when
human motion is detected.
Night Detection
Alert Plan
Set the time period of the alarm, the device only triggers
an alarm event during this time period.
>
Off
2 minuters
5 minuters
10 minuters
Alarm Interval
Siren Album

11
11. Two - Way Audio
Go to the live view page
Step 1: Activate the audio option.
Step 2: Press and hold the intercom button
to speak.
Step 3: Release the button to listen.
10.3 Record/Playback/Delete
10.3.1 On 'MESSAGES' page, click 'Alarm Messages', you can view
all the records listed.
10.3.2 Click the following buttons to playback or delete.
10.3.3 All screenshots or manually recorded videos on live/
history/cloud page will be saved in Pictures & Videos. Files here
can be saved in your phone album or shared with others directly.
Click to Delete
History
5:51
060238708
Motion Detection
2020-10-12 15:30:10
Motion Detection
2020-10-12
10:32:12
2020-10-12 15:30:10
<
2020-10-12 10:32:12
Noise Detection
92db
2020-10-12
10:32:09
2020-10-12 10:32:09
Noise Detection
75db
2020-10-12
08:53:53
2020-10-12 08:53:53
Noise Detection
73db
2020-10-12
2020-10-12 08:53:53
Click to Preview
the Snapshot
Click to Playback
Alarm Video
5:51
Devices +
060238708
2020-10-08 14:50:10
HD
Homepage Messages Search Me
Message-->
Alarm Message
5:51
060238708
Bit Rate:10.74KB/s WiFi:97%
2020-10-08 15:30:10
HD
Live
Screenshot
Motion Detection
Intercom Record
History Cloud
<
Hold to Talk
Siren Album

12
12. Power Saving Settings
This is a function that avoids repeated alarms for the same
event. You can choose an alarm interval of different lengths, if
the interval is 5 minutes, then the camera is triggered at 08:00,
you will receive an alarm message, and you will not receive a
new alarm push in the next 5 minutes, even if motion detection
continues to occur.
NOTE: This function is off by default, you can set it as needed.
You can choose a different recording length if you set the
recording length to 20 seconds, then after the camera is
triggered, you can view the 20 seconds of alarm video in the
history of cloud playback.
12.2 Maximum shooting time & recording time
12.1 Alarm interval & shooting interval
<
Power saving settings
Shooting interval 5 minutes >
Maximum shooting time 20 minutes >
5:51
<
Shooting interval
Off
2 minuters
5:51
5 minuters
10 minuters
<
Maximum shooting time
10 seconds
5:51
20 seconds
30 seconds
The shorter the maximum shooting time setting,the lower
the power consumption.

13
You can set the weekly/daily alarm schedule as you need. If you
set the camera's working hours from 8:00 p.m. to 8:00 a.m.,
please set 20:00-8:00 a.m. The camera will only be triggered
and record alarm video during this time period.
NOTE: Alarm schedule can be set for up to 4 time periods.
5:50
Motion Detection
Medium
After enabling detection, the camera can detect motion
and sound around the canera and can select different
detection sensitivity accouding to different requirements.
Motion Detection
High
Low
<
Day Detection
The Alert will be triggerd only when
human motion is detected.
Night Detection
Alert Plan
Set the time period of the alarm, the device only triggers
an alarm event during this time period.
>
Off
2 minuters
5 minuters
10 minuters
Alarm Interval
Thu
<
Set the Time Period
5:51
Set the time period of the alarm, the device only trigger an
alarm event during this time period.
Start Time 00:00 >
End Time 00:00 >
Select Day
Mon
Tue
Wed
Fri
Sat
Sun
<
Time Period Setting
20:00~08:00
5:51
Select the alarm period to be turned on
Mon Tue
Add Time Period
12.3 Alarm Plan

14
Please find a place which has sunlight for most of a day and
adjust the angle to make sure maximum exposure.
The solar panel needs few hours of direct sunlight to convert
solar energy into electricity. The conversion efficiency is affected
by weather conditions, seasonal changes, geographic locations,
etc.
The Southern
Hemisphere
The Ideal Angle=
The Local Latitude ± 5°
The Northern
Hemisphere
13. Solar Panel
Step 1:

15
Mount the bracket with the mounting
template andtjust the screws provided
in the package.
Step 2:
Step 3:
Step 4:
Step 5:
Slot the solar panel into the bracket
and make sure it's secure.
Loosen the adjusting control on the
bracket, adjust the solar panel's angle
to make it receive direct sunlight, and
then retighten the adjusting.
Connect the solar panel to the camera with the micro USB cable.
NOTE:
1. Make sure that there is NO blocking on the solar panel. The
energy harvesting effciency drops drastically even when a small
portion of the solar panel is blocked.
2. Please don't install the solar panel completely horizontally.
Otherwise, your solar panel might accumulate dust and other
debris easily. It's advised to install the solar panel angularly to
make it receive direct sunlight.
3. Wipe the solar panel regularly to remove the dust or debris.
360°
