Zylight Go-Panel User manual

USA
Zylight Bi-Color LED Panel
User Instructions
Go-Panel
ACTIVE
DIFFUSION™SNOW RAIN
CRI
WIRELESS
BATTERY
POWER DUST

Go-Panel Introduction
Introduction: Congratulations on the purchase of your Zylight Go-Panel
fixture. Be sure to read this manual in its entirety before using your fixture as
this document contains information and important notes regarding the safe,
proper use, and maintenance of this fixture. Please refer to this manual and
keep it with the fixture for any questions you may have in the operation and
care of your new fixture.
Each Go-Panel Fixture Contains the Following Items:
• One - Go-Panel LED Light Head with Integrated Friction Base (1005044)
• One - Worldwide AC Power Supply w/4-pin XLR Connector (1002555)
• One - Worldwide AC Adapter Bag - Black (1002543)
• One - Go-Panel User Guide (24-07101)
Optional Equipment and Replacement Parts: (Sold Separately)
• 1005078 – Go-Panel DoP Choice Snap Bag
• 1005079 – Go-Panel DoP Choice Egg Crate
• 1002549 – Steel Reinforced ATA Soft Sided Travel Case
• 1005080 – Gold-Mount Battery Plate with Cable
• 1005081 – V-Mount Battery Plate with Cable
• 1005148 – Go-Panel AC Adapter Mounting Plate
• 1004324 – Safety Cable (85cm)
• 1004913 – 100W IP65 Power Supply Kit
• TBA – Go-Panel 4 Leaf Barn Doors
• TBA – Go-Panel Traditonal Yoke Kit
Customer Support:
Zylight provides customer support via phone and email for any questions you may
have during your set up or initial operation. Service Hours are Monday through Friday
6:00 a.m. to 4:00 p.m. Pacific Time. You may also visit us on the web at www.zylight.
com with any comments or suggestions.
Voice (In English): +1.800.838.7446 І +1.714.236.8600
E-mail: [e-mail]
Caution! There are no user serviceable parts inside this fixture. The enclosure
is sealed for weather protection and any attempt to open the fixture may result in
Page 1

Page 2
personal injury or permanent damage to the fixture. In the unlikely event your fixture
may require service please contact Zylight customer support. Do not attempt any
repairs yourself; doing so will void your manufacturer’s warranty.
IP Rating: The Go-Panel is rated IP65 for weather resistance. It is protected from
all dust intrusion, low pressure jets of water from all directions, and snow. While
the Go-Panel is protected against rain, the standard AC power supply is not. (If
you require AC power in wet or damp conditions, use the optional flange mounted
IP65 rated supply (Part # 1004913). Please protect the fixture when shooting in
extreme conditions and note that the fixture is not rated to be submerged in
water, or permanently mounted outdoors. Always use your best judgment and protect
the fixture from sustained environmental exposure.
General Instructions
To optimize the performance of this fixture, please read these operating
instructions carefully to familiarize yourself with the basic operations of this fixture.
These instructions contain important safety information regarding the use and
maintenance of this fixture. Please keep this manual with the fixture, for future
reference.
Warranty Registration
The Zylight Go-Panel carries a two year limited warranty. Please go to www.ushio.
com/zylight-registration and register your fixture and validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return merchandise authorization (RMA) number. The RMA number
must be clearly written on the outside of the return package. A brief description
of the problem as well as the RMA number must also be written down on a piece
of paper included in the shipping carton. If the fixture is under warranty, you must
provide a copy of your proof of purchase invoice.You may obtain an RMA number by
contacting our customer support team through our customer support number. All
packages returned to the service department not displaying a RMA number on the
outside of the package will be returned to the shipper.
Introduction Cont.

Page 3
Safety Precautions
• Use GFCI surge protectors whenever possible to protect your equipment against
voltage spikes and for your safety.
• Disconnect from main power before making any type of connections.
• To reduce the risk of electrical shock or fire, do not submerge this fixture in water.
• Do not attempt to operate this fixture if the power cord has been frayed or broken.
Do not attempt to remove or break off the ground prong from the electrical cord.
This prong is used to reduce the risk of electrical shock and fire in case of an
internal short.
• Do not remove the screws or front lens under any conditions. There are no user
serviceable parts inside.
• Never operate this fixture if the internal parts are exposed in any manner.
• Never plug the power supply unit or XLR connector directly into a dimmer pack.
DMX controls can only be used via the RJ45 connections.
• Do not attempt to operate this fixture if it becomes damaged.
• During long periods of non-use, disconnect the fixture’s main power.
• Always mount this fixture in safe and stable matter. Always use a safety cable as
part of a secure installation. This includes securing the barn doors with a safety
cable.
• Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to the
point they exit from the fixture.
• Heat: The fixture should be situated away from heat sources such as radiators,
heat registers, stoves, or other appliance (including amplifiers) that produce heat.
Direct exposure from tungsten halogen or metal halide discharge lamp sources
may also cause excessive heat and damage.
• Always be sure to mount this fixture in an area that will allow proper ventilation.
Allow at least 6” (15cm) between this device and a wall.
• Flammable Materials: Do not place your Go-Panel near combustible or volatile
solvents or gases to avoid the risk of fire.
• After use, make sure your Go-Panel is turned off. Power cords and or lithium ion
batteries should be disconnected.
Do not leave the lens pointed directly towards
the sun. The lenses will act as magnifying
glasses and damage the LEDs.
CALIFORNIA PROPOSITION 65 WARNING: These products can expose
you to chemicals including bisphenol A, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. For
more information, go to www.P65Warnings.ca.gov.

Page 4
Safety Precautions Cont.
Service
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been leaked into the fixture.
C. The fixture has been submerged in water.
D. The standard AC power supply has been exposed to water, prolonged
weather, or dampness.
E. The fixture does not appear to operate normally or exhibits a marked
change in performance.
F. The front panel has been cracked or broken.
Voice (In English): +1.800.838.7446 І +1.714.236.8600
E-mail: [e-mail]

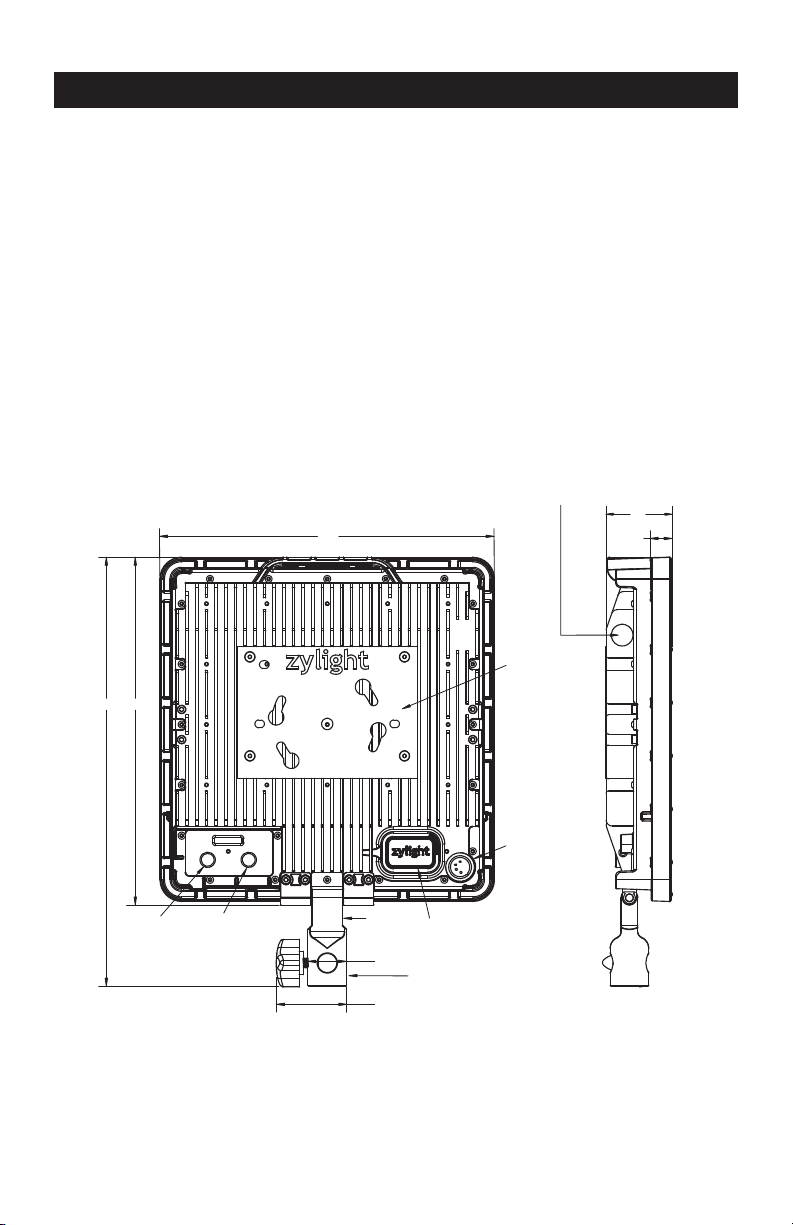

Mechanical
Width: 277mm (10.9”) Height (stand mount folded): 285mm (11.2”)
Depth: 95mm (3.7”) Height (stand mount extended): 355mm (14.0”)
285355
277
95
18.20
65
32
Accessory Plate
for Ball Mount,
Battery Mount,
or Power Supply
Mount
Power &
Dimming
CCT Control,
±Green,
Active Diffusion,
Radio Control,
DMX Setting
DC In
Friction
Hinge
5/8” Receiver
RJ45 DMX In/Out,
USB Software Jack
Safety Cable Port
(Dimensions are in millimeters.)

Page 5
Go-Panel Use & Operation
Mounting the Go-Panel: The integrated friction hinge has a 5/8” receiver and can
be mounted to a light stand or C-Clamp. Double check that all knobs and bolts are
tightened securely after each time the fixture is aimed or installed. If used overhead
on a grid, truss, or batten, please secure the fixture and barn doors with a safety
cable in accordance to local regulations.
To adjust the tilt of the fixture, firmly hold the light stand and push on the top of the
Go-Panel. The tension on the friction hinge is not adjustable. It is rated to tens of
thousands of cycles. Do not attempt to loosen the screws on the friction hinge as this
will weaken the stability of the fixture and create a safety hazard. Should your friction
hinge need service, please contact the Zylight service department.
The Go-Panel has an integrated twist-and-lock ball mount receiver plate. This
plate may be used with existing lollipop style mounting systems and doubles as an
optional battery or AC adaptor mounts for the Go-Panel. (See the next section
regarding power mounting options.)
Power Connection
All cord connections from the Power Supply to the fixture should be done prior to
connecting to mains power!
Use GFCI surge protectors whenever possible to protect your equipment against
voltage spikes and for your safety.

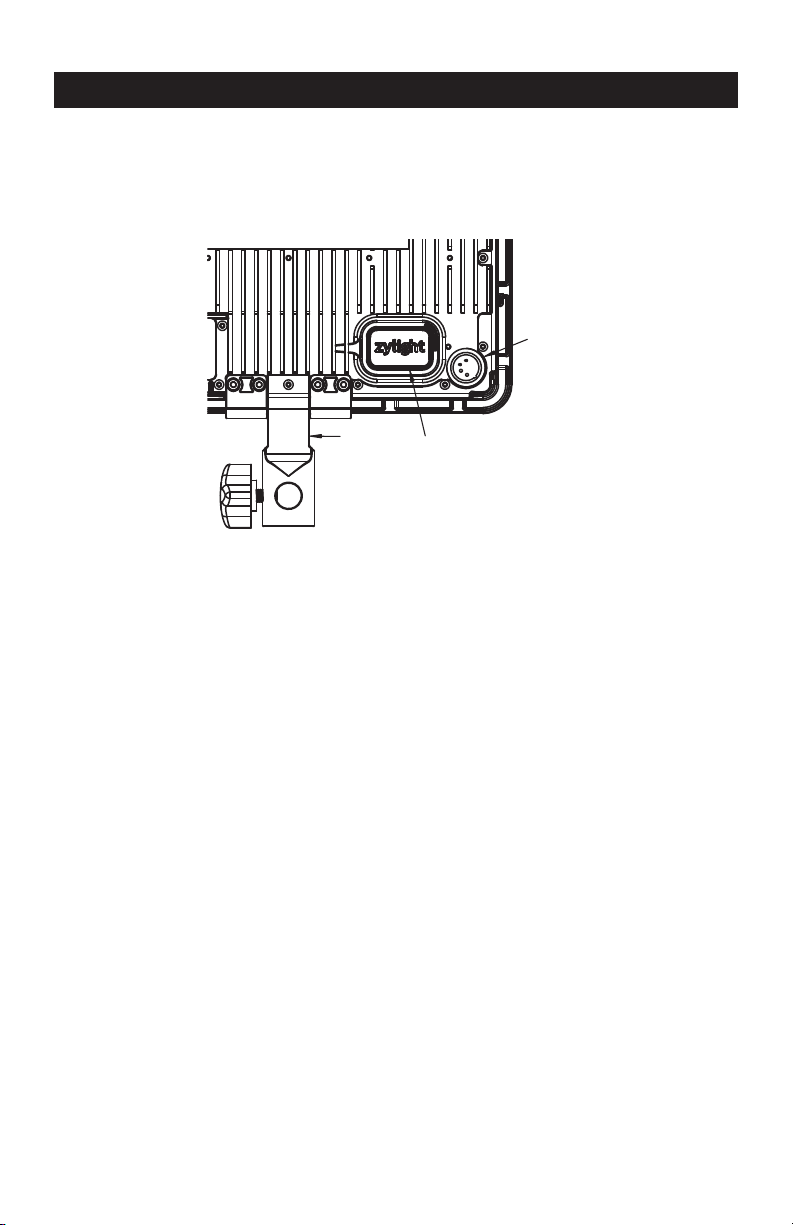

Power Supply: The Zylight Go-Panel is powered through a 4-pin XLR connector by
either the included Worldwide AC Adapter (Part # 1002555), or by Zylight Go-Panel
Battery Plates (14.4V). First, insert the 4-pin XLR connector to the DC-Input jack on
the fixture before connecting the power supply to main power!
AC Operation: Use only the included Worldwide AC Adapter (Part # 1002555).
During use, the AC Adapter can be held by either the AC Adapter Bag (Part # 19-
02042) or directly mounted to the fixture back plate utilizing the optional Go-Panel AC
Mounting Plate (Part # 1005148).
The AC Adapter Bag (Part # 19-02042) securely holds the AC Adapter to hang on a
light stand or another secure location via the attached quick release strap. The AC
cord passes through the bottom of the bag with the 4-pin XLR exiting at the top. Be
sure to tighten the cinch cord to secure the Power Supply.
The AC Mounting Plate (Part # 1005148) works on a twist and lock principle. Match
the four pins on the AC plate to the four holes on the back of the fixture and turn
clockwise until the pull pin clicks into place. Mount the power supply via the hook
and loop strap and then connect the 4-Pin XLR to the DC Input on the fixture before
connection to main power.

Page 6
Power Connection Cont.
Battery Operation: The Go-Panel accepts DC voltage between 10-20 Volts. Input
voltages of more than 20 volts will cause damage to the fixture! For battery operation,
use only the Zylight Go-Panel Battery Plates:
1005080 - Gold-Mount Battery Plate with Cable
1005081 - V-Mount Battery Plate with Cable
First insert the 4-Pin XLR connector to the DC-Input Jack on the rear of the fixture
before attaching the battery to the plate!
Failure to provide recommended power to the fixture may result in failure of the
fixture or power sources. Please also observe correct polarity. For reference, pin #1 is
negative and pin #4 is positive.

Page 7

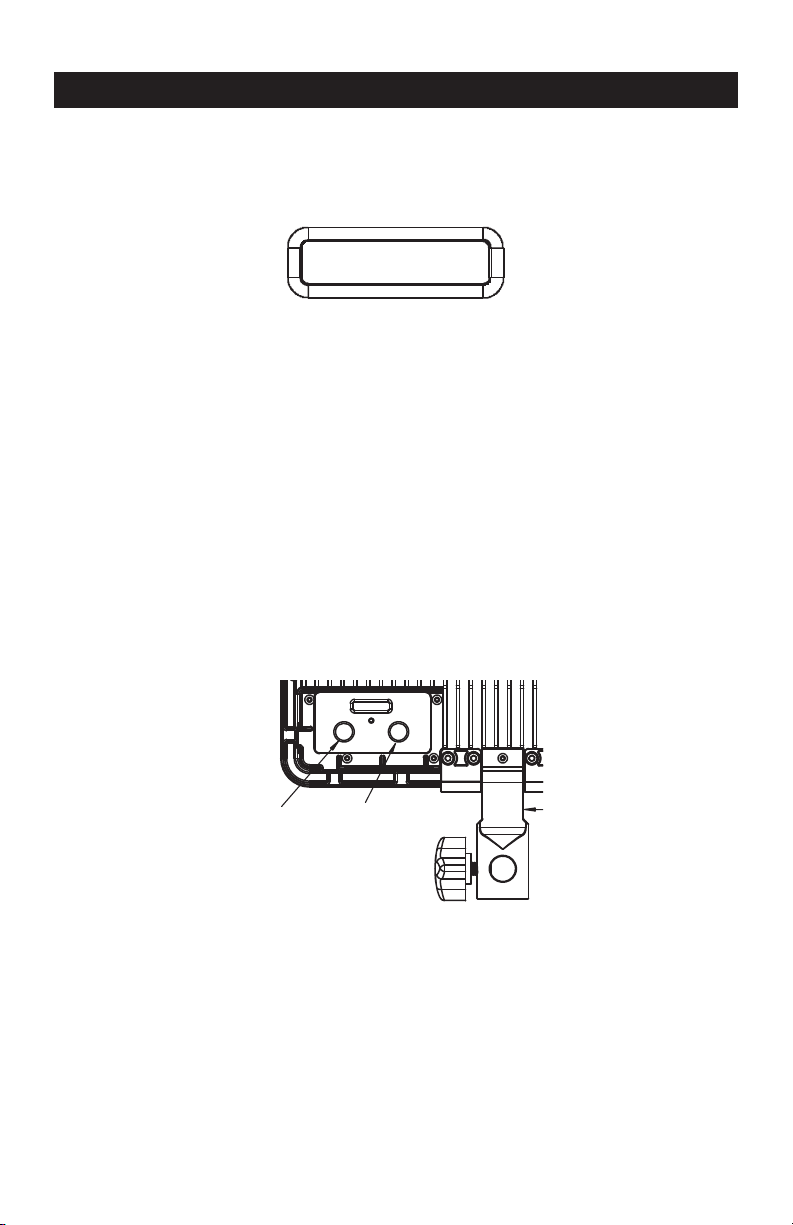

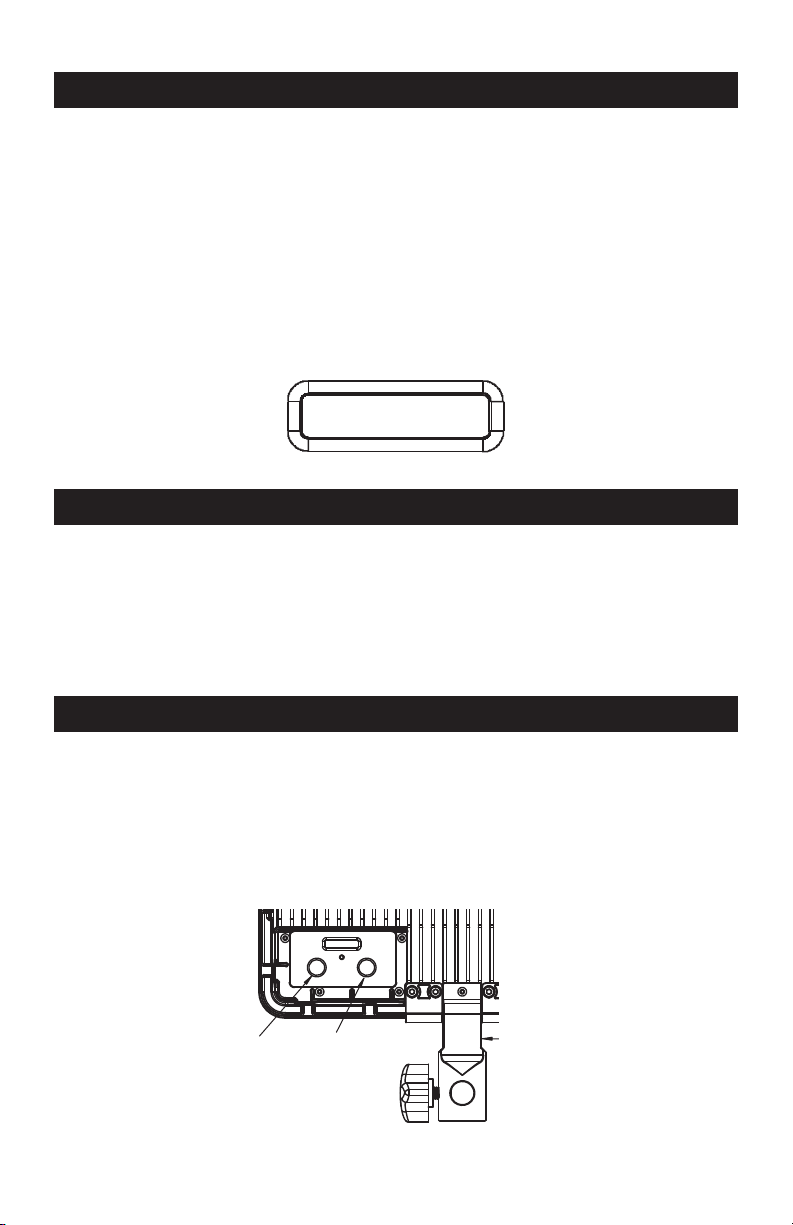

On/Off & Dimming
To turn the Go-Panel ON, press and release the left Dimmer knob. Press and release
the knob again to turn the fixture OFF. Turn the Dimmer knob to the right to increase
brightness 0-100% and to the left to decrease brightness 100%-0%.
LED Display: The LED display will shut off after 5 seconds of inactivity. To make
the display reappear, press either knob.
When the fixture is turned OFF or the power is lost unexpectedly, the ON/OFF setting,
last set dimming point, color temperature, white balance (±Green), Active Diffusion,
and DMX channel will be saved to memory.
Color & Diffusion Adjustment
The right Mode knob has three adjustment modes.
1. Color Temperature
2. White Balance / ± Green
3. Active Diffusion
Press the right Mode knob in quickly to switch between each adjustment mode.
Color Temperature Adjustment
Turn the color knob to the right to increase color temperature and to the left to
decrease color temperature.
LED Display: The LED display will shut off after 5 seconds of inactivity. To make
the display reappear, press either knob. The last set color temperature point will be
saved to memory when the fixture is shut OFF or power is lost.
Accessory Plate
for Ball Mount,
Battery Mount,
or Power Supply
Mount
Power &
Dimming
CCT Control,
±Green,
Active Diffusion,
Radio Control,
DMX Setting
DC In
Friction
Hinge RJ45 DMX In/Out,
USB Software Jack
Safety Cable Port
100% 5600K

Page 8
White Balance Adjustment / ± Green
Turn the Mode knob to the right to add Green. Turn the Mode knob to the left to
add Magenta. The values can be set between +5G to add Green and -5G to add
Magenta.
Active Diffusion Adjustment
Active Diffusion is a patented technology using electrical current to adjust the amount
of diffusion immediately. The default setting for Active Diffusion is clear. Turn the
Mode knob to the right to increase the diffusion level and to the left to decrease
diffusion level. A value between 0D (Clear) and 100D (Full Diffusion) may be set.
Note on diffusion: All types of diffusion (silk, plastics, cloth, metal screens) are proven
to cause color shift. This especially holds true for daylight sources. The Go-Panel
automatically compensates for this color shift by adjusting its built-in colored
LEDs over the full range of diffusion. You may notice the colored LEDs during the
adjustment of Active Diffusion. This is normal and part of our proprietary color
balancing process.
100% +1.0G 100% -2.0G
100% 100D

Page 9
DMX Control
Operating the Go-Panel from a DMX controller gives users the option to remotely
control all features of the Go-Panel. The Go-Panel has two RJ45 connections for
DMX IN and OUT when linking lights in a DMX chain. They are normally covered by
a silicone protector on the bottom right side of the panel.
DMX512 cables must be used for DMX data transmission (not microphone cable)
and should follow the standard pin-out. The maximum DMX data run from any DMX
source to the last fixture in a chain is 1000 feet (300m).
DMX-512 Pin-Out:
1. Common (Shield)
2. Data –
3. Data +
4. Not Connected
5. Not Connected
To enable DMX Mode on the Go-Panel, press and hold down the Mode knob for
5 seconds. The fixture will enter DMX mode and display “DMX”. Entering DMX
mode will turn off the LEDs if they were previously on in Manual Mode. Release the
button and turn the Dimmer knob to select a start address number for the fixture. A
start address of 1 to 508 can be selected for each light. The Mode knob will now be
disabled while in DMX mode. All control of the fixture will happen on your DMX
console, including turning the fixture ON and OFF as well as all dimming, color, and
diffusion controls.
Accessory Plate
for Ball Mount,
Battery Mount,
or Power Supply
Mount
Power &
Dimming
CCT Control,
±Green,
Active Diffusion,
Radio Control,
DMX Setting
DC In
Friction
Hinge RJ45 DMX In/Out,
USB Software Jack
Safety Cable Port

Page 10
DMX Termination: The fixture has a built-in user-selectable DMX terminator. In
DMX mode, a brief tap on the intensity encoder toggles DMX termination ON or OFF.
If the fixture is at the end of the DMX chain the terminator should be turned ON. If the
fixture is in the middle of a DMX chain the terminator should be turned OFF.
-For a few seconds after toggling (or until a button is pressed), the screen will display
“DMX Termination: Now ON” or “Now OFF” based on the new setting.
-DMX termination is ON by default.
PLEASE NOTE: While in DMX Mode all other Go-Panel controls are disabled. To
restore dimming and ON/OFF control to the light, you must take the fixture out of
DMX Mode. To do this, simply press and hold the “MODE” button for 5 seconds and
the Go-Panel will go back to Manual Mode, giving the user local control of the fixture.
DMX Control Cont.
DMX 1
Channel Function Values
1 ON / OFF State 0 - 127: Light output is OFF.
128 - 255: Light output is ON.
2 Intensity
0: Light output is OFF.
1 - 255: Adjust output intensity. 1 is minimum
intensity and 255 is maximum intensity.
3Color Temperature
0 - 255: Color temperature is adjusted in range
from a minimum of 3100K at 0 to a maximum of
6000K at 255.
4Magenta / Green
Intensity
125 - 130: No Magenta or green output.
131 - 255: Adjust green output from a minimum
intensity at 129 to a maximum at 255. No
Magenta output.
124 - 0: Adjust Magenta output from a minimum
intensity at 127 to a maximum at 0.
5 Diffusion 0 - 255: Adjust diffusion. 0 represents minimum
diffusion while 255 represents maximum diffusion.
DMX Channel Assignments
The Go-Panel uses a total of five DMX slots. They are listed in order below:
Accessory Plate
for Ball Mount,
Battery Mount,
or Power Supply
Mount
Dimmer
Knob
Mode Knob
DC In
Friction
Hinge RJ45 DMX In/Out,
USB Software Jack
Safety Cable Port

Page 11
LumenRadio Wireless Mode
From Manual Mode, hold the right “Mode” knob for 5 seconds. Once the Go-Panel
enters DMX mode press the Mode knob for two seconds to start LumenRadio “LUM”
Mode.
LUM 1
The screen will display “LUM” and will show the previously selected DMX address.
Rotating the Mode knob will change the LumenRadio specific DMX address. This
address is saved to permanent memory and it is independent of the DMX addresses
used in DMX Mode or Bluetooth Mode.
As long as the user is in “LUM” mode, the LEDs can only be controlled via a wireless
LumenRadio controller.
If you are linked to a LumenRadio controller, a connection symbol will appear on the
right side of the display. Holding the left Dimming knob for 2 seconds will unlink the
LumenRadio so a new controller can be connected. While holding left Dimming knob,
the screen will display “Unlinking” and once it finishes, it will display “Unlinked”.
The Mode knob can be held for 2 seconds to switch to Bluetooth Mode. Holding for 5
seconds switches to Manual Mode.
Accessory Plate
for Ball Mount,
Battery Mount,
or Power Supply
Mount
Dimmer
Knob
Mode Knob
DC In
Friction
Hinge RJ45 DMX In/Out,
USB Software Jack
Safety Cable Port

Page 12
Bluetooth Mode
From Manual Mode, hold the right “Mode” knob for 5 seconds. Once the Go-Panel
enters DMX mode press the Mode knob for two seconds to cycle to Lumen Radio
“BLT” mode.
The screen will display “BLT #” where # is the user’s selected Bluetooth address.
Rotating the mode knob allows the user to change this DMX address. This address
is saved to permanent memory and it is independent of the DMX addresses used in
DMX Mode or LumenRadio Mode.
BLT 1
As long as the user is in this mode, the LEDs can only be controlled via Bluetooth
using an app such as Luminair®. The Dimming knob has no functionality in this mode.
The Mode Encoder can be held for 2 seconds to switch to DMX Mode. Holding for 5
seconds switches to Manual Mode.
Maintenance
From time to time, your fixture may need a drop or two of oil at the friction hinge
to keep your Go-Panel operating at its optimal condition. A few simple drops of a
3-in-1 or Teflon based lubricating oil at each pivot seam will keep the friction hinges
operating smoothly and quietly.
Go-Panel can be cleaned with a soft, dry cloth. In case of heavy soiling,
moisten a cloth with soap solution, then dry the fixture with a dry cloth. DO NOT USE
DETERGENT, ALCOHOL OR SOLVENT.
This fixture has an IP rating of 64 which protects it from reasonable exposure to
dust and rain. It is not waterproof and cannot be exposed to extended heavy rain,
moisture, or submerged in water. Please take care to avoid prolonged exposure to
moisture or water.

Specifications
Page 13
Fixture Name Go-Panel
Part Number 1005044
Beam 26° - 120° (with Active Diffusion™)
Power
Wattage 100W
Current 10A
Power AC / DC AC / DC
Power Input Plug AC XLR 4-Pin
AC Adapter 100 - 240VAC
Battery V Mount, Gold Mount
Power Requirement 14.4VDC Nominal (10 - 20VDC)
Driver Frequency 50/60Hz
Driver Maximum Power Cunsumption 100W
Photometrics
Beam Angle 26° - 120° (with Active Diffusion™)
TLCI / CRI 96 / 94
CCT 3100K - 6000K
Minimum CCT 3100K
Maximum CCT 6000K
Dimming 100 - 0%
Minimum Zoom Angle 26°
Maximum Zoom Angle 120° (with Active Diffusion™)
Controls
Control Options • DMX512 - RJ45
• LumenRadio
• Bluetooth
Wireless Frequency 2.45 GHz
DMX Channels 5

Specifications Cont.
Page 14
Dimensions & Physical Characteristics
Lens Dimension 250mm x 200mm
Lens Material Polycarbonate
Panel Material Polycarbonate
Width/Length 277mm (11”)
Height 285mm (11.2”)
Depth 95mm (3.7”)
Weight 3.6kg / 7.9lbs
Color Black
Housing Material Machined Aluminum & Composite Plastic
ABS
Cooling & Operating Environment
Cooling System Heatsink - Fanless, Passive Cooling
Minimum Temperature for Use -20°C / -4°F
Maximum Temperature for Use 40°C / 104°F
Place for Use (Ex: Outdoor) Indoor Fixed / Outdoor Portable
Degree of Protection (IP) IP65
Life & Warranty
LED Lifetime 50,000 Hours
Warranty 2 Year

Warranty
Page 15
2-YEAR LIMITED WARRANTY
Zylight LLC warrants to the original end user customer of its products that its
products are free from defects in material and workmanship under normal use for (2)
years from the date of purchase. Except as provided herein, Zylight LLC makes no
express warranties, and any implied warranties, including those of merchantability
and fitness for a particular purpose, are limited in duration to the duration of the
written limited warranties contained herein. For full warranty details, go to www.ushio.
com/zylight-warranty.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the
equipment. For full warranty details, go to www.zylight.com/warranty.
Per FCC 15.105(a), Note: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at their own expense.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.

Warranty
Page 16
Register your fixture at - www.ushio.com/zylight-registration
Registration has its benefits:
• Proof of Ownership– Create a record in case your fixture is lost or stolen.
• Receive Notifications – You’ll be notified of the latest firmware and software
updates and improvements to get the most out of your Zylight fixture.
Zylight will not sell or share your information with any third parties.

Notes
Page 17

Page 18
Notes

Form No. Go-Panel/0122
©2022 Ushio America, Inc. All rights reserved. Zylight is an Ushio America brand. Product specifications may be
subject to change without prior notice. | 5440 Cerritos Avenue, Cypress, CA 90630 (U.S.A.) | +1.800.838.7446
USA
