ZyXEL Communications VMG9823-B10A User manual

1/2 Copyright © 2015 ZyXEL Communications Corp. All Rights Reserved
VMG9823-B10A
WiFi-N/AC VDSL2 4-port Bonding Combo
WAN VoIP IAD
Internet Setup
Username: admin
Password: 1234
Quick Start
IP Address: 192.168.1.1
Hardware Connections
2
4
1
Connect the power adapter.
5
Connect gateway modem (1-a) using
an Ethernet cable.
OR
Connect a DSL splitter (1-b) using the
gray telephone cable.
5
INTERNET
2
Internet is not ready.
Go to Internet Setup.
Internet is ready.
Go to Wireless Setup.
6
Connect 3G dongle.
3
1-a
1-b
3
USB
POWER
WAN
ETHERNET
DSL
VoIP
Check LEDs.
6
Connect phone.
4
Connect computer using the yellow
Ethernet cable.
INTERNET
OFF
VoIP registration is not complete.
Go to the Web Configurator and
configure VoIP settings.
VoIP registration is
complete.
VoIP1/2
ON
OFF
INTERNET
ON
VoIP1/2
Quick Start Guide

2/2 Copyright © 2015 ZyXEL Communications Corp. All Rights Reserved
Safety Warnings
• DO NOT use this product near water, for example, in a wet basement or near a swimming pool.
• DO NOT expose your device to dampness, dust or corrosive liquids.
• DO NOT store things on the device.
• DO NOT install, use, or service this device during a thunderstorm. There is a remote risk of electric shock from lightning.
• Connect ONLY suitable accessories to the device.
• DO NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY
qualied service personnel should service or disassemble this device. Please contact your vendor for further information.
• Make sure to connect the cables to the correct ports.
• Place connecting cables carefully so that no one will step on them or stumble over them.
• Always disconnect all cables from this device before servicing or disassembling.
• Use ONLY an appropriate power adaptor or cord for your device. Connect it to the right supply voltage (for example, 110V AC in North
America or 230V AC in Europe).
• DO NOT remove the plug and connect it to a power outlet by itself; always attach the plug to the power adaptor rst before connecting
it to a power outlet.
• DO NOT allow anything to rest on the power adaptor or cord and do NOT place the product where anyone can walk on the power
adaptor or cord.
• DO NOT use the device if the power adaptor or cord is damaged as it might cause electrocution.
• If the power adaptor or cord is damaged, remove it from the device and the power source.
• DO NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a new one.
• DO NOT use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning.
• "CAUTION: To reduce the risk of re, use only No. 26 AWG or larger (e.g 24 AWG) UL Listed or CSA Certied Telecommunication Line
Cord"
• CAUTION: RISK OF EXPLOSION IF BATTERY (on the motherboard) IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS. Dispose them at the applicable collection point for the recycling of electrical and
electronic equipment. For detailed information about recycling of this product, please contact your local city office, your household
waste disposal service or the store where you purchased the product.
• DO NOT obstruct the device ventilation slots, as insufficient airow may harm your device.
• The following warning statements apply, where the disconnect device is not incorporated in the equipment or where the plug on the
power supply cord is intended to serve as the disconnect device,
– for PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated external to the equipment;
– for PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.

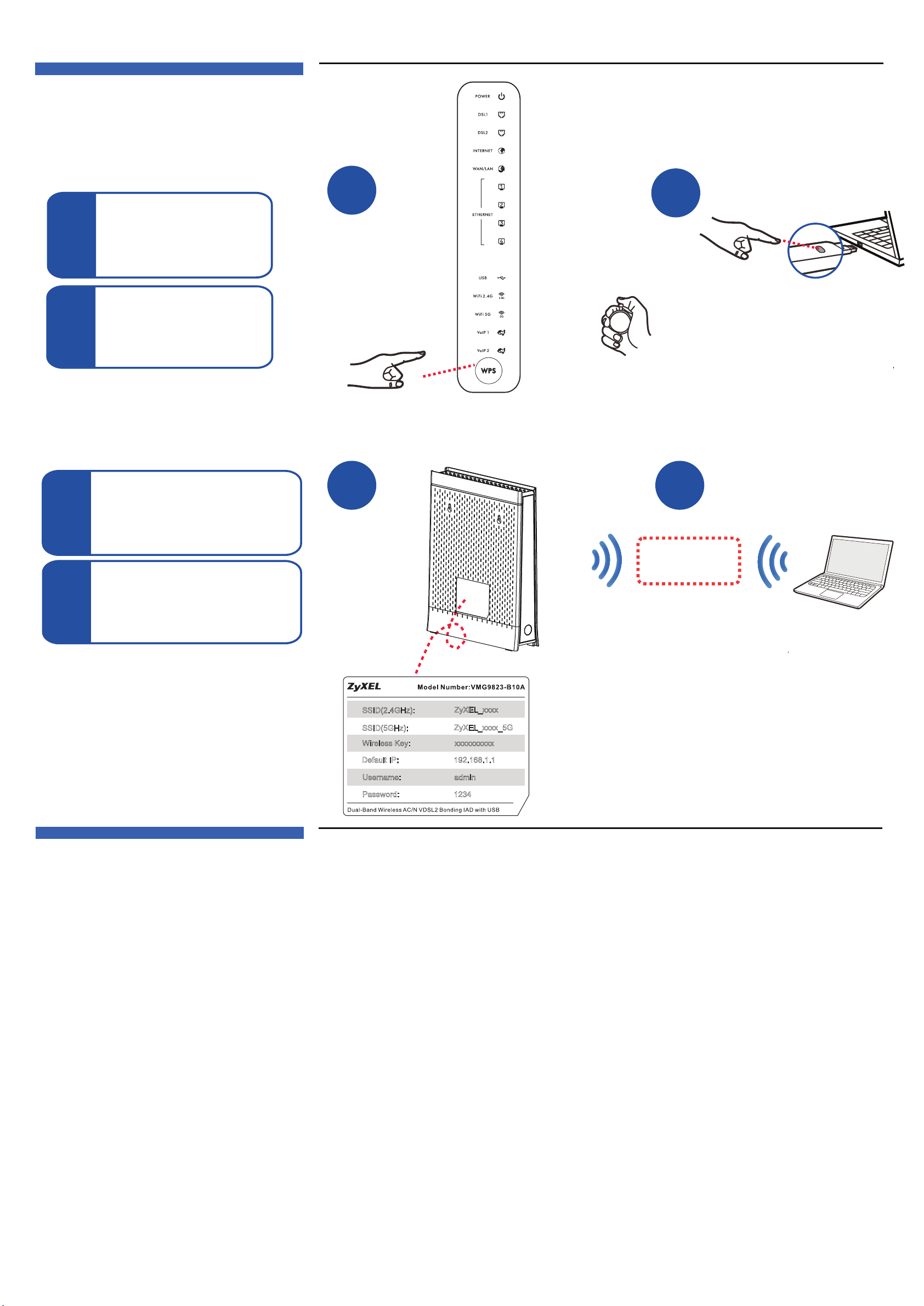

Wireless Setup
WPS
No WPS
WPS
2
Minutes
(Within 2 Minutes)
SSID
Wireless key
12
(2 seconds)
(>5 seconds)
1Press the WPS button until the WiFi
LEDs blink orange.
2Press the WPS button on the client.
1
The SSID and wireless key are on the device
sticker.
2Find the device with this SSID. Enter wireless
key to connect.
12
SSID(2.4GHz): ZyXEL_xxxx
SSID(5GHz): ZyXEL_xxxx_5G
xxxxxxxxxx
Wireless Key:
19 .168.1.1
Default IP:
admin
Username:
Password: 1234
2
