ZyWALL 5
Internet Security Appliance
Quick Start Guide
Version 4.0
8/2005
Table of Contents
ENGLISH 1
DEUTSCH 17
ESPAÑOL 33
FRANÇAIS 49
ITALIANO 65
繁體中文 81
РУССКИЙ 97

ENGLISH
1
Overview
The ZyWALL 5 is a firewall with VPN, bandwidth management, content filtering, anti-spam, anti-virus, IDP
(Intrusion Detection and Protection) and many other features. You can use it as a transparent firewall and not
reconfigure your network nor configure the ZyWALL’s routing features. The ZyWALL increases network
security by adding the option to change port roles from LAN to DMZ for use with publicly accessible servers.
This guide covers the initial connections and configuration needed to start using the ZyWALL in your network.
See the User’s Guide for more information on all features.
You may need your Internet access information.
This guide is divided into the following sections.
1 Hardware Connections
You need the following.
1Hardware Connections
2Accessing the Web Configurator
3Bridge Mode
4Internet Access Setup and Product Registration
5DNS
6NAT
7Firewall
8VPN Rule Setup
9Troubleshooting

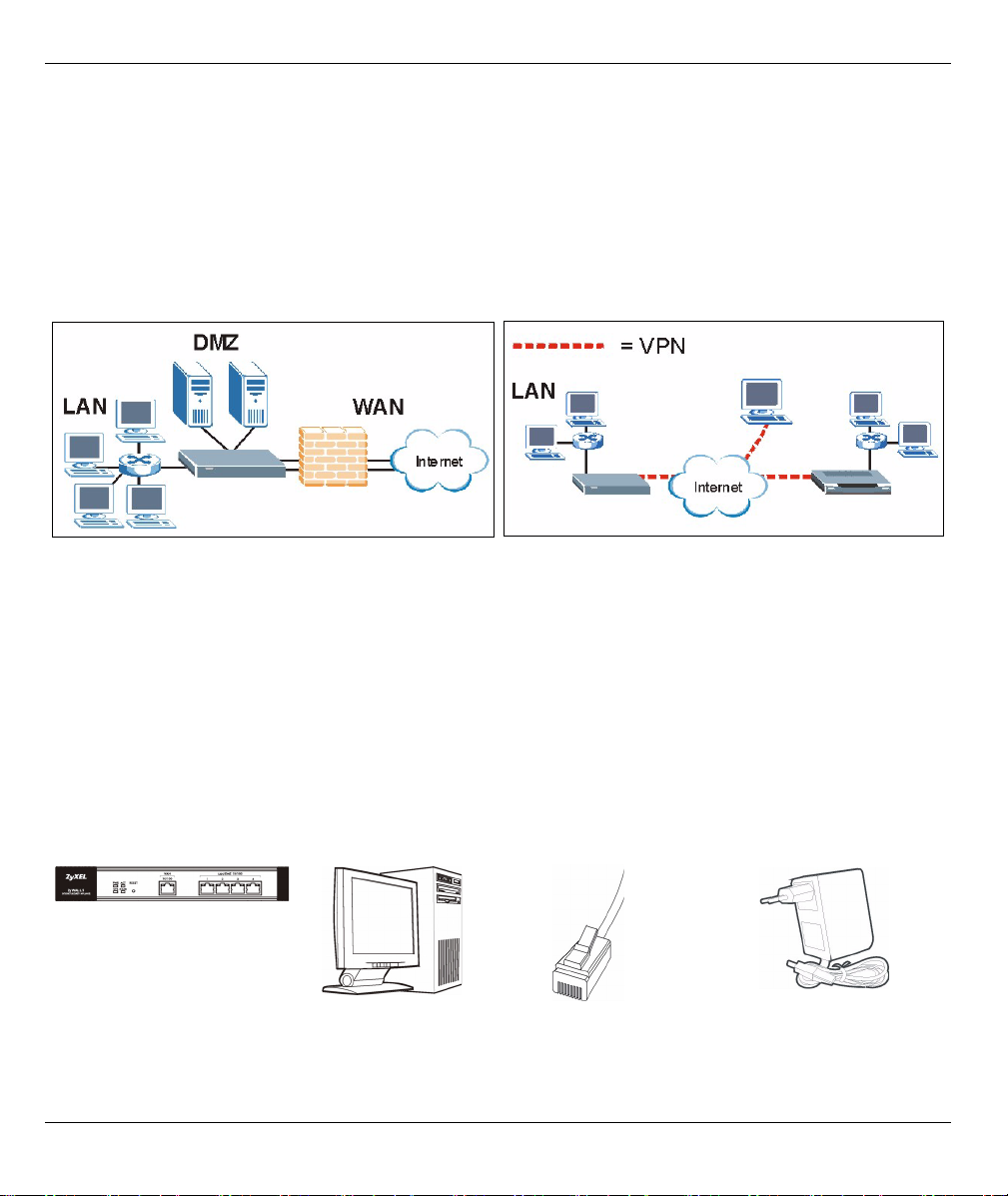

ZyWALL Computer Ethernet Cables Power Adaptor

ENGLISH
2
Do the following to make hardware connections for initial setup.

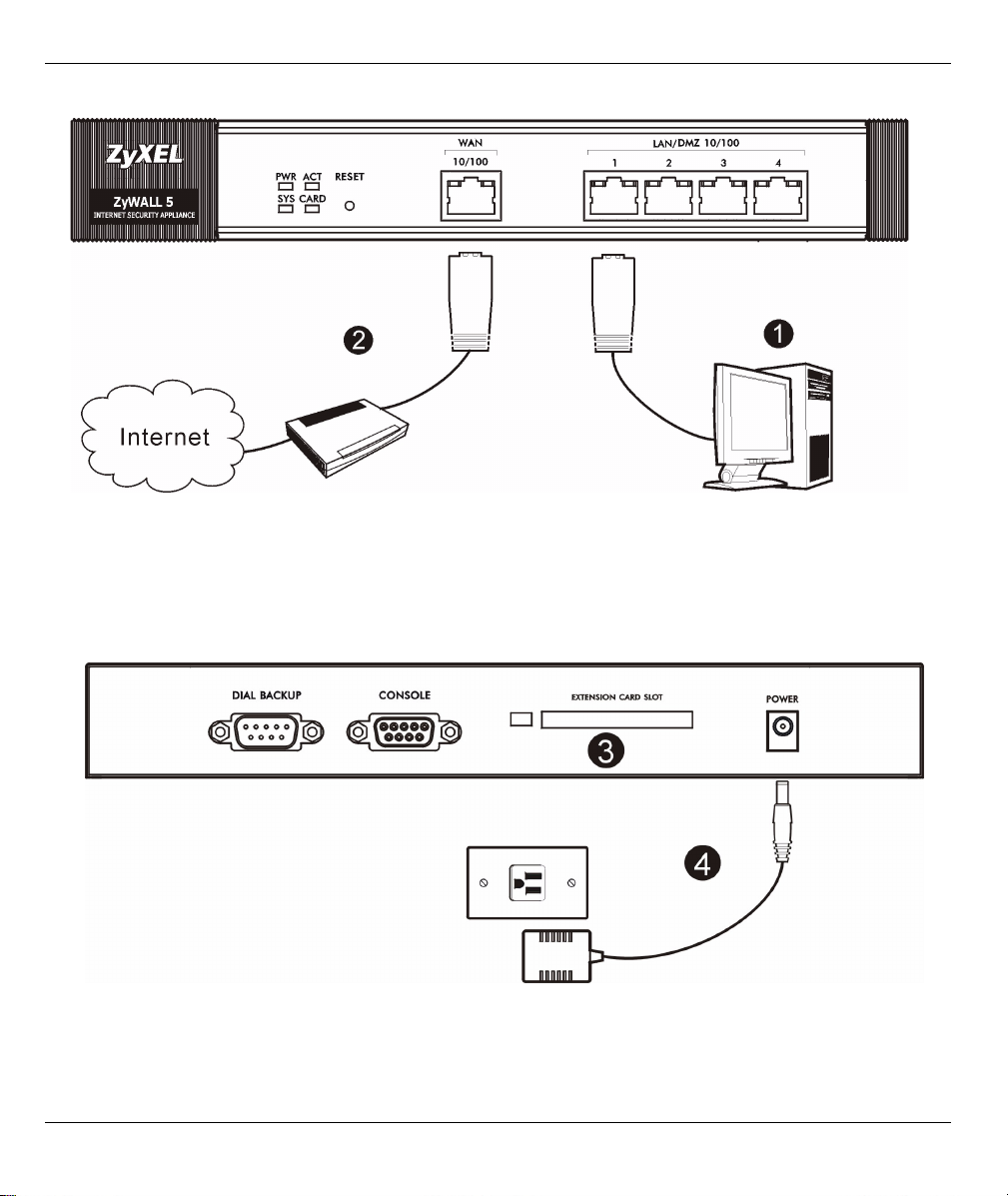

1Use an Ethernet cable to connect the LAN/DMZ port to a computer. If you configure these ports as DMZ
ports in the LAN or DMZ screen through the web configurator, you can also use Ethernet cables to connect
public servers (web, e-mail, FTP, etc.) to the LAN/DMZ ports.
2Use another Ethernet cable to connect the WAN port to an Ethernet jack with Internet access.
3Insert the ZyWALL Turbo extension card to use the anti-virus and IDP features or insert a wireless LAN
card to use the wireless LAN feature. See the ZyWALL Turbo Card guide for more information about the
extension card. See the user’s guide about installing a wireless LAN card.
4Use the included power adaptor to connect the power socket (on the rear panel) to a power outlet.

ENGLISH
3
5Look at the front panel. The PWR LED turns on. The SYS LED blinks while performing system testing and
then stays on if the testing is successful. The ACT, CARD, LAN/DMZ and WAN LEDs turn on and stay on
if the corresponding connections are properly made.
2 Accessing the Web Configurator
Use this section to configure the WAN interface for Internet access.
5The HOME screen opens.
The ZyWALL is in router mode by default. Continue to the next step if you want to use routing features
such as NAT, DHCP and VPN.
Go to Section 3 if you prefer to use the ZyWALL as a transparent firewall.
1Launch your web browser. Enter 192.168.1.1 (the
ZyWALL’s default IP address) as the address.
If the login screen does not display, see Section
9.1 to set your computer’s IP address.
2Click Login (the default password 1234 is already
entered).
3Change the login password by entering a new
password and clicking Apply.
4Click Apply to replace the ZyWALL’s default
digital certificate.

ENGLISH
4
3 Bridge Mode
When you set the ZyWALL to bridge mode, it functions as a transparent firewall. Do the following to set the
ZyWALL to bridge mode.

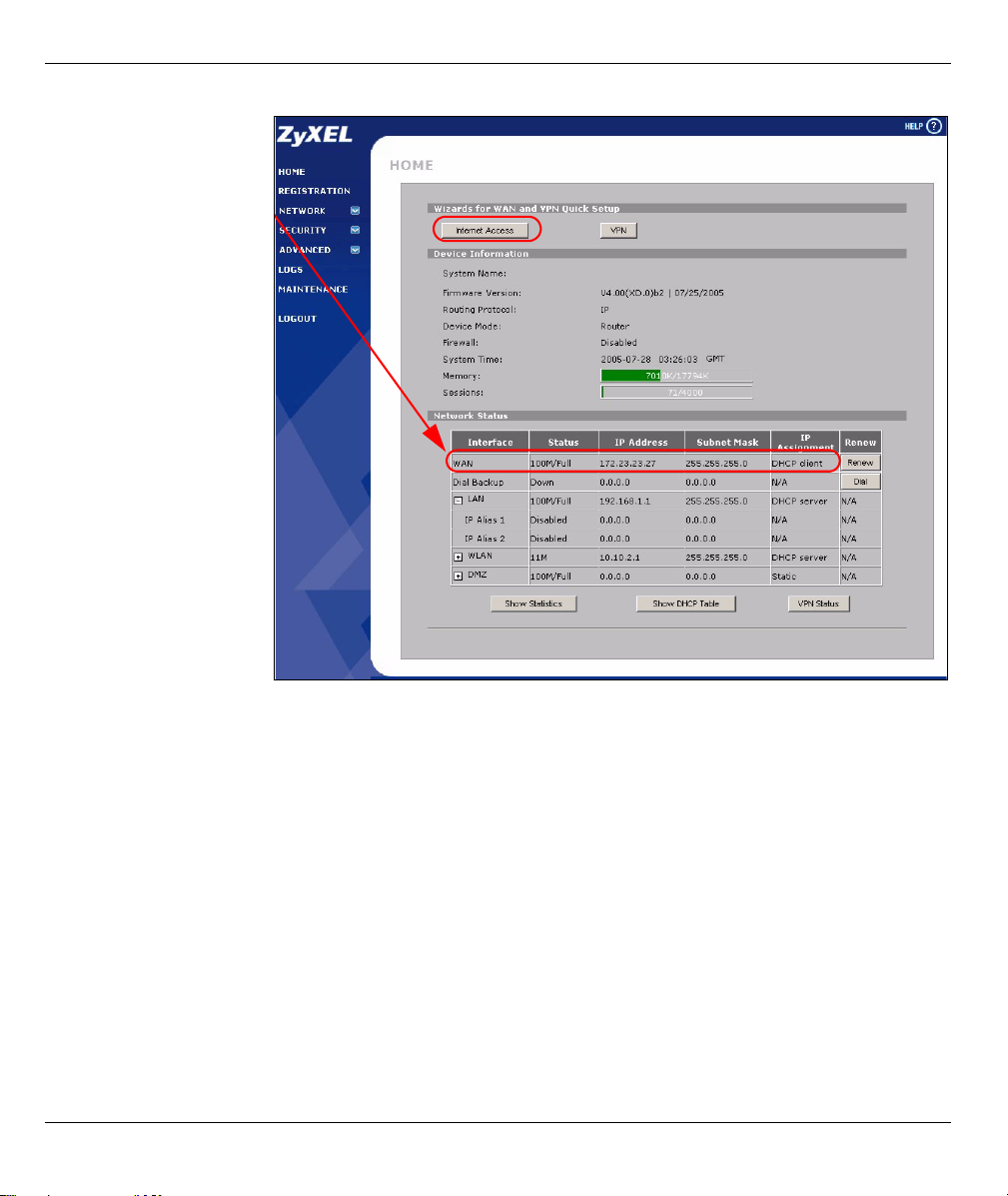

6Check the Network
Status table. If the
WAN status is not
Down and there is an
IP address, go to
Section 5.
If the WAN status is
Down (or there is not
an IP address), click
Internet Access and
use Section 4 to
configure WAN.

ENGLISH
5
4 Internet Access Setup and Product Registration
1Click Internet Access in the HOME screen to open the Internet access wizard.
Enter the Internet access information exactly as given to you.
If you were given an IP address to use, select Static in the IP Address Assignment drop-down list box and
enter the information provided.
Note: The fields vary depending on what you select in the Encapsulation field. Fill them in with the
information provided by the ISP or network administrator.
Click Apply when you are done.

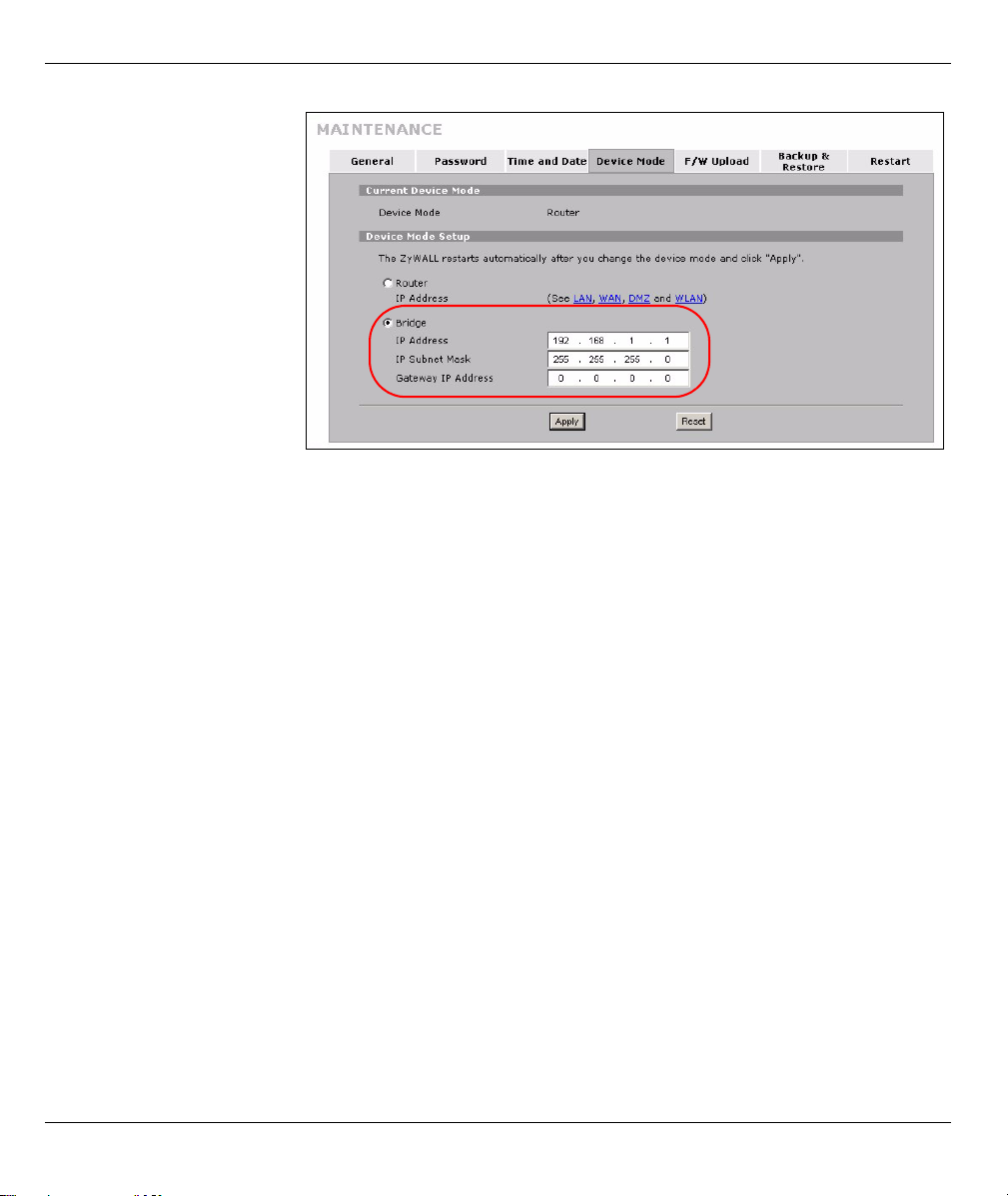

1Click MAINTENANCE in
the navigation panel and
then Device Mode.
2Select Bridge and
configure a (static) IP
address subnet mask and
gateway IP address for
the ZyWALL’s LAN, WAN,
DMZ and WLAN
interfaces.
3Click Apply. The ZyWALL
restarts.
Skip to Section 5 if you have
servers that you need to be
accesible from the WAN.

ENGLISH
6

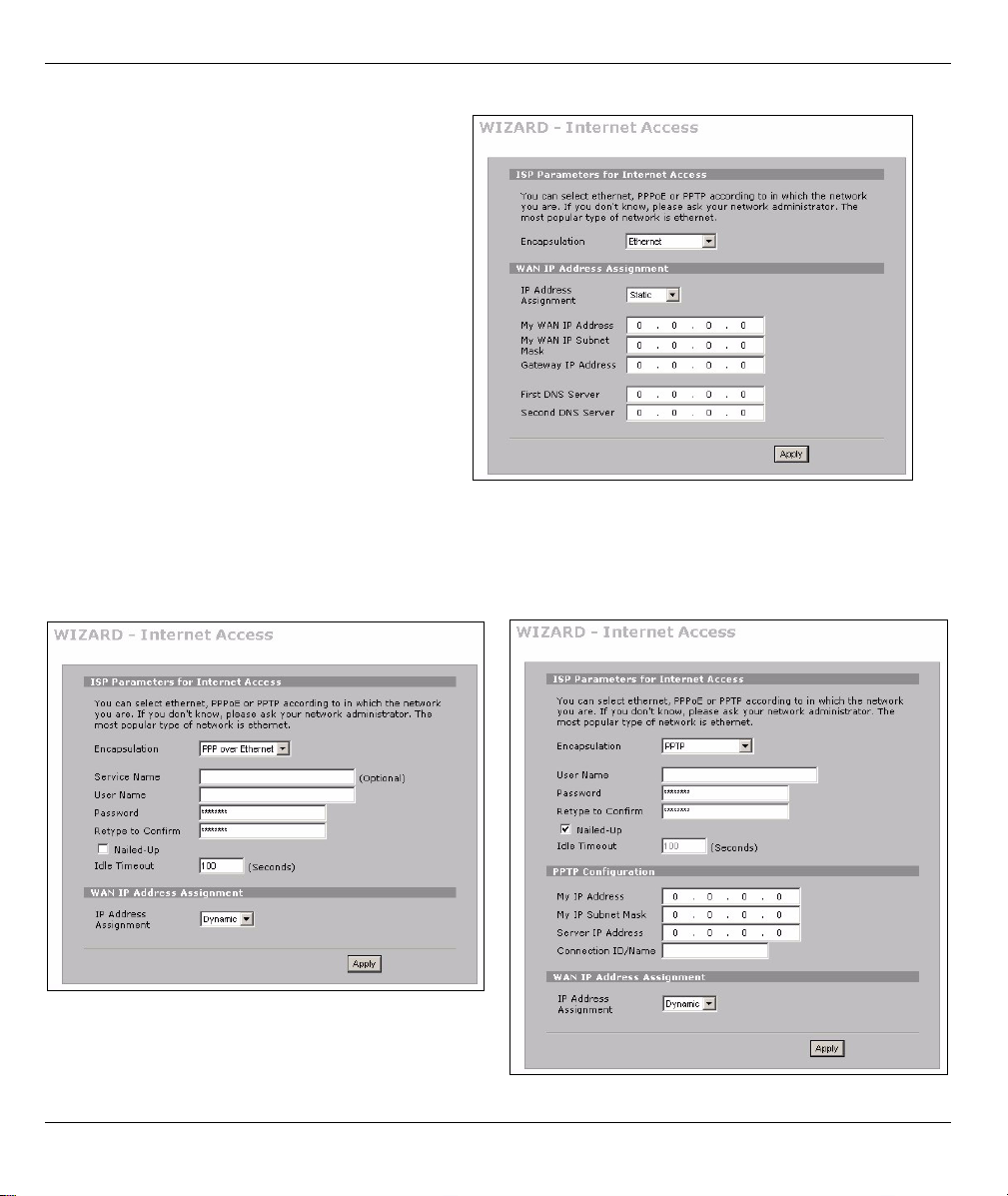

•PPP over Ethernet or PPTP Encapsulation
Select Nailed-Up when you want your connection up all the time (this could be expensive if your ISP bills you
for Internet usage time instead of a flat monthly fee).
To not have the connection up all the time, specify an idle time-out period (in seconds) in Idle Timeout.
•Ethernet Encapsulation
Configure a Roadrunner service in the
NETWORK WAN screens (use the WAN tab).

ENGLISH
7
2Click Next to display the screen where you
can register your ZyWALL with myZyXEL.com
(ZyXEL’s online services center) and activate
the free content filtering, anti-spam, anti-virus
and IDP trial applications. Otherwise, click
Skip and then Close to complete Internet
access setup.
Note: Make sure you have installed the ZyWALL Turbo Card before you activate the IDP and anti-virus
subscription services.
Turn the ZyWALL off before you install or remove the ZyWALL Turbo Card.
3If you already have an account at
myZyXEL.com, select Existing
myZyXEL.com account and enter account
information. Otherwise, select New
myZyXEL.com account and fill in the
fields below to create a new account and
register your ZyWALL. Click Next.
4Wait for the registration progress to finish.

ENGLISH
8

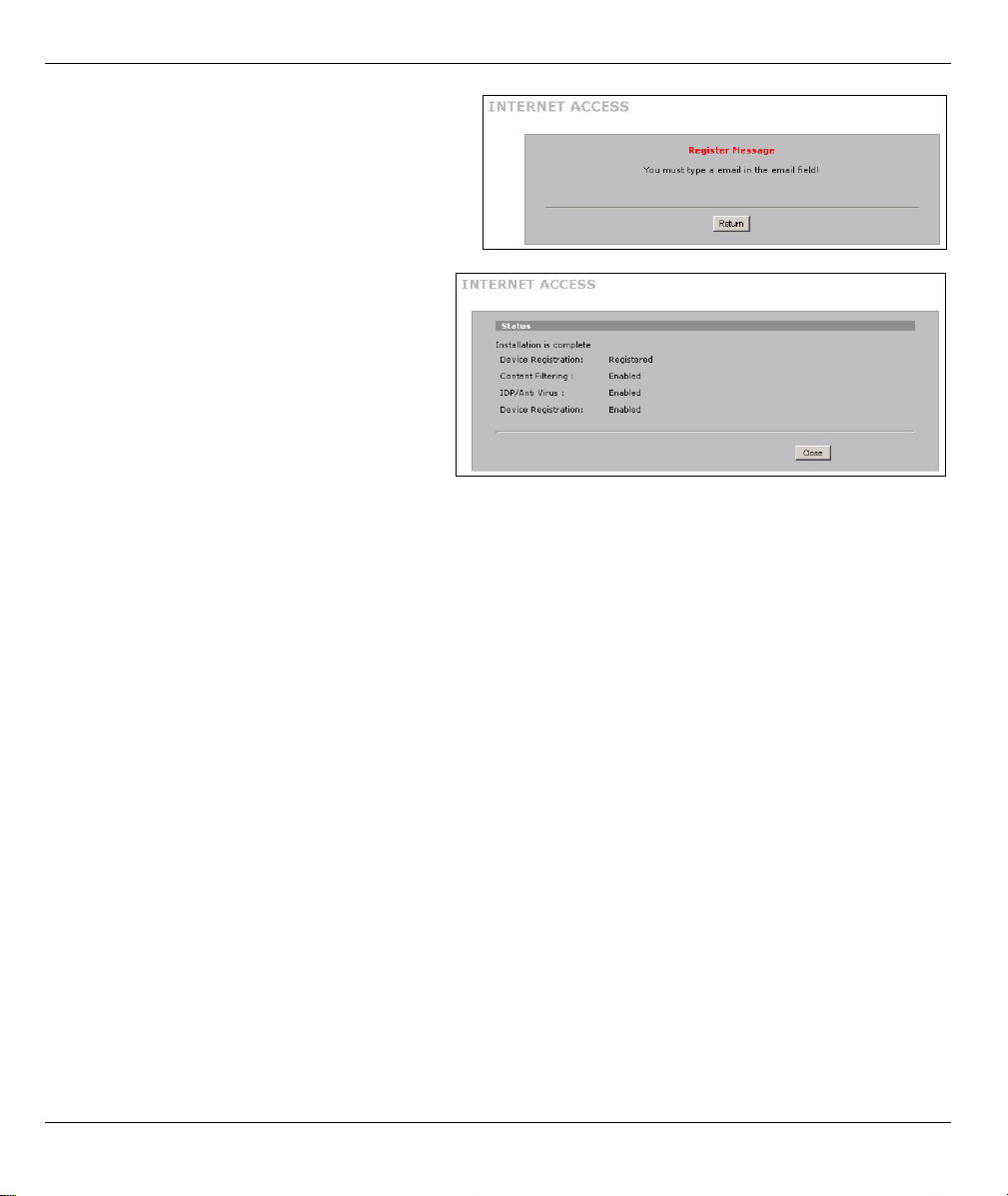

5The following screen displays if the registration
was not successful. Click Return to go back to
the Device Registration screen and check your
settings.
6Click Close to leave the wizard screen when
the registration and activation are done.
Note: If you want to activate a standard
service with your iCard’s PIN number
(license key), use the
REGISTRATION Service screen.
See the user’s guide for details.
5 DMZ
The DeMilitarized Zone (DMZ) allows public servers (web, e-mail, FTP, etc.) to be visible to the outside world
and still have firewall protection from DoS (Denial of Service) attacks.
Unlike the LAN, the ZyWALL does not assign TCP/IP configuration via DHCP to computers connected to the
DMZ ports. Configure the computers with static IP addresses (in the same subnet as the DMZ port's IP
address) and DNS server addresses. Use the ZyWALL's DMZ IP address as the default gateway.
Do the following to configure the DMZ if the ZyWALL is in routing mode.
Note: You do not need to configure DMZ with bridge mode, skip to Section 7.
1Click NETWORK, DMZ in the navigation panel.

ENGLISH
9
6 NAT
NAT (Network Address Translation - NAT, RFC 1631) means the translation of an IP address in one network
to a different IP address in another. You can use the NAT Address Mapping screens to have the ZyWALL
translate multiple public IP addresses to multiple private IP addresses on your LAN (or DMZ).
The following example allows access from the WAN to an HTTP (web) server on the DMZ. The server has a
private IP address of 10.0.0.20.

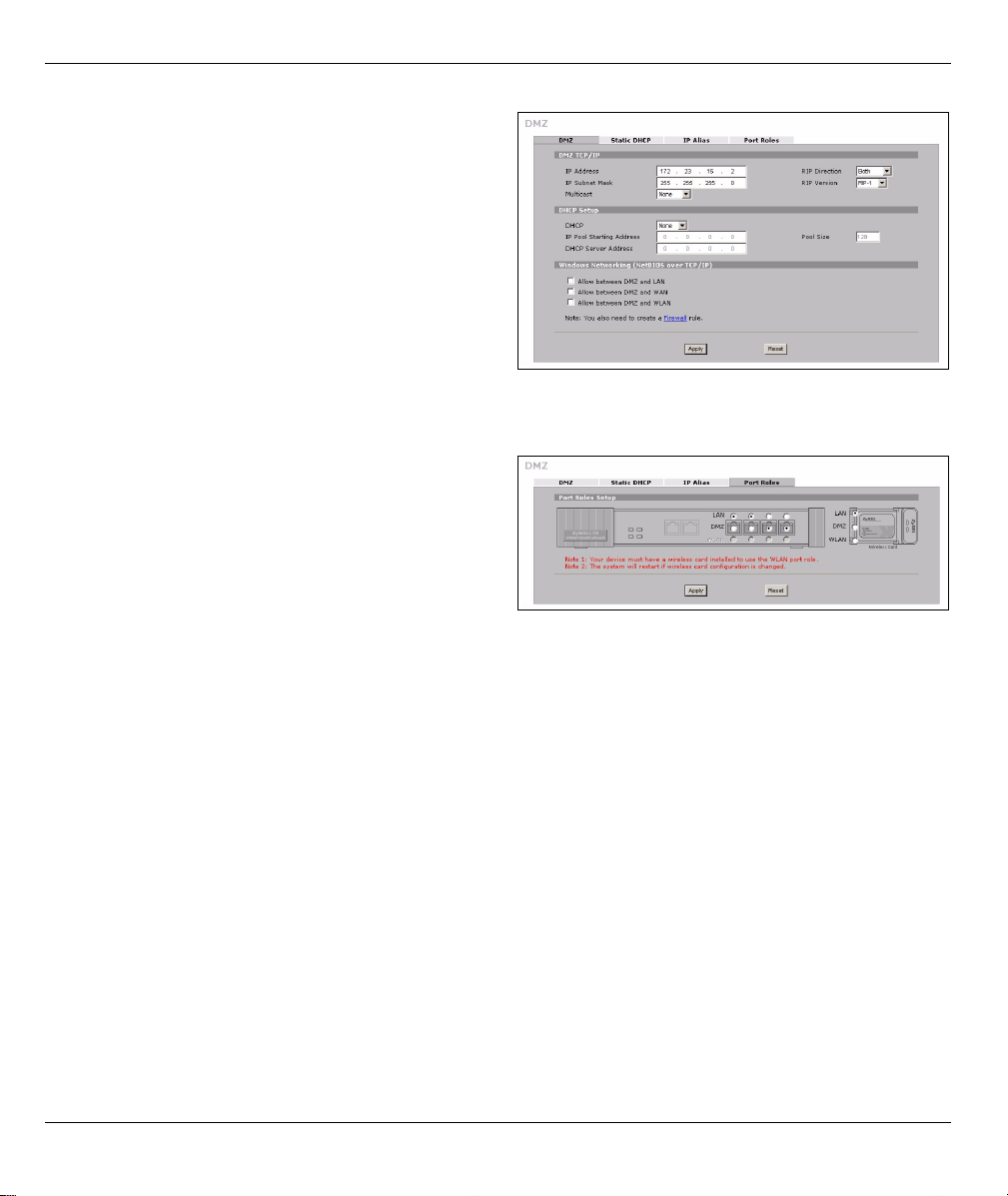

2Specify an IP address and subnet mask for the DMZ
interface.
If you use private IP addresses on the DMZ, use
NAT to make the servers publicly accessible (see
Section 6).
A public IP address must be on a separate subnet
from the WAN port’s public IP address. If you do not
configure NAT for the public IP addresses on the
DMZ, the ZyWALL routes traffic to the public IP
addresses on the DMZ without performing NAT.
This may be useful for hosting servers for NAT
unfriendly applications.
3Click Apply.
4By default, LAN/DMZ ports 1 to 4 are all LAN ports.
To configure a port as a DMZ port, click the Port
Roles tab, select its radio button next to DMZ and
click Apply.

ENGLISH
10
7 Firewall
You can use the ZyWALL without configuring the firewall.
The ZyWALL’s firewall is pre-configured to protect your LAN from attacks from the Internet. By default, no
traffic can enter your LAN unless a request was generated on the LAN first. The ZyWALL allows access to the
DMZ from the WAN or LAN, but blocks traffic from the DMZ to the LAN.
If you are using the ZyWALL in router mode, continue with the next section. For bridge mode, skip to Section
9.

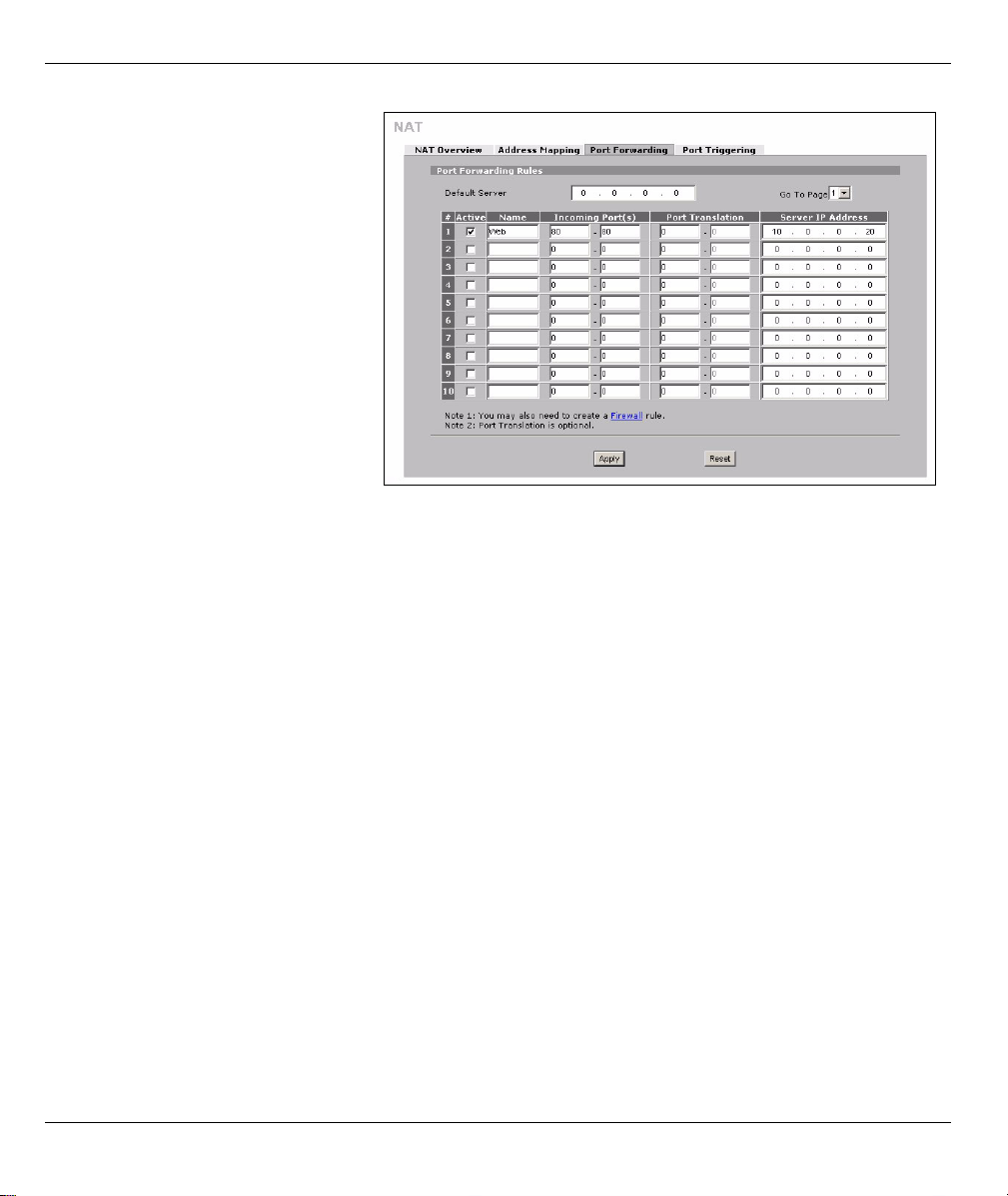

1Click ADVANCED, NAT in the
navigation panel and then Port
Forwarding.
2Select the Active check box.
3Type a name for the rule.
4Type the port number that the
service uses.
5Type the HTTP server’s IP address.
6Click Apply.

ENGLISH
11
8 VPN Rule Setup
A VPN (Virtual Private
Network) tunnel gives you a
secure connection to another
computer or network.
A gateway policy identifies the
IPSec routers at either end of a
VPN tunnel.
A network policy specifies
which devices (behind the
IPSec routers) can use the
VPN tunnel.

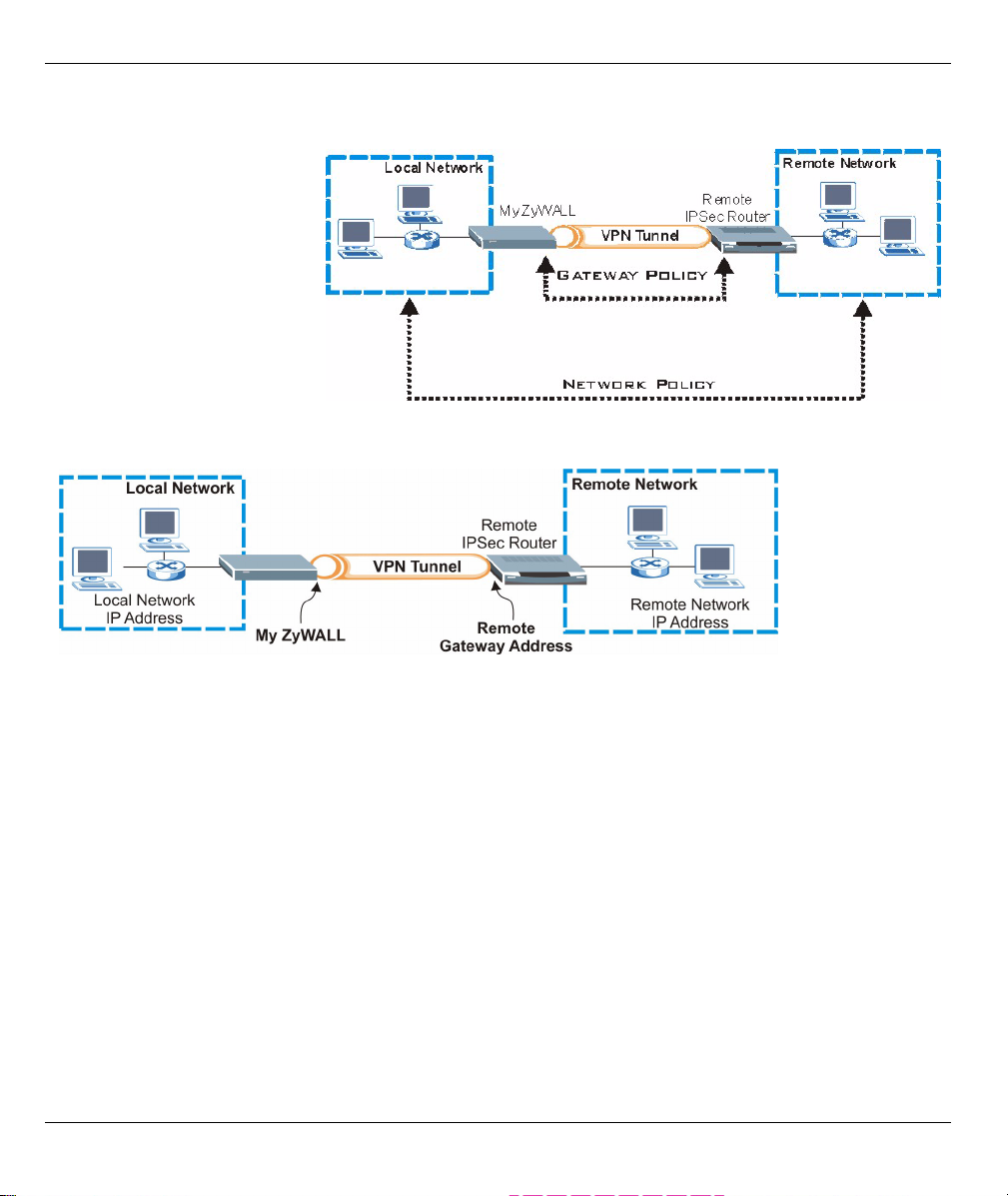

This figure helps explain the main fields in the wizard screens.
1Click VPN in the HOME screen (you may need to scroll up to see the link) to open the VPN wizard.

ENGLISH
12
Note: Your settings are not saved when you click Back.
2Use this screen to configure the gateway policy.
Name: Enter a name to identify the gateway policy.
Remote Gateway Address: Enter the IP address or
domain name of the remote IPSec router.
3Use this screen to configure the network policy.
Leave the Active check box selected.
Name: Enter a name to identify the network policy.
Select Single and enter an IP address for a single IP
address.
Select Range IP and enter starting and ending IP
addresses for a specific range of IP addresses.
Select Subnet and enter an IP address and subnet
mask to specify IP addresses on a network by their
subnet mask.

ENGLISH
13
Note: Make sure that the remote IPSec router uses the same security settings that you configure in
the next two screens.
Negotiation Mode: Select Main Mode for identity protection. Select Aggressive Mode to allow more
incoming connections from dynamic IP addresses to use separate passwords.
Note: Multiple SAs (security associations) connecting through a secure gateway must have the same
negotiation mode.
Encryption Algorithm: Select 3DES or AES for stronger (and slower) encryption.
Authentication Algorithm: Select MD5 for minimal security or SHA-1 for higher security.
Key Group: Select DH2 for higher security.
SA Life Time: Set how often the ZyWALL renegotiates the IKE SA (minimum 180 seconds). A short SA life
time increases security, but renegotiation temporarily disconnects the VPN tunnel.
Pre-Shared Key: Use 8 to 31 case-sensitive ASCII characters or 16 to 62 hexadecimal ("0-9", "A-F")
characters. Precede a hexadecimal key with a "0x” (zero x), which is not counted as part of the 16 to 62
character range for the key.
Encapsulation Mode: Tunnel is compatible with NAT, Transport is not.
IPSec Protocol: ESP is compatible with NAT, AH is not.
Perfect Forward Secrecy (PFS): None allows faster IPSec setup, but DH1 and DH2 are more secure.

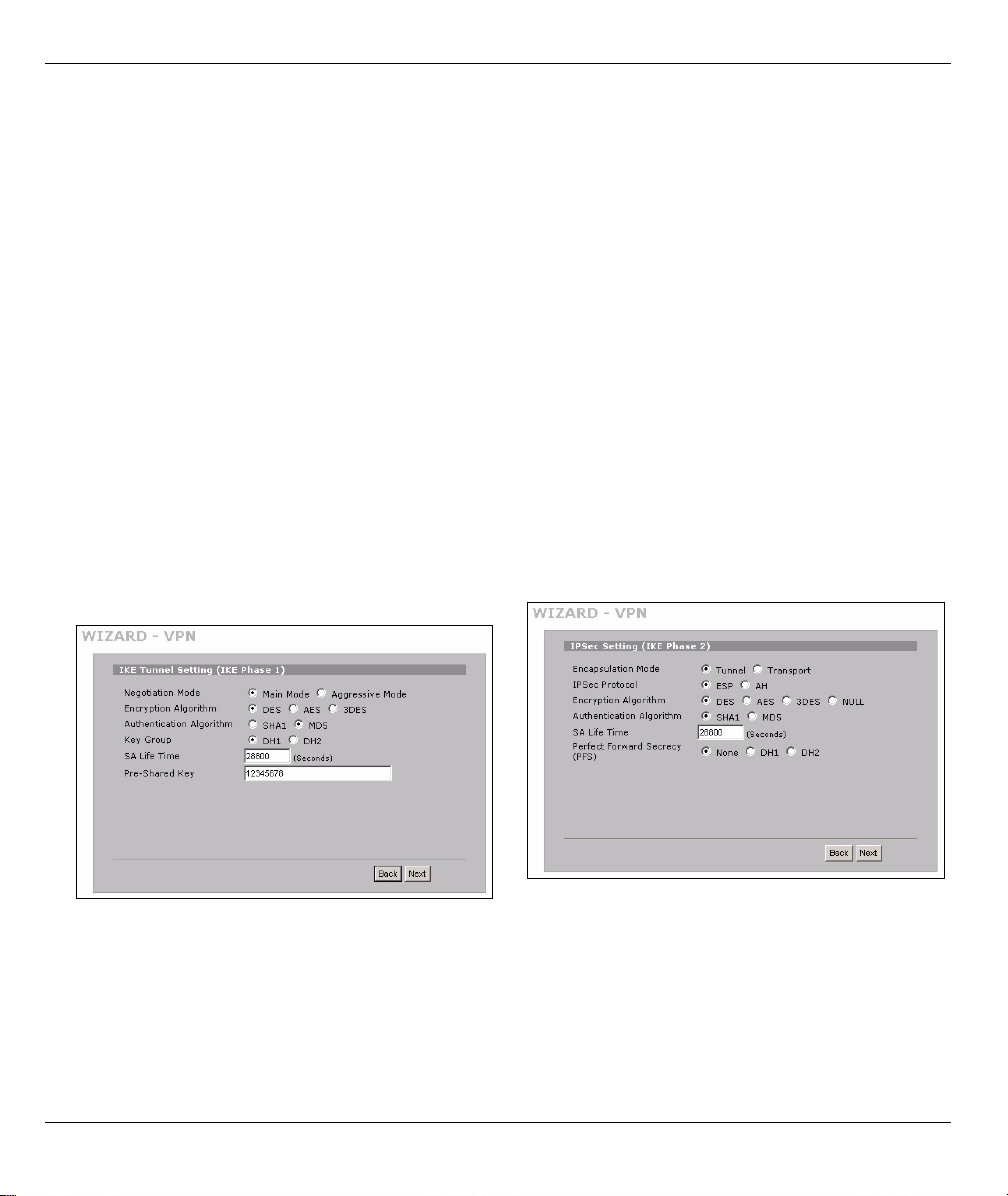

4Use this screen to configure IKE (Internet Key
Exchange) tunnel settings.
5Use this screen to configure IPSec settings.

ENGLISH
14
8.1 Using the VPN Connection
Use VPN tunnels to securely send and retrieve files, and allow remote access to corporate networks, web
servers and e-mail. Services work as if you were at the office instead of connected through the Internet.
For example, the “test” VPN rule allows secure
access to an web server on a remote corporate
LAN. Enter the server’s IP address (10.0.0.23 in
this example) as your browser’s URL. The
ZyWALL automatically builds the VPN tunnel
when you attempt to use it.
Click SECURITY, VPN in the navigation panel
and then the SA Monitor tab to display a list of
connected VPN tunnels (the “test” VPN tunnel is
up here).

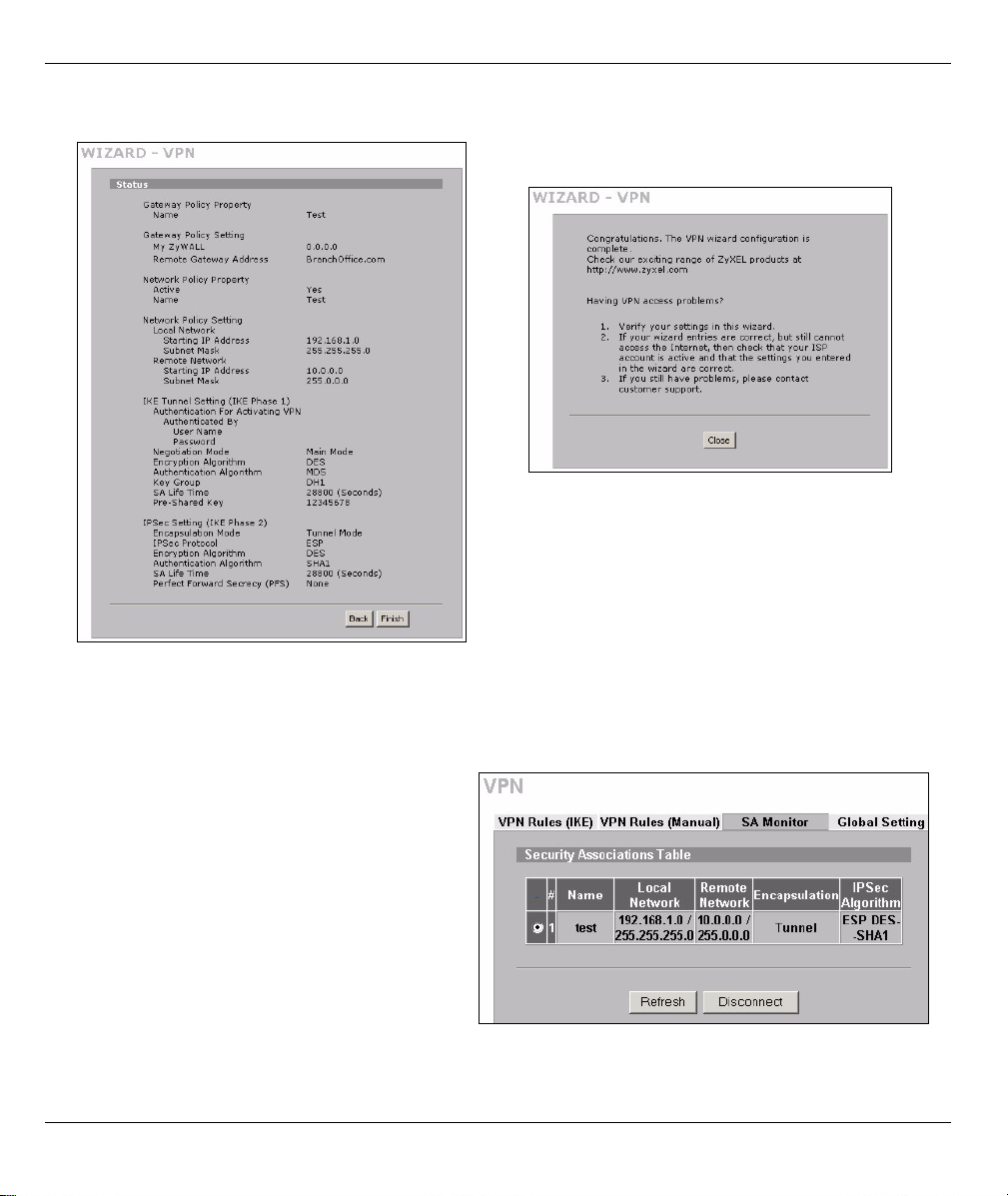

6Check your VPN settings. Click Finish to save the
settings.
7Click Close in the final screen to complete the
VPN wizard setup. Continue with the next section
to activate the VPN rule and establish a VPN
connection.

ENGLISH
15
9 Troubleshooting
9.1 Set Up Your Computer’s IP Address
This section shows you how to set up your computer to receive an IP address in Windows 2000, Windows NT
and Windows XP. This is ensures that your computer can communicate with your ZyWALL.
1In Windows XP, click Start, Control Panel.
In Windows 2000/NT, click Start, Settings, Control Panel.
2In Windows XP, click Network Connections.
In Windows 2000/NT, click Network and Dial-up Connections.
Problem Corrective Action
None of the LEDs
turn on.
Make sure that you have the power adaptor connected to the ZyWALL and plugged in to an
appropriate power source. Check all cable connections.
If the LEDs still do not turn on, you may have a hardware problem. In this case, you should
contact your local vendor.
Cannot access
the ZyWALL from
the LAN.
Check the cable connection between the ZyWALL and your computer or hub. Refer to
Section 1 for details.
Ping the ZyWALL from a LAN computer. Make sure your computer’s Ethernet card is
installed and functioning properly.
In the computer, click Start, (All) Programs, Accessories and then Command Prompt. In
the Command Prompt window, type "ping" followed by the ZyWALL’s LAN IP address
(192.168.1.1 is the default) and then press [ENTER]. The ZyWALL should reply. Otherwise,
refer to Section 9.1.
If you’ve forgotten the ZyWALL’s password, use the RESET button. Press the button in for
about 10 seconds (or until the PWR LED starts to blink), then release it. It returns the
ZyWALL to the factory defaults (password is 1234, LAN IP address 192.168.1.1 etc.; see
your User’s Guide for details).
If you’ve forgotten the ZyWALL’s LAN or WAN IP address, you can check the IP address in
the SMT via the console port. Connect your computer to the CONSOLE port using a console
cable. Your computer should have a terminal emulation communications program (such as
HyperTerminal) set to VT100 terminal emulation, no parity, 8 data bits, 1 stop bit, no flow
control and 9600 bps port speed.
Cannot access
the Internet.
Check the ZyWALL’s connection to the Ethernet jack with Internet access. Make sure the
Internet gateway device (such as a DSL modem) is working properly.
Click WAN in the navigation panel to verify your settings.
Cannot establish
a VPN connection
Make sure the ZyWALL and the remote IPSec router use the same VPN settings. Click VPN
in the navigation panel to configure advanced settings.
Access a web site to check that you have a successful Internet connection.

ENGLISH
16
3Right-click Local Area Connection and then click Properties.
4Select Internet Protocol (TCP/IP) (under the General tab in Windows XP) and click Properties.
Procedure to View a Product’s Certification(s)
1Go to www.zyxel.com.
2Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
3Select the certification you wish to view from this page.
5The Internet Protocol TCP/IP Properties screen
opens (the General tab in Windows XP). Select the
Obtain an IP address automatically and Obtain DNS
server address automatically options.
6Click OK to close the Internet Protocol (TCP/IP)
Properties window.
7Click Close (OK in Windows 2000/NT) to close the
Local Area Connection Properties window.
8Close the Network Connections screen.

DEUTSCH
17
Übersicht
Die ZyWALL 5 ist eine Firewall mit VPN, Bandbreitenmanagement, Content Filtering, Anti-Spam, Anti-Virus,
IDP (Intrusion Detection and Protection) und vielen anderen Funktionen. Sie können sie als transparente
Firewall verwenden, ohne das Netzwerk neu zu konfigurieren und die Routingfunktionen des Geräts zu
konfigurieren. Die ZyWALL bietet die Möglichkeit, bei der Benutzung öffentlich zugänglicher Server die
Portfunktionen zu wechseln (LAN zu DMZ) und erhöht damit die Netzwerksicherheit. In dieser Anleitung
finden Sie eine Beschreibung der Anschlüsse und der Konfiguration, die notwendig ist, damit Sie die ZyWALL
in Ihrem Netzwerk verwenden können.
Eine ausführliche Beschreibung aller Funktionen finden Sie im Benutzerhandbuch.
Bitte halten Sie die Daten für Ihren Internetzugang bereit.
Diese Anleitung ist in die folgenden Abschnitte aufgeteilt.
1 Anschließen der Hardware
Sie benötigen folgendes:
1Anschließen der Hardware
2Zugriff auf den Web-Konfigurator
3Bridge Mode
4Einrichten des Internetzugriffs und
Produktregistrierung
5DNS
6NAT
7Firewall
8Einstellen der VPN-Regeln
9Problembeseitigung
ZyWALL Computer Ethernetkabel Netzteil

DEUTSCH
18
Wenn Sie das Gerät installieren, müssen Sie die Hardwaregeräte folgendermaßen anschließen.
1Verbinden Sie den LAN-/DMZ-Port mit einem Ethernet-Kabel mit dem Computer. Wenn Sie diese Ports im
LAN- oder DMZ-Fenster mit dem Web-Konfigurator als DMZ-Ports konfigurieren, können Sie auch mit
Ethernetkabeln eine Verbindung von LAN-/DMZ-Ports zu öffentlichen Servern (Internet, E-Mail, FTP usw.)
herstellen.
2Schließen Sie mit einem anderen Ethernet-Kabel den WAN-Port an die Ethernet-Buchse mit Internetzugriff
an.
3Wenn Sie die Antiviren- und IDP-Funktion verwenden möchten, müssen Sie die Erweiterungskarte
ZyWALL TURBO einsetzen. Fur die LAN-Funktion benötigen Sie die Wireless LAN-Karte. Weitere
Informationen zu den Erweiterungskarten erhalten Sie in der Bedienungsanleitung der ZyWALL Turbo
Karte. Eine Installationsanleitung fur eine Wireless LAN-Karte finden Sie im Benutzerhandbuch.
