ABOUT THIS GUIDE
This guide describes how to install and configure RAS 1500.
If the information in the release notes shipped with your product differs
from the information in this guide, follow the instructions in the release
notes.
Finding Specific
Information
This table shows the location of specific RAS 1500 information.
If you are looking for this information Turn to
Latest changes to documentation Release Notes
Configuring LAN-to-LAN routing TRAM online help; RAS 1500
System Management Guide
Configuring for dial-out TRAM online help; RAS 1500
System Management Guide
Configuring to accept dial-in users TRAM online help; RAS 1500
System Management Guide
Configuring for IP terminal service TRAM online help; RAS 1500
System Management Guide
Configuring with TRAM Chapter 3 of this guide
Configuring for frame relay RAS 1500 System Management
Guide
Configuring for security and accounting TRAM online help; RAS 1500
System Management Guide
viii ABOUT THIS GUIDE
Conventions This table lists conventions that are used throughout this guide.
Related
Documentation
The RAS 1500 documentation set includes the following documents. All
3Com documentation is available on the 3Com web site:
http://www.3Com.com
■RAS 1500 Release Notes
These notes provide information about the system software release,
including new features and bug fixes. It also provides information
about any changes to the RAS 1500’s system documentation. Release
notes are enclosed in the RAS 1500 package and are available at
http://support.3com.com/software/smofficesw.htm.
■RAS 1500 System Management Guide
This guide describes how to configure your RAS 1500 system. It is
located on the RAS 1500 Resource CD-ROM.
■Transcend Remote Access Manager (TRAM) Online Help
This online help file describes how to use TRAM to configure your RAS
1500. It is accessed from TRAM.
■RAS 1500 System Reference Guide
Describes how to configure your RAS1500 system using the
Command Line Interface (CLI).
■RAS 1500 Quick Reference Card
Describes how to configure the more common tasks (e.g. protocols)
on the RAS 1500.
Table 1 Notice Icons
Icon Notice Type Description
Information note Important features or instructions
Caution Information to alert you to potential damage to a
program, system, or device
Warning Information to alert you to potential personal injury
Contacting 3Com ix
■I/O Module Installation Guide
Describes how to install an I/O module in a Router Module or Port
Expansion Module.
Contacting 3Com Use this chart as a reference when you need to contact 3Com.
For a complete listing of support and contact numbers, refer to Appendix
D, “Technical Support.”
Contacting 3Com
3Com Corp. - 5400 Bayfront Plaza - P.O. Box 58145 - Santa Clara, CA - 95052-8145
Internet http://support.3Com.com
1INTRODUCING THE SUPERSTACK II
REMOTE ACCESS SYSTEM 1500
This chapter contains information about the SuperStack II®Remote
Access System 1500 (RAS 1500) and how it can be used in your network.
This chapter contains the following information:
■About the RAS 1500
■Overview
■Applications
■Security options
■Configuration options
■Front Panel View and Description
1-2 CHAPTER 1: INTRODUCING THE SUPERSTACK II REMOTE ACCESS SYSTEM 1500
About the RAS 1500 The RAS 1500 is a stackable unit that provides terminal server and remote
access services, via analog and ISDN BRI connections in a multi-protocol
networking environment.
Consisting of a base router module (RM), port expansion module (PEM),
and user-installable Input/Output (I/O) modules, RAS 1500 integrates
multiprotocol remote access server and WAN router technology with
high-performance 56 kbps (V.90) and/or ISDN modems.
Overview The RAS 1500 is a powerful data communications platform that can
support a broad variety of remote access applications.
The basic configuration of a RAS 1500 stack consists of one RM and two
PEMs and supports up to 24 channels (up to a total of 12 BRI lines, 24
analog lines, or any combination up to 24 channels).
In a full RAS 1500 stack, each PEM is connected to the RM using 3Com’s
StackNet, a high speed (up to 200 Mbps), low cost technology.

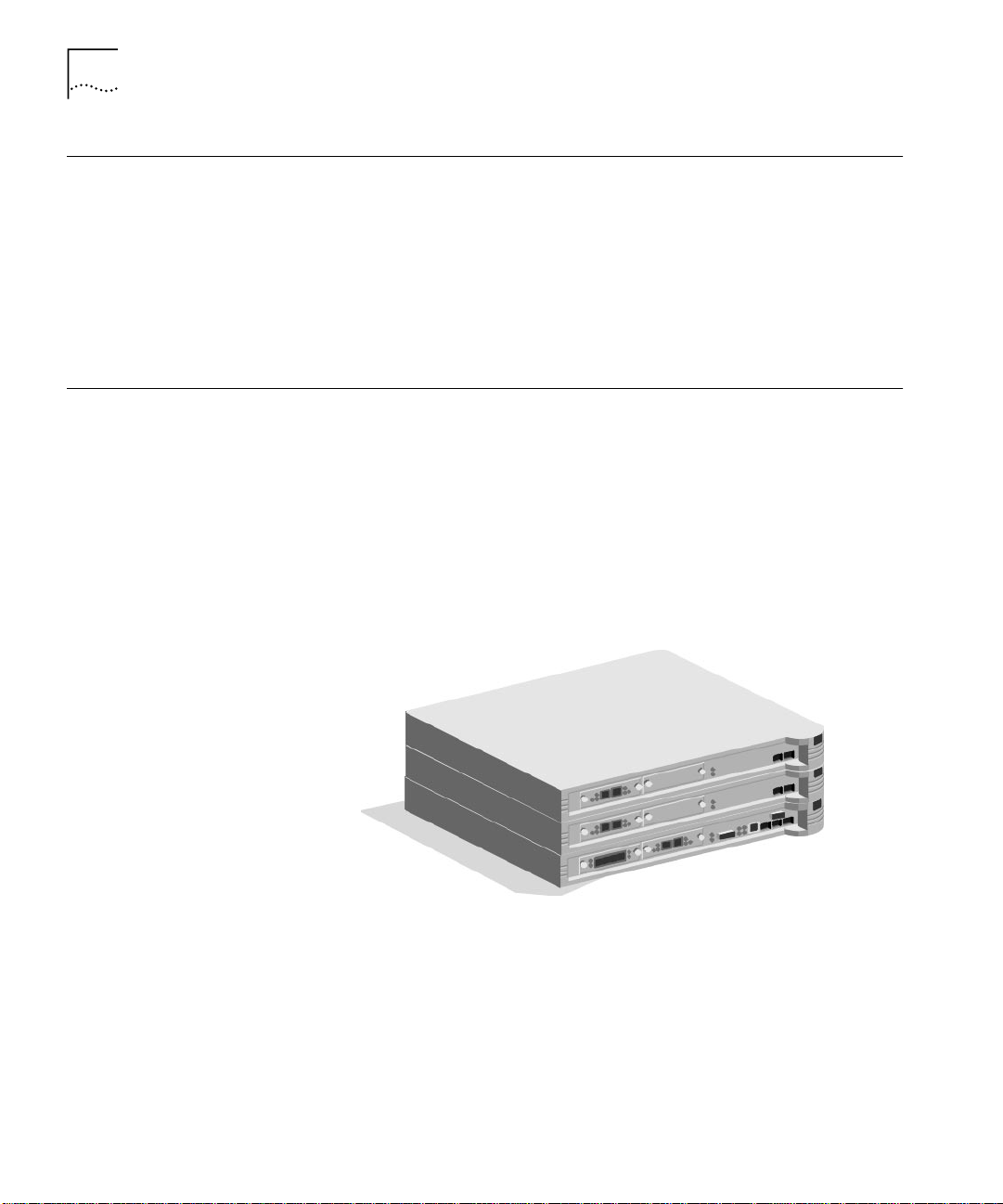

Figure 1-1 One RM and two PEMs in a Stack without a StackNet Connection
Overview 1-3
Applications
The RAS 1500 is a multi-protocol, dial-up router and terminal server
commonly described as a remote access server. The RAS 1500 performs
five basic applications:
■IP Terminal Service
■Network Dial-in Access
■Dial-out Access (NCSI or telnet)
■LAN-to-LAN Routing
■Bridging
For more information about configuring these basic applications, see the
SuperStack II Remote Access System 1500 Resource CD-ROM.
Figure 1-2 Application of the RAS 1500 within the IP Network
IP Terminal Service
RAS 1500 provides network access for dumb terminals or computers that
emulate dumb terminals. The ASCII data stream to and from these
remote terminals is converted into a networking protocol (telnet, Rlogin,
or ClearTCP) and a session is established with a host to provide an IP
terminal service connection on the RAS 1500’s local network.
PSTN
IP network
Network
computer s
RAS 1500
1-4 CHAPTER 1: INTRODUCING THE SUPERSTACK II REMOTE ACCESS SYSTEM 1500
The RAS 1500 offers extensive access security, dialback, and easy
configuration for terminal service connections.
Network Dial-in Access
RAS 1500 provides dial-in network access for remote users. Remote IP,
IPX and Appletalk network users can dial in and connect to the local
network as if they were local nodes.
Packets transmitted over the dial-in connection are encapsulated using
the following protocols:
■PPP (Point-to-Point Protocol)
■SLIP (Serial Line IP Protocol)
■FCP (3Com’s Fast Connect Protocol)
Dial-out Access
You can access RAS 1500 ports with network computers and
workstations to provide users with NCSI and Telnet dial-out services. This
allows network users to connect to Bulletin Board Systems (BBSs) or
information services such as CompuServe, or access the Internet over a
dial-up connection.
IP or IPX LAN users require a NCSI-compatible communications
application to access RAS 1500 modems.
LAN-to-LAN Routing and Bridging
RAS 1500 performs dial-up routing over a PPP connection between
facilities. Routing occurs when one device dials up another device and
logs in as a user.
There are several types of LAN-to-LAN connections:
■Manual
■On demand
■Timed
■Continuous
RAS 1500 supports many routing and protocol configurations. It is
capable of establishing additional connections to increase bandwidth
automatically when network traffic increases.
Overview 1-5
Security Options RAS 1500 supports the following security options:
■IP packet filtering in both the inbound and the outbound directions of
ports, users, and dial-out locations.
■RADIUS
■NOS-based authentication (Windows NT 4.0, Novell NetWare)
■Dial-back, fixed and roaming
■PAP and CHAP
■Local password authentication
Configuration
Options
The RAS 1500 supports the following configuration options:
■TRAM
■Command Line Interface (CLI)
TRAM
TRAM allows you to configure your RAS 1500 using a GUI interface, if
you are using Windows 95 or Windows NT 4.0.
Command Line Interface
The RAS 1500’s CLI includes an assortment of utilities for troubleshooting
connections including:
■The ability to manually dial a location to test connectivity
■The ability to use telnet, Rlogin or ClearTCP to establish a session with
another host.
■UNIX-like troubleshooting commands including ping to debug IP
connections.
Universal Connect Universal Connect allows ISDN I/O module users to access information at
analog speeds up to 56 Kbps and at digital speeds up to 128 Kbps from
the same equipment and port.
ISDN Configuration The RAS 1500 supports Basic Rate Interface (BRI) ISDN with either the
U-Interface (for North America) or the S/T-Interface (for other countries).
Contact your ISDN provider for information about ISDN in your area or
call 1-800-877-ISDN (USA only).
1-6 CHAPTER 1: INTRODUCING THE SUPERSTACK II REMOTE ACCESS SYSTEM 1500
Front Panel
Description
The following figure describes the RAS 1500 front panel.
Figure 1-3 RAS 1500 Front Panel
WAN port FireWire
(IEEE P1394 Connectors)
Console
Analog module
(Four ports)
ISDN-BRI module
(S/T or U)
Router module port
Port expansion
modules
FireWire
connector
FireWire
connector
Table 1-1 Front Panel Features
Description Function
Analog module Connect analog telephone lines.
ISDN -BRI module (S/T or U) Connect ISDN-BRI telephone lines.
WAN port Connect to the WAN through this port. Automatic cable
detection defines interface type.
Console port Connect a serial cable to a terminal from this port to access
the unit’s command line interface (CLI). The port defaults to
38.4 Kbps.
FireWire (IEEE P1394 connectors) Connect supplied FireWire from these ports to RAS 1500
Expansion units.
RAS 1500 LEDs 1-7
RAS 1500 LEDs The following tables describe Light Emitting Diodes (LEDs) on the RM,
PEM, analog I/O modules, and ISDN I/O modules.
Power and Status
LEDs
WAN Port LEDs
LAN Port LEDs
LED Color Status
Power Green Power is from the main power supply unit.
Power Yellow Power is from the backup power supply unit.
Power Off Power cable is not connected.
Status Green The RAS 1500 is running normally.
Status Blinking green The RAS 1500 software is running normally.
Status Blinking yellow Diagnostics are running.
Status Red Unit has just been powered on, or
diagnostics have failed.
LED Color Status
Tx Green The RAS 1500 is sending data.
Tx Off The RAS 1500 is not sending data.
Rx Green The RAS 1500 is receiving data.
Rx Off The RAS 1500 is not receiving data.
LED Color Status
Tx Green The RAS 1500 is sending data.
Tx Off The RAS 1500 is not sending data.
Rx Green The RAS 1500 is receiving data.
Rx Off The RAS 1500 is not receiving data.
Lk Green The RAS 1500 has an active connection.
Lk Off The RAS 1500 does not have an active
connection.
CO Yellow Data collisions have occurred.
CO Off Data collisions have not occurred.
1-8 CHAPTER 1: INTRODUCING THE SUPERSTACK II REMOTE ACCESS SYSTEM 1500
ISDN I/O
Module LEDs
Analog I/O
Module LEDs
LED Color Status
1,2,3, or 4 Green A call is connected.
1,2,3, or 4 Yellow A call is being negotiated.
1,2,3, or 4 Red Module failed diagnostics. If all LEDs are red,
the modem-manager software has failed.
1,2,3, or 4 Off No call is connected.
DFlashing green Port is being initialized.
DFlashing yellow Port is being initialized.
DYellow The physical ISDN link is active, but the
D-Channel is not fully functional.
DGreen The D-Channel is fully functional.
DRed The RAS 1500 failed diagnostics.
DOff ISDN U and ISDN S/T - The physical ISDN link is
not active.
LED Color Status
1,2,3, or 4 Green A call is connected.
1,2,3, or 4 Yellow A call is being negotiated.
1,2,3, or 4 Red Module failed diagnostics. If all LEDs are red,
the modem-manager software has failed.
1,2,3, or 4 Off No call is connected.
2INSTALLING THE RAS 1500
HARDWARE
This chapter contains the following information:
■Before you Begin
■Installing the RAS 1500 System
■Grounding the RM and the PEM
■Powering the RAS 1500 On or Off
Before you Begin Before you begin installation:
■Confirm you have the required equipment
■Check that your RAS 1500 package is complete (see page 2-2).
The sections below detail each task. Contact your network administrator
for further assistance.
Required Equipment A Pentium PC running Windows 95 or Windows NT 4.0 (with the latest
service pack from Microsoft) with the following minimum configuration:
■32 MB RAM
■40 MB free Hard Drive storage space
■Mouse
■TCP/IP configured
2-2 CHAPTER 2: INSTALLING THE RAS 1500 HARDWARE
You Should Have
Received
You should have received the following items with your RM or PEM:
■SuperStack®II RAS 1500 RM
■AC power cord
■Ethernet cable
■Cable-guide mounting brackets
■Flat-head mounting bracket screws
■Rubber feet
■User documentation:
■TRAM and Resource CD-ROM
■RAS 1500 Getting Started Guide
■RAS 1500 Version 1.5 Release Notes
■RAS 1500 Quick Reference Card
■RAS 1500 Version Sheet
■Dual-end compact screwdriver
If your RAS 1500 packaging does not contain all the equipment listed
above, contact 3Com Technical Support in your country. See Appendix C,
3Com Limited Warranty, for more information.
Optional
Components
You can purchase the following items separately:
■WAN cables: RS-232, RS-449, V.35, X.21, EIA 530
■I/O Modules:
■4-port V.34 modem module and cables
■2-port ISDN BRI module and cables
■Port Expansion Module (PEM) — each RM supports up to two PEMs
Table of contents
Other 3Com Conference System manuals
