3Com 005699-00 - User manual

This manual covers 3Com U.S. Robotics®faxmodems.
3Com, the 3Com logo, U.S. Robotics, and Winmodem are registered trademarks and Connections, RapidComm,
MacComCenter, and x2 are trademarks of 3Com Corporation. Windows is a registered trademark of Microsoft
Corp. Macintosh is a registered trademark and Mac is a trademark of Apple Computer, Inc. CompuServe is a
registered trademark of CompuServe Inc. America Online is a registered trademark of America Online Inc. Any
other trademarks, trade names, or service marks used in this manual are the property of their respective owners.
Copyright © 1998 3Com Corporation. All rights reserved.
3800 Golf Rd.
Rolling Meadows, IL 60008
* IMPORTANT! In accordance with the ITU-T standard for 56K transmissions (V.90), U.S. Robotics 56 Kbps
modems are capable of 56 Kbps downloads. However, due to FCC rules which restrict power output of service
providers, current download speeds are limited to 53 Kbps. Actual speeds may vary due to line conditions and
other factors. Uploads from users to server equipment travel at speeds up to 31.2 Kbps. An analog phone line
compatible with the V.90 standard or x2 technology and an Internet provider or corporate host site compatible
with the V.90 standard or x2 technology are necessary for these high-speed downloads. See www.3Com.com/56k
for details.

TABLE OF CONTENTS
56K Faxmodem Product Features ............................................................................................... 1-1
Software Installation .................................................................................................................2-1
Windows-based systems..................................................................................................................2-1
Macintosh computers......................................................................................................................2-3
Speakerphone Features (External Voice Speakerphone Modems Only).................................3-1
Modem Update Wizard................................................................................................................4-1
Windows-based systems..................................................................................................................4-1
Macintosh computers......................................................................................................................4-3
Uninstalling a U.S. Robotics Modem .........................................................................................5-1
Uninstalling a Winmodem Faxmodem............................................................................................5-1
Uninstalling an Internal Faxmodem................................................................................................5-3
Uninstalling an External Faxmodem...............................................................................................5-4
Uninstalling a Faxmodem for Macintosh ........................................................................................5-5
Troubleshooting and Help Resources........................................................................................6-1
Problems and Solutions...................................................................................................................6-1
Help Resources .............................................................................................................................6-19
Are You Still Having Problems? ...................................................................................................6-21
If You Need to Return the Modem to Us .......................................................................................6-22
Glossary....................................................................................................................................... 7-1
Technical Reference ....................................................................................................................8-1
Regulatory Information and Limited Warranty.........................................................................9-1
Manufacturer’s Declaration of Conformity......................................................................................9-1
Limited Warranty ...........................................................................................................................9-7

56K FAXMODEM PRODUCT FEATURES
1-1
Modulation Schemes
ITU-T V.90
x2™ technology
ITU-T V.34+
ITU-T V.34
ITU-T V.32bis
ITU-T V.32
ITU-T V.22bis
ITU-T V.22
ITU-T V.23
Bell 212A
ITU-T V.21
Bell 103
Error Control and Data
Compression Schemes
ITU-T V.42
ITU-T V.42bis
MNP 2-5
Fax Modulation Schemes
ITU-T V.17
ITU-T V.29
ITU-T V.27ter
ITU-T V.21
Fax Standards
EIA 578 Class 1 FAX
EIA 592 Class 2.0 FAX
Front Channel Link Rates
28000, 29333, 30666, 32000,
33333, 34666, 36000, 37333,
38666, 40000, 41333, 42666,
44000, 45333, 46666, 48000,
49333, 50666, 52000, 53333,
54666, 56000, 57333
Back Channel Link Rates
4800, 7200, 9600, 12000,
14400, 16800, 19200, 21600,
24000, 26400, 28800, 31200
33600
V.34+ Link Rates
4800, 7200, 9600, 12000,
14400, 16800, 19200, 21600,
24000, 26400, 28800, 31200,
33600
V.32bis Link Rates
4800, 7200, 9600, 12000,
14400
AdditionalLinkRates
300, 1200/75 (V.23), 1200,
2400
Fax Link Rates
2400, 4800, 7200, 9600,
12000, 14400
DTE Rates
300, 1200, 2400, 9600, 19200,
38400, 57600, 115200, 230400*
*The 230400 DTE rate is supported by
the 56K internal faxmodem only.

SOFTWARE INSTALLATION
2-1
Windows-based Systems:
Running the Setup Wizard
The instructions for installing your
Connections™CD-ROM software are on
the installation map included in your
modem’s box. If you have not completed
this portion of your install, you should do so
now.
Using Connections Software
Once installation is complete, you can use
the Connections CD at any time by
following these steps:
•Insert the Connections CD into your
CD-ROM drive.
•If the CD is already in your drive, take
it out and reinsert it.
•If you have disabled AutoPlay, click
Start, point to Programs, point to
3Com U.S. Robotics, and click
Connections.
Installing the RapidComm™
Software
NOTE: If you have an older
version of RapidComm software on your
system, uninstall it before continuing.
To start the uninstall, double-click the
Add/Remove Programs icon in the
Control Panel. This will erase any faxes
you have in your inbox. If you need to
save them, copy them to a new
directory.

SOFTWARE INSTALLATION
2-1
The Connections CD contains the
RapidComm communications software.
RapidComm is used with the standard

SOFTWARE INSTALLATION
2-2
modems; RapidComm Voice is used with
modems with voice functionality.
Once you have installed the Connections
program group, you can install the
RapidComm software. (The Setup Wizard
does not install RapidComm.)
Follow these instructions to install
RapidComm:
1. Start the Connections CD (follow the
instructions in the section “Using
Connections Software” on page 2-1).
2. On the main Connections menu, click
Software.
3. Click the Communications button.
4. Click the RapidComm (if you have a
regular faxmodem) or RapidComm
Voice (if you have a voice faxmodem)
button.
5. Follow the on-screen instructions to
finish the installation.
NOTE: The CD also contains an
electronic user manual for RapidComm
and RapidComm Voice.
Congratulations—you are
now ready to start using your
U.S. Robotics modem!

SOFTWARE INSTALLATION
2-3
Macintosh Computers:
Running the Setup Wizard
The instructions for installing your
Connections™CD-ROM software are on
the installation map included in your
modem’s box. If you have not completed
this portion of your install, you should do so
now.
Using Connections Software
Once installation is complete, you can use
the Connections CD at any time by
following these steps:
•Insert the Connections CD into your
CD-ROM drive.
•Double-click the Connections icon on
your desktop.
•Double-click the Connections icon in
the Connections folder.
Installing the RapidComm™
Software
NOTE: If you have a version of
MacComCenter or any other
communications software on your
system, read your manual for
instructions to uninstall it before
continuing. This will erase any faxes
you have in your inbox. If you need to
save them, copy them to a new folder.
The Connections CD contains the
RapidComm communications software.
RapidComm is used with the standard

SOFTWARE INSTALLATION
2-4
modems; RapidComm Voice is used with
modems with voice functionality.
Once you have installed Connections, you
can install the RapidComm software. (The
Setup Wizard does not install RapidComm.)
Follow these instructions to install
RapidComm:
1. Start the Connections CD (follow the
instructions in the section “Using
Connections Software” on page 2-3).
2. On the main Connections menu, click
Software.
3. Click the Communications button.
4. Click the RapidComm (if you have a
regular faxmodem) or RapidComm
Voice (if you have a voice faxmodem)
button.
5. Click Install Software.
6. Follow the on-screen instructions to
finish the installation.
NOTE: The CD also contains an
electronic user manual for RapidComm
and RapidComm Voice.
Congratulations—you are
now ready to start using your
U.S. Robotics modem!

SPEAKERPHONE FEATURES (EXTERNAL VOICE
SPEAKERPHONE MODEMS ONLY)
3-1
Making a Speakerphone Call
with a Telephone
1. Make sure your telephone is plugged into
the modem’s PHONE jack.
2. Lift the telephone’s handset.
3. Dial the phone number.
4. When the person on the other end
answers, press the SPEAKER button (on
top of the modem).
5. Hang up the handset.
6. To end the call, press the SPEAKER
button again.
Making a Speakerphone Call
with Communications
Software
1. Dial the telephone number using your
communications software.
2. To end the call, hang up using your
software (see the software’s Help file for
more information).
Answering an Incoming Call
When you hear your phone ring, press the
SPEAKER button. (If you do not hear your
phone ring, you may not have the
telephone’s cord plugged into the modem’s

SPEAKERPHONE FEATURES (EXTERNAL VOICE SPEAKERPHONE MODEMS ONLY)
3-2
PHONE jack. If you are using your
communications software to dial
speakerphone calls, the software needs to be
running in order for you to hear incoming
calls.)
Disabling the Speaker
Feature
If you want to talk privately to a caller, you
can use a phone handset instead of the
speaker.
To disable the speaker for the entire
call: Do not press the SPEAKER button
when the call comes in. Simply lift the
handset of the telephone connected to the
modem’s PHONE jack.
To disable the speaker during a call:
Pick up the handset of the telephone
connected to the modem’s PHONE jack. To
use the speaker again, press the SPEAKER
button and then hang up the handset.
Adjusting Speaker Volume
Press the up and down volume buttons on
top of the modem (marked VOLUME).
Muting a Call
If you’d like to say something without the
receiving party hearing you, you can press
the MUTE button. When you mute a call,
the ONLINE light will blink.
To turn off the mute feature, press MUTE
again. (The ONLINE light will stop blinking
and remain illuminated for the remainder of
the call.)

MODEM UPDATE WIZARD
4-1
Windows-based Systems:
The ConnectionsCD-ROM, which came with
your modem, includes the U.S. Robotics
Modem Update Wizard. This software is
designed to quickly update your modem to the
latest code.
NOTE: You can also obtain this
software from our BBS (847 262 6000; log
in as Modem Utility, and the setup file will
be downloaded) or from our Web page
(http://www.usr.com/home/online).
NOTE: Complete the instructions in
the “Software Installation” chapter before
installing the Modem Update Wizard.
Installing the Wizard
1. Insert the Connections CD into your
CD-ROM drive.
2. The Connections interface will appear
automatically in your Web browser.
3. Click Customer Support.
4. Click Modem Software.
5. Click the Modem Update Wizard button.
6. Click Install Software.
7. Follow the on-screen instructions to
complete the installation.

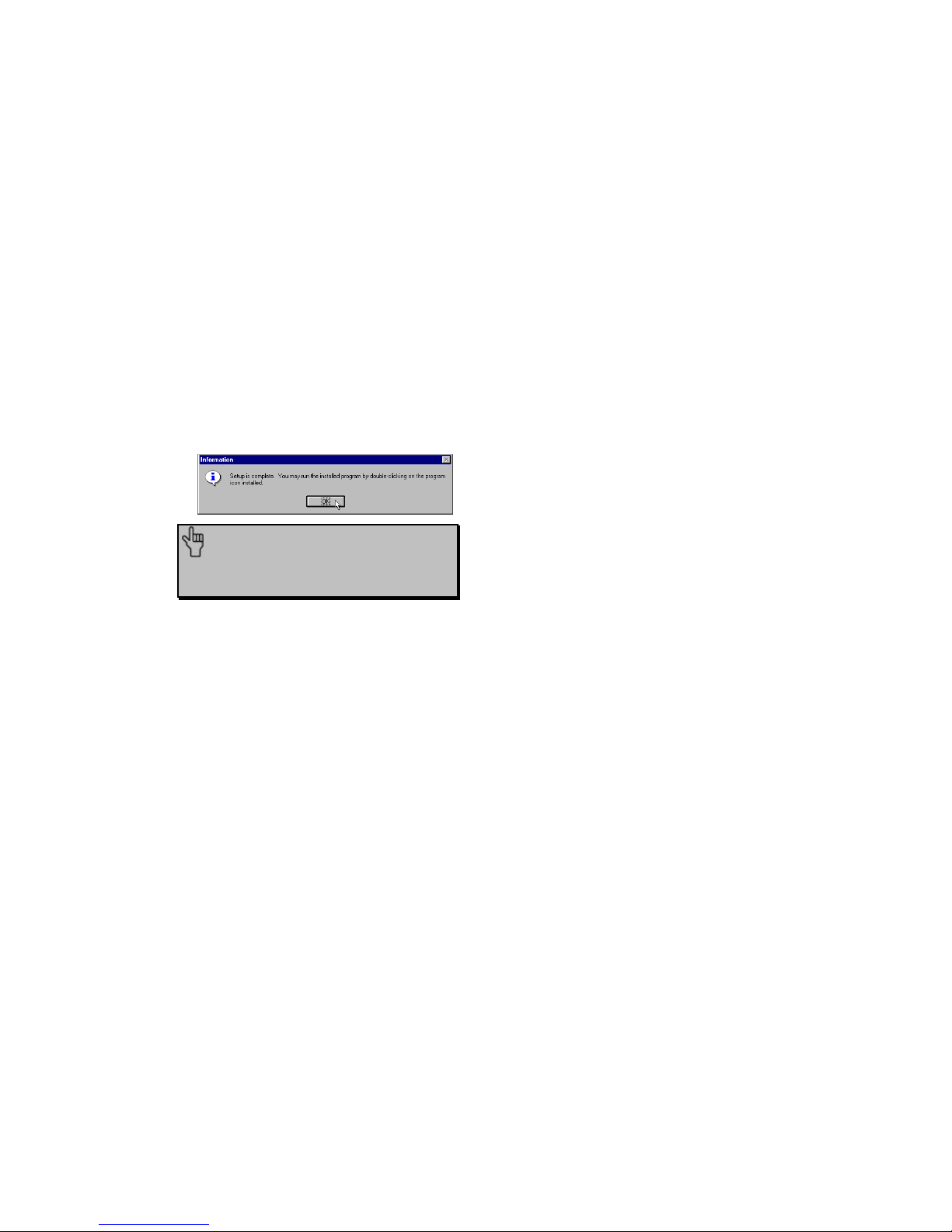

8. When you see the screen below, the setup is
complete. Click OK.

MODEM UPDATE WIZARD
4-2
NOTE: For more detailed
instructions, see our Web page
(http://www.3Com.com/56k).
Updating Your Modem
1. Click Start, point to Programs, and then
point to U.S. Robotics Modem Update
Wizard. Finally, click the Modem Update
Wizard selection.
2. Follow the on-screen instructions to
complete the update process.

MODEM UPDATE WIZARD
4-3
Macintosh Computers:
The ConnectionsCD-ROM, which came with
your modem, includes the U.S. Robotics
Modem Update Wizard. This software is
designed to quickly update your modem to the
latest code.
NOTE: You can also obtain this
software from our BBS (847 262 6000); log
in as Modem Utility, and the setup file will
be downloaded) or from our Web page
(http://www.usr.com/home/online).
NOTE: Complete the instructions in
the “Software Installation” chapter before
installing the Modem Update Wizard.
Installing the Wizard
9. Insert the Connections CD into your
CD-ROM drive.
10. The Connections interface will appear
automatically in your Web browser.
11.Click Customer Support.
12.Click Modem Software.
13.Click the Modem Update Wizard button.
14.Click Install Software.
15.Follow the on-screen instructions to
complete the installation.
16.When you see a screen indicating that the
setup is complete, click OK.

MODEM UPDATE WIZARD
4-4
NOTE: For more detailed
instructions, see our Web page
(http://www.3Com.com/56k).
Updating Your Modem
1. Double-click your Hard Drive icon.
2. Double-click the Modem Update Wizard
folder.
3. Double-click the Update Wizard icon.
4. Follow the on-screen instructions to
complete the update process.

UNINSTALLING A U.S. ROBOTICS MODEM
5-1
NOTE: These instructions only
apply to U.S. Robotics modems. If the
modem you’ll be uninstalling was made
by another manufacturer, refer to that
modem’s documentation for uninstall
instructions.
To Uninstall
•AWinmodem®Faxmodem, see page 5-1.
•An Internal Faxmodem, see page 5-3.
•An External Faxmodem, see page 5-4.
•AFaxmodem for Macintosh, see page
5-5.
Uninstalling a Winmodem
CAUTION:To avoid the risk of
electric shock, make sure your
computer and all peripheral devices are
turned off and unplugged.
1. First, remove the Winmodem software
from the Windows operating system.
From the Start menu, point to Settings
and then click Control Panel.
2. Double-click the System icon.
3. Select Device Manager.
4. Double-click Modems.
5. Select Winmodem.
6. Click Properties.

UNINSTALLING A U.S. ROBOTICS MODEM
5-2
7. Choose the Port Settings tab and then
click the Uninstall button.
8. Windows displays the following
message: “Warning, you are about to
remove this device from your system.”
Click OK. The Winmodem is now
uninstalled from your system.
9. Next, verify that you completely
uninstalled the Winmodem software.
Click Start, point to Settings and select
Control Panel.
10. Double-click the System icon and click
the Device Manager tab. If you do not
see a modem icon, you’ve successfully
uninstalled your Winmodem software. If
you do see an icon, repeat these
instructions beginning with step 1.
CAUTION:To avoid the risk of
electric shock, make sure your
computer and all peripheral devices are
turned off and unplugged.
11. Finally, physically remove the
Winmodem from your computer. Start
by removing the phone cords from the
modem’s TELCO (or ) and PHONE
(or ) jacks. If the modem is a voice
modem, remove any microphones or
powered speakers attached to the
modem.
12. Shut down Windows.
13. Turn off and unplug your computer and
all peripherals.

UNINSTALLING A U.S. ROBOTICS MODEM
5-3
14. Remove the computer’s cover. (If you
do not know how, refer to your
computer’s documentation.)
15. Find the modem inside the computer. (It
will be the green board with TELCO (or
) and PHONE (or ) stamped on
its metal bracket.)
16. Remove the screw that attaches the
modem’s metal bracket to the computer.
17. Remove the modem from its slot.
18.Replace the computer’s cover.
Uninstalling an Internal
Faxmodem
1. First, remove the modem from the
Windows operating system. From the
Start menu, point to Settings and then
click Control Panel.
2. Double-click the Modems icon.
3. Click to highlight the name of the
modem you wish to remove.
4. Click the Remove button.
CAUTION:To avoid the risk of
electric shock, make sure your
computer and all peripheral devices are
turned off and unplugged.
5. Finally, physically remove the modem
from your computer. Start by removing
the phone cords from the modem’s
TELCO (or ) and PHONE (or )
jacks. If the modem is a voice modem,
remove any microphones or powered
speakers attached to the modem.
6. Shut down Windows.

UNINSTALLING A U.S. ROBOTICS MODEM
5-4
7. Turn off and unplug your computer and
all peripherals.
8. Remove the computer’s cover. (If you
do not know how, refer to the
documentation for your computer.)
9. Find the modem inside the computer. (It
will be the green board with TELCO (or
) and PHONE (or ) stamped on
its metal bracket.)
10. Remove the screw that attaches the
modem’s metal bracket to the computer.
11. Remove the modem from its slot.
12. Replace the computer’s cover.
Uninstalling an External
Faxmodem
1. First remove the modem from the
Windows operating system. From the
Start menu, point to Settings and then
click Control Panel.
2. Double-click the System icon.
3. Click the Device Manager tab.
4. Double-click the Modems icon.
5. Click to highlight the name of the
modem you wish to remove.
6. Click the Remove button.
7. Finally, physically remove the modem
from your computer. Start by removing
the phone cords from the modem’s
TELCO (or ) and PHONE (or )
jacks.
8. Shut down Windows.
9. Turn off and unplug your computer and
all peripherals (including the modem).

UNINSTALLING A U.S. ROBOTICS MODEM
5-5
CAUTION:To avoid the risk of
electric shock, make sure your
computer and all peripheral devices are
turned off and unplugged.
10. Unplug the modem’s power adapter
from the outlet or power strip.
11. Unplug the modem’s serial cable from
the computer.
Uninstalling a
Faxmodem for Macintosh
1. Turn off your computer.
2. Disconnect the power adapter from your
modem and unplug it from the wall.
3. Detach the serial connecting cable from
both the modem and the port on the
back of your computer marked with a
telephone icon .
4.
5. Unplug the phone cord from the
telephone jack of the modem (labeled
with a wall plug icon on the bottom of
the case) and the other end from the
telephone jack.
