3d hobby shop 30cc series User manual

Gaspower Aircraft

30/

50CC

Series

Edge540K\Edge540\

Edge540T\

Extra260\Extra330L\

Extra300SHP

Kata

na\

Raven\

Yak54\Yak55SP\

Yak55M\

Su26M

\Su29\

Sbach342\Sbach300\Slick540\Slick360\

…………………………

ALMOST-READY-TO-FLY

…………………………

Congratulations on your purchasing of this excellent A lmost- R eady-to- F ly R/C model!This ARF adopts the

latest 3D design features and emphasizes high performance,light weight and fun. The plane is designed by

professional engineers and built by skilled craftsmen .Many of the parts are already pre-installed for you!

*Note: This manual depicts the assembly procedures for these planes. Plesse read through the mamual to

determine which steps are appropriate for your aircraft.

Cautions:

This

R/C

model

is

not

a

toy!

1.

The RC aircraft is not a toy! If misused,it can cause serious bodily harm and damage to property.Fly it only in

open area and follow all instructions including your Radio and Engine.

2.

As this product was designed for high performance,incorrect installation would affect the flying performance .

Please ask for assistance form an expericnced modeler if you don ’ t understand the methods of assembly.

3.

Because the package contains many small parts. Please keep children away from assembly area while

assembly the plane.

4.

For safety reasons,please consider every possible accident when operating this model airplane and follow

your club/country rules.

5.

This model was designed for 30CC to 60CC gas engine and 1.20 to 2.40 Nitro engine ,please use the

recommended engine size or equivalent electric motor.

6.

Please read this manual carefully before assembly .Always refer to it during assembly and do not deviate

from the established construction methods.

Note: This manual depicts the assembly procedures for both the aircrafts . Please read through the manual to

determine which steps are appropriate for your aircraft.

Features:

Latest structure

Light weight construction and high structural strength

Super quality

Excellent aerobatics and 3D performance

Easy installation

Two pieces removable wings and stabs

Complete with accessories

Acrofoil tail wings

Low wing loading easy to flying

Canopy and cowling with shockproof silicon rubber blanket

High performance hardware including: Ball linkage control system

Advanced PU wheels

C.F.

landing gear

Two pieces wings fitted our produced nylon screws

C.F.Wing tube

Long servo arm included

C.F.tubes to make the planes light weight

Specification:

50~60cc

class

Edge540T

Extra260

Extra330L

Katana

Wing

Span:

88 ” (2234mm)

87 ” (2210mm)

88 ” (2234mm)

88 ” (2240mm)

Length:

81 ” (2057mm)

80 ” (2040mm)

80.5 ” 2044mm)

80.7 ” (2050mm)

Wing

Area:

1465sq.in(94.5sq.dm .

)

1426sqin(92sq.dm.)

1465sq.in(94.5sq.dm .

)

1457sq.in(94sq.dm.)

Flying

Weinght:

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

Edge540

Edge540K

Slick360

Slick540

Wing

Span:

8 7 ” (2 202 mm)

87 ” ( 2210 mm)

8 7 ” (22 10 mm)

Length:

8 2 ” (20 98 mm)

82 ” ( 2 083 mm)

82 ” (20 83 mm)

Wing

Area:

1240sq.in( 80 sq.dm.)

1193sq.in( 77 sq.dm.)

Flying

Weinght:

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

RAVEN

Yak54

Yak55SP

SU26M

Wing

Span:

87 ” (2210mm)

85 ” (2160mm)

87 ” (2210mm)

Length:

81 ” (2060mm)

80 ” (2035mm)

80.5/8 ” (2048mm)

Wing

Area:

1449sq.in(93.5sq.dm .

)

1429sq.in(92.2sq.dm .

)

1451sq.in(93.6sq.dm .

)

1466sq.in(94.6sq.dm .

)

Flying

Weight:

16-17.51(7250-

7900g)

16-17.51bs(7250-

7900g)

16-17.51bs(7250-

7900g)

16-17.51bs(7250-

7900g)

Sbach342

S

bach300

Yak55M

Extra300SHP

Wing

Span:

8 7 ” (22 10 mm)

87 ” (2210mm)

88 ” (2234mm)

88 ” (2240mm)

Length:

8 4 ” (2 150 mm)

80.5 ” （2044mm)

80.7 ” (2050mm)

Wing

Area:

1465sq.in(94.5sq.dm .

)

1426sqin(92sq.dm.)

1465sq.in(94.5sq.dm .

)

1457sq.in(94sq.dm.)

Flying

Weinght:

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

15.5-171bs(7000-

7700g)

30~40cc

class

Slick360

Slick540

Extra330

Egde540

Wing

Span:

74 ” ( 1880 mm)

75 ” ( 1900 mm)

Length:

69.5 ” ( 1770 mm)

71 ” (1810 mm)

71 ” ( 1809 mm)

Wing

Area:

55.6 sq.in(94.5sq.dm. )

55.6 sqin(92sq.dm.)

65 sq.in(94.5sq.dm.)

57 sqin(92sq.dm.)

Flying

Weinght:

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

Edge540T

Extra260

Extra330L

Katana

Wing

Span:

74 ” ( 1880 mm)

75 ” ( 1900 mm)

Length:

69.5 ” ( 1770 mm)

78 ” (1983 mm)

71 ” ( 1809 mm)

Wing

Area:

55.6 sq.in(94.5sq.dm. )

55.6 sqin(92sq.dm.)

65 sq.in(94.5sq.dm.)

57 sqin(92sq.dm.)

Flying

Weinght:

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

Sbach342

S

bach300

Yak55M

Extra300SHP

Wing

Span:

73 ” ( 1850 mm)

75 ” ( 1900 mm)

Length:

69.5 ” ( 1770 mm)

73 ” (1850 mm)

71 ” ( 1809 mm)

Wing

Area:

55.6 sq.in(94.5sq.dm. )

55.6 sqin(92sq.dm.)

65 sq.in(94.5sq.dm.)

57 sqin(92sq.dm.)

Flying

Weinght:

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

RAVEN

Yak54

Yak55SP

SU26M

Wing

Span:

74 ” ( 1880 mm)

75 ” ( 1900 mm)

Length:

69.5 ” ( 1770 mm)

73 ” (1850 mm)

71 ” ( 1809 mm)

Wing

Area:

55.6 sq.in(94.5sq.dm. )

55.6 sqin(92sq.dm.)

65 sq.in(94.5sq.dm.)

57 sqin(92sq.dm.)

Flying

Weinght:

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

9.2-10.6lbs(4200-

4800g)

Other

Items

Needed(not

included

in

the

kit

)

Propeller 19 *10 ～23*8 ,30cc use 19*10 ~20*10,50cc use 22*10 ~ 23*10



Spinner(3 ” -4 ” )



18 ” or 36 ” servo Extension

Additional

Requried

Equipment

Radio

Equipment

6-channel radio system

1 standard servo for throttle

5 hi-torque servos

Recommended

JR systems Futaba systems

JR 9X or JR 9X11 Futaba 9CHPS

J R PCM 10X 12ZAP

J R PCM 1 2 X 14MZA

Recommended

engines

Gasolin e : 3 0-60CC

2-Stroke: 1.20- 2.40

4-Stroke: 2.40-6 .00

Additional

Required

tools

and

adhesives

Tools

Adjustable wrench(small) Hobby knife

4-40Tap Masking tape

Canopy scissors Philips screwdriver(small)

Drill(drill press preferred) Razor saw

Drill bit : 1mm-6mm set Scissors

Drum sander Square

Cut off wheel Syringes

Flat blade screwdriver w/short handle 

Tap

handle

Foam:6mm Toothpicks

Hex wrench Velcro straps

Adhesives

5-minute epoxy Medium CA Glue

30-minute epoxy Thread lock

Other

Required

Items

Epoxy brushes Petroleum jelly

Felt – tipped pen or pencil Rubbing alcohol

Measuring device (e.g.ruler,tape measure) Sandpaper(coarse)

Mixing sticks for epoxy Covering iron

Paper towels Dental floss or string

Before

starting

Assembly

Before begin the assembly of these models ,thoroughly inspect the fuselage,wing panels ,

rudder,and stabilizer. If you find any part damaged or missing,please contact the local dealer.

If you find any wrinkles in the covering,please use a heat gun or covering iron to smooth them.

Assembly

Ⅰ.Hinging

.Hinging

the

Control

Surfaces

Before start hinging,you need to prepare:

Hinges

30-minute epoxy

Toothpicks

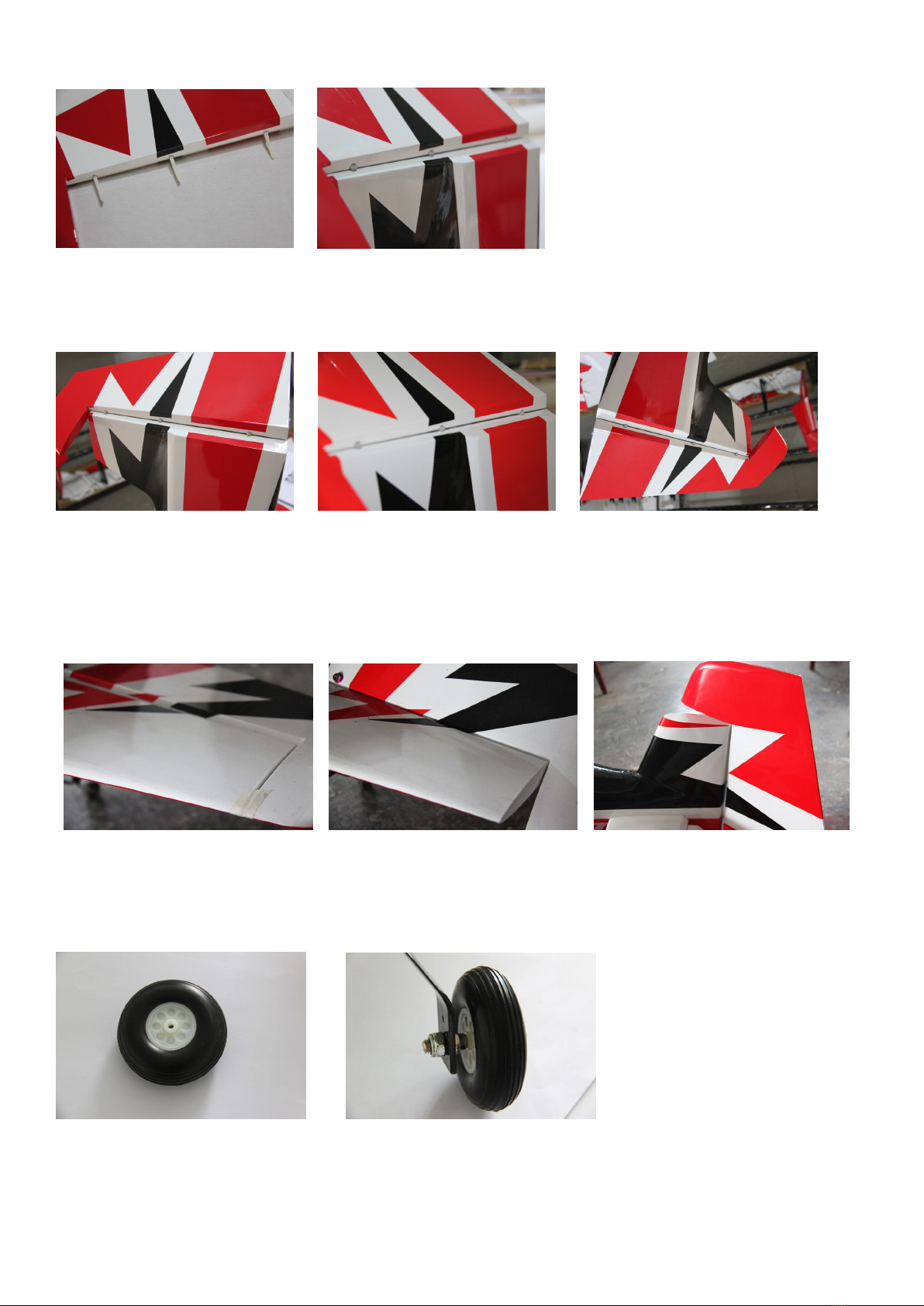

Apply epoxy into trailing edge hinge holes of the wing .

Apply epoxy on one side of the hinges.



Insert them into the holes.

Apply epoxy into the hinge holes of

the leading edge.

Apply epoxy to the other side of the hinges.

Install the control surfaces.

Move the surface up and down a couple of times to make sure

all

the hinges are aligned correctly and the

desired throw is attained (Ailero n: 40degrees,others:45degrees)

Use some masking tape to hold the surfaces together until

all

of the surfaces are secure in place with

epoxy.

Hinge the Elevator and Rudder with the same way.

Ⅱ.Landing

.Landing

Gear

Installation

Main

Landing

Gear

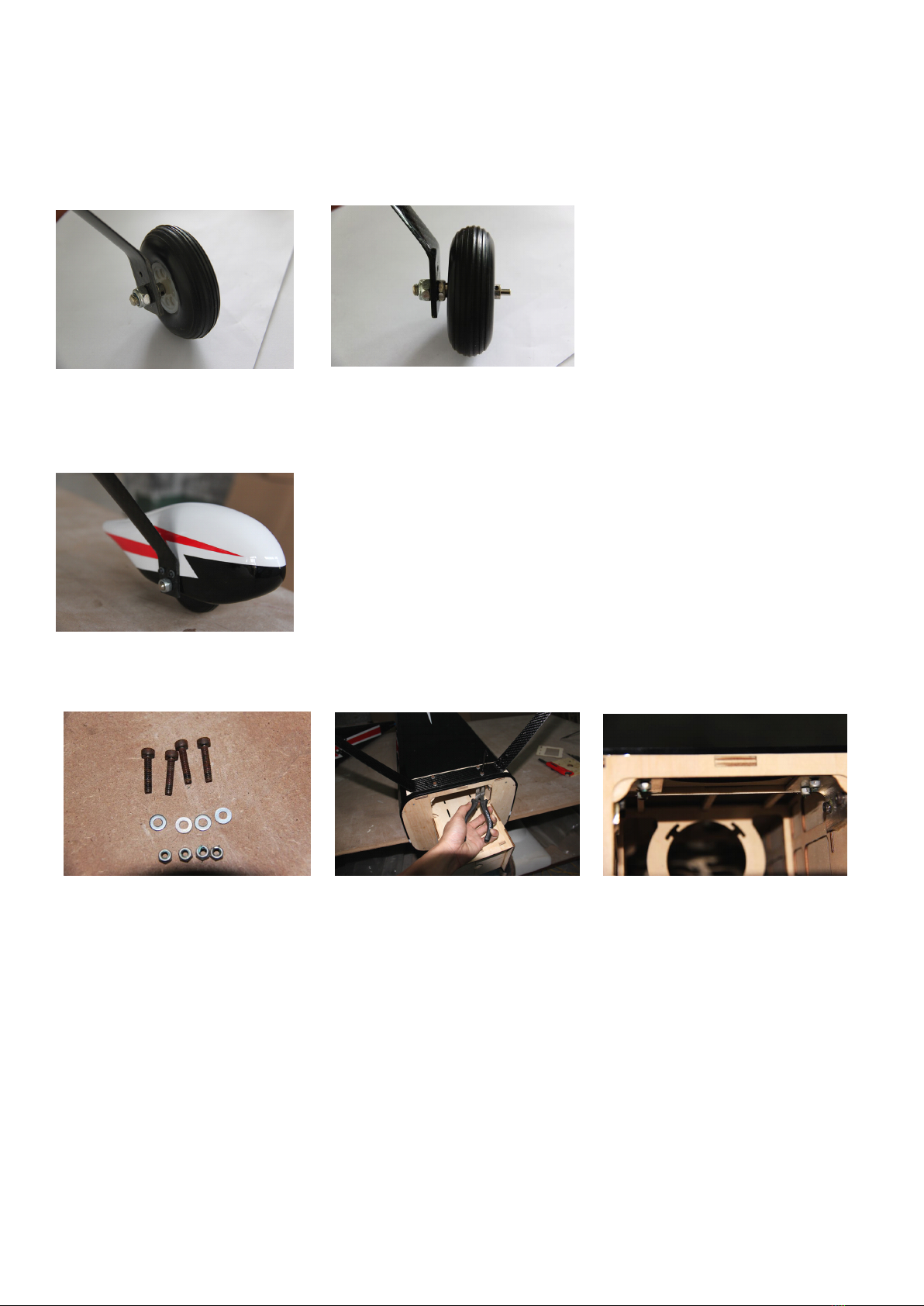

Insert the wheel axle through the center hole of the wheel.

Install two wheel collars. ensure that the wheel rolls freely.

When the wheel and wheel pant are installed completely,you can adjust these two wheel collars to let the

wheel be in the center of the wheel pant.

Note:

Use

thread

locking

compound

when

installing

all

nuts

and

bolts

during

assembly.

Then Insert the axle through the hole in the landing gear. And attach the axle for the main landing gear

firmly with the locknut.

Install the wheel pant with two bolts .Making sure the wheel is in the center of the wheel pant.

Install the main landing gear on the bottom of the fuselage .Consider using “ thread lock ” on the screws to

keep them from vibrating during flight.

Note:Use

thread

locking

compound

when

attaching

all

nuts

to

bolts

during

assembly.

Cover the main landing gear with the housing

by

attaching

it

with the screws provided.This step is only

for Yak55SP/Yak54/SU26M.

Tail

Wheel

Instllation

Center the

tail

wheel bracket on the mounting block.

Mark the mounting locations for the large wood screws.

Drill three small pilot holes for the wood screws.

Use three metal serews to secure the tail wheel bracket in place.

Install the

tail

wheel parts .

Drill a hole for the connective bolt and install

it

with glue.

Let the control wire through the holes of connective bolt and landing gear connector.

Tighten the screw to secure the control wire.

Install the wheel with two wheel

collars,ensuer that the wheel rolls freely.

Ⅲ.

.

Tail

surfaces

Installation

High performance accessories-Ball Linkage Control System.



Find out the slot pre-opened for rudder control horn, remove the film.



Fit the control horn into the slot, meansure the correct length for it.



Cut the longer part, then CA glue the horns into the rudder of each side.

Screw the ball link onto the horns .



Connect the pull-pull wire and control horn with ball link.

Thread the cable connecter halfway into the ball link .



Pass the cable into the fuselage through the slot .

Install the rudder servo .

Prepare the rudder servo arm (we advise you to use long servo

arm)attaching two ball links

by

using the Screws and lock nuts.

Center the rudder servo and place the servo arm onto the servo. ’

Slide a crimp onto the cable ,connect the cable and cable connecter like other end ,but do not use crimping

tool,let the crimp can remove freely.

Repeat these steps to install the second rudder cable.

Adjust the position of the eonnecter end on the cable.

Use a crimping tool to fix the crimp and cable.

Rotate the connecter or ball link to tension the cables.

Secure the servo arm to the rudder servo

by

using the screw that

came with the servo.

Install a 24 ” servo extension onto the elevator servo.Either tie the servo

leads together,or use a connector to secure the extension to prevent

it

from

coming loose during flight.

Slick540/ Yak55SP/SU26M/Edge540T/Ectra330L:Install the servo in the Stabilizer section of both sides.

Yak54 /Sbach342/Sbach300 :Install the servos in the fuselage in precut locations on both sides.

Install the horizontal stabilizer assemblies at this time. Insert the stab

tube.

Slide each stabilizer halt onto the tube. Make sure the antiroutation

pins are fully seated.

Install four bolts (two per side). Don ’ t forget to use “ thread lock ” on the

screws before install to keep them from vibrating during flight.



Follow the same way to install the elevator control system like rudder control horn installation.



Connect the pushrod and control horn as shown.



Put the control horn into the slot pre-opened, glue

it

to the stab, on each side.



Install the elevator servo as shown



Connect the servo and the pushrod as in the photo

Measure to find and mark your horn bolt location.

Insert the control horn both left side and right side.

Connect the control horm and servo arm with ball link.

Ⅳ.Engine

.Engine

Installation

There are one piece of wooden templates supplied,3W 50cc gasoline engine and DA 50 \DLE55 engine.

Select the right template for your engine (if

it

is 3W 50cc or DA 50 \DLE55 )to mark the location of mounting holes.



Mark the centerline on the firewall for the engine. Note:the vertical

centerline is offset to the right side of center as viewed from the front

due to the built-in right-thrust. These will be necessary no matter what

engine you choose to install.

Drill the installation holes on the firewall .If you intend to install nitro

engine,you need to install the engine mount on the firewall with screws first.

Drill holes on the engine mount and firmly fasten the screws on the

mount.

Measure the length of the cowling

and decide where to install the engine. Let

the propeller drive washer come out 2mm

from the cowling in the front.

If you are installing a gasoline engine,drill holes in the firewall and then fasten the supplied screws from

the back of the firewall . Make sure the engine is fixed firmly and then apply “ thread lock ” glue on the bolts.

Install the lgnition.

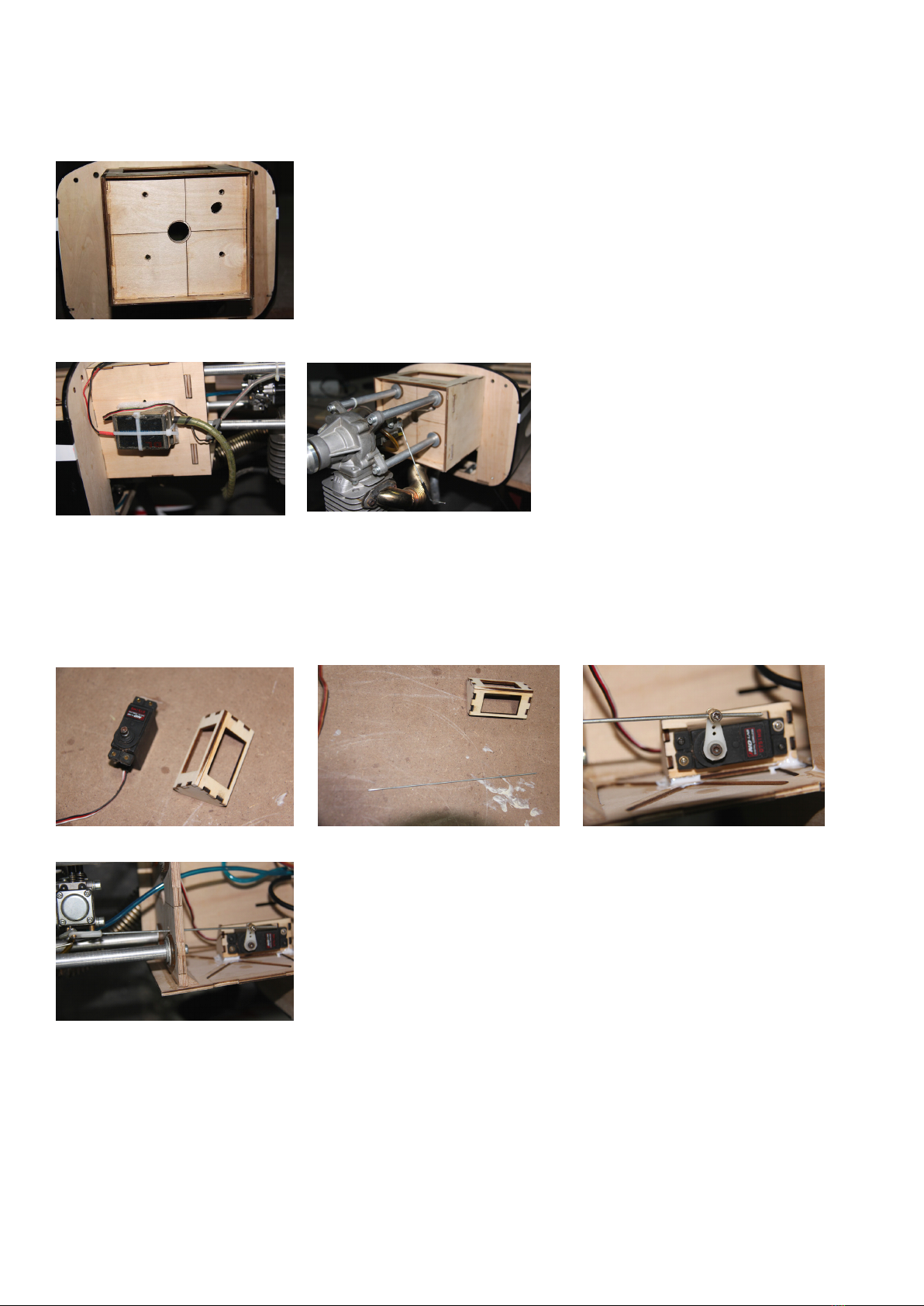

Throttle

servo

Installation

Install the throttle servo onto the servo mount and glue

it

in the place

where you want to mount.

Decide the length and the location of the throttle linkage rod according

to the position of the servo arm and the engine throttle arm. Install the linkage

rod.

Canister

Installation

W e support two pieces woods . If you not use the canister , you can use one piece to close the hole after the

engine . If you use the canister , you can use one piece to close the hole after canister.

Ⅴ.Fuel

.Fuel

Tank

Installtaion

Required Parts:

● Clusk (fuel pickup) ● Caps(2)

● Fuel Pickup tubing ● Fuel tank

● Rubber stopper ● M3x30 screw

2.Required

Tools

and Adhesives:

● Hobby knife Foam:1/4 ”

● Philtips screwdriver (small)

Note:

The

stopper

provided

with

the

Yak

has

three

holes

.The

holes

are

the

fuel

pickup,fill

and

vent

lines.You

can

use

two

holes:

One

for

the

fuel

pickup

and

one

for

the

fuel

vent

.

Only

open

the

third

hole

if

you

are

going

to

use

a

separate

fill

line.

Note

for

gas

engines:

While

the

stopper

is

OK

for

both

gas

and

glow,the

inside

fuel

tubing

supplied

is

for

gas

and

glow.

If

a

gasoline

engine

is

used,Use

tygon

tubing(not

included)for

all

lines

outside

the

fuel

tank.

3. Bend two fuel tubes carefully to a 45-degree angle using your fingers.These will be the fuel tank

fill

and

vent tubes.Use carefully not to kink the tube while bending.

4. Locate the rubber stopper. Insert the three metal fuel tubes into the holes in the stopper so that an equal

amount of tube exrends from each side of the stopper. The straight tube will be the fuel tank pickup that provides

fuel to the engine.

5. Slide the smaller cap over the tube on the smaller end of the rubber stopper. This end will be inserted into

the fuel tank. The larger cap is placed on the side of the rubber stopper that makes the cap .

Loosely install the M3x30 screws through the center of the stopper.

6. Locate the clear piece of tygon or siliecone fuel tubing and the fuel tank elunk. Cut the tubing to appropriate

length. Install the elunk onto one end of the tygon or silicone tubing. Slide the tubing (end opposite the cluck)onto

the fuel tank picku p tube (straight tube)in the stopper.

7.

Slide the tubing onto the metal tube which has been bent.

8.

Carefully insert the stopper assembly into the fuel tank. Note the position of the vent tube:it must be up at

the top portion of the fuel tank to function properly. Also,it may be necessary to shorten tank.

You

should be

able to turn the tank to any atti tude,and the elunk will fall to the lowest point

(all

directions except for having

the stopper facing down).

9.

Tighten the M3x20 screw carefully do not overly tighten. This allows the ruller stopper to form a seal

by

being slightly compressed,thus sealing the fuel tank opening.

Note

the

position

of

the

fill

tube:it

must

be

down

at

the

bottom

portion

of

the

fuel

tank,then

you

can

pick

up

fuel

when

you

end

your

flying.

AIR

Pumping fuel

To

Engine

● Assemble and check the fuel tank to ensure there are no leaks

before istalling it. Make suer you conncet the three inlet/outlet tubes (see

picture) correctly when connecting the fuel lines.

● Bind the fuel tank with nylon strips.

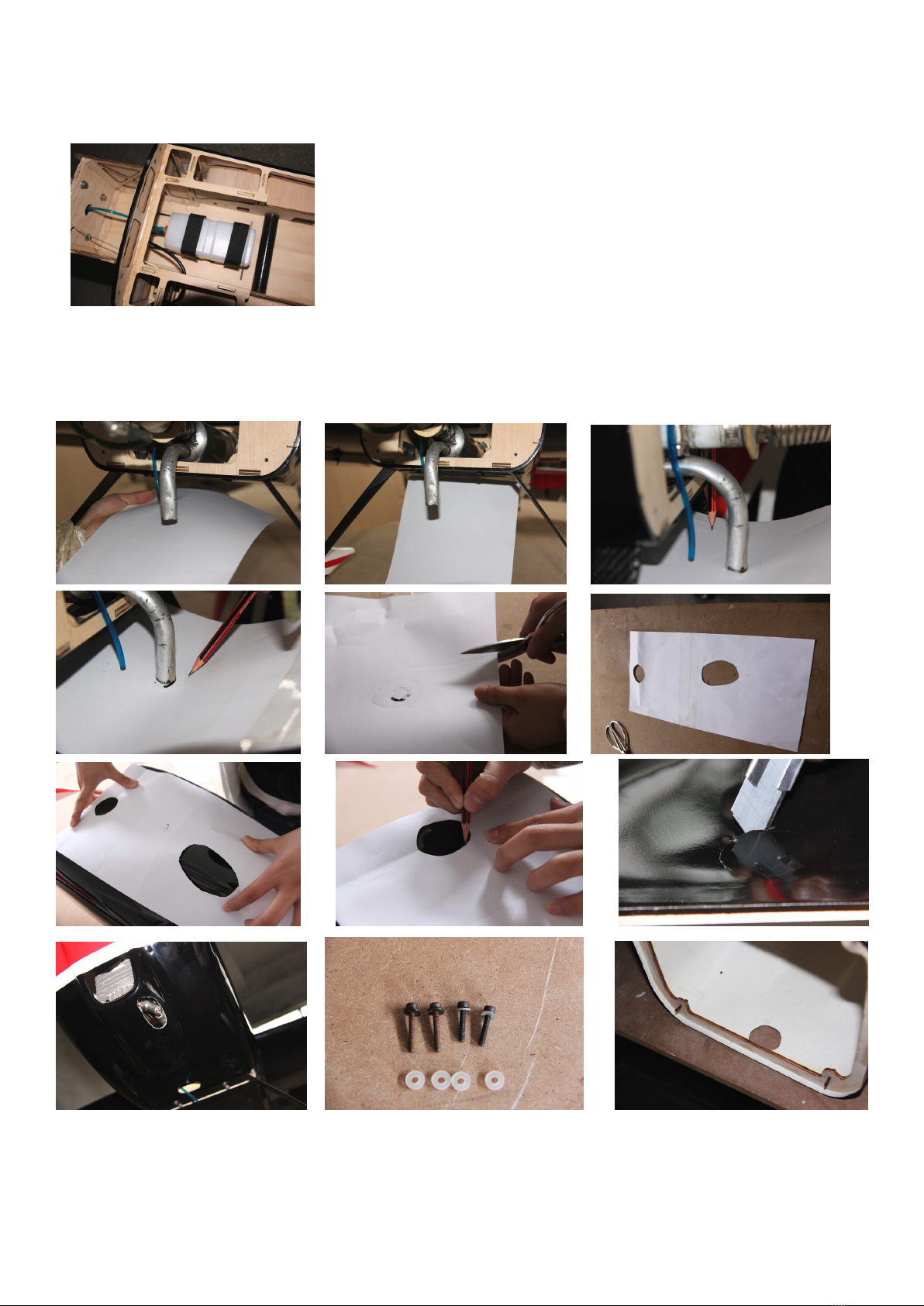

Ⅵ.Cowling

.Cowling

Instalation

● Cut out the necessary holes in the cowl to accommodate your engine. Keep in mind that you may need to

relieve the lower portion of the cowl in order to provide adequate airflow for the engine.

● Install a suitable propeller and spinner on the engine according to the suggestions from the engine

manufacturer. Fit the cowling and drill holes to accommodate the cowling screws.

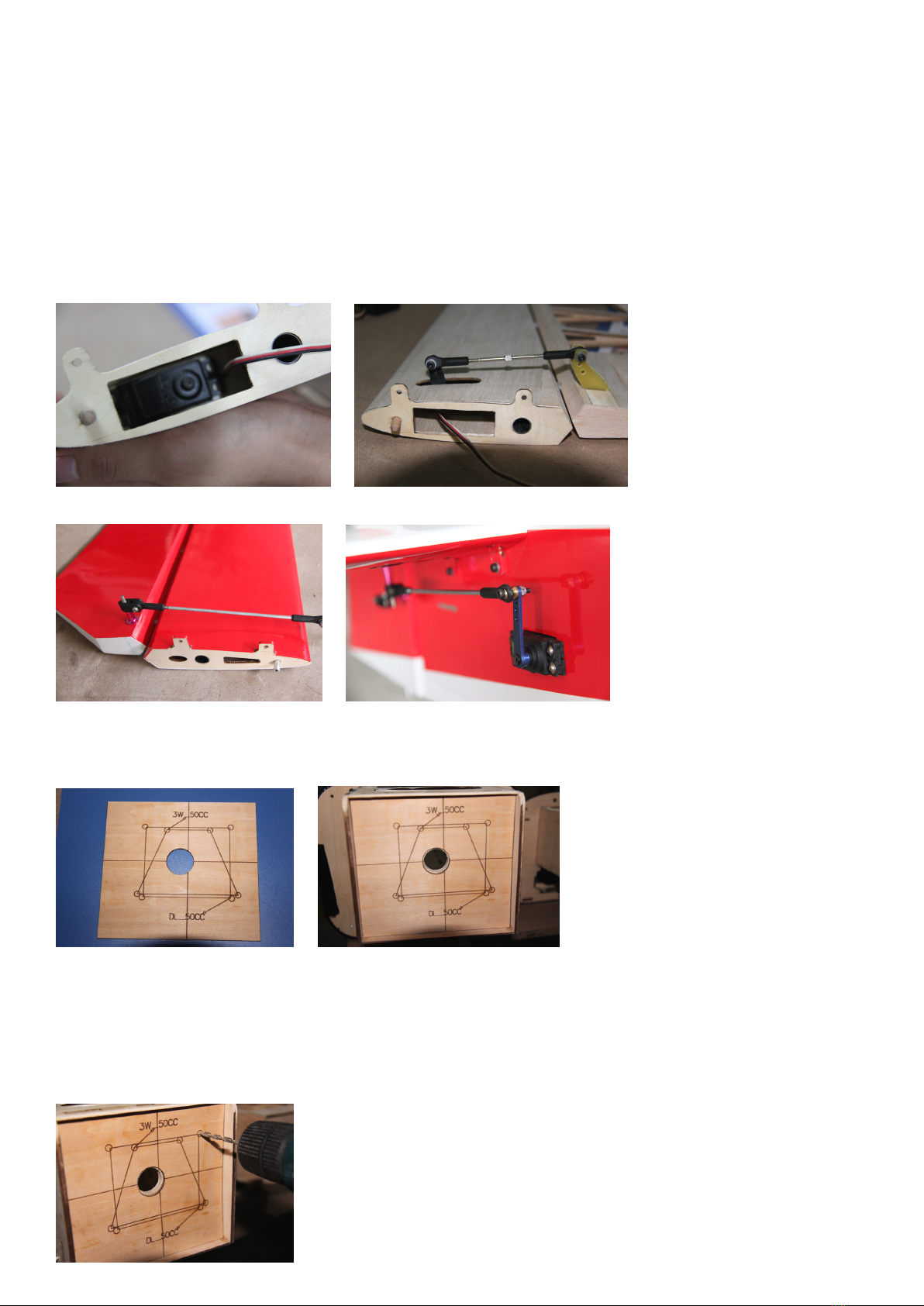

Ⅶ.Wing

.Wing

Installation

● Install the aileron servos with 18 ”

servo extension into the servo trays

located in the bottom of the wings.

● Ensure your aileron servos are centered.



Find out the slot pre-opened for rudder control horn, remove the film.



Fit the control horn into the slot, glue the horns into the aileron of each side.



Connect the servo and ball link with pushrod as shown.

● Install the control horn. Adjust the horn and servo arm. Fix the horn in place firmly. Install the ball link and

push rod . Make sure it

’

s firm and flexible.

Assembling

the

Wing

● Use the wing tube to attach the wing halves to the fuselage.

● Install the nylon retaining serews from the inside of the fuselage.

●

Note:

Tighten

the

screws

only

by

hand.

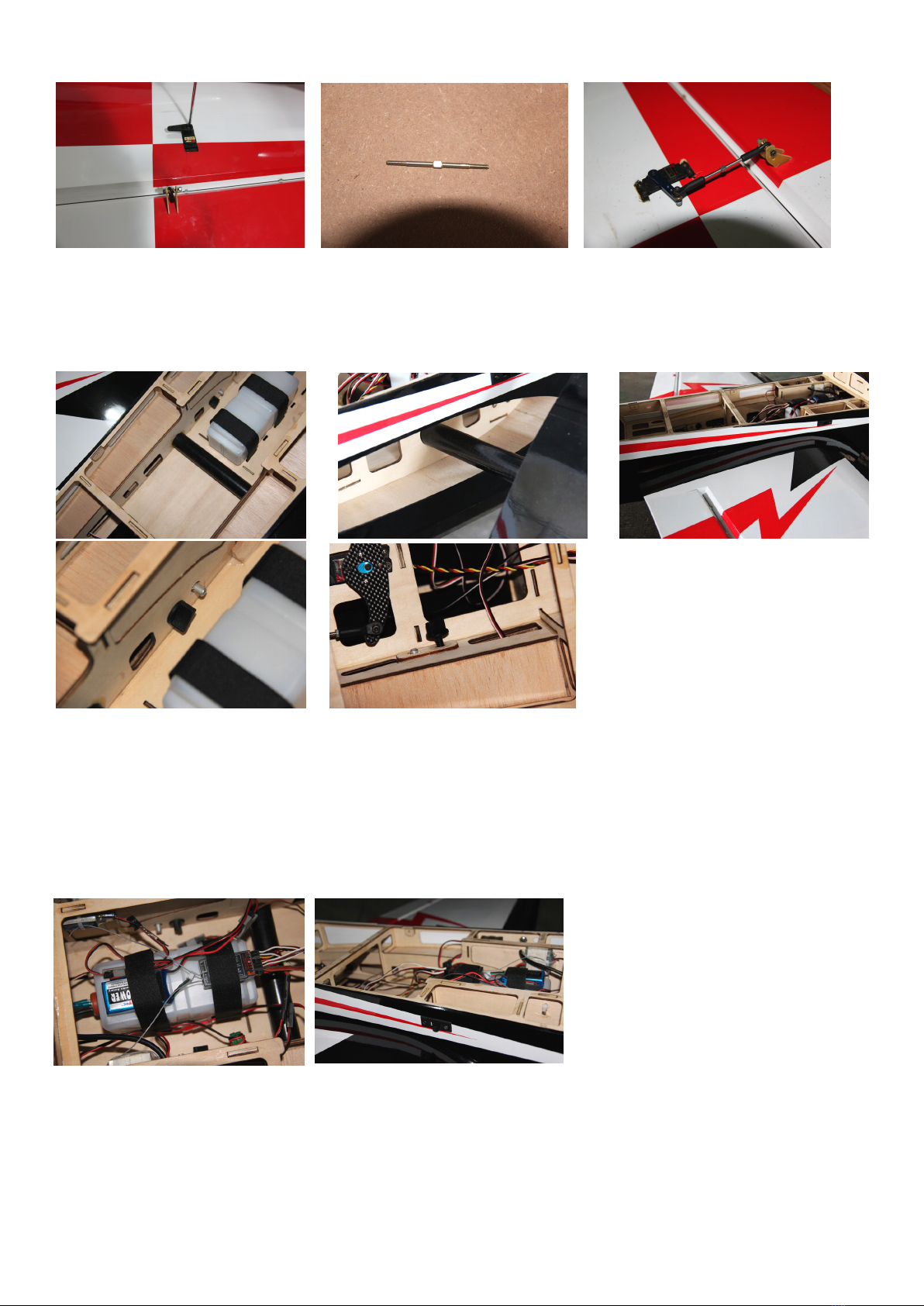

Ⅷ.Radio

.Radio

Installation

● Wrap the receiver battery and

receiver in foam. Attach the receiver and

battery to the battery tray

by

using Velcro

straps so as to secure the receiver.

● Mount the receiver switch in a

convenient location in the side of the fuselage.

Ⅸ.Canopy

.Canopy

and

Hatch

Assemly

●

Trial fit

the canopy to the hatch to determine screw locations.

● Drill D2mm hole for the canopy screws.

● Install the canopy

by

using the wood screws.

● Install the hatch onto the fuselage

by

using the wood Screws. When satisfied with the

fit

,remove the canopy

and hatch,and then use optioal canopy glue to fix the canopy.

●Caution!

Caution!

CA

will

fog

the

canopy

,so

do

not

use

CA

to

install

canopy.

Adjust the aircraft and make sure both of the sides are

symmetric,like the diagram. So that the plane is ready for

fight.

Measuer the CG from the leading edge of wing root rib.

Adiust the battery pack location. For CG proper position

should be at 27% MAC. This recommendation balance

point is for your first flights. The CG can be moved

around later to

fit

your personal taste.

3D Hobby Shop 30CC Series User manual

Popular Toy manuals by other brands
