3M™Straight Line
Laminator Single Head
Manual
Eective: August 2022
Original Assembly and Operation Instructions

3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
Table of Contents
1.0 General Information................................................................ 4
1.1 Introduction........................................................................................4
1.2 Other Applicable Product Documentation .............................................................4
1.2.1 Company Vulkan Technic GmbH ...............................................................4
1.2.2 Further Applicable Product Documentation ......................................................4
1.3 Representation in this Manual ........................................................................5
1.3.1 Figures......................................................................................5
1.3.2 Reference ...................................................................................5
1.3.3 Handling Instruction ..........................................................................5
1.4 Used Abbreviations and Terms .......................................................................5
1.5 Standard Warranty Disclaimer and Limited Remedy .....................................................6
1.6 Copyright Protection ................................................................................6
2.0 Safety ............................................................................ 7
2.1 Responsibility of the Operator ........................................................................8
2.2 Intended Use.......................................................................................8
2.3 Improper Use ......................................................................................8
2.4 Noise Pressure Level ................................................................................8
2.5 Requirements for the Site of Operation ................................................................8
2.6 Mandatory Signs Used ..............................................................................9
2.7 Personal Protective Equipment .......................................................................9
2.8 Warning Signs Used............................................................................... 10
2.9 Warning Notices.................................................................................. 10
2.10 General Safety Information......................................................................... 10
3.0 Safety Devices....................................................................11
3.1 Type Plate ....................................................................................... 11
3.1.1 General Information ........................................................................ 11
3.1.2 Type Plate Continuous Laminator............................................................. 11
4.0 Design and Functions .............................................................11
4.1 Technical Data ................................................................................... 11
4.2 Overview — Design and Functions ................................................................. 12
4.3 Workplaces ...................................................................................... 12
4.3.1 Workplace “Production” ..................................................................... 12
4.3.2 Workplace for Media Change ................................................................ 13
4.4 Function......................................................................................... 13
4.5 Process Sequence ................................................................................ 14
4.5.1 Application Process SGA 500 R with Product Guide ............................................ 14
4.5.2 Application Process SGA 500 L with Product Guide ............................................ 15
5.0 Assembly Groups with Hazard Designation and Labeling..............................16
5.1 Mounting Stand R/L .............................................................................. 16
5.2 SGA 500 R-05-30 ................................................................................ 17
5.3 SGA 500 L-05-30 ................................................................................ 18
5.4 SGA 500 R-30-55 ................................................................................ 19
5.5 SGA 500 R-55-80 ................................................................................ 20
5.6 Product Guide for SGA 500 ........................................................................ 21
5.7 Application Rollers ................................................................................ 21
Continued on next page.

3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
Table of Contents
6.0 Operation ........................................................................22
6.1 Initial Operation .................................................................................. 22
6.2 Standard Setting Compression Spring ............................................................... 22
6.3 Installation of the Unit ............................................................................. 23
6.4 Setting up the Unit with the Product Guide........................................................... 24
6.5 Setting the Track Width at the Adjustable Deflection Pulley............................................. 27
6.6 Setting the Track Position .......................................................................... 29
6.7 Setting the Tape Brake ............................................................................ 30
6.8 Threading Diagram — SGA 500 R .................................................................. 31
6.9 Threading Diagram — SGA 500 L .................................................................. 32
7.0 Assembly/Installation .............................................................33
8.0 Errors/Malfunctions...............................................................33
9.0 Service and Maintenance ..........................................................34
9.1 Maintenance and Replacement..................................................................... 34
9.1.1 Maintenance and Replacement of the Deflection Pulley ......................................... 34
9.1.2 Maintenance and Replacement of the Adjustable Deflection Pulley ............................... 35
9.1.3 Maintenance and Replacement of the Downholder ............................................. 35
9.1.4 Maintenance and Replacement of the Application Roller......................................... 36
9.2 Maintenance Schedule ............................................................................ 36
9.3 Cleaning Schedule................................................................................ 36
10.0 Disassembly......................................................................37
11.0 Storage ..........................................................................37
12.0 Disposal .........................................................................38
12.1 Safe Disposal .................................................................................... 38
12.2 Packaging ....................................................................................... 38
13.0 Annex ...........................................................................39
13.1 Documents Vulkan Technic ........................................................................ 39
13.2 Documents Purchased Parts SGA500 05-30 ......................................................... 39
14.0 Manufacturer Contact Information .................................................39

Page 4
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
1.0 General Information
1.1 Introduction
This documentation describes a manual workplace (here the 3M™Straight Line Laminator Single Head)
for the application of single-sided or double-sided adhesive tape to different product surfaces (e.g., glass,
metal profile, etc.).
Design Continuous Laminator
Single-track adhesive tape.
1.2 Other Applicable Product Documentation
1.2.1 Company Vulkan Technic GmbH
This manual is supplemented by further regulations, project-specific instructions and other
secondary documents (drawings and more in-depth information about system components,
tables, etc.) as part of the overall documentation. This manual contains direct references to the
respective relevant document in the corresponding sections.
For supplementary documents to these instructions, such as assembly drawings and parts lists,
the following notes apply:
• All plans and drawings are for information only and are not subject to updating.
• The disclosure, the reproduction of these drawings and/or plans as well as utilization
and notification to third parties are not permitted without the express permission of the
manufacturer. Non-compliance constitutes explicit abuse and makes you liable for damages.
• All rights in the event of a patent grant or utility model registration remain reserved.
1.2.2 Further Applicable Product Documentation
The supplier documentations (in the annex) must also be followed, as they are an integral part
of the overall system.
Similarly, the stipulations for accident prevention and occupational safety and environmental
protection — based on the regulations of the country of use — including the work instructions
of the operator, are to be followed.

Page 5
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
1.3 Representation in this Manual
1.3.1 Figures
All figures in this document may differ from the real system and have no claim to
completeness. Details can be found in the detailed drawings and technical documents
referred to in this documentation.
1.3.2 Reference
Cross references to figures are set in brackets in the text. The number indicates the
figure number; the letter indicates the item in the figure.
Example: (Figure 1C) means Figure 1, Item C.
References to chapters or pages are printed in bold italics.
Example: See chapter Safety Advice.
References to external documents are represented in italics and in a frame.
Example: For further information please refer to the manufacturer documentation.
Button or switch designations are set in quotation marks.
Example: Press illuminated button “System On”.
Designations from a digital user interface are marked with the following character formatting.
Example: Press button “System On”.
1.3.3 Handling Instruction
If the operating instructions consist of several operating steps to be carried out in
succession, the steps are numbered. The steps are to be carried out in the order given.
Results of the steps are in italics and indented. Paragraphs that contain the result of
a step which needs to be checked by the operator are preceded by a check mark (✓).
Example:
1. Release a locking bolt (Step).
The swivel lever moves down (Result of the Step).
✓The application roller is in operation position (the operator must check if the application
roller is down).
1.4 Used Abbreviations and Terms
Abbreviation Explanation
CW Clockwise

Page 6
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
1.5 Standard Warranty Disclaimer and Limited Remedy
Product Selection and Use: Many factors beyond 3M’s control and uniquely within user’s knowledge
and control can affect the use and performance of a 3M product in a particular application. As a result,
customer is solely responsible for evaluating the product and determining whether it is appropriate and
suitable for customer’s application, including conducting a workplace hazard assessment and reviewing
all applicable regulations and standards (e.g., OSHA, ANSI, etc.). Failure to properly evaluate, select, and
use a 3M product in accordance with all applicable instructions and with appropriate safety equipment,
or to meet all applicable safety regulations, may result in injury, sickness, death, and/or harm to property.
Warranty, Limited Remedy, and Disclaimer: Unless a different warranty is specifically stated on the
applicable 3M product packaging or product literature (in which case such warranty governs), 3M
warrants that each 3M product meets the applicable 3M product specification at the time 3M ships the
product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, OR ARISING OUT OF A COURSE OF DEALING, CUSTOM, OR USAGE
OF TRADE. If a 3M product does not conform to this warranty, then the sole and exclusive remedy is, at
3M’s option, replacement or repair of the 3M product or refund of the purchase price. Warranty claims
must be made within one (1) year from the date of 3M’s shipment.
Limitation of Liability: Except for the limited remedy stated above, and except to the extent prohibited
by applicable law, 3M will not be liable for any loss or damage arising from or related to the 3M product,
whether direct, indirect, special, incidental, or consequential (including, but not limited to, lost profits or
business opportunity), regardless of the legal or equitable theory asserted, including, but not limited to,
warranty, contract, negligence, or strict liability.
Disclaimer: 3M industrial and occupational products are intended, labeled, and packaged for sale to
trained industrial and occupational customers for workplace use. Unless specifically stated otherwise on
the applicable product packaging or literature, these products are not intended, labeled, or packaged for
sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting,
or other uses not described in the applicable product packaging or literature), and must be selected and
used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI),
as well as all product literature, user instructions, warnings, and other limitations, and the user must take
any action required under any recall, field action or other product use notice. Misuse of 3M industrial and
occupational products may result in injury, sickness, death, or property damage. For help with product
selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter
expert. For additional product information, visit 3M.com.
1.6 Copyright Protection
This manual is to be treated confidentially. It may only be used by the group of persons authorized
to do so. The transfer to third parties is only allowed with written permission from 3M.
All documents are protected in terms of copyright law. The transfer and reproduction of
documents — including excerpts — as well as the utilization and communication of their contents
is not permitted without express written permission. Non-compliance constitutes an offence and
makes you liable for damages.
We reserve all rights to exercise industrial property rights.

Page 7
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
2.0 Safety
2.1 Responsibility of the Operator
The operator of the system is obliged to implement the relevant legal regulations concerning
occupational safety. He must ensure that the system is operated as intended and in a perfect,
functioning condition. The operator must:
• Know and implement the applicable regulations on occupational safety. The operator must identify
additional risks that arise from the special working conditions at the location of the system in a risk
assessment. Based on the risk assessment, the operator must compile operating instructions for
operating the system. The operating instructions must always correspond to the current state of rules
and standards and must be updated when changes are made.
• Ensure that only staff is deployed who have the required training, qualification and authority for the
respective task and have been briefed on the special conditions at the system’s location.
• Clearly regulate and specify the responsibilities of the staff for installation, operation, maintenance
and cleaning.
• Regulate the responsibility for the operation of the system and allow the staff to refuse instructions
from third parties that impair safety.
• Ensure that all employees have read and understood the parts of this documentation that are relevant
for their work. They must instruct the staff on safety on a regular basis.
• Make sure that the documentation is always in a legible condition and is available in full in the
immediate vicinity of the system.
• Ensure that all safety and warning notices attached to the system are present, clean and legible.
• Ensure and regularly check that, in addition to the occupational safety regulations in this manual, the
applicable local and national safety, accident prevention and environment protection regulations are
complied with.
• Provide the staff with the required personal protective equipment.
• Secure hazard areas that arise between the system and devices on operator side.
• Ensure that the system is always in perfect condition.

Page 8
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
2.2 Intended Use
This system is an unfinished machine and only designed for the intended use described below:
• Manual workplace for the application of single-sided or double-sided adhesive tape to different
product surfaces.
The system may only be operated in a perfect technical condition and may only be commissioned
and started-up according to regulation by the operating company.
No changes, additions or modifications to the system may be carried out without the express written
permission of 3M. Such changes may endanger the safety and are considered unintended use.
The system is an independent manual workplace, which must not be integrated into other areas
of the system.
The operating company is solely liable for damage caused by unintended use. Other prerequisites
for intended use are:
• Compliance with all valid operating instructions of the operator
• Compliance with the instructions in this documentation
• The regular performance of repair work as stipulated in this manual and in the
manufacturer documentation.
2.3 Improper Use
Any use of the system exceeding the use described in chapter 2.4 Intended Use. This includes:
• Structural changes to the system
• Use of forbidden utilities and auxiliaries
Foreseeable misuse is also forbidden. This includes among other things:
• Use of unauthorized product contours
2.4 Noise Pressure Level
In the operational environment of the system, a noise pressure level of 75 dB (A) is not exceeded under
the intended use of the system.
2.5 Requirements for the Site of Operation
The operating site of the system must fulfill the following requirements and conditions:
• Dry, closed, dust-free environment
• Room temperature: 18 to 28°C
• Relative humidity: 95% at maximum
• No operation in explosive environment
• Smoke-free environment

Page 9
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
2.6 Mandatory Signs Used
Sign Meaning
General mandatory sign.
Important! Read the operating instruction before you operate the machine and
keep it in a safe place. Make sure that the operating instruction is available all the
time during the assembly, initial operation, and maintenance work. 3M cannot
provide any warranty in relation to the readability of the CD for the storage period
required. Please archive a printed copy of the operating instruction.
2.7 Personal Protective Equipment
When performing maintenance, personal protective equipment must be worn in order to minimize
hazards. Signs placed in the work area regarding personal protective equipment are to be followed.
Sign Meaning
Wear safety goggles: To protect the eyes from whirled/flying debris.
Wear safety gloves: To protect hands from abrasions and injuries, irritating
and corrosive substances and from burns.

Page 10
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022

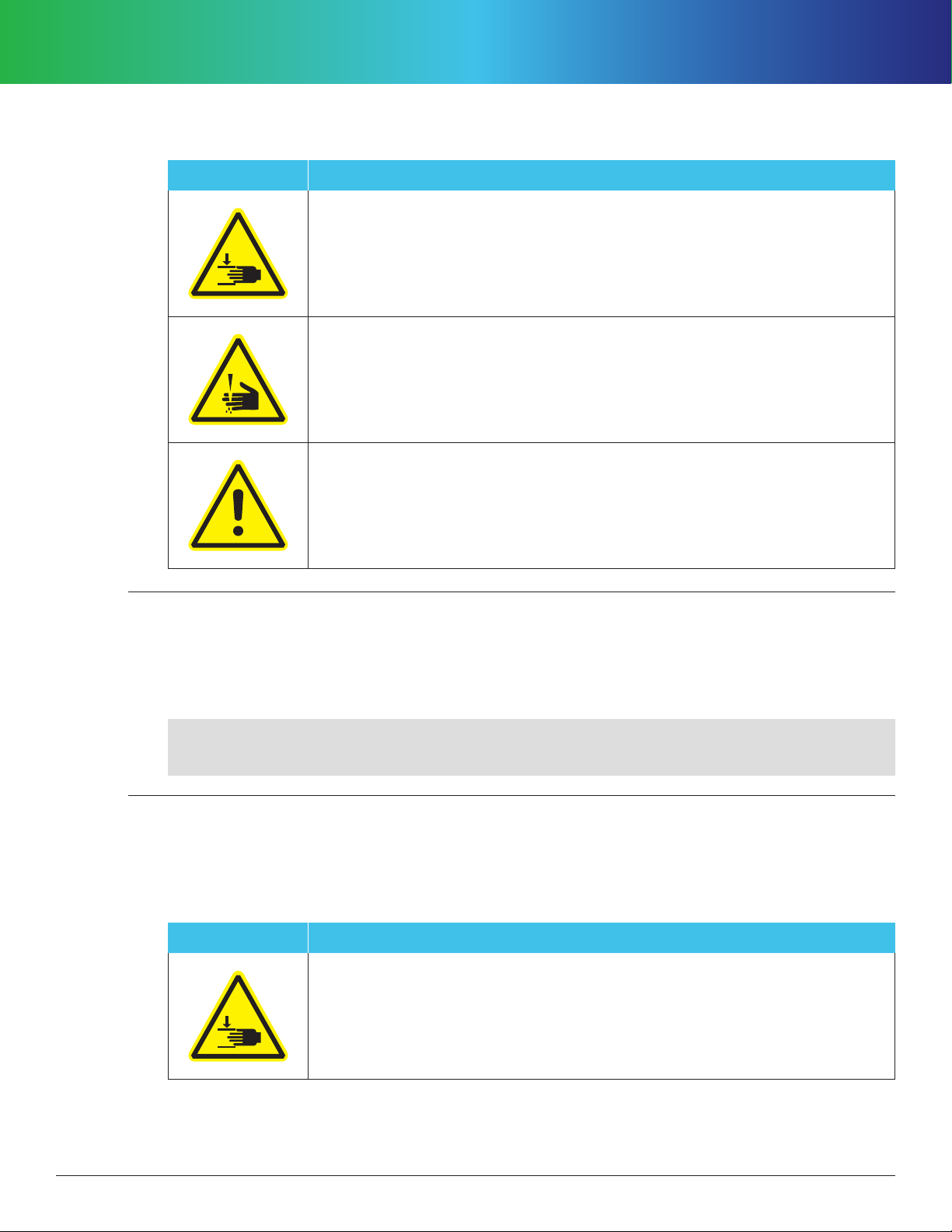

2.8 Warning Signs Used
Sign Meaning
Warning: Danger of hand injuries.
Warning: Danger in the area when cutting tape.
Warning: Caution.
2.9 Warning Notices
Warning notices are particularly highlighted in this manual compared to the rest of the text.
The warning notices must be followed strictly in order to ensure accident-free work and to prevent
personal injury or material damage. The following category of warning notices will be used:
NOTE: Important information for an efficient and undisturbed work flow.
2.10 General Safety Information
Warning notices are particularly highlighted in this manual compared to the rest of the text.
The warning notices must be followed strictly in order to ensure accident-free work and to prevent
personal injury or material damage. The following category of warning notices will be used:
Sign Meaning
Danger of hand injuries/crushing in the area of the moving parts. Warning
crushing hazards — The system may only be operated at the intended positions.

Page 11
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
3.0 Safety Devices
3.1 Type Plate
3.1.1 General Information
The type plates are located at defined locations and must not be removed or covered.
If parts of the system are replaced, it must be ensured that type plates located there are placed
back on the new parts.

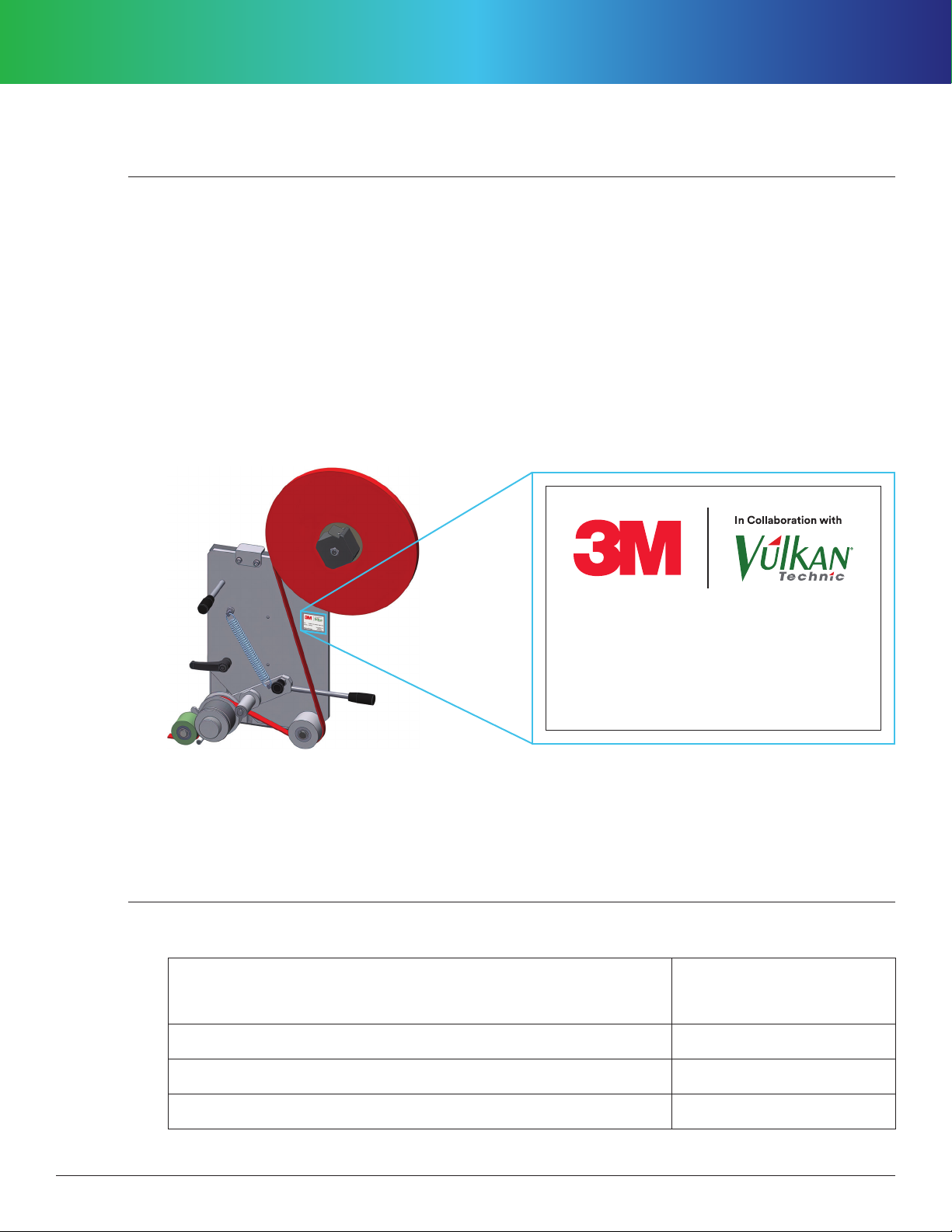

3.1.2 Type Plate Continuous Laminator
The type plate is located at the front of the base plate. The registered serial number can be
found on the attached type plate.
Figure 1
4.0 Design and Functions
4.1 Technical Data
Dimensions L x W x H approx.
(in the standard setting and without adhesive tape roll)
385mm x 512mm x 240mm
385mm x 512mm x 266mm
385mm x 512mm x 290mm
Dimensions L x W x H approx. 1008mm x 596mm x 100mm
Max. Roll Ø 500mm
Inner Ø 75mm (3 in.)
Made in Germany
Type: Straight Line Laminator Single Head
Serial No.: XX-XXX
Vulkan Technic GmbH
Vulkanstrasse 1
D-54578 Wiesbaum
www.vulkantechnic.de

Page 12
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
4.2 Overview — Design and Functions
Figure 2
Figure 3

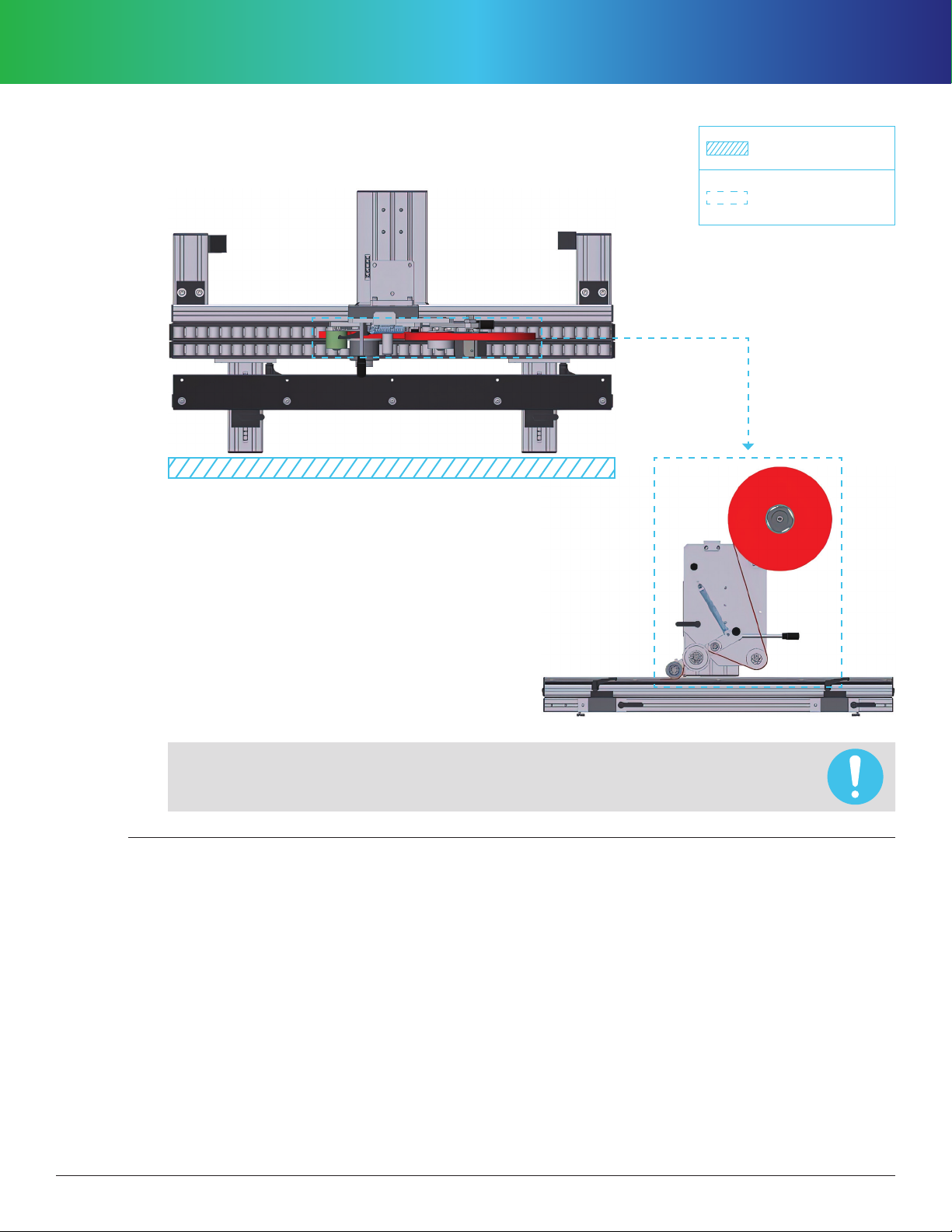

4.3 Workplaces
4.3.1 Workplace “Production”
Figure 4
A
Continuous Laminator
SGA 500 R
Tape Version: 05-30;
30-55; 10-50; 55-80
B
Continuous Laminator
SGA 500 L
Tape Version: 05-30;
30-55; 10-50; 55-80
CProduct Guide
Version: SGA 500
Workplace operator.
C
AB

Page 13
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
4.3.2 Workplace for Media Change
Figure 5
NOTE: To change the adhesive tape roll in the system please see chapter 6.8 Threading
Diagram — SGA 500 R and chapter 6.9 Threading Diagram — SGA 500 L.
4.4 Function
The manual workplace (here the Continuous Laminator SGA500) is used for the application
of single-sided or double-sided adhesive tape to different product surfaces.
Workplace operator.
Workplace for the
change of the
adhesive tape roll.

Page 14
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
4.5 Process Sequence

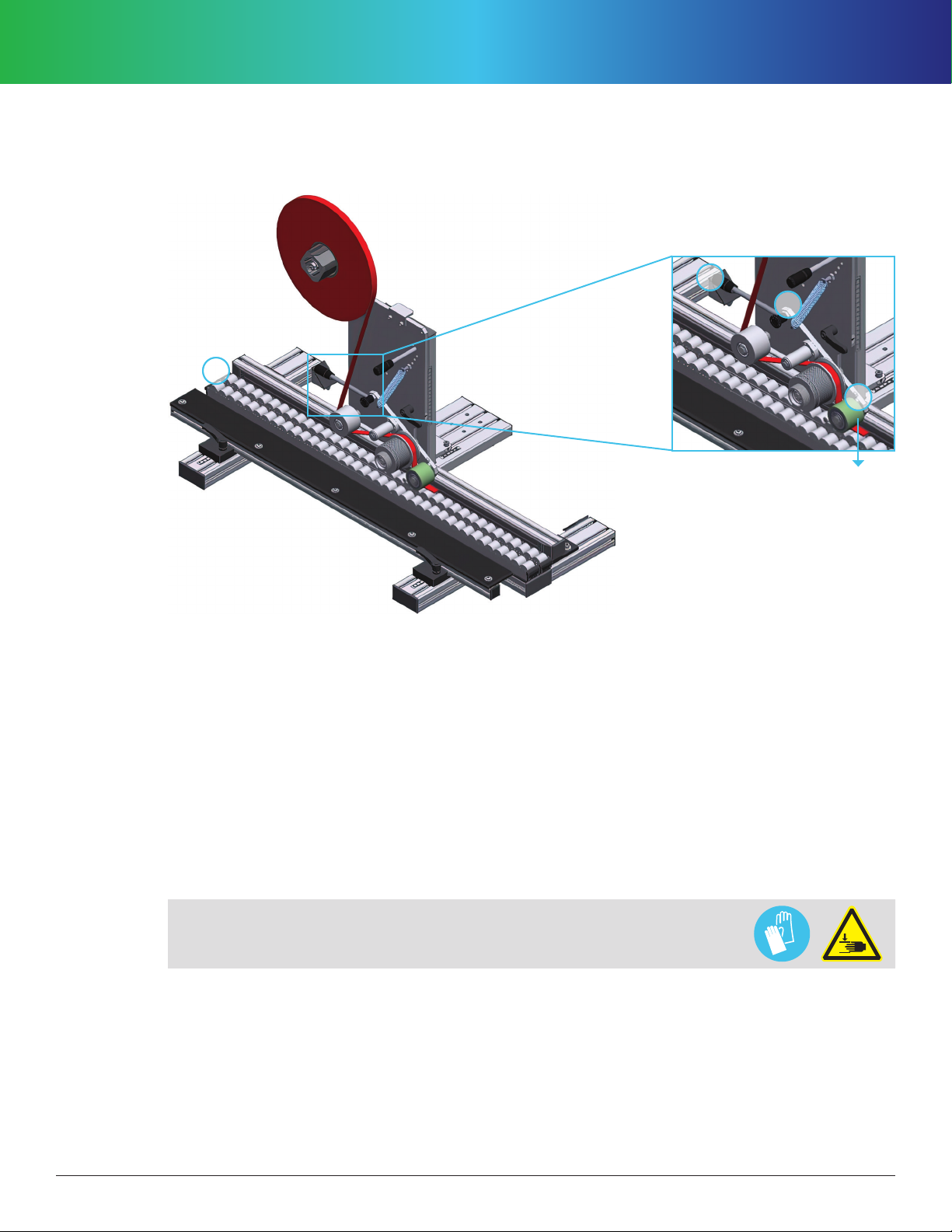

4.5.1 Application Process SGA 500 R with Product Guide
Figure 6
1. The unit is set up according to chapter 6.2 Setting Up the Unit.
2. Loosen the locking bolt (Figure 6C) and pull the hand lever (Figure 6D) upwards.
The swivel lever with the application roller (Figure 6B) swivels down. The unit is ready.
3. Guide the product to be bonded over the right side onto the set-up product guide (Figure 6A) under
the application roller (Figure 6B) and push it further down the roller conveyor. Always repress the
beginning of the adhesive tape on the first product.
The compression spring holds the application roller down and thus ensures the necessary contact
pressure of the adhesive tape on the product surface.
4. Push a second product on the roller conveyor and pass both of them under the application roller.
As soon as the first product is a little behind the application roller, cut the adhesive tape between
the two products.
NOTE: Danger in the area when cutting the tape. Danger of cutting.
Wear protective gloves. Do not reach into the blade.
5. Push another product on the roller conveyor so that the second product with the tape applied is
behind the application roller and proceed as described above.
6. Pull the hand lever (Figure 6D) down when you finish the process in order to lift the application roller
and to fix the locking bolt again.
The swivel lever with the application remains in the upper position. The unit is not ready.
C
B
A
D

Page 15
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022

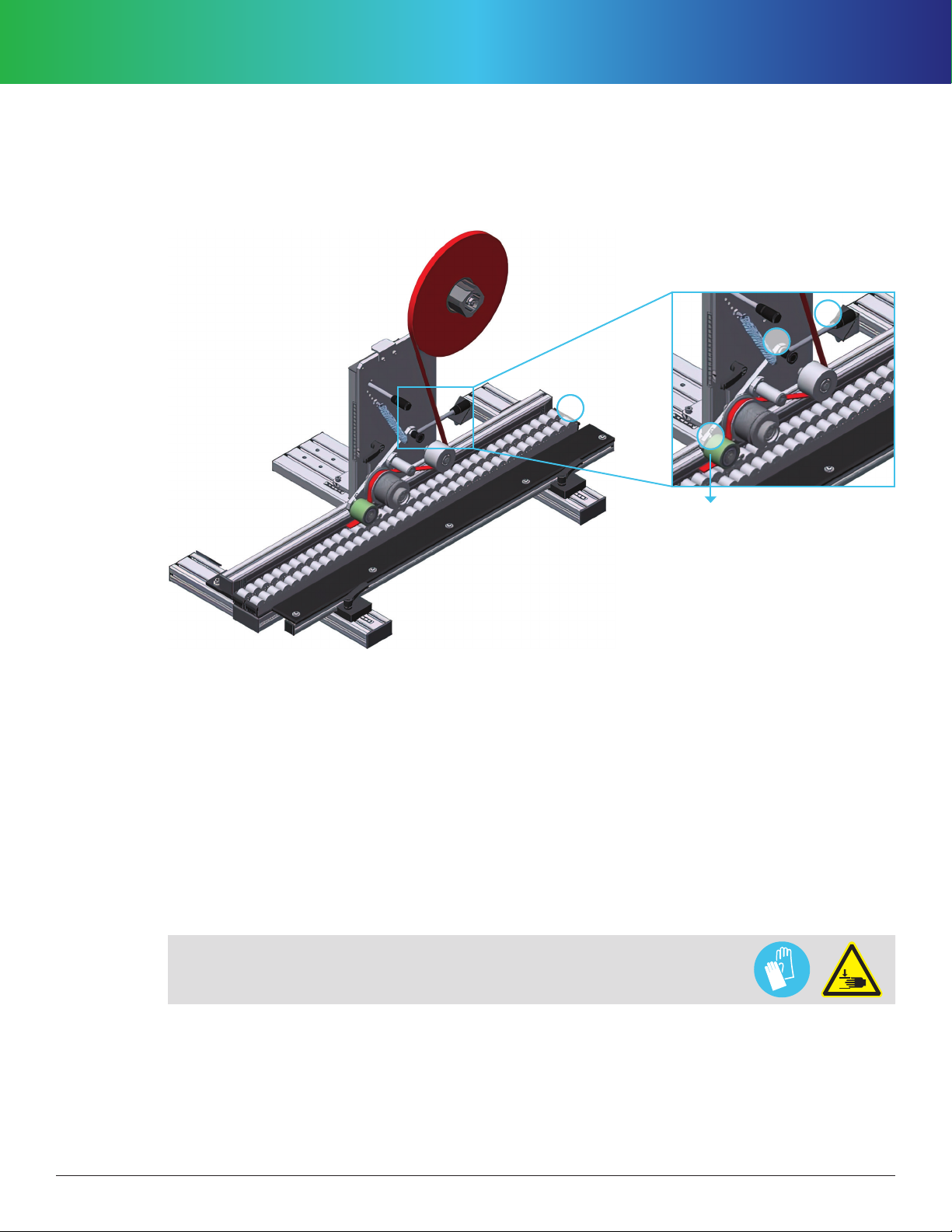

4.5.2 Application process SGA 500 L with Product Guide
Figure 7
1. The unit is set up according to chapter 6.2 Setting Up the Unit.
2. Loosen the locking bolt (Figure 7C) and pull the hand lever (Figure 7D) upwards.
The swivel lever with the application roller (Figure 7D) swivels down. The unit is ready.
3. Guide the product to be bonded over the right side onto the set-up product guide (Figure 7A) under
the application roller (Figure 7D) and push it further down the roller conveyor. Always repress the
beginning of the adhesive tape on the first.
The compression spring holds the application roller down and thus ensures the application of the
adhesive tape to the product surface.
4. Push a second product on the roller conveyor and pass both of them under the application roller.
As soon as the first product is a little behind the application roller, cut the adhesive tape between
the two products.
NOTE: Danger in the area when cutting the tape. Danger of cutting.
Wear protective gloves. Do not reach into the blade.
5. Push another product on the roller conveyor so that the second product with the tape applied is
behind the application roller and proceed as described above.
6. Pull the hand lever (Figure 7B) down when you finish the process in order to lift the application roller
and to fix the locking bolt again.
The swivel lever with the application remains in the upper position. The unit is not ready.
C
B
A
D

Page 16
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
5.0 Assembly Groups with Hazard Designation
and Labeling
Several hazard labels, symbols and notes are attached to the system. These warnings, symbols, or notes may
be attached to the system as adhesive labels or plates.
The attached adhesive labels or plates must not be removed or covered.
Dirty or damaged adhesive labels or plates must be cleaned or replaced to ensure a perfect recognition.
If parts of the system are replaced, please make sure that the spare parts or replacing parts bear the respective
adhesive labels or plates.
NOTE: For the meaning of the hazard and warning labels please refer to the documentation of
the respective components as well.
5.1 Mounting Stand R/L
Figure 8 AMounting Stand R
BMounting Stand L
CScale
BA
C C

Page 17
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022

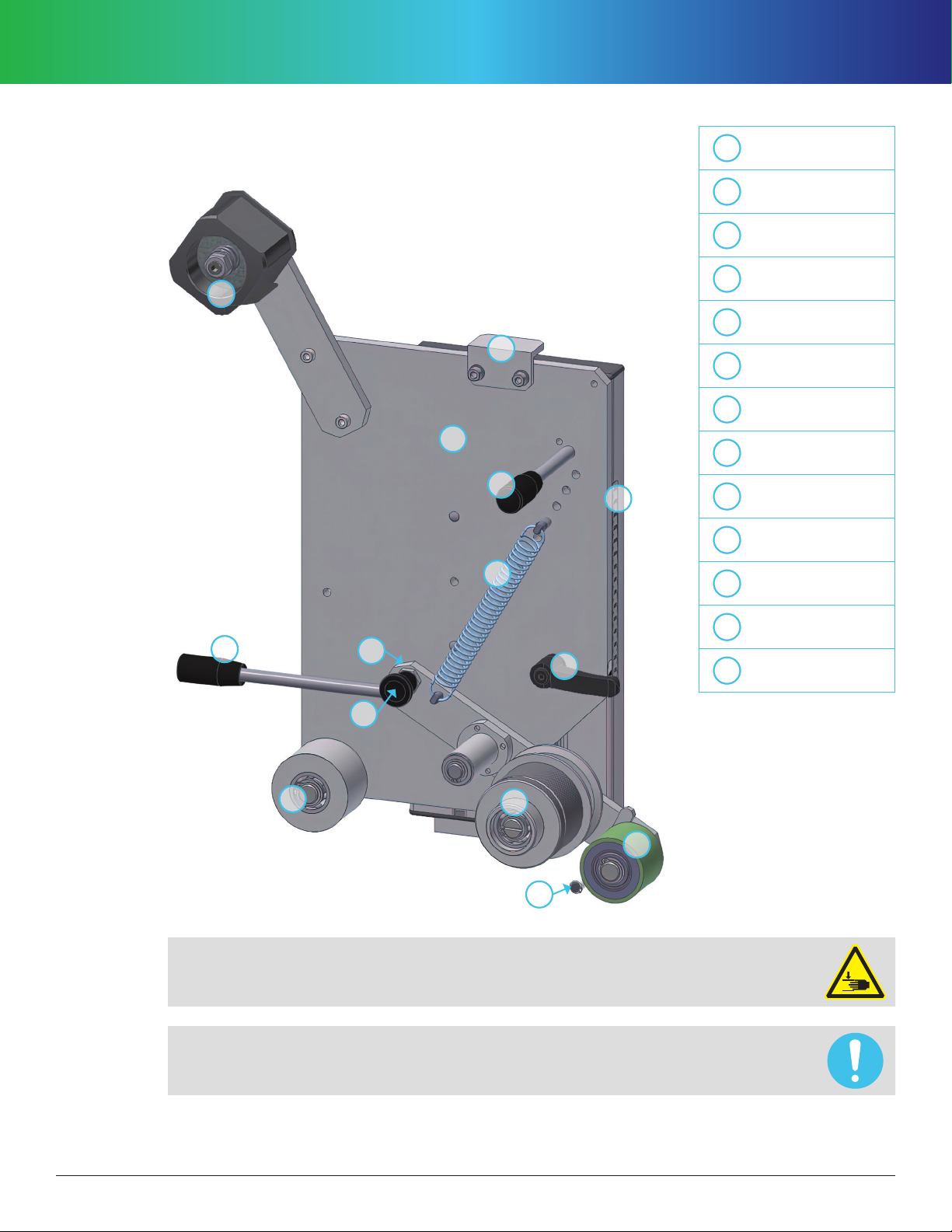

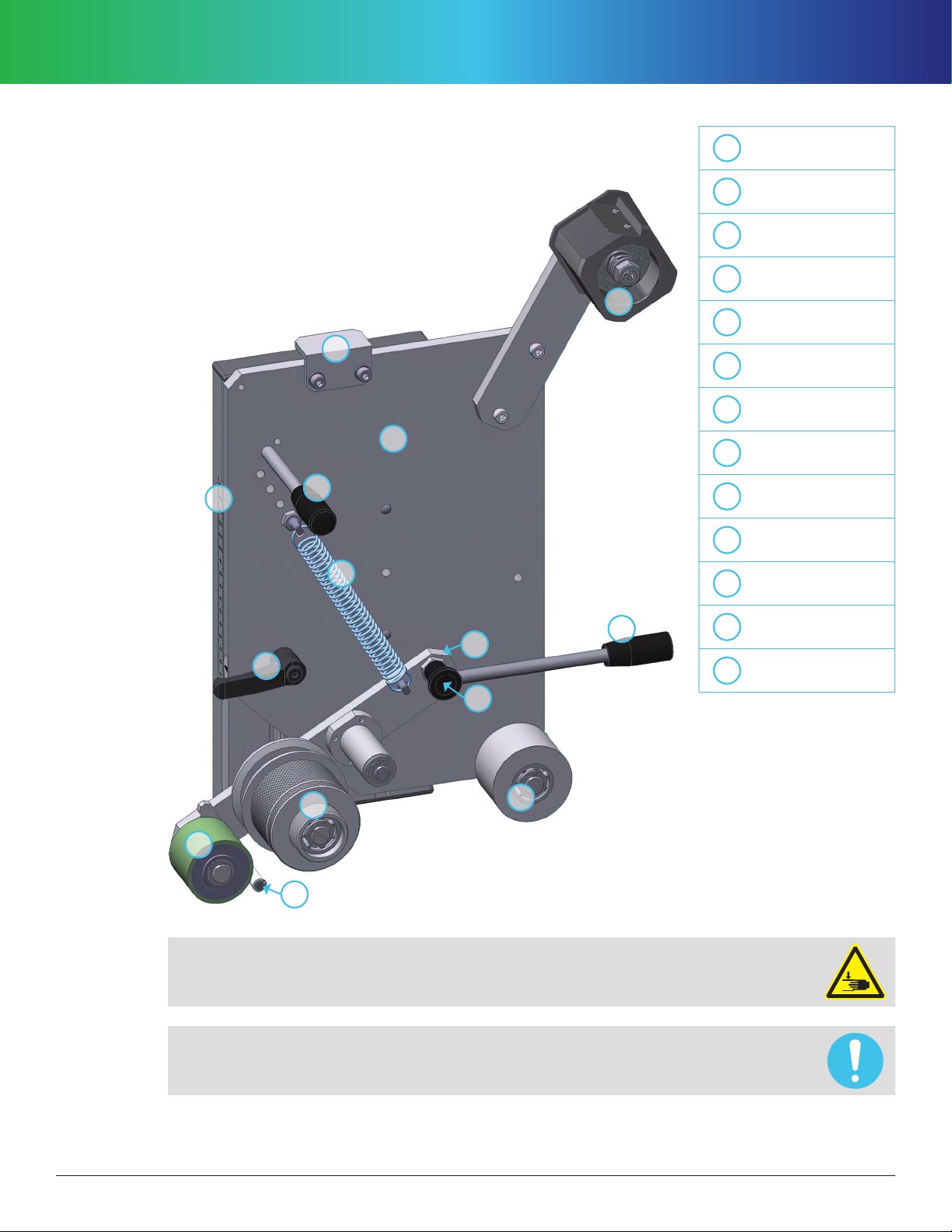

5.2 SGA 500 R-05-30
Figure 9
Danger in the area of the moving parts. Risk of crushing — Watch out for moving parts
when threading the tape.
Optional accessories: The application roller is available in a softer version.
ATape Mounting 3"
BStop
CBase Plate
DHandle
EMounting Stand R
FCompression Spring
GLocking Lever
HApplication Roller
IDownholder
JAdjustable
Deflection Pulleys
KDeflection Pulley
LLocking Bolt
MSwivel Lever
A
B
C
D
D
E
F
G
H
L
I
M
JK

Page 18
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022

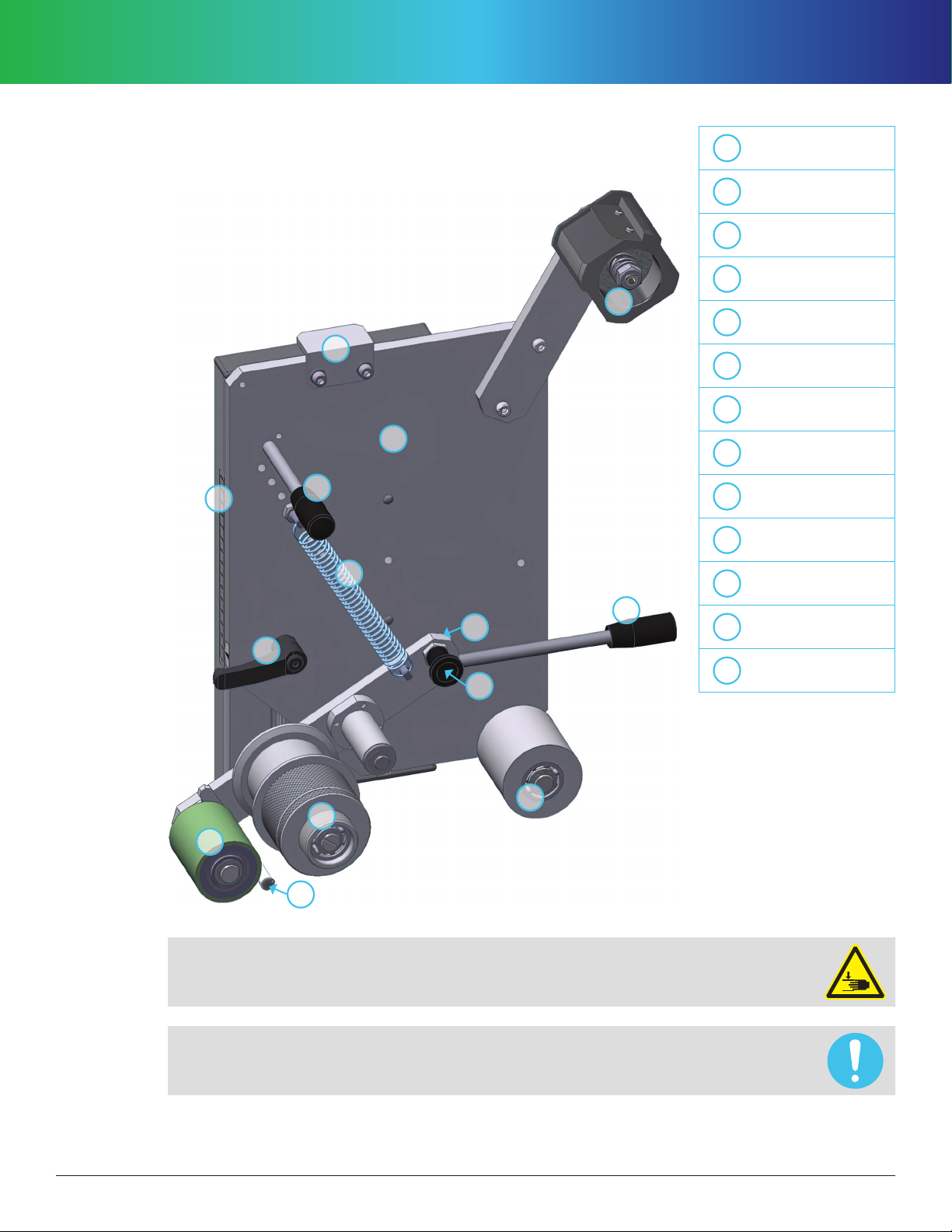

5.3 SGA 500 L-05-30
Figure 10
Danger in the area of the moving parts. Risk of crushing — Watch out for moving parts
when threading the tape.
Optional accessories: The application roller is available in a softer version.
ATape Mounting 2"
BStop
CBase Plate
DHandle
EMounting Stand L
FCompression Spring
GLocking Lever
HApplication Roller
IDownholder
JAdjustable
Deflection Pulleys
KDeflection Pulley
LLocking Bolt
MSwivel Lever
A
B
C
D
D
E
F
G
H
L
I
M
J
K

Page 19
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022

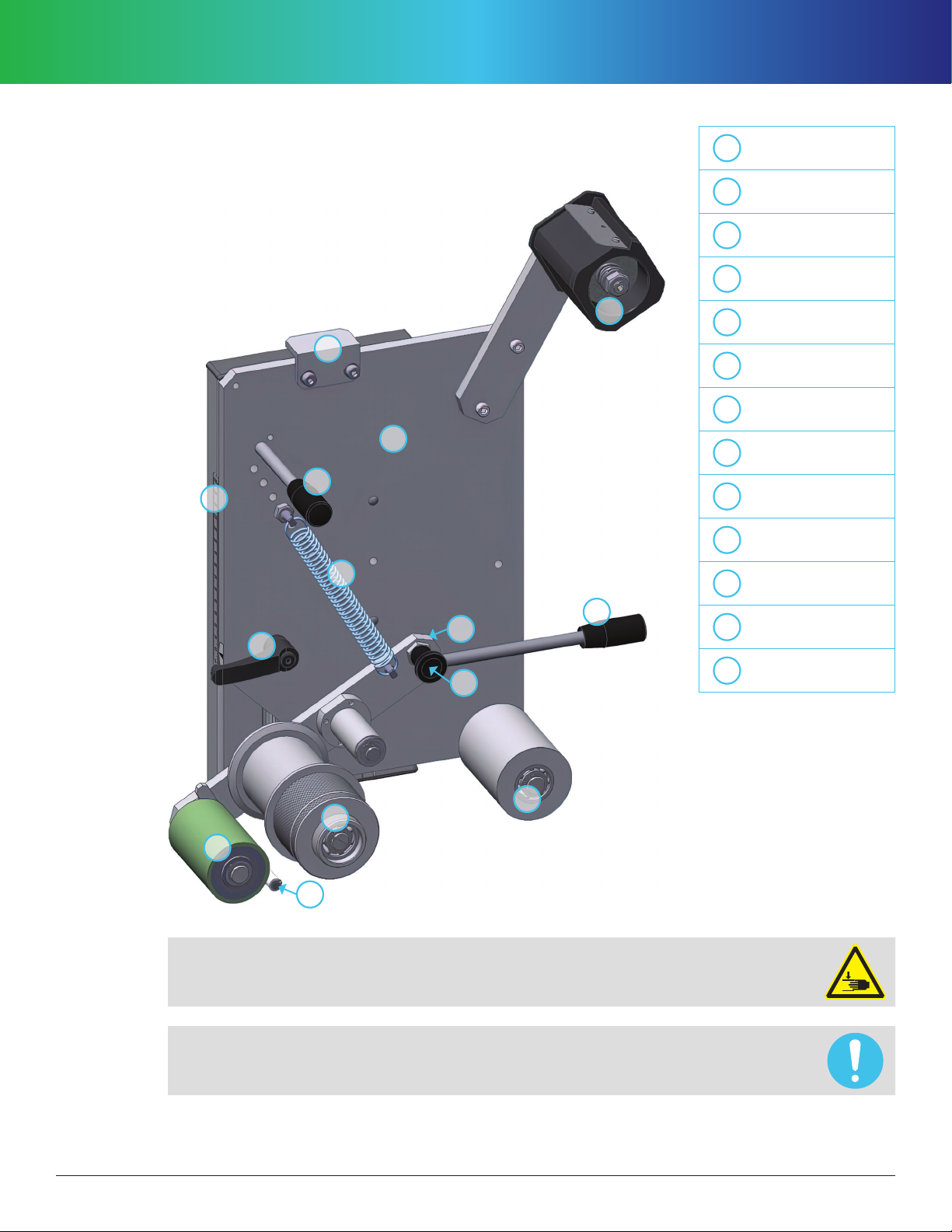

5.4 SGA 500 R-30-55
Figure 11
Danger in the area of the moving parts. Risk of crushing — Watch out for moving parts
when threading the tape.
Optional accessories: The application roller is available in a softer version.
ATape Mounting 3"
BStop
CBase Plate
DHandle
EMounting Stand R
FCompression Spring
GLocking Lever
HApplication Roller
IDownholder
JAdjustable
Deflection Pulleys
KDeflection Pulley
LLocking Bolt
MSwivel Lever
A
B
C
D
D
E
F
G
H
I
M
J
K
L

Page 20
3M™Straight Line Laminator Single Head Manual | Original Assembly and Operation Instructions
Effective: August 2022
5.5 SGA 500 R-55-80
Figure 12
Danger in the area of the moving parts. Risk of crushing — Watch out for moving parts
when threading the tape.
Optional accessories: The application roller is available in a softer version.
ATape Mounting 3"
BStop
CBase Plate
DHandle
EMounting Stand R
FCompression Spring
GLocking Lever
HApplication Roller
IDownholder
JAdjustable
Deflection Pulleys
KDeflection Pulley
LLocking Bolt
MSwivel Lever
A
B
C
D
D
E
F
G
H
L
I
M
J
K
