3M DBI SALA Pro Series User manual

© 3M 2020
USER INSTRUCTIONS
5902281 REv. J
ANSI Z359.13 OSHA 1910.140
ANSI Z359.3 OSHA 1926.502
1
X
Model L W
Y
A B C D E A B C F G
1
L
W
XY
11340040 16.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11340125 16.0 ft. (1.83 m) 1.95 in. (4.95 cm) 1
11340200 16.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11341001 16.0 ft. (1.83 m) 1.95 in. (4.95 cm) 1
11341002 13.0 ft. (0.91 m) 1.95 in. (4.95 cm) 1
11341004 14.0 ft. (1.22 m) 1.95 in. (4.95 cm) 1
11341050 16.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11341051 16.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
2
L
W
Y
Y
X
11340060 26.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11340180 26.0 ft. (1.83 m) 1.95 in. (4.95 cm) 2
11340181 25.0 ft. (1.52 m) 1.95 in. (4.95 cm) 2
11340182 24.0 ft. (1.22 m) 1.95 in. (4.95 cm) 2
11340183 210.0 ft. (3.05 m) 1.95 in. (4.95 cm) 2
11340187 26.0 ft. (1.83 m) 1.95 in. (4.95 cm) 2
11342001 26.0 ft. (1.83 m) 1.95 in. (4.95 cm) 2
11342200 26.0 ft. (1.83 m) 1.75 in. (4.45 cm) 2
11342201 26.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11342250 26.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11342275 26.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
A B C D E F G
Pro Series
Lanyards

2
1
X
Model L W
Y
A B C D E A B C F G
3
LW
XY
11385101 36.0 ft. (1.83 m) 1.0 in. (2.54 cm) 1
11385102 33.0 ft. (0.91 m) 1.0 in. (2.54 cm) 1
11385103 34.0 ft. (1.22 m) 1.0 in. (2.54 cm) 1
4
LW
XY
11385301 46.0 ft. (1.83 m) 1.0 in. (2.54 cm) 1
5
LW
XY
11340101 56.0 ft. (1.83 m) 1-5/16 in. (3.33 cm) 1
11340121 56.0 ft. (1.83 m) 1-5/16 in. (3.33 cm) 1
11340220 56.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 1
11340230 56.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 1
1340270 54.0 ft. (1.22 m) 1-15/16 in. (4.92 cm) 1
11341101 56.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
11341102 54.0 ft. (1.22 m) 1.75 in. (4.45 cm) 1
11341125 56.0 ft. (1.83 m) 1.75 in. (4.45 cm) 1
6
L
W
X
Y
Y
11340141 66.0 ft. (1.83 m) 1-15/16 in. (4.92 cm) 2
11340161 66.0 ft. (1.83 m) 1-15/16 in. (4.92 cm) 2
11340240 66.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 2
11340250 66.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 2
11340280 66.0 ft. (1.83 m) 1-15/16 in. (4.92 cm) 2
11342101 66.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 2
11342125 66.0 ft. (1.83 m) 1-3/8 in. (3.49 cm) 2
A B C D E F G

3
1
X
Model L W
Y
A B C D E A B C F G
7
L
W
XY
11340130 72.0 ft. (0.61 m) 1.75 in. (4.45 cm) 1
11340260 71.5 ft. (0.46 m) 1.75 in. (4.45 cm) 1
8
L
W
XY
1AC202A10 82.17 ft. (0.66 m) 1.75 in. (4.45 cm) 1
11340005 82.17 ft. (0.66 m) 1.75 in. (4.45 cm) 1
9
L
W
X Y
11340401 96.0 ft. (1.83 m) 1/4 in. (0.64 cm) 1
10
L
W
X
Y
Y
11340451 10 6.0 ft. (1.83 m) 1/4 in. (0.64 cm) 2
11340452 10 6.0 ft. (1.83 m) 1/4 in. (0.64 cm) 2
11
L
W
XY
11385501 11 6.0 ft. (1.83 m) 1/2 in. (1.27 cm) 1
12
L
W
XY
Y
11340751 12 6.0 ft. (1.83 m) 1/2 in. (1.27 cm) 2
A B C D E F G

4
1
X
Model L W
Y
A B C D E A B C F G
13
L
W
X
Y
Y
11350150 13 2.0 ft. (0.61 m) in. (cm) 2
11350200 13 1.67 ft. (0.51 m) in. (cm) 2
14
L
W
X
Y
Y
11351001 14 1.83 ft. (0.56 m) 1.0 in. (2.54 cm) 2
11351050 14 1.83 ft. (0.56 m) 1.0 in. (2.54 cm) 2
11351051 14 1.5 ft. (0.46 m) 1.0 in. (2.54 cm) 2
A B C D E F G

5
2 3

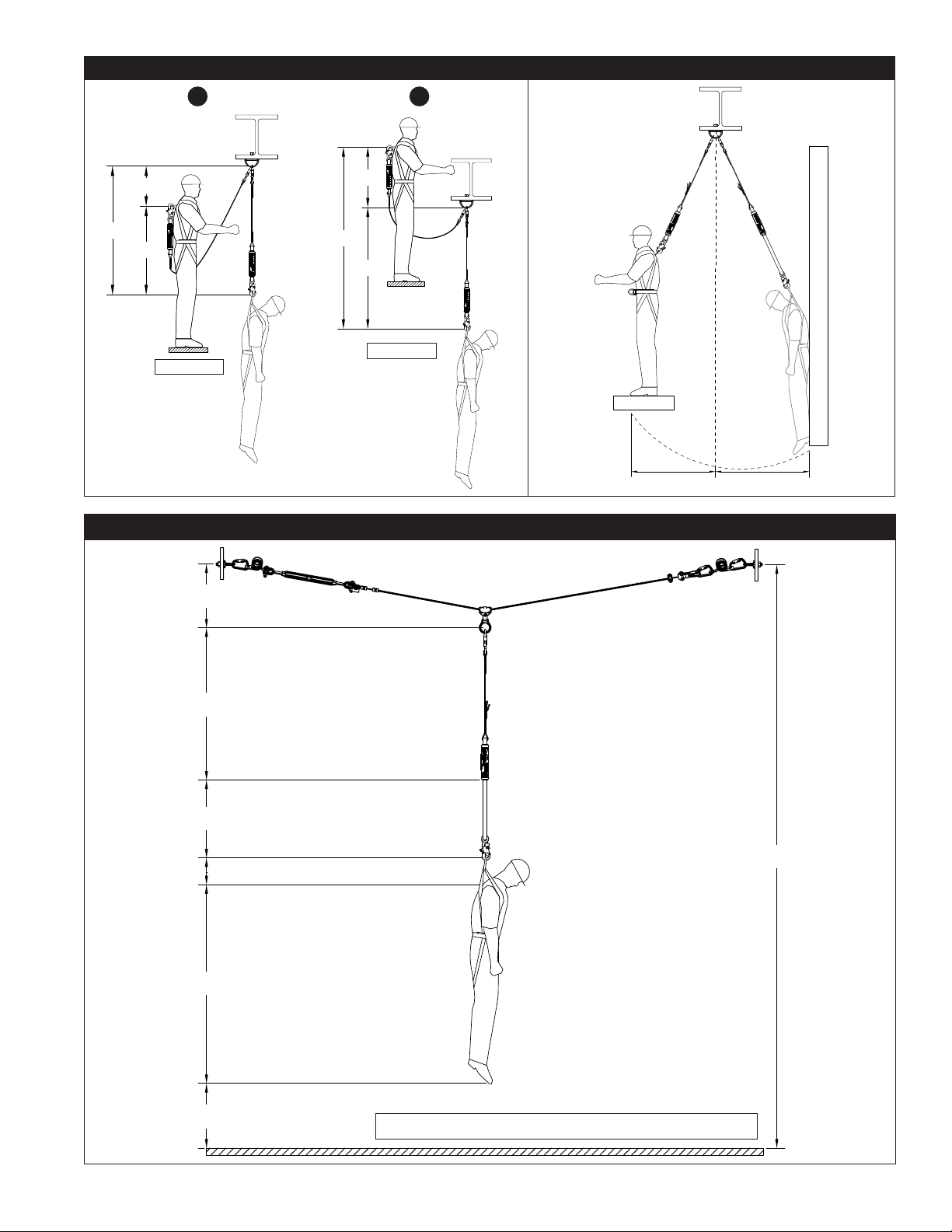

A
F = A - H
H
A
F
B
F
H
A
F = A + H
4
FC = A + B + C + M + H + SF
M
A
B
C
H
SF
FC

6
5
0
,0
0
,5
1
,0
1
,5
2
,0
2
,5
3
,0
3
,5
4
,0
0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0 5,5 6,0
A130-lb. User Weight
B220-lb. User Weight
C310-lb. User Weight
DMaximum Allowable Deployment Distance (OSHA)
EMaximum Allowable Deployment Distance (ANSI)
FMaximum Allowable Free Fall (OSHA/ANSI)
A
B
C
E
D
F
Free Fall Distance (Feet)
Deployment Distance (Feet)
ProStop Personal Energy Absorbers
6 7
A. B. C. D.
E. F. G.
A B C

7

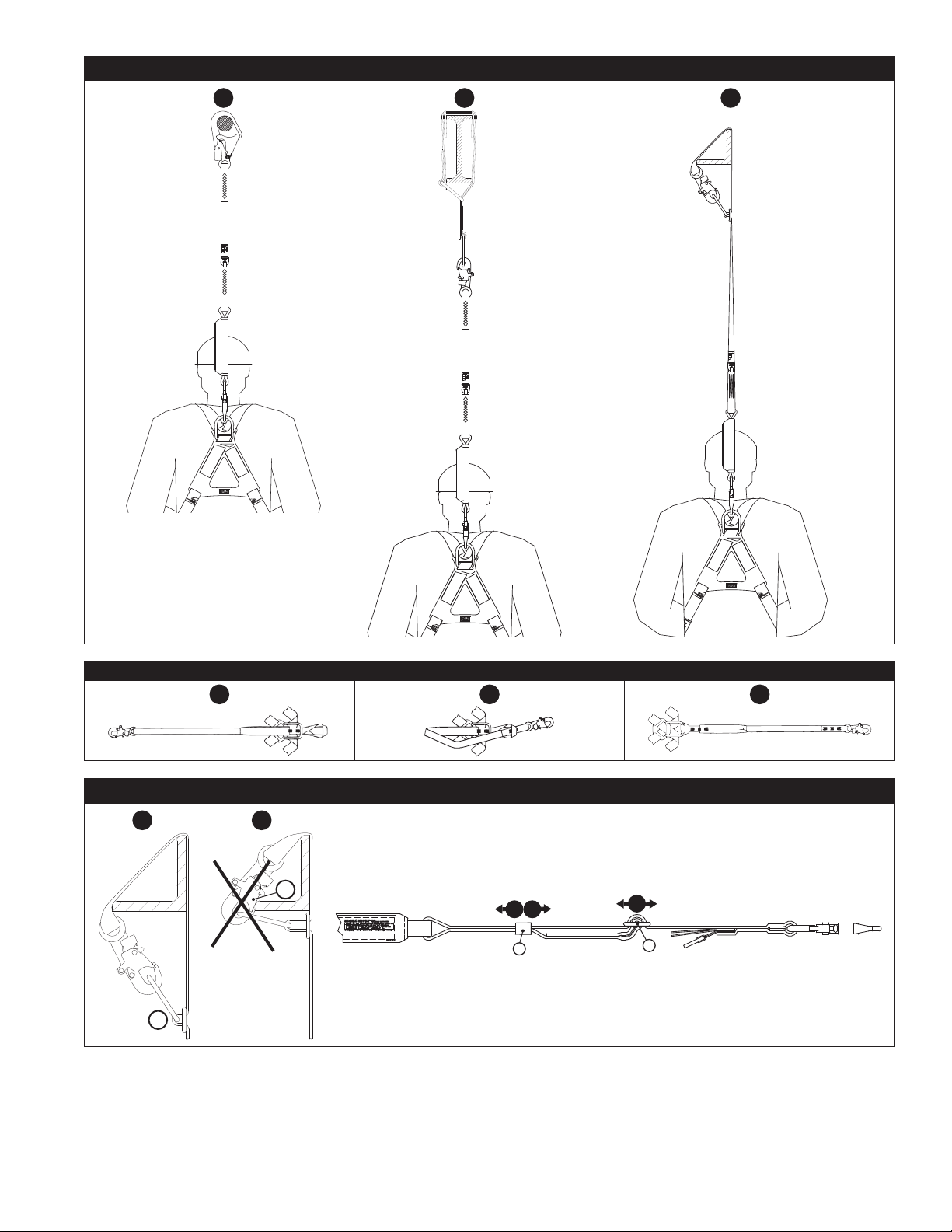

8
A B C
9
123
10 11
1
A
2
B
A
2
1 3
B

8
12
A
ü
B
ü
C
D
13 14
A B C
15
AA
A
B
A
B
C

9
16 17 18
A
B
C
D
D
C
B
A
19
CC
B
A
D
E

10

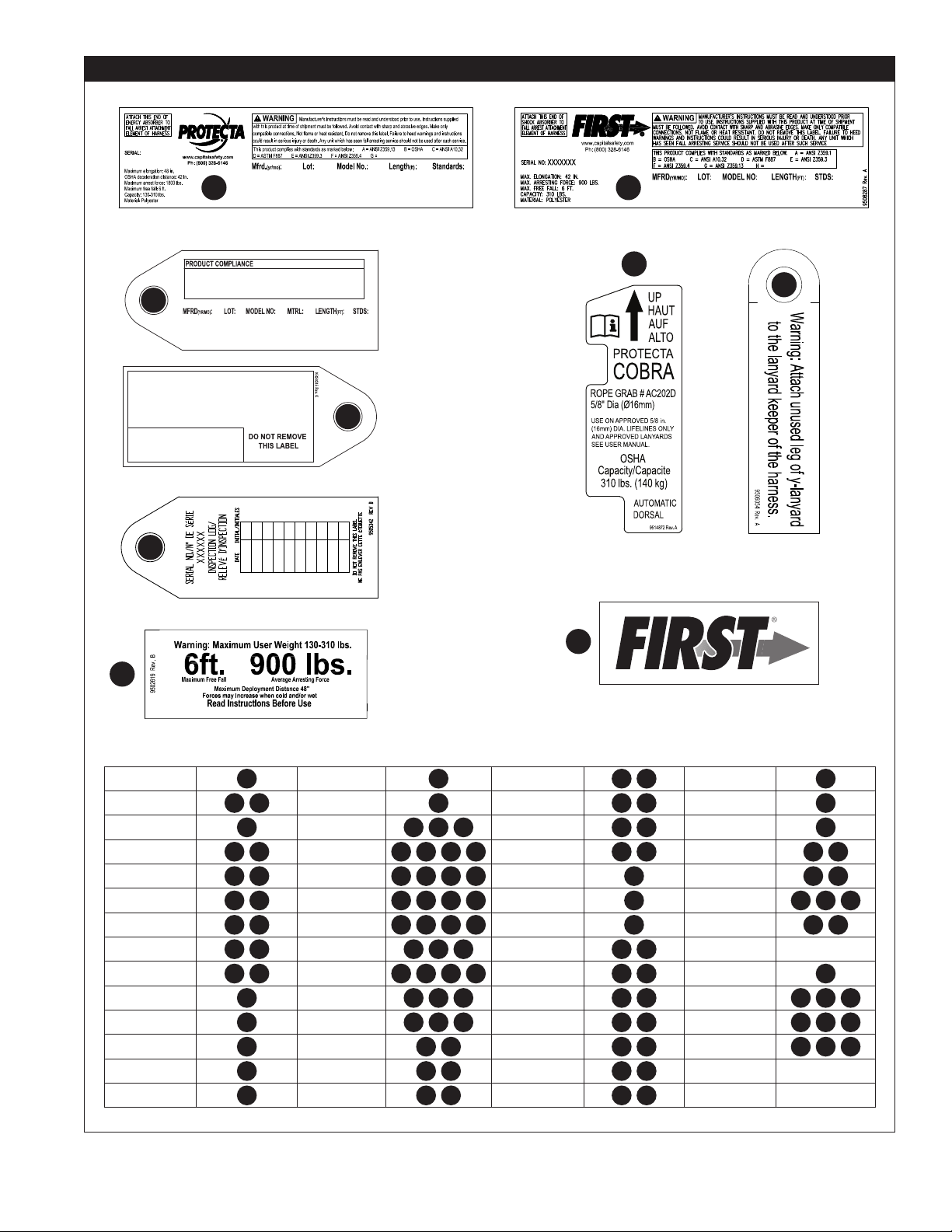

20
E
E
F
F
G
G
WARNING/AVERTISSEMENT
H
3M.com/FallProtection
H
C
WARNING
Always attach energy absorber
portion of lanyard to harness
dorsal D-ring. Do not allow
lanyard to pass under arms or
legs. Do not attach two users
to this lanyard. See instructions
for more information. Failure to
heed instructions and warnings
may result in serious injury or
death. Do not remove this
label.
NO
Arrest force 1800 lbs [816.5 kg]
when rigged as shown
A
DO NOT REMOVE THIS LABEL.
IN SERIOUS INJURY OR DEATH.
TO HEED THIS WARNING MAY RESULT
CAUSING RELEASE OF LOAD. FAILURE
MAY BE FORCED OPEN UNDER LOADING
ANCHORAGE MEMBER. SNAP HOOK GATE
DO NOT ALLOW SNAP HOOK TO CONTACT
WARNING
CORRECT
USAGE
GATE IN
CONTACT
WITH
MEMBER
INCORRECT
B
D

11
20
I
THIS PRODUCT COMPLIES WITH THE FOLLOWING STANDARDS ONLY IF MARKED
WITH THE CORRESPONDING LETTER CODE UNDER "STDS" SECTION BELOW:
B = OSHA 1910.140 & 1926.502 D = ASTM F887 E = ANSI Z359.3 F = ANSI Z359.4
G = ANSI Z359.18 TYPE A H =
K
MATERIAL DESIGNATION:
(IDENTIFIED AFTER MODEL NO.)
P=POLYESTER - N=NYLON
C=CABLE - W=CHAIN
K=ARAMID - B=BLEND
ANSI CAPACITY: 130-310 LBS (59-140kg)
LENGTH (FT.) IS DENOTED
BY NUMBER AFTER
MATERIAL DESIGNATION
PRODUCTS MARKED TO ANSI Z359.18 TYPE A:
• MINIMUM BREAKING STRENGTH: 5,000 LBS
• MINIMUM SERVICE TEMP: -40°F ( -40°C)
K
L
N
O
M
P
J
AE57610 P1385301 E1340121 C,F1340130 D
AC202A10 J,NAE57630 P1340220 C,F1340260 D
1340005 D1340060 A,B,D1340230 C,F1340401 D
1340040 B,D1340180 A,I,M,O1340270 C,F1340451 A,D
1340125 I,M1340181 A,I,M,O1341101 D1340452 A,D
1340200 B,D1340182 A,I,M,O1341102 D1385501 G,H,L
1341001 I,M1340183 A,I,M,O1341125 D1340751 A,D
1341002 I,M1340187 I,M,O1340141 C,F1350150 -
1341004 I,M1342001 A,I,M,O1340161 C,F1350200 K
1341050 D1342200 A,B,D1340240 C,F1351001 G,H,L
1341051 D1342201 A,B,D1340250 C,F1351050 G,H,L
1385101 E1342250 A,D1340280 C,F1351051 G,H,L
1385102 E1342275 A,D1342101 A,D
1385103 E1340101 C,F1342125 A,D

FORM NO: 5908270 REV: A 12
SAFETY INFORMATION
Please read, understand, and follow all safety information contained in these instructions prior to the use of this Energy
Absorbing Lanyard. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
These instructions must be provided to the user of this equipment. Retain these instructions for future reference
Intended Use:
This Energy Absorbing Lanyard is intended for use as part of a complete personal fall protection system.
Use in any other application including, but not limited to, material handling, recreational or sports related activities, or other activities not
described in the User Instructions, is not approved by 3M and could result in serious injury or death.
This device is only to be used by trained users in workplace applications.
!WARNING
This Energy Absorbing Lanyard is part of a personal fall protection system. It is expected that all users be fully trained in the safe
installation and operation of their personal fall protection system. Misuse of this device could result in serious injury or
death. For proper selection, operation, installation, maintenance, and service, refer to these User Instructions and all manufacturer
recommendations, see your supervisor, or contact 3M Technical Services.
• To reduce the risks associated with working with an Energy Absorbing Lanyard which, if not avoided, could result in
serious injury or death:
- Inspect the device before each use, at least annually, and after any fall event. Inspect in accordance with the User Instructions.
- If inspection reveals an unsafe or defective condition, remove the device from service and destroy it.
- Any device that has been subject to fall arrest or impact force must be immediately removed from service. Refer to the User
Instructions or contact 3M Fall Protection.
- Ensure all connecting subsystems (e.g. lanyards) are kept free from all hazards including, but not limited to, entanglement with
other workers, yourself, moving machinery, or other surrounding objects.
- Ensure proper edge protection is used when the device may come into contact with sharp edges or corners.
- Attach the unused leg(s) of the lanyard to the parking attachment(s) on the harness if equipped.
- Do not tie or knot the lanyard.
- Do not exceed the number of allowable users.
- Ensure that fall protection systems/subsystems assembled from components made by different manufacturers are compatible
and meet the requirements of applicable standards, including the ANSI Z359 or other applicable fall protection codes, standards,
or requirements. Always consult a Competent or Qualied Person before using these systems.
• To reduce the risks associated with working at height which, if not avoided, could result in serious injury or death:
- Ensure your health and physical condition allow you to safely withstand all of the forces associated with working at height.
Consult with your doctor if you have any questions regarding your ability to use this equipment.
- Never exceed allowable capacity of your fall protection equipment.
- Never exceed maximum free fall distance of your fall protection equipment.
- Do not use any fall protection equipment that fails pre-use or other scheduled inspections, or if you have concerns about the use
or suitability of the equipment for your application. Contact 3M Technical Services with any questions.
- Some subsystem and component combinations may interfere with the operation of this equipment. Only use compatible
connections. Consult 3M prior to using this equipment in combination with components or subsystems other than those described
in the User Instructions.
- Use extra precautions when working around moving machinery (e.g. top drive of oil rigs), electrical hazards, extreme
temperatures, chemical hazards, explosive or toxic gases, sharp edges, or below overhead materials that could fall onto you or
the fall protection equipment.
- Use Arc Flash or Hot Works devices when working in high heat environments.
- Avoid surfaces and objects that can damage the user or equipment.
- Ensure there is adequate fall clearance when working at height.
- Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the
equipment.
- Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs.
- If a fall incident occurs, immediately seek medical attention for the worker who has fallen.
- Do not use a body belt for fall arrest applications. Use only a Full Body Harness.
- Minimize swing falls by working as directly below the anchorage point as possible.
- If training with this device, a secondary fall protection system must be utilized in a manner that does not expose the trainee to
an unintended fall hazard.
- Always wear appropriate personal protective equipment when installing, using, or inspecting the device/system.
EN

FORM NO: 5908271 REV: A 13
SAFETY INFORMATION
Please read, understand, and follow all safety information contained in these instructions prior to the use of this Work
Positioning/Travel Restraint Lanyard. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH.
These instructions must be provided to the user of this equipment. Retain these instructions for future reference.
Intended Use:
This Work Positioning/Travel Restraint Lanyard is intended for use as part of a complete personal fall protection system. Work Positioning/
Travel restraint lanyards are used to prevent the user from reaching or being exposed to a fall hazard.
Use in any other application including, but not limited to, material handling, recreational or sports related activities, or other activities not
described in the User Instructions, is not approved by 3M and could result in serious injury or death.
This device is only to be used by trained users in workplace applications.
!WARNING
This Work Positioning/Travel Restraint Lanyard is part of a personal fall protection system. It is expected that all users be fully trained
in the safe installation and operation of their personal fall protection system. Misuse of this device could result in serious injury
or death. For proper selection, operation, installation, maintenance, and service, refer to these User Instructions and all manufacturer
recommendations, see your supervisor, or contact 3M Technical Services.
• To reduce the risks associated with working with a Work Positioning/Travel Restraint Lanyard which, if not avoided,
could result in serious injury or death:
- Only use this device for work positioning or in travel restraint applications. Work Positioning Lanyards must be congured to limit
free fall distance to two feet or less and minimize swing fall. Travel Restraint Lanyards must prevent the user from reaching or
being exposed to a fall hazard.
- Never use this lanyard (i.e., a non-energy absorbing lanyard) as a primary fall arrest device.
- Inspect the device before each use, at least annually, and after any fall event. Inspect in accordance with the User Instructions.
- If inspection reveals an unsafe or defective condition, remove the device from service and destroy it.
- Any device that has been subject to fall arrest or impact force must be immediately removed from service. Refer to the User
Instructions or contact 3M Fall Protection.
- Ensure all connecting subsystems (e.g. lanyards) are kept free from all hazards including, but not limited to, entanglement with
other workers, yourself, moving machinery, or other surrounding objects.
- Ensure proper edge protection is used when the lifeline may come into contact with sharp edges or corners.
- Ensure the device is rigged appropriately for the intended use.
- Attach the unused leg(s) of the lanyard to the parking attachment(s) of the harness if equipped.
- Do not tie or knot the lanyard.
- Do not exceed the number of allowable users.
- Ensure that fall protection systems/subsystems assembled from components made by dierent manufacturers are compatible
and meet the requirements of applicable standards, including the ANSI Z359 or other applicable fall protection codes, standards,
or requirements. Always consult a Competent or Qualied Person before using these systems.
• To reduce the risks associated with working at height which, if not avoided, could result in serious injury or death:
- Ensure your health and physical condition allow you to safely withstand all of the forces associated with working at height.
Consult with your doctor if you have any questions regarding your ability to use this equipment.
- Never exceed allowable capacity of your fall protection equipment.
- Never exceed maximum free fall distance of your fall protection equipment.
- Do not use any fall protection equipment that fails pre-use or other scheduled inspections, or if you have concerns about the use
or suitability of the equipment for your application. Contact 3M Technical Services with any questions.
- Some subsystem and component combinations may interfere with the operation of this equipment. Only use compatible
connections. Consult 3M prior to using this equipment in combination with components or subsystems other than those described
in the User Instructions.
- Use extra precautions when working around moving machinery (e.g. top drive of oil rigs), electrical hazards, extreme
temperatures, chemical hazards, explosive or toxic gases, sharp edges, or below overhead materials that could fall onto you or
your fall protection equipment.
- Use Arc Flash or Hot Works devices when working in high heat environments.
- Avoid surfaces and objects that can damage the user or equipment.
- Ensure there is adequate fall clearance when working at height.
- Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the
equipment.
- Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs.
- If a fall incident occurs, immediately seek medical attention for the worker who has fallen.
- Do not use a body belt for fall arrest applications. Use only a Full Body Harness.
- Minimize swing falls by working as directly below the anchorage point as possible.
- If training with this device, a secondary fall protection system must be utilized in a manner that does not expose the trainee to
an unintended fall hazard.
- Always wear appropriate personal protective equipment when installing, using, or inspecting the device/system.
EN

14
;Before using this equipment, record the product identication information from the ID label in the ‘Inspection and
Maintenance Log’ at the back of this manual.
;Always ensure you are using the latest revision of your 3M instruction manual. Visit the 3M website or contact 3M
Technical Services for updated instruction manuals.
PRODUCT DESCRIPTION:
Figure 1 lists the 3M™ DBI-SALA®Pro Series Lanyards covered by this instruction manual. Lanyards covered in this instruction
may be used for Restraint or Work Positioning applications. Energy-Absorbing Lanyards may be used for Fall Arrest applications
as well.
Lanyards are web or cable tethers with connectors on either end. Connectors wil vary per model, as will the presence of an
energy absorber. Only Energy-Absorbing Lanyards will include energy absorbers for Fall Arrest.
One end of the lanyard will secure to the designated attachment element on the user’s harness, while the other end secures to
anchorage connection point or anchorage structure. For Energy-Absorbing Lanyards, the end with the energy absorber should
always connect to the user’s harness. Twin Leg Lanyard models provide 100-percent tie-off while moving from point to point.
See Table 1 for Lanyard and Connector specications.
;Only specic models covered by this instruction include energy absorbers. See Table 1 for more information. Only lanyard
models that include an integral energy absorber should be used for Fall Arrest applications. All other models are limited to
Restraint or Work Positioning applications and should not be used to arrest a fall.
Table 1 – Specications
Lanyard Specications:

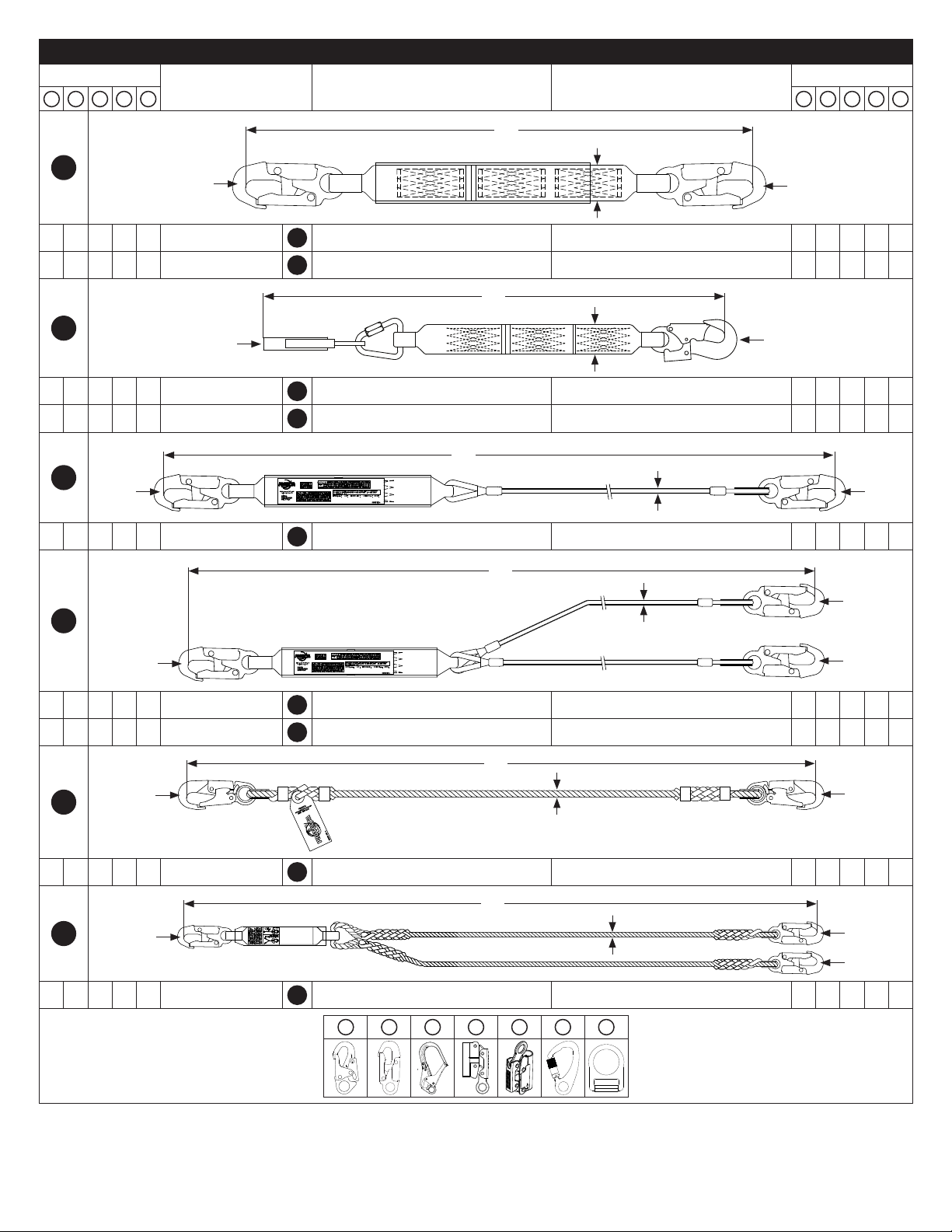

Figure 1
Reference Description Material Energy Absorber
ANSI Standard
Certication
1Protecta Energy-Absorbing Lanyard Web - Polyester Shock Pack ANSI Z359.13
2Protecta Energy-Absorbing Lanyard 100% Tie-Off Web - Polyester Shock Pack ANSI Z359.13
3Protecta Lanyard Web - Polyester --- ANSI Z359.3
4Protecta Adjustable Lanyard Web - Polyester --- ANSI Z359.3
5Protecta Energy-Absorbing Lanyard Web - Elastic Polyester Tubular Web ANSI Z359.13
6Protecta Energy-Absorbing Lanyard 100% Tie-Off Web - Elastic Polyester Tubular Web ANSI Z359.13
7Protecta Lanyard Web - Polyester Shock Pack ANSI Z359.13
8Protecta Lanyard with Rope Grab Web - Polyester Shock Pack ANSI Z359.13
9Protecta Energy-Absorbing Lanyard Cable - Galvanized Shock Pack ANSI Z359.13
10 Protecta Energy-Absorbing Lanyard 100% Tie-Off Cable - Galvanized Shock Pack ANSI Z359.13
11 Protecta Lanyard Nylon Rope --- ANSI Z359.3
12 Protecta Energy-Absorbing Lanyard 100% Tie-Off Nylon Rope Shock Pack ANSI Z359.13
13 Protecta Rebar Assembly Zinc-Plated Steel Chain --- ANSI Z359.3
14 Protecta Rebar Assembly Web - Polyester --- ANSI Z359.3
Connector Specications:
Figure 1
Reference Model Number Description Material Gate Opening Gate Strength Tensile Strength
A2000161 Snap Hook Zinc-Plated Steel 3/4 in. (19 mm) 3,600 lbf (16 kN) 5,000 lbf (22.2 kN)
B 9502573 Snap Hook Zinc-Plated Steel 2-3/8 in. (60 mm) 3,600 lbf (16 kN) 5,000 lbf (22.2 kN)
C 2000164 Rebar Hook Alloy Steel 2-3/8 in. (60 mm) 3,600 lbf (16 kN) 5,000 lbf (22.2 kN)
D 9501908 Rope Grab Steel
E 1300021 Rope Grab Steel
F 9504413 Carabiner Zinc-Plated Steel 1-1/8 in. (28.6 mm) 5,000 lbf (22.2 kN) 5,000 lbf (22.2 kN)
G 9000047 D-Ring Alloy Steel
Performance Specications:
Capacity: One person with a combined weight (including clothing, tools, etc.) within the range of 130 lb. to 310 lb.
(59 kg to 140 kg).
Average Arresting Force: 900 lbf (4.0 kN)
Maximum Free Fall: 6.0 ft. (1.83 m)

15
Table 1 – Specications
Energy Absorber Deployment (Figure 5)
Figure 5 illustrates Free Fall and Deployment Distance of Energy Absorbers at different user weights. To use the graph, look up your required
Free Fall Distance along the ‘X’ axis, find the User Weight graph line nearest to your applicable value, and then determine the Deployment
Distance of that graph line by reading the ‘Y’ axis. Deployment Distance and Free Fall Distance should never exceed the limits of your
applicable standard (see below). If your weight falls between the user weights displayed on the graph, refer to the higher of the two lines
when determining Deployment Distance.
Figure 5 Reference Description
A 130 lb. User Weight
B 220 lb. User Weight
C 310 lb. User Weight
D Maximum Deployment Distance (OSHA)
E Maximum Deployment Distance (ANSI)
F Maximum Free Fall (OSHA/ANSI)

16
1.0 PRODUCT APPLICATION
1.1 PURPOSE: Lanyards are designed for use in Restraint or Work Positioning applications. Energy-Absorbing Lanyards
include an energy absorber and may be used for Fall Arrest applications as well. Figure 1 identies the Lanyard models
covered by this instruction. See Table 1 for more information on system applications available for your specic lanyard
model.
;Only Energy-Absorbing Lanyards (which include an integral energy-absorber) may be used for Fall Arrest.
1.2 STANDARDS: Your product conforms to the national or regional standards identied on the front cover of these
instructions. If this product is resold outside the original country of destination, the re-seller must provide these
instructions in the language of the country in which the product will be used.
1.3 TRAINING: This equipment must be installed and used by persons trained in its correct application. This manual is to be used as part
of an employee training program as required by national, regional, or local standards. It is the responsibility of the users and installers
of this equipment to ensure they are familiar with these instructions, trained in the correct care and use of this equipment, and are
aware of the operating characteristics, application limitations, and consequences of improper use of this equipment.
1.4 REQUIREMENTS: Always consider the following limitations when installing or using this equipment:
• Capacity: Lanyards are for use by one person with a combined weight (clothing, tools, etc.) meeting the capacity
requirements specied in Table 1. Make sure all of the components in your system are rated to a capacity appropriate
to your application.
• Anchorage: Anchorages selected for Fall Arrest systems shall have a strength capable of sustaining static loads
applied in the directions permitted by the system of at least:
1. 5,000 lbf (22.2 kN) for non-certified anchorages, or
2. Two times the maximum arresting force for certified anchorages.
When more than one Fall Arrest system is attached to an anchorage, the strengths set forth in (1) and (2) above
shall be multiplied by the number of systems attached to the anchorage.
;From OSHA 1926.502 and 1910.140: Anchorages used for attachment of personal fall arrest systems shall be
independent of any anchorage being used to support or suspend platforms, and capable of supporting at least 5,000 lbf
per user attached, or be designed, installed, and used as part of a complete personal fall arrest systems which maintains
a safety factor of at least two, and is under the supervision of a qualied person.
• Free Fall: Fall Arrest systems incorporating Energy-Absorbing Lanyards covered in this instruction must be rigged to limit
free fall to 6.0 ft. (1.8 m) or less. Free Fall Distance changes with lanyard slack and orientation of the Harness Connection
Point to the Anchorage Connection Point (see Figure 2):
If the Harness Connection Point is below the Anchorage Connection Point (Figure 2A): F = A - H
If the Harness Connection Point is above the Anchorage Connection Point (Figure 2B): F = A + H
FFree Fall Distance
HVertical Distance from the Harness Connection Point to the Anchorage Connection Point.
ALanyard Length
;Do not lengthen lanyards: Do not lengthen Lanyards by connecting to another lanyard, energy absorber, or
similar component without consulting 3M.
• Swing Falls: Swing Falls occur when the anchorage point is not directly above the point where a fall occurs. The
force of striking an object in a swing fall may cause serious injury (see Figure 3). Minimize swing falls by working as
directly below the anchorage point as possible.
• Fall Clearance: Figure 4 illustrates calculation of the required clearance below the Lanyard System Anchorage. Required
clearance will vary with the amount of deployment of the Energy Absorber (B). The graph in Figure 5 illustrates Energy
Absorber Deployment based on Worker Weight and Free Fall Distance. For more information on Figure 5, refer to Table 1.
To calculate Required Fall Clearance (FC): FC = M + A + B + C + 1.5 m (5 ft.) + 0.6 m (2 ft.)
FC Amount of Fall Clearance required below the working surface
MA Maximum Anchorage System Deection
ALanyard Length
BDeployment Distance
Deployment Distance should always be 4.0 ft. (1.2 m) or less. For ANSI/OSHA lanyards with Free
Fall Distance values of 6.0 ft. (1.8 m) to 12.0 ft. (3.7 m), or for user weights of 310 lb. (140 kg)
to 420 lb. (191 kg), add an additional 1.0 ft. (0.3 m) to Deployment Distance.
CEstimated Harness Stretch
HDistance from Dorsal D-Ring to Toes; typically 1.5 m (5.0 ft.)
SF Safety Factor; 0.6 m (2.0 ft.)

17
• Hazards: Use of this equipment in areas where surrounding hazards exist may require additional precautions to reduce the
possibility of injury to the user or damage to the equipment. Hazards may include, but are not limited to: high heat, caustic
chemicals, corrosive environments, high voltage power lines, explosive or toxic gases, moving machinery, or overhead materials
that may fall and contact the user or fall arrest system. Avoid working where your Lanyard may cross or tangle with that of
another worker. Avoid working where an object may fall and strike the Lanyard; resulting in loss of balance or damage to the
Lanyard. Do not allow the Lanyard to pass under arms or between legs.
• Sharp Edges: Sharp edges the Lanyard lifeline can contact during a fall must have a minimum radius of 0.125 in (0.3
cm). Where contact with a sharp edge is unavoidable, cover the edge with a protective material.
2.0 SYSTEM REQUIREMENTS
2.1 FALL PROTECTION AND RESCUE PLAN: The employer must have a Fall Protection and Rescue Plan in place. The
plan should provide guidelines and requirements for an employer’s managed fall protection program, including policies,
duties and training; fall protection procedures; eliminating and controlling fall hazards; rescue procedures; incident
investigations; and evaluating program effectiveness.
2.2 INSPECTION FREQUENCY: Lanyards shall be inspected by the worker1 before each use. Additionally, inspections shall be
conducted by a Competent Person2 other than the user. Extreme working conditions (harsh environment, prolonged use,
etc.) may necessitate more frequent competent person inspections. The competent person shall determine appropriate
inspection intervals. Inspection procedures are described in the Inspection & Maintenance Log (Table 2). Results of
the Competent Person inspection should be recorded in the Inspection and Maintenance Log or recorded with the Radio
Frequency Identification (RFID) system.
2.3 BODY SUPPORT: A Full Body Harness must be used with the lanyard. The harness connection point must be above the user’s
center of gravity. A body belt is not authorized for use with Energy-Absorbing Lanyards. If a fall occurs when using a body belt,
it may cause unintentional release or physical trauma from improper body support.
2.4 COMPATIBILITY OF COMPONENTS: Unless otherwise noted, 3M equipment is designed for use with 3M approved
components and subsystems only. Substitutions or replacements made with non approved components or subsystems may
jeopardize compatibility of equipment and may affect safety and reliability of the complete system.
2.5 COMPATIBILITY OF CONNECTORS: Connectors are compatible with connecting elements when the size and shape of
either component does not cause the connector to inadvertently open, regardless of orientation. Connectors must comply
with applicable standards. Connectors must be fully closed and locked during use.
3M Connectors (snap hooks and carabiners) are designed to be used only as specied in each instruction manual. Ensure
connectors are compatible with the system components to which they are connected. Do not use equipment that is non-
compatible. Use of non-compatible components may cause the connector to unintentionally disengage (see Figure 6). If
the connecting element to which a connector attaches is undersized or irregular in shape, a situation could occur where
the connecting element applies a force to the gate of the connector (A). This force could then cause the gate to open (B),
disengaging the connector from the connecting element (C).
2.6 MAKING CONNECTIONS: Making Connections: All connections must be compatible in size, shape, and strength. See
Figure 7 for examples of inappropriate connections. Do not attach snap hooks and carabiners:
A. To a D-ring to which another connector is attached.
B. In a manner that would result in a load on the gate. Large-throat snap hooks should not be connected to standard-
size D-Rings or other connecting elements, unless the snap hook has a gate strength of 16 kN (3,600 lbf) or greater.
C. Directly to webbing or rope lanyard or tie-back material, unless the instruction manuals for both the lanyard and
connector specically allow such a connection.
D. To each other.
E. Directly to webbing or rope lanyard or tie-back (unless the manufacturer’s instructions for both the lanyard and
connector specically allows such a connection).
F. To any object whose size or shape does not allow the connector to fully close and lock, or that could cause connector
roll-out.
G. In a manner that does not allow the connector to align properly while under load.
1 Worker: Any person wo is protected from falling by an active Fall Protection system; or, in the case of a Fall Arrest system, any person who
might fall while attached to the system.
2 Competent Person: An individual designated by the employer to be responsible for the immediate supervision, implementation, and
monitoring of the employer’s managed fall protection program who, through training and knowledge, is capable of identifying, evaluating,
and addressing existing and potential fall hazards, and who has the employer’s authority to take prompt corrective action with regard to such
hazards.

18
3.0 INSTALLATION AND ADJUSTMENT
3.1 PLANNING: Plan your Fall Protection system before starting your work. Account for all factors that may affect your safety
before, during, and after a fall. Consider all requirements and limitations dened in Section 1.
3.2 ANCHORAGE CONNECTION: Figure 8 illustrates connection of the Lanyard to various anchorage options. Select an
anchorage location with minimal free fall and swing fall hazards. Select a rigid anchorage point capable of sustaining the static
loads dened in Section 1. Where anchoring overhead is not feasible, the Lanyard may be secured to an anchorage point below
the level of the user’s Dorsal D-Ring, but must not be anchored below the worker’s feet.
The anchorage end of the Lanyard is congured with various Hook, Tie-Back, and Rope Grab options for attaching to
anchorage:
• Hook Connection: Figure 8A shows connection to rebar with the Lanyard’s Rebar Hook. Figure 8B shows connection
to a Tie-Off Adapter choked around an I-Beam with the Lanyard’s Snap Hook. See Section 2 for details regarding
connector compatibility and proper connection.
• Tie-Back Connection: Figure 8C shows tie-back around a piece of angle iron with a Tie-Back Lanyard. Secure the
Tie-Back Lanyard around the anchorage structure as illustrated in Figure 10:
1. Hang the leg of the Tie-Back Lanyard over the anchorage structure without twisting the Lanyard. Adjust the
Floating D-Ring (A) so it hangs below the anchorage structure. Secure the Lanyard Snap Hook on the Floating
D-Ring. Ensure the Lanyard is cinched tight around the anchorage structure.
2. Do not allow the Snap Hook Gate (B) to contact the anchorage structure.
3.3 HARNESS CONNECTION: Lanyards must be used with a Full Body Harness. For Fall Arrest applications, connect the
energy absorber end of the Energy-Absorbing Lanyard to the Dorsal D-Ring on the Harness (see Figure 8). Refer to the
instructions included with your harness for other Fall Protection applications and recommended harness connections.
Some Lanyard models are equipped with a Choker Loop that chokes on to the Harness D-Ring or Web Loop (see Figure 9).
To choke the lanyard on to the Harness D-Ring or Web Loop:
1. Insert the Lanyard Web Loop through the Web Loop or D-Ring on the Harness.
2. Insert the appropriate end of the Lanyard through the Lanyard Web Loop.
3. Pull the Lanyard through the connecting Web Loop to secure.
;Self-Retracting Devices: Do not connect a Lanyard, Energy-Absorbing Lanyard, or Energy Absorber to a Self-
Retracting Device (SRD). Special applications exist where connection to an SRD may be permissible. Contact 3M
Technical Services with any questions or concerns.
3.4 LANYARD ADJUSTMENT: Some Lanyard models are equipped with an Adjuster to shorten or lengthen the Lanyard
Leg(s) and eliminate Lanyard slack. Keeping the Lanyard taut reduces the chance of tripping on the Lanyard or snagging
the Lanyard on surrounding objects.
• Buckle Adjuster (Figure 11): To adjust the length of the Lanyard Leg:
1. Slide the Loop Keeper (A) away from the Buckle Adjuster (B).
2. Slide the Buckle Adjuster up or down the webbing to shorten or lengthen the Lanyard Leg.
3. Slide the Loop Keeper back to secure the webbing and Buckle Adjuster.
4.0 USE
;First time or infrequent users of Lanyards should review the “Safety Information” at the beginning of this manual prior to
use of the Lanyard.
4.1 BEFORE EACH USE: Verify that your work area and Fall Protection system meet all criteria dened in these instructions.
Verify that a formal Rescue Plan is in place. Inspect the product per the ‘User’ inspection points dened in the “Inspection and
Maintenance Log”. If inspection reveals an unsafe or defective condition, or if there is any doubt about its condition for safe use,
remove the product from service immediately. Clearly tag the product “DO NOT USE”. See Section 5 for more information.
4.2 AFTER A FALL: If the product is subjected to fall arrest or impact force, remove the product from service immediately.
Clearly tag the product “DO NOT USE”. See Section 5 for more information.
4.3 SYSTEM APPLICATIONS: Figure 8 shows system connections for typical Lanyard applications. If using an Energy-
Absorbing Lanyard, always connect the end of the lanyard with the energy absorber to the Full Body Harness rst and
then connect the leg end to suitable anchorage. See Section 3 for details regarding harness and anchorage connection.
4.4 LANYARD PARKING ATTACHMENT: Figure 12 illustrates Harness Lanyard Parking Attachments. The Lanyard Parking
Attachment is for attaching the free end of a Lanyard Leg when not connected to an Anchorage Connection Point for
purposes of fall protection. Lanyard Parking Attachments must never be used as an attachment element on the Harness
for connecting a Lanyard (A).
When not connected to an Anchorage Connection Point, an unconnected Lanyard Leg must be properly parked on the
harness (B) or secured in the user’s hand as in 100% Tie-Off applications (C). Free-hanging Lanyard Legs (D) can trip the
user or catch on surrounding objects resulting in a fall.
4.5 TWIN LANYARD INTERFACE 100% TIE-OFF: Twin-Leg Lanyards can be used for continuous fall protection (100%
tie-off) while ascending, descending, or moving laterally (see Figure 13). With one Lanyard Leg attached to an anchorage

19
point, the worker can move to a new location, attach the unused Lanyard Leg to another anchorage point, and then
disconnect from the original anchorage point. The sequence is repeated until the worker reaches the desired location.
See Figure 14 for Twin-Leg Lanyard 100% tie-off applications. Considerations for Twin Lanyard 100% tie-off applications
include the following:
• Never connect both Lanyard Legs to the same anchorage point (see Figure 14A).
• Connecting more than one connector into a single anchorage connection point (ring or eye) can jeopardize
compatibility of the connection due to interaction between connectors and is not recommended.
• Connection of each Lanyard Leg to a separate anchorage point is acceptable (Figure 14B).
• Each connection location must meet the Anchorage Requirements dened in Section 1.
• Never connect more than one person at a time to the Twin Leg Lanyard (Figure 14C).
• Do not allow the Lanyard Legs to become tangled or twisted together as this may prevent them from retracting.
• Do not allow Lanyard Legs to pass under arms or between legs during use.
5.0 INSPECTION
;After equipment has been removed from service, it may not be returned to service until a Competent Person conrms in
writing that it is acceptable to do so.
5.1 INSPECTION FREQUENCY: The product shall be inspected before each use by the user and, additionally, by a
Competent Person other than the user at intervals of no longer than one year. A higher frequency of equipment use
and harsher conditions may require increasing the frequency of Competent Person inspections. The frequency of these
inspections should be determined by the Competent Person per the specic conditions of the worksite.
5.2 INSPECTION PROCEDURES: Inspect this product per the procedures listed in the “Inspection and Maintenance Log”.
Documentation of each inspection should be maintained by the owner of this equipment. An inspection and maintenance
log should be placed near the product or be otherwise easily accessible to users. It is recommended that the product is
marked with the date of next or last inspection.
5.3 DEFECTS: If the product cannot be returned to service because of an existing defect or unsafe condition, then it must be
destroyed.
5.4 PRODUCT LIFE: The functional life of the product is determined by work conditions and maintenance. As long as the
product passes inspection criteria, it may remain in service.
6.0 MAINTENANCE, SERVICE, and STORAGE
;Equipment that is in need of maintenance or scheduled for maintenance should be tagged “DO NOT USE”. These
equipment tags should not be removed until maintenance is performed.
6.1 CLEANING: Cleaning procedures for Lanyards are as follows:
• Periodically clean the exterior of the Lanyard using water and a mild soap solution. Position the Lanyard so excess
water can drain out. Clean labels as required.
• Clean the Web Lifeline with water and mild soap solution. Rinse and thoroughly air dry. Do not force dry with heat.
The lifeline should be dry before allowing it to retract into the housing. An excessive buildup of dirt, paint, etc. may
prevent the lifeline from fully retracting back into the housing causing a potential free fall hazard.
6.2 SERVICE: Lanyards are not repairable. If the Lanyard has been subjected to fall force or if inspection reveals an unsafe or
defective condition, remove the Lanyard from service and discard.
6.3 STORAGE AND TRANSPORT: Store and transport Lanyards in a cool, dry, clean environment out of direct sunlight.
Avoid areas where chemical vapors may exist. Thoroughly inspect the Lanyard after any period of extended storage.
7.0 LABELS and MARKINGS
7.1 LABELS: Figure 20 illustrates labels present on the models covered by this instruction, as well as which labels are present
on which models. All labels must be present on any applicable models. Labels must be replaced if they are not fully
legible.

20
Table 2 – Inspection & Maintenance Log
Serial Number(s): Date Purchased:
Model Number: Date of First Use:
Inspected By: Inspection Date:
Component: Inspection:
Before
Each Use
Competent
Person
End Connectors
(Figure 15)
Inspect Snap Hooks, Carabiner, Rebar Hooks, D-Rings, etc. for signs of damage,
corrosion, and proper working condition. Where present: Carabiner and Snap Hook
Gates (A) should open, close, lock, and unlock properly. Inspect Rope Grabs (B) per
the instructions included with the Rope Grab or Vertical Lifeline. D-Rings (C) should be
inspected for cracks, bending, deformities, and other signs of damage.
Web Lanyards
Webbing and Stitching
(Figure 16)
Inspect webbing; material must be free of cuts (A), frays (B), or broken bers. Check
for tears, abrasions, heavy soiling (C), mold, burns (D), or discoloration. Inspect
stitching; Check for pulled or cut stitches. Broken stitches may be an indication that the
harness has been impact loaded and must be removed from service.
Cable Lanyards
Wire Rope
(Figure 17)
Inspect wire rope for cuts, kinks (A), broken wires (B), bird-caging (C), welding
splatter, (D) corrosion, chemical contact areas, or severely abraded areas. Slide the
cable bumper up and inspect ferrules for cracks or damage and inspect the wire rope
for corrosion and broken wires. Replace the wire rope assembly if there are six or more
randomly distributed broken wires in one lay, or three or more broken wires in one
strand in one lay. A “lay” of wire rope is the length of wire rope it takes for a strand
(the larger groups of wires) to complete one revolution or twist along the rope. Replace
the wire rope assembly if there are any broken wires within 1 inch (25 mm) of the
ferrules.
Energy Absorber
(Figure 19) Verify that the integral Energy Absorber has not been activated. An open cover (A) or
torn cover (B), webbing pulled out of the cover (C), torn or frayed webbing (D), and
ripped or missing stitching (E). are indicators of an activated Energy Absorber.
Tubular Web
Impact Indicator Label
(Figure 18)
Inspect Tubular Web Lanyards for impact indication. If the webbing is torn, revealing
the Impact Indicator Label, the Lanyard has experienced impact loading and must be
removed from service and destroyed.
Labels (Figure 20) All labels should be present and fully legible.
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
Corrective Action/Maintenance: Approved By: Next inspection due:
Date:
