Register your stethoscope at www.littmann.com
GB English................................................................................................................pp. 1-24
FR Français ............................................................................................................pp. 25-48
DE Deutsch.............................................................................................................pp. 49-72
IT Italiano..............................................................................................................pp. 73-96
ES Español ...........................................................................................................pp. 97-120
NL Nederlands....................................................................................................pp. 121-145
SE Svenska ........................................................................................................pp. 146-169
DK Dansk............................................................................................................pp. 170-192
NO Norsk ............................................................................................................pp. 193-216
FI Suomenkielinen.............................................................................................pp. 217-239
PT Portugês........................................................................................................pp. 240-265
GR Eλληνικά. .........................................................................................................pp. 266-288

1
GB English
3M™ Littmann® Electronic Stethoscope
Model 3200
With Ambient Noise Reduction
Introduction
Congratulations and thank you for choosing the 3M™ Littmann® Electronic Stethoscope Model 3200.
The Model 3200 brings you the very latest in advanced auscultation and wireless electronics technology in a highly
ergonometric and easy-to-use format.
The Model 3200’s combination of Ambient Noise Reduction technology, frictional noise dampening materials, electronic
amplification (conventional bell / diaphragm modes plus an extended range mode), Bluetooth®data transfer, and an all-new
user interface takes you to the next level of performance and ease of use.
Whether you are auscultating infant, pediatric or adult patients, in quiet or noisy environments, or picking up difficult-to-hear
heart and body sounds, you’ll appreciate the technology that’s been built into this latest electronic stethoscope bearing the
Littmann® brand.
Don’t miss the sounds you need to hear!
SAFETY INFORMATION
Please read, understand, and follow all safety information contained in these instructions prior to using this electronic
stethoscope. Retain these instructions for future reference.
U.S.A. ONLY
Caution: Federal law restricts this device to sale by or on the order of a physician.
Explanation of Safety Related Labels and Symbols
Indicates Type B Equipment: The equipment provides protection against electrical shock and electrical
current leakage. Applied parts are considered to be the complete chestpiece with diaphragm and binaural.
Consult instructions for use.
IPX4 Protected against splashing liquid (chestpiece only).
This product contains electrical and electronic components and must not be disposed of using standard
refuse collection. Please consult local directives for disposal of electrical and electronic equipment.
This product and packaging does not contain natural rubber latex.
Indicates Category AP Equipment. Tested for use with flammable anesthetic mixture with air.
AP

2
GB English
Explanation of Signal Word Consequences
CAUTION: Indicates a hazardous situation, which, if not avoided, could result in minor injury and/or property
damage.
NOTICE: Indicates a hazardous situation, which, if not avoided, may result in property damage.
CAUTION
•To reduce the risks associated with infection follow all cleaning and disinfecting instructions included in this
manual. Establish and follow a cleaning and disinfecting schedule.
•To reduce the risks associated with very strong electromagnetic fields avoid using the stethoscope near
strong radio frequency signals or portable and/or mobile RF devices. If you hear sudden or unexpected sounds,
move away from any radio transmitting antennas.
•To reduce the risks associated with sharp edges make sure that the soft sealing eartips are snapped firmly
into position as shown in this manual. Use only Littmann replaceable eartips.
•To reduce the risks associated with an incorrect result store and operate this stethoscope only as instructed
in this manual. As there is no acoustic (non-amplified) mode available with this stethoscope, replace the battery
within two hours of the battery life icon beginning to flash in the LCD display. Replace battery with only type AA.
Also, do not immerse the stethoscope in a liquid or subject it to any sterilization processes.
•To reduce the risk associated with an electrical shock do not use the stethoscope on patients without the
stethoscope’s diaphragm cover in place.
•The Model E3200 Electronic Stethoscope contains a Bluetooth Class 2 wireless data link. This radio
frequency data link operates at a frequency of 2.4 GHz using GFSK modulation and with a maximum transmit
power of 2.5 mW (0.00250 watts). The maximum radio frequency field strength generated by the stethoscope
is below three volts per meter, a level that is considered safe to use with other medical devices. However, if
electromagnetic interference is encountered due to the Bluetooth wireless data link, immediately move the
stethoscope away from that device and/or turn the Bluetooth feature OFF.
NOTICE
•To reduce the risks associated with environmental contamination follow applicable regulations when
disposing of this stethoscope. Properly dispose of, or recycle, spent batteries.
•No modification of this equipment is allowed. Use only authorized 3M service personnel to repair this
stethoscope. Read, understand, and follow all the safety information on the battery package.

3
GB English
EMC Compliance
FCC Intentional Radiator Certification
3M Littmann Electronic Stethoscope Model 3200
FCC ID: DGFIPD3200
This equipment contains an intentional radiator approved by the FCC under the FCC ID numbers shown above. This device
complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesirable operation.
NO MODIFICATION: Modifications to this device shall not be made without the written consent of the 3M Company.
Unauthorized modifications may void the authority granted under Federal Communications Commission rules permitting the
operation of this device.
Industry Canada radio frequency rules and regulations
IC: 458A-IPD3200
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
EMC compliance Europe
This equipment complies with the EMC requirements of the IEC 60601-1-2.
Intended Use
The 3M™ Littmann® Electronic Stethoscope Model 3200 is intended for medical diagnostic purposes only. It may be used
for the detection and amplification of sounds from the heart, lungs, arteries, veins, and other internal organs with the use of
selective frequency ranges. It can be used on any person undergoing a physical assessment.
Operator Profile
The 3M™ Littmann® Electronic Stethoscope Model 3200 is designed to be used by anyone who wishes to listen to sounds
as described in the Intended Use section above. This manual provides complete information on how to operate the Model
3200 so that no additional operating training is required.
Functional Description
The 3M™ Littmann® Electronic Stethoscope Model 3200 picks up sounds, such as heart and lung sounds, from a patient’s
body. After amplification and filtering, the sounds are sent to the user through a binaural headset. The stethoscope chestpiece
is designed for use with adult, pediatric, and infant patients.
The user interface for the stethoscope includes a 5-button keypad and an LCD display. Sound processing is carried out
with the aid of a digital signal processor. Stethoscope power is provided by a single AA battery in the chestpiece. A power
management system is included to prolong battery life. Using its Bluetooth wireless link, the stethoscope can exchange audio
data with an external device such as a personal computer (PC).

4
GB English
Serial Number
Each 3M™ Littmann® Electronic Stethoscope Model 3200 comes with a unique serial number on the chestpiece for easy
identification. Please record your serial number in this manual for future reference: ____________________________
INSTRUCTIONS FOR USE
1. Insert Battery
Insert AA battery (provided in package) into Stethoscope.
1. Hold chestpiece in one hand while slightly twisting the battery cap
approximately 25º counter-clockwise. Remove battery cap.
2. Insert new battery with positive end out (plus sign will be visible in
the battery compartment).
3. Remount battery cap, twisting cap approximately 25º clockwise
until locked.
4. Make sure the two marks are aligned.
2. Position Headset
Eartips should point in a forward direction as you insert them into your ear canals. When ear tips are properly positioned,
diaphragm will face towards your body.
Your new 3M™ Littmann® Electronic Stethoscope Model 3200 is designed to give you
a very comfortable, acoustically sealed fit. It comes with two sizes of eartips to assure a
perfect fit. The large eartips are pre-installed. Smaller eartips are included in package.
Please choose the set that is most comfortable for you.
To remove eartips, pull eartips firmly away from eartube. To apply new eartips, push eartip firmly onto eartube to secure.
+
_

5
GB English
3. Adjust Headset for Comfort
To reduce spring tension in the headset, hold each eartube at the bend near the eartips and
gradually pull apart until fully extended (180 degrees).
To increase spring tension, grasp the headset with one hand where the metal eartubes
enter the plastic tubing, and squeeze until the plastic tubing on one eartube touches the other.
Repeat as necessary.
4. Turn On / Off
This stethoscope comes equipped with an advanced power management system.
•Manual Turn On: Depress and release power button. LCD display will activate, indicating stethoscope is on.
•Manual Turn Off: Depress and hold power button for two seconds. LCD display will shut off, indicating stethoscope
is off.
•Auto Off with Standby Feature: After manual turn-on, stethoscope will stay on during use, but switch to a power-
saving “standby” mode after 20 seconds of inactivity. LCD display will display the Littmann® logo during standby
mode. When stethoscope diaphragm or any button is pressed, LCD display settings will reappear and stethoscope
will be ready to use. After two hours of non-use, the stethoscope will leave standby mode and fully power off. You
may customize on-time and off-time to meet your own personal needs. See Custom Configuration section below.
•LCD Display Backlight: Backlight options are available for use at low ambient light levels. By default, depressing
and releasing the power button at any time will illuminate the LCD display for 5 seconds.
Reduce Tension Increase Tension
Reduce Tension Increase Tension

6
GB English

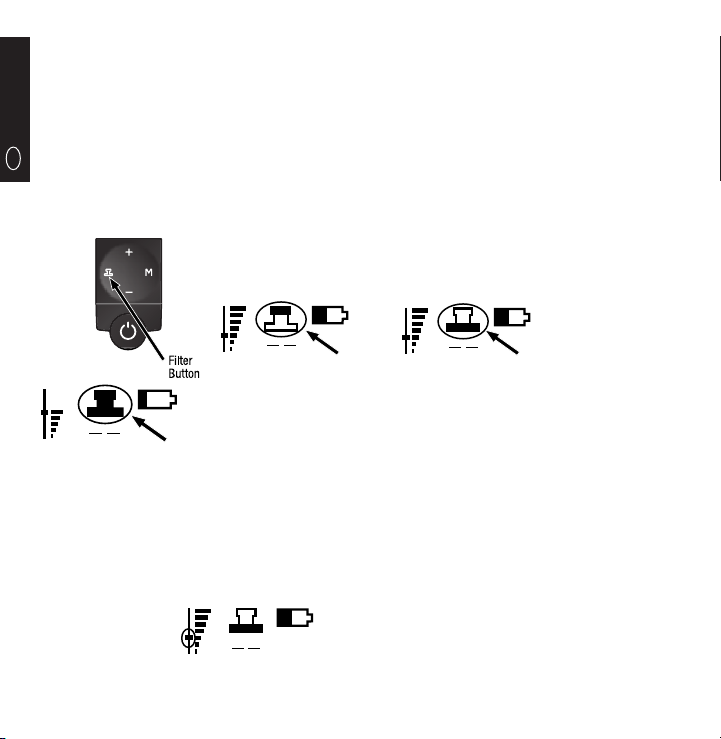

5. Select Filter
This electronic stethoscope allows the user to select between three different digital frequency filters to better emphasize the
specific patient sounds of interest.
• The Bellmode amplifies sounds from 20 - 1000Hz, but emphasizes lower frequency sounds between 20 - 200Hz.
• The Diaphragm mode amplifies sounds from 20 - 2000Hz, but emphasizes the sounds between 100 - 500Hz.
• The Extended Range mode amplifies sounds from 20 - 2000Hz similar to the Diaphragm Mode, but provides more
low frequency response between 50 - 500Hz.
The default setting is the Diaphragm filter. Instructions for changing the default filter setting are given in the Custom
Configuration section below.
To select filter: Depress and release filter button (as shown in diagram) until desired filter mode appears on the LCD display.
6. Adjust Sound Amplification Level
The Model 3200 sound level can be amplified in 8 increments up to 24X amplification of a non-electronic (cardiology-level)
stethoscope. Level 1 is equal to a non-electronic stethoscope. Level 9 is equal to 24X amplification of a non-electronic
stethoscope. The greater the amplification, the more bars you will see.
A default start-up amplification level can be set using the instructions provided in the Custom Configuration section below.
The default setting is marked by the box on the vertical bar shown in the volume icon in the LCD display. The illustration
shows a default amplification setting at Level 3.
•Increase Amplification: Press ( +) button until desired amplification level is achieved
•Decrease Amplification: Press ( - ) button until desired amplification level is achieved
Bell
Mode
Icon
Diaphragm
Mode
Icon
Extended
Range Mode
Icon

7
GB English
7. Monitor Patient Heart Rate
The Model 3200 detects and displays an acoustic-based heart rate when presented with consistent heart sounds (heart rate
variation < 10%). It takes five seconds to compute the initial heart rate and updates are provided every two seconds. The
heart rate will then be displayed for 10 seconds after removal of the chestpiece from the patient. Prior to the initial reading,
the display shows two dashes (--). For heart rates outside a range of 30-199 bpm, the display will also show two dashes (--).
The acoustic-based heart rate display functions best when the Model 3200 is placed near the apex of the patient’s heart and
can be monitored while using any filter mode and/or volume level. If the heart rate changes from consistent to inconsistent or
if there is excessive ambient noise, patient movement or lung sounds during auscultation, the heart rate display number will
display two dashes (--).

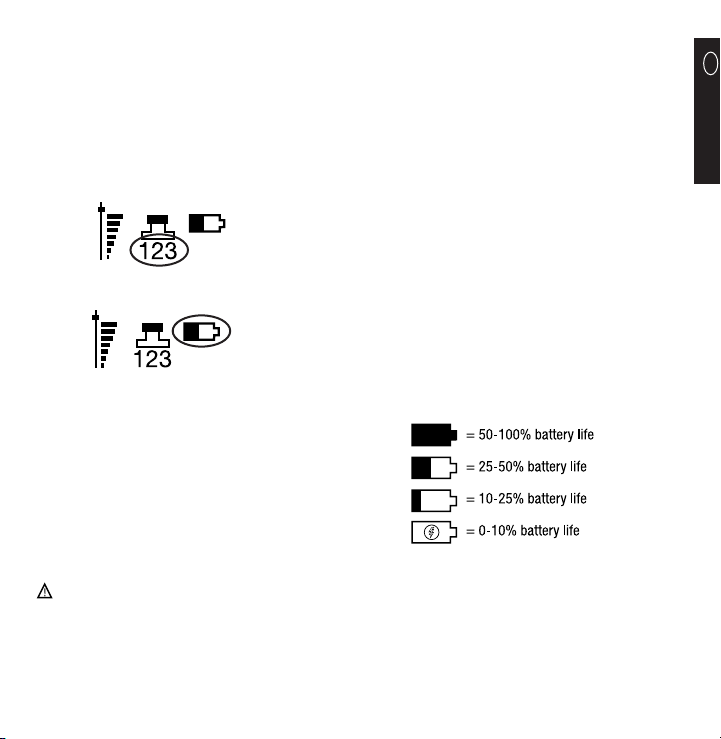

8. Monitor Battery Life
Battery life is indicated by an icon in the LCD display.
The Model 3200 comes with a AA Alkaline battery. Battery will provide approximately 50-60 hours of continuous use,
depending on the frequency of Bluetooth data transfers. In a typical clinical setting, this represents about three months of
use.
As the battery life depletes, the icon will change as follows:
The battery icon begins to blink when only a few hours of battery capacity remains.
CAUTION: When the battery is completely depleted the scope becomes inoperable. No sound will be transmitted without
a functioning battery.
IMPORTANT! NiMH (rechargeable) and Lithium batteries may also be used in the Model 3200. However, battery type must be
specified to ensure a reliable battery life indication (see Custom Configuration section below).

8
GB English
9. Custom Configuration
The Model 3200 has several operational settings that can be changed using its configuration menu system. Within this menu
system, the (+) and (-) buttons are used for scrolling and the (M) button is used for selecting options. The Filter button acts as
an escape key, used for returning to the previous menu or to the operating mode of the stethoscope.
To access the Main menu: Depress and release the (M) button. The Main menu will be displayed (NOTE: Only 3 options will
be visible at a time. All options can be viewed in sequence upon scrolling with either the (+) or (-) buttons):
To enter the Setup Menu: Use the (-) button to scroll down the list of Special Functions until SETUP is highlighted. Select the
SETUP option by pressing and releasing the (M) button. This will display the following menu:

9
GB English
To select the power setting: Select the POWER option in the SETUP menu. Use the (-) and (+) buttons to scroll through the
list of power settings. Press and release the (M) button to select a setting.
The power settings provide different degrees of power consumption. In general, the longer the stethoscope remains in
an active mode, the greater its power consumption. The factory default is the MEDIUM level. (NOTE:The Auto Off power
management feature is further described below).
To select the battery type: Select the BATTERY option in the Setup menu. Use the (-) and (+) buttons to scroll through the
list of battery types. The LITHIUM battery is a non-rechargeable cell especially recommended for low-temperature operation
of the stethoscope. The NIMH battery is rechargeable (external charger required). Press and release the (M) button to select a
setting. The factory default is the ALKALINE battery.

10
GB English
To specify the preset (default) volume level: Select the SET VOL option in the SETUP menu. Press and release the (M)
button to select the current volume level as default. The factory default is level 3.
To specify the preset (default) filter setting: Select the SET FLTR option in the SETUP menu. Press and release the (M)
button to select the current filter as default. The factory default is the diaphragm filter.
To select the backlight setting: Select the BACKLITE option in the SETUP menu. Use the (-) and (+) buttons to scroll
through the list of options. Press and release the (M) button to select. The factory default is ALWAYS. The ALWAYS option will
illuminate the backlight at all times at a reduced level while the stethoscope is powered on and not in standby mode. The ON
DMND option will illuminate the backlight for five seconds by depressing and releasing the power button. The DISABLE option
disables the backlight at all times and will conserve power.

11
GB English
To select auto off power management: Select the AUTO OFF option in the SETUP menu. Use the (-) and (+) buttons to scroll
through the list of options. Press and release the (M) button to select. The factory default is ENABLE.
Two different settings work together to influence the length of time the Model 3200 is on full power: The AUTO OFF setting
(ENABLE vs. DISABLE) and the POWER setting (HIGH, MEDIUM, and LOW - HIGH setting uses more battery power, LOW setting
uses less battery power). To increase battery life, ENABLE the AUTO OFF feature and select the LOW power setting.
When the AUTO OFF feature is enabled, the stethoscope will enter standby mode after a period of time determined by the
POWER setting if there is no contact detected on the diaphragm AND the buttons are not activated. When the AUTO OFF
feature is disabled, the stethoscope will enter standby mode after a period of time determined by the POWER setting from
the last button activation. In addition, when the AUTO OFF feature is disabled, there will be an audible alert 10 seconds prior
to entering standby mode. After entering standby mode, the Model 3200 will be powered on when contact is detected on the
diaphragm or by button activation. Otherwise, the Model 3200 will completely power off after the period of time determined
by the POWER setting (see below).
With AUTO OFF feature ENABLED:
SETUP Options Detail
POWER HIGH Remains on full power for 30 seconds before entering standby
Remains in standby for 5 hours before powering off
Backlight remains lit for 5 seconds after pressing the power button
MEDIUM Remains on full power for 20 seconds before entering standby
Remains in standby for 2 hours before powering off
Backlight remains lit for 5 seconds after pressing the power button
LOW Remains on full power for 10 seconds before entering standby
Remains in standby for 30 minutes before powering off
Backlight remains lit for 3 seconds after pressing power button

12
GB English
With AUTO OFF feature DISABLED:
SETUP Options Detail
POWER HIGH Remains on full power for 7 minutes before entering standby
Remains in standby for 5 hours before powering off
Backlight remains lit for 5 seconds after pressing power button
MEDIUM Remains on full power for 5 minutes before entering standby
Remains in standby for 2 hours before powering off
Backlight remains lit 5 seconds after pressing power button
LOW Remains on full power for 3 minutes before entering standby
Remains in standby for 30 minutes before powering off
Backlight remains lit 3 seconds after pressing power button
To select the number of filter modes: Select the FILTERS option in the SETUP menu. Use the (-) and (+) buttons to scroll
through the list of options. With option “2”, the FILTER button cycles between two filters modes (bell and diaphragm). With
option “3”, the FILTER button cycles through three filter modes (bell, diaphragm, and extended range). Press and release the
(M) button to select. The factory default is “3” filters.

13
GB English
To specify Bluetooth mode: Select the BT COMM option in the SETUP menu. Use the (-) and (+) buttons to scroll through the
list of options. The MANUAL option means that the Bluetooth link can be used for data transfers but requires user activation.
The AUTO option means that the Bluetooth link is continuously powered and ready to connect to an external device which it
has been previously paired. Press and release the (M) button to select an option. The factory default is MANUAL.
To obtain model and software version information: Select the ID option in the SETUP menu. Use the (-) and (+) buttons to
scroll through the list of reference numbers. Press “M” to return to the operating mode of the stethoscope.
To leave the Main menu: Press the Filter button or press the (M) button to select the EXIT option. This will return the
stethoscope to its normal operating state.
10. Using the Bluetooth Interface
The Bluetooth interface provides a means of exchanging audio data with external devices such as a Bluetooth-enabled PC.
Audio data can be sent in near real time, permitting their visual presentation, recording, and analysis by applications software
complying with communication protocols used by the Model 3200.
IMPORTANT! The Model 3200 uses a Class 2 Bluetooth link, with a maximum range of 10m.The Bluetooth range will be
reduced when objects (walls, furniture, people, etc) are in-between the Model 3200 and the external device. To improve
Bluetooth communication, reduce the distance and/or allow a line of sight between the Model 3200 and the external device.

14
GB English
In order to transfer data between two Bluetooth devices, they must first be “paired” electronically. Pairing is a discovery and
authentication process that allows your Bluetooth equipped Model 3200 to communicate with another Bluetooth equipped
device and establishes the link between these two devices as a trusted pair. The pairing process requires user operations to
be performed on both the Model 3200 and the external device. While the Model 3200 can remember trusted pairing with up
to eight different Bluetooth devices, it will only communicate with one paired device at a time. In addition, you cannot pair a
Model 3200 with a second Model 3200.
How to pair the Model 3200 with an external device:
1. Initiate pairing process: On the Model 3200, depress and release the (M) button. The MAIN menu will be displayed.
Use the (-) button to scroll down to the PAIR option. Select this option by pressing and releasing the (M) button. The LCD
screen will signal that pairing is in progress with the following animated display:
During the pairing process the Model 3200 will make itself discoverable to other Bluetooth equipped devices.
Note: The Personal Identification Number (PIN) for Bluetooth pairing is displayed in the lower left-hand corner of the LCD
screen
2. Select Model 3200 on external Bluetooth device: Follow the pairing instructions found with your Bluetooth equipped
device. In general, you will need to make sure that the Bluetooth mode is enabled on the device, and once the Model
3200 has indicated the external device has been found, you may need to confirm the connection on the external
device. Please remember that the distance between the Model 3200 and the Bluetooth device is limited to no more
than 10 meters. If pairing is successful, the LCD display of the Model 3200 will show a flashing Bluetooth icon and
the stethoscope will be ready for wireless operations. Once the Model 3200 is connected to the external device, the
Bluetooth icon will stop flashing and be displayed continuously.
If the Bluetooth connection with the external device is subsequently lost or times out, the Bluetooth icon will disappear from
the LCD display.
Bluetooth ico
n
__

15
GB English
How to transfer real-time data to an external device:
1. Ensure the Model 3200 is paired with the external device.
2. Depress and release the (M) button. Select the CONNECT option by again pressing and releasing the (M) button. The LCD
screen will signal that the Bluetooth link is active. The stethoscope will automatically return to operational status. Consult
application software for details on initiating real-time transfer, the process may vary by computer platform utilized.
When connected by a Bluetooth link, external Bluetooth-enabled devices may take control of the display and keypad of the
Model 3200 stethoscope. The external device may also transfer audio playback or other information through the Model 3200
headset. When the external device transfers audio playback back to the stethoscope, the sounds will be preceded by a beep.
A Bluetooth connection with the stethoscope will automatically be ended if no data transfers occur in a 90 second period.
Alternatively, the connection can be manually ended using the DISCONN (disconnect) option of the Main menu. If you are
listening to the Model 3200 electronic stethoscope using its Bluetooth feature and you exceed the maximum communication
range of approximately 10 meters, you may hear a rapid series of beeps. Should this occur, shorten the physical distance
between your Model 3200 and the Bluetooth equipped device.

16
GB English
11. Onboard Recording
Onboard recording provides a means to acquire, play and upload 12 separate sound tracks, each a maximum of 30 seconds
in length. The sound tracks can be uploaded to an external device using the Bluetooth link and the software accompanying
the Model 3200 stethoscope.
How to record a sound track:
1. Enter the recording mode: Press and release the (M) button. The Main menu will be displayed. Press the (+) or (-)
button to scroll to the RECORD option. Press and release the (M) button.
2. Select the recording track: Press the (+) or (-) button to scroll to the desired sound track.
NOTE:
• A check mark is displayed if the particular sound track is currently occupied by a recording.
• A second check mark is displayed if a verbal comment has been recorded for that particular sound track (see
explanation below in section 5d).
• A padlock is displayed if the particular sound track is locked (see explanation below in section 5f). The padlock will
take the place of the first check mark.

17
GB English
3. Begin recording: If the sound track is unoccupied (no check marks or padlock), press and release the (M) button to
begin recording. The LCD screen will show a “recording” icon.
4. End recording: Press and release the (M) button again to end the recording. The recording icon will disappear from the
LCD display. If the time between the beginning and ending of the recording session is greater than 30 seconds, only the
last 30 seconds will be saved.
5. Other recording options: If a sound track has been previously recorded (noted by check mark or padlock) and it is
selected by pressing the (M) button, several options will be presented:
a. Exit: The EXIT option returns the stethoscope to the normal operating state.
b. Re-Rec: The RE-REC option allows you to re-record the sound track. The prior recording and its associated verbal
comment, if present, will be automatically deleted.
c. Play: The PLAY option allows you to listen to the recorded sound track. The recorded sound track will be preceded by
the verbal comment, if present, and the recording will automatically loop a maximum of 12 times. Press and release
the (M) button again to stop playing the recorded sound track.
d. Comment: The COMMENT option allows you to annotate the recorded sound track with a verbal comment. Press and
release the (M) button to select COMMENT and then speak into the chestpiece. Press and release the (M) button again
to stop recording the verbal comment. The verbal comment track has a maximum length of 10 seconds. Adding a
verbal comment to the sound track is optional.
e. Delete: The DELETE option allows you to delete the recorded sound track and its associated verbal comment.
f. Lock: The LOCK option is intended to prevent accidental deletion of the recorded sound track. Press and release the
(M) button to select the LOCK option. The DELETE, RE-REC, and COMMENT options will be disabled. To unlock the
recorded sound track, scroll to UNLOCK and press and release the (M) button. When a sound track is locked, a padlock
icon will appear next to the sound track in the RECORD and PLAY menus.

18
GB English
How to play back a sound track:
1. Begin playback: From the normal operating state of the Model 3200, press and release the (M) button to enter the Main
menu. Press the (+) or (-) button to scroll to the PLAY option. Press and release the (M) button to select. Press the (+) or
(-) button to scroll to the desired sound track. A check mark or padlock will appear next to the sound track if a recording
currently exists for that particular track. Press and release the (M) button to play the selected sound track.The LCD
screen will show a “play” icon. The recorded sound track will be preceded by the verbal comment, if present, and the
recording will automatically loop a maximum of 12 times.
2. End playback: Press and release the (M) button. The stethoscope will stop playing the sound track and return to the
PLAY menu.
Uploading a sound track to an external device:
1. Prepare the external device to receive the sound file: Start the software application on the external device. Consult
the software application for details.
2. Initiate a Bluetooth connection with the Model 3200: Use the same procedure as described above in Section 11 for
initiating Bluetooth data transfer to an external device.
3. Select the sound track: By default, the last sound track that was selected in either the Play or Record mode will be the
sound track that is uploaded. Only one sound track is uploaded at a time. To select a different sound track, press and
release the (M) button to enter the Main menu. Press the (+) or (-) button to scroll to the RECORD or PLAY option. Press
and release the (M) button. Press the (+) or (-) button to move the cursor to the desired sound track.
4. Transfer the sound track: Consult the software application for instructions on initiating real-time transfer.
5. Return to the operating mode: When transmission of the sound track is complete, the Bluetooth link to the external
device can be disconnected and the Model 3200 will return to the normal operating state.
12. Other Operating Considerations
Operating range is -22º to 104ºF (-30º to 40ºC), 15 to 93% relative humidity.
Storage and transport range is -40º to 131ºF (-40º to 55ºC), 15 to 93% relative humidity.
To extend the life of your stethoscope, avoid extreme heat, cold, solvents and oils. Remove the battery whenever the
stethoscope will not be used for several months.
If you plan to use the stethoscope below 0ºF (-18ºC) you should use a lithium battery to insure proper function.
