Touchswitch™
BELT MISALIGNMENT SENSOR
INSTALLATION INSTRUCTIONS
OPERATION MANUAL
BELT MISALIGNMENT SENSOR - PART NO. TS2V34AI
U.S. Patent #6,731,219
Other Patents Pending

CUSTOMER SAFETY RESPONSIBILITIES Page 4 - 5
PRODUCT OVERVIEW Page 6
SPECIFICATIONS Page 6
SPECIAL CONDITIONS FOR SAFE USE Page 6
DIMENSIONS Page 7
INSTALLATION Page 7
STANDARD WIRING Page 9
SENSOR PLACEMENT DIAGRAMS Page 11
- Determining Left & Right Side of Bucket Elevator Page 11

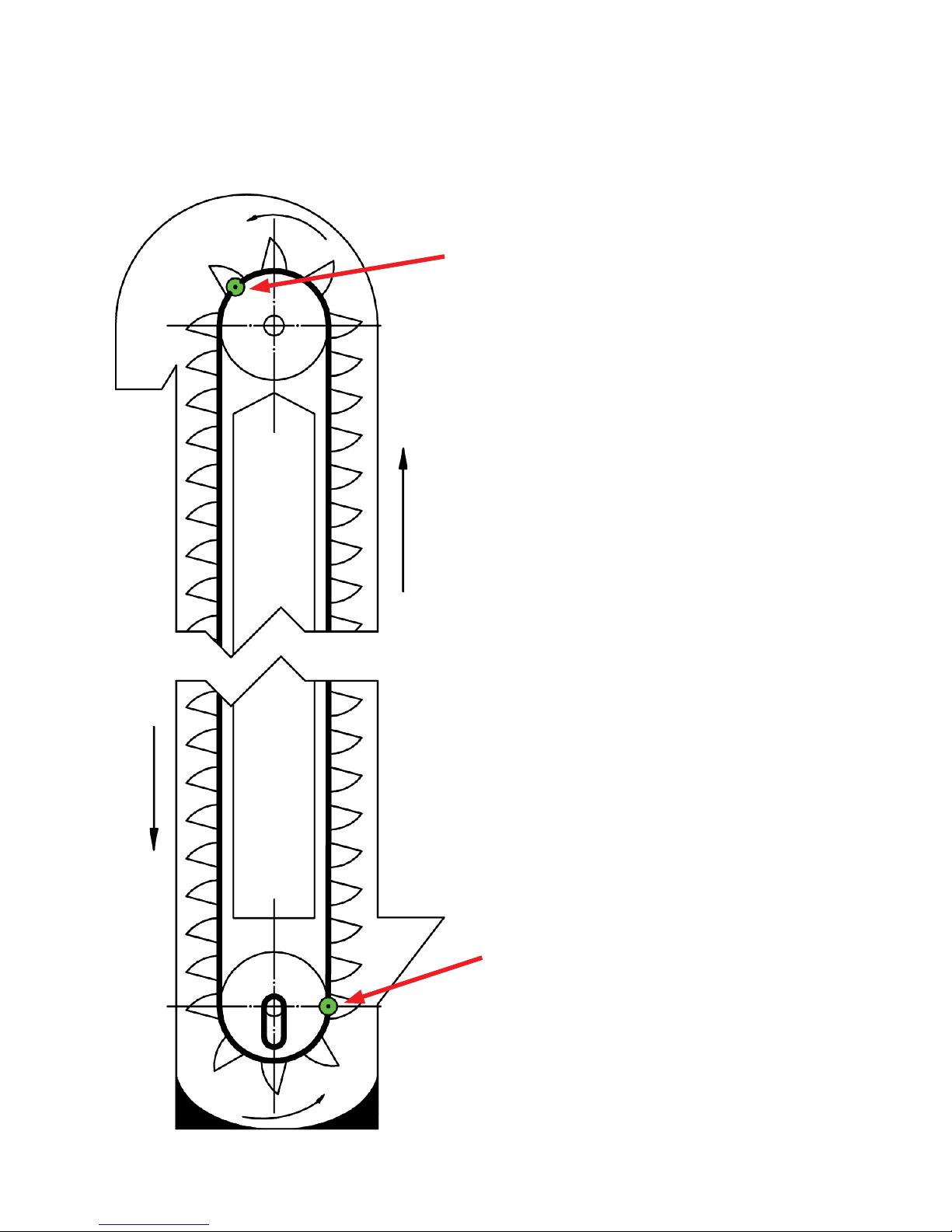

- Typical Mounting Positions on a Bucket Elevator Page 12

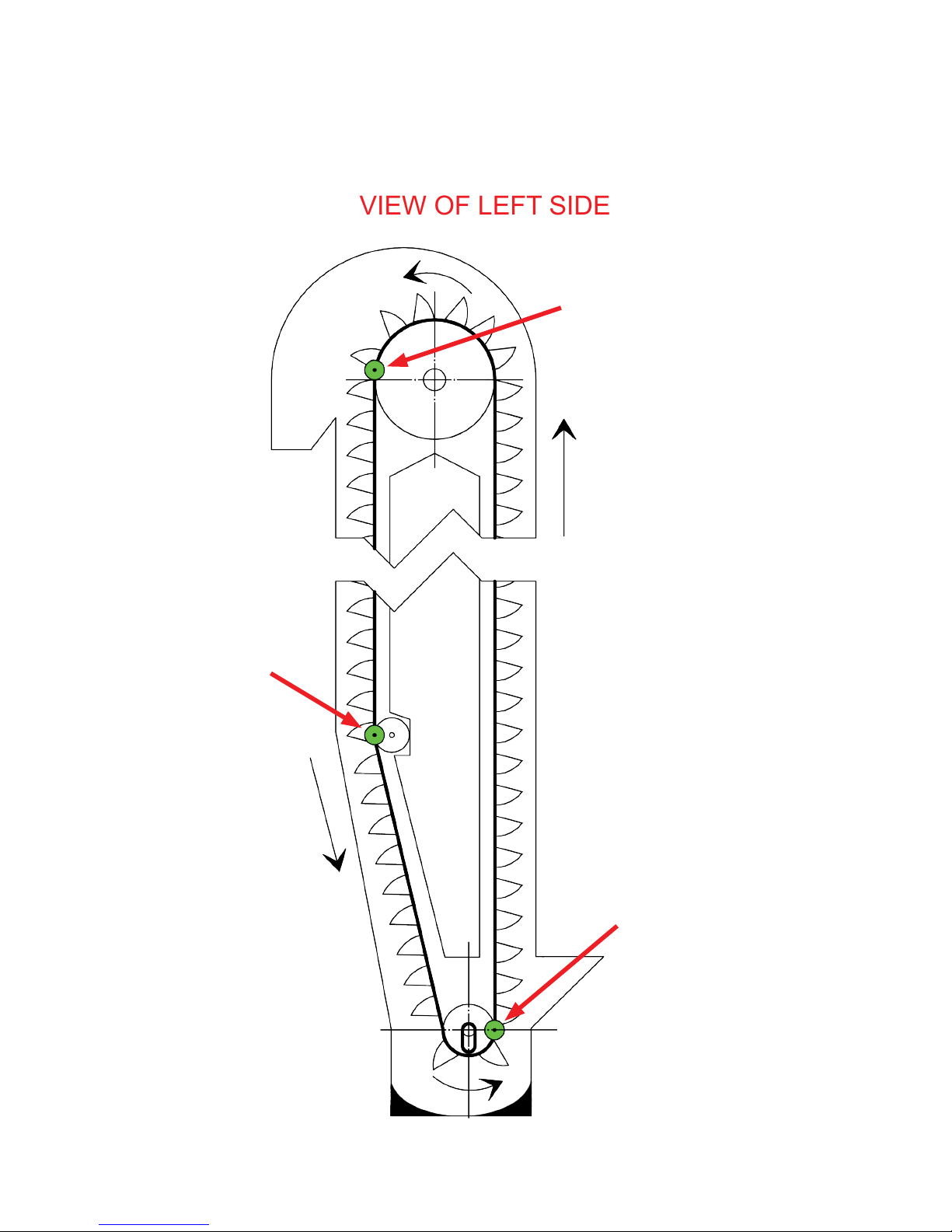

- Typical Mounting Positions of a Bucket Elevator with a Knee or Bend Pulley Page 13
- Typical Mounting Positions on Tail/Boot Section of Bucket Elevator Page 14

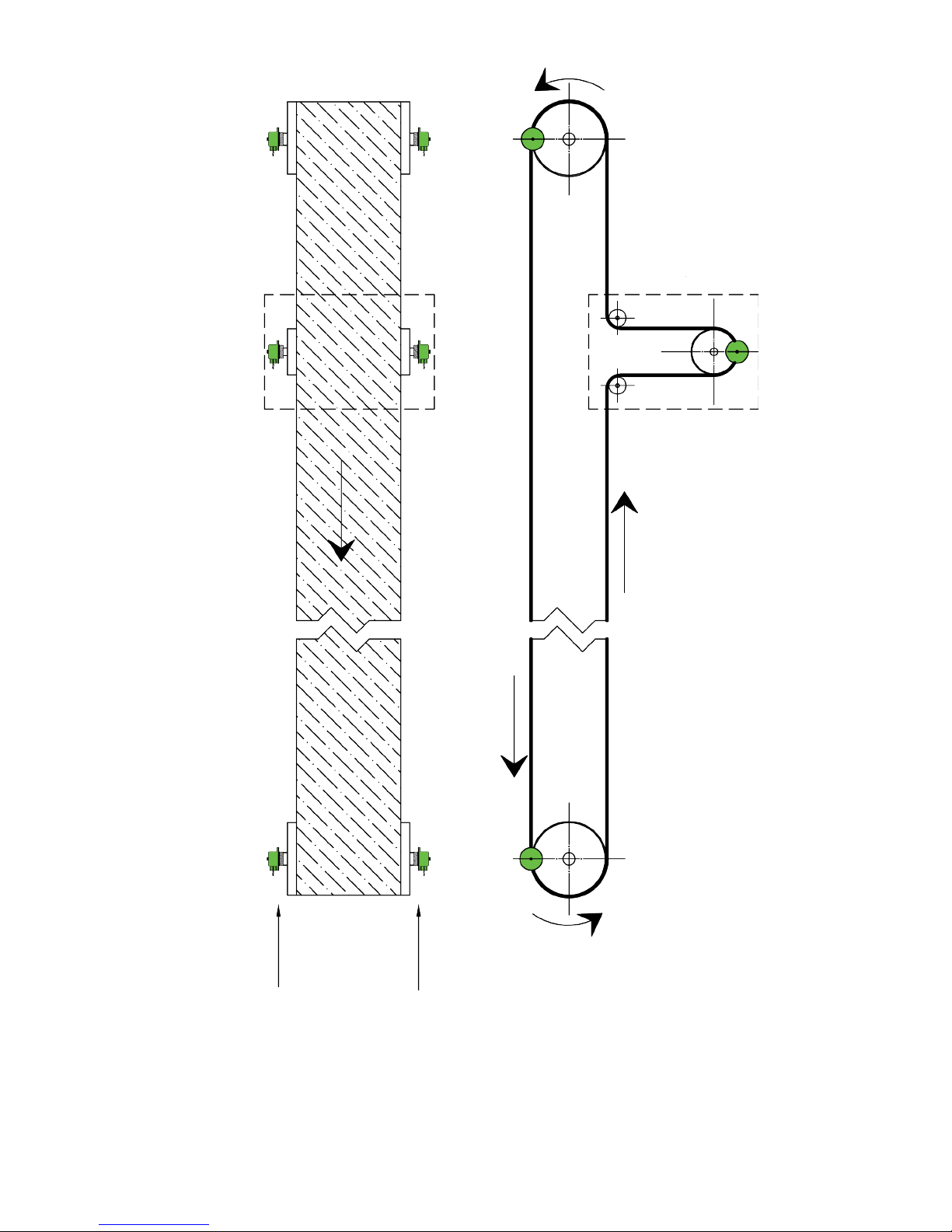

- Typical Mounting Positions on an Open Belt Conveyor Page 15
- Typical Mounting Positions on an Enclosed Belt Conveyor Page 16

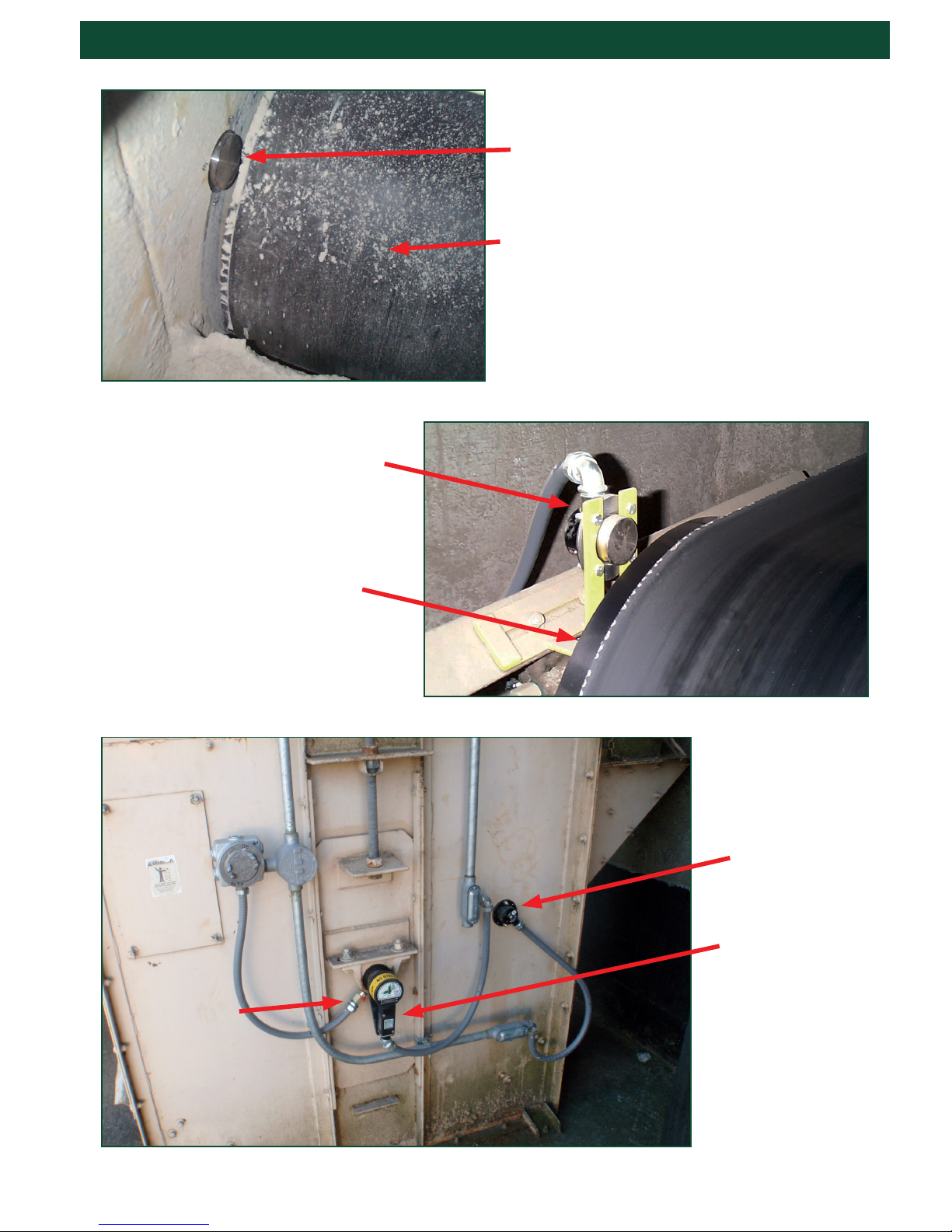

INSTALLATION PHOTOS Page 17
TESTING & COMMISSIONING Page 18
TROUBLESHOOTING GUIDE Page 18
PRODUCT WARRANTY Page 19
TABLE OF CONTENTS
DANGER
Exposed buckets and
moving parts will cause
severe injury or death.
Lockout power before
removing cover of
inspection door.

PAGE 4
Dear 4B Customer:
Congratulations on your purchase. 4B appreciates your business and is pleased you have chosen our
products to meet your needs.
Please read in its entirety and understand the literature accompanying the product before you place the
product into service. Please read the safety precautions carefully before operating the product. With each
product you purchase from 4B, there are some basic but important safety considerations you must follow
to be sure your purchase is permitted to perform its design function and operate properly and safely, giving
you many years of reliable service. Please read and understand the Customer Safety Responsibilities
listed below. Failure to follow this safety directive and the Operation Manuals and other material furnished
or referenced, may result in serious injury or death.
SAFETY NOTICE TO OUR CUSTOMERS
A. In order to maximize efficiency and safety, selecting the right equipment for each operation is vital.
The proper installation of the equipment, and regular maintenance and inspection is equally important
in continuing the proper operation and safety of the product. The proper installation and maintenance
of all our products is the responsibility of the user unless you have asked 4B to perform these tasks.
B. All installation and wiring must be in accordance with Local and National Electrical Codes and
other standards applicable to your industry. The installation of the wiring should be undertaken by
an experienced and qualified professional electrician. Failure to correctly wire any product and/or
machinery can result in the product or machine failing to operate as intended, and can defeat its design
function.
C. Periodic inspection by a qualified person will help assure your 4B product is performing properly. 4B
recommends a documented inspection at least annually and more frequently under high use conditions.
D. Please see the last page of this manual for all warranty information regarding this product.
CUSTOMER SAFETY RESPONSIBILITIES
1. READ ALL LITERATURE PROVIDED WITH YOUR PRODUCT
Please read all user, instruction and safety manuals to ensure that you understand your product operation
and are able to safely and effectively use this product.
2. YOU BEST UNDERSTAND YOUR NEEDS
Every customer and operation is unique, and only you best know the specic needs and capabilities of
your operation. Please go to www.go4b.com or call the 24-hour hotline at [phone] for assistance
with any questions about the performance of products purchased from 4B. 4B is happy to discuss product
performance with you at any time.

PAGE 5
3. SELECT A QUALIFIED AND COMPETENT INSTALLER
Correct installation of the product is important for safety and performance. If you have not asked 4B to
perform the installation of the unit on your behalf, it is critical for the safety of your operation and those
who may perform work on your operation that you select a qualied and competent electrical installer to
undertake the installation. The product must be installed properly to perform its designed functions. The
installer should be qualied, trained, and competent to perform the installation in accordance with local
and national electrical codes, all relevant regulations, as well as any of your own standards and preventive
maintenance requirements, and other product installation information supplied with the product. You
should be prepared to provide the installer with all necessary installation information to assist in the
installation.
4. ESTABLISH AND FOLLOW A REGULAR MAINTENANCE AND INSPECTION SCHEDULE FOR
YOUR 4B PRODUCTS
You should develop a proper maintenance and inspection program to conrm that your system is in good
working order at all times. You will be in the best position to determine the appropriate frequency for
inspection. Many different factors known to the user will assist you in deciding the frequency of inspection.
These factors may include but are not limited to weather conditions; construction work at the facility; hours
of operation; animal or insect infestation; and the real-world experience of knowing how your employees
perform their jobs. The personnel or person you select to install, operate, maintain, inspect or perform
any work whatsoever, should be trained and qualied to perform these important functions. Complete
and accurate records of the maintenance and inspection process should be created and retained by you
at all times.
5. RETAIN AND REFER TO THE OPERATION MANUAL FOR 4B’S SUGGESTED MAINTENANCE
AND INSPECTION RECOMMENDATIONS
As all operations are different, please understand that your specic operation may require additional
adjustments in the maintenance and inspection process essential to permit the monitoring device to
perform its intended function. Retain the Operation Manual and other important maintenance and service
documents provided by 4B and have them readily available for people servicing your 4B equipment.
Should you have any questions, please call go to www.go4b.com or call the 24-hour hotline at +1-309-
698-5611.
6. SERVICE REQUEST
If you have questions or comments about the operation of your unit or require the unit to be serviced
please contact the 4B location who supplied the product or send your request go to www.go4b.com or call
the 24-hour hotline at [phone]. Please have available product part numbers, serial numbers,
and approximate date of installation. In order to assist you, after the product has been placed into service,
complete the online product registration section which is accessed via our website www.go4b.com.

PRODUCT OVERVIEW

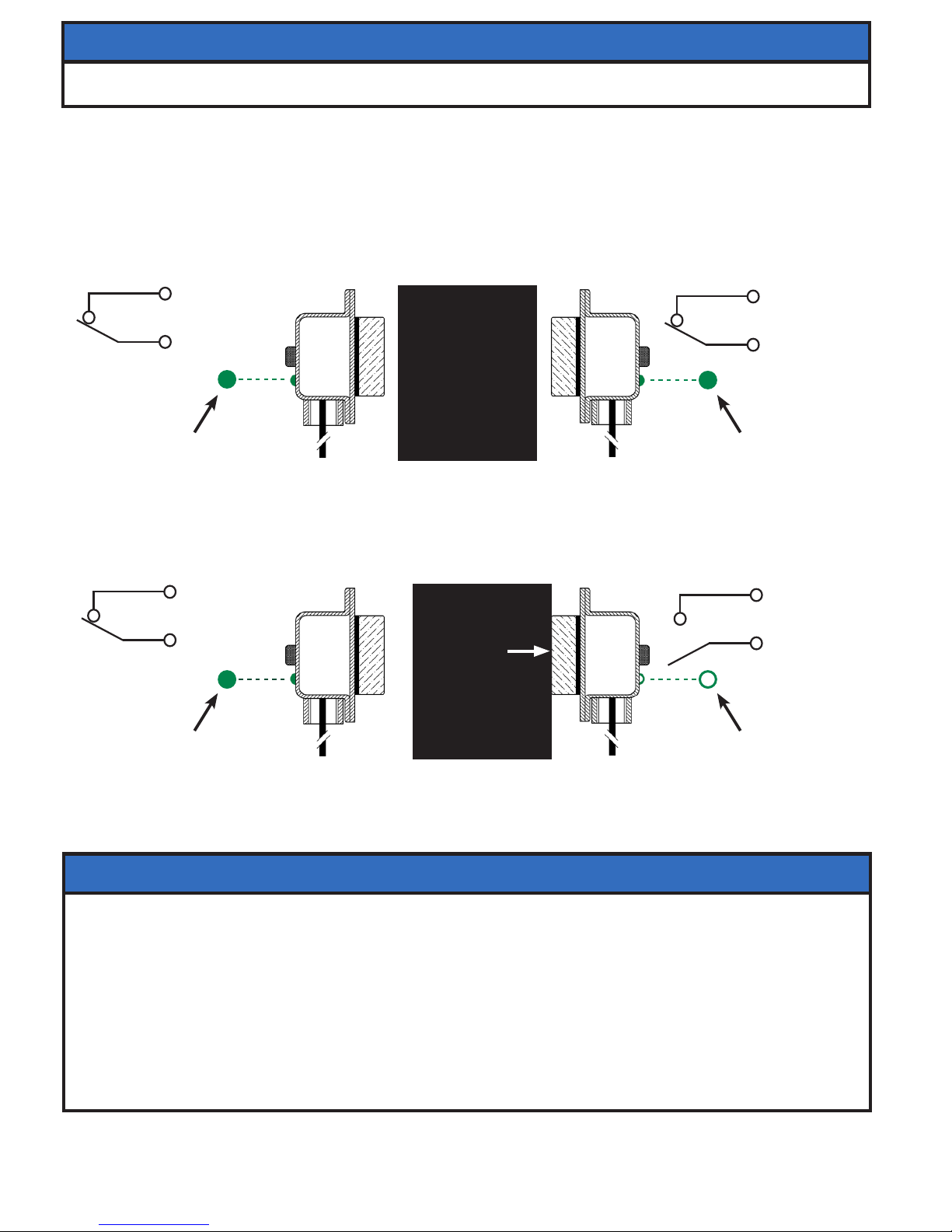

The Touchswitch™ is an electronic limit switch. When a belt misaligns or a pulley moves over and
contacts the sensor, the built in solid-state electronic circuitry detects the lateral force of the belt or pulley
and activates a voltage free relay contact. This relay contact is used to immediately alarm and shutdown
the machine. The face of the sensor is made from hardened stainless steel, so that there is virtually no
wear when a belt contacts it. The sensor is not affected by dust or material build up and will still work
when completely covered by material. Sensors are normally installed in pairs on opposite sides of the
machine. Usually a pair of sensors at each pulley is used, but additional pairs can be installed as required.
An external test knob allows for quick and simple sensor / system testing.
WARNING
• Rotating machinery can cause serious injury or death
• Always lockout and tagout the machine prior to installation
PAGE 6
Supply - 12-24 VDC
Current Consumption - 21mA (relay energised); 15mA (relay de-energised)
LED Indication - Green LED indicates unit is powered up and relay is energised
Sensing Force - Factory set to 8 lb. (3.6 Kg) approximately
Output - Normally open solid state relay; 50mA @ 240 VAC/VDC (MAX); non-Inductive
Construction - Hardened stainless steel (face) and seamless steel with epoxy paint (body)
Cable - 3 m (9 ft. long)- 6 x 22 AWG Conductors
Weight - 1.36 Kg (3 lbs.)
Protection - NEMA 4X, IP66
Approvals -
ATEX
Ex II 1 D Ex ta IIIC T200 125°C Da IP66
Baseefa17ATEX0047X
IECEx
Ex ta IIIC T200 125°C Da IP66
IECEx BAS 17.0032X
SPECIFICATIONS
1. The sensors/switches shall be connected to a suitable external earth via the mounting arrangement or
via the ange mounting screws and suitable ring crimp lug and accessories.
2. The integral cable shall be terminated in a suitably certied enclosure or in the safe area.
3. The supply circuit of the system where the equipment is connected shall be protected by a suitably
rated fuse capable of interrupting a prospective short circuit current of 10 kA.
SPECIAL CONDITIONS FOR SAFE USE

DIMENSIONS
PAGE 7
INSTALLATION
The following are guidelines and suggestions for installing Touchswitches. The installer must take
responsibly that the Touchswitches are mounted in a position to be able to detect a belt misalignment
condition and or a pulley misalignment condition, whichever it may be. Typical Touchswitch™ mounting
positions are illustrated on pages 10 - 15.
The Touchswitch™ hole should be cut into the housing with a 57mm diameter hole saw (Image A),
centered on the edge of the belt. The hole should be cleaned and de-burred to avoid the Touchswitch™
puck binding and giving false misalignment alarms. You can mount the Touchswitch™ with 2 of the 4
ange holes, provided they are diagonal from one another. The enclosed ange shims can be used as a
template to properly place the ange holes. The Touchswitch™ needs to be mounted on a at surface,
preferably with the conduit entrance between the 3 to 9 o’clock position to minimize the entrance of water.
The Touchswitch™ can be mounted using one of the following three methods -
1. Drill and tap the machine casing for 6mm threaded bolts. Make sure that the bolts used to secure the
Touchswitch™ are short enough that they do not interfere with the operation of the machine.
2.
Use threaded rivet nuts for 6mm threads. The length of the rivet nut will depend on the thickness of the
machine’s casing. Make sure that the bolts used to secure the Touchswitch™ are short enough that
they do not interfere with the operation of the machine.
3. CD weld 6mmx32mm threaded welding studs to the machine casing.
When placing ange shims on Touchswitch™ make certain belt and or pulley contacts the Touchswitch™
face before it can contact any internal surface of leg or conveyor housing. It is best not to be any further
away from the pulley than 32mm to 38mm to the face of the Touchswitch™.

PAGE 8
When mounting on the head section of a leg or belt conveyor try to catch the belt and the pulley. On a
leg, mount the Touchswitch™ above the center line of the head shaft on the discharge side of the pulley
when possible. Sometimes this is not possible due to an inspection door, X-PAC or other obstruction.
In this case, the Touchswitch™ can be mounted on the top or up side of the head pulley. Try to mount
Touchswitches so they are accessible from the head section walkway. Be sure to mount Touchswitches
directly across from one another. On a conveyor head section mount the Touchswitch™ forward of the
head shaft in order to monitor for misalignment on the head pulley and belt. For typical mounting positions
on a bucket elevator, see illustrations on pages 10 - 13.
On a leg boot, mount the Touchswitch™ on the up side of the tail pulley if there are no obstructions. If
obstructions are encountered, use the down side of the pulley, but be sure to have the Touchswitches
mounted directly across from one another. Mount the Touchswitch™ above the center line of the boot
shaft at the shaft’s highest possible position (see illustration - page 13). You may not be able to catch the
leg boot pulley in all positions with a Touchswitch™. If desired, you can install additional Touchswitches™
along the travel of the boot pulley.
Image B
Proper Hole
Position for
Mounting
Touchswitch™
Belt
Pulley
Image A
57mm Diameter
Hole Saw
When mounting Touchswitches on open belt conveyors, brackets will usually need to be fabricated. These
brackets must be built rigid enough to take pressure from a misaligned belt. It is best if these can be
mounted so the Touchswitch™ can detect if the pulley and or the belt has shifted. On tail pulleys of open
belts that are take-up pulleys, it is good if the Touchswitch™ bracket can be mounted off of the bearing
mounting bolts. This will allow the Touchswitch™ to move with the pulley when belt adjustments are
made. For typical mounting positions on an open belt conveyor, see illustration - page 14.
On enclosed belt conveyor tail sections, mount Touchswitches to catch the top side of the belt on the
vertical angle just ahead of tail pulley. You will not be able to catch the tail pulley with a Touchswitch™
on an enclosed belt conveyor due to the ippers on the pulley. 4B recommends that some other device
be installed to catch the tail pulley, such as a surface mount temperature sensor (WDB70V3CAI). When
installing Touchswitches on the tail section, some tail adjustment will be sacriced. For typical mounting
positions on an enclosed belt conveyor, see illustration - page 15.
If / when connecting liquid tight conduit to Touchswitches, limit the length to local installation requirements.
However, when installed on an adjustable pulley or section be certain enough conduit is installed to allow
for pulley adjustments.

STANDARD WIRING
All wiring must be in accordance with local and national electrical codes and should be undertaken by an
experienced and qualied electrician.
If required by local installation code, use dust/liquid tight exible metal conduit with approved ttings to
protect the sensor cables. Conduit systems can channel water due to ingress and condensation directly
to sensors and sensor connections which over time will adversely affect the performance of the system.
As such, the installation of low point conduit drains is recommended for all sensors.
Mount a suitable junction box within 3m (9 ft.) of the sensor, and using a suitable conduit to protect the
cables, make the necessary wiring connections inside this junction box. A 3 meter, PVC coated cable
connected to the sensor contains the following 22 AWG wires:
PAGE 9
WARNING
• Touchswitch™ wiring is low voltage DC.
• Use shielded cable and keep separate from high voltage cable.
• Never run Touchswitch™ cables in the same conduit as 3-phase motor cables.
• Track belts and commission plant prior to installing Touchswitches.
• Fabricated brackets must be built rigid enough to take pressure from a misaligned belt.
RED - 12-24 VDC
BLACK - 0 VDC
GREEN - Ground
WHITE - Solid State Relay Common
BLUE - Solid State Relay Normally Open (Sensor Output)
ORANGE - Not connected
NOTE
Install Touchswitches on machinery only after they have been wired to a power source, and can
alarm / shutdown the equipment being monitored.

PAGE 10
SENSOR OPERATION:
The Touchswitch™ is an electronic limit switch that reacts when pressure is applied to the sensor face.
If the pressure exceeds 3.6 kg (8 lbs.), the sensor relay goes into an alarm condition (Illustration D).
Illustration C denotes normal running conditions, with no pressure applied.
NOTE
The Touchswitch is factory pre-calibrated and no sensitivity adjustment is necessary. The sensor is
calibrated to switch to the alarm state when belt lateral force exceeds 3.6 kg (8 lbs). .
The Touchswitch contains a non-replaceable permanent 50 mA fuse and a thermal fuse set at 75° C
(167° F) .
4B recommends that the machine shuts down when the belt contacts the Touchswitch. If the machine
does not shut down and the belt is allowed to continue to rub against the face of the Touchswitch, the
hardened stainless steel sensor puck may wear and the heat generated by the friction may cause the
thermal fuse to blow. This fuse is non-replaceable and non-repairable.
Illustration D
Alarm Condition, Belt Misaligned to the Right
GREEN LED OFF:
Indicates relay de-energized,
belt contact or no power.
Belt
Contact
GREEN LED ON:
Indicates power and relay
energized, no belt contact.
BLUE
WHITE
Illustration C
Normal Running Condition
GREEN LED ON:
Indicates power and relay
energized, no belt contact.
No
Belt
Contact
GREEN LED ON:
Indicates power and relay
energized, no belt contact.
BLUE
WHITE
NOTE
The orange wire is not used and should be cut back and insulated.
BLUE
WHITE
BLUE
WHITE

PAGE 11
DETERMINING LEFT & RIGHT SIDE OF BUCKET ELEVATOR:
VIEW OF LEFT SIDE VIEW OF RIGHT SIDE
NOTE: Left and right sides are determined when facing the direction that
the bucket elevator discharges. TOUCHSWITCH™ placement on the left
side will mirror the right side.
SENSOR PLACEMENT DIAGRAMS

PAGE 12
TYPICAL MOUNTING POSITIONS ON A BUCKET ELEVATOR:
When mounting on the head section of a leg or belt conveyor try to catch the belt and the pulley. On a leg
mount Touchswitch™ just above the center line of the head shaft on the discharge side of the pulley when
possible. Sometimes this is not possible due to inspection doors or X-pacs etc. They can be mounted on
the top or up side of the head pulley if these are encountered. Try to mount Touchswitches so they are
accessible from the head section walkway.
TOUCHSWITCH™ MUST BE INSTALLED
ABOVE THE HEAD SHAFT BETWEEN THE 9
O’CLOCK AND 3 O’CLOCK POSITION ON THE
DISCHARGE (DOWN) SIDE OF THE LEG - IF
POSSIBLE.
NOTE: FOR INCREASED PROTECTION, MORE
TOUCHSWITCHES CAN BE ADDED TO THE
HEAD.
NOTE: MOUNT PAIR OF TOUCHSWITCHES
DIRECTLY ACROSS FROM EACH OTHER ON
RIGHT AND LEFT SIDE OF BUCKET ELEVATOR.
MOUNT TOUCHSWITCH™ ON UPSIDE
OF LEG (IF POSSIBLE) AT THE HIGHEST
POINT THAT THE BOOTSHAFT CAN BE
ADJUSTED TO.
NOTE: FOR INCREASED PROTECTION,
MORE TOUCHSWITCHES CAN BE ADDED
TO THE BOOT.
VIEW OF LEFT SIDE

PAGE 13
When mounting on the head section of a leg or belt conveyor try to catch the belt and the pulley. On a leg
mount Touchswitch™ just above the center line of the head shaft on the discharge side of the pulley when
possible. Sometimes this is not possible due to inspection doors or X-pacs etc. They can be mounted on
the top or up side of the head pulley if these are encountered. Try to mount Touchswitches so they are
accessible from the head section walkway.
TYPICAL MOUNTING POSITIONS ON A BUCKET ELEVATOR WITH A KNEE OR BEND PULLEY:
VIEW OF LEFT SIDE
NOTE: FOR INCREASED
PROTECTION, MORE
TOUCHSWITCHES CAN BE
ADDED TO THE HEAD.
NOTE: MOUNT PAIR
OF TOUCHSWITCHES
DIRECTLY ACROSS FROM
EACH OTHER ON RIGHT
AND LEFT SIDE OF BUCKET
ELEVATOR.
TOUCHSWITCH™ MUST
BE INSTALLED ABOVE THE
HEAD SHAFT BETWEEN THE
9 O’CLOCK AND 3 O’CLOCK
POSITION ON THE DISCHARGE
(DOWN) SIDE OF THE LEG - IF
POSSIBLE.
MOUNT TOUCHSWITCH™
ON UPSIDE OF LEG
(IF POSSIBLE) AT THE
HIGHEST POINT THAT
THE BOOTSHAFT CAN BE
ADJUSTED TO.
NOTE: FOR INCREASED
PROTECTION, MORE
TOUCHSWITCHES CAN BE
ADDED TO THE BOOT.
MOUNT
TOUCHSWITCHES
AT KNEE PULLEY
TO DETECT BELT
AND PULLEY
MISALIGNMENT.

PAGE 14
TYPICAL MOUNTING POSITIONS ON TAIL/BOOT SECTION OF BUCKET ELEVATOR:
Bootshaft
MOUNT TOUCHSWITCH™ ON
UPSIDE OF LEG (IF POSSIBLE) AT
THE HIGHEST POINT THAT THE
BOOTSHAFT CAN BE ADJUSTED TO.
ADDITIONAL TOUCHSWITCH™ CAN
BE INSTALLED TO ACCOMMODATE
FOR BOOT TAKE-UP. OR A SLOT FOR
THE TOUCHSWITCH CAN BE MADE
IN THE BOOT CASING SO THAT THE
TOUCHSWITCH™ TRAVELS WITH THE
BOOT TAKE -UP.
Belt
Pulley
MOUNT TOUCHSWITCHES
DIRECTLY ACROSS
FROM EACH OTHER AND
INLINE WITH THE PULLEY
AND BELT TO DETECT
MISALIGNMENT OF
EITHER THE PULLEY OR
THE BELT.
VIEW OF LEFT SIDE

VIEW OF LEFT SIDE
PAGE 15
TYPICAL MOUNTING POSITIONS ON AN OPEN BELT CONVEYOR:
RIGHT
SIDE
LEFT
SIDE
NOTE: TOUCHSWITCH™ MOUNTING BRACKETS WILL NEED TO BE FABRICATED TO WITHSTAND THE FORCE OF A MISALIGNED BELT.
NOTE: MOUNT PAIR OF TOUCHSWITCHES DIRECTLY ACROSS FROM EACH OTHER ON LEFT AND RIGHT SIDE OF CONVEYOR.
NOTE: ON TAIL PULLEYS OF OPEN BELT
CONVEYORS THAT ARE TAKE UP PULLEYS MOUNT THE TOUCHSWITCH™ BRACKET OFF OF BEARING MOUNTING BOLTS WHEN POSSIBLE.
NOTE: WHEN CONVEYOR HAS IDLER PULLEY INSTALL ADDITIONAL TOUCHSWITCHES AND BEARING SENSORS.
NOTE: MOUNT TOUCHSWITCHES INLINE WITH BOTH THE PULLEY AND BELT WHEN POSSIBLE.

PAGE 16
TYPICAL MOUNTING POSITIONS ON AN ENCLOSED BELT CONVEYOR:
ON ENCLOSED BELT CONVEYOR TAIL SECTION MOUNT TOUCHSWITCHES ALIGNED WITH TOP SIDE OF BELT ON MOVEABLE SECTION JUST IN FRONT OF VERTICAL ANGLE AHEAD OF TAIL PULLEY.
NOTE: FOR INCREASED PROTECTION ADDITIONAL TOUCHSWITCHES MAY BE ADDED TO THE HEAD AND TAIL. NOTE: MOUNT PAIR OF TOUCHSWITCHES DIRECTLY ACROSS FROM EACH OTHER ON LEFT AND RIGHT SIDE OF CONVEYOR.
LEFT
SIDE
RIGHT
SIDE
PLACE TOUCHSWITCHES ANYWHERE BETWEEN 6 O’CLOCK AND 12 O’CLOCK IN FRONT OF HEADSHAFT.

PAGE 17
TYPICAL INSTALLATION PHOTOS
Touchswitch™ Installed at
Tail of Open Belt Conveyor
Touchswitch™ Installed
on Bucket Elevator
Touchswitch™ Installed at Drive End of
Enclosed Belt Conveyor (Inside View)
Touchswitch
Face / Puck
Conveyor Belt
Touchswitch
Mounted to
Fabricated Bracket
Pulley
Touchswitch
Speed Sensor
Bearing
Temperature
Sensor

PAGE 18
TESTING & COMMISSIONING
Periodically test the sensor and the system to ensure both are operating correctly.
The Touchswitch™ has a built in test knob that allows for quick and easy operation verification without
removing the sensor from the mounting hole. The testing procedure is outlined below:
1. Observe that the green output LED on the sensor housing is on and the belt or pulley is not touching
the sensor.
2. Slowly turn the test knob clockwise by hand, until the LED goes out.
3. Check that the alarm and shutdown procedures work as expected.
a. If OK, continue to step 4.
b. If the system does not immediately shutdown as expected or alarm as required, then remove the
machine from service until the problem has been diagnosed and corrected.
4. Turn the test knob back to its original position (about 1/4 turn). Make sure that the knob is loose,
meaning not turned all the way to the left or right.
5. Observe that the LED is now on, indicating the sensor has power and is not in alarm.
As part of your ongoing maintenance program, periodically test the sensor and system, and visually
inspect the contact surface of the sensor and the sealtite, the wires, junction box and conduit.
TROUBLESHOOTING GUIDE
FAULT CAUSE REMEDY
Touchswitch™
Signalling an Alarm
Condition and / or
Green Output LED
is Off
Belt Misaligning Check Belt Alignment
Touchswitch™
Binding Against
Leg Casing
Check Hole Diameter is 57mm and is De-burred
Check Touchswitch™ is Centered in the Hole
Test Knob
Active
Loosen Knob (Rotate Counterclockwise 1/4 Turn Until
Loose)
No Power
Check that the Touchswitch™ has the Correct Voltage
Supply (between 12 and 24VDC)
Check Orange Wire is Insulated
WARNING
If the system does not immediately shutdown as expected or alarm as required, then remove the
machine from service until the problem has been diagnosed and corrected.
Manufactured by Don Electronics Ltd - United Kingdom, LS19 7LX

PAGE 19
1. EXCLUSIVE WRITTEN LIMITED WARRANTY
All products sold are warranted by the company 4B Components Limited, 4B Braime Components Limited,
and 4B France herein after referred to as 4B to the original purchaser against defects in workmanship or
materials under normal use for one (1) year after date of purchase from 4B. Any product determined by 4B
at its sole discretion to be defective in material or workmanship and returned to a 4B branch or authorized
service location, as 4B designates, shipping costs prepaid, will be, as the exclusive remedy, repaired or
replaced at 4B’s option.
2. DISCLAIMER OF IMPLIED WARRANTY
No warranty or afrmation of fact, expressed or implied, other than as set forth in the exclusive written
limited warranty statement above is made or authorized by 4B. 4B specically disclaims any liability for
product defect claims that are due to product misuse, abuse or misapplications, as authorized by law, 4B
specically disclaims all warranties that the product is t or merchantable for a particular purpose.
3. NO WARRANTY “BY SAMPLE OR EXAMPLE”
Although 4B has used reasonable efforts to accurately illustrate and describe the products in its catalogs,
literature, and websites, such illustrations and descriptions are for the sole purpose of product identication
and do not express or imply a warranty afrmation of fact, of any kind or a warranty or afrmation of
fact that the products will conform to their respective illustrations or descriptions. 4B expressly disclaims
any warranty or afrmation of fact, expressed or implied, other than as set forth in the exclusive written
limited warranty statement above, including, without limitation, the implied warranties of merchantability
and tness for a particular purpose.
4. LIMITATION OF DAMAGES
Any liability for consequential, incidental, special, exemplary, or punitive damages, or for loss of prot
whether direct or indirect, is expressly disclaimed.
PRODUCT WARRANTY

Copyright © 2018 4B Group - All Rights Reserved
With subsidiaries in North America, Europe,
Asia, Africa and Australia along with a worldwide
network of distributors, 4B can provide practical
solutions for all your applications no matter the
location.
www.go4b.com
REV050818
4B FRANCE
9 Route de Corbie
80800 Lamotte Warfusée
France
Tel: [phone]
Fax: [phone]
4B AFRICA
14 Newport Business Park
Mica Drive, Kya Sand
2163 Johannesburg
South Africa
Tel: [phone]
Fax: [phone]
4B AUSTRALIA
Building 1, 41 Bellrick Street
Acacia Ridge
Queensland 4110
Australia
Tel: [phone]
Fax: [phone]
4B COMPONENTS LTD.
625 Erie Avenue
Morton, IL 61550
USA
Tel: [phone]
Fax: [phone]
4B BRAIME
COMPONENTS LTD.
Hunslet Road
Leeds
LS10 1JZ
United Kingdom
Tel: [phone]
Fax: [phone]
4B DEUTSCHLAND
9 Route de Corbie
80800 Lamotte Warfusée
France
Tel: [phone]
Fax: [phone]
4B ASIA PACIFIC
Build No. 899/1 Moo 20
Soi Chongsiri, Bangplee-Tam
Ru Road, Tanbon Bangpleeyai,
Amphur Bangplee,
Samutprakarn 10540
Thailand
Tel: [phone]
Fax: [phone]
