The WDB81 series is a range of bearing sensors manufactured to screw directly into a bearing housing.
Each sensor is tted with a grease nipple to allow lubrication of the bearing without the need for removal
of the sensor. The sensor is tted with a permanently attached 3 meter cable.
The WDB810 (NTC) sensor and the WDB812 to WDB817 (PTC) sensor and the WDB819 (Pt100) sensor
cable has two cores and the table below shows the connections. The connections are not polarity sensitive
therefore special connection requirements are eliminated.
It is advisable however to connect all sensors in an identical manner, this will reduce the risk of shorting.
Please refer to the relevant device manual for detailed connection information.
PAGE 6

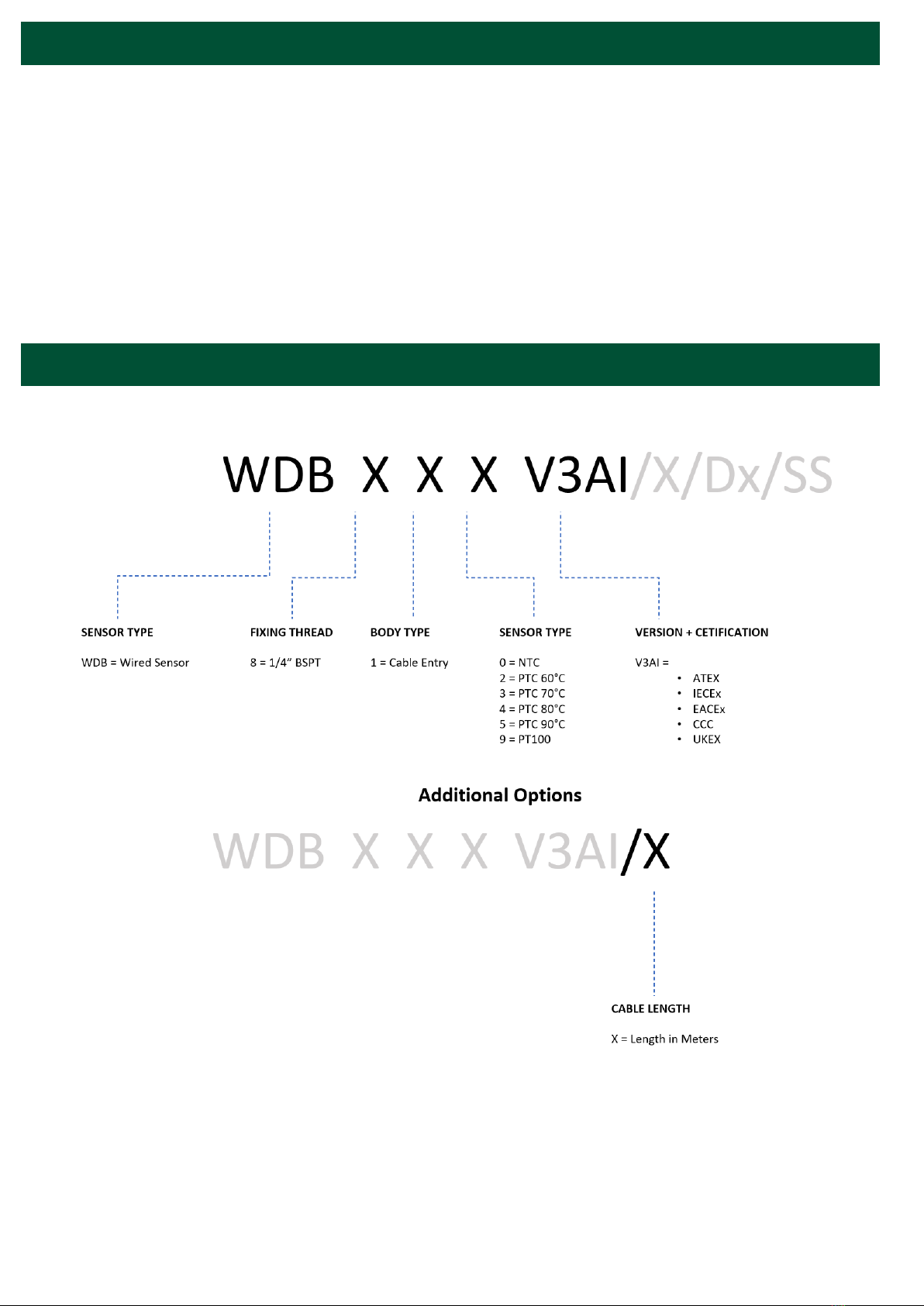

PRODUCT SELECTION
SPECIFICATIONS
Resistance at 25° C - 250 Ohms (Max)
Resistance at -5° C - From trip temperature - 550 Ohms (Max)
Resistance at +5° C - From trip temperature - 1300 Ohms (Min)
Body Housing / Lug - Stainless Steel
Fixing - 1/4” BSPT
Cable - PVC , 3 meters, 2 core – Black / Brown (not polarity sensitive).
Operating Temperature - Maximum continuous cable temperature is 105°C.
Weight - 0.2kg
WDB812*, WDB813*, WDB814*, WDB815*- PTC Sensors
Resistance at 25° C - 109.73 Ohms
Resistance at 60° C - 123.24 Ohms
Resistance at 90° C - 134.71 Ohms
Temp. Coefcient - 3850 ppm/K
Sensing Voltage - 5 to 24 VDC
Current Draw - 1 mA (Max. Recommended)
Body Housing / Lug - Stainless Steel
Fixing - 1/4” BSPT
Cable - 3m; 2 conductors; custom length available on request
Operating Temperature - Maximum continuous cable temperature is 105°C.
Weight - 0.2kg
WDB819* - PT100 / RTD Sensors
PAGE 7
Resistance at 25° C - 10,000 Ohms
Resistance at 60° C - 2,487 Ohms
Resistance at 90° C - 916 Ohms
Sensing Voltage - 5 to 24 VDC
Current Draw - 1 mA (Max. Recommended)
Maximum Power - 120 mW at 25° C (77° F)
Body Housing / Lug - Stainless Steel
Fixing Thread- 1/4” BSPT
Cable - PVC , 3 meters, 2 core – Black / Brown (not polarity sensitive).
Operating Temperature - Minimum: -40° C (-22° F) Maximum: 105° C (220° F)
Weight - 0.2kg
WDB810* - NTC Sensors
DIMENSIONS
WARNING
Rotating machinery can cause serious injury or death
Always lockout and tagout the machine prior to installation
If not used with the ATEX approved 4B temperature monitors the power supply to the sensor shall be rated
for a prospective short circuit current of 10 KA.
The supply to the equipment MUST NOT exceed +24 VDC.
If the supply leads are terminated in a hazardous area, the termination arrangement must comply with the
Zone/Category/EPL of the hazardous area that it is to be installed.
SPECIAL CONDITIONS FOR SAFE USE
PAGE 8
PAGE 9
STANDARD WIRING DIAGRAM
All wiring must be In accordance with local and national electrical codes and should be undertaken by an
experienced and qualied electrician.
Optional connection for dust/liquid tight exible metal conduit with approved ttings to protect the sensor
cables. Note: conduit systems can channel water due to ingress and condensation directly to sensors
and sensor connections which over time will adversely affect the performance of the system. As such, the
installation of low point conduit drains is recommended for all sensors.
All WDB8 sensors are non-polarity sensitive, however 4B recommends wiring the sensors as outlined
below.
WARNING
Do not wire the sensor across the voltage source directly. Always ensure that the sensor is wired into
a signal conditioning circuit for the temperature measurement. Please note that if the power applied
across the sensor exceeds the specied maximum rated power or current, then the sensor may be
damaged beyond repair. When properly wired to 4B controllers, the power rating across the sensors is
kept at a safe level.

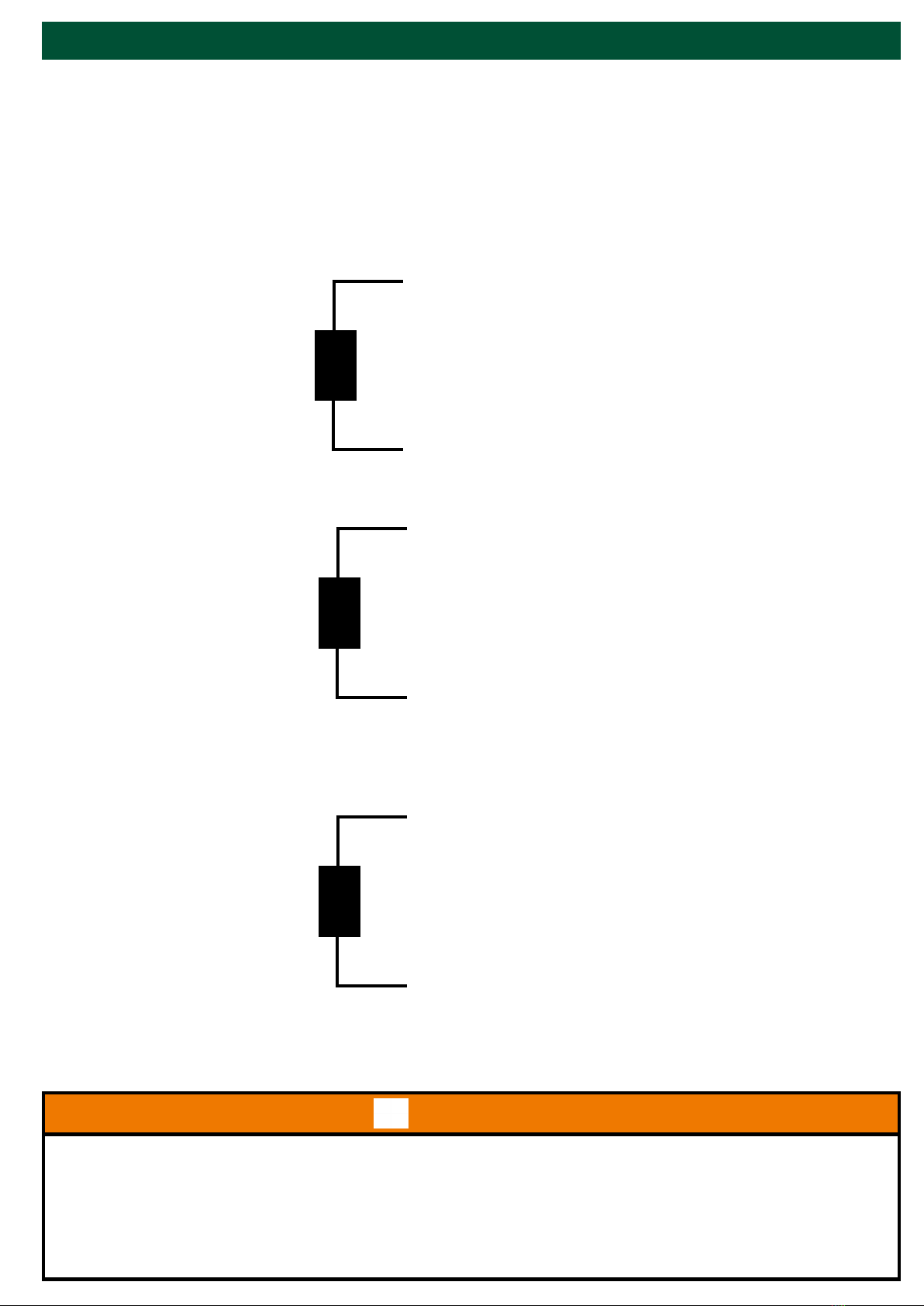

NTC WIRING (WDB810*)
NTC
BLACK - Power
BROWN - Input
PTC WIRING (WDB812*, WDB813*,
WDB814*, WDB815*, WDB816*)
PTC
BLACK - Power
BROWN - Input
PTC WIRING (WDB819*)
PT100
BLACK - Power
BROWN - Input
PAGE 10
APPROVALS
ATEX
Baseefa09ATEX0231X
II 1D Ex ta IIIC T200125°C Da
IP65 Tamb -40°C to +60°C*
IECEx
IECEx BAS 09.0111X
Ex ta IIIC T200125°C
IP65 Tamb -40°C to +60°C*
CCC CQC-2020012315351289
Ex tD A20 IP65 T125°C
EACEx
RU C-GB.Aж58.B.00330/20
Ex ta IIIC T125°C Da X
OT -40 дo +60 IP65
UKEX
BAS21UKEX0308X
II 1D Ex ta IIIC T200125°C Da
IP65 Tamb -40°C to +60°C*
* Dependent on product
INSTALLATION
1. Remove the existing grease zerk from the bearing housing.
2. Drill out and tap to ¼” BSPP (if required).
3. Screw the WDB81 sensor body in to the ¼” BSPT in the bearing housing.
4. All WDB81 sensors are non-polarity sensitive, however 4B recommend wiring the sensors in an
identical manner.
5. Ensure that the cable does not become twisted, snagged, or damaged during the installation.
6. The diagram shown below has the grease nipple/zerk in a different location to the WDB81 and shows
the cable with a conduit tting (not present on the WDB81). Hazardous Location Installation should
conform to IEC/EN 60079-14.
PAGE 11
Figure B -
WDB Sensor Installation
Outer Race
(Green Area)
PAGE 11
Outer Race
(Green Area)
Grease Zerk
Frame
Housing
(Red Area)
Figure A -
Pillow Block Bearing Cutaway
PAGE 12
