A. & H. Meyer ZENS PuK 2 User manual
Product Specification
IN BUSINESS
ALL THINGS ARE
CONNECTED
Wireless Charger
A. & H. Meyer Sdn Bhd
(528797-M)
No. 3, Jalan Astaka U8/84
Section U8, Bukit Jelutong
40150 Shah Alam, Selangor
Malaysia
T: +603 7845 7277
F: +603 7845 2155
sales@ah-meyer.com.my
A. & H. Meyer GmbH
Leuchten und Büroelektrik
Fermke 8
32694 Dörentrup
Germany
T: +49 5265 9488 0
F: +49 5265 9488 11
www.ah-meyer.de

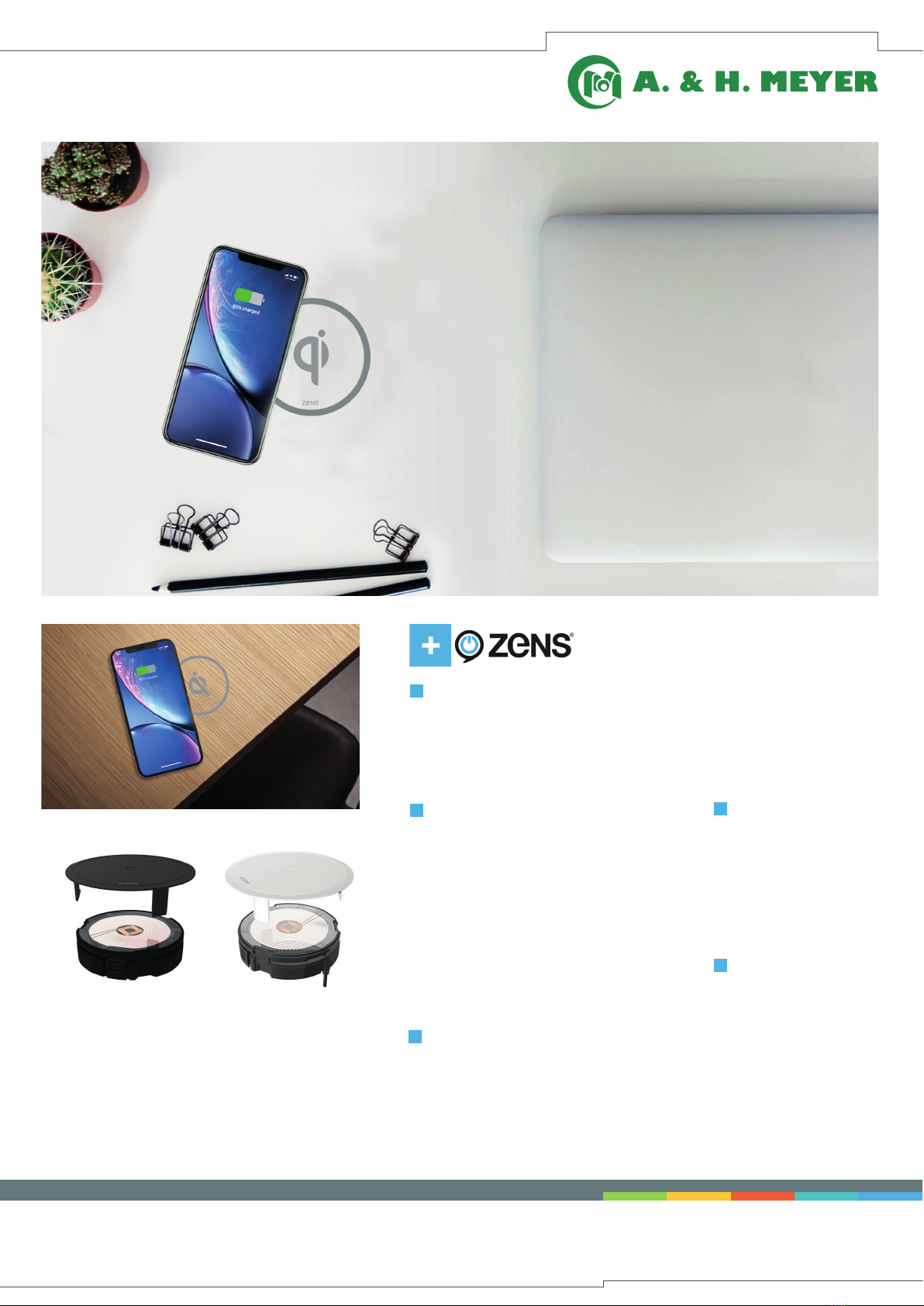

The ZENS PuK 2 makes use of the universal Qi Standard for wireless charging which
works based on induction technology. The PuK is equipped with a very large coil
which continuously detects a device’s signal and starts charging automatically as
soon as a Qi device is placed on top of the charger. It allows you to turn almost any
flat surface into a wireless charging spot with no visual impact on design aesthetics.
- Quick installation
- Comes with main adapter
- Suitable for 80mm grommet
- Surface or sub-surface installation
- Direct access to power charging
- IP Rating: IP-43 water resistant rating
- Aluminium body to ensure lowest
operation temperature
- Automatic shutdown once fully charged
- Ultra low standby power
- Can be installed in almost any material
(except steel)
Product Specification
Product Description
PuK2
Application Range
- Executive Desks
- Workstations
- Home Office
- Conference Tables
- Collaborative Areas
- Reception Desk
- Hotel Rooms
Cover Colours
- Black
- White
Technical Details
Transmitter unit
Input voltage 12V DC +/- 5%
Output current 1.0A
Charging capacity 5W
Switching frequency 105 to 113 kHz
Operating temperature 0 to 30°C
Storage temperature -20 to +70°C
Power Supply
Input Voltage 100 to 240 V AC
Output Current 12.0 V DC +/- 5%
Input Frequency 50/60 Hz
Output Voltage 1.5A DC max
Efficiency Level Energy Efficiency Class V
Standby Power < 0.3 W
Cable Length 1800 ±50mm
www.ah-meyer.com.my
Installation Guide
PuK2 Wireless Charger
Surface Installation
Make a 80-81mm grommet
hole at the desired spot of
your table
Insert the cover to the
wireless charger unit
Insert the unit to the pre-cut
grommet hole
Tighten the unit by screwing
the 3 screws to ensure unit
fits to the grommet hole
Connect the power cable to
the wireless charger port
Recommended to secure the
cable using a cable clip
underneath the table top
Installed unit is ready to use
once power plug is connected
to power source
Sub-surface Installation
Connect the power plug to the
power source
Chamfer a 80-81mm grommet
hole at your desired spot below
the table top, ensure you
maintain a 3mm thickness
Insert the unit to the grommet
hole from the bottom
Tighten the unit by screwing
the 3 screws to ensure unit
fits to the grommet hole
Stick the ZENS icon sticker
on the tabletop to indicate
the charging spot
Connect the power cable to
the wireless charger port
Recommended to secure the
cable using a cable clip
underneath the table top
Installed unit is ready to use
once power plug is connected
to power source
Connect the power plug to the
power source
