Aaeon EPC-CV1 Series User manual

Industrial Motherboard
EPC-CV1 Series

ii
E9994
Revised Edition V2
November 2014
Copyright Notice
This document is copyrighted, 2014. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described
in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or transmitted
in any form or by any means without the prior written permission of the original
manufacturer. Information provided in this manual is intended to be accurate and
reliable. However, the original manufacturer assumes no responsibility for its use,
or for any infringements upon the rights of third parties that may result from its use.
The material in this document is for product information only and is subject to
change without notice. While reasonable efforts have been made in the preparation
of this document to assure its accuracy, the original manufacturer assumes no
liabilities resulting from errors or omissions in this document, or from the use of the
information contained herein.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
Acknowledgments
All other products’ name or trademarks are properties of their respective owners.
• AMI is a trademark of American Megatrends Inc.
• Intel®, Core™ are trademarks of Intel®Corporation.
• Microsoft Windows®is a registered trademark of Microsoft Corp.
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
The original manufacturer reserves the right to make changes in the product
design without notice to its users.
All other product names or trademarks are properties of their respective owners.

iii
Contents
Chapter 1: Product overview
1.1 Package contents......................................................................... 1-1
1.2 Features ........................................................................................ 1-1
1.3 Specifications............................................................................... 1-2
Chapter 2: Motherboard information
2.1 Before you proceed ..................................................................... 2-1
2.2 Motherboard layout...................................................................... 2-2

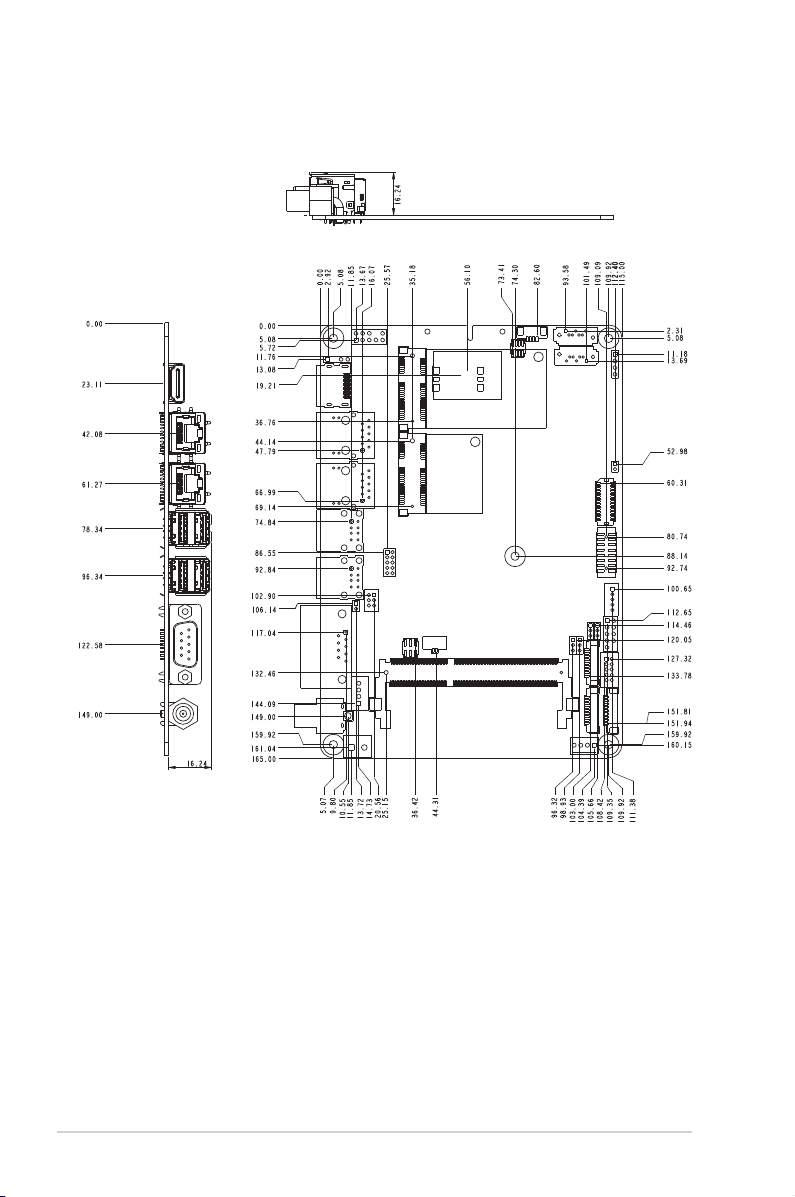

2.3 Screw size..................................................................................... 2-4
2.3.1 Component side.............................................................. 2-4

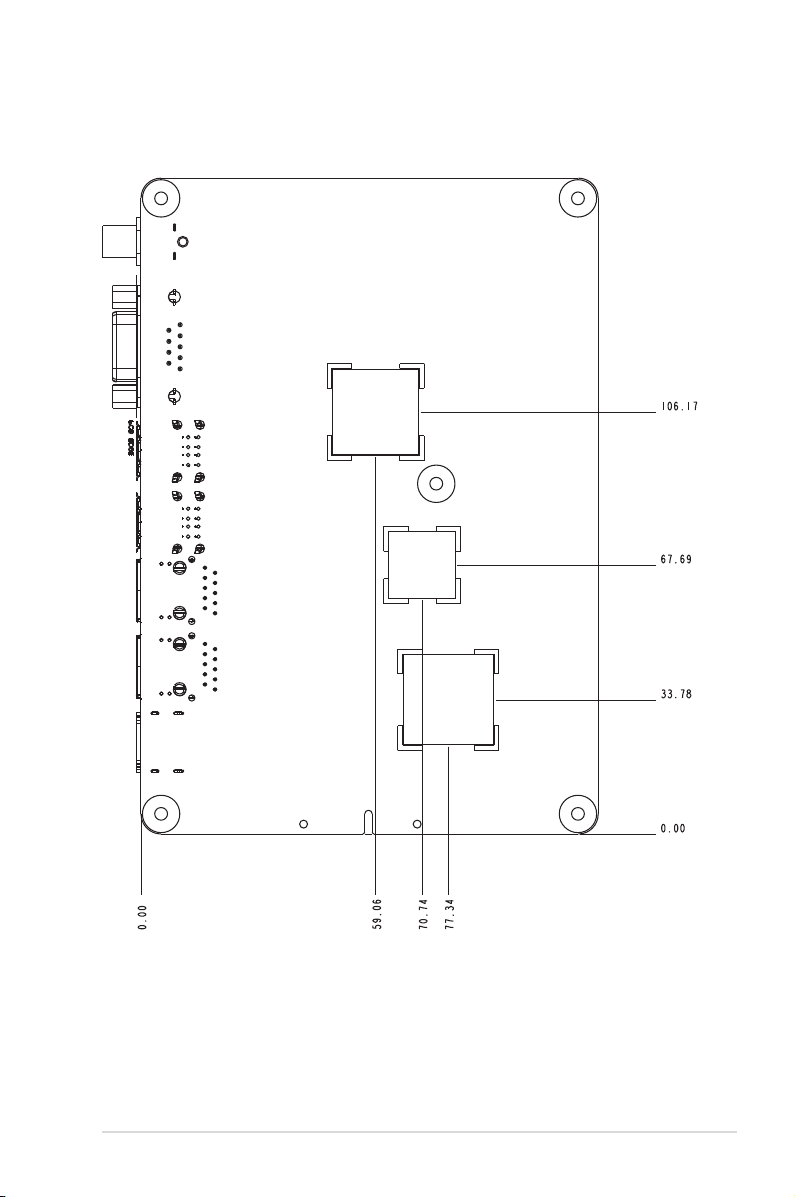

2.3.2 Solder side ...................................................................... 2-5
2.4 Central Processing Unit (CPU) ................................................... 2-6
2.5 System memory ........................................................................... 2-6
2.6 Jumpers ........................................................................................ 2-8
2.7 Connectors ................................................................................. 2-12
2.7.1 Rear panel connectors.................................................. 2-12
2.7.2 Internal connectors ....................................................... 2-13
Chapter 3: BIOS setup
3.1 BIOS setup program .................................................................... 3-1
3.2 BIOS menu screen ....................................................................... 3-2
3.3 Main menu .................................................................................... 3-4
3.3.1 System Language [English] ............................................ 3-4
3.3.2 System Date [Day xx/xx/xxxx]......................................... 3-4
3.3.3 System Time [xx:xx:xx] ................................................... 3-4
3.3.4 Security ........................................................................... 3-4
3.4 Advanced menu ........................................................................... 3-6
3.4.1 CPUConguration .......................................................... 3-6
3.4.2 IDEConguration............................................................ 3-7
3.4.3 USBConguration .......................................................... 3-7
3.4.4 APM ................................................................................ 3-7
3.4.5 Panel Controller (AMD®GPU only)................................. 3-8
3.4.6 DIO Function................................................................... 3-8
3.4.7 NorthBridgeLVDSCongSelect(AMD®GPU only)...... 3-8
3.4.8 OnboardDevicesConguration...................................... 3-8

iv
Contents
3.5 Monitor menu ............................................................................... 3-9
3.5.1 CPU Temperature / MB Temperature [xxxºC/xxxºF]....... 3-9
3.5.2 Chassis Fan Speed [xxxx RPM] or [N/A] ........................ 3-9
3.5.3 Chassis Q-Fan Control [Enabled] ................................. 3-10
3.5.4 CPU Voltage, 3.3V Voltage,
5V Voltage, 12V Voltage............................................... 3-10
3.6 Boot menu .................................................................................. 3-10
3.6.1 Bootup NumLock State [On] ......................................... 3-10
3.6.2 Full Screen Logo [Disabled].......................................... 3-11
3.6.3 Wait for ‘F1’ If Error [Enabled]....................................... 3-11
3.6.4 Boot Option Priorities .................................................... 3-11
3.6.5 Boot Override................................................................ 3-11
3.7 Tools menu................................................................................. 3-11
3.8 Exit menu.................................................................................... 3-12
Appendix
Notices.......................................................................................................A-1

1-1
Chapter 1: General information
1.1 Package contents
Check your industrial motherboard package for the following items.
1 x Industrial Motherboard
1 x Cable Kit
1 x DVD-ROM for manual (in PDF format) and drivers
NOTE: If any of the above items are damaged or missing, contact your
distributor or sales representative immediately.
1.2 Features
• Integrated Intel®Atom™ processor N2600 / N2800 (optional)
• One Single Channel DDR3 800 / 1066MHz SO-DIMM Up To 2GB
• Realtek®ALC887,AudioAmplierEUA2012A
• Multi Display: LVDS+HDMI, VGA+LVDS, VGA+HDMI
• DualEthernetLAN:Realtek®8111F x 2
• SATA 3Gb/s x 2, USB2.0 x 6, COM x 4
• 2 x Mini Card slots with PCIe and USB interface (1 x Full Height with SIM card
interface, 1 x Half Height)
• EuP/ErPCompliance
• AMD®HD7410M (optional)
Chapter 1
Product overview

EPC-CV1 Series
1-2
1.3 Specifications
SYSTEM
CPU Integrated Intel®Atom™ processor N2600 / N2800 (optional)
Memory 1xSO-DIMM,max.2GB,DDR3800/1066MHz,non-ECC,un-buffered
memory
Single channel memory architecture
Chipset Intel®NM10
I/O Chipset Fintek 81866D-I
LAN 2 x Realtek®8111F PCIe Gigabit LAN controllers
Audio 1 x Realtek®ALC8878-channelhighdenitionaudioCODEC
1xAudioAmplierEUA2012A
Expansion slot 2 x Mini Card slots with PCIe and USB interface (1 x Full Height with SIM
card interface, 1 x Half Height)
BIOS 64MbFlashROM,UEFIAMIBIOS,PnP,DMI2.0,Wfm2.0,SMBIOS,ACPI
3.06
H/W Status Monitor Monitors CPU/system temperature
Monitors Vcore, 3.3V/5V/12V voltages
Monitors chassis fan speed
Watchdog Timer 1~255 steps by software program
Smart Fan Control Yes
Wake On LAN / PXE Yes(WOL,PXE)
Power States S3, S4, S5
Graphics
Graphics Chipset AMD®HD7410M with 512M memory (optional)
Graphics Multi
Display LVDS+HDMI, VGA+LVDS, VGA+HDMI
Resolution VGA: Up to 1920 x 1200 @60Hz (optional)
HDMI: Up to 1920 x 1200 @60Hz
LVDS: Up to 2048 x 1536 @60Hz, 24 bit dual channel
LVDS Inverter
Control Voltage/PWM,1xDC5V/12VforLCDbacklightinverterboard
Environment, Power, and ME
Battery Lithium battery
Power requirement 1 x DC connector on rear I/O
1 x onboard 2-pin power connector
Power compliance CompliantwithEup/ErP
Operating
temperature 14oF~131oF (-10oC~55oC)
Operating humidity 0%~90% relative humidity, non-condensing
Form factor EPICformfactor:
4.53 in. x 6.5 in. (11.5 cm x 16.5 cm)
EMI CE,FCC
(continued on the next page)

1-3
Chapter 1: General information
I/O
Storage 2 x SATA 3Gb/s ports
USB 6 x USB 2.0 ports (2 ports at mid-board, 4 ports on rear I/O)
Display I/O 1 x LVDS connector, 1 x VGA connector, 1 x HDMI port
Audio I/O Mic-In, Line-Out, S/PDIF onboard headers
Amplier onboard header
HDMI support audio
LAN I/O 2 x RJ-45 ports on rear I/O
Serial port 1 x 5V/12V RS232/RS485 port on rear I/O (COM1)
3 x RS232 onboard headers (COM2, COM3, COM4)
PS/2 port 1 x PS/2 keyboard / mouse connector
DIO 8-bit Digital I/O interface (4-in/4-out)
Fan 1 x Chassis fan connector (4-pin)
RTC Internal RTC
I/O Placement
Back panel I/O ports 1 x HDMI port
1 x COM port (RS232/485)
2 x LAN (RJ-45) port
4 x USB 2.0 ports
1 x Lockable DC power port (12V)
Internal I/O
connectors
1 x VGA pin header
1 x 12V DC power connector (2-pin)
2 x SATA 3Gb/s connectors
1 x 4-pin SATA power connector
1 x PS/2 keyboard/mouse connector (6-pin)
1 x USB 2.0 header supports additional 2 USB 2.0 ports
3 x RS232 COM connectors
1 x LVDS connector
1 x 5-pin LCD power connector
1 x Full Height Mini Card slot
1 x Half Height Mini Card slot
1 x SIM card connector
1x4-pinaudioamplierconnector
1 x Line-Out / Mic-In audio pin header (AAFP)
1 x S/PDIF output pin header
1 x DIO connector
1 x Chassis Fan connector
(continued on the next page)

EPC-CV1 Series
1-4
Others
Supported OS Windows
®
XP32-bit
Windows
®
XP64-bit(onlywithAMDgraphics)
Windows
®
7 32-bit
Windows
®
7 64-bit (only with AMD graphics)
Windows
®
8 32-bit
Windows
®
8 64-bit (only with AMD graphics)
Linux Fedora
Accessories 1 x SATA 3Gb/s cable
1 x SATA power cable
1 x Support DVD (Drivers, Manual)
NOTE: Specicationsaresubjecttochangewithoutnotice.

2-1
Chapter 2: Motherboard information
Chapter 2
Motherboard information
2.1 Before you proceed
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
CAUTION!
• Unplugthepowercordfromthewallsocketbeforetouchingany
component.
• Beforehandlingcomponents,useagroundedwriststraportouchasafely
groundedobjectorametalobject,suchasthepowersupplycase,toavoid
damaging them due to static electricity.
• HoldcomponentsbytheedgestoavoidtouchingtheICsonthem.
• Wheneveryouuninstallanycomponent,placeitonagroundedantistatic
pad or in the bag that came with the component.
• Beforeyouinstallorremoveanycomponent,ensurethatthepowersupply
is switched off or the power cord is detached from the power supply. Failure
todosomaycauseseveredamagetothemotherboard,peripherals,or
components.

EPC-CV1 Series
2-2
CHA_FAN1
LVDS_VDD_SEL1 CLRTC1
LCD_POWER_SEL1 L_BRIGHTNESS1
VGA
11.5cm(4.53in)
16.5cm(6.5in)
SATA3G_1
ISD72
D9MGG
ISD72
D9MGG
SATA3G_2
SPEAKER
AMP_CON1
SPI1
SIM1
Intel®
N2600
Intel®
NM10
PLX
PEX8605
MINI_CARD2 MINI_CARD1
PCIEX1_1
Super
I/O
AMD®
HD7410M
COM1
SATA_PWR1
EATX_PWR1
AAFP1
ALC
887
ICS
9VRS4339AL
RTL
8111F
RTL
8111F
SPDIF_OUT1
HDMI1
LAN1
LAN2
USB2
USB3
USB1
J2
J1
BATTERY
DC_PWR
KBMS1
DDR3 DIMM_A1
LVDS1
INV1
F_PANEL1
DIO1
COM2 COM3 COM4
R560
010S
AMD
®
GPU (optional)
421 3 5
1518 1617
6
8
11
9
10
12
13
14
21
24
22
23
26
25
7
19
20
2.2 Motherboard layout
Place this side towards
the rear of the chassis
NOTE: Placevescrewsintotheholesindicatedbycirclestosecurethe
motherboard to the chassis.
CAUTION!Donotovertightenthescrews!Doingsocandamagethe
motherboard.

2-3
Chapter 2: Motherboard information
Connectors/Jumpers/Slots Page
1. Digitalaudioconnector(4-1pinSPDIF_OUT1) 2-13
2. Line-Out/Mic-Inaudioconnector(10-1pinAAFP1) 2-13
3. SPIprogrammingconnector(8-pinSPI1) 2-18
4. Audioamplierconnector(4-pinAMP_CON1) 2-20
5. SerialATA3Gb/sconnectors(7-pinSATA3G_1/2) 2-17
6. Internalspeakerconnector(4-pinSPEAKER) 2-15
7. LVDSconnector(30-pinLVDS1) 2-21
8. VGAconnector(16-pinVGA) 2-20
9. LCDinverterpowersettingjumper(3-pinLCD_POWER_SEL1) 2-11
10. LVDSbacklightbrightnesscontroljumper(3-pinL_BRIGHTNESS1) 2-10
11. Backlightinverterpowerconnector(5-pinINV1) 2-19
12. Systempanelconnector(10-1pinF_PANEL1) 2-16
13. DigitalI/Oconnector(10-pinDIO1) 2-22
14. Serialportconnectors(9-pinCOM2/3/4) 2-14
15. Chassisfanconnector(4-pinCHA_FAN1) 2-15
16. ClearRTCRAM(3-pinCLRTC1) 2-8
17. LVDSpanelVDDsettingjumper(3-pinLVDS_VDD_SEL1) 2-10
18. DDR3DIMMslot 2-6
19. EATXpowerconnector(2-pinEATX_PWR1) 2-14
20, LockableDCpowerport(DC_PWR) 2-12
21. SATApowerconnector(4-pinSATA_PWR1) 2-17
22. COM1Ringandvoltageselection(6-pinJ1) 2-9
23. Batteryconnector(2-pinBATTERY) 2-21
24. ATModeselection(2-pinJ2) 2-9
25. PS/2keyboard/mouseconnector(6-pinKBMS1) 2-19
26. USB2.0connector(10-pinUSB1) 2-18
NOTES:
• IfyourmotherboardhasanonboardAMD®GPU,youshouldinstallthe
displaydriver.
• IfyourmotherboarddoesnothaveanonboardAMD®GPU,youshould
installtheVGAdriver.

EPC-CV1 Series
2-4
2.3 Screw size
2.3.1 Component side

2-5
Chapter 2: Motherboard information
2.3.2 Solder side

EPC-CV1 Series
2-6
3
2.4 Central Processing Unit (CPU)
ThemotherboardcomeswithanintegratedIntel®Atom™processorN2600/
N2800(optional).
2.5 System memory
ThismotherboardcomeswithoneDoubleDataRate3(DDR3)SmallOutlineDual
InlineMemoryModules(SO-DIMM)socket.Thegureillustratesthelocationofthe
DDR3DIMMsocket:
To install a DIMM
EPC-CV1 Series Integrated Intel®Atom™ processor
Integrated Intel®
Atom™ processor
EPC-CV1 Series DDR3 DIMM socket
DIMM_A1

2-7
Chapter 2: Motherboard information
To remove a DIMM
3

EPC-CV1 Series
2-8
2.6 Jumpers
1. Clear RTC RAM (3-pin CLRTC1)
ThisjumperallowsyoutocleartheRealTimeClock(RTC)RAMin
CMOS.YoucancleartheCMOSmemoryofdate,time,andsystemsetup
parametersbyerasingtheCMOSRTCRAMdata.Theonboardbutton
cellbatterypowerstheRAMdatainCMOS,whichincludesystemsetup
information such as system passwords.
To erase the RTC RAM:
1. TurnOFFthecomputerandunplugthepowercord.
2. Movethejumpercapfrompins1-2(default)topins2-3.Keepthecapon
pins2-3forabout5~10seconds,thenmovethecapbacktopins1-2.
3. PlugthepowercordandturnONthecomputer.
4. Holddownthe<Del>keyduringthebootprocessandenterBIOSsetup
to reenter data.
CAUTION!ExceptwhenclearingtheRTCRAM,neverremovethecapon
CLRTCjumperdefaultposition.Removingthecapwillcausesystemboot
failure!
NOTES:
• Ifthestepsabovedonothelp,removetheonboardbatteryandmovethe
jumperagaintocleartheCMOSRTCRAMdata.AfterclearingtheCMOS,
reinstall the battery.
• YoudonotneedtocleartheRTCwhenthesystemhangsdueto
overclocking.Forsystemfailureduetooverclocking,usetheCPU
ParameterRecall(C.P.R)feature.Shutdownandrebootthesystemsothe
BIOScanautomaticallyresetparametersettingstodefaultvalues.
EPC-CV1 Series Clear CMOS RAM
12
23
Normal
(Default)
Clear
CLRTC1

2-9
Chapter 2: Motherboard information
2. COM1 Ring and voltage selection (6-pin J1)
Pins
1-2 +12V
3-4 +5V
5-6 Ring(Default)
EPC-CV1 Series COM1 Ring and voltage selection
1 2 3 4 5 6
Ring
(Default)
+5V+12V
J1
3. AT Mode selection (2-pin J2)
Pins
1-2 ATMode
EPC-CV1 Series AT Mode selection
AT MODE
J2
PIN1

EPC-CV1 Series
2-10
4. LVDS backlight brightness control jumper (3-pin L_BRIGHTNESS1)
Pins
1-2 DCMode(Default)
2-3 PWMMode
5. LVDS panel VDD setting jumper (3-pin LVDS_VDD_SEL1)
Pins
1-2 +3V
2-3 +5V(Default)
12
DC MODE
(Default)
PWM MODE
L_BRIGHTNESS1
EPC-CV1 Series LVDS backlight brightness control jumper
12
23
+3V +5V
(Default)
LVDS_VDD_SEL1
EPC-CV1 Series LVDS panel VDD setting jumper

2-11
Chapter 2: Motherboard information
6. LCD inverter power setting jumper (3-pin LCD_POWER_SEL1)
Pins
1-2 +12V(Default)
2-3 +5V
LCD_POWER_SEL1
12
23
+12V
(Default)
+5V
EPC-CV1 Series LCD inverter power setting jumper

EPC-CV1 Series
2-12
3. USB 2.0 ports.Thesetwo12-pinUniversalSerialBus(USB)portsare
availableforconnectingUSB2.0/1.1devices.
4. COM port. This9-pinCOM1portisforpointingdevicesorotherserial
devices.
5. Lockable DC power port (+12V).ThisportconnectstoaDCpoweradapter.
Toselectthecorrectpoweradapter,refertotheinnerandouterdimensions
of this power port.
2.7 Connectors
2.7.1 Rear panel connectors
LAN port
Speed
LED
Activity
Link LED
ACT/LINK LED SPEED LED
Status Description Status Description
OFF Nolink OFF 10Mbpsconnection
ORANGE Linked ORANGE 100Mbpsconnection
BLINKING Dataactivity GREEN 1Gbpsconnection
1. HDMI port.ThisportisforaHigh-DenitionMultimediaInterface(HDMI)
connector,andisHDCPcompliantallowingplaybackofHDDVD,Blu-Ray,
and other protected content.
2. LAN (RJ-45) ports.TheseportsallowGigabitconnectiontoaLocalArea
Network(LAN)throughanetworkhub.RefertothetablebelowfortheLAN
portLEDindications.
LAN port LED indications
34 51 2
