Aaeon FSB-868G User manual

Full-size CPU Card FSB-868G Rev.B
FSB-868G Rev.B
Intel
® Core®2 Duo/
Pentium
®-D/ Pentium®-4
LGA 775 Processor
Full-size CPU Card
With DDRII, Ethernet,
ISA/ PCI/ PCI Express
FSB-868G Rev.B Manual 1st Ed.
Nov. 2007

Full-size CPU Card FSB-868G Rev.B
i
Copyright Notice
This document is copyrighted, 2007. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Full-size CPU Card FSB-868G Rev.B
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
 Award is a trademark of Award Software International, Inc.
 CompactFlash™is a trademark of the Compact Flash
Association.
 Intel®, Core 2 Duo, Pentium®4, and Pentium®D are trademarks
of Intel®Corporation.
 Microsoft Windows®is a registered trademark of Microsoft Corp.
 ITE is a trademark of Integrated Technology Express, Inc.
 IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
 SoundBlaster is a trademark of Creative Labs, Inc.
Please be notified that all other products’ name or trademarks
not be mentioned above are properties of their respective
owners.

Full-size CPU Card FSB-868G Rev.B
iii
Packing List
Before you begin installing your card, please make sure that the
following materials have been shipped:
 1701340704 Floppy Cable
 1701400453 ATA-100 Cable
 1700060192 Y Cable for PS/2 Keyboard & Mouse
 1701260307 Parallel Port & COM Port Cable
 1701100305 Serial Port Cable
 1703030501 ATX Power Cable
 1709100201 USB Cable w/ Bracket
 1709070780 SATA Cable x 4
 1759200161 CPU Cooler Fan for LGA 775
Pentium®4 3.6G
 Quick Installation Guide
 CD-ROM for manual (in PDF format) and drivers
 FSB-868G Rev.B CPU Card
If any of these items should be missing or damaged, please
contact your distributor or sales representative immediately.

Full-size CPU Card FSB-868G Rev.B
iv
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Feature......................................................................1-4
1.3 Specification..............................................................1-5
Chapter 2 Quick Installation Guide
2.1 Safety Precautions....................................................2-2
2.2 Location of Connectors and Jumpers .......................2-3
2.3 Mechanical Drawing..................................................2-4
2.4 List of Jumpers..........................................................2-5
2.5 List of Connectors .....................................................2-6
2.6 Setting Jumpers ........................................................2-8
2.7 Clear CMOS (JP1) ....................................................2-9
2.8 LCD Voltage Selection (JP2) ....................................2-9
2.9 Front panel Connector (FP1) ....................................2-9
2.10 Front panel Connector (FP2) ..................................2-9
2.11 RS-232 Serial Port Connector (COM1)...................2-10
2.12 RS-232/422/485 Serial Port Connector (COM2).....2-10
2.13 IrDA Connector (IR1)...............................................2-10
2.14 LPT Port Connector (LPT1) ....................................2-11
2.15 USB Connector (USB1~3) ......................................2-11
2.16 Fan Connector (FAN1)............................................2-12
2.17 ATX Power Control Connector (CN1).....................2-12

Full-size CPU Card FSB-868G Rev.B
v
2.18 LAN LED Connector (CN2, CN5)............................2-12
2.19 PCI-Express 【x 1】Connector (CN3)...................2-12
2.20 LVDS Channel Connector (CN4)............................2-13
2.21 AC97 Connector (CN6)...........................................2-14
2.22 PS2 Keyboard/Mouse Connector (CN7).................2-14
2.23 Internal Keyboard Connector (CN8)........................2-14
Chapter 3 CPU, Heatsink and Fan Installation
3.1 CPU Installation and motherboard handling.............3-2
Chapter 4 Award BIOS Setup
4.1 System Test and Initialization. ..................................4-2
4.2 Award BIOS Setup....................................................4-3
Chapter 5 Driver Installation
5.1 Installation.................................................................5-3
Appendix A Programming The Watchdog Timer
A.1 Programming .........................................................A-2
A.2 W83627EHG Watchdog Timer Initial Program......A-6
Appendix B I/O Information
B.1 I/O Address Map.................................................. B-2
B.2 1st MB Memory Address Map ................................B-3
B.3 IRQ Mapping Chart................................................B-4
B.4 DMA Channel Assignments...................................B-5

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-1
General
Information
Chapter
1

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-2
1.1 Introduction
AAEON announces a new full-size form factor Single Board
Computer (SBC) - FSB-868G Rev.B, which is based on the
use of Intel®Core 2 Duo LGA 775/ Pentium®-D/ Penitum®-4
processors. FSB-868G utilizes Intel®LGA 775 Core 2 Duo
CPU with high CPU core frequencies up to 2.66GHz,
Pentium®D up to 3.6GHz, Pentium®4 up to 3.8GHz with the
Front Side Bus (FSB) running at 533 to 1066MHz.
FSB-868G Rev.B supports dual channel DDRII 533/667
system memory up to 2GB. The VGA Controller of
FSB-868G integrates Intel 945G chipset with core frequency
up to 400MHz and integrates GMA950 2D/3D graphics
Accelerator to provide higher performance of graphic
processing. AAEON’s got Intel’s long-term supply
commitment and will guarantee product’s long-life cycle to our
precious customers.
In addition to the powerful computing engine, FSB-868G
Rev.B equips with USB2.0 ports, one Mini-DIN PS/2 keyboard
& mouse connector, one IrDA header and one standard
Floppy Disk Drive. Moreover, it also supports Ultra ATA 100,
four SATA II and CompactFlash Type II storages. These

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-3
versatile expansion interfaces bring FSB-868G Rev.B a great
flexibility to serve different application demands. Furthermore,
its huge capacity and excellent compatibility are also ideal for
system integrators for system planning and devices
combination.
1.2 Features
 Supports Intel®Core 2 Duo/ Pentium®4/ Pentium®D
LGA775 CPU up to 2.66GHz (Core 2 Duo CPU)
 DDR2 667 Memory Supports Up To 2GB
 Integrated GMA950 2D/3D Graphics Accelerator, VGA
Support
 Supports Dual Channel LVDS Output & Raid Function
(Optional)
 Supports Two 10/100/1000Base-TX Ethernet (Optional)
 Supports Ultra ATA100 & 4 x SATA II & CompactFlash
Type-II Storage
 7 USB 2.0/ 1 RS-232/422/485/ 1 RS-232/ 1 Parallel/ 1
IrDA Ports
 Watchdog Function 1~255 Sec.

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-4
1.3 Specification
System
 CPU: Supports Intel®Core 2 Duo/
Pentium®4 and Pentium®-D
LGA 775 Processors up to
2.66 GHz (FSB
533/800/1066MHz)
 Chipset: Intel®945G + Intel®
82801 GB (ICH7/ICH7R
RAID optional)
 System Memory: 240-pin 1.8V DDRII DIMM
Socket x 2, total up to 4GB
Support Dual Channel DDR
memory (DDRII 533/667)
 VGA Controller: Integrated VGA on Intel®
945G, Core frequency up to
400MHz
 Ethernet: PCI Express 10/100Mb or
10/100/1000Mb LAN with
RJ-45 Connector x 2
(Optional), Marvell
88E8036/88E8053
controller
 BIOS: Award Plug & Play FWH

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-5
BIOS – 4Mb ROM
 Audio (Daughter board):Realtek ALC655 AC97
Codec, MIC-in/ Line-in/
Line-out/ CD-in optional
 IDE Interface: ATA-100 x 1 channel
(Supports CD-ROM ATAPI
device); SATA 3Gb/s x 4
(Support four SATA devices)
 Expansion Interface: ISA/ PCI/ PCI Express
Connector (DF13-30P)
 ISA Interface: PCI to ISA Bridge Used
 SSD: Supports CompactFlash™
type II connector
 IR Interface: Supports IrDA header x 1
 Universal Serial Bus: USB 2.0 Port x 7; 5x2 pin
header for internal x 3
(support up to 6 USB ports);
Type-A connector onboard x
1
 Watchdog Timer: 1~255 Sec. can be set with
software on Super I/O
 RTC: Internal RTC
 Power Supply Voltage: ATX, ATX +12V
 Battery: Lithium battery
 Operation Temp.: 32°F~140°F (0°C ~60°C)

Full-size CPU Card FSB-868G Rev.B
Chapter 1 General Information 1-6
I/O
 FDD Interface: Standard FDD port x 1
(supports up to 1 floppy
device)
 Serial Port: Two COM ports: (Internal
pin header x 2)
COM 1: RS-232
COM 2: RS-232/422/485
 Parallel Port: Supports SPP/EPP/ECP
mode
 Keyboard & Mouse connector:
Mini-DIN for PS/2 Keyboard
and mouse connector x 1;
Internal keyboard pin
header x 1

Full-size CPU Card FSB-868G Rev.B
Chapter 2 Quick Installation Guide 2-1
Quick
Installation
Guide
Chapter
2
Part No. 2007868G20 Printed in Taiwan Nov. 2007
Notice:
The Quick Installation Guide is derive
d
f
rom Chapter 2 of user manual. For othe
r
chapters and further installation
instructions, please refer to the use
r
manual CD-ROM that came with th
e
p
roduct.

Full-size CPU Card FSB-868G Rev.B
Chapter 2 Quick Installation Guide 2 - 2
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis

Full-size CPU Card FSB-868G Rev.B
Chapter2QuickInstallationGuide2 - 3
2.2 Location of Connectors and Jumpers

Full-size CPU Card FSB-868G Rev.B
Chapter 2 Quick Installation Guide 2 - 4

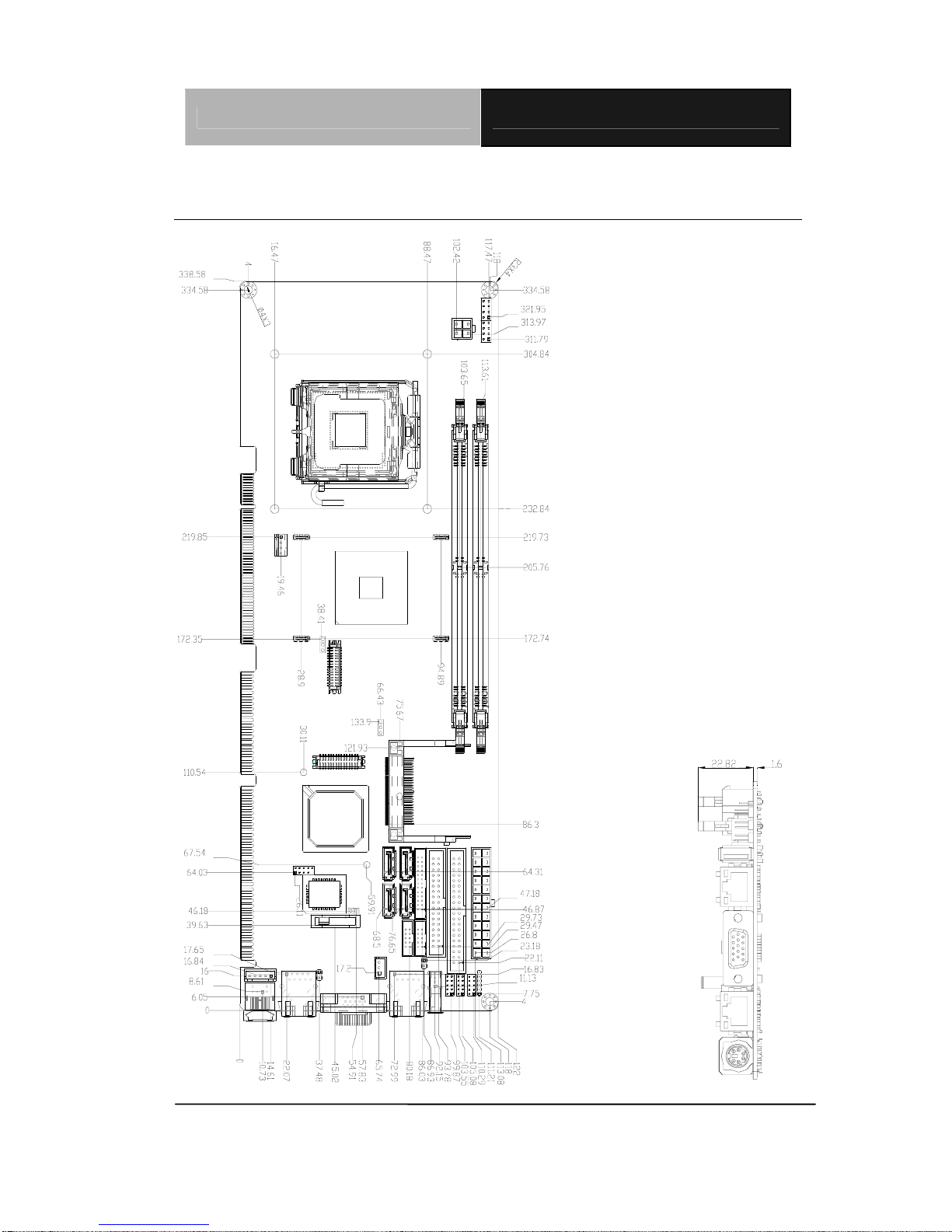

2.3 Mechanical Drawing

Full-size CPU Card FSB-868G Rev.B
Chapter2QuickInstallationGuide2 - 5
2.4 List of Jumpers
The board has a number of jumpers that allow you to configure your
system to suit your application.
The table below shows the function of each of the board's jumpers:
Jumpers
Label Function
JP1 LCD Volta
g
e Selection
JP2 Clear CMOS
JP3 CF Voltage Selection

Full-size CPU Card FSB-868G Rev.B
Chapter 2 Quick Installation Guide 2 - 6
2.5 List of Connectors
The board has a number of connectors that allow you to configure
your system to suit your application. The table below shows the
function of each board's connectors:
Connectors
Label Function
FP1 Front Panel Connector 1
FP2 Front Panel Connector 2
ATX1 24-pin ATX Power
ATX2 4 pin ATX Power +12V Connector
VGA1 VGA Display Connector
FDD1 Floppy Connector
IDE1 EIDE Connector
SATA1~4 Serial ATA Connector
CFD1 Compact Flash Slot
COM1 RS-232 Serial Port Connector
COM2 RS-232/422/485 Serial Port Connector
IR1 IrDA Connector
LPT1 LPT Port Connector
USB1~3 USB x 2 PIN HEADER
USB4 USB Connector
LAN1 10/100 or 100/1000 Base-TX Ethernet Connector
LAN2 10/100 or 100/1000 Base-TX Ethernet Connector

Full-size CPU Card FSB-868G Rev.B
Chapter2QuickInstallationGuide2 - 7
DIMM1, 2 DDRII Memory Slot
FAN1 4-pin Fan Connector
CN1 LVDS Channel Connector
CN2 PCI Express x1 Connector
CN3 AC97 Connector
CN4 LAN 1 Active LED Connector
CN5 ATX Power Control Connector
CN6 Internal Keyboard Connector
CN7 LAN 2 Active LED Connector
CN8 PS2 Keyboard/Mouse Connector

Full-size CPU Card FSB-868G Rev.B
Chapter 2 Quick Installation Guide 2 - 8
2.6 Setting Jumpers
You configure your card to match the needs of your application by
setting jumpers. A jumper is the simplest kind of electric switch. It
consists of two metal pins and a small metal clip (often protected by
a plastic cover) that slides over the pins to connect them. To “close”
a jumper you connect the pins with the clip.
To “open” a jumper you remove the clip. Sometimes a jumper will
have three pins, labeled 1, 2 and 3. In this case you would connect
either pins 1 and 2 or 2 and 3.

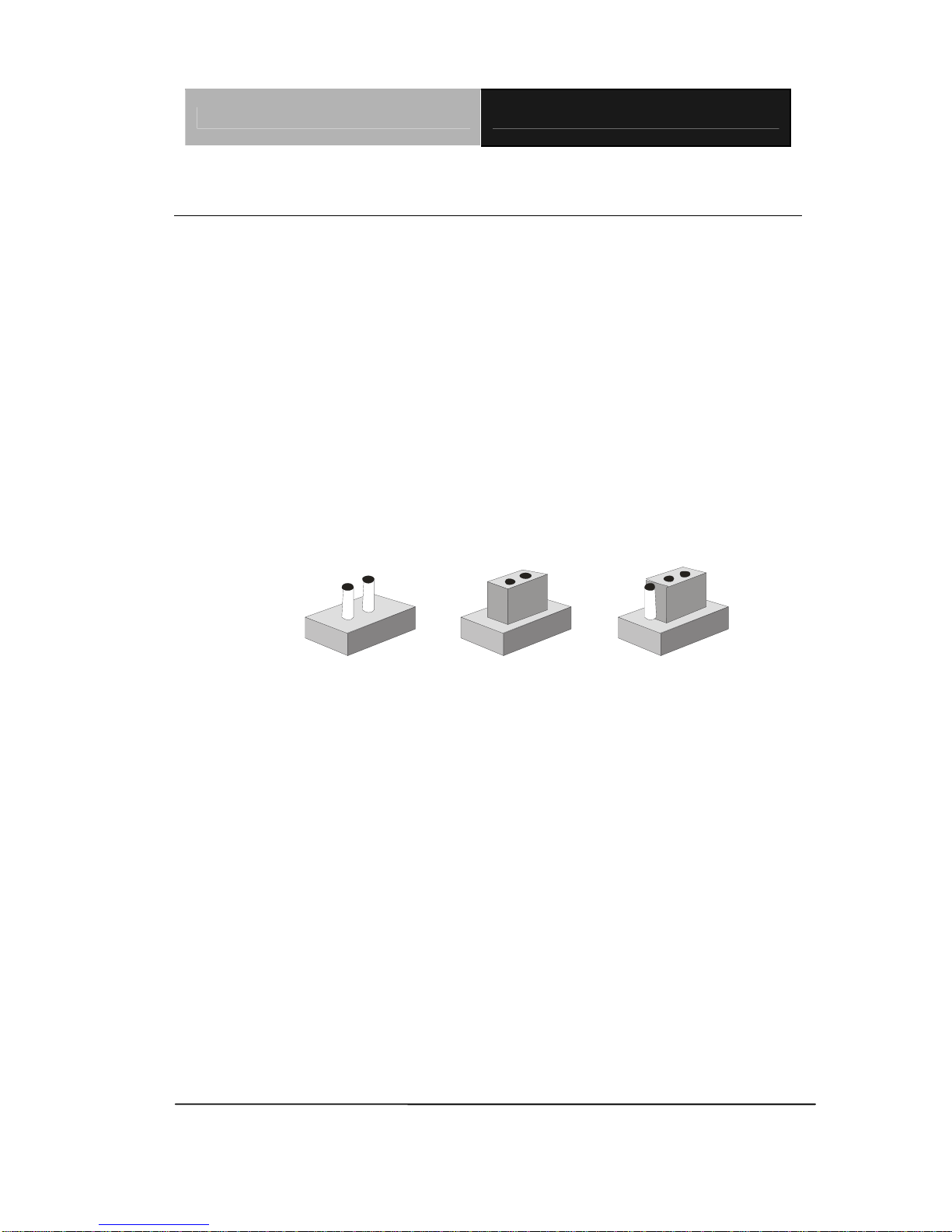

123
Open Closed Closed 2-3
A pair of needle-nose pliers may be helpful when working with
jumpers.
If you have any doubts about the best hardware configuration for
your application, contact your local distributor or sales
representative before you make any change.
Generally, you simply need a standard cable to make most
connections.
