Aaeon SBC-659P User manual

SBC-659P
Half- size Intel FC-370 Pentium III CPU
CardwithIntel815Echipset,Dual LAN,
Audio,DualCOMs, LCD &4USB.

CopyrightNotice
This document is copyrighted, 2001. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties which may result
from its use.
The material is this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
PartNo. 2087659010 SBC-659P 1st Edition
A1.0 Printed in Taiwan December., 2001

Acknowledgments
All other product names or trademarks are properties of their
respective owners.
AMD is a trademark of Advanced Micro Devices, Inc.
AMI is a trademark of American Megatrends, Inc.
Award is a trademark of Award Software International, Inc.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
Intel and Pentium III are trademarks of Intel Corporation.
Microsoft Windows®
is a registered trademark of Microsoft Corp.
SMC is a trademark of Standard Microsystems Corporation.RTL is
atrademarkofRealtekSemi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.

AMessagetotheCustomer
AAEONCustomer Services
Each and every AAEON product is built to the most exacting
specifications to ensure reliable performance in the harsh and
demanding conditions typical of industrial environments. Whether
your new AAEON equipment is destined for the laboratory or the
factory floor, you can be assured that your product will provide the
reliability and ease of operation for which the name AAEON has
come to be known.
Your satisfaction is our primary concern. Here is a guide to
AAEON's customer services. To ensure you get the full benefit of
our services, please follow the instructions below carefully.
Technical Support
We want you to get the maximum performance from your products.
So if you run into technical difficulties, we are here to help. For the
most frequently asked questions, you can easily find answers in
your product documentation. These answers are normally a lot
more detailed than the ones we can give over the phone.
So please consult this manual first. If you still cannot find the
answer, gather all the information or questions that apply to your
problem, and with the product close at hand, call your dealer. Our
dealers are well trained and ready to give you the support you need
to get the most from your AAEON products. In fact, most problems
reported are minor and are able to be easily solved over the phone.
In addition, free technical support is available from AAEON
engineers every business day. We are always ready to give advice
on application requirements or specific information on the installa-
tion and operation of any of our products.

Product Warranty
AAEON warrants to you, the original purchaser, that each of its
products will be free from defects in materials and workmanship for
two years from the date of shipment.
This warranty does not apply to any products which have been
repaired or altered by persons other than repair personnel autho-
rized by AAEON, or which have been subject to misuse, abuse,
accident or improper installation. AAEON assumes no liability
under the terms of this warranty as a consequence of such events.
Because of AAEON's high quality-control standards and rigorous
testing, most of our customers never need to use our repair service.
If an AAEON product is defective, it will be repaired or replaced at
no charge during the warranty period. For out-of-warranty repairs,
you will be billed according to the cost of replacement materials,
service time, and freight. Please consult your dealer for more
details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU type and speed, AAEON products used, other
hardware and software used, etc.) Note anything abnormal and
list any on-screen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your
manual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA
(return material authorization) number from your dealer. This
allows us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair
and Replacement Order Card and a photocopy proof of pur-
chase date (such as your sales receipt) in a shippable container.
A product returned without proof of the purchase date is not
eligible for warranty service.
5. Write the RMA number visibly on the outside of the package
and ship it prepaid to your dealer.

• 1floppy disk drive interfacecable (34-pin, pitch 2.0mm)
• 1IDE harddisk drivecable (40-pin, pitch 2.54mm)
• 1parallel port(26-25-pin, pitch 2.0mm)and serialport (10-9 pin,
pitch2.0mm) adapterkit.
• 1 bag of screws and miscellaneous parts
If any of these items are missing or damaged, contact your distribu-
tor or sales representative immediately.
Packinglist
Before you begin installing your card, please make sure that the
following materials have been shipped:
• 1SBC-659P Half- sizeSingle BoardComputer Card
• 1Quick Installation Guide
• 1 Support CD contains the followings:
-- User's Manual (this manual in PDF file)
-- Ethernet driver and utilities
--Chipset driver andutilities
-- Audio driver and utilities

http://www.aaeon.com
Notice
DearCustomer,
Thank you for purchasing the SBC-659P board. This user's
manual is designed to help you to get the most out of the SBC-659P,
please read it thoroughly before you install and use the board. The
product that you have purchased comes with an two-year limited
warranty, but AAEON will not be responsible for misuse of the
product. Therefore, we strongly urge you to first read the manual
before using the product.
To receive the latest version of the user manual, please visit our
Web site at:
Http:\\WWW.AAEON.COM

Contents
Chapter 1: General Information.........................................1
Introduction.......................................................2
Features.................................................................................... 3
Specifications ........................................................................... 4
Board layout ............................................................................. 7
Boarddimensions ..................................................................... 8
Chapter 2: Installation ........................................................9
Safety Precautions.............................................................10
Removing the CPU..................................................10
Installing A CPU ..............................................................11
Setting Jumpers...................................................12
Installing SODIMM......................................................13
Jumpers ...............................................................14
Connectors..........................................................15

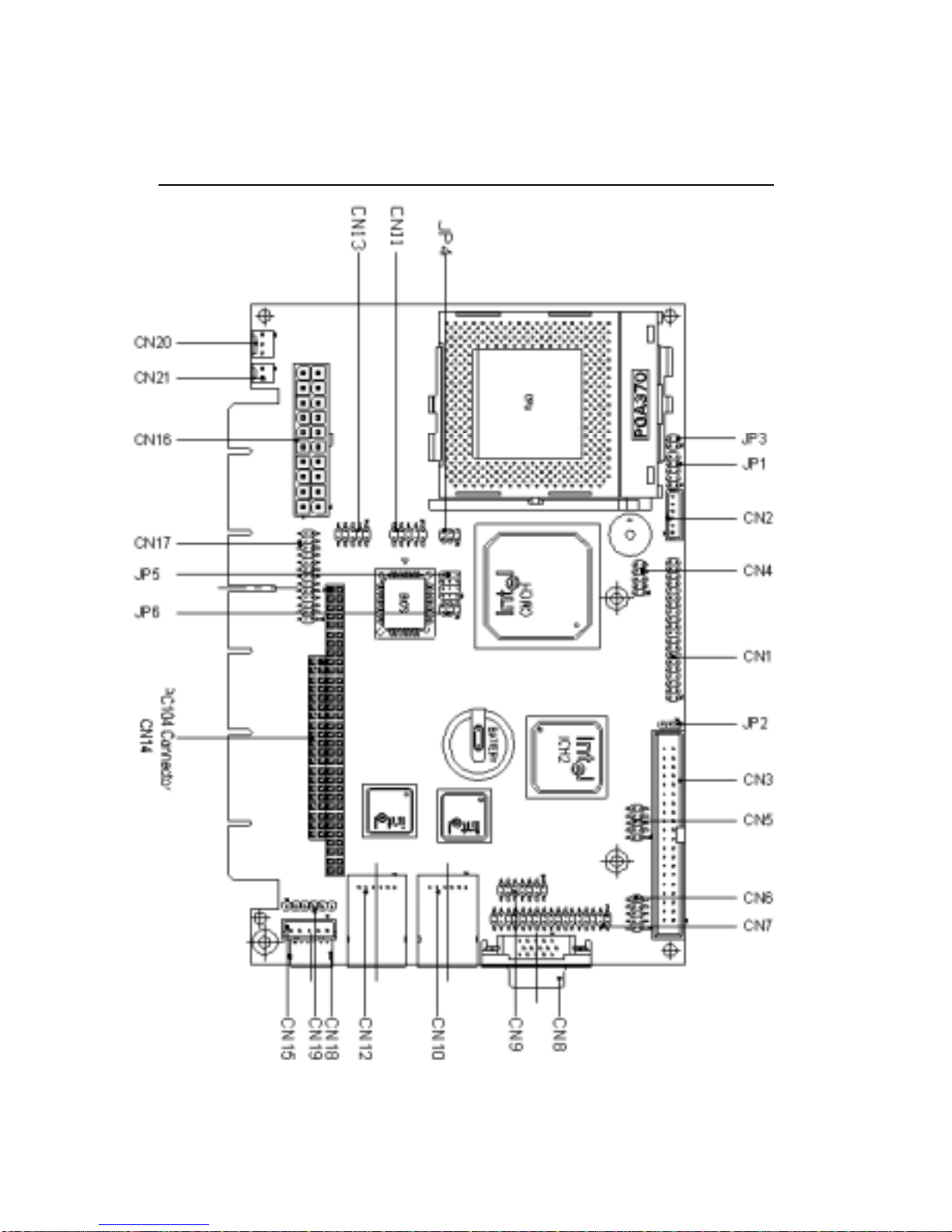

Location of Jumpers and Connectors..................................16
Location of solder side Connectors.................................17
Mechnical Drawing..................................................18
Mechnical Drawing.................................................19
Clear CMOS(JP2)..................................................20
Front Panel(JP1)...................................................20
System Freqency(JP3)...............................................21
COM2(Ring, +5V, +12V)...............................................22
RS-232/422/485 COM2 setting(JP5,JP6)................................23
Digital Video Output(CN1)..........................................24
External Power On Connector (CN2)...................................25
IDE Hard Drive Connector(CN3).....................................26
USB Connector(CN5,CN6)............................................27
Floppy Drive Connector(CN9).......................................28
VGA Connector (CN8).................................................29

Audio Connector(CN9).............................................30
Ethernet Connector (CN12, CN10)..................................31
COM1(CN13), COM2(CN11) Serial Ports..............................32
Internal Keyboard Connector(CN15).................................33
Power Connector(CN16).............................................33
Parallet Port Connector(CN17).....................................34
PS/2 Keyboard and Mouse Connector(CN18)..........................35
IrDA Connector(CN19)..............................................35
CPU Fan Power Connector(CN20)..................................36
North Bridge chip Fan Connector(CN21)..............................36
Compact Flash Connector (CN22)...................................37
Chapter 3: Award BIOS Setup...........................................38
Starting setup............................................................ .. ......39
Setup keys...................................................................... ..40
Gettinghelp .............................................................................41
Main setup menu .....................................................................42
Standard CMOS Features.......................................................44
Advanced BIOS Features.......................................................49
Advanced CHIPSET Features ...............................................54
Integrated Peripherals...............................................58
Power Management Setup......................................................63
PNP/PCI Congfiguration Setup ..............................................67
PC Health Status......................................................69
Frequecy Voltage Control........................................70
Load Fail-Safe Defaults............................................71
Load Optimized Defaults..........................................72
Set Supervisor Password.......................................73
Set User Password...............................................74
Save to CMOS and Exit.........................................75
Exit Without Saving.............................................76

Chapter 4: Drivers and Utilities ......................................77
Installation of Drivers: Notice ................................................78
Chipset Driver .........................................................................79
Ultra ATA Driver ....................................................................80
Windows 95/98..................................................................... 81
Intel 82559 Driver for 95 or 98 Version 1. .................................81
VGA Driver for 95/98............................................82
Audio Driver for 95/98...........................................83
Windows NT......................................................................... 84
Security Driver for NT............................................84
Ultra ATA Storage Driver for NT...........................85
VGA Driver For NT..............................................86
Audio Driver For NT.............................................87
Intel 82559 Driver for NT......................................88
Windows 2000..................................................................89
VGA Driver for 2000.............................................89
Audio Driver for 2000.............................................90

Chapter 1 General Information 1
1
General
Information
This chapter gives background
information of the mainboard.
Sections Include:
• Board Specifications
• Layout and Dimensions
CHAPTER

2SBC-659P User Manual
If your requirements for a single board computer consist of a half-sized
footprint, dual Ethernet, PISA interface and Intel quality logic chipset,
then SBC-659P is the solution. This half-sized single board computer is
ideal for internet data access server.
The dual Ethernet socket ensures consistent high server throughput
and transparent backup connections in corporate servers. Two RJ-45
connectors controlled by two Intel 82559GD chipsets offering 10/
100BaseEthernet interface.
The processors used on this single board computer may vary, however
to acquire the full potential of this embedded computer we suggest
IntelCeleron533~766MHz orPentiumIII offering 300~766MHz(With
systembus frequencies of 66 MHz), Celeron 800MHz-1.2GHz or
PentiumIII 500-900MHz(With systembus frequencies of100MHz), or
PentiumIII 533MHz-1.26GHz (Withsystem bus frequenciesof
133MHz)and Tualatin CPU up to 1.26GHz . We strongly recommand
using thermal grease when you add on an over 1GHz processors.The
logic chipset onboard is entirely Intel, controlling the LCD, LAN and
audio functions.
This half-sized board features an audio interface, supporting micro-
phone in, line in/out, and CD in capabilities. Codec job tasking are
performed by ALC 200 chip. The VGA has a display memory size of
4MB, supporting non-interlaced CRT and up to 18/24/36/48-bit LCD
throughpanel linkor LVDSmodule.
On the solder side we offer a 144-pin SODIMM socket providing a
maximum of 256MB of memory. A compact flash connector is provided
onboard. For expansion modules a PC/104 connector is integrated into
this half-sized card.
SBC-659P supports one IDE channel, dual floppy disk, four USB ports
onboard, two RS-232 serial ports and of which one can be configured
as RS-232/422/485. The single bi-directional parallel ports can support
SPP, ECP and EPP modes. The standard AT/ATXpower connector
enables this half sized SBC to be operated without a backplane if
necessary.
Introduction

Chapter 1 General Information 3
Features
SupportsIntel Celeron/ Tualatin/Pentium III FC-370 CPUs
Notice: It doesn't support 0.25 micron processmicron process
micron processmicron process
micron process CPU.
Two10/100 Base-TFast Ethernet ( 2 intel 82559GD)
Notice:Itdoesn'tsupportWOLfunctioninthisversion
Supports H/W status monitoring
Integrated AC-97 2.1 SoundBlaster compatible PCI 3D Audio
Onboard Intel 815E controller supports 18/24/36/48-bit TFT panel
Supports Compact Flash Memory
Supports PC-104 modules
Four USB ports onboard
Two COM ports onboard
DVO interface onboard
PISA bus interface

4SBC-659P User Manual
Standard Half-size SBC functions
•CPU: FC-370Pentium III (Coppermine),Celeron, Tualatinand compatible
CPUs (With system bus frequencies of 66/100/133MHz).
• CPUsocket: 370 pins Socket
•BIOS: Award 2 MB Flash BIOS
•Chipset: Intel815E
•I/Ochipset:ITE8712F.
• Memory : Onboard one 144 pins SODIMM socket supports up to
256MbytesSDRAM (PC-100/133 SDRAMsupported).
•EnhancedIDE:One IDEchannel. SupportUltra DMA/ 100
mode with data transfer rate of 100MB/sec.
• FDDinterface: Supports two floppy disk drives, 5.25" (360KB and
1.2MB) and/or3.5" (720KB,1.44MB, and 2.88MB).
• Parallelport: One bi-directional parallel ports. Supports SPP, ECP, and
EPP modes.
• Serialport: Two RS-232 serial ports can be configured as COM1, COM2,
or disabled individually and of which one can be configured as RS-
232/422/485(COM2). (16C550 equivalent).
• IRDAinterface:Supports SIR and CIR
• KB/Mouseconnector: 6-pin mini-DIN connector supports PC/AT
keyboard and PS/2 mouse and wake on KBD function.
• USB connectors: Two 10-pin onboard connectors supports four USB
ports.
• Battery: Lithium battery for data retention
•Watchdog timer:Can generatea system reset,IRQ15, or NMI.
Software selectable time-out interval (1 sec. ~ 255 sec, 1 sec./step)
•DMA:7 DMAchannels (8237 equivalent)
•Interrupt: 15interrupt levels (8259equivalent)
Specifications

Chapter 1 General Information 5
Flat Panel/CRT Interface
•Chipset:embedded In Intel 815E
•Displaymemory:Share systemmemory 4MBSDRAM (Max)
• Displaytype: Supports non-interlaced CRT and up to 18/24/36/48 bit
LCD (TFT LCD, only). Can display both CRT and Flat Panel simulta
neously.
Audio Interface
•Chipset:Intel 815E
•Audiointerface: One 14 pin header for microphone in, line in, line out,
and CD-IN.
•Codec: ALC200
Ethernet Interface
•Chipset:TwoIntel 82559GD
•Ethernetinterface:Dual10/100Base-Tx RJ-45connectors. LAN LED
support (Active, Link, Speed)
Compact Flash socket onboard
• Compact flash connector onboard support type 2 CFD
H/Wstatusmonitoring: Embedded in ITE 8712F supports power,
supply voltages, and temperature monitoring.
LEDstatus pinheader:LEDstatus indicator for power, HDD, andLAN.
Power management: Supports AT/ATX power supply. I/O peripheral
support power saving and doze/standby/suspend modes. APM 1.2
compliant.

6SBC-659P User Manual
OSversionrecomandation:Win98orabove
Mechanical and environmental
Powersupplyvoltage: +5V,-5V,+12V,-12V
Operatingtemperature: 32to 140oF (0to 60oC)
Boardsize:7.3"(L)x4.8"(W)(185mmx122mm)
Weight: 0.3Kg

Chapter 1 General Information 7
Board Layout

8SBC-659P User Manual
Board Dimensions

Chapter2 Installation 9
2
Installation
This chapter describes how to set up the
main board hardware, including instruc-
tions on setting jumpers and connecting
peripherals, switches, and indicators. Be
sure to read all the safety precautions
before you begin the installation proce-
dure.
CHAPTER

SBC-659P
10 SBC-659P Installation GuideBC-599/596
Safety precautions
Warning! Always completely disconnect the power cord from
your chassis whenever you are working on it. Do
not make connections while the power is on
because sensitive electronic components can be
damaged by the sudden rush of power. Only
experienced electronics personnel should open the
PC chassis.
Caution! Always ground yourself to remove any static charge
before touching the CPU card. Modern electronic
devices are very sensitive to static electric charges. Use
a grounding wrist strap at all times. Place all electronic
components on a static-dissipative surface or in a static-
shielded bag when they are not in the chassis.
Removing the CPU
TheSBC-659P all-in-one CPU modulesupports most Pentium III/
Celeron CPUs. The system's performance depends on the CPU you
choose. You can install or upgrade the CPU in the board's PGA
socket by following the procedures outlined below. If your system
has an existing CPU, you need to remove it before installing the
newCPU.
Removing a CPU
1. Disconnect power from the chassis, and unplug all connections
to the CPU card. Then, remove the CPU card from the chassis
by following the instructions in the user's manual for your
chassis.
2. Lift the CPU out of the PGA socket. The old chip may be
difficult to remove. You may find spray chip lubricant, designed
for pin-grid-array (PGA) devices, and a chip puller helpful.
These are available at electronics hobbyists' supply stores.
