ABB ACS880-7207LC User manual

—
ABB INDUSTRIAL DRIVES
ACS880-7207LC and -7307LC DC incoming
units
Hardware manual

ACS880-7207LC and -7307LC DC
incoming units
Hardware manual
Table of contents
4. Electrical installation
6. Start-up
3AXD50000752430 Rev A
EN
Original instructions
EFFECTIVE: 2021-10-01

Table of contents
1 Introduction to the manual
9Contents of this chapter ...........................................................................
9Applicability .........................................................................................
9Safety instructions .................................................................................
9Target audience ....................................................................................
10Categorization by option code ...................................................................
10Use of component designations .................................................................
10Terms and abbreviations ..........................................................................
10Related manuals ...................................................................................
10Related drive manuals .........................................................................
11Related DC isolator/breaker and protection relay manuals ..............................
2 Operation principle and hardware description
13Contents of this chapter ...........................................................................
14Operation principle .................................................................................
15Overview diagram of the drive system ..........................................................

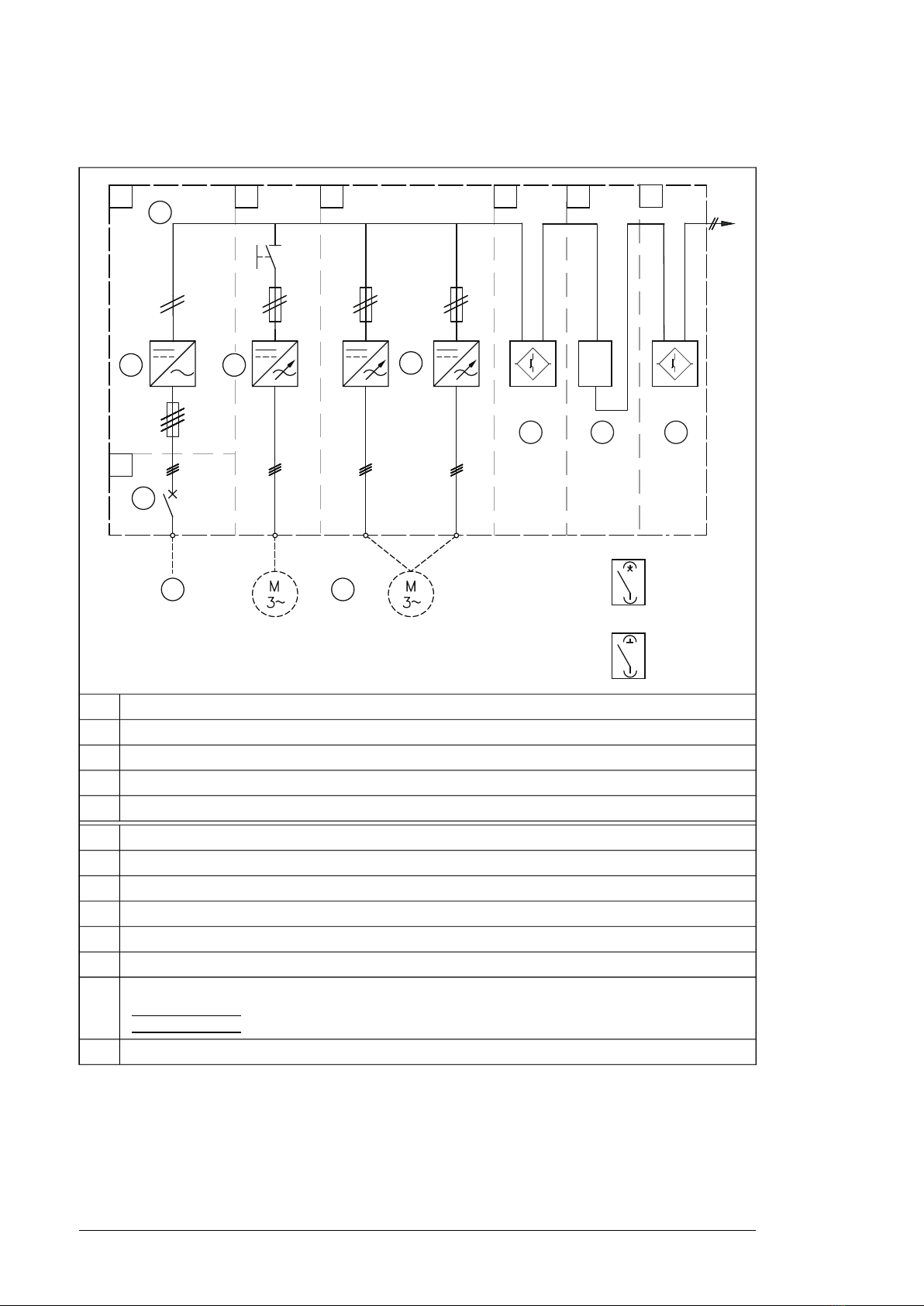

15Drive with a generator connection ...........................................................

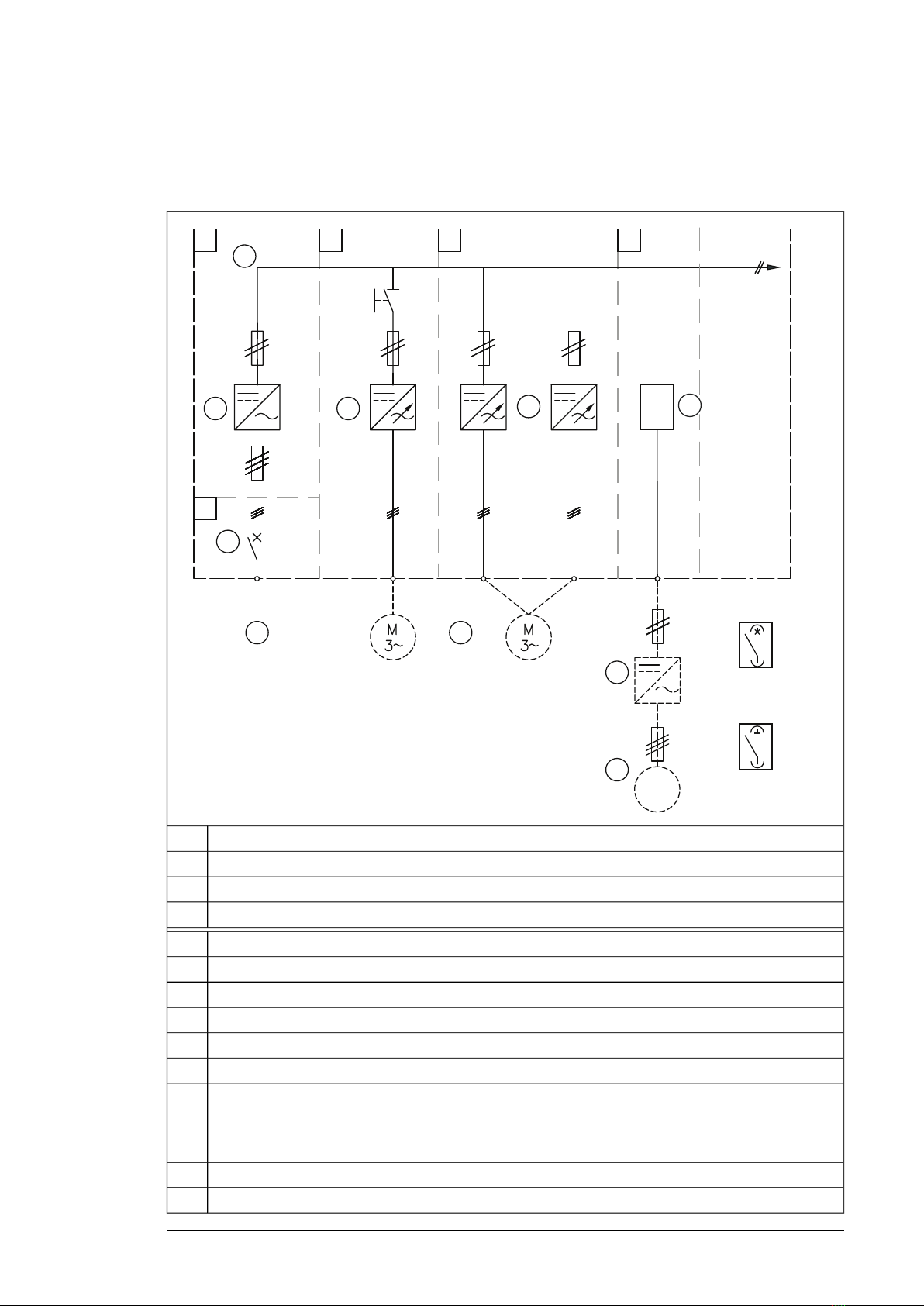

16Drive with a tie-bus connection ...............................................................
17Layout drawings ....................................................................................

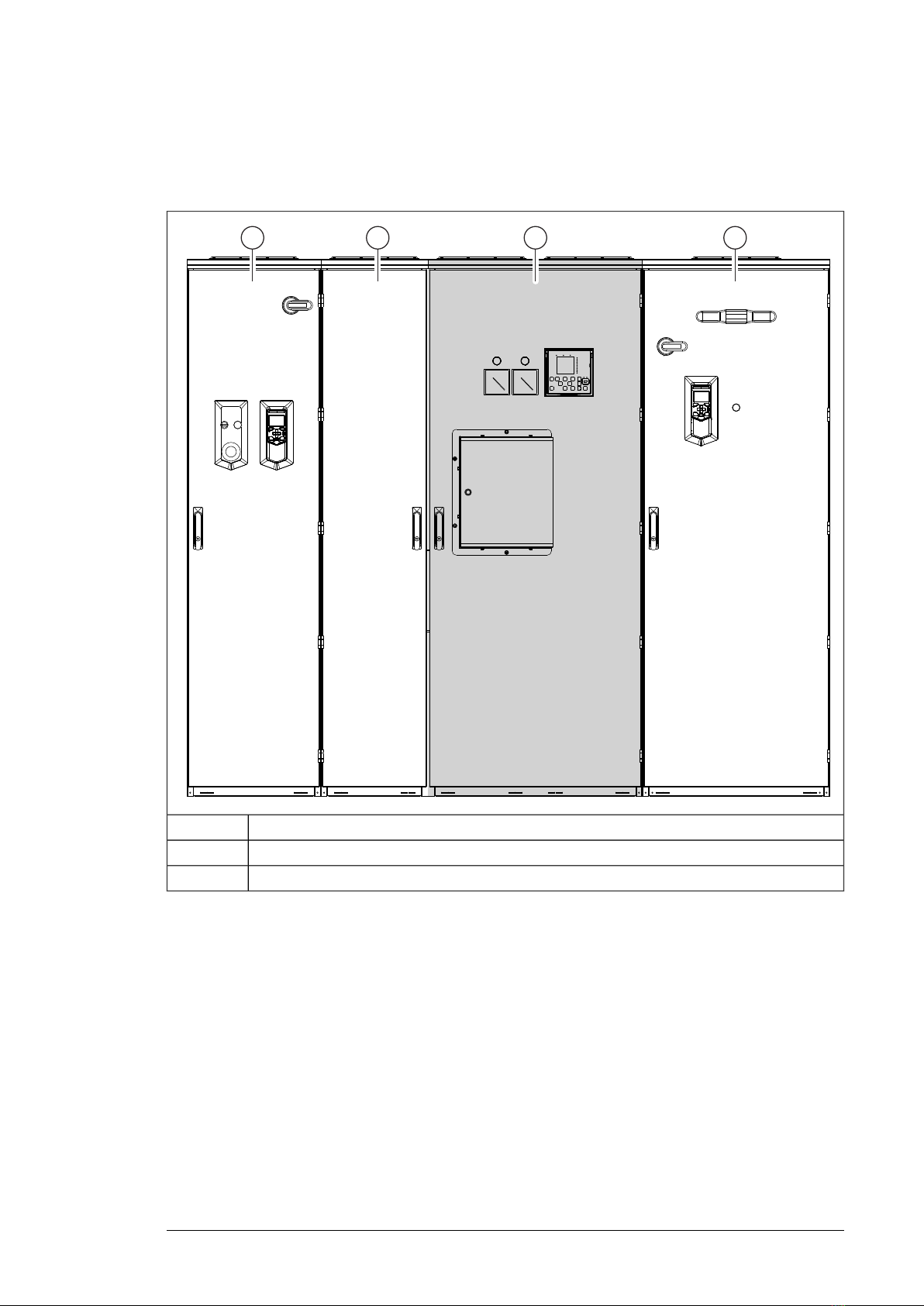

17Layout of a drive system with a DC incoming unit .........................................

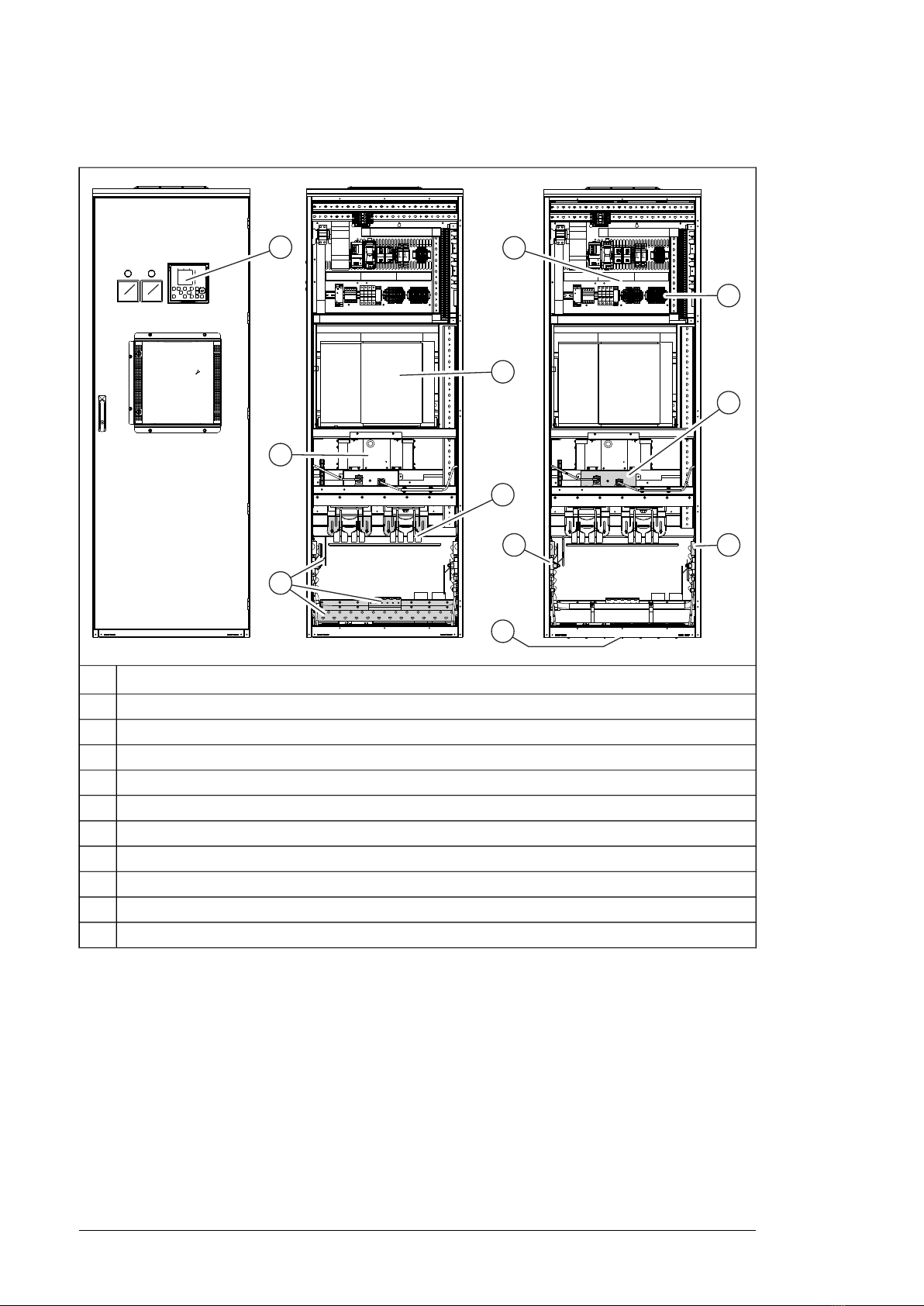

18Layout of a DC incoming unit .................................................................

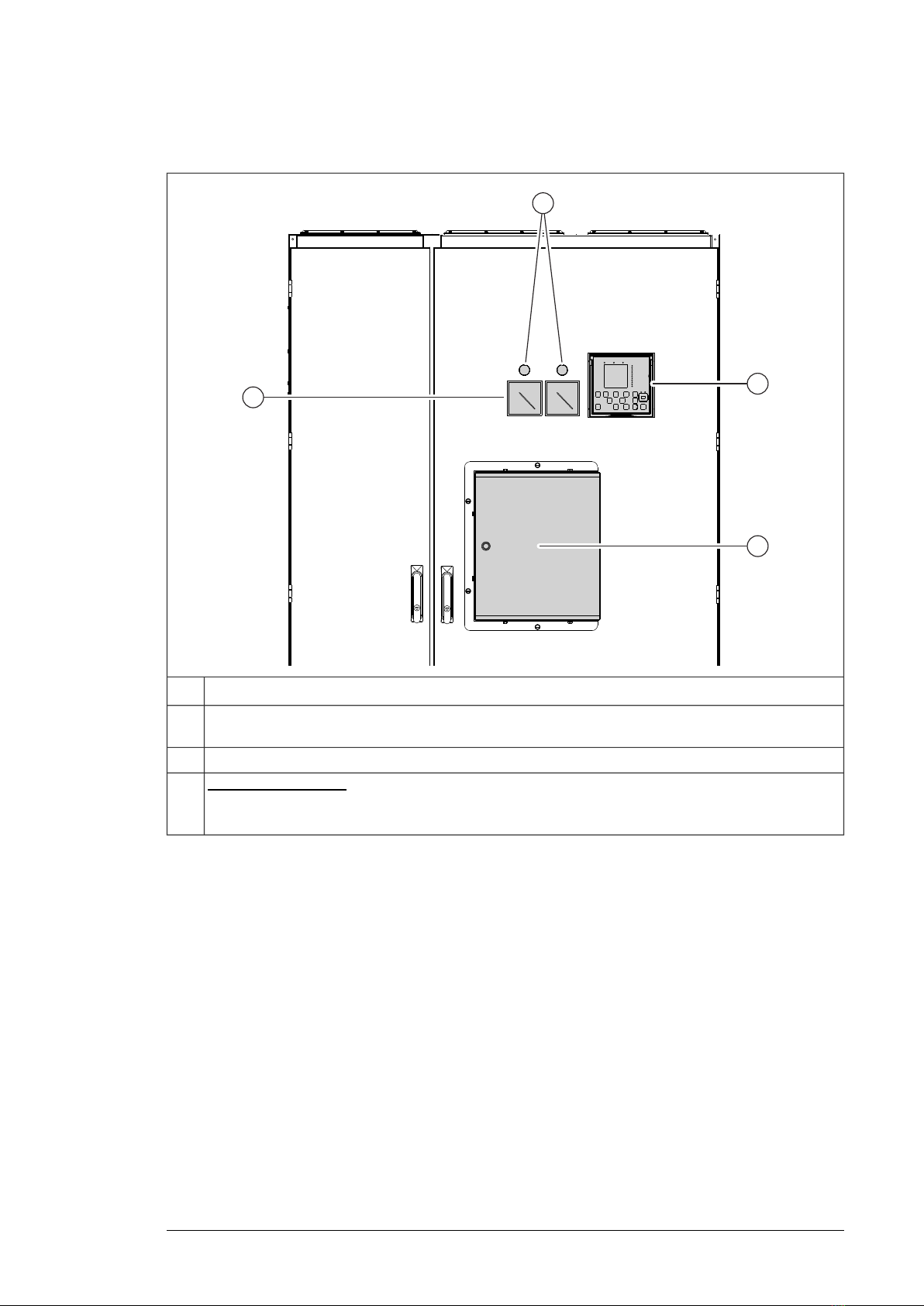

19Control of the DC incoming unit .................................................................
20Type designation label ............................................................................
21Type designation key ..............................................................................
21Basic code .......................................................................................
21Option codes ....................................................................................
3 Guidelines for planning the electrical installation
23Contents of this chapter ...........................................................................
23Limitation of liability ................................................................................
23Generic guidelines .................................................................................
24Selecting and routing the DC cables ...........................................................
24Recommended cables .........................................................................
24Typical cable sizes/types ......................................................................
24Minimizing electromagnetic interference ....................................................
24EMC compliance of the complete installation ..............................................
4 Electrical installation
25Contents of this chapter ...........................................................................
26Electrical safety precautions .....................................................................
28Checking the insulation of the DC cabling .....................................................
29Connecting the DC power cables ...............................................................
29Connection diagram ............................................................................
30Connection procedure .........................................................................
32360 degree grounding of the power cable and sealing the cable entry .............
Table of contents 5

33Connecting the control cables ...................................................................
33Control connection diagrams .................................................................
33Default control signals of the DC isolator/breaker [Q340] ............................
34Default monitoring signals of the DC isolator/breaker [Q340] ........................
34
Control and monitoring signals of REF615 feeder protection relay [A980] or
REG615 generator protection relay ([A980], option +Q988) .........................
35
Default monitoring signals of earth fault monitoring relay ([S90.1 and S90.2],
options +Q987 and +2Q987) ..............................................................
35
Monitoring signals of current transducer relays ([B353.11] ... [B353.14],
options +G353 and +2G353) ..............................................................
36Control cable connection procedure .........................................................
36Grounding the outer shields of the control cables at the cabinet entry .............
5 Installation checklist
39Contents of this chapter ...........................................................................
6 Start-up
41Contents of this chapter ...........................................................................
41Start-up procedure .................................................................................
7 Operating instructions
45Contents of this chapter ...........................................................................
45Opening the DC isolator/breaker [Q340] .......................................................
46Closing the DC isolator/breaker [Q340] ........................................................
47Isolating (disconnecting) the DC isolator/breaker [Q340] ....................................
48De-isolating the DC isolator/breaker [Q340] ...................................................
8 Fault tracing
49Contents of this chapter ...........................................................................
49Indicators on the cabinet door ...................................................................
9 Maintenance
51Contents of this chapter ...........................................................................
51Maintenance intervals .............................................................................
51Description of symbols ........................................................................
52Recommended maintenance intervals after start-up ......................................
53Cabinet ..............................................................................................
53Cleaning the exterior of the drive ............................................................
53Power connections ................................................................................
53Retightening the power connections ........................................................
54Fans ..................................................................................................
54Replacing the cooling fan(s) ..................................................................
10 Internal cooling circuit
11 Technical data
57Contents of this chapter ...........................................................................
57Electrical ratings ....................................................................................
58Dimensions and weights ..........................................................................
59Free space requirements .........................................................................
6 Table of contents

59Losses, internal cooling circuit data and noise ................................................
59Terminal and cable entry data for the power cables ..........................................
60Typical power cable sizes .........................................................................
60Control cable terminal data .......................................................................
60Auxiliary circuit current consumption ............................................................
60Energy efficiency data (ecodesign) ..............................................................
60Protection classes .................................................................................
60Ambient conditions ................................................................................
61Materials .............................................................................................
61Color .................................................................................................
62Package .............................................................................................
62Disposal .............................................................................................
62Applicable standards ..............................................................................
62Markings .............................................................................................
62Disclaimers .........................................................................................
62Generic disclaimer .............................................................................
63Cybersecurity disclaimer ......................................................................
Further information
Table of contents 7

8

Introduction to the manual
Contents of this chapter
This chapter contains information on the manual.
Applicability
This manual is applicable with the DC incoming units, ACS880-7207LC and ACS880-7307LC.
Safety instructions
Obey all safety instructions delivered with the drive.
•Read the complete safety instructions before you install, commission, use or service
the drive. The complete safety instructions are given in ACS880 liquid-cooled multidrive
cabinets and modules safety instructions (3AXD50000048633 [English]).
•Read the software-function-specific warnings and notes before changing the default
settings of a function. For each function, the warnings and notes are given in the section
describing the related user-adjustable parameters.
•Read the task-specific safety instructions before starting the task. See the section
describing the task.
Target audience
This manual is intended for people who plan the installation, install, start-up and do
maintenance work on the drive, or create instructions for the end user of the drive concerning
the installation and maintenance of the drive.
Read the manual before working on the drive. You are expected to know the fundamentals
of electricity, wiring, electrical components and electrical schematic symbols.
1
Introduction to the manual 9

Categorization by option code
The option code (option +A123) identifies information which concerns only a certain optional
selection. The options included in the unit are listed on the type designation label.
Use of component designations
Some device names in the manual include the item designation in brackets, for example
[Q20], to make it possible to identify the components in the circuit diagrams of the drive.
Terms and abbreviations
DescriptionTerm
Unit for isolating the drive DC link from another DC system, or unit for both isolating
the drive DC link from another DC system and also breaking and making current
between the drive DC link and another DC system.
DC incoming unit
Frequency converter for controlling AC motorsDrive
Inverter module(s) under control of one control unit, and related components. One
inverter unit typically controls one motor.
Inverter unit
Drive for controlling several motors which are typically coupled to the same machinery.
Includes one supply unit, and one or several inverter units.
Multidrive
Supply module(s) under control of one control unit, and related components.Supply unit
Related manuals
￭Related drive manuals
CodeManual
General manuals
3AXD50000048633
ACS880 liquid-cooled multidrive cabinets and modules safety instructions
3AXD50000048634
ACS880 liquid-cooled multidrive cabinets and modules electrical planning instructions
3AXD50000048635
ACS880 liquid-cooled multidrive cabinets mechanical installation instructions
3AXD50000126880
CIO-01 I/O module for distributed I/O bus control user's manual
Supply unit manuals
3AXD50000174782
ACS880-207LC IGBT supply units hardware manual
3AUA0000131562
ACS880 IGBT supply control program firmware manual
3AXD50000579662
ACS880-307LC…+A018 diode supply units hardware manual
3AUA0000103295
ACS880 diode supply control program firmware manual
Inverter unit manuals
3AXD50000196111
ACS880-107LC inverter units hardware manual
3AUA0000085967
ACS880 primary control program firmware manual
3AUA0000098062
ACS880 primary control program quick start-up guide
Manuals for application programs (Crane, Winder, etc.)
Brake unit and other DC unit manuals
3AXD50000481491
ACS880-607LC 1-phase brake units hardware manual
3AXD50000581627
ACS880-607LC 3-phase dynamic brake units hardware manual
3AXD50000020967
ACS880 (3-phase) brake control program firmware manual
3AXD50000431342
ACS880-1607LC DC/DC converter units hardware manual
10 Introduction to the manual

CodeManual
3AXD50000024671
ACS880 DC/DC converter control program firmware manual
3AXD50000752423
ACS880-7107LC DC feeder unit hardware manual
3AXD50000752430
ACS880-7207LC and -7307LC DC incoming units hardware manual
3AXD50000738984
ACS880-7407LC semiconductor switch unit hardware manual
Option manuals
3AXD50000129607
ACS880-1007LC liquid cooling unit user's manual
3AUA0000085685
ACS-AP-x assistant control panels user’s manual
3AUA0000094606
Drive composer start-up and maintenance PC tool user’s manual
3AXD50000210268
Converter module lifting device for drive cabinets hardware manual
Manuals for I/O extension modules, fieldbus adapters, safety options etc.
You can find manuals on the Internet. See www.abb.com/drives/documents. For manuals
not available in the document library, contact your local ABB representative.
￭Related DC isolator/breaker and protection relay manuals
SACE Emax DC Installation and service instructions (1SDH000635R0002 (English)): Link
to manual.
SACE Emax DC catalogue (1SDC200012D0202 (English)): Link to manual.
REG615 protection and control relay: Link to ABB product page.
REF615 protection and control relay: Link to ABB product page.
Introduction to the manual 11

12

Operation principle and hardware
description
Contents of this chapter
This chapter describes the intended use and construction of DC incoming units
ACS880-7207LC and ACS880-7307LC. The chapter also presents the type designation
label and the type code.
2
Operation principle and hardware description 13

Operation principle
The DC incoming unit provides connection between two DC systems. The two most common
applications are:
•connection of an external DC system to the drive DC bus (for example a connection point
for a generator)
•tie-bus connection, that is, division of the drive DC bus system in two or more parts.
For both applications, it is possible to use either ACS880-7207LC or ACS880-7307LC
incoming DC unit:
•ACS880-7207LC can isolate (disconnect) the two DC systems, and make and break load
currents. It can also break fault currents at certain extent.
•ACS880-7307LC can only isolate (disconnect) the two DC systems. It cannot make or
break load current or break fault current.
The main component both in the ACS880-7207LC and ACS880-7307LC units is a DC
isolator/breaker. The size and the connection of the DC isolator/breaker vary depending on
it's intended use.
DG DG
MM
M
121
3 3
Isolator and breaker for a generator connection (ACS880-7207LC)1
Isolator and breaker for a tie-bus connection (ACS880-7207LC)2
Semiconductor switch unit (ACS880-7407LC)3
14 Operation principle and hardware description

Overview diagram of the drive system
￭Drive with a generator connection
1
3
4
55
9
6
2
A
B C C D
8
G
7
*)
*)ACS880-7207LC
*)ACS880-7307LC
Incoming cubicleA
Supply unitB
Inverter unitC
DC incoming unitD
AC supply1
Main breaker, or main contactor and main switch-disconnector2
Supply module3
DC bus4
Inverter modules5
Motor(s) (acquired by user)6
Withdrawable DC isolator/breaker:7
•ACS880-7207LC: Isolator (disconnector) and breaker [Q340]
•ACS880-7307LC: Isolator (disconnector) [Q340]. For ACS880-7307LC, the generator circuit must also
be equipped with a separate breaker. It is not visible in the drawing above.
AC/DC rectifier8
External generator (acquired by user)9
Operation principle and hardware description 15

￭Drive with a tie-bus connection
1
3
4
55
5
2
A
B C C D
7
*)
*)ACS880-7207LC
*)ACS880-7307LC
ED
88
Incoming cubicleA
Supply unitB
Inverter unitC
Semiconductor switch unitD
DC incoming unitE
AC supply1
Main breaker, or main contactor and main switch-disconnector2
Supply module3
DC bus4
Inverter modules5
Motor(s) (acquired by user)6
Withdrawable DC isolator/breaker:7
•ACS880-7207LC: Isolator (disconnector) and breaker [Q340]
•ACS880-7307LC: Isolator (disconnector) [Q340].
Semiconductor switch unit (ACS880-7407LC)8
16 Operation principle and hardware description

Layout drawings
￭Layout of a drive system with a DC incoming unit
1 2 3 4
Supply unit1 and 2
DC incoming unit (ACS880-7207LC)3
Inverter unit4
Operation principle and hardware description 17

￭Layout of a DC incoming unit
10
4
9
6
5
118
7
1
3
2
Door devices. See Control of the DC incoming unit (page 19).
1
DC cable entry (if any)2
PE bus bars [PE]3
DC power connection terminals ([1DC+, 1DC-], option +G316)4
DC isolator/breaker [Q340]5
Terminal block for the DC isolator/breaker control connections [X340]6
Terminal block for earth fault monitoring relay ([X90], option +Q987)7
Cooling inlet manifold with stop and drain valves8
Heat exchanger9
Fan [G115]10
Cooling outlet manifold with stop and drain valves11
18 Operation principle and hardware description

Control of the DC incoming unit
1
3
4
2
DC isolator/breaker [Q340]. See Operating instructions (page 45) and Control connection diagrams.
1
One or two illuminated push buttons [S90.1 and S90.2] for earth fault monitoring relay ([A90.1 and A90.2],
option +Q987 or +2Q987). LED on = Alarm.
2
One or two voltage meters ([P92.x], option +G352 or +2G352).3
ACS880-7207LC only: Protection relay.4
•Feeder protection: REF615 [A980]
•Generator connection (option +Q988): REG615 [A980].
Operation principle and hardware description 19

Type designation label
2
3
4
56
7
1ACS880-7207LC-1600A-7+A012+C164
G300+G301+G316+H350+Q987
ABB Oy
Hiomotie 13
00380 Helsinki
Finland
Input U1
l1
f
U2
l2
f
S/N:
976 VDC
1600 A
-
976 VDC
1600 A
1190403889
-
Output
MADE IN FINLAND
DICU6
FRAME
IP42
Liquid cooling
Type designation1
Frame size2
Cooling system and other additional data3
Degree of protection4
Ratings5
Valid markings. See ACS880 liquid-cooled multidrive cabinets and modules electrical planning instruc-
tions (3AXD50000048634 [English]).
6
Serial number. The first digit of the serial number refers to the manufacturing plant. The next four digits
refer to the unit's manufacturing year and week, respectively. The remaining digits complete the serial
number so that there are no two units with the same number.
7
20 Operation principle and hardware description
