ABB Focus II FII-4-14 Series User manual

2TLC172015M0201, rev. D
Original instructions
Focus II
Light grid / Light curtain
Active optoelectronic protective device (AOPD)
Focus II Type 4
ABB AB JOKAB SAFETY Varlabergsvägen 11, SE-434 39, Sweden
www.abb.com/lowvoltage

2
2TLC172015M0201, rev. D www.abb.com/lowvoltage
Read and understand this document
Please read and understand this document before using the products. Please consult your ABB AB JOKAB SAFETY
representative if you have any questions or comments.
WARRANTY
ABB AB JOKAB SAFETY’s exclusive warranty is that the products are free from defects in materials and workman-
ship for a period of one year (or other period if specied) from date of sale by ABB AB JOKAB SAFETY.
ABB AB JOKAB SAFETY MAKES NO WARRANTY OR REPRESENTATION, EXPRESSED OR IMPLIED, RE-
GARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE
PRODUCTS, ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMI-
NED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OR THEIR INTENDED USE. ABB AB
JOKAB SAFETY DISCLAIMS ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
LIMITATIONS OF LIABILITY
ABB AB JOKAB SAFETY SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DA-
MAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS,
WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.
In no event shall responsibility of ABB AB JOKAB SAFETY for any act exceed the individual price of the product on
which liability asserted.
IN NO EVENT SHALL ABB AB JOKAB SAFETY BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER
CLAIMS REGARDING THE PRODUCTS UNLESS ABB AB JOKAB SAFETY’S ANALYSIS CONFIRMS THAT THE
PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO
ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.
SUITABILITY FOR USE
ABB AB JOKAB SAFETY shall not be responsible for conformity with any standards, codes, or regulations that apply
to the combination of products in the customer’s application or use of the product.
At the customer’s request, ABB AB JOKAB SAFETY will provide applicable third party certication documents identi-
fying ratings and limitations of use that apply to the products. This information by itself is not sufcient for a complete
determination of the suitability of the products in combination with the end product, machine, system,
or other application or use.
The following are some examples of applications for which particular attention must be given. This is
not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses
listed may be suitable for the products:
– Outdoor use, uses involving potential chemical contamination or electrical interference, or conditionsor uses not
described in this document.
– Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment,
amusement machines, vehicles, and installations subject to separate industry or government regulations.
– Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY
WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND
THAT THE ABB AB JOKAB SAFETY PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED
USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.
PERFORMANCE DATA
While every effort has been taken to ensure the accuracy of the information contained in this manual,
ABB AB JOKAB SAFETY cannot accept responsibility for errors or omissions and reserves the right to make
changes and improvements without notice. Performance data given in this document is provided as a guide for the
user in determining suitability and does not constitute a warranty. It may represent the result of ABB AB JOKAB
SAFETY’s test conditions, and the users must correlate it to actual application requirements. Actual performance is
subject to the ABB AB JOKAB SAFETY Warranty and Limitations of Liability.

3
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
Table of contents
1 System Overview and Applications ...............................................5
1.1 General Data............................................................................................. 6
1.2 Maintenance.............................................................................................. 6
1.3 Important information ................................................................................ 6
2 Function and Possibilities (Short Description) .............................7
3 Mechanical Installation....................................................................9
3.1 Mechanical Assembly................................................................................ 9
3.2 Alignment Procedure............................................................................... 10
3.3 Calculation of Minimum Distance for Installation .................................... 11
4 Electrical Installation .....................................................................15
4.1 Important Notes on Installation ............................................................... 15
4.2 Connection of Cable C5, C8 in M12 C01-C04 Connectors..................... 16

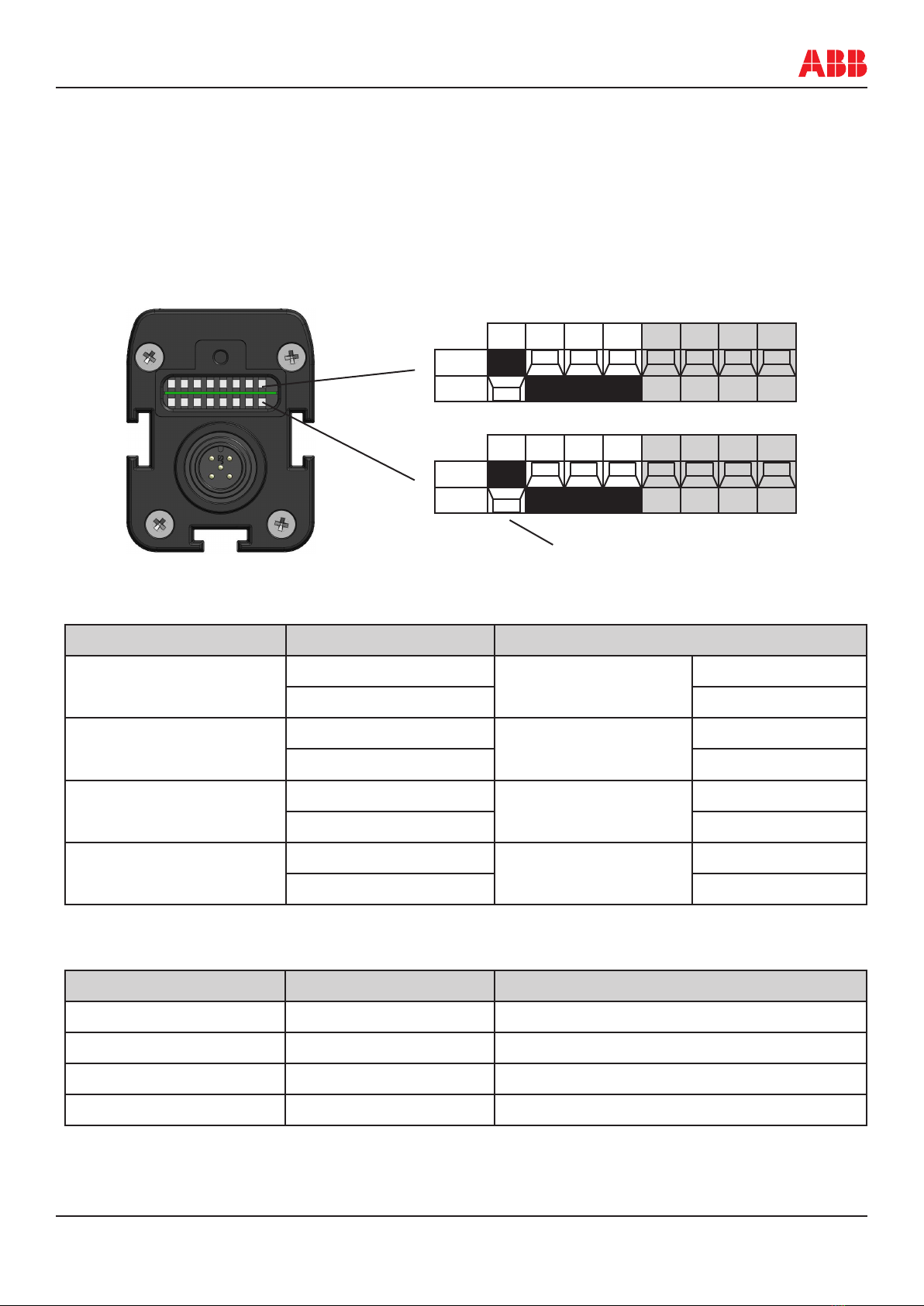

4.3 Setting up of Internal Change-Over Switches Transmitter...................... 17
4.4 Setting up of Internal Change-Over Switches Receiver.......................... 18

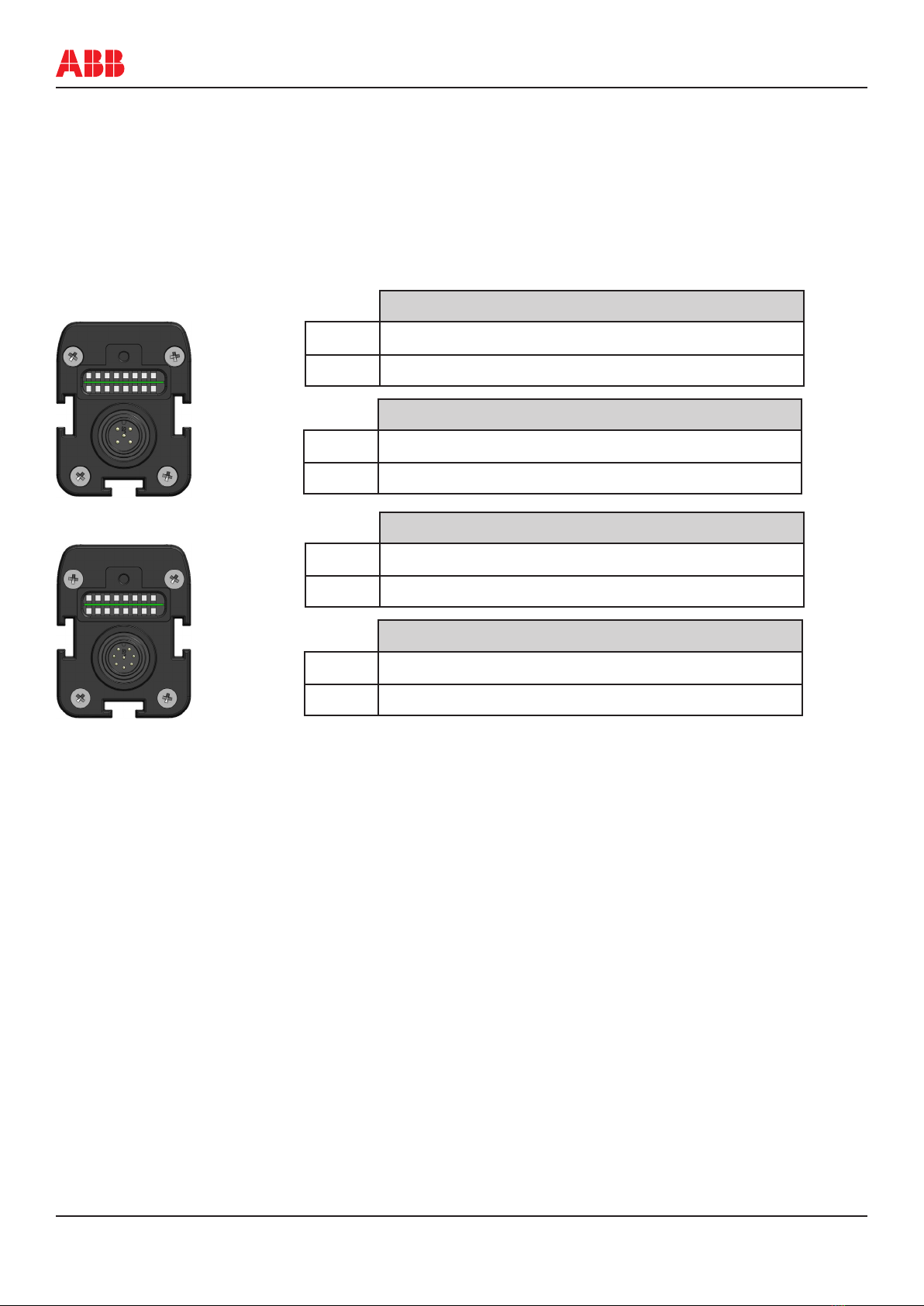

4.5 Setting up Scan Codes ........................................................................... 20
4.6 Choice of Reset Procedure..................................................................... 20
5 Connection Examples....................................................................21
5.1 Connection Example, Basic with and without muting.............................. 21
5.2 Connection Example, for connection to safety relay............................... 22
5.3 Connection Example, muting unit to safety relay.................................... 23
5.4 Connection Example, Vital / Pluto with Tina units ................................... 23
5.5 Connection Example, Pluto..................................................................... 24
5.6 Connection Example, connection required to enable coding.................. 24
5.7 Speci f ications for Available Variants....................................................... 25
5.8 Dimensional Drawing .............................................................................. 27
5.9 Label description ..................................................................................... 27

4
2TLC172015M0201, rev. D www.abb.com/lowvoltage
6 Muting .............................................................................................28
6.1 Muting, Installation .................................................................................. 28
6.2 Muting, Modes......................................................................................... 29
6.3 T-Activation Mode ................................................................................... 30
6.4 L-Activation Mode ................................................................................... 31
6.5 X-Activation Mode ................................................................................... 32
6.6 Partial Muting .......................................................................................... 32
7 Override ..........................................................................................34
8 Pre-reset function ..........................................................................35
9 Blanking ..........................................................................................36
10 Single/Double Break function .......................................................39
10.1 Single Break function .............................................................................. 40
10.2 Double Break function............................................................................. 40
11 External Device Monitoring (EDM) ...............................................41
12 Checkout Procedure......................................................................42
13 Transmitter LED Information.........................................................43
14 Receiver LED Information .............................................................44
15 Regular checkout and test ............................................................46
16 Technical specications................................................................47
17 Accessories, cables.......................................................................49
18 Wet enclosure.................................................................................50
19 Bjorn - stands .................................................................................51
20 Dimensions of brackets and prof ile.............................................53
21 Dimensions of MFII mirrors and bracket .....................................54
22 Variant list and general schedule .................................................55
23 Checkout procedure log................................................................57
24 Test procedure log .........................................................................58
25 Declaration of conformity..............................................................59

5
www.abb.com/lowvoltage 2TLC172015M0201, rev. D

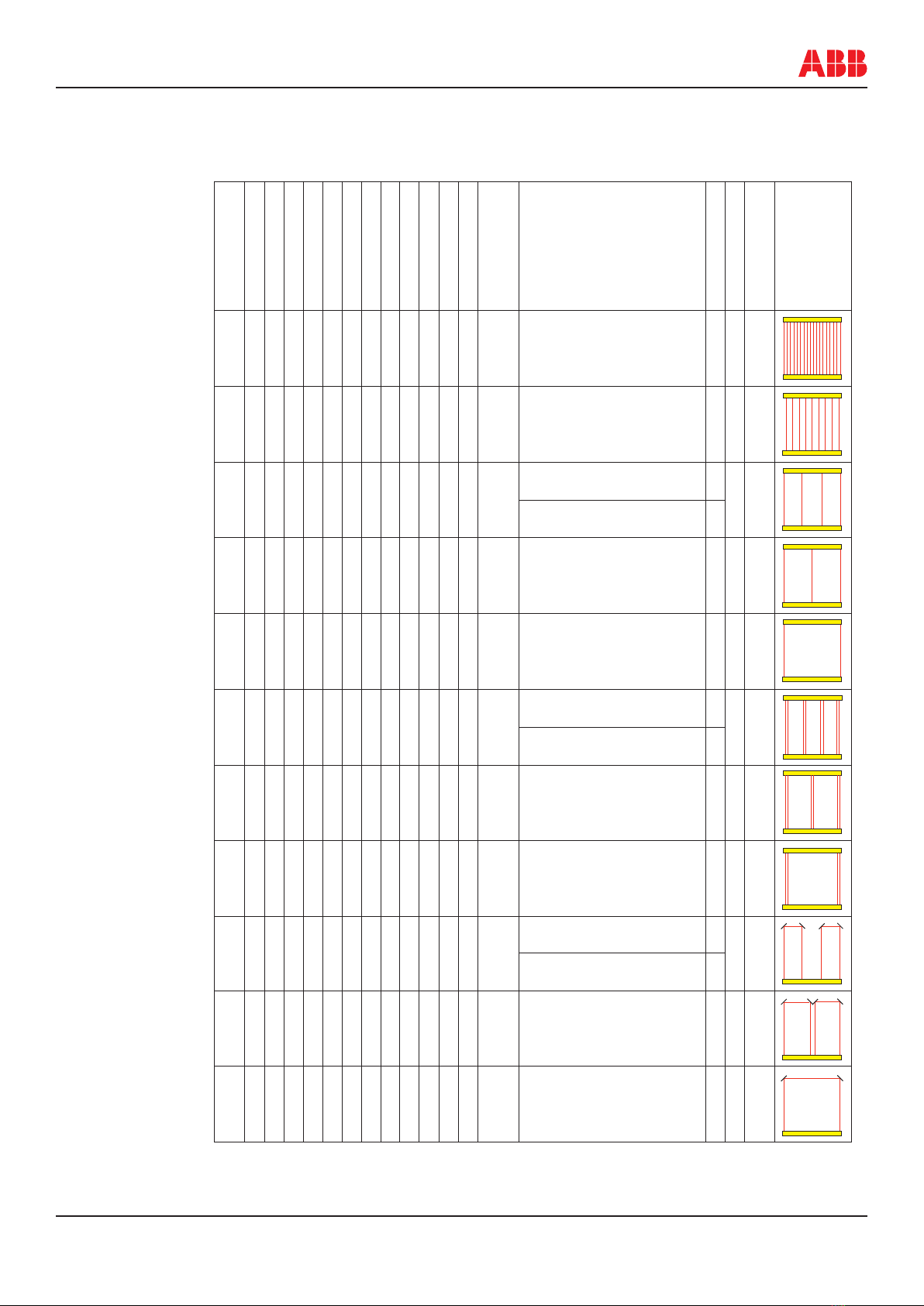

Type 4 FII-4-14-zzzz FII-4-30-zzzz FII-4-K4-zzzz FII-4-K3-800 FII-4-K2-500 FII-4-K4-
zzzz D
FII-4-K3-800 D FII-4-K2-500 D FII-4-K2C-
zzzz
FII-4-K2C-800 FII-4-K1C-500
Resolution 14 30 Beam distance 300 400 400 500 300 400 400 500 300 400 400 500 Height (mm=zzzz) See 5.7
150 300 450 600 750 900
1050 1200 1350 1500 1650 1800 1950 2100 2250 2400
150 300 450 600 750 900
1050 1200 1350 1500 1650 1800 1950 2100 2250 2400
900 1200 800 500 900 1200 800 500 900 1200 800 500
Range (m) SR LR
0.2-3
3-6
0.2-7
7-14
0.5-20
20-40
0.5-20
20-40
0.5-20
20-40
0.5-20
20-40
0.5-20
20-40
0.5-20
20-40
0.5-7 0.5-8 0.5-12
Reaction time off (ms) See 5.7 See 5.7 13 13 13 13 13 13 13 13 13 Reaction time on (ms) See 5.7 See 5.7 142 142 142 142 142 142 142 142 142 Manual reset ● ● ● ● ● ● ● ● ● ● ● Automatic reset ● ● ● ● ● ● ● ● ● ● ● Pre reset ● ● ● ● ● ● ● ● ● ● ● Muting inputs ● ● ● ● ● ● ● ● ● ● ● Muting lamp supervision ● ● ● ● ● ● ● ● ● ● ● Override ● ● ● ● ● ● ● ● ● ● ● Muting T / L / X ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● ● / ● / ● Blanking 3 types ● / ● / ● ● / ● / ● - / - / - - / - / - - / - / - - / - / - - / - / - - / - / - - / - / - - / - / - - / - / -
Single / Double break ● / ● ● / ● - / - - / - - / - - / - - / - - / - - / - - / - - / - EDM ● ● ● ● ● ● ● ● ● ● ● Dyn. Adaption to Vital / Pluto ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤
● Standard ¤ With Tina 10A / 10B / 10C or FMC-Tina
NB! For ordering data and article number see 5.7. For more information see our home page.
1 System Overview and Applications
Summary - Focus II light curtain/grid, Type 4 (FII-4-)

6
2TLC172015M0201, rev. D www.abb.com/lowvoltage
1.1 General Data
Focus II light grids and curtains are active optoelectronic protective devices, AOPD, of type 4 by
EN 61496-1 and IEC 61496-2. They are intended to be used where it is essential to safeguard operators
of hazardous machinery, robots, or other automated systems where access to hazardous parts may be
gained.
Before using the Focus II units, all personnel responsible for installation and maintenance of this equipment
must ensure that they have read and understood the information contained in this manual. It is essential
that units are installed and used according to the instructions in this manual. All relevant standards and
regulations regarding the use of this type of equipment must also be strictly adhered to.
1.2 Maintenance
With the exception of checking alignment and cleaning the polycarbonate front covers that protects the
optics, no part of the safety barrier needs to be maintained or can be repaired by the user. The installation,
however, should regularly be checked and the results recorded. Should there be any errors, the barriers
must be sent to our service location together with an error description as well as estimated operating time.
NB! Damage or dirt on the cover does not compromise the safety level of the barriers but may cause
operational disturbance. Do not use woollen cloth, solvent or any other material when cleaning, which may
scratch or in some way damage the surface of the cover. Operational conditions decide how often the cover
needs to be cleaned.
ABB AB JOKAB SAFETY does not accept any liability for damage or injury due to incorrect use of the
protection barriers or associated components.
1.3 Important information
The Focus II system must be installed, congured, and incorporated into a machine control system by a
sufciently trained and qualied person. An unqualied person may not be able to perform these operations
properly, which may cause a person to go undetected in to the hazardous area, resulting in serious injury.
When changes are made to each function using the selector switches, the administrator must manage the
detail of the changes and perform the changes. Accidental functional setting change may cause failure of
human body detection, resulting in a serious injury.
Do not drop the products. Dropping the products may lead to internal or external damage. Please return a
Focus II system that was dropped on the oor to your ABB AB JOKAB SAFETY service for inspection or
repair. Failure to do so may result in serious injury.
Make sure to test the operation of the Focus II system after installation to verify that the Focus II system
operates as intended. Make sure to stop the machine until the test is complete. Unintended function
settings may cause a person to go undetected, resulting in serious injury.

7
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
Install the reset button in a location that provides a clear view of the entire hazardous area and where it
cannot be activated from within the hazardous area.
The Focus II system cannot protect a person from a projectile exiting the hazardous area. Install protective
cover(s) or fence(s).
A sufciently trained and qualied person must properly congure muting related timings for its specic
application, and that person must have responsibility for settings, especially when the muting time limit is
innite.
Install the switch that activates the override in a location that provides a clear view of the entire hazardous
area and where it cannot be activated from within the hazardous area. Make sure that nobody is in the
hazardous area before activating the override function.
Do not place uorescent and/or incandescent lights within the effective aperture angle of the receiver, as it
may inuence the Focus II system under certain circumstances. Install the sensor system so that it is not
affected by any ref lective surfaces. Failure to do so may hinder detection, resulting in serious injury.
When using more than 1 set of Focus II system, install them so that mutual interference does not occur,
such as by conguring series connections or using physical barriers between adjacent sets.
2 Function and Possibilities (Short Description)
A beam of infra-red light is generated and sent from transmitter to receiver. If anyone should interrupt this
beam, the OSSD outputs of the safety barriers (see 5.1) are opened, and brings hazardous functions in
machinery to a safe state.
Safety barriers come in heights between 150 mm and 2400 mm and the reaction time is between 13 ms
and 103 ms, depending on the model.
Electric connection is made via an M12 connector. Steering and control of beams that are transmitted and
received is made by two microprocessors, which also transmit all information on status and alignment of the
barrier via f our LEDs in the transmitter and f ive in the receiver (see 14, 15).
Focus II contains many good and user-friendly functions. Below is a summary with references to the
respective chapters that contain more information.
Muting (see 6) means that one or more segments, or the whole barrier, may be bypassed when material is
passed through it. If a light grid is used, one or more beams, or the whole grid, may be bypassed.
Override (see 7) is a function which makes it possible to bypass the light barrier and activate the OSSD
outputs if machine start is necessary, when one or more beams are interrupted.
NB! Muting and override demands a connected muting indicator (LMS) (or resistor 220 Ω, 3 W) before
power is switched on.

8
2TLC172015M0201, rev. D www.abb.com/lowvoltage
Floating blanking (see 9) makes it possible for a number of beams to be constantly interrupted in the
protection area. With oating blanking, the object can move in the protection area without triggering the
safety function. Other beams are active with normal safety function but with reduced resolution.
Test/reset (see 5): This pushbutton is connected to +24 VDC during normal operation. It has several
functions:
A Test: A physical interruption of the protection area can be simulated by keeping the button pressed
down for at least 2.5 s.
B Reset: (see 4.6) If a connected button is pressed and released (manual reset) when the protection
area is clear again after having been disturbed, the light curtain is reset.
C Alignment: (see 3.2) If the button is pressed when voltage is connected, the barrier enters alignment
mode, i.e., when the alignment of the upper and lower beam is correct, LED 1, 2, 3 and 5 are lit to
indicate this.
D Override: (see 7) (Only and always possible when a muting indicator (LMS) is connected.)
If the button is pressed after 2 s but within 5 s after voltage has been switched on, and is then pressed
for at least 5 s, the OSSD outputs of the light curtain will be activated only if any beam is interrupted. If
the entire protective eld is free for more than 2 s this function is stopped.
Reset of Focus II light barrier can be reached in three different ways:
A Automatic reset: (see 4.6) The light curtain is reset immediately when the protection area is clear (=
not interrupted). Default setting by delivery.
B Manual reset: (see 4.6) The light curtain is reset immediately after the protection area is clear and the
reset button is pressed and released.
C Pre-reset: (see 8) The light curtain is reset when, f irst, the pre-reset button within hazardous area
is pressed, and thereafter, if the protection area is clear, when within 8 s the reset button outside the
protection area is pressed.
Safety outputs (see 5.2) OSSD 1 and 2 are opened when the protection area is interrupted.

9
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
Code not necessary
Code BCode A
3 Mechanical Installation
The location where the safety barrier is to be installed must full the technical requirements. Prior to
installation, the ambient temperature, electromagnetic and/or optical interference, among other things,
should be taken into consideration.
3.1 Mechanical Assembly
The prof ile of the light curtain is assembled with the accompanying brackets, and mounting screws that
slide in the prof ile slots (see 17-19, 22). These make it easier to adjust the transmitter and receiver in level
with each other.
NB! If several barriers are used, they must be mounted so that each transmitter does not interfere with the
receiver of a nearby barrier. Multiple barriers should be installed as below or could be used with coding, see
4.5 and 5.6.
The scan code feature of the Focus II system allows for placement of systems in close proximity and in line
with each other. The distinctive coding of the beams provide for unique operation of a system while in view
of another system with a different scan code. Two unique codes are available on the Focus II, see section
4.3 on how to set the codes.

10
2TLC172015M0201, rev. D www.abb.com/lowvoltage
3.2 Alignment Procedure
When the safety barrier has been mounted, optical alignment of transmitter and receiver is made as
follows:
• Disconnect the barrier’s power supply. Open the test/reset (see 5.1).
• Restore the barrier’s power supply. The test/reset can then be closed again.
• Make sure that both units are in level, vertical and directed towards each other. Adjust by turning the
transmitter, left and right, until LED 2 and 5 of the receiver are lit. Turn the transmitter both ways to f ind
the outermost positions, return the transmitter to the midpoint. The barrier is correctly aligned when the
LED 3 is constantly lit even if one of the prof iles is somewhat turned.
• After aligning the barrier, secure the screws f irmly.
• Disconnect the power supply.
• Restore the barrier’s power supply (with the test/reset contact closed). If the safety area is clear and
automatic reset is chosen, the barrier will immediately enter operating mode, i.e. the OSSD outputs
are activated and the LED 1 and 3 are lit. If manual reset is chosen, test/reset must be pressed and
released before the OSSD outputs are activated.
• Complete the checks described in section 13 “Final Checks” and 16 “Routine Checks and Mainte-
nance”.

11
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
3.3 Calculation of Minimum Distance for Installation
The distance S is the minimum distance between light curtain/grid and hazardous area which prevents that
anyone comes in contact with hazardous machinery in operation before it stops. For calculation of S for a
curtain with multiple beams, the following is valid according to EN ISO 13855:2010:
Vertically assembled light curtain/grid
The minimum distance S for a vertically assembled light curtain/grid is determined in three steps:
a) Calculate minimum distance for reaching through the detection zone, SRT.
b) Calculate minimum distance for reaching over the detection zone, SRO.
c) Compare SRT and SRO. The minimum distance S is the greater of the two.
NB! If access to the hazardous area by reaching over the light curtain/grid can be excluded, e.g. by the
provision of guards or other protective measures, step b) and c) are not necessary.
a) SRT = (K × T) + CRT
K = approach speed of body parts towards hazardous area:
= 2000 mm/s shall be used if S is equal to or less than 500 mm. Min. value of S = 100 mm.
NB! If FII-4-30 is used in single/double break mode min. value of S > 150 mm.
= 1600 mm/s can be used if S is greater than 500 mm. Min. value of S = 500 mm.
T = Overall system stopping performance1= T1 + T2, where:
T1 = reaction time of light curtain/grid (s)
T2 = stopping time of machine, including reaction time of control system (s)
CRT = 8 × (d-14) mm for FII-4-14 and FII-4-30 (light curtains)
NB! If oating blanking is used and resolution ≥ 40 mm then CRT = 850 mm.
= 850 mm for FII-4-K versions (light grids)
d = resolution (mm) = 14 mm for FII-4-14 and 30 mm for FII-4-30.
NB! If oating blanking is used, see resolution table in chapter 9.
____________________________
1) The maximum time required from actuation of the AOPD until the hazardous machine function is
terminated.

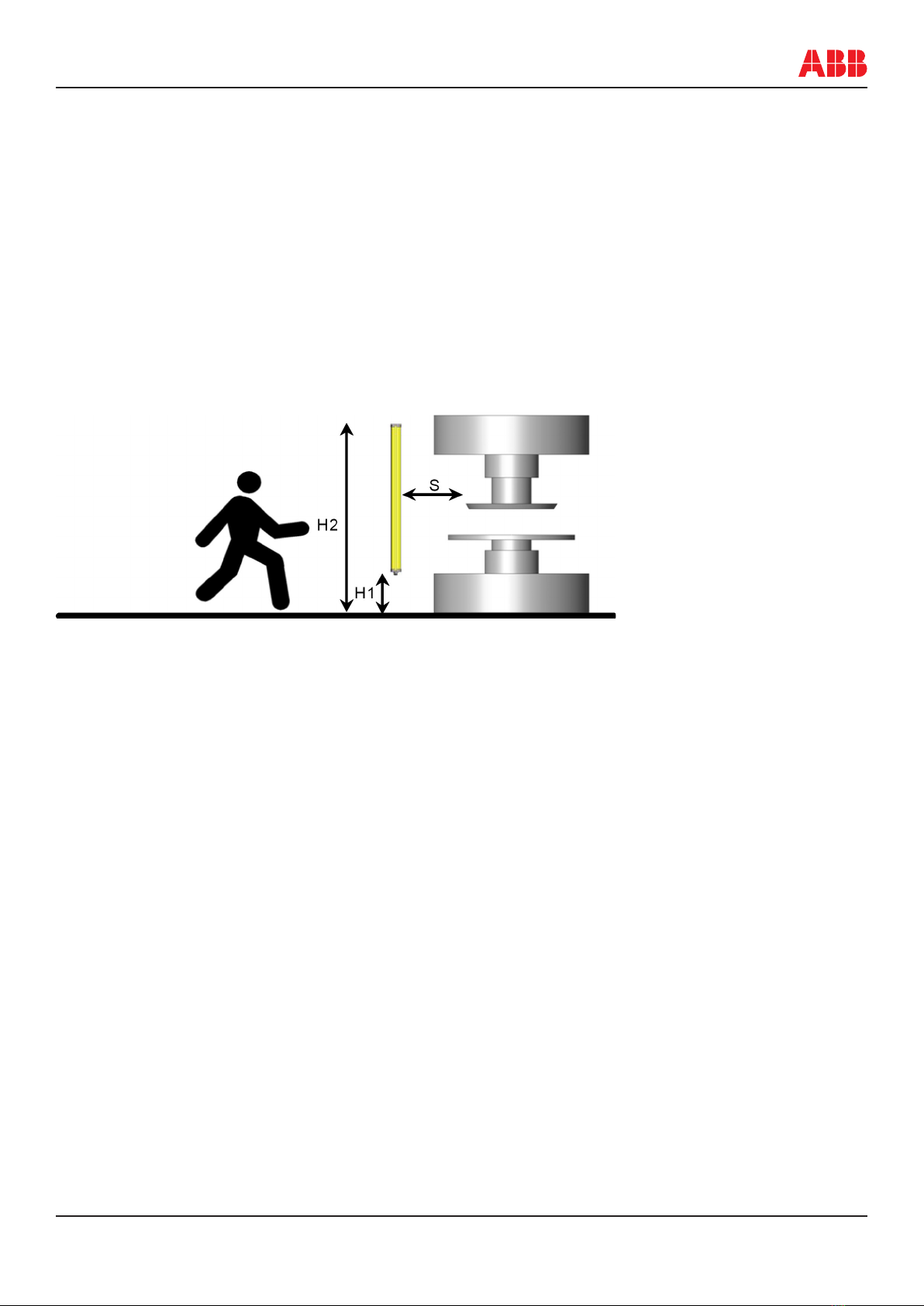

S = safety distance in mm.
H1 = the bottom beam shall not
have a height above 300 mm.
H2 = the top beam shall not have a
height below 900 mm.

12
2TLC172015M0201, rev. D www.abb.com/lowvoltage
b) SRO = (K × T) + CRO
(Kand Taccording to a).
CRO = Intrusion distance to the hazard zone when reaching over prior to the actuation of the
light curtain/grid. Values are given in the table below.
___________________________________________________
1)The text is reproduced from ISO 13855:2010 with permission from SIS Förlag AB, www.sis.se where also the
complete standard is available for purchase.
Height of upper edge of the detection zone of the electro-sensitive protective equipment1
Height of
hazard zone
900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400 2600
Additional distance to hazard zone
CRO
2600a000000000000
2500 400 400 350 300 300 300 300 300 250 150 100 0
2400 550 550 550 500 450 450 400 400 300 250 100 0
2200 800 750 750 700 650 650 600 550 400 250 0 0
2000 950 950 850 850 800 750 700 550 400 0 0 0
1800 1100 1100 950 950 850 800 750 550 0 0 0 0
1600 1150 1150 1100 1000 900 850 750 450 0 0 0 0
1400 1200 1200 1100 1000 900 850 650 0 0 0 0 0
1200 1200 1200 1100 1000 850 800 0 0 0 0 0 0
1000 1200 1150 1050 950 750 700 0 0 0 0 0 0
800 1150 1050 950 800 500 450 0 0 0 0 0 0
600 1050 950 750 550 0 0 0 0 0 0 0 0
400 900 700 0 0 0 0 0 0 0 0 0 0
200 600 0 0 0 0 0 0 0 0 0 0 0
0 000000000000
When a value of zero is given, the calculation of the minimum distance, S, should be made in accordance with chapter
3.3 Calculation of Minimum Distance for Installation, calculation point a).
NB! Electrosensitive protective equipment with a height of the:
– upper edge of the detection zone below 900 mm is not included since they do not offer sufcient protection against
circumventing or stepping over
– lower edge of the detection zone above 300 mm in relation to the reference plane does not offer sufcient protec-
tion against crawling below.
a Approach to the hazard zone by reaching over is impossible
NB! Values shall not be interpolated. Use nearest safer value.
Reaching over the vertical detection zone of electro-sensitive protective
equipment
(Dimensions in mm)

13
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
c) Compare SRT and SRO. The minimum distance S is the greater of the two.
The following table is valid only for vertically assembled light grid with 2, 3, or 4 beams
(shall never be assembled horizontally):
Horizontally assembled light curtain
The minimum distance S from hazardous machinery to the farthermost beam is calculated using the same
formula as above but with different parameters, as follows:
S = (K × T) + C
K = 1600 mm/s. Approach speed of body parts towards hazardous area.
T= Overall system stopping performance = T1 + T2, where:
T1 = reaction time of light curtain (s)
T2 = stopping time of machine, including reaction time of control system (s)
C= 1200 - 0.4 × H. Shall not be less than 850 (mm)
H = 15 × (d-50). Minimum allowed height of detection zone above reference plane (mm)
NB! Shall not be less than 0 or greater than 1000.
d = resolution (mm) = 14 mm for FII-4-14 and 30 mm for FII-4-30.
S = minimum distance in mm.
H = the optical eld shall not be higher
than 1000 mm.
BEAM HEIGHT ABOVE FLOOR 4 beams (900 unit) 4 beams (1200 unit) 3 beams 2 beams
1st beam 300 mm 300 mm 300 mm 400amm
2nd beam 600 mm 700 mm 700 mm 900 mm
3rd beam 900 mm 1100 mm 1100 mm
4th beam 1200 mm 1500 mm
aFor the lowest beam 400 mm can only be used when the risk assessment allows it.

14
2TLC172015M0201, rev. D www.abb.com/lowvoltage
2,0
1,8
1,5
1,2
1,0
0,8
0,5
0,2
-0,2
-0,5
-0,8
-1,0
-1,2
-1,5
-1,8
-2,0
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 Type 4
Operating range R in meter
Minimum distance d in meter
3.4 Distance to Ref lecting Surfaces
The barrier should be mounted so that the risk of ref lection from ref lecting surfaces is minimized. The
minimum distance to a ref lecting surface is shown below.
R
EAA EAA
d
Operating range R: is the effective working range of the Focus II system, from the transmitter to
the receiver.
EAA: is the effective aperture angle of the Safety Sensor.
It is ±2.5° for FII-4....
distance d: is the minimum distance to a ref lective surface.
This distance must be greater than:
dmin FII-4 = tan(2.5°)×R
Be aware that surface interference may also appear above and below the sensing f ield.

15
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
4 Electrical Installation
4.1 Important Notes on Installation
NB! The two OSSD outputs shall be connected to the stop function of the machine, so that they each stop
the hazardous moving parts. The Focus II system is by default in auto reset mode.
– Power to the system shall be by a 24 VDC±20%, supply which complies with standard EN 60742 (dual
isolation), or with equivalent isolation by VDE 0551. We strongly recommend a stabilized power supply.
– Voltage shall be disconnected when changing the installation.
– The screen of the cabling to the barrier shall be connected to ground circuit.
– The barrier should be protected by a fuse with the value 1 A normal in the feeding voltage.
– The external muting indicator (LMS) signalling that the muting function is active, shall be connected and
work for the muting function to work. The indicator should be placed so that it is visible from all sides
with access to the hazardous area of the machine. See connection example in 5 and text in 6.
– The OSSD outputs of the barrier are PNP outputs which are each current limited to 500 mA. If the cur-
rent will exceed 500 mA or if alternating current is to be connected, the system may benet from being
connected to a safety relay, see 5.
– Do not install the Focus II system in the following types of environments:
Areas
• exposed to intense interference light, such as direct sunligh
• near the frequency controlled motors or wires to them
• near magnetic valves with coils without suppressors
• with high humidity where condensation is likely to occur
• where corrosive gases are present
• exposed to vibration or shock levels higher than in the specication
• where the product may come into contact with water
• where the product may come into contact with oil that is an adhesive solvent
– Do not use radio equipment such as cellular phones, walkie-talkies, or transceivers near the Focus II
system.

16
2TLC172015M0201, rev. D www.abb.com/lowvoltage
1. Brown
2. White
3. Blue
4. Black
5. Grey
1. White
2. Brown
3. Green
4. Yellow
5. Grey
6. Pink
7. Blue
8. Red
Male 8-pin connector (M12 C04):
Female 8-pin connector (M12 C03) for connection to receiver:
Male 5-pin connector (M12 C02):
1
2
5
4
3
1
2
5
4
3
8
1
7
6
5
4
3
2
3
7
5
4
6
8
2
1
4.2 Connection of Cable C5, C8 in M12 C01-C04 Connectors
Female 5-pin connector (M12 C01) for connection to transmitter:
NB! It is recommended to use ABB AB JOKAB SAFETY standard M12 cables whenever possible. See 18
for a list of cables and accessories.
Seen from the cable connection side:

17
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
4.3 Setting up of Internal Change-Over Switches Transmitter
• Disconnect the power supply to the unit and open the small lid in the bottom cap (with the M12 con-
nector) so that the two change-over switches become visible.
• The change-over switches may be adjusted to the desirable position with a small, suitable screwdri-
ver.
NB! Make sure to always set switches in both banks to the same position.
Switch position Setting Function
1OFF Range setting X
ON Short range
2OFF Range setting X
ON Long range
3OFF Code setting No coding
ON Coding
4OFF Code setting Code A
ON Code B
Selector switches 5 - 8 are not used in the transmitter.
Switch 1 Switch 2 Range selected
OFF OFF Not allowed
OFF ON Long range
ON OFF Short range
ON ON Not allowed
Please refer to the table below for the range setting:
1 2 3 4 5 6 7 8
OFF
ON
1 2 3 4 5 6 7 8
OFF
ON
Default setting, 5-8 not used.
Switch no. 1 in ON position

18
2TLC172015M0201, rev. D www.abb.com/lowvoltage
Default setting
Switch Status Function
8OFF Manual reset Single break if SB/DB selected
ON Automatic reset Double break if SB/DB selected
7OFF Refer to Coding section for further information
ON
6OFF EDM function disabled
ON EDM function enabled
5 + 4 1
4 5 Muting and special functions
OFF OFF Muting T with time limit, 0.2 s allowed drop2
OFF ON Muting L with time limit, 0.2 s allowed drop2
ON OFF Muting X without time limit6, 0.2 s allowed drop2
ON ON Special function with switches 1, 2 and 3
Light curtain specic settings:
Muting maps when muting T, L or X
are selected on switches 4 and 53Special functions selection when switches 4 and 5 are both ON4
3+2+1
1 2 3
OFF OFF OFF Muting all beams Blanking ± 1 beam with T muting
OFF OFF ON Muting on module 1, 2, 3 and 4 Blanking +1/-0 beam with T muting
OFF ON OFF Muting on module 1, 2 and 3 Blanking ± 0 beam with T muting
OFF ON ON Muting on module 1 and 2 Blanking ± 1 beam with L muting
ON OFF OFF Muting on module 1 Blanking +1/-0 beam with L muting
ON OFF ON Muting on module 2 Blanking ± 0 beam with L muting
ON ON OFF Muting on module 3 Pre-Reset mode
ON ON ON Muting on module 4 Single break/double break, Switch 8
1 2 3 4 5 6 7 8
OFF
ON
1 2 3 4 5 6 7 8
OFF
ON
Switch no. 8 in ON position
4.4 Setting up of Internal Change-Over Switches Receiver
• Disconnect the power supply to the unit and open the small lid in the bottom cap (with the M12 connec-
tor) so that the two change-over switches become visible.
• The change-over switches may be adjusted to the desirable position with a small, suitable screwdriver.
NB! Make sure to always set switches in both banks to the same position (except switch 7 on the
receiver).

19
www.abb.com/lowvoltage 2TLC172015M0201, rev. D
1. Selector switches 4 and 5 are operational if a muting indicator is connected or both are set to the ON position.
2. The maximum time that Focus II will allow muting A or muting B to drop without detecting a muting stop. See 6.5.
3. Selector switches 1, 2 and 3 are operational if a muting function is set and a muting indicator is connected.
4. Selector switches 1, 2 and 3 are operational if selector switches 4 and 5 are in ON position.
5. Use this function if two NO muting sensors are used for X-muting (instead of one NO and one NC). Note that a new timing requirement is intro-
duced; muting A and muting B cannot be activated at the same time. A time difference of approx. 30 ms is mandatory.
6. Refers to max muting time (600 s) but not to the time between A and B (120 s).
NB! For further information about T-, L- and X-muting, see 6.1-6.5.
Light grid specic settings:
Muting maps when muting T, L or X
are selected on switches 4 and 53Special functions selection when switches
4 and 5 are both ON4
3+2+1
123
OFF OFF OFF Muting all beams Muting T, with time limit, 1 s allowed drop2
OFF OFF ON Muting on module 1, 2, 3 and 4 Muting L, with time limit, 1 s allowed drop2
OFF ON OFF Muting on module 1, 2 and 3 -
OFF ON ON Muting on module 1 and 2 Muting T, without time limit6, 1 s allowed drop2
ON OFF OFF Muting on module 1 Muting L, without time limit6, 1 s allowed drop2
ON OFF ON Muting on module 2 Muting X, without time limit6, 1 s allowed drop2
ON ON OFF Muting on module 3 Pre-Reset mode
ON ON ON Muting on module 4 Alternative X-muting setting5

20
2TLC172015M0201, rev. D www.abb.com/lowvoltage
Switch 3
OFF No code (exclusion of dip 4)
ON Code on
Switch 4
OFF Code A
ON Code B
Transmitter
Switch 7 Upper bank
OFF Code A
ON Code B
Switch 7 Lower bank
OFF No code (exclusion of dip 7 upper bank)
ON Code on
Receiver
4.5 Setting up Scan Codes
The Focus II transmitter and receiver has the possibility of coding selection, to minimize interference when
two transmitters can reach one receiver.
NB! Both transmitter and receiver shall be set to the same code. All LEDs on transmitter / receiver ash
twice when code B is set correct, when powering up. Code A will ash once. Please make sure that the total
length of the cable between the transmitter and receiver (required when coding is used, see 5.6) does not
exceed 100 m.
4.6 Choice of Reset Procedure
Reset of Focus II barrier may be reached in three different ways:
A Automatic reset: The barrier is reset directly after the protection area has become clear. Change-over
switch No. 8 is set in position “On” (see 4.4).
B Manual reset: The barrier is reset when the protection area is clear and the reset button has been
pressed and released. Change-over switch No. 8 is set in position “Off” (see 4.4).
C Pre-reset: The barrier is reset when, f irst, the pre-reset button, which is normally placed inside
hazardous area, has been pressed (the yellow LED 5 in receiver is blinking) and, thereafter, if the
protection area is clear, within 8 seconds the reset button outside the area has been pressed and
released. (See 4.4 and 8)
