H8138.T-. IP touch 5" outdoor station

Inhaltsverzeichnis
Product manual
2TMD041800D0006
│
2
Inhaltsverzei chnis
1Notes on the instruction manual............................................................................................................4
2Safety..................................................................................................................................................4
3Intended use........................................................................................................................................5
4Environment.........................................................................................................................................6
4.1 ABB devices..............................................................................................................................6
5Product description...............................................................................................................................7
5.1 Device type ...............................................................................................................................7
5.2 Control elements........................................................................................................................8
5.3 Terminal description...................................................................................................................9
5.4 Lock type and connection.........................................................................................................10
6Technical data....................................................................................................................................11
7Mounting/Installation...........................................................................................................................12
7.1 Requirement for the electrician.................................................................................................12
7.2 Mounting.................................................................................................................................13
7.2.1 Preparation .......................................................................................................................... 13
7.2.2 Wiring.................................................................................................................................. 13
7.2.3 Surface-mounted installation................................................................................................. 14
7.2.4 Flush-mounted installation .................................................................................................... 14
7.2.5 Cavity wall installation........................................................................................................... 16
8Commissioning...................................................................................................................................18
8.1 Welcome screen and home screen...........................................................................................18
8.2 Entering the "Settings" screen..................................................................................................19
8.3 Engineering settings ................................................................................................................20
8.4 Access control settings ............................................................................................................21
8.5 System settings.......................................................................................................................22
9Operating Door Entry System devices.................................................................................................24
9.1 Call a resident via keypad........................................................................................................24
9.1.1 Call a resident via the room number ...................................................................................... 24
9.1.2 Call a resident via the specified code..................................................................................... 25
9.2 Call a resident via address book...............................................................................................27
9.3 Call guard unit .........................................................................................................................29
9.4 Release the lock by entering a password..................................................................................30
9.4.1 Release the lock by a password set on the indoor station....................................................... 30
9.4.2 Release the lock by a password set on local outdoor station................................................... 32
9.4.3 Release the lock by a password set on Welcome App............................................................ 33
9.4.4 Release the lock by a password set on the management software.......................................... 34
9.5 Release the lock by a QR code set on Welcome App................................................................35
9.6 Releasing the lock by swiping IC cards.....................................................................................37
10 Cyber security....................................................................................................................................38

Inhaltsverzeichnis
Product manual
2TMD041800D0006
│
3
10.1 Disclaimer ...............................................................................................................................38
10.2 Performance and service .........................................................................................................38
10.3 Deployment guideline...............................................................................................................39
10.4 Upgrading................................................................................................................................39
10.5 Backup/Restore.......................................................................................................................39
10.6 Malware prevention solution.....................................................................................................39
10.7 Password rule..........................................................................................................................39
Notice ........................................................................................................................................................40

Notes on the instruction manual
Product manual
2TMD041800D0006
│
4
1Notes on the instruction manual
Please read through this manual carefully and observe the information it contains. This will
assist you in preventing injuries and damage to property and ensure both reliable operation and
a long service life for the device.
Please keep this manual in a safe place. If you pass the device on, also pass on this manual
along with it. ABB accepts no liability for any failure to observe the instructions in this manual.
2Safety
Warning
Electric voltage!
Dangerous currents flow through the body when coming into direct or indirect
contact with live components.
This can result in electric shock, burns or even death.
– Disconnect the mains power supply prior to installation and/or disassembly!
– Permit work on the 100-240 V supply system to be performed only by
specialist staff!

Intended use
Product manual
2TMD041800D0006
│
5
3Intended use
As part of the ABB-Welcome IP system, this device can only be used with accessories from that
system.
Security mode
This outdoor station runs in "Security mode" by default to guarantee high security.
In "Security mode", this outdoor station requires a certificate issued by the management
software before it can function normally.
Compatible mode
If there is no management software, this outdoor station needs to run in "Compatible mode" to
function normally. Please refer to the "Compatible mode" chapter.
Video privacy
Making and saving video recordings can infringe on personal rights! Always
observe the applicable legal and labeling requirements for the placement and
operation of video components!

Environment
Product manual
2TMD041800D0006
│
6
4Environment
Consider the protection of the environment!
Used electric and electronic devices must not be disposed of with household
waste.
– The device contains valuable raw materials that can be recycled. Therefore,
dispose of the device at the appropriate collecting facility.
4.1 ABB devices
All packaging materials and devices from ABB bear the markings and test seals for proper
disposal. Always dispose of the packing materials and electric devices and their components via
an authorized collection facility or disposal company.
ABB products meet the legal requirements, in particular the laws governing electronic and
electrical devices and the REACH ordinance.
(EU-Directive 2012/19/EU WEEE and 2011/65/EU RoHS)
(EU-REACH ordinance and law for the implementation of the ordinance (EG) No.1907/2006)

Product description
Product manual
2TMD041800D0006
│
7
5Product description
5.1 Device type
Article
number Product ID Product name Color Size (HxWxD)
Unit: mm
H81381T-S 2TMA130010X0009 IP touch 5" outdoor station Stainless
steel 135 x 349 x 29
H81381T-W 2TMA130010W0013 IP touch 5" outdoor station White 135 x 349 x 29

Product description
Product manual
2TMD041800D0006
│
8
5.2 Control elements
No. Function
1Camera
2Speaker and microphone integration
35 inch touch display
4 End strip

Product description
Product manual
2TMD041800D0006
│
9

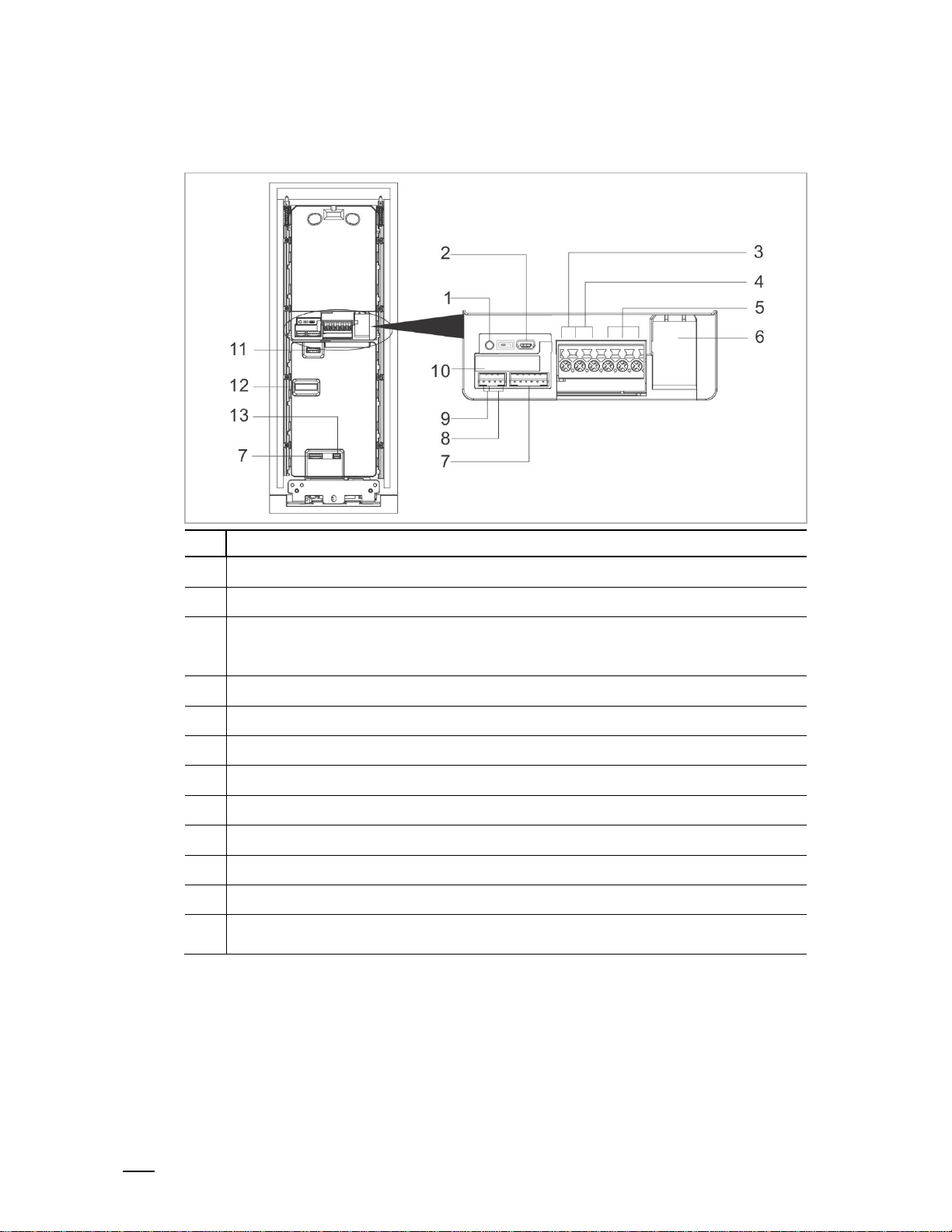

5.3 Terminal description
No. Function
1Reset button
2Micro USB update connector
3 Plug-in clamps (DC+...GND) for standalone power supply
4 Plug-in clamps (LOCK...GND) for door opener
5Plug-in clamps (COM...NC...NO) for floating output, door opener
6LAN (PoE)
7 Connector for next module
8 Connector for exit button
9 Connector for the sensor used for door status detection
10 Connector for 5" display module
11 Connector for previous module
12 Connector for A/V module
13 Connector for Wiegand output
It supports 26 bits and 34 bits

Product description
Product manual
2TMD041800D0006
│
10

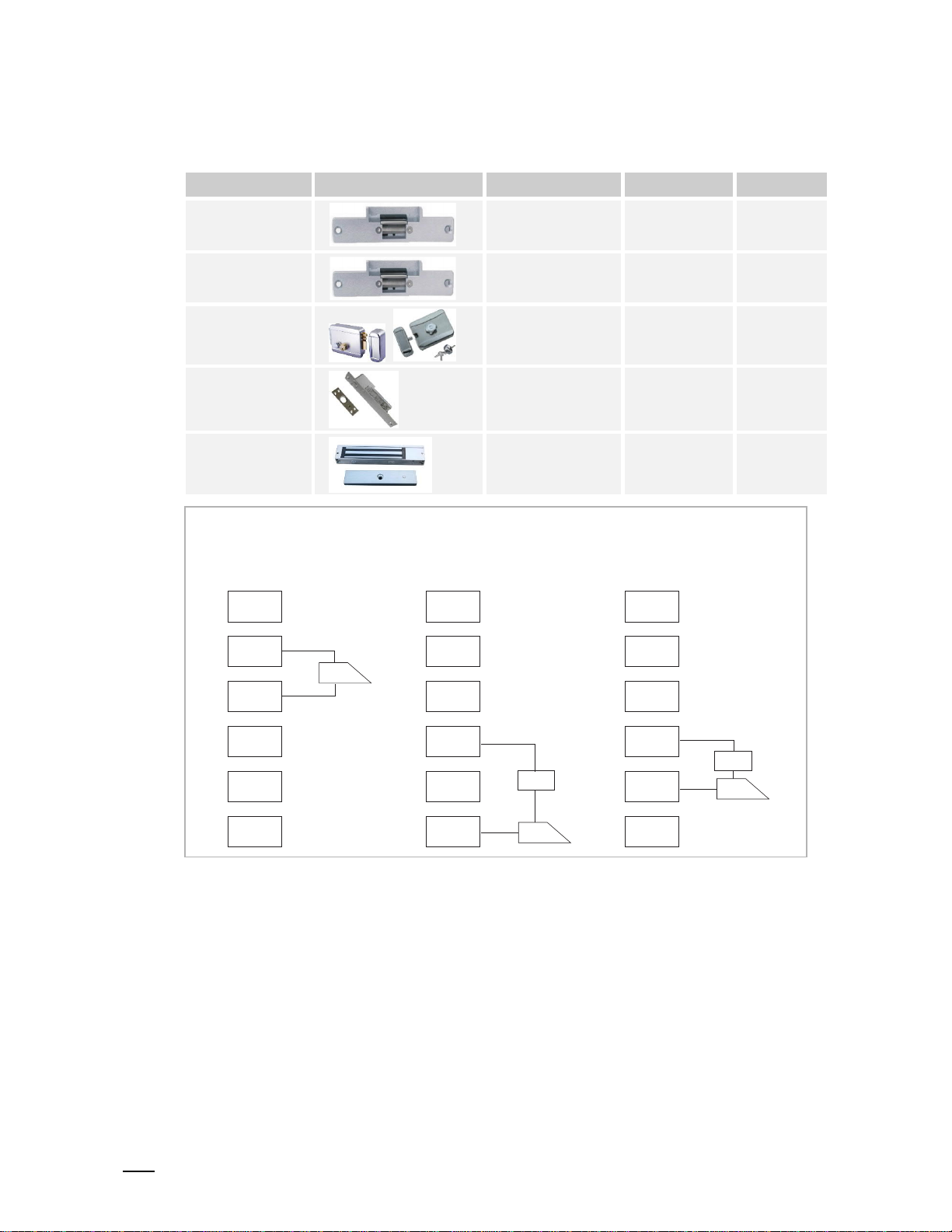

5.4 Lock type and connection
Lock type Pic Operation type Voltage Wiring type
Electrical strike
lock, 12V Power on to open 12 V
⎓
/~ Type A/B
Electrical strike
lock, 24V Power on to open 24 V
⎓
/~ Type B
Electrical rim
lock, 12 V Power on to open 12 V
⎓
Type A/B
Electrical
mortise lock Power off to open 12 V
⎓
Type C
Magnetic lock Power off to open 12/24 V
⎓
Type C
GND
NO
DC+
NC
LOCK
COM
GND
NO
DC+
NC
LOCK
COM
GND
NO
DC+
NC
LOCK
COM
+
++
-
-
-
PS
PS
TypeA
Type B
Type C

Technical data
Product manual
2TMD041800D0006
│
11
6Technical data
Designation Value
Rating voltage 24 V
⎓
Operating voltage range 20-27 V
⎓
Rating current 27 V
⎓
, 410 mA
24 V
⎓
, 450 mA
Operating temperature -20 °C…+55 °C
Camera type CMOS
Camera viewing angle 130°
Resolution ratio HD (1280 x 720 pixel)
Ambient brightness <50000 Lux
Power supply for door opener 18 V, 4 A impulse, max. 250 mA holding
Floating output for door opener 230 V ~, 3 A
30 V
⎓
, 3 A
Video codec H.264
Audio codec G.711
IP level IP 54
IK level IK 07

Mounting/Installation
Product manual
2TMD041800D0006
│
12
7Mounting/Installation
Warning
Electric voltage!
Dangerous currents flow through the body when coming into direct or indirect
contact with live components.
This can result in electric shock, burns or even death.
– Disconnect the mains power supply prior to installation and/or disassembly!
– Permit work on the 100-240 V supply system to be performed only by
specialist staff!
7.1 Requirement for the electrician
Warning
Electric voltage!
Install the device only if you have the necessary electrical engineering
knowledge and experience.
– Incorrect installation endangers your life and that of the user of the electrical
system.
– Incorrect installation can cause serious damage to property, e.g. due to fire.
The minimum necessary expert knowledge and requirements for the installation
are as follows:
– Apply the "five safety rules" (DIN VDE 0105, EN 50110):
1. Disconnect
2. Secure against being re-connected
3. Ensure there is no voltage
4. Connect to earth and short-circuit
5. Cover or barricade adjacent live parts.
– Use suitable personal protective clothing.
– Use only suitable tools and measuring devices.
– Check the type of supply network (TN system, IT system, TT system) to
secure the following power supply conditions (classic connection to ground,
protective grounding, necessary additional measures, etc.).

Mounting/Installation
Product manual
2TMD041800D0006
│
13
7.2 Mounting
7.2.1 Preparation
Use gloves to protect yourself against cuts.
7.2.2 Wiring

Mounting/Installation
Product manual
2TMD041800D0006
│
14

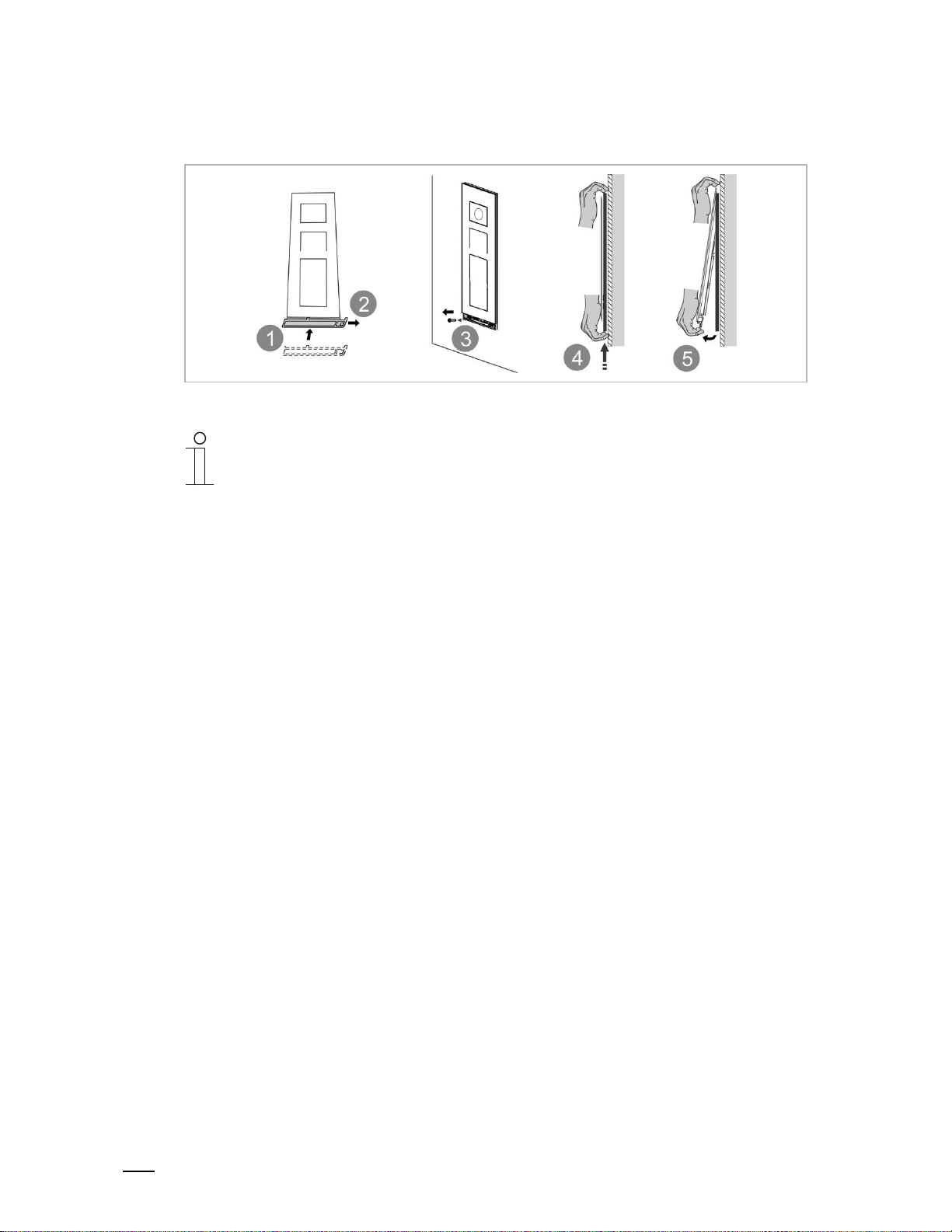

7.2.3 Surface-mounted installation

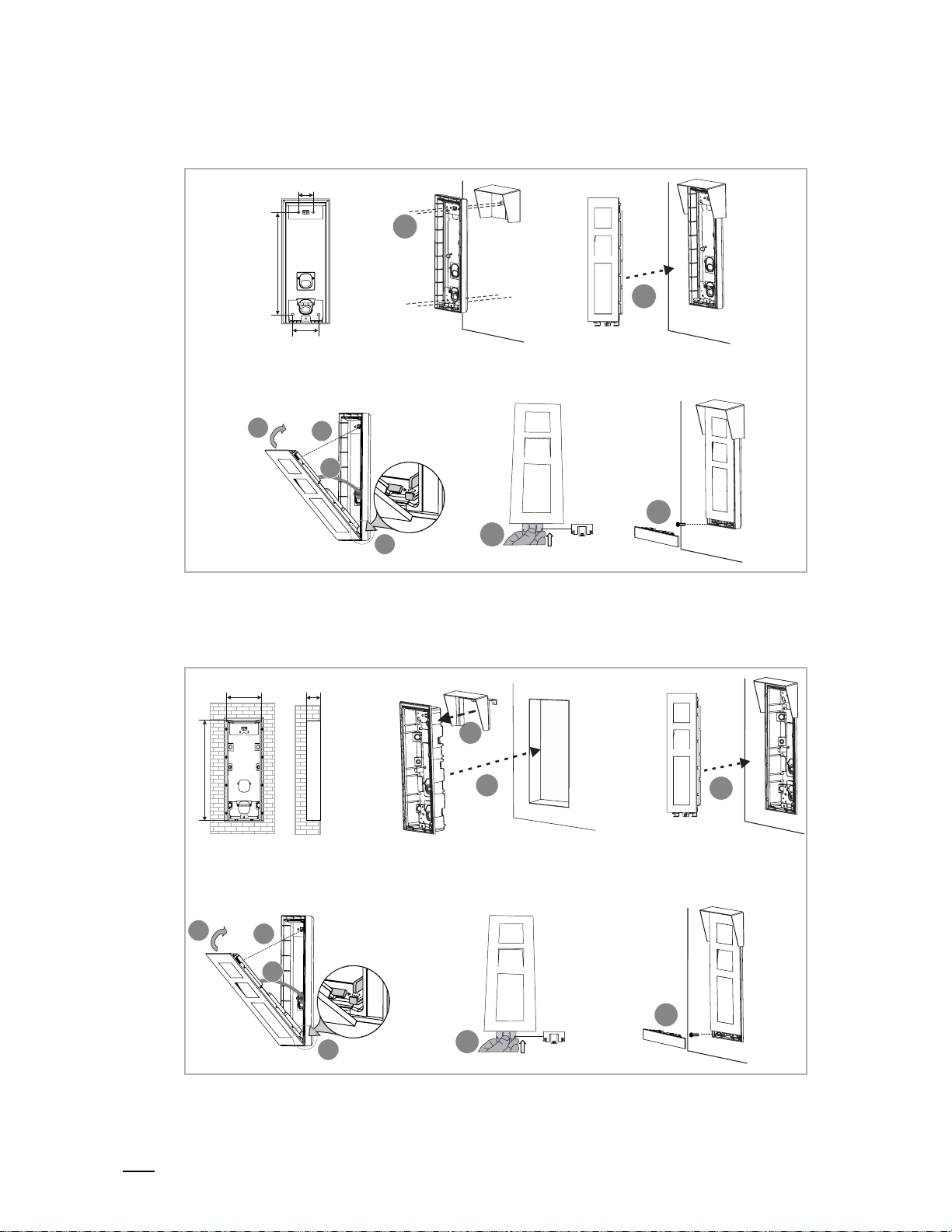

7.2.4 Flush-mounted installation
1. Flush-mounted without pre-installation box
283mm
40 mm
71 mm
1X4
3
4
5
6
78
2
1
117 mm 46 mm
336 mm
1X4
2
1
4
5
6
7
89
3

Mount
ing/Installation
Product manual
2TMD041800D0006
│
15
2. Flush-mounted with pre-installation box
5
6
7
8
9
10
4
3
4
6
m
m
68mm
126 mm
1X4
3
21

Mounting/Installation
Product manual
2TMD041800D0006
│
16

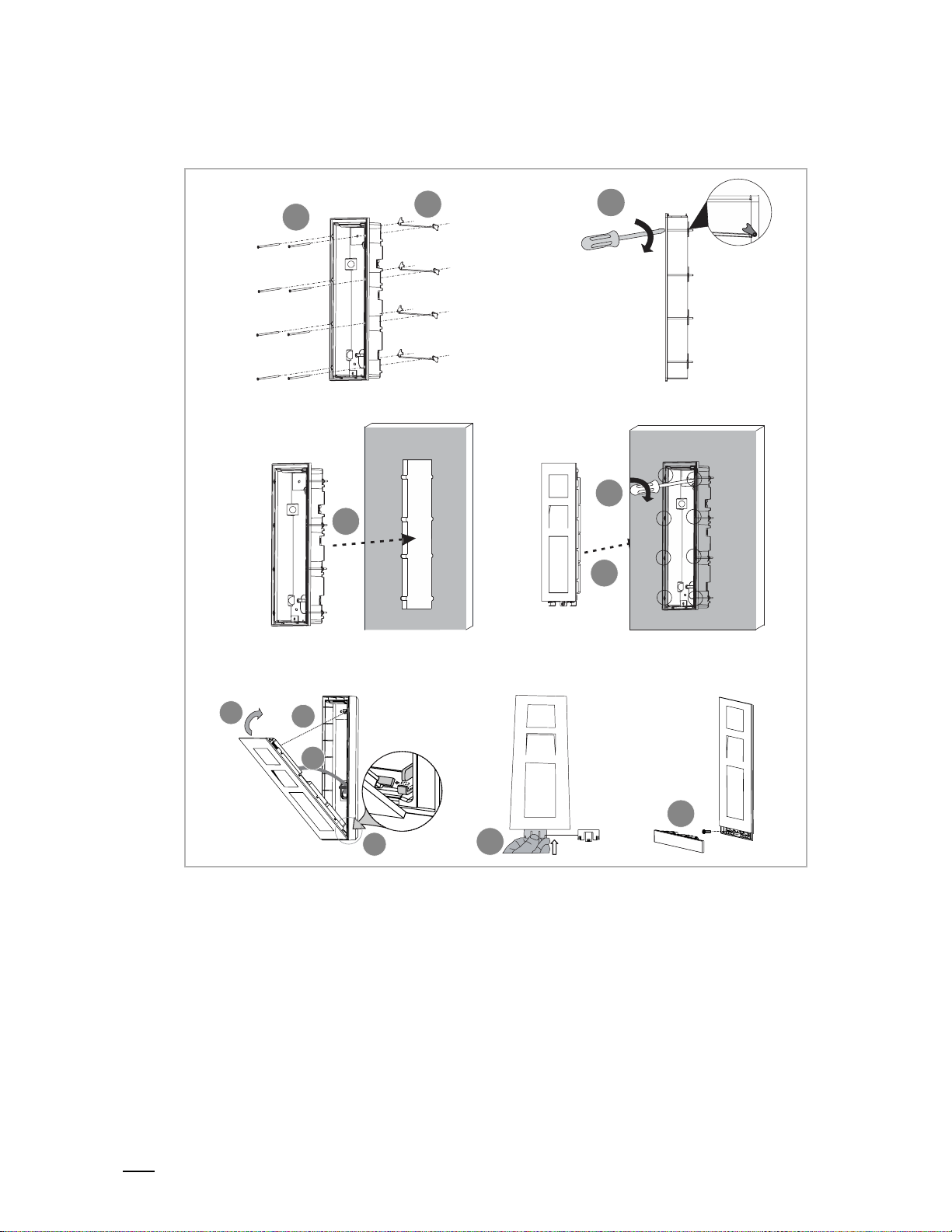

7.2.5 Cavity wall installation
1
23
5
6
7
8
6
45
10
9

Mounting/Installation
Product manual
2TMD041800D0006
│
17
Dismantling
Note
The following installation situations must be avoided without fail to ensure
picture quality:
■Direct light
■Direct sunlight
■Extremely bright picture background
■Highly reflective walls on the opposite side of the door station
■Lamps or direct light sources

Commissioning
Product manual
2TMD041800D0006
│
18
8Commissioning
8.1 Welcome screen and home screen
This outdoor station will light up and display the welcome screen when someone approaches
the station or if the station screen is touched.
Click the bulletin to display it as full screen.
Click the area (not the bulletin) to access the home screen (see the picture below on the right).
No. Function
1Welcome message
If there is no bulletin, the Welcome screen will display according to the welcome screen time.
(1...60 s)
2Developer information
Developer information can be text or a picture. It is sent from management software.
3
Bulletin
If there are any bulletins, the screen will be displayed according to the number of bulletins before
accessing the home screen.
■Bulletin number = 1, the screen will be displayed for 10 s
■Bulletin number = 2, the screen will be displayed for 20 s
■Bulletin number = 3, the screen will be displayed for 30 s

Commissioning
Product manual
2TMD041800D0006
│
19

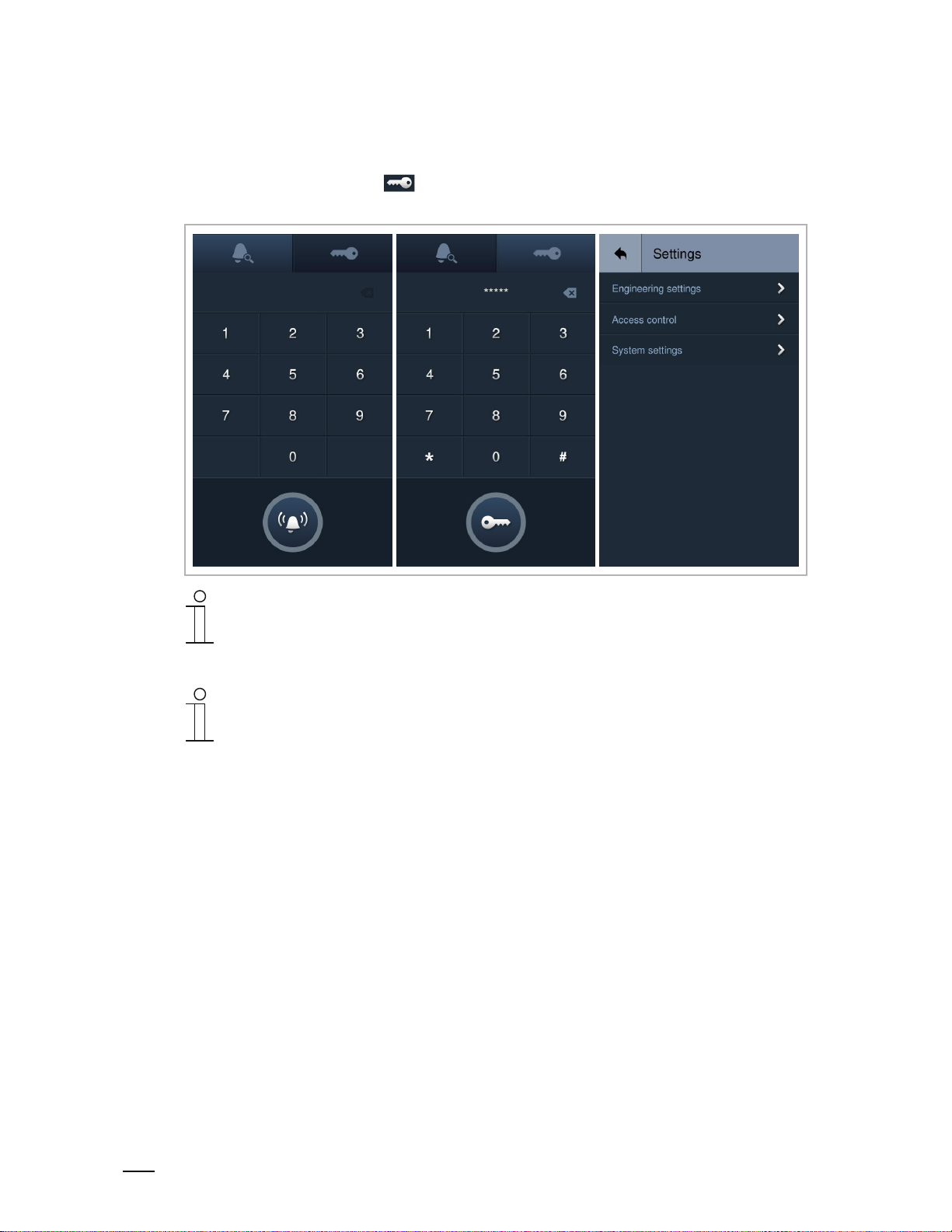

8.2 Entering the "Settings" screen
■On the home screen, tap " ", followed by [#] [*] [engineering password] [#] to access
the "Settings" screen.
Note
The engineering password must be changed the first time you access
engineering settings. (The system default is 345678. This password should only
be used for initial setting work and should be changed to another password. It
cannot be used as the actual password)
Note
If an incorrect engineering password is entered 10 times within 5 minutes, no
further attempts are permitted for the next 5 minutes.

Commissioning
Product manual
2TMD041800D0006
│
20
8.3 Engineering settings
On the "Settings" screen, tap "Engineering settings" to access the corresponding screen.
Level 1 Level 2 Level 3 Option
Engineering
settings
Device attribute
Block no. Outdoor station: 001...999
Device type ■Outdoor station
■Gate station
Device no. ■Outdoor station: 01...64
■Gate station: 01...32
System attribute
Call guard unit ■On, 01...32
■Off (default)
Digits of indoor station ■3 digits
■4 digits
Block digits
(Gate station)
■1 digit
■2 digits
■3 digits
Default call type ■Call from address book
■Call via keypad
Call mode ■Physical address
■Logical address
Compatible mode ■On
■Off (Default)
Change
password Input current password Input new password
