Abee M6 User manual

M6 User Manual
1

M6 User Manual
2
Contents
1.Product .................................................3
1.1 Features.........................................................................3
1.2 Content..........................................................................5
1.3 Appearance ....................................................................6
2.Installation Guide .................................7
2.1 Installation Instruction...................................................7
2.2 Device Installation/Uninstallation ..................................8
2.3 Wiring Suggestion ..........................................................9
2.4 Power Connection ..........................................................9
3.Operational Guide ...............................10
3.1 Turn On / Turn Off ......................................................10
3.2 Recording.....................................................................11
3.3 Emergency Recording ...................................................11
3.4 Snapshot .....................................................................12
3.5 Files Preview ................................................................12
3.6 Menu / Functions ........................................................13
3.7 Micro SD Card File Storage Instruction.........................15
4.Specifications......................................16

M6 User Manual
3
1. Product
Many thanks for purchasing Abee M6 HDR GPS car recorder. We are dedicated to
providing innovative and high-quality electronics to our customers. This device
functions as an in-car video and audio recorder and on condition that its built-in battery
is fully charged, it also supports off-car usage.
1.1 Features
HQ Recording: Full HD 1080P 30fps, high resolution for super clear video quality.
Circular Recording: Customized 2, 3, 5-mins interval recording to not lose a second.
Emergency Recording:Protect important files from being overwritten.
Wide Angle Lens: 135° all-glass flat wide angle lens for sharp and clearer night
vision.
Collision Detect: G-Sensor detects gravity difference and initiate emergency
recording automatically once a collision is occurred.
Color Large Screen: 2.4” TFT color LCD for displaying clear image.
HQ Image Output: Directly connects to HQ TV for watching the video.
Automatic Recording: Automatically starts recording when the car starts up.
Shut Down Storage: Automatically store the files when stops the engine.
Shut Down Extension: Extend 10 seconds before turning off the device when the
engine is off or the power is disconnected.
Parking Mode: Automatically activates recording once the collision or motion to be
detected during
Time Stamp: To choose if time stamp to be shown on the video.
High Temperature Resistance: Parts and lithium battery both passed the
high-temperature test to ensure user safety.
Built-in High Temperature Resistance Lithium Polymer Battery: Support off-car
recording when runs into emergency.
Memory Card: Micro SDHC memory card supports up to 32GB.
USB 2.0 Interface: Directly connects to PC for fast file access.
CE/FCC/BSMI certified. No interference with in-car devices and GPS.
Compliance with RoHS.

M6 User Manual
4
Attention
Usage Instruction
Please use Class 10 or above micro SDHC card to avoid image lagging.
For initial device setup, please stop the recording, and enter the setting
page via the lower-left Menu key.
Please adopt Abee original bracket and accessories.
In vehicles which power to the cigarette lighter remains on after the
engine has been turned off; please remove the cigarette lighter plug to
avoid draining your car battery or other accidents.
After the engine stops, power supply been cut off, or any event that
interrupts the power supply occurs; the built-in battery allows
continuous recording to the memory card. Do not remove the micro
SDHC memory card or the file might be damaged.
Do not place the device in direct sunlight when you get off the car.
Do not connect the device directly to the power source on the car. A setup
this way will render the warranty void.
It is a normal phenomenon that the device might slightly heat up when
used for a long period of time.
Do not disassemble or modify the device. Please consult the dealer or our
customer service center when encountering problem with the device.
Do not drop or subject the device to blows or force. Do not press hard on
the touch screen. This may damage the device or cause it to malfunction.
For safety reason, please do not operate the device during driving.
Please avoid contact with water and make sure both hands are dried
when operating the device.
Please avoid cleaning the product with cleanser containing strong acid or
alkaline.
Please follow local regulations when disposing the device and its built-in
battery.
It is prohibited to change the battery by customer themselves. Mis-use
might lead to explosion. Please contact your local dealer or our customer
service for battery change.
The driving safety calculation is for reference only. Please drive according
to local traffic rules and actual traffic situation.
For correct usage, please read the user manual carefully.

M6 User Manual
5
Micro SDHC Memory Card
1. Please use at least 8G micro SDHC memory card Class 10 or above
supporting up to 32GB.
2. Please format the card via the device before usage.
※Please do not insert or extract the memory card while the device is in
operation.
1.2 Content
Device
Bracket
Car Charger
User Manual
Warranty Card

M6 User Manual
6
1.3 Appearance
No.
Item
No.
Item
1
ON/OFF Key
9
Memory Card Slot
(Micro SD Card)
2
Menu / Back
10
Mini USB Port
3
Up
Select/Snapshot/Delete
11
HD Output
4
Dn. Select/Stop/Play
12
RESET
5
Recording/Emergency
Recording/Confirm/
Pause; Play
13
Lens
6
Display Screen
14
Speaker
7
Recording Indicator
15
Microphone
8
Mount
-
-

M6 User Manual
7
2. Installation Guide
2.1 Installation Instruction
Install your product as close as possible to the rearview mirror in your
car to get the best views, as illustrated.
To ensure clear recording in rains, please install the device within the
range of windshield wipers.
Please avoid hindrance of the safety airbag operation.
Wipe clean the selected area and the suction cup prior to installation.
Do not touch the lens lest the finger grease smudges the lens and thus
affects recording quality; use exclusive cloth for cleaning lens with lens
whenever necessary.
Do not install on colored windshield, which affects recording quality.
Optimal Installation Area
※Warning
Do not install Abee products over an air bag cover or within the air
bag deployment zone. The company assumes no responsibility or
liability for injury or death as a result of car crashes and/or air bag
deployment.
Optimal Installation Area

M6 User Manual
8
2.2 Device Installation/Uninstallation
Installation
1. To attach the bracket to the device, slide
the bracket into the bracket slot until a
click sound appears.
2. To attach the device on the windshield,
put the suction cup onto the windshield
and press down the clamp, which can fix
the bracket.
3. Make sure the bracket has been firmly
installed. To adjust the vertical angle, loosen the top knob; to swivel
the device horizontally, unscrew the bottom knob screw. Screw back
tightly to secure recording angle.
Uninstallation
1. Device Uninstallation: To disconnect the suction cup the windshield, pull
down the clamp. Make sure the device is securely in your hand in
advance.
2. Bracket Uninstallation: To disconnect the bracket from the windshield,
simply pull up the suction cup bottom.

M6 User Manual
9

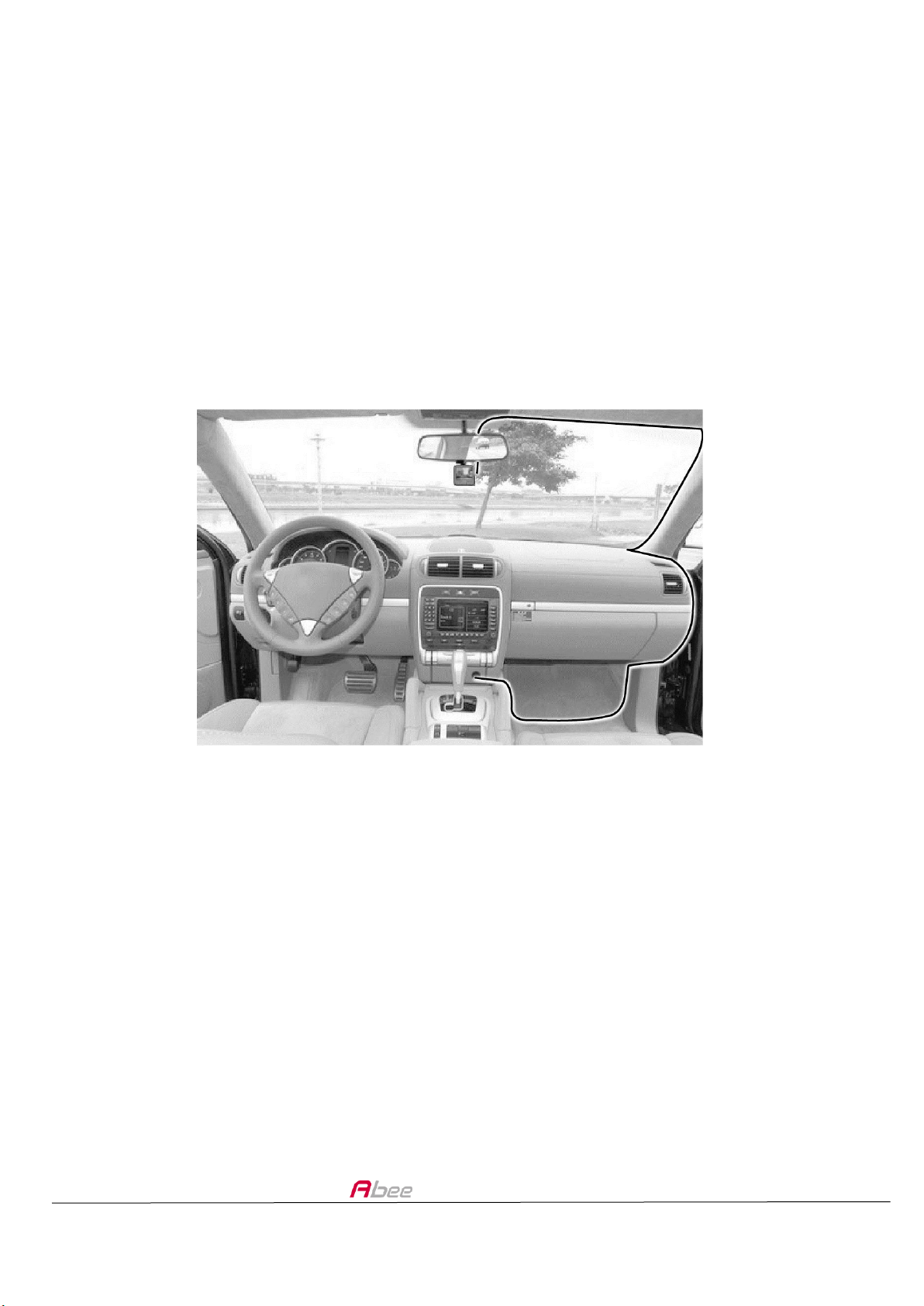

2.3 Wiring Suggestion
1. Take the cigarette charger cable upward and set it along the inside seam
of car towards the door of the shotgun seat.
2. Extend the cable to the door-frame strip (front pillar inner side),
downward to fix under the mat and into the console.
3. Tuck the spare cable under the mat if applicable.
※Coins or other solid objects could be helpful in fixing the cable to its
position.
2.4 Power Connection
1. Connect the cigarette car charger cable to the micro USB slot on the
device.
2. Connect the other side of the cigarette car charger cable to the cigar
lighter. The device will automatically turn on/off in accordance to
engine’s status.
※Red LED light on the device indicates device is under recording; Green
light indicates device is on stand-by mode.

M6 User Manual
10
3. Operational Guide
3.1 Turn On / Turn Off
1. Turn On:
Press for 1 second to turn on the device when the car charger is not
connected.
2. Turn Off:
Press for 1 second to turn off the device.
3. Auto On/Off:
※When the car charger is connected and the engine is on, the device will
turn on automatically.
※The device will automatically turn off when the engine is off.
※Use cigar lighter to activate the engine to automatically turn on the
device. The device will automatically turn off if disconnect the charger when
charging (disconnect the USB cable).
※Auto on/off function is not supported if the cigar lighter keeps charging
after the engine turns off.
※Quick Troubleshooting
1. Please check if Micro SD car is correctly inserted.
2. Check if the storage space of memory card is sufficient; or if it is system error.
3. Please back up the data and format the SD card if the error cannot be removed.

M6 User Manual
11
3.2 Recording
1. General Recording:
Press to start recording; Red LED ● and time stamp will appear on
the upper left corner of the screen.
2. Automatic Recording:
Under the Automatic Recording Mode; the device will automatically
start recording when connects to the power.
3. Stop Recording:
Press to stop recording during the recording mode.
4. Stop Recording by Device Turning Off:
Recording stops and files saved upon device shutting down.
3.3 Emergency Recording
1. Press again to start Emergency Recording during the general
recording mode. “Emergency Recording” in red font will appear on the
upper left corner of the screen. The files recorded under emergency
recording will be protected and not to be overwritten by circular
recording files. Press to stop recording.
2. Emergency recording will be initiated when collision is detected under
the recording mode when device is power on.
3. An 4G memory card saves approximately 5 emergency recording files;
8G and above memory card saves approximately 10 emergency files.
4. Press again during the recording, “Full storage for emergency files”
message will appears on the screen when the emergency recording file
storage is full.

M6 User Manual
12
3.4 Snapshot
1. Under recording mode, click on for taking a snapshot.
2. Simply click on for snapshot during driving, which affects nothing
to the recording mode.
3.5 Files Preview
Under default mode, click on to enter the play back menu. Use
to select the file and click on for video playing. Click on for
returning to the previous section.

M6 User Manual
13
3.6 Menu / Functions
Click on to enter the Menu page. Find the following list for the setting
instructions:
System Setting
Time Setting
Display time adjustment.
LCD Setting
LCD Off; 30-sec Off; 3-min Off; LCD On
Sound Control
System volume adjustment of 5,4,3,2,1 or Off.
Voice recording On / Off.
Languages
Traditional Chinese, Simplified Chinese, English,
Japanese and other 11 kinds of languages.
Reset
Select to reset the device or not
Recording Setting
Resolution
1080P/30fps,720P/60fps or 720P/30fps
Automatic
Recording
The device will automatically start recording when
power on if this function is turned on.
Recording
Interval
Circular recording file storage time adjustment:
2-min,3-min or 5-min
Time Stamp
Select to turn on/off the time stamp on the video
WDR
Select on/off. Turn on this function to obtain the best
image under large light and shade contrast.

M6 User Manual
14
Function Setting
Collision
Detection
High, medium or low sensitivity setting. The emergency
recording will be initiated when runs into a collision
after turning on the function.
Parking Mode
Parking Collision, Motion Detection or Off. The
recording will be initiated when runs into a collision or
motion is detected under the parking mode when the
engine is off.
EV
Adjustment of: -1, -2, 0, +1, +2
Shutdown
Extension
Extend 10 seconds before turning off the device when
the engine is off after turning on this function. Or to
turn off the function.
Frequency
50Hz / 60Hz
File Management
File Playback
Playback, watch video or photos
File Delete
Delete videos or photos
Format
Delete all the files in SD card if process
Version
Firmware version display

M6 User Manual
15
3.7 Micro SD Card File Storage Instruction
1. Via USB cable to connect Abee M6 to read files from Micro SD card.
Abee M6 is available to connect your home PC and the files are able
to be browsed on it as a portable device. (LCD will automatically turn
off when the device is connected as a file reader).
2. Read the files on Micro SD card via the card reader:
Turn off Abee M6, remove the memory card from the device and
access it via a card reader on the computer.
3. Memory Card (Micro SD) Content:
Files are stored in “DCIM” in the memory card and separated into 3
folders: “EMERG” for emergency recording videos; “VIDEO” for
general circular recording videos and “PHOTO” for snapshot
pictures.

M6 User Manual
16
4. Specifications
Display
2.4 inch TFT capacitive color screen
Sensor
New generation low-light CMOS
DSP
New high-speed image processor
Lens
135° 6G all-glass with IR filter
Resolution
1920×1080 (30fps) / 1280×720 (60fps/30fps)
File Format
MOV
Compression
H.264
Duration
2/3/5-min recording interval; automatic circular
recording
Power
Supply
Car cigarette charger
(INPUT: 12V~24V;OUTPUT: DC5V/1A)
Built-in high temperature resistant lithium polymer
battery
External
Memory
Micro SD Card (8GB-32GB),SDHC Class 10 or above
LED
Indicator
Green: On; Red: Recording
Operation
Temperature
0°C~60°C
Storage
Temperature
-20°C~80°C
International
Certifications
BSMI/CE/FCC/RoHS
Dimensions
6.2(L)×6.75(W)×2.7(H) cm
Weight
Around 80g
※Abee works to ensure the accuracy and completeness of our user manual. Please kindly
advise customer service should there be any mistake or point missing. All specifications
are subject to change. Abee reserves the right to modify the specification without prior
notice to customer.

M6 User Manual
17
Warranty Card
Authorized Agent
Authorized Seal Required
Model
Serial Number
Date of Purchase
Remarks: One year warranty for non-human caused damages.
