About
The content of this manual is for reference only. The producer retains the rights to adjustment without
prior notice. We keep working on the accuracy and completeness of our manual. Feel free to contact us
if you find anything lacking.
FCC Statement
In accordance with Part 15 of the FCC Rules, our device has been tested and proven to comply with the
limits for a Class B digital device. The limits are set to prevent against harmful interference in a
residential installation.
Complying with Part 15 of the FCC Rules, our device operation satisfies the following conditions: (1)
Device does not cause harmful interference, and (2) must accept any interference received, including
such that may cause undesired operation.
Our device is FCC approved to cause no interference with other in-car electronics.
FCC Caution: Any unauthorized changes or modifications could void the user’s rights to safe and correct
operation of the device.
CE and RoHS Statement
Our device is CE certified and thus complies with the requirements set forth in the Council Directives on
the Approximation of the Laws of the Member States relating Electromagnetic
Compatibility(2004/108/EC).
Restriction of Hazardous Substance(2002/95/EC) is a directive set forth by the European Union
concerning the usage of 6 harmful substances including lead, mercury, cadmium, hexavalent chromium,
polybrominated biphenyls and polybrominated diphenyl ether. The production process of our device
complies with RoHS standards.

V53T GPS Full HD Car Camera Recorder User Manual
6
1、Product
Thank you for purchasing Abee V53T GPS Full HD car camera recorder. Our company is
dedicated to providing innovative, high quality electronics to our customers. This device
functions as a video and audio recorder in the car and on condition that its built-in
battery is fully charged, it also supports off-car usage.
1.1 Features
●Full HD 1080P @ 30fps, recording each second of your journey
●Cutting edge technology DSP with built-in noise reduction for better image quality
●New generation low-light CMOS image sensor
●2.7” 16:9 capacitive touch screen for easier and more intuitive operation
●140°flat wide angle lens for a broader view
●All glass lens providing high light transmittance enhances image quality even under
dim light
●GPS tracking function recording driving time, speed, direction and coordinates
●Fixed point speed cam alert watching out for speed cam and avoid speeding
●Supporting manual registration of speed cam point up to 200 entries
●Customized speed limit to alert driving when driving faster than the self-set speed
limit
●Speed limit alert margin available for higher flexibility
●Snapshot during recording possible
●LDWS (Lane Departure Warning System) issuing alert if diverting from the original lane
while driving at 50km/h
●Select either recording for 3 or 5 min interval
●Emergency recording protecting important files from being overwritten
●G-Sensor(X/Y/Z) 3-axis collision detection with high/mid/low sensitivity to activate
emergency recording when collision detected
●HDMI high resolution output to be connected directly to televisions
●Automatic recording according to engine status

V53T GPS Full HD Car Camera Recorder User Manual
7
●Saving file automatically upon turned off
●High temperature resistant to ensure user safety
●Built-in high temperature resistance lithium polymer battery supporting off-car
recording
●Compatible with micro SDHC card up to 32GB
●Exclusive DVR player showing video, map, driving direction and G-sensor data at the
same time
●CE/FCC/BSMI certified, no interference with in-car devices and GPS
●Compliance with RoHS
Attention
Usage
Please use Class 10 or above micro SDHC card to avoid image lagging.
When setting up the device for the first time, please do not record at the same time.
Please use original Abee bracket and accessories for V53T.
In vehicles which power to the cigarette lighter remains on after the engine has been
turned off, please remove the cigarette lighter plug to avoid draining your car battery
or other accidents.
After the car engine has stopped, the power supply been cut off, or any event that
interrupts the power supply occurs, the built-in battery allows continuous recording to
the memory card. Do not remove the micro SDHC memory card or the file might be
damaged.
Do not connect the device directly to the power source on the car. A setup this way
will render the warranty void.
The device might slightly heat up when used for a long period of time. This
phenomenon is normal.
Do not disassemble or modify the device. Simply consult the dealer or our customer
service center when encountering problem with the device.
Do not drop or subject the device to blows or force. Do not press hard on the touch
screen. This may damage the device or cause it to malfunction.

V53T GPS Full HD Car Camera Recorder User Manual
8
Driving safety should always come first. Please do not operate this device while
driving.
The current speed, direction, current distance to the fixed speed cam position and
other values derived from the device calculation might vary slightly and are for
reference only.
The driving safety calculation is for reference only. Please drive according to local
traffic rules and actual traffic situation.
GPS positioning result is for reference only. The accuracy of this function is subject to
weather, location and other external factors. Please note that GPS signals cannot go
through buildings and window films containing metallic substances.
Please avoid contact with water and make sure both hands are dried when operating
the device.
Please avoid cleaning the product with cleanser containing strong acid or alkaline.
Please follow local regulations when disposing the device and its built-in battery.
For correct usage, please read the user manual carefully.
Micro SDHC memory card
1. Please use micro SDHC memory card Class 10 or above supporting up to 32GB.
2. Please format the card via the device before use.
※Please do not insert or extract the memory card while the device is in operation.

V53T GPS Full HD Car Camera Recorder User Manual
9
1.2 Content
device
bracket
car charger
USB cable
user manual
CD with DVR player
warranty card

V53T GPS Full HD Car Camera Recorder User Manual
10
1.3 Appearance
No.
Description
No.
Description
1
bracket socket
6
microphone
2
Mini USB connector port
7
lens
3
Recording indicator
8
Memory card slot
4
GPS module
9
ON/OFF key
5
loudspeaker
10
Capacitive touch screen

V53T GPS Full HD Car Camera Recorder User Manual
11
2、Installation Guide
2.1 Installation in Car
Install your product as close as possible to the rearview mirror in your car to get the
best view, as illustrated.
To ensure clear recording in rains, please install the device within the range of
windshield wipers.
Please avoid hindrance of the safety airbag operation.
Wipe clean the selected area and the suction cup prior to installation.
Do not touch the lens lest the finger grease smudges the lens and thus affects
recording quality; use exclusive cloth for cleaning lens with lens whenever necessary.
Do not install on colored windshield, which affects recording quality.
optimal installation area
※Warning
Do not install Abee products over an air bag cover or within the air bag
deployment zone. The company assumes no responsibility or liability for injury
or death as a result of car crashes and/or air bag deployment.

V53T GPS Full HD Car Camera Recorder User Manual
12
2.2 Device Installation
1、To attach the bracket to the device, slide the bracket
into the bracket slot until a click sound appears.
2、To attach the device on the windshield, put the suction
cup onto the windshield and press down the clamp.
3、Make sure the bracket has been firmly installed.
4、To adjust the vertical angle, loosen the top knob; to
swivel the device horizontally, unscrew the bottom knob
screw.
5、Screw back tightly to secure recording angle.
6、To disconnect the suction cup and the windshield, pull
down the clamp. Make sure the device is securely in your
hand in advance.
7、To disconnect the bracket and the device, press on the
part on the bracket base that sticks out and push outward
while pulling the device inward as shown in the
illustration.

V53T GPS Full HD Car Camera Recorder User Manual
13
2.3 Suggested Cable Installation Route
1、Take the cigarette charger cable upward
and set it along the inside seam of car
towards the door of the shotgun seat.
2、Tuck the extra cable under the mat if
applicable.
3、Coins or other solid objects could be
helpful in fixing the cable to its position.
2.4 Connect to power
1、Connect the cigarette car charger cable to the micro USB slot on the device.
2、Connect the other side of the cigarette car charger cable to car.
※Red LED light on the device indicates device is recording; GREEN light indicates device
on stand-by mode.
2.5 Device ON/OFF
2.5.1 Auto ON/OFF：When power button is switched to ON and the device and the
car charger are connected, the device will turn on and off automatically according to
the engine status. Automatic recording and saving functions will apply. (4.1
Automatic Recording)
2.5.2 Manual ON/OFF：Push power button to switch on and off.

V53T GPS Full HD Car Camera Recorder User Manual
14
3、MENU
3.1 Main Menu

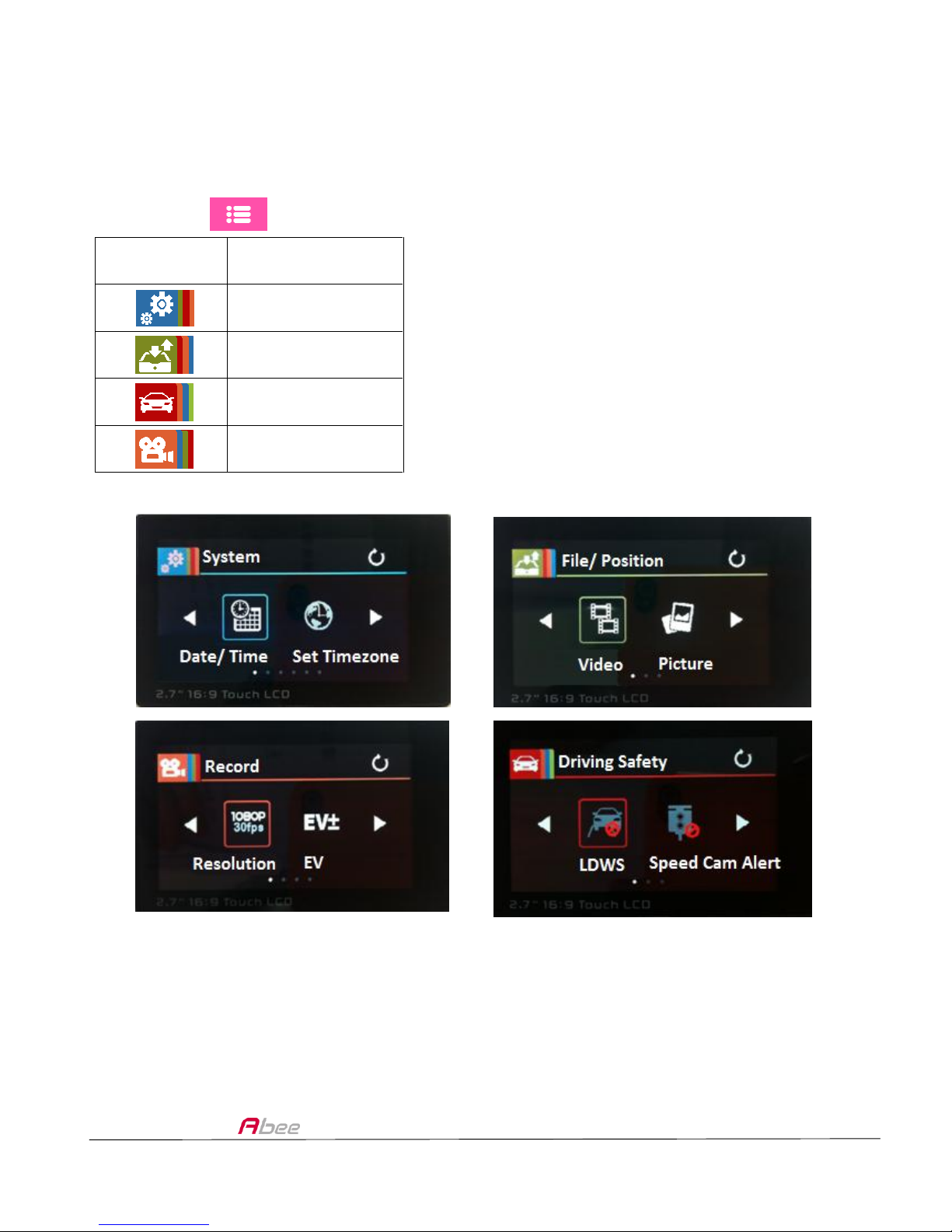

Press and select on the upper left corner between four areas.
Icon
Description
System
File/Position
Driving Safety
Record

V53T GPS Full HD Car Camera Recorder User Manual
15
3.2 Functions
Main
Icon
Function
Description
Available Options
System
Date/ Time
Set the time on the
device
Set Timezone
Set UTC timezone
Time Sync.
Select if sync time with
satellite
Off, On
Beep
Control operation
beeping sound volume
Off, Low, Normal, High
Language
Settings
Select operation
language
English, Traditional
Chinese, Simplified
Chinese totaling to
eleven languages
LCD Setting
Set LCD on time
Off after 30 sec., Off
after 3 min., On
Satellite
System
Select the satellite
system
GPS, GLONASS
Format
Format memory card. All
files will be deleted
Yes, No
Default Setting
Reset all settings to
original setting
Yes, No
Firmware
Version
Show firmware version

V53T GPS Full HD Car Camera Recorder User Manual
16
Main
Icon
Function
Description
Available Options
File/
Position
Video
Play or delete videos
Delete one, delete all,
fast forward/rewind,
pause
Play or delete photos
Delete one, delete all
Emergency
Play or delete
emergency files
Delete one, delete all,
fast forward/backward,
pause
Add speed point
Add your own speed
point
Delete speed
point
Delete all self-set
speed points
Main
Icon
Function
Description
Available Options
Record
Resolution
Select recording
resolution
1080P/30fps,720P/30fps
720P/60fps
EV
Manually adjust
exposure value
-2.0~+2.0
Video Duration
Set video file
recording duration
3 min., 5 min.
Automatic
Record
Automatically
records
Off, On
Voice Record
Record voice
Off, On
Time Stamp
Inserting time mark
in video
Off, On
WDR
Wide Dynamic Range
Off, On

V53T GPS Full HD Car Camera Recorder User Manual
17
Main
Icon
Function
Description
Available Options
Driving
Safety
LDWS
Lane Departure
Warning System:
alert driver when
driving above
50km/h and
departing from lane
(Details see 5.8)
Off, On
Speed Cam Alert
Alert when fixed
point speed cam
detected
Off, On
Speed Limit Alert
Customized speed
limit margin
Off、50km/h~200km/h
Driver Fatigue
Alert
Alert every 30 mins
after recording over
one hour
Off, On
Motion
Detection
Start recording when
motion detected
Off, on
Collision
Detection
Set G-Sensor
sensitivity and record
as emergency file
when collision
detected while
recording
Off, low sensitivity, normal
sensitivity, high sensitivity
※Functions listed above are for reference only. Please drive according to local
traffic regulations.
※Fixed point speed camera alert does not detect radar speed cameras.

V53T GPS Full HD Car Camera Recorder User Manual
18
4、Initial Set-Up
4.1 Set Automatic Recording
In default mode, click and then to select Automatic Record, select on,
and click on to return to Record Menu.
4.2 _Set Time and Date
In default mode, click and then to select Date/Time. Use
to set the correct time and date. Click to return to System
Menu.
※To ensure operational fluency, please connect to external power supply when setting up the
first time.

V53T GPS Full HD Car Camera Recorder User Manual
19
5、Recording
5.1 Recording Screenshot
No.
Item
Description
No.
Item
Description
①
Battery
Show battery status
⑦
Add Speed Point
Add speed point for current
location
②
Driving Info
Show driving info
⑧
Date/Time
Show current date and time
③
Recording
Stop and start recording
⑨
LED Indicator
Show device status
④
Emergency
Recording
Start emergency recording
⑩
Record Time
Show elapsed time
⑤
Snapshot
Snapshot during recording.
See 5.7.
⑪
GPS Signal
Show GPS status and signal
strength
⑥
Menu
Enter main menu

V53T GPS Full HD Car Camera Recorder User Manual
20
5.2 Recording
In default mode, click to start recording. Date and time elapsed will show on
the upper left corner on the screen.
5.3 Automatic Recording
When automatic recording mode is on, the device will start recording once on.
5.4 Stop Recording
While recording, click to stop recording.
5.5 Stop Recording by Shutting Down
Recording will stop and files will be saved upon device shutted down.
5.6 Emergency Recording
5.5.1 While recording, click on to start emergency recording. “Emergency” in
red font will show on the lower left corner of the screen. Files recorded under
emergency recording will not be overwritten by normal files. Click on to stop
recording.
5.5.2 When collision detection is on, emergency recording will be initiated when
collision is detected by the device while it is on.
5.5.3 An 8GB memory card saves approximately 10 emergency recording files.
