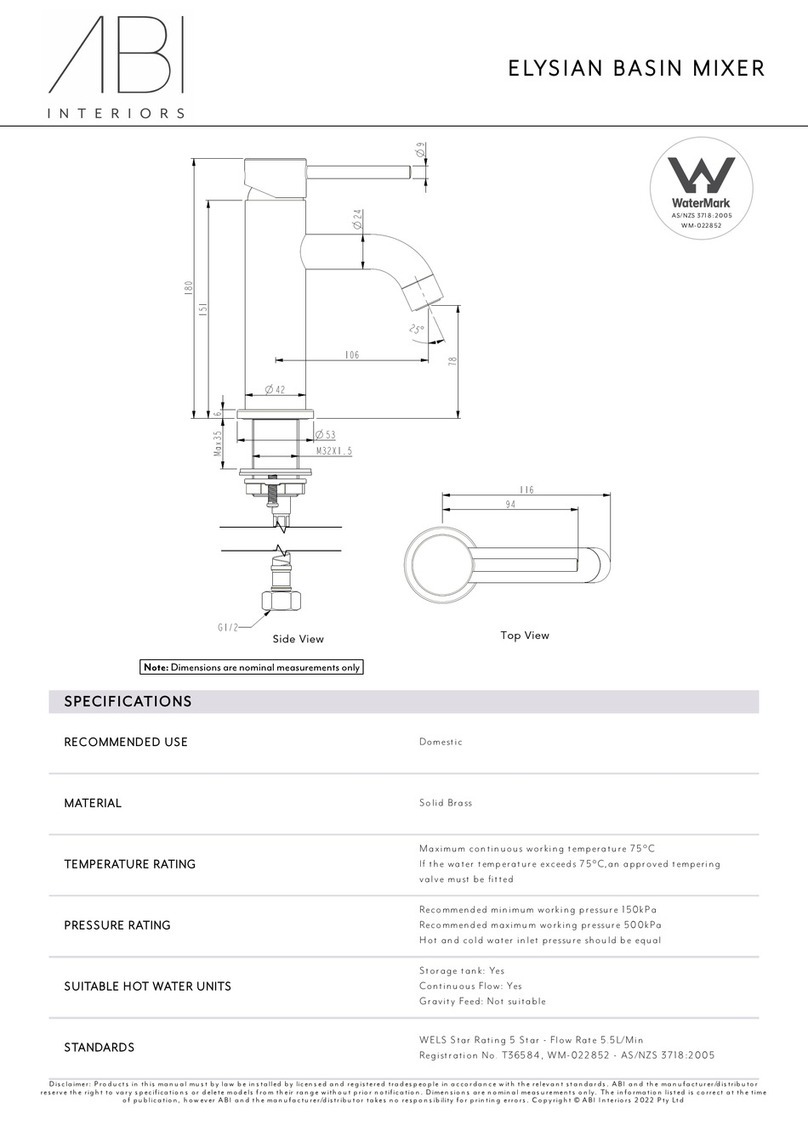

abi ELYSIAN 10429 User manual

ELYS IAN E XTENDE D BAS IN MIXE R
Dis claimer: P ro d u cts in th is ma n u a l mu s t b y la w b e in s ta lled b y licen s ed a n d reg is tered tra d es p eo p le in a cco rd a n ce w ith th e relev a n t s ta n d a rd s . A BI a n d th e ma n u fa ctu rer/distribu to r
res erve th e righ t to va ry s p ec ifica tio n s o r delete mo dels fro m th eir ra n g e w ith o u t p rio r n o tif ica tion . Dimen s io n s a re n o min al mea s u remen ts o n ly . Th e in f o rma tio n lis ted is co rrect a t th e time
o f p u b lica tio n , h o w ev er A B I a n d th e ma n u f a ctu rer/d is t rib u to r ta k es n o res p o n s ib ility f o r p rin tin g erro rs . C o p y rig h t © A BI I n terio rs 2 02 2 P ty Ltd
SPECIFICATIONS
RECOMMENDED USE Domestic
MATERIAL Solid Brass
TEMPERATURE RATING Maximum continuous working temperature 75°C
If the water temperature exceeds 75°C,an approved tempering
valve must be fitted
PRESSURE RATING Recommended minimum workin g pressure 150kPa
Recommended maximum working pressure 500kPa
Hot and cold water inlet pressure should be equal
SUITABLE HOT WATER UNITS Storage tank: Yes
Continuous Flow: Yes
Gravity Feed: Not suitable
STANDARDS WELS Star Rating 5 Star - Flow Rate 5.5L/Min
Registration No. T36585, WM-022852 - AS/NZS 3718:2005
AS/NZS 3718:2005
WM-022852

DO NOT use cream
cleaners or bleach.
These substances are
abrasive.
Regularly clean with
mild liquid detergent
or soap and water.
DO NOT use cleaning
pads with abrasive
surfaces as this may
scratch the material.
INSTALLATION GUIDE
Note: This product must be installed by a licensed plumber.
This is a general installation guide - there are many factors
that are involved that can alter the installation method.
This product install must comply with AS/NZS 3500.
ELYSIAN EXTENDED BASIN MIXER
ø35mm
MAX35mm
MIXER OPERATION
Hot water hose Cold water hose
Rubber washer
Metal washer
Nut
Screws
Install the basin mixer by fixing the
washers, nut & screws on the underside
of the benchtop.
Mark hole in benchtop at desired positon and
drill a 35mm hole.
Attach the two flexible hoses to water
supply and hand tighten. Remove the
aerator from the spout and flush.
Re-install aerator
Installation should comply with relevant local
authority requirements.
This product must be installed by a qualified plumber.
INSTALLATION MANUAL
Hot water
Cold water
OFF
H C
ON
COLD
HOT
As shown in the figure, connect the H & C flexible hoses.
ABI recommends applying approriate lubricant to
o-rings
** If installing into a thicker benchtop - a longer threaded
rod is required to fix the Basin Mixer down.
