Abode Pro ASC3001 User manual

Model No: ASC3001
pro Steam Cleaner
User guide
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
IMPORTANT:
RETAIN FOR FUTURE REFERENCE

For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
Contents
2
Page
Safety instructions
…………………………….………..
3
Steam cleaner feature diagram
………………………………....…..
6
Unpacking your steam cleaner
……………………………….……..
8
Using
your steam cleaner
………………………………………
9
Storing
your steam cleaner
………………………………………
16
Cleaning and care
………………………………………
17
Problem solving
………………………………………
18
Guarantee
………………………………………
21
Customer
services
………………………………………
22
Spare parts
………………………………………
23
Connection to the mains supply
………………………………………
24
Thank you for purchasing your Abode pro Steam Cleaner.
Multi-purpose steam cleaning has never been so easy with your new
Abode pro Steam Cleaner. With an impressive number of functions
and attachments, steam clean your bathroom, windows, mirrors,
upholstery and more.
To get the best from your new cleaner, take a few moments to read
these instructions, and keep them in a safe place for future reference.
Should you require any further assistance, our friendly Product Care
team will be happy to help.

WARNING:
It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the
removal of a cover which gives protection against exposure to
electrical parts.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
This product is intended for household use only.
Do not use outdoors.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge IF they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and user
maintenance should not be made by children unless they are
older than 8 and supervised. Keep the appliance and its cord
out of reach of children less than 8 years.
•Do not operate this appliance for anything other than its
intended use. This product is intended for household use
only. Do not use outdoors.
•Do not immerse in water or other liquids for cleaning.
3
Safety instructions
IMPORTANT SAFETY
INSTRUCTIONS
READ CAREFULLY AND KEEP
FOR FUTURE REFERENCE

Safety instructions
•Do not direct steam at people, animals, electrical outlets,
or equipment containing electrical components.
•Unplug from power outlet when not in use. Do not leave
steam unit unattended while plugged in.
•Do not use with damaged cord or plug.
•Do not use steam unit if it has been dropped, damaged,
left outdoors or dropped into water.
•Keep the steam unit away from water; do not allow it to
get wet. If unit is wet, do not plug unit into wall socket or
turn unit on.
•Do not handle steam unit with wet hands.
•Do not pull or carry by cord, use cord as a handle, close
door on cord, pull cord around sharp corners or edges, or
expose cord to heated surfaces.
•Do not unplug by pulling on cord.
•To protect against electrical shock do not immerse cord,
plug, or appliance in water or other liquid.
•Unplug from the mains outlet when not in use, before
putting on and taking off parts, and before cleaning.
•The use of accessory attachments not recommended by
the appliance manufacturer may cause fire, electric shock
or injury. Only use the accessories supplied by the
manufacturer.
•Do not let the cord hang over the edge of the worktop, or
touch hot surfaces.
•Never remove parts from the appliance, such as screws.
4

•The filling aperture must not be opened during use.
•Do not use appliance in an enclosed space filled with vapor
given off by oil-based paint, paint thinner, some moth
proofing substances, flammable dust, or other explosive or
toxic vapors.
•Do not use on leather, wax polished furniture or floors,
synthetic fabrics, velvet or other delicate, steam-sensitive
materials.
•Do not immerse unit in water or other liquids.
•Never put descaling, aromatic or alcoholic products into
the steam unit as this may damage the unit.
•Close attention is necessary when used near children.
•Do not store with a wet unit pad still attached.
•Using distilled or demineralized water will maximize the
performance of your steam unit.
•Use extra care when cleaning on stairs.
•Do not use steam for space heating purposes; household
use only.
•Use on waxed or some unwaxed floors may diminish
glossiness. Do not use on unsealed wood floors. Test in an
inconspicuous area or check the care instructions from your
flooring manufacturer.
5
Safety instructions
Symbol IEC 60417-5597 (2002-10) is used on the unit to indicate
that this unit operates with hot water vapour (steam). To avoid
scalding and burns take extra care when in use.

1 Red indicator light: power on 10 Steam gun
2 Green indicator
light: ready to use
11 Safety lock
3 On/Off button 12 Steam trigger
4 Carry handle 13 Floor cloth
5 Safety cap 14 Floor brush
6 Floor brush slot 15 Small cloth
7 Elbow attachment 16 Funnel
8 Steam hose 17 Measuring jug
9 3x Extension tubes
6

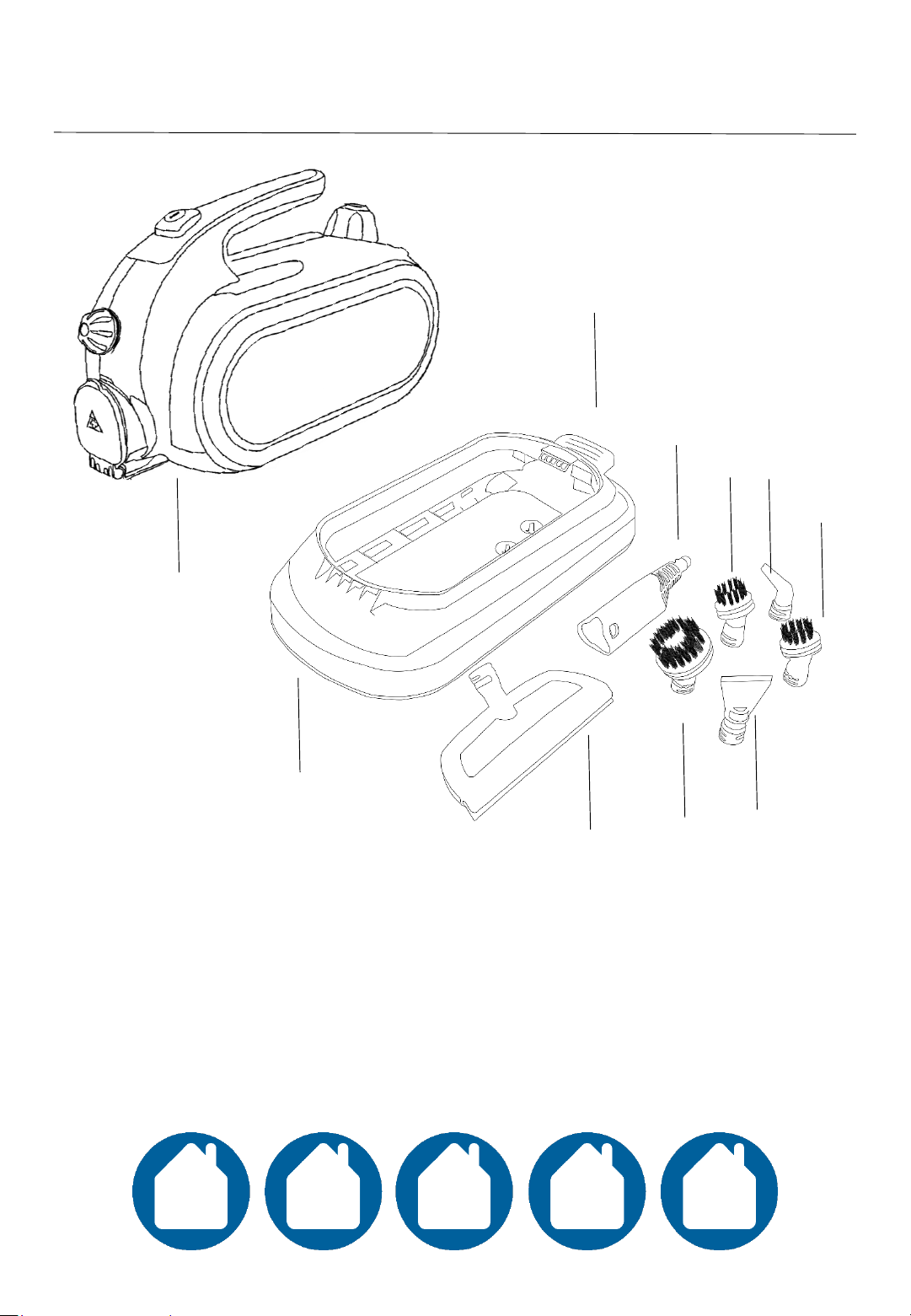

Steam cleaner feature diagram
1
2
34
5
6
7
9
8
10
12
11
13
14
15
16
17

A
Steam
cleaner
F
Large
round brush (nylon)
B
Attachment base with wheels
G
Round brush (metal)
C
Base lever
H
Scraping
tool
D
Window
Cleaning/Garment tool
I
Angled nozzle
E
Jet
nozzle adaptor
J
Round brush (nylon)
7
Steam cleaner feature diagram
A
B
C
D
E
F
G
H
I
J

8
Unpacking your steam cleaner
Before using your steam cleaner
Remove all packaging and lay out the separate components.
Check the steam unit after unpacking for any visual damage
such as:
•Misaligned or damaged parts
•Damage to the main body and separate components
•Damage to the plug or cable.
If you can see any damage do not use the steam cleaner
and refer to page 22.

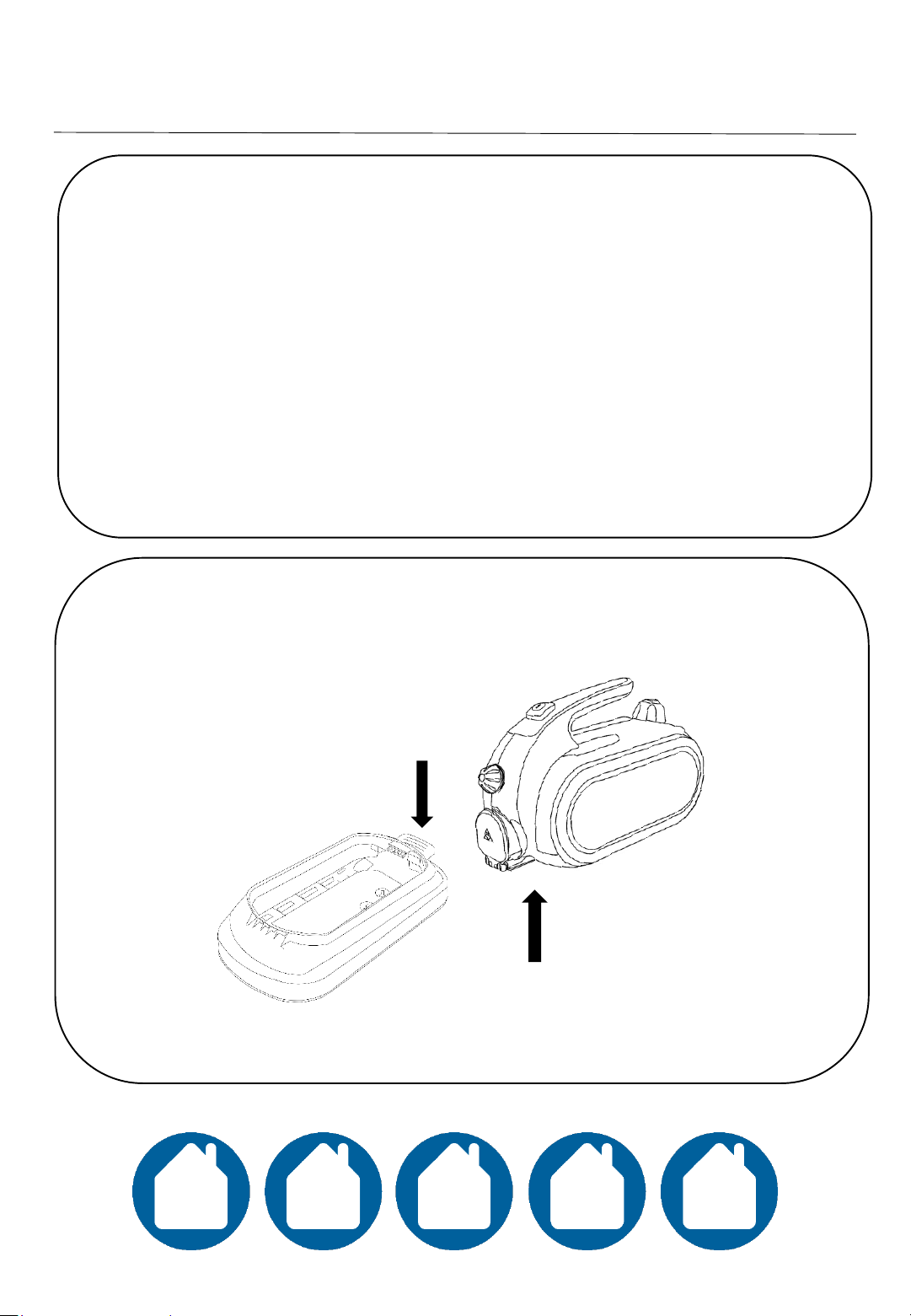

To access the accessories, push down the base lever on the
side of the product and detach from the base using the
handle.
You can steam clean with or without the base attached.

Always unplug the unit before removing the
safety cap.
9
Using: Filling the water tank
Fill the measuring jug with 750ml of cold tap
water.
Using the funnel, empty the measuring jug
carefully into the water tank.
Turn the safety cap anti-clockwise and remove.
Place the steam cleaner on a level surface.

10
Using: Filling the water tank
Re-filling the water tank
After approximately 5 minutes, when the unit
has cooled sufficiently, the red pin on the
safety cap will release to allow for removal.
This is a pressure release valve.
You can speed up the cooling time if you
release the steam pressure by pressing the
steam trigger. Make sure the steam is released
in a safe area, i.e. a sink.
Read the note below before re-following the
filling instructions.
Refit the safety cap, twisting it clockwise and
tightening.
Note:
It is recommended to empty the water tank before every refill.
This will prevent issues including overfilling and build up of scale.
Be careful not to overfill the water tank, leave a space at the top.
Overfilling may cause the cleaner to leak.
If the cap will not open after allowing 5 to 10 minutes to cool, push
down the red pin in to the safety cap.
After doing so you can unscrew the safety cap and re-follow the
filling instructions.

11
Using your steam cleaner
Operating the steam cleaner
Before you plug the appliance in, check the water tank is full.
If it is not, refer to page 9.
Plug the mains plug into a socket and turn the cleaner
on by pressing the on/off button.
The red power indicator light will illuminate.
If the light does not illuminate, refer to page 18 for
problem solving.
The steam cleaner should take approximately 5
minutes to heat up to steam temperature.
This will be indicated by the following:
1. The steam indicator will illuminate green,
2. The safety cap (red pin) will go up.
The steam cleaner is now ready to use.
The green steam indicator light will cycle-on an
off during operation to show the cleaner is
maintaining the correct temperature.
Note:
A full water tank should provide approximately 20-25 minutes of use.
There may be an initial few drops of water ejected.
Steam time can vary according to volume and temperature of water in
the tank. Turn off the tank when not in use or apply safety lock.
1
2

12
Using your steam cleaner
Steam hose
Steam gun
Steam regulator
Before turning the cleaner on, place the hose
into the steam socket.
To place the steam hose and handle into the
main steam cleaner:
•Open the steam socket,
•Press the hose in firmly until it clicks in place.
•To remove the hose press the side buttons
inwards and pull out.
Press the steam trigger to release steam from the nozzle.
Direct the steam at a cloth or into a sink until the steam
is emitted evenly.
Keep the steam trigger pressed and direct the steam at
the surface to be cleaned, removing the dirt by moving
the steam jet backwards and forwards over the area.
To stop the steam jet, release the steam trigger.
When not in use, ensure the safety lock is on.
To unlock the steam gun, press the lock mechanism on the right so it protrudes
on the left side of the gun.
To lock the steam gun, press the lock mechanism to the left so it protrudes on the
right side of the gun.
Turn the steam knob to regulate the steam emission. Turning
anti-clockwise should increase the intensity of the steam
Note:
Initially hot water may be ejected.
Aim the steam safely and do not focus steam for long periods.

13
Using: accessories

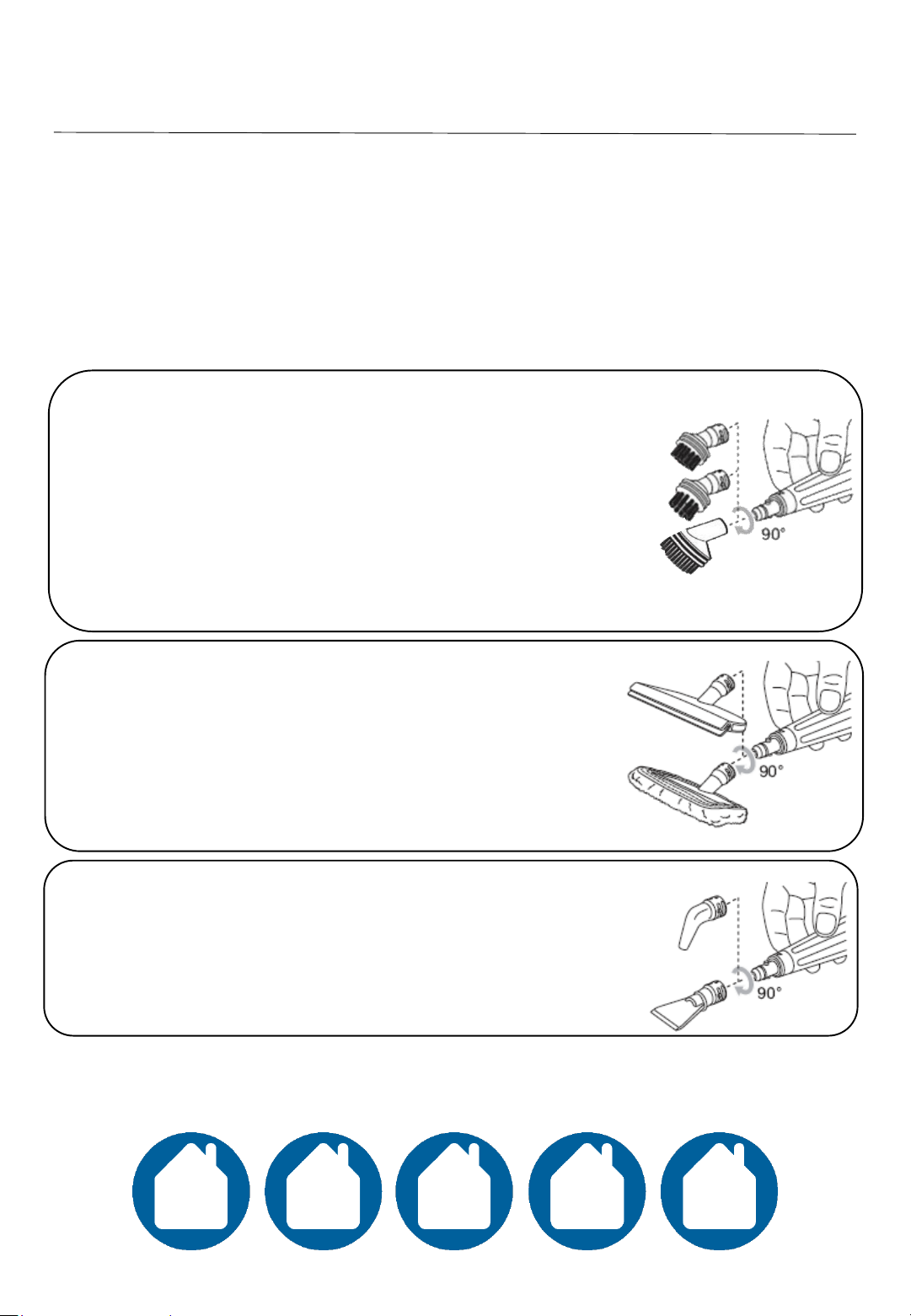

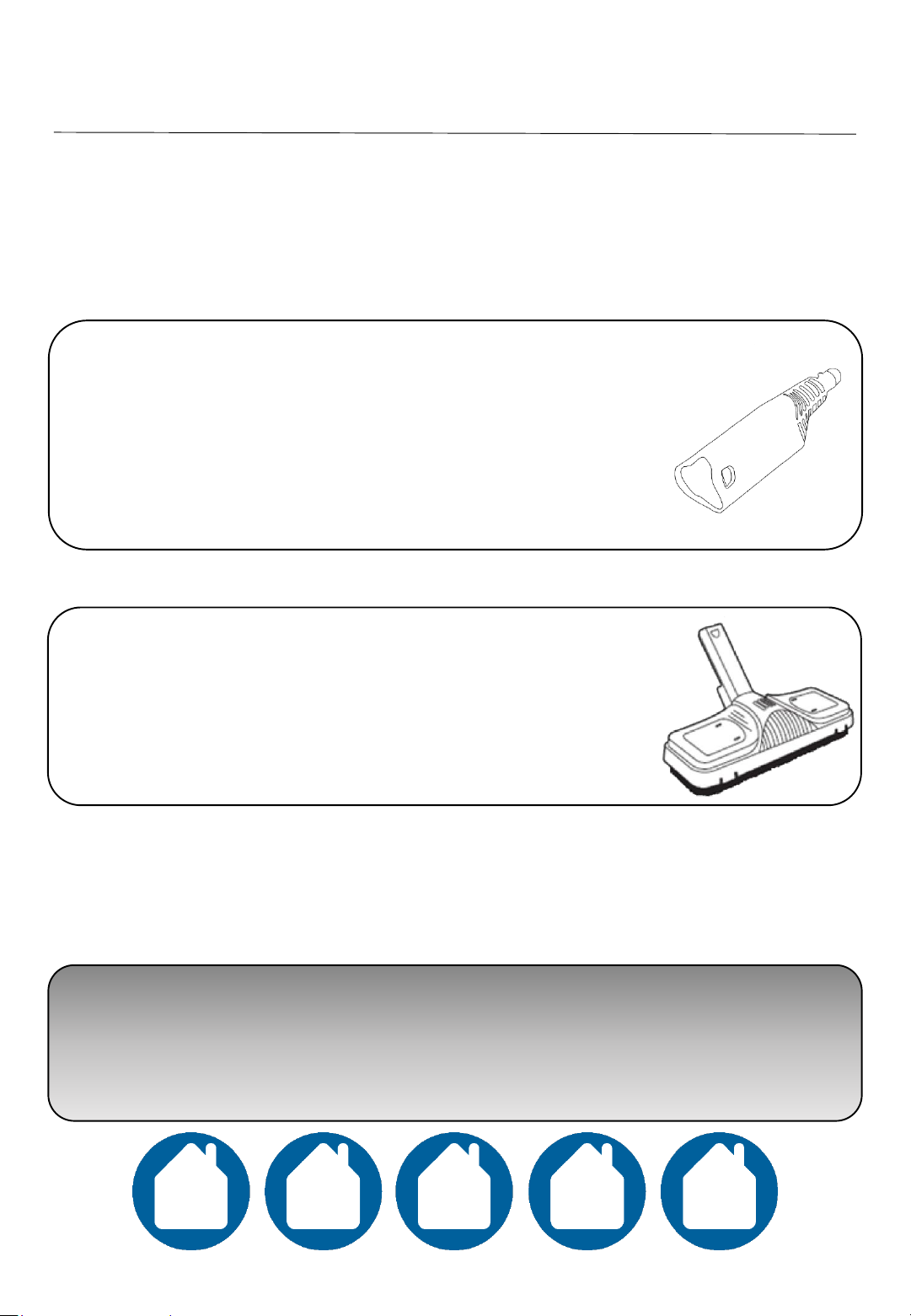

Attach this tool to the steam gun to give concentrated, direct
steam.
It can also be used with the other small tools provided –
refer to page 15.
These tools are for cleaning hard to reach areas, such as
corners, radiators etc., as well as various surfaces.
Refer to page 15.
Elbow attachment and floor brush
Attaching the main tools

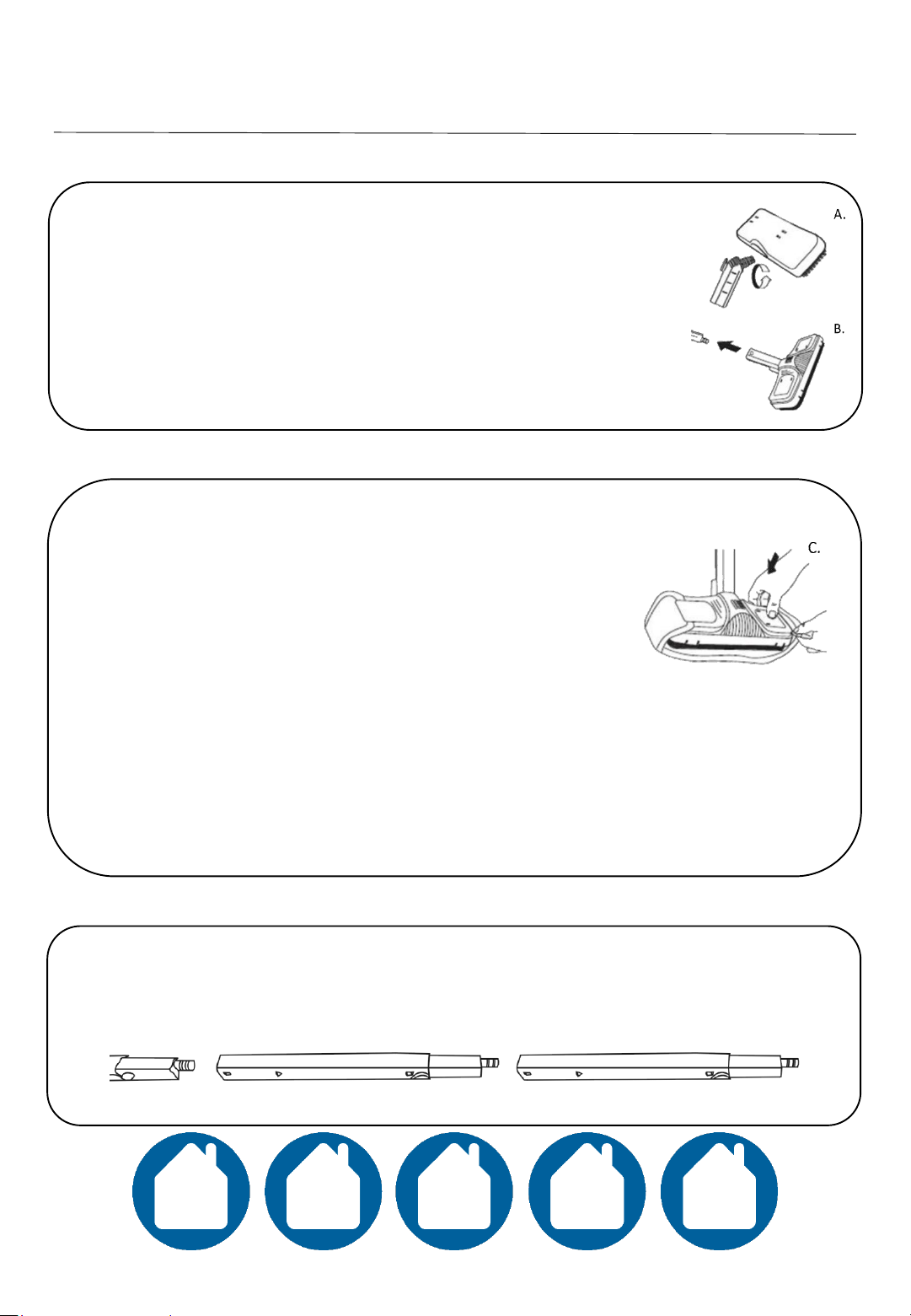

The two main accessories for this product are the jet nozzle adaptor and the
elbow attachment. They both attach to the steam gun in the same manner.
NOTE: The elbow nozzle comes pre-assembled with the floor brush attached.
Jet nozzle adaptor
The elbow attachment (1.A) comes pre-assembled with the
floor brush and is for this attachment only (1.B).
The floor brush is suitable for the cleaning of large washable
wall and floor areas. It can be used with or without the floor
cloth provided.
Refer to page 14 for uses and operation.
To attach both these main tools to the steam gun, align and push the nozzle or
attachment as far as it will go until you hear it click into place.
To remove, press the release button underneath the nozzle or attachment and
pull away.
Note:
Unplug the cleaner and allow to cool before fitting or changing attachments -
they become hot during use.
Take care when removing accessories. The tip of the steam hose/nozzle can get
very hot during operation.
1. A
1. B

14
Using: accessories
Elbow attachment
Cotton cloth
To connect or remove the elbow attachment, twist the
elbow joint so that is faces downwards (the triangle lip
should be exposed above the floor brush –diagram A.)
Remove or fit the elbow attachment.
When fitting, turn 180° till the elbow attachment
represents diagram B.
The floor brush is now fully assembled.
The floor brush is suitable for the cleaning of large
washable wall and floor areas.
The floor brush can be used with or without the cotton
cloth: Sensitive surfaces, i.e. wood (sealed), laminates
(sealed) etc. should be used with the cloth.
To fit the cotton cloth, place the floor brush on the cloth
and pull the cloth under the clips on both sides.
The cleaning effect of a floor cloth can be improved by turning and changing the
cloth regularly.
To clean very dirty areas, move the floor brush over the surface slowly in order
to increase the cleaning action of the steam.
NOTE: Do not use on unsealed floors, soft plastics, or wooden furniture.
Extension tubes
Depending on the task at hand, you can fit one, two or three extension tubes.
Push the extension tube into the connection nozzle as far as it will go until you
hear it click into place. Then, attach the floor brush with elbow attachment.

Window cleaning attachment/upholstery and
garment steaming tool: (2-in-1 combi attachment)
• The window/garment tool shown in Fig. D is ideal for
cleaning windows, tiles and mirrors.
• Fig. E shows the upholstery/garment tool.
After attaching, you can use this to efficiently steam
upholstery and clothes.
D
E
15
Using: accessories
Attaching the small tools
NOTE: The jet nozzle adaptor must be attached before fitting small tools.
If the cleaning effect of the steam alone is not acting as required for a specific
task, the following small tools may help.
All tools attach to the jet nozzle adaptor, simply:
• Push the small tools onto the nozzle adaptor, aligning the arrows.
• Twist anticlockwise to lock and clockwise to remove.
Brushes:
These brushes are ideal for multiple surfaces,
including tiles, sinks, toilets and oven tops.
• Fig. A shows the metal brush, ideal for hard-
wearing surfaces and tough dirt.
• Fig. B shows the nylon brush, which is designed for
stubborn dirt.
• Fig. C shows the large round brush which is
designed for cleaning larger areas.
Others:
• Fig. F shows the angled nozzle.
This is designed for use on hard to reach areas.
• Fig. G shows the scraping tool. This is designed for
removing hard, ground in items, such as gum and dirt
from smooth surfaces.
Note: Thermal shock can shatter glass.
Carefully warm the glass by directing steam, no less than 10 – 15 cm’s away.
Test the steam in an inconspicuous area before full use.
F
G
A
B
C

16
Allow the device to cool before removing attachments.
After approximately 5 minutes, when the unit has cooled sufficiently, the red
pin on the safety cap will release to allow for removal - this is a pressure
release valve.
You can speed up the cooling time by releasing the steam pressure by
pressing the steam trigger. Make sure the steam is released in a safe area i.e.
a sink.
If the cap will not open after allowing 5 to 10 minutes to cool, push down the
red pin in to the safety cap.
After doing so you can unscrew the safety cap and empty the water from the
tank into a sink.
Refer to cleaning and care instructions on page 17.
Ensure that the steam cleaner is dry and store in a cool, dry place.
When you have finished cleaning, turn the
steam cleaner off by pressing the OFF button.
Turn the power off at the plug socket and
remove the plug.
Storing your steam cleaner

17
Cleaning and Care
Before you clean the appliance, disconnect the mains plug
from the wall socket.
To clean the exterior of the device, use a damp, soft cloth
and mild detergent.
NEVER IMMERSE THE STEAM UNIT IN WATER.
When wiping off the main body, do not allow moisture in the
area around the indicator light.
Wash non-electrical accessories in warm soapy water and
allow to dry thoroughly before reuse.
If the steam unit is damaged, contact the customer service
helpline.
Machine wash the floor cloth regularly to improve
performance.
We’re here should you need us.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com

Problem Solving
PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION
Trouble
assembling/
disassembling
attachments
1. Trouble assembling
attachments.
1.
There are a number of attachments that can be used
with this steam cleaner. The steam gun clips in to the
steam socket on the side of the cleaner.
To detach the
base, push the lever on the side of the base and lift the
cleaner using the handle.
The jet nozzle adaptor can be
pushed on the nozzle of the steam gun
–the clip should
protrude through to show it is secure. The extension tubes
attach to the steam gun in the same way and the floor
brush attaches to the assembled elbow attachment on the
extension tubes (page 14). The cotton cloth can be clipped
on to the sides of the brush. The smaller tools attach on to
the jet nozzle adaptor by aligning up the arrows, pushing
on and turning anticlockwise. For more details, refer to
pages
12-15 of the instruction manual provided.
2. Trouble disassembling
attachments.
2.
Disassembling the attachments should be
straightforward. To disassemble the hose, the clips in the
side of the head should be pushed in and the hose pulled
backwards. To remove the floor brush,
turn the elbow
attachment 180
° and to disassemble
the extension tubes,
push in the clips on the sides and pull apart. Press in the
button and pull away the jet not nozzle adaptor. To
remove the smaller attachments from the nozzle, twist
them clockwise.
Filling
/Emptying
water tank
1. Trouble filling
the
water tank.
1. Make sure the cleaner is unplugged. With the unit on a
level surface, turn the safety cap on the top of the cleaner
anticlockwise and remove. Fill the measuring jug provided
with up to 750ml cold tap water and pour the contents of
the jug in to the funnel (where the cap was.) Secure the
cap back on to the tank and turn clockwise to secure. For
instructions on refilling the tank, refer to page 10 of the
instruction manual provided.
2. Trouble emptying the
water tank.
2.
Unplug the steam cleaner. Wait a minimum of 5
minutes for the unit to cool. Turn the safety cap
anticlockwise and remove. Hold the cleaner with both
hands and safely pour any remaining water into a sink.
Secure the safety cap back on the cleaner.
The attachments are
greasy
1. The
attachments are
lubricated.
1. It is normal for some of the attachments to be greasy as
they are lubricated during production. They can be wiped
with a damp cloth and dried.
18

Problem Solving
PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION
There is no or reduced
steam being
produced/no power to
the steam cleaner
1. The power button has
not been pressed/The
cleaner has not had time
to heat.
1. Press the power button located on the carry handle to
illuminate the indicator light.
Ensure you have waited 5
minutes for the water to heat up sufficiently before trying
to steam clean.
2. Water tank may not be
filled/may
need refilling.
2.
Make sure the water tank is filled
. The tank takes up to
750ml of water. Refer to pages 9 and 10 of the instruction
manual provided.
3.
The unit may not be
plugged in properly/the
fuse
or breaker
may not
be working.
3.
Verify the unit is plugged into an approved electrical
outlet,
is switched on and that the fuse or breaker is
functioning properly
.
4. The steam knob is set
too low.
4. The steam knob should be turned to regulate the steam
emission. Turning anti
-
clockwise increases the intensity of
the steam.
5. The safety lock on the
steam gun may be on.
5. To unlock
the steam gun, press the lock mechanism to
the right so it protrudes on the left side of the gun.
Steam cleaner is
emitting water
1.
The
water has not had
time to heat.
1.
Make sure the unit is plugged in and switched on and
that you have waited
5 minutes for the water to heat
sufficiently. The steam ready indicator light should
illuminate green.
2. Too much water is in
the tank
2. Empty the water from
the tank and refill with
between
500
-750ml of water.
Steam cleaner worked
intermittently and
then stopped
1. Not enough water in
the tank
1. Please refer to “refilling water tank”, on page
10
of the
instruction manual provided
.
The
indicator lights
are
not working
1. The unit may not be
plugged in properly/the
fuse
or breaker
may not
be working.
1. Verify the unit is plugged securely into an approved
electrical outlet and that the fuse or breaker is functioning
properly.
Using the stem knob
1.
How does the steam
knob work?
1. The steam knob is located on the side of
the cleaner.
For low steam concentration, turn the dial clockwise. For
high steam concentration, turn the dial anticlockwise.
19

Problem Solving
PROBLEM POSSIBLE PROBLEM POSSIBLE SOLUTION
Indicator lights
1. What do the indicator
lights mean?
1. With the steam knob facing
you, the light on the left
illuminates red when there is power to the steam cleaner.
This means the water is heating. After around 5 minutes
when the water has heated, the light on the right will
illuminate green to show that the cleaner is steam ready.
Cannot
open the
safety cap
1. Pressure release valve.
1. The safety
cap will not come off until the product has
cooled sufficiently. You will need to wait at least 5 minutes
for the valve to release.
If the cap will not open after
allowing 5 to 10 minutes to cool, push down the red pin in
to the safety cap. To
speed up the process you could pull
the steam trigger and empty the contents into a sink.
There is a peculiar
smell coming from
the unit
1. First time using
product.
1. If
this is the first time you are using the cleaner,
continue using the product. The smell may be due to new
parts being heated up for the first time
.
2. This is not the first
time the product has
been used.
2. Discontinue use if problem persists and contact
Customer
Services using the details on the
bottom of this
page
.
Parts have
broken/need
replacing
1.
An attachment has
broken
or been lost.
1.
Page 23 of the instruction manual provided details
which attachments can be replaced.
Call
customer services
or visit the website detailed at the bottom of this page.
2.
An attachment
hasn’t
broken but another part
has.
2. Discontinue use and contact customer services using the
details on the bottom of this page.
I have lost the
instruction manual
provided
1. The instruction manual
has been lost or
misplaced.
1. It is important to have a copy of the instruction manual.
Visit www.productcareuk.com or contact customer
services using the details provided on the bottom of this
page.
We’re here should you need us.
For Customer Services & Spare Parts please call 0845 209 7461
Opening times: Monday - Friday 8am –6pm & Saturday 9am –1pm
Or visit us at www.productcareuk.com
20
