WARNING
Keep young children away from this treadmill at all times.
Contact with the moving surface may result in severe friction burns.
Please contact AbodeFit Health’s warranty provider,
Vitality 4 Life, (details on back page) if any malfunction
occurs and a qualified technician will assist you.
Unauthorised dismantling of the treadmill will
void warranty.
Stop using the treadmill immediately if:
• Water comes into contact with the treadmill or
the controller
• Any foreign bodies have been lodged inside the
treadmill
• Power failure
• Thunder / lightning weather
• If you feel unwell
• If the power cord has any damage

Safety Precautions 4
Parts and Features 6
Operating Instructions 7
Using your Walkslim 470 9
Warm-Up Exercises 10
Maintenance 11
Troubleshooting 12
Warranty 15
EN
3

EN
4
Safety Precautions
• The WalkSlim 470 is only suitable for adults over the age of 18. It is not a toy and
should not be used by children.
• The WalkSlim 470 is for personal use only and is unsuitable for professional training,
testing or medical purposes.
• The WalkSlim 470 is designed for indoor use only. Do not use in areas of strong light
or heat (including direct exposure to the sun), when temperatures exceed 40°C or
near water
• Do not use the WalkSlim 470 in humid or dusty environments to avoid any risk of
electric shock.
• To avoid any injury, warm up exercises are advised prior to using the treadmill. It
is not recommended to use your WalkSlim 470 for walking or running within 40
minutes of eating.
• Only use if you are in good health. If you feel uncomfortable (dizzy, headache or have
physical problems such as ligament injuries or joint replacements) stop using the
treadmill immediately and seek professional advice.
• The WalkSlim 470 is not suitable for use by individuals with reduced physical,
sensory or mental capabilities unless professional guidance has been given.
• Always wear appropriate footwear when using the treadmill, avoid exercising
barefoot or wearing any loose jewellery or clothing with belts or strings.
• Do not insert hands or feet or any body parts into the treadmill or in areas between
the running belt and foot rails.
• Stop for 30 minutes after each one hour running or walking session to avoid any
damage to the motor as a result of overheating.
• Ensure the WalkSlim 470 is on a flat and dry surface before use and there are no
sharp items close by.
• The WalkSlim 470 is not suitable for using on every carpet type, therefore if you
intend to use the treadmill on any carpeted areas, it is strongly advised that a hard-
mat type material is placed beneath the treadmill.
• Only connect the WalkSlim 470 to a power outlet that is the correct size for the
power plug and do not use if the power plug is damaged.
• Do not use force to disassemble any parts or attempt to turn off the power while
in use.

EN
5
• Do not insert foreign objects into any of the parts or use unauthorised parts.
• Do not apply pressure or stand on the display.
• Do not exceed the treadmill’s maximum weight capacity of 100kgs, the treadmill is
only suitable for individual use.
• Unplug the WalkSlim 470 when it is not likely to be used for long periods of time.
• Do not let cord contact any other parts such as tread belt.
• Make sure the cord is undamaged and located where it cannot be damaged.
• Please turn off and dry any spilt liquid before cleaning the treadmill
BEFORE USING THE WALKSLIM 470
• Wait an appropriate time after eating
• Ensure children and pets are kept away from the treadmill
• Make sure no fingers or foreign bodies are near the gap between the cover and the
base of the treadmill whilst in operation
• Always supervise young and elderly people whilst on the treadmill
• Only one person may be on the tread belt at a time
CONSULT YOUR DOCTOR PRIOR TO USE IF ANY OF THE FOLLOWING APPLIES:
• you are undergoing medical treatment or have any medical concerns
• you are pregnant
• you have heart disease
• you have osteoporosis
• you have a pacemaker or other medical electronic instrument implanted
• you have artificial limb/s

EN
6

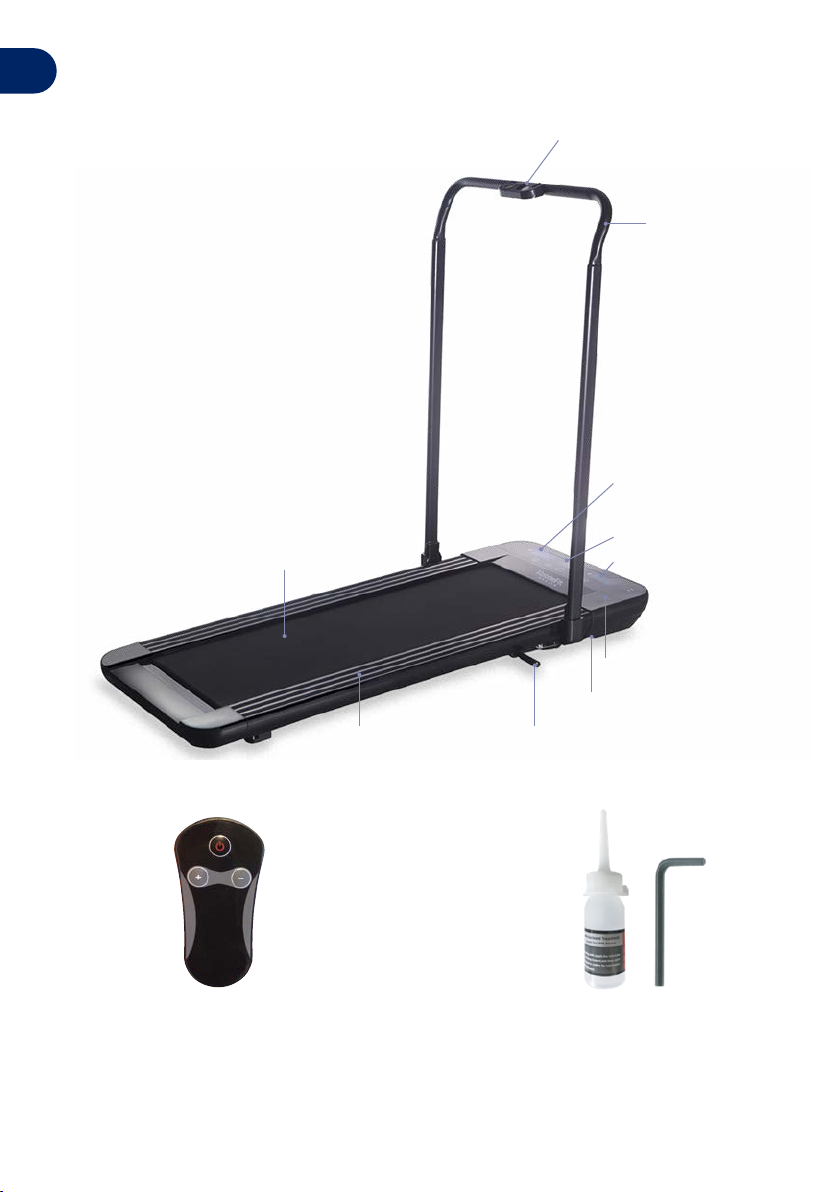

Parts and Features
Safety Magnet &
Remote Control Holder
Handrail
Calories/Distance
Motor Cover
Motor Base
Handrail Release PedalFootrail
Tread Belt
Time/Speed
LED Display Screen
Steps
Remote Control,
1 Bottle of Silicone Oil Lubricant
& Allen Key

EN
7
Operating Instructions
ASSEMBLING YOUR WALKSLIM 470
• First find the right spot for your WalkSlim 470 , ensuring you choose a location that is
flat and open, free of sharp objects, with a sufficient 1 metre clear space around the
treadmill.
• Remove the WalkSlim 470 from its packaging and place on the floor.

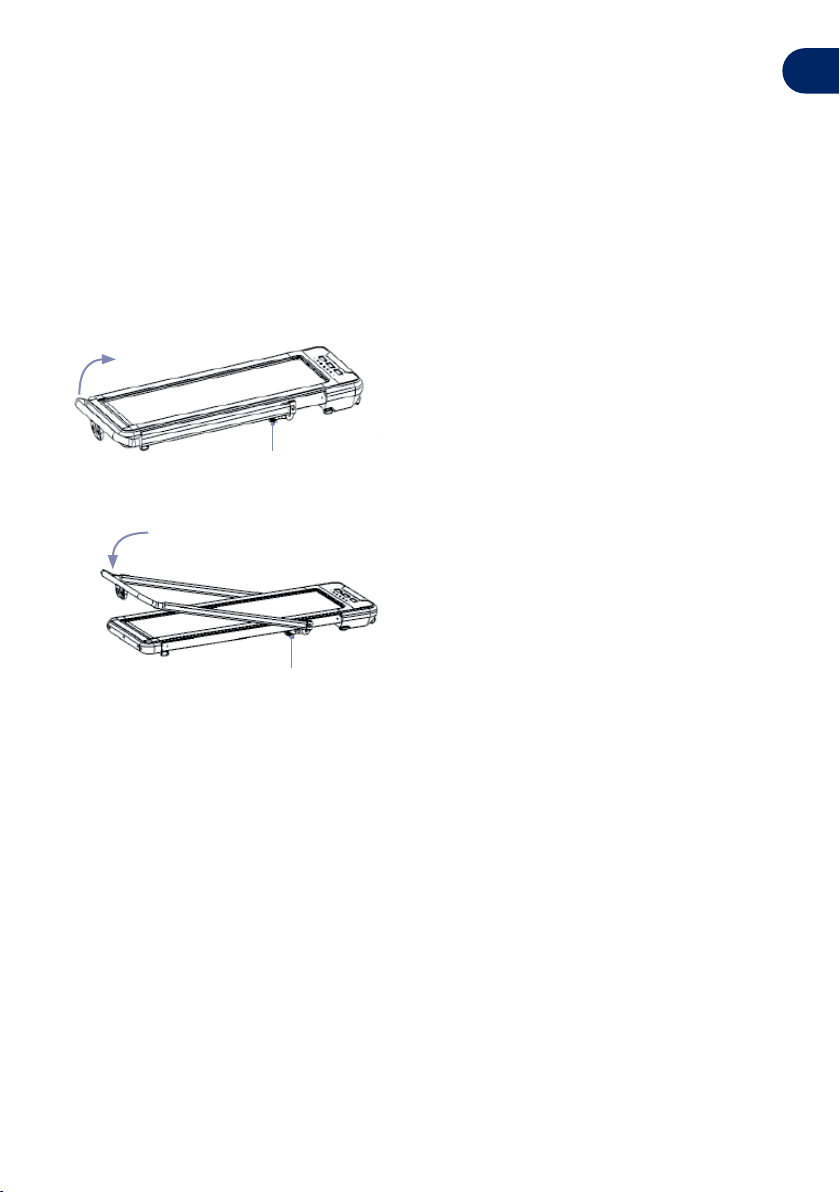

• When unpacking, please use the handrail release pedal to open the handrail
according to the diagram below. Test that the handrail is firmly in place.
• When you need to fold and retract the handrail, use the handrail release pedal to
hand-hold the handrail and fold it back as shown in the image.
• Before you use the WalkSlim 470 the tread belt must be lubricated with the oil
provided.
HOW TO LUBRICATE THE TREAD BELT
• Lubricating your WalkSlim 470 treadmill is essential before starting to use it for the
first time along with during normal use.
• During normal use, friction marks may appear between the tread belt surface and
the treadmill base. To avoid unnecessary friction and to maximize the life of your
treadmill, it is recommended to lubricate the tread belt surface with lubricant after
every 10-15 times or according to the following schedule:
• Lightweight users (less than 3 hours per week) – once a month
• Heavyweight users (more than 7 hours per week) – once every 2 weeks
Hand Release Pedal
Hand Release Pedal

EN
8
The following is a step-by-step guide
1. Make sure the treadmill is unplugged and place it on an even, non-slippery surface.
2. Lay the treadmill down so its left side is facing up.
3. Lift the tread belt surface up starting from the upper corner.
4. Apply the lubricant by squeezing droplets underneath the tread belt surface,
ensuring the lubricant is applied at least 10-15cm towards the middle of the tread
belt.
5. Lift the treadmill back up, and lay it down so the right side is facing up
6. Lift the tread belt surface and apply the lubricant underneath as you did in steps 3
and 4.
7. Return the treadmill to its operating position.
• Remember proper lubrication is an important factor in
maintaining the treadmill. To check if you need to add
lubricant, make sure the treadmill is turned off at the
power outlet. Run your hand under the tread belt from
the top to the bottom. If your hand is slightly damp with
silicone oil there is no need to lubricate. If your hand is
completely dry, it is time to add lubricant

EN
9
Using your Walkslim 470
STARTING THE WALKSLIM 470 USING THE REMOTE CONTROL MODE
• This mode will use your Remote Control to adjust your speed
• Plug in the power, turn on the red switch. You will hear a beep and the screen will light
up.
• In the standby mode, attach the safety magnet on the red safety magnet holder
located in the middle of the handrail , press the power button on the remote control,
the treadmill will start at the lowest speed.
• Speed increase / decrease: press the + button on the remote control while you are
walking to increase the speed at 0.1km/second. To decrease the speed, press the -
on the remote control. The treadmill will decrease speed at 0.1km/second.
• Stopping the Treadmill: Press the start/stop button on the remote control when you
have finished your walking session. The Treadmill will stop slowly and enter standby
mode. Ensure when the Walkslim 470 comes to a stop that you hold onto the handrail
for support and stability.
EMERGENCY STOP
• The Walkslim 470 has an emergency stop (red safety magnet).
• When in operation, if you feel the need to stop the treadmill quickly, simply pull the
safety magnet out of the safety magnet holder. The treadmill will stop quickly to
ensure your safety.
• After pulling the safety magnet out, to start the Treadmill again, place the red safety
magnet in the safety magnet holder on the handrail. The Walkslim 470 will enter
standby mode.
• Remote control as shown
Power button
Speed Increase
Speed Decrease

EN
10
LED Display Screen
1. Steps – Displays the current amount of steps. Total count is up to 9999 and it will
return to zero.
2. Time /Speed – Displays the current time the treadmill has been operating and the
speed. The display automatically switches between the two results.
3. Calories / Distance – Displays calorie accumulation and the distance value of the
current session of exercise. The display automatically switches between the two results.
Calorie standard value is 30 calorie / km
Acceleration is 0.1 km / sec, deceleration is 0.1 km / sec
Warm-Up Exercises
It is recommended to warm up for 5 to 10 minutes before exercise to prevent sports
injuries. Refer to the following stretching exercises and repeat after your treadmill
exercise program.
1. Stretch down: Keep knees slightly flexed and your body slowly bent forward, relax
your back and shoulders, touch your toes with your hands as much as possible, and
keep for 10~15 seconds, then relax. Repeat 3 times.
2. Foot tendon stretch: Sit on a clean seat cushion, straighten one leg and keep the
other leg inward to fit the inner side of the straight leg. Try to touch your toes with
your hands for 10 to 15 seconds, then relax. Repeat 3 times for each leg.
3. Stretch the calves and Achilles tendon: Stand close to a wall with your hands on
it, with one foot behind, keep the back leg upright and heels touching the ground,
incline to the wall and keep for 10 to 15 seconds, then relax. Repeat 3 times for each
leg.
4. Stretch the quadriceps: Balance yourself with the left hand holding a wall or a desk,
then extend your right hand backwards, grab your right heel and slowly pull it to your
buttocks until you feel the muscles on the front of the thighs in tension, keep for 10 to
15 seconds, then relax. Repeat 3 times for each leg.
5. Stretch the sartorius muscle (muscle inside the thigh): Keep the soles opposite and
sit with the knees outwards. Grasp your feet with your hands and pull in the direction
of your groin, keep for 10 to 15 seconds, then relax. Repeat 3 times.

EN
11
Storing the WalkSlim 470
• Turn off the power switch and unplug the power plug. The treadmill can be folded
and placed upright to save space.
• When moving your treadmill, ensure the handrail is folded down and locked into
position.
• Once it is securely locked into position, you can tilt the treadmill upwards and use
the wheels located underneath the LED display screen to wheel, using the locked
handrail as a handle
Maintenance
Daily Maintenance
• Regular comprehensive cleaning will extend the life of your WalkSlim 470
• Always turn the power off at the power outlet and make sure there is no moisture
before daily cleaning and maintenance.
• Clean dust out regularly and ensure the exposed parts of the tread belt are clean.
• Wear clean sports shoes to avoid any dust or impurities getting into the tread belt
and board.
• Use a damp cloth with soap or detergent to clean the tread belt. Do not use
excessive water and avoid leakage to the electrical components and underneath the
running belt
• Disconnect the power cord when the WalkSlim 470 will not be used for a long time.
• Do not store the treadmill in the bathroom or outside and avoid areas with a lot
of moisture.
WARNING
Unplug the treadmill before performing maintenance.

EN
12

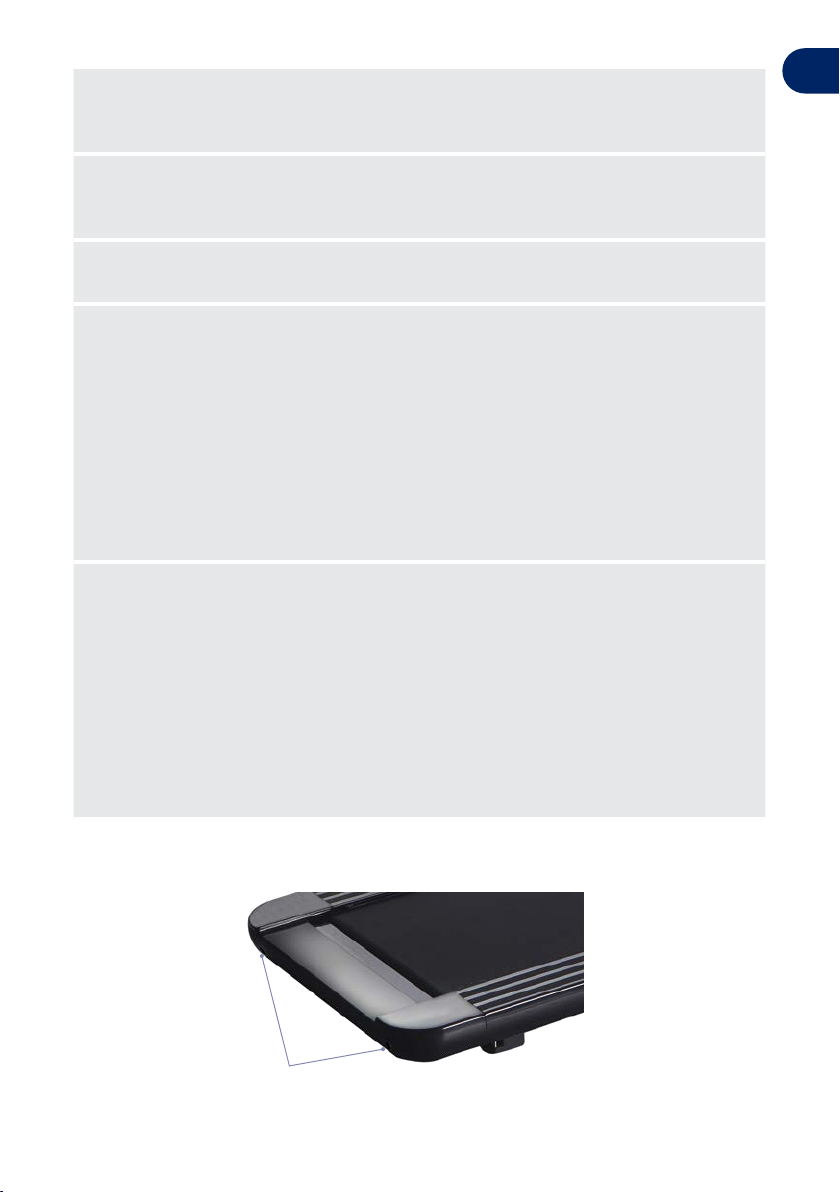

Troubleshooting
The treadmill is
not working
•Make sure the power cord is properly secured into the power
outlet and that the switch is turned to the ‘ON’ position.
•Check the Safety Magnet is in the correct position.
•Ensure you have not been using the Walkslim 470 for more
than 120 minutes continuously. In order to better maintain
your WalkSlim 470 and extend the life of the treadmill,
we recommend that you turn off the power and allow the
machine to rest for 10 minutes after 2 hours of continuous
use.
The tread belt is
not working
• Insufficient lubrication. Add silicone oil lubricant.
• Tread belt is too tight which will reduce performance and
increase wear of rollers and tread belt. Adjust tread belt
tightness to the correct tension. The tread belt should be able
to be lifted from the base by about 5-7.5cm by hand.
The tread belt is
slipping
•Tread belt is too loose or too tight. Adjust the tread belt
tightness to the correct tension. The tread belt should be able
to be lifted from the base by about 5-7.5cm by hand. If you
feel there are occasional pauses as you are walking normally,
it means the belt has become loose. Over time the tread belt
will loosen due to wear or stretching and an adjustment must
be made
•STEP 1. Remove the four screws on the upper cover and let
the Treadmill run at a speed of 1km/hour. Stand on the tread
belt and hold the handrail with both hands.
•If the momentary step on the belt makes the tread belt
stop, and the tread belt and front roller are still rotating, it
means the tread belt is a little slack and you must make
adjustments.
•STEP 2: Use a wrench to adjust the screw on the motor base.
At the same time, gently turn the tread belt between the
motor shaft and the front roller by hand. If it is too loose, you
can turn the tread belt upside down by 100%; if it is too tight,
you can turn 80% of the tread belt.
•STEP 3: Finally, lock the motor base and install the front
guard.

EN
13
The Treadmill
will not speed up
slow down
Please contact our Customer Service Centre.
The Display
Screen does not
work
Please contact our Customer Service Centre.
The Treadmill is
losing speed
Add lubricant oil to the underside of the tread belt as per
instructions on page 7 of this manual.
The belt is
running to the left
1. Turn the adjustment screw on the left side 1/2 turn
clockwise, and then turn the right adjustment screw 1/2 turn
counterclockwise. using the Allen key provided.
2. Start the WalkSlim 470 to check the new position of the belt.
3. If the belt is still not in the middle repeat the action until
adjusted to a central middle position.
4. After adjusting the belt to the middle, start the WalkSlim 470,
set to the maximum speed and observe the tread belt to
ensure that is running smoothly. If it’s not centralised, then
repeat the adjustment steps again.
The belt is
running to the
right
1. Turn the adjusting bolt on the right by 1/2 circle
clockwise, and then turn the left adjusting bolt by 1/2 turn
counterclockwise using the Allen key provided .
2. Start the WalkSlim 470 to check the new position of the belt.
3. If the belt is still not in the middle repeat the action until
adjusted to a central middle position.
4. After adjusting the belt to the middle, start the WalkSlim
470, set to the maximum speed and observe the tread belt
to ensure that is running smoothly. If it’s not centralised, then
repeat the adjustment steps again.
Adjustment holes for running belt biased to the left or right

EN
14
Error Message Codes
Error
Code Fault Description Solution
E01 No communication
when using the
remote control
1. Please contact our Customer Service Centre.
2. Check the batteries on the remote control.
E03 Overvoltage
protection
1. Have a licensed electrician check your mains
voltage.
E04 Overcurrent
protection
1. Check if any mechanical parts are stuck.
2. Check if more Silicone Oil is required. If there is a
lack of oil, the friction between the tread belt and
the tread base will increase.
3. Check the tread base for serious wear.
4. Check the tread belt for serious wear.
E05 Overload
protection
1. Check if any mechanical parts are stuck.
2. Check if more Silicone Oil is required. If there is a
lack of oil, the friction between the tread belt and
the tread base will increase.
3. Check the tread base for serious wear.
4. Check the tread belt for serious wear.
E06 Motor not
connected
Please contact our Customer Service Centre.
E07 Controller receives
no signal
Please contact our Customer Service Centre.
E08 Overload
Protection
Turn the power off, unplug and leave for one hour
then restart. If it does not restart please contact our
Customer Service Centre.
E013 IGBT Short circuit Please contact our Customer Service Centre.
E014 Load Short Please contact our Customer Service Centre.

EN
15
ABODEFIT HEALTH™ WALKSLIM 470 WARRANTY
Warranty Period: Lifetime Frame, 5 Years Motor, 2 Years Parts & Labour. Vitality 4 Life are the warranty
providers for AbodeFit Health™ products. Vitality 4 Life warrant this product to be free from defects in
materials and workmanship while in normal domestic use for a period of five years on the motor and two
years on other parts (with the exception of a life warranty on the frame) from the original date of purchase.
DO NOT RETURN THE PRODUCT TO THE STORE.
LODGING A WARRANTY CLAIM
Should you experience any issues with your product, please follow
these steps to lodge a warranty claim:
1. Contact your local Vitality 4 Life Service Centre with the
following details: Your warranty details including name, email
and phone number
– Product name and model number
Product serial number, found on the rating label of the
product
Explanation of how the damage occurred
Photos of the damage or issue is highly beneficial to
expediting your claim
2. Vitality 4 Life will assess your claim and respond within 24-48
hours.
3. In the event the product is required to be sent to the Service
Centre, the customer is liable for all packing, freight and
insurance costs for transit of the product to Vitality 4 Life.
Subject to the applicable consumer laws in your jurisdiction.
4. If the product, or one of its parts, qualifies for replacement or
service within the 30-Day period after date of purchase, Vitality
4 Life will arrange the shipping at no cost to you.
5. Any product sent to a Vitality 4 Life Service Centre must include
a Return Authorization Form. Failure to include this form may
result in the product being rejected from our warehouse or a
delayed service time.
6. Vitality 4 Life will contact you with a quote prior to undertaking
any service work outside of the warranty coverage.
7. Typical turn-around times to address warranty claims can be
between 10-14 business days, plus shipping, depending on
location and type of damage or warranty claim.
TERMS OF PRODUCT WARRANTY COVERAGE
Vitality 4 Life provides the Product Warranty coverage as further
described below and limited to the terms and conditions hereof:
1. If the Product exhibits a defect while in normal domestic use,
within the warranty period; we will, at our option, either repair
or replace the product or defective part free of charge. The
Product must be delivered by insured mail, in proper packaging
to your Service Centre as indicated on the back of the manual
as a condition to any warranty service obligation.
2. In the event that the warranty period for a product has expired,
or if a Product does not qualify for warranty service, repair
or replacement, consumers may still buy replacement parts
or have products repaired by one of Vitality 4 Life’s Service
Centres. Please contact Vitality 4 Life for further information.
3. Do not send the product back to the Service Centre without a
Return Authorization Form.
4. In no event shall our liability exceed the retail value of the
product. We make no warranty with respect to parts, from a
source other than Vitality 4 Life.
5. In the event that warranty parts or products are provided, the
customer must cover the related shipping costs to receive
goods.
6. All exchanged or substitute parts and products replaced
under warranty service will become the property of Vitality
4 Life. Repaired or replaced products or parts thereof will
be warranted by Vitality 4 Life for the balance of the original
warranty period.
7. (Australia only) Our goods come with guarantees that cannot
be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
WARRANTY DOES NOT COVER
1. Damage, accidental or otherwise, to the Product, not caused by
direct defect in factory workmanship or materials.
2. Damage due to abuse, mishandling, alteration, misuse,
commercial service, tampering, accident, failure to follow care,
operating and handling provisions indicated in the instructions.
3. Damage caused by parts or service not authorized or
performed by Vitality 4 Life.
4. ‘Normal’ wear and tear that naturally and inevitably occurs as a
result of normal use or aging.
5. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Therefore, the above
limitations may not apply to you in the case of damage
in shipment. If your product was damaged in shipment:
Immediately report this type of damage to the parcel carrier
and have them file an inspection report to contact the
distributor from whom you purchased the product for further
instructions.
6. You have rights and benefits under the consumer laws in
your jurisdiction. Without detracting from these rights or
benefits, Vitality 4 Life excludes all liability in respect of this
product for any other loss which is not reasonably foreseeable
from a failure of this product, which may include liability for
negligence, loss of expenditure associated with the product and
loss of enjoyment.

Support & Service Centres
Contact your local distributor for warranty & service
Vitality 4 Life – Australia & New Zealand
E: [email protected]
W: www.vitality4life.com.au
Vitality 4 Life – United Kingdom
E: [email protected].uk
W: www.vitality4life.co.uk
Vitality 4 Life - United States
E: [email protected]
W: www.vitality4life.com
Vitality 4 Life – France
E: [e-mail]
W: www.vitality4life.fr
Vitality 4 Life – Deutschland
E: [email protected]
W: www.vitality4life.de
Vitality 4 Life – Italia
E: [e-mail]
W: www.vitality4life.it
Vitality 4 Life – España
E: atencionclien[email protected]
W: www.vitality4life.es
Vitality 4 Life – Netherlands
E: [e-mail]
W: www.vitality4life.co.nl
