AbodeFit WalkSlim 540 User manual

WalkSlim 540
TREADMILL • USER MANUAL

Congratulations on your purchase of the AbodeFit Health™
WalkSlim 540.
Please read the user manual carefully before using,
pay special attention to the safety precautions and keep
for future reference.
WARNING
Keep young children away from this treadmill at all times.
Contact with the moving surface may result in severe friction burns.
Please contact AbodeFit Health’s warranty provider,
Vitality 4 Life, (details on back page) if any malfunction
occurs and a qualified technician will assist you.
Unauthorised dismantling of the treadmill will void
warranty.
Stop using the treadmill immediately if:
• Water comes into contact with the treadmill or
the controller
• Any foreign bodies have been lodged inside the
treadmill
• Power failure
• Thunder / lightning weather
• If you feel unwell
• If the power cord has any damage

Safety Precautions 4
Parts and Features 6
Operating Instructions 7
Using your Walkslim 540 9
Warm Up Exercises 11
Maintenance 12
Troubleshooting 13
Warranty 16
EN
3

EN
4
Safety Precautions
• The WalkSlim 540 is only suitable for adults over the age of 18. It is not a toy and
should not be used by children.
• The WalkSlim 540 is for personal use only and is unsuitable for professional training,
testing or medical purposes.
• The WalkSlim 540 is designed for indoor use only. Do not use in areas of strong light
or heat (including direct exposure to the sun), when temperatures exceed 40°C or
near water
• Do not use the WalkSlim 540 in humid or dusty environments to avoid any risk of
electric shock.
• To avoid any injury, warm up exercises are advised prior to using the treadmill. It
is not recommended to use your WalkSlim 540 for walking or running within 40
minutes of eating.
• Only use if you are in good health. If you feel uncomfortable (dizzy, headache or have
physical problems such as ligament injuries or joint replacements) stop using the
treadmill immediately and seek professional advice.
• The WalkSlim 540 is not suitable for use by individuals with reduced physical,
sensory or mental capabilities unless professional guidance has been given.
• Always wear appropriate footwear when using the treadmill, avoid exercising
barefoot or wearing any loose jewellery or clothing with belts or strings.
• Do not insert hands or feet or any body parts into the treadmill or in areas between
the tread belt and footrails.
• Stop for 30 minutes after each one hour running or walking session to avoid any
damage to the motor as a result of overheating.
• Ensure the WalkSlim 540 is on a flat and dry surface before use and there are no
sharp items close by.
• The WalkSlim 540 is not suitable for using on every carpet type, therefore if you
intend to use the treadmill on any carpeted areas, it is strongly advised that a hard-
mat type material is placed beneath the treadmill.
• Only connect the WalkSlim 540 to a power outlet that is the correct size for the
power plug and do not use if the power plug is damaged.
• Do not use force to disassemble any parts or attempt to turn off the power while
in use.
• Do not insert foreign objects into any of the parts or use unauthorised parts.

EN
5
• Do not exceed the treadmill’s maximum weight capacity of 100kgs, the treadmill is
only suitable for individual use.
• Keep a distance of 1 metre between the treadmill and the rear space and on
both sides.
• Unplug the WalkSlim 540 when it is not likely to be used for long periods of time.
• Do not let cord contact any other parts such as tread belt.
• Make sure the cord is undamaged and located where it cannot be damaged.
• Please turn off and dry any spilt liquid before cleaning the treadmill
• Unplug the power cord when the treadmill is not in use.
BEFORE USING THE WALKSLIM 540
• Wait an appropriate time after eating
• Ensure children and pets are kept away from the treadmill
• Make sure no fingers or foreign bodies are near the gap between the cover and the
base of the treadmill whilst in operation
• Always supervise young and elderly people whilst on the treadmill
• Only one person may be on the tread belt at a time
CONSULT YOUR DOCTOR PRIOR TO USE IF ANY OF THE FOLLOWING APPLIES:
• you are undergoing medical treatment or have any medical concerns
• you are pregnant
• you have heart disease
• you have osteoporosis
• you have a pacemaker or other medical electronic instrument implanted
• you have artificial limb/s

EN
6
Parts and Features
Remote Control,
Silicone Lubricating Oil
& Allen Key
TIME / SPEED / DISTANCE / CALORIE
Every 5 seconds it switches between display time, speed,
distance and calorie data
Time display range: 0:00-99:59
Speed display range: 1-12
Distance display range: 0.00-99.99
Calorie display range: 0.00-999.9
LED Display Screen
Handrail
Footrail
Tread Belt
Phone
Holder
LED Display
Screen
Safety
Clip
Tread Belt
Adjuster
Start/Pause
Speed Decrease
Speed Increase
Speaker

EN
7
Operating Instructions
ASSEMBLING YOUR WALKSLIM 540
• First find the right spot for your WalkSlim 540 , ensuring you choose a location that is
flat and open, free of sharp objects, with a sufficient 1 metre clear space around the
treadmill.
• Remove the WalkSlim 540 from its packaging and place on the floor.

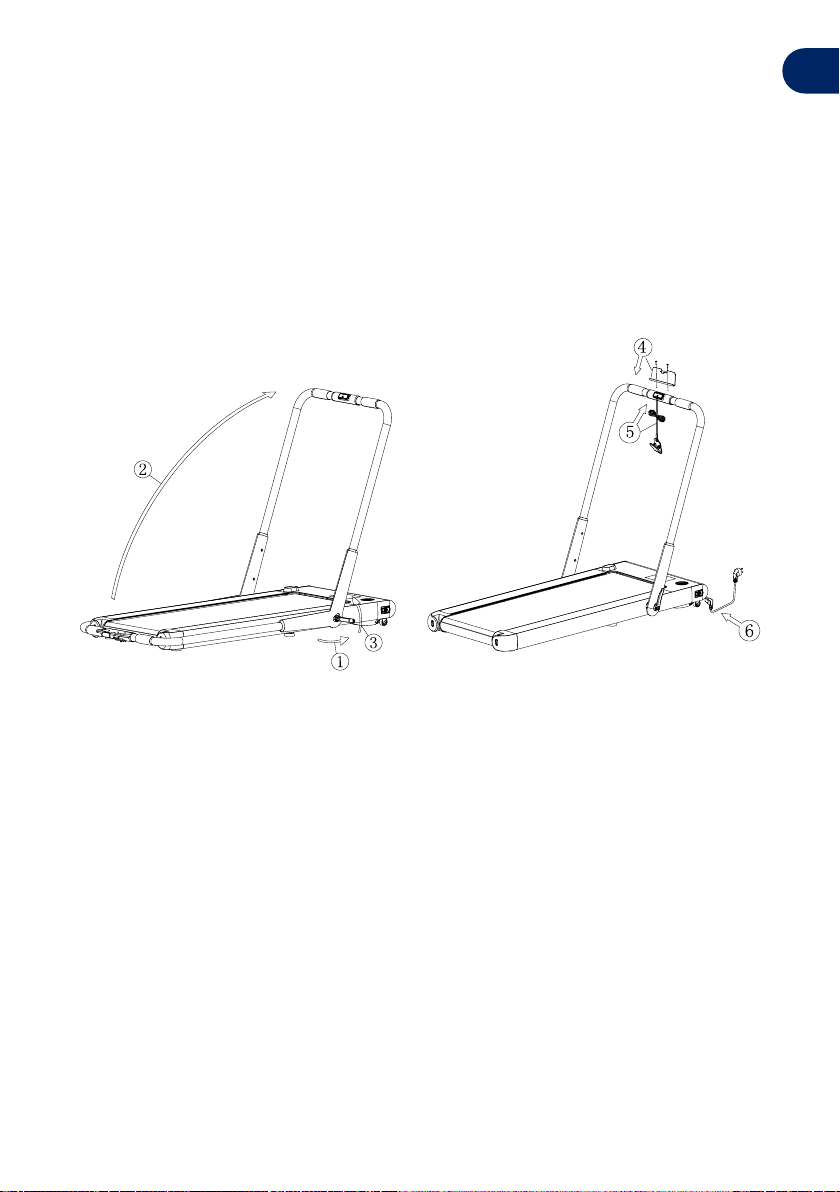

• Assemble the handrail and phone holder according to the diagram below.
1. Open side handrail locking clip.
2. Raise handrail to fully expanded vertical position. The treadmill is now in running
mode and the maximum speed of the tread belt is 12Km/Hr.
3. Retract the handrail slightly so the handrail locking clip can shut and lock the
treadmill upright. Test that the handrail is firmly in place.
4. Fix the phone holder to the centre of the handrail with 2 bolts.
5. Insert the safety plug underneath the handrail.
6. Insert the power plug in the top right hand corner.
• Before you assemble the WalkSlim 540 the tread belt must be lubricated with the
silicone oil provided.
Note: When handrail is folded and parallel to the tread belt, the WalkSlim 540 is in
walking mode and the maximum speed of the tread belt is 4Km/Hr.

EN
8
HOW TO LUBRICATE THE TREAD BELT
• Lubricating your WalkSlim 540 treadmill is essential before starting to use it for the
first time along with during normal use.
• During normal use, friction marks may appear between the tread belt surface and
the treadmill base. To avoid unnecessary friction and to maximize the life of your
treadmill, it is recommended to lubricate the tread belt surface with lubricant after
every 10-15 times or according to the following schedule:
• Lightweight users (less than 3 hours/week) - Lubricate once every 3 months
• Moderate users (3-6 hours/week) - Lubricate once every 2 months
• Heavyweight users (more than 6 hours/week) - once every month
• Do not lubricate too much
The following is a step-by-step guide
1. Make sure the treadmill is unplugged and place it on an even,
non-slippery surface.
2. Lift the tread belt surface up starting from the upper corner.
3. Reach in under the tread belt and apply the lubricant by
squeezing droplets on the underside of the tread belt
surface, ensuring the lubricant is applied at least 10-15cm
towards the middle of the tread belt. Only apply 5-10ml of
lubricant each time.
4. Once lubricated, plug the treadmill back into the power
point and turn ON. Using the remote control, press the Start
button. Stand on the tread belt and start walking. After a few
minutes the lubricant will have absorbed into the tread belt.
Remember proper lubrication is an important factor in maintaining the treadmill. To
check if you need to add lubricant, make sure the treadmill is turned off at the power
outlet. Run your hand under the tread belt from the top to the bottom. If your hand is
slightly damp with silicone oil there is no need to lubricate. If your hand is completely
dry, it is time to add lubricant.

EN
9
Using your Walkslim 540
STARTING THE WALKSLIM 540 USING THE REMOTE CONTROL
Pair the remote control and the WalkSlim 540 as follows:
1. Press the Start/Pause button on the remote control and aim the remote at the LED
display screen on the base of the Treadmill
2. After 10 seconds, unplug the safety key from the treadmill
3. Press the Start/Pause button on the remote control for about 3 seconds, and the
treadmill will sound “didi...”, indicating that the remote control and the treadmill have
been successfully paired. The remote control can now be used to control the treadmill .
4. Attach the power cord to the treadmill and plug into dedicated power outlet
5. Attach safety key to the yellow position and attach safety clip onto your clothing
6. Check the stability and function of the treadmill by standing on the footrail, hold
the handle with one hand and with the other hand press the Start/Pause button on
remote control.
7. The treadmill will now be on and in 3 seconds will start moving at a speed of 1.0km/h.
Press Speed Increase and motor speed will rise to reach a speed of 2.5-3.5km/h
(this is the most comfortable speed for running). Hold the handrail with both hands
and step on the tread belt with both feet successively. You will reach the same speed
with the tread belt .
8. You can increase the speed of running after a few minutes. Press the Speed Increase
button on the remote control or press the Speed Decrease button to slow down.
9. In the process of movement, you can press the Start/Pause button on the remote
control to make the motor stop running at any time.
Note: When the safety key is pulled off, the treadmill will immediately stop during
exercise. The display will stop all functions and shows E07.
Start/Pause
Speed DecreaseSpeed Increase

EN
10

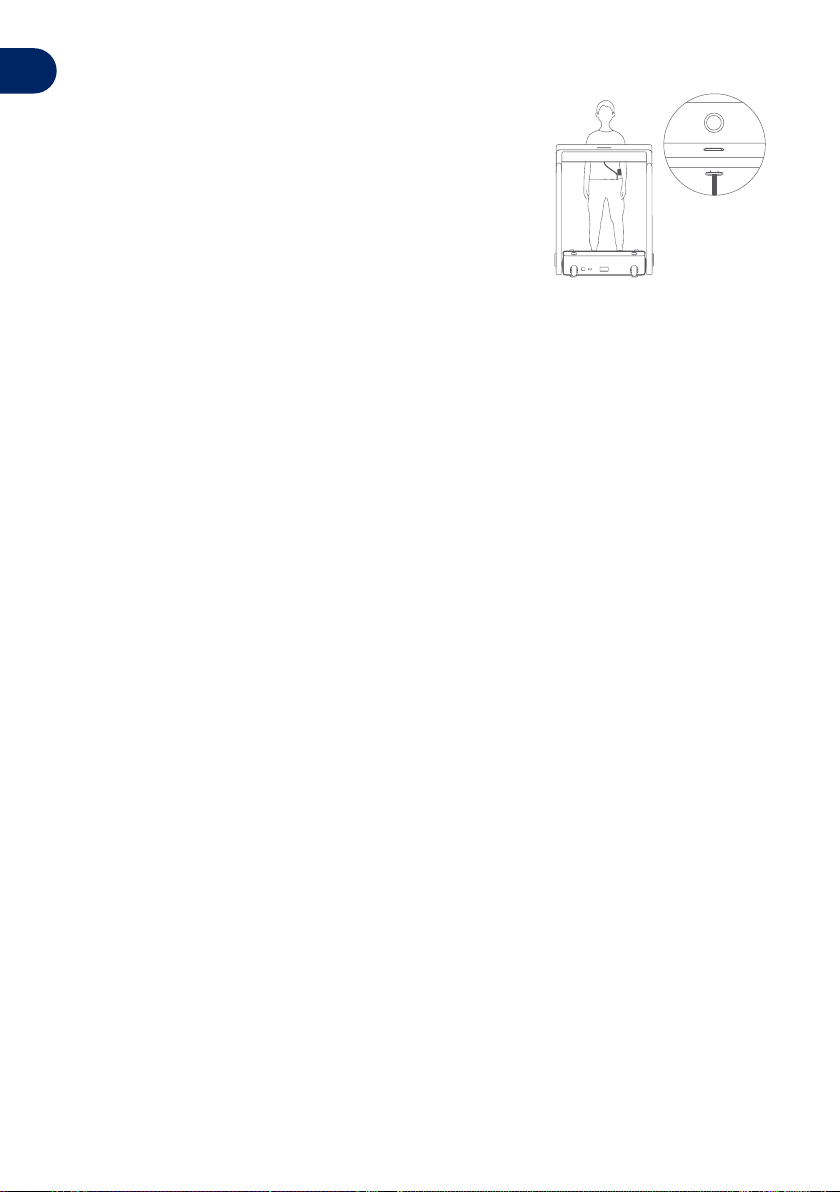

HOW TO STOP
In an emergency, hold the handrail tightly with both hands
and step off the tread belt onto the footrails. Activate the
Emergency Stop machanism by pulling out the Safety Key
from the insert. This will safely disconnect the treadmill
and the motor will immediately stop running. The LED
Display screen will display “E07”and the buzzer will bi-
bi-bi three times. The Treadmill will only start up again
if the Safety Key is inserted back in position. Turn the
power switch on and the buzzer will sound. 8888 will be
displayed on the LED display screen..
POWER SAVING MODE
The WalkSlim 540 will enter power saving mode if there is no keystroke command within
10 minutes. In this standby power saving mode, the display will automatically turn off. It
can be woken up when any key is pressed.
Please carefully consider your physical conditions when starting to use this product for training, and keep training properly and
regularly to ensure that you have enough physical strength to exercise. Inappropriate or excessive training will not benefit your
health.
03 Guidance for initial Operation
07 08
5. Connect the power supply
and turn on the switch.
8. Start to use the treadmill.
Noisy level is 65dB(A).
The treadmill has an emergency stop mechanism for your safety. Before starting
your training, attach the safety key to your clothing. If the treadmill was switched
off due to the safety key being pulled out, insert it again. The continuous belt
does not start up again automatically.
Uncontrolled use of the treadmill by a third party can be avoided by taking the
safety key off and storing it in a secure place.
In an emergency, hold the handrails tightly with both hands and step off of the
belt onto the side surfaces of the side platforms. Activate the emergency stop
mechanism (safety disconnect).
4. Check if the handrail is locked.3. Rotate the handrail in the direction of arrows while
holding the lockup button below the handrail.
7. Open APP homepage, add the
device by "+" in the upper right
corner of the page, and complete
the phone binding according to the
prompt.
6. Search "KS RECORD" App from
Apple Store or Android Google
Play and complete installation.
1. Remove the machine from the package, and
place the machine on a level surface.
2. Lift the column of the machine
from the side of the machine.
KS RECORD

EN
11
Warm-Up Exercises
It is recommended to warm up for 5 to 10 minutes before exercise to prevent sports
injuries. Refer to the following stretching exercises and repeat after your treadmill
exercise program.
1. Stretch down: Keep knees slightly flexed and your body slowly bent forward, relax
your back and shoulders, touch your toes with your hands as much as possible, and
keep for 10~15 seconds, then relax. Repeat 3 times.
2. Foot tendon stretch: Sit on a clean seat cushion, straighten one leg and keep the
other leg inward to fit the inner side of the straight leg. Try to touch your toes with
your hands for 10 to 15 seconds, then relax. Repeat 3 times for each leg.
3. Stretch the calves and Achilles tendon: Stand close to a wall with your hands on it, with
one foot behind, keep the back leg upright and heels touching the ground, incline to
the wall and keep for 10 to 15 seconds, then relax. Repeat 3 times for each leg.
4. Stretch the quadriceps: Balance yourself with the left hand holding a wall or a desk,
then extend your right hand backwards, grab your right heel and slowly pull it to your
buttocks until you feel the muscles on the front of the thighs in tension, keep for 10 to
15 seconds, then relax. Repeat 3 times for each leg.
5. Stretch the sartorius muscle (muscle inside the thigh): Keep the soles opposite and
sit with the knees outwards. Grasp your feet with your hands and pull in the direction
of your groin, keep for 10 to 15 seconds, then relax. Repeat 3 times.
Storing the WalkSlim 540
• The maximum ground clearance is 12cm so you can store the treadmill in places that
are suitable for its size (Fold L145 x W69 x H11 cm)
• Allow treadmill to come to a complete stop. Turn power off and remove power cord
before folding treadmill for storage.
• When moving the WalkSlim 540 ensure the handrail is folded and locked in position.
Then tilt the treadmill upwards and use the wheels located underneath the display
screen to move the treadmill using the handrail as a handle.
• The WalkSlim 540 can be stored upright to save space.

EN
12
Maintenance
Daily Maintenance
• Regular comprehensive cleaning will extend the life of your WalkSlim 540
• Always turn the power off at the power outlet and make sure there is no moisture
before daily cleaning and maintenance.
• Clean dust out regularly and ensure the exposed parts of the tread belt are clean.
• Wear clean sports shoes to avoid any dust or impurities getting into the tread belt
and board.
• Use a damp cloth with soap or detergent to clean the tread belt. Do not use
excessive water and avoid leakage to the electrical components and underneath the
running belt
• Disconnect the power cord when the WalkSlim 540 will not be used for a long time.
• Do not store the treadmill in the bathroom or outside and avoid areas with a lot
of moisture.
• Always unplug the WalkSlim 540 before performing maintenance.
Tread Belt Adjustments
While each treadmill tread belt has been finely adjusted, after transport and installation
it may need to be adjusted. Adjustment may also be required throughout the life of the
treadmill. Reasons for this may be:
1. The treadmill has been on an uneven surface.
2. When in operation, the user walks / runs unevenly (to one side) on the belt.
3. The users on the treadmill have different physical weight and force.
A tread belt deviation may seriously damage the tread belt, so must be corrected once
noticed.
Note: Correct maintenance of the treadmill is important. Issues arising from ongoing
tread belt misalignment will not be covered under warranty.
How to adjust alignment on left side:
tighten the bolt (clockwise) on the left side
if the belt is deviating to left side or loosen
bolt on the right side (counter clockwise).
How to adjust alignment on right side:
tighten the bolt (clockwise) on the right
side if the belt is deviating to right side
or loosen bolt on the left side (counter
clockwise).

EN
13
Motor Belt Adjustments
While each treadmill motor belt has been finely adjusted, after transport and installation
it may need to be adjusted again and also throughout the life of the treadmill.
Adjustment Steps:
1. Adjust the balance of the motor
with an allen key. Turn the bolt
half a turn counter clockwise.
2. Turn the belt tightening bolts
clockwise half a circle.
NOTE: Clean belt and pulley
grooves regularly.
Front Roller
Belt tightness
bolts
Motor balance
adjustment
bolts
Motor
Belt

Troubleshooting
The treadmill is
not working
•Make sure the power cord is properly secured into the power
outlet and that the switch is turned to the ‘ON’ position.
•Check the Safety Key is inserted in the correct position.
•If it is still not working, the fuse may have blown. Please
replace fuse according to the following instructions
1. Remove power cord from treadmill.
2. Remove the safety socket with a flat head screw driver.
3. Remove the fuse and insert replacement.
Note: the fuse tube specifications are 250V/10A Ø5x20mm.
• If the fuse is replaced and the treadmill still does not work ,
please contact our Customer Service Centre.
The tread belt is
not working
• Insufficient lubrication. Add silicone oil lubricant.
• Tread belt is too tight. This will reduce motor performance
and increase wear of rollers and tread belt. Adjust tread belt
tightness to the correct tension by using the allen key on both
sides of the treadmill and turning 180 degrees at a time. The
tread belt should be able to be lifted from the base by about
5-7.5cm by hand
The tread belt is
slipping
•Tread belt is too loose or too tight. Adjust the tread belt
tightness.
•While all treadmills have been precisely adjusted prior to
delivery, the running belt may need additional adjustment
after delivery and installation. Adjustment may also be
required throughout the life of the treadmill. Examples of when
adjustment is required because the belt is too loose: after
pressing the Stop button and as the tread belt begins to slow
down, it begins to slip instead of uniformly slowing. Adjust the
tightness of the belt by using the allen key on both sides of the
treadmills by turning 180 degrees at a time. Do not overtighten
the belt as it will increase the load on the motor and may cause
damage to the motor, tread belt and roller.
EN
14







EN
15
The Treadmill will
not speed up or
slow down
• Please contact our Customer Service Centre.
The Touch Screen
does not work
• Please contact our Customer Service Centre.
The Treadmill is
losing speed
• Add lubricant oil to the underside of the tread belt as per
instructions on page 8 of this manual.
Touch Screen
is on but the
Treadmill does
not start
• The treadmill has not been started according to the
instructions on pages 7-10 of this manual. If the treadmill still
does not start please contact our Customer Service Centre.
Unreadable /
Incoherent Touch
Screen
• Motor is overheating. Turn the power off, unplug and leave for
one hour then restart. If it does not restart please contact our
Customer Service Centre.
The belt is
running to the left
1. Tighten the bolt clockwise on the left side or loosen bolt on
the right side counter clockwise using the allen key.Start the
WalkSlim 540 to check the new position of the tread belt.
2. If the tread belt is still not in the middle repeat the action until
adjusted to a central middle position.
3. After adjusting the tread belt to the middle, start the WalkSlim
540, set to the maximum speed and observe the tread belt
to ensure that is running smoothly. If it’s not centralised, then
repeat the adjustment steps again.
The belt is
running to the
right
1. Tighten the bolt clockwise on the right side or loosen bolt on
the left side counter clockwise using the Allen Key. Start the
WalkSlim 540 to check the new position of the tread belt.
2. If the tread belt is still not in the middle repeat the action until
adjusted to a central middle position.
3. After adjusting the tread belt to the middle, start the WalkSlim
540, set to the maximum speed and observe the tread belt
to ensure that is running smoothly. If it’s not centralised, then
repeat the adjustment steps again.
The belt is
skidding
• Turn the left and right screw half a turn clockwise at the same
time and then repeat the adjustment until running normally.
Do not tighten the screw excessively.

EN
16
Error Message Codes
Error Code Fault Description Solution
E01 Communication
Issue
Unplug the WalkSlim 540, leave for several minutes
and then restart. If it does not restart please contact
our Customer Service Centre.
E02 Power Issue Please contact our Customer Service Centre.
E03 Speed Sensing
Failure
Turn the power off, unplug and leave for one hour
then restart. If treadmill does not restart please
contact our Customer Service Centre.
E05 Overload
Protection
Turn the power off, unplug and leave for one hour
then restart. If it does not restart replace remote
control. If it still does not restart please contact our
Customer Service Centre.
E06 Motor Issue Please contact our Customer Service Centre.
E07 Safety lock
position
Put the safety lock in correct position.
Abnormal
display
External
disturbance
Turn off power switch. Turn it on after one minute.

EN
17
ABODEFIT HEALTH™ WALKSLIM 540 WARRANTY
Warranty Period: Lifetime Frame, 5 Years Motor, 2 Years Parts & Labour. Vitality 4 Life are the warranty
providers for AbodeFit Health™ products. Vitality 4 Life warrant this product to be free from defects in
materials and workmanship while in normal domestic use for a period of five years on the motor and two
years on other parts (with the exception of a life warranty on the frame) from the original date of purchase.
DO NOT RETURN THE PRODUCT TO THE STORE.
LODGING A WARRANTY CLAIM
Should you experience any issues with your product, please follow
these steps to lodge a warranty claim:
1. Contact your local Vitality 4 Life Service Centre with the
following details: Your warranty details including name, email
and phone number
– Product name and model number
Product serial number, found on the rating label of the
product
Explanation of how the damage occurred
Photos of the damage or issue is highly beneficial to
expediting your claim
2. Vitality 4 Life will assess your claim and respond within 24-48
hours.
3. In the event the product is required to be sent to the Service
Centre, the customer is liable for all packing, freight and
insurance costs for transit of the product to Vitality 4 Life.
Subject to the applicable consumer laws in your jurisdiction.
4. If the product, or one of its parts, qualifies for replacement or
service within the 30-Day period after date of purchase, Vitality
4 Life will arrange the shipping at no cost to you.
5. Any product sent to a Vitality 4 Life Service Centre must include
a Return Authorization Form. Failure to include this form may
result in the product being rejected from our warehouse or a
delayed service time.
6. Vitality 4 Life will contact you with a quote prior to undertaking
any service work outside of the warranty coverage.
7. Typical turn-around times to address warranty claims can be
between 10-14 business days, plus shipping, depending on
location and type of damage or warranty claim.
TERMS OF PRODUCT WARRANTY COVERAGE
Vitality 4 Life provides the Product Warranty coverage as further
described below and limited to the terms and conditions hereof:
1. If the Product exhibits a defect while in normal domestic use,
within the warranty period; we will, at our option, either repair
or replace the product or defective part free of charge. The
Product must be delivered by insured mail, in proper packaging
to your Service Centre as indicated on the back of the manual
as a condition to any warranty service obligation.
2. In the event that the warranty period for a product has expired,
or if a Product does not qualify for warranty service, repair
or replacement, consumers may still buy replacement parts
or have products repaired by one of Vitality 4 Life’s Service
Centres. Please contact Vitality 4 Life for further information.
3. Do not send the product back to the Service Centre without a
Return Authorization Form.
4. In no event shall our liability exceed the retail value of the
product. We make no warranty with respect to parts, from a
source other than Vitality 4 Life.
5. In the event that warranty parts or products are provided, the
customer must cover the related shipping costs to receive
goods.
6. All exchanged or substitute parts and products replaced
under warranty service will become the property of Vitality
4 Life. Repaired or replaced products or parts thereof will
be warranted by Vitality 4 Life for the balance of the original
warranty period.
7. (Australia only) Our goods come with guarantees that cannot
be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
WARRANTY DOES NOT COVER
1. Damage, accidental or otherwise, to the Product, not caused by
direct defect in factory workmanship or materials.
2. Damage due to abuse, mishandling, alteration, misuse,
commercial service, tampering, accident, failure to follow care,
operating and handling provisions indicated in the instructions.
3. Damage caused by parts or service not authorized or
performed by Vitality 4 Life.
4. ‘Normal’ wear and tear that naturally and inevitably occurs as a
result of normal use or aging.
5. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Therefore, the above
limitations may not apply to you in the case of damage
in shipment. If your product was damaged in shipment:
Immediately report this type of damage to the parcel carrier
and have them file an inspection report to contact the
distributor from whom you purchased the product for further
instructions.
6. You have rights and benefits under the consumer laws in
your jurisdiction. Without detracting from these rights or
benefits, Vitality 4 Life excludes all liability in respect of this
product for any other loss which is not reasonably foreseeable
from a failure of this product, which may include liability for
negligence, loss of expenditure associated with the product and
loss of enjoyment.

Support & Service Centres
Contact your local distributor for warranty & service
Vitality 4 Life – Australia & New Zealand
E: [email protected]
W: www.vitality4life.com.au
Vitality 4 Life – United Kingdom
E: [email protected].uk
W: www.vitality4life.co.uk
Vitality 4 Life - United States
E: [email protected]
W: www.vitality4life.com
Vitality 4 Life – France
E: [e-mail]
W: www.vitality4life.fr
Vitality 4 Life – Deutschland
E: [email protected]
W: www.vitality4life.de
Vitality 4 Life – Italia
E: [e-mail]
W: www.vitality4life.it
Vitality 4 Life – España
E: [e-mail]
W: www.vitality4life.es
Vitality 4 Life – Netherlands
E: [e-mail]
W: www.vitality4life.co.nl
