AbodeFit WalkSlim Mini Walk 670 User manual

WalkSlim Mini Walk 670
TREADMILL • USER MANUAL

Congratulations on your purchase of the AbodeFit Health™
WalkSlim Mini Walk 670
Please read the user manual carefully before using,
pay special attention to the safety precautions and keep
for future reference.
Please contact AbodeFit Health’s warranty provider,
Vitality 4 Life, (details on back page) if any malfunction
occurs and a qualified technician will assist you.
Unauthorised dismantling of the treadmill will void
warranty.
Stop using the treadmill immediately if:
• Water comes into contact with the treadmill
or the controller
• Any foreign bodies have been lodged inside
the treadmill
• Power failure
• Thunder / lightning weather
• If you feel unwell
• If the power cord has any damage
WARNING
Keep young children away from this treadmill at all times.
Contact with the moving surface may result in severe friction burns.

Safety Precautions 4
Parts and Features 6
Operating Instructions 7
Using your Walkslim Mini Walk 670 8
Warm Up Exercises 11
Maintenance 12
Troubleshooting 12
Warranty 15
.
3
EN

Safety Precautions
• The WalkSlim Mini Walk 670 is only suitable for adults over the age of 18. It is not a
toy and should not be used by children. The 3 Zone Sensor Mode can be activated by
young children.
• The WalkSlim Mini Walk 670 is for personal use only and is unsuitable for professional
training, testing or medical purposes.
• The WalkSlim Mini Walk 670 is designed for indoor use only. Do not use in areas
of strong light or heat (including direct exposure to the sun), when temperatures
exceed 40°C or near water
• Do not use the WalkSlim Mini Walk 670 in humid or dusty environments to avoid any
risk of electric shock.
• To avoid any injury, warm up exercises are advised prior to using the treadmill. It is not
recommended to use your WalkSlim Mini Walk 670 for walking or running within 40
minutes of eating.
• Only use if you are in good health. If you feel uncomfortable (dizzy, headache or have
physical problems such as ligament injuries or joint replacements) stop using the
treadmill immediately and seek professional advice.
• The WalkSlim Mini Walk 670 is not suitable for use by individuals with reduced
physical, sensory or mental capabilities unless professional guidance has been given.
• Always wear appropriate footwear when using the treadmill, avoid exercising
barefoot or wearing any loose jewellery or clothing with belts or strings.
• Do not insert hands or feet or any body parts into the treadmill or in areas between
the running belt and foot rails.
• Stop for 30 minutes after each one hour running or walking session to avoid any
damage to the motor as a result of overheating.
• For safety, the WalkSlim Mini Walk 670 will stop automatically after 100 minutes of
continuous use.
• Ensure the WalkSlim Mini Walk 670 is on a flat and dry surface before use and there
are no sharp items close by.
• The WalkSlim Mini Walk 670 is not suitable for using on every carpet type, therefore
if you intend to use the treadmill on any carpeted areas, it is strongly advised that a
hard-mat type material is placed beneath the treadmill.
• Only connect the WalkSlim Mini Walk 670 to a power outlet that is the correct size for
the power plug and do not use if the power plug is damaged.
EN
4

• Do not use force to disassemble any parts or attempt to turn off the power while in
use.
• Do not insert foreign objects into any of the parts or use unauthorised parts.
• Do not apply pressure or stand on the display.
• Do not exceed the treadmill’s maximum weight capacity of 110kgs, the treadmill is
only suitable for individual use.
• Unplug the WalkSlim Mini Walk 670 when it is not likely to be used for long periods of
time.
• Do not let cord contact any other parts such as cylinder, running belt etc.
• Make sure the cord is undamaged and located where it cannot be damaged.
• Please turn off and dry any spilt liquid before cleaning the treadmill
BEFORE USING THE WALKSLIM MINI WALK 
• Wait an appropriate time after eating
• Ensure children and pets are kept away from the treadmill
• Make sure no fingers or foreign bodies are near the gap between the cover and the
base of the treadmill whilst in operation
• Always supervise young and elderly people whilst on the treadmill
• Only one person may be on the tread belt at a time
CONSULT YOUR DOCTOR PRIOR TO USE IF ANY OF THE FOLLOWING APPLIES
• you are undergoing medical treatment or have any medical concerns
• you are pregnant
• you have heart disease
• you have osteoporosis
• you have a pacemaker or other medical electronic instrument implanted
• you have artificial limb/s
5
EN

Parts and Features

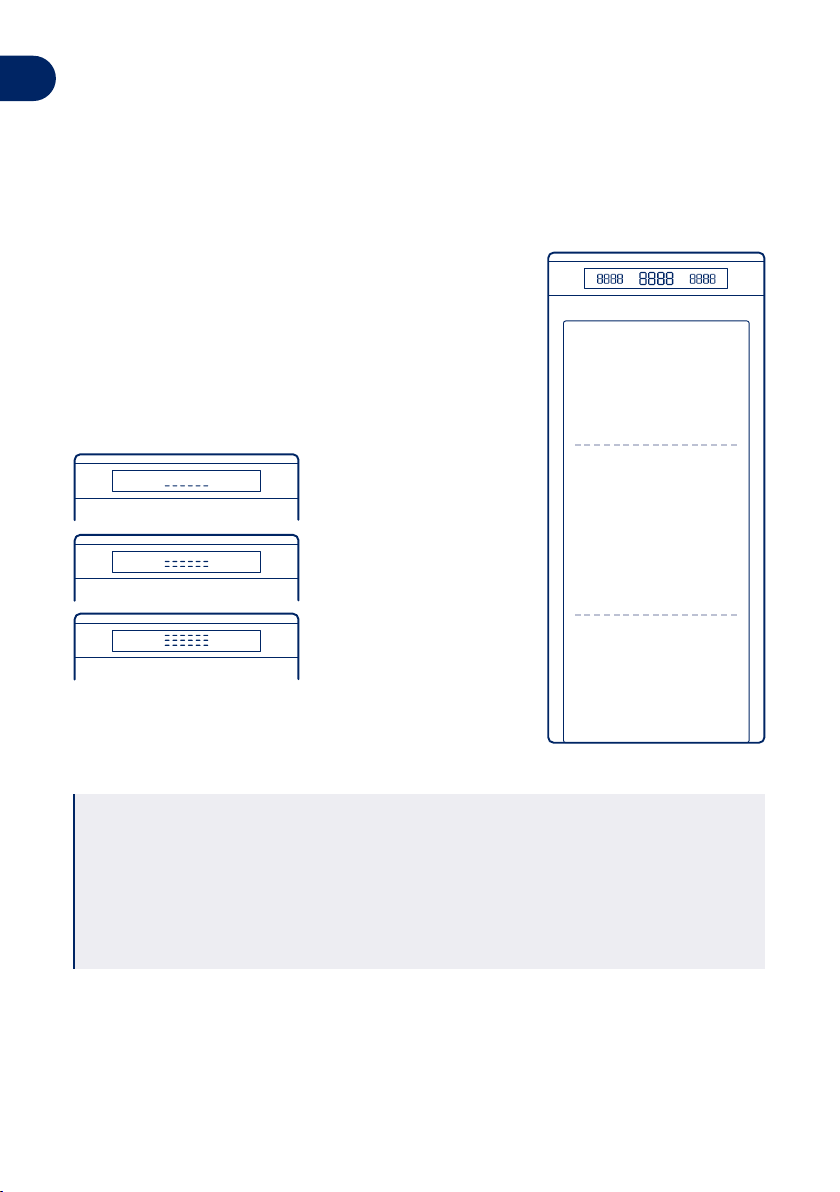

START DISPLAY
When starting the
treadmill 6 short dashes
will be displayed in the
middle of the panel.
The treadmill has started
successfully when 3
lines are displayed. The
treadmill will start to
record data.
2 short dashes in
the middle indicate
treadmill is in
sleep mode.
Time/Speed
Displays the time
and speed.
Steps
Displays number
of steps.
Distance/Calories
Displays distance
and calories burned.
DISPLAY SCREEN
Display Screen
Transport
Wheels
Footrail
Tread Belt
Remote Control,
Silicone Lubricating Oil &
Allen Key
EN
6

Operating Instructions
STARTING YOUR WALKSLIM MINI WALK 
• First find the right spot for your WalkSlim Mini Walk 670 , ensuring you choose a
location that is flat and open, free of sharp objects, with a sufficient 1 metre clear
space around the treadmill.
• Remove the WalkSlim Mini Walk 670 from its packaging and place on the floor.
• Before you use the WalkSlim Mini Walk 670 the tread belt must be lubricated with the
oil provided.
HOW TO LUBRICATE THE TREAD BELT
• Lubricating your WalkSlim Mini Walk 670 treadmill is essential before starting to use it
for the first time along with during normal use.
• During normal use, friction marks may appear between the tread belt surface and
the treadmill base. To avoid unnecessary friction and to maximize the life of your
treadmill, it is recommended to lubricate the tread belt surface with lubricant after
every 10-15 times or according to the following schedule :
–Lightweight users (less than 3 hours/week) – Lubricate once every 3 months
–Moderate users (3-6 hours/week) – Lubricate once every 2 months
–Heavyweight users (more than 7 hours/week) – once every month
The following is a step-by-step guide
1. Make sure the treadmill is unplugged and place it on an even, non-slippery surface.
2. Lay the treadmill down so its left side is facing up.
3. Lift the tread belt surface up starting from the upper corner.

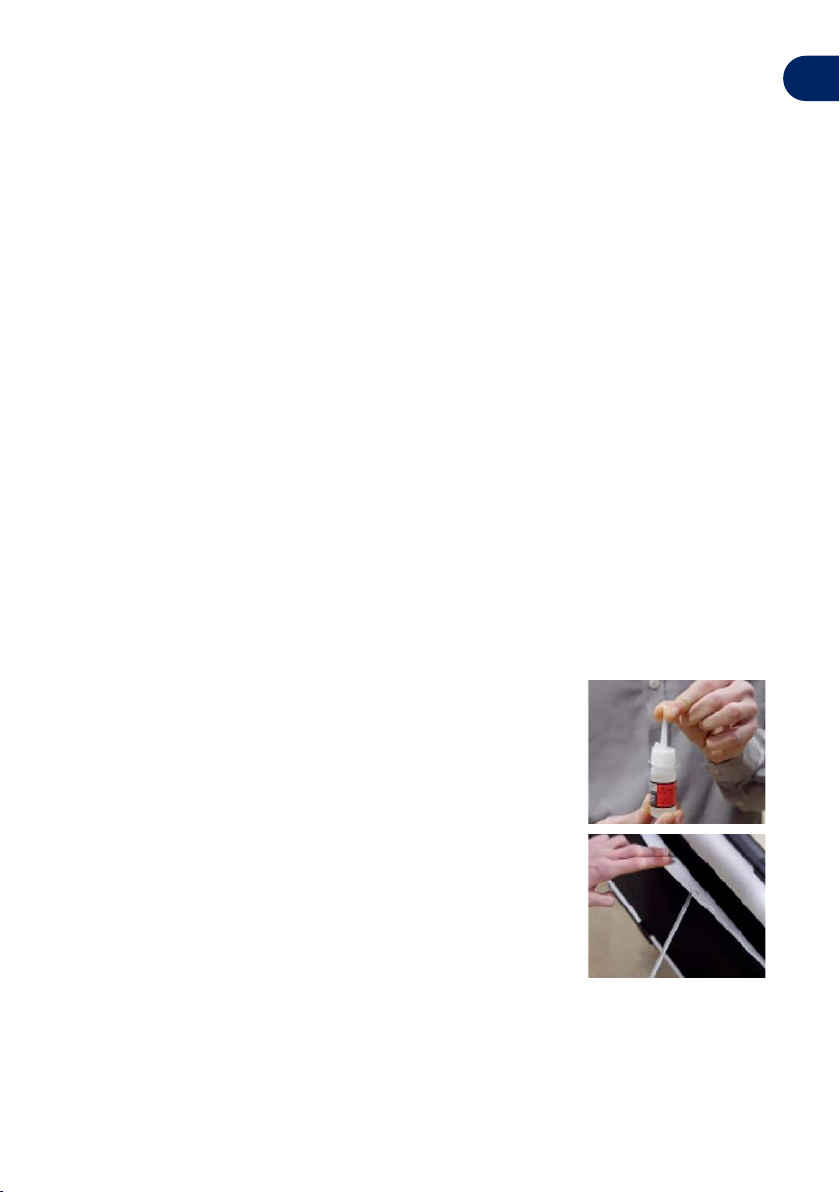

4. Apply the lubricant by squeezing droplets underneath the
tread belt surface, ensuring the lubricant is applied at least
10-15cm towards the middle of the tread belt. Only apply
5-10ml of lubricant each time.
5. Lift the treadmill back up, and lay it down so the right side
is facing up
6. Lift the tread belt surface and apply the lubricant
underneath as you did in steps 3 and 4.
7. Return the treadmill to its operating position.
Remember proper lubrication is an important factor in
maintaining the treadmill. To check if you need to add lubricant, make sure the treadmill
is turned off at the power outlet. Run your hand under the tread belt from the top to the
bottom. If your hand is slightly damp with silicone oil there is no need to lubricate. If your
hand is completely dry, it is time to add lubricant
Once lubricated, it’s easy to get started as there is no assembly required.
7
EN

Using your Walkslim Mini Walk 670
1. The Automatic (3 Zone Sensor) Mode
This mode uses infrared induction technology to automatically control and adjust the
speed by sensing the location of your feet according to the slow down, speed up and
constant zones on the tread belt.
The Tread Belt is divided into 3 Zones:
Speed Up, Constant &Slow Down.
1. Stand on the treadmill, starting from the Slow Down
Zone and step forward in each zone. After these 3
steps the tread belt will begin to start moving.
2. Keep a steady pace for at least 2 minutes.
3. The display will illuminate as shown below:
4. Continue to walk in the Constant Zone.
Within 5 seconds of steady movement the speed
and intensity will be set.
HOW TO SPEED UP
Walk or run in the Speed Up Zone. The speed will gradually increase until it reaches the
max speed of 6km/h
INCORRECT WAY TO START
• Using 1 foot to step forward.
• Time interval between 2 steps cannot be longer than 1.5 seconds.
The treadmill cannot be started if steps are not continuous.
• The treadmill will not work if it hasn’t woken up while in sleep mode.
SPEED UP
CONSTANT
SLOW DOWN
1st step
2nd step
3rd step
EN
8

HOW TO MAINTAIN A CONSTANT SPEED
Walk or run in the Constant Zone to maintain a steady uniform speed.
HOW TO SLOW DOWN
• From the Speed Up Zone, slow your speed gradually from jogging to fast walking and
move to the Constant Zone. Keep walking for about 5 seconds and the speed will
steadily reduce.
• From the Constant Zone, slow down gradually from fast walking to walking with wide
steps and move to the Slow Down Zone. Keep walking for about 5 seconds and the
WalkSlim Mini Walk 670 will slow down and stop automatically.
HOW TO STOP
• From the Speed Up Zone, keep walking for about 5 seconds, slowing down gradually
from fast walking to walking with wide steps and move to the
Slow Down Zone. Keep walking in the Slow Down Zone for about 5 seconds. It is safe
to get off once the WalkSlim Mini Walk 670 has stopped.
• From the Constant Zone, slow down gradually from fast walking to walking with wide
steps and move to the Slow Down Zone. Keep walking in the Slow Down Zone. It is safe
to get off once the WalkSlim Mini Walk 670 has stopped.
SLEEP MODE
• The WalkSlim Mini Walk 670 enters Sleep Mode when it is idle for more than 10
minutes. Two continuous lines will be displayed in the middle of the screen.
WAKE UP

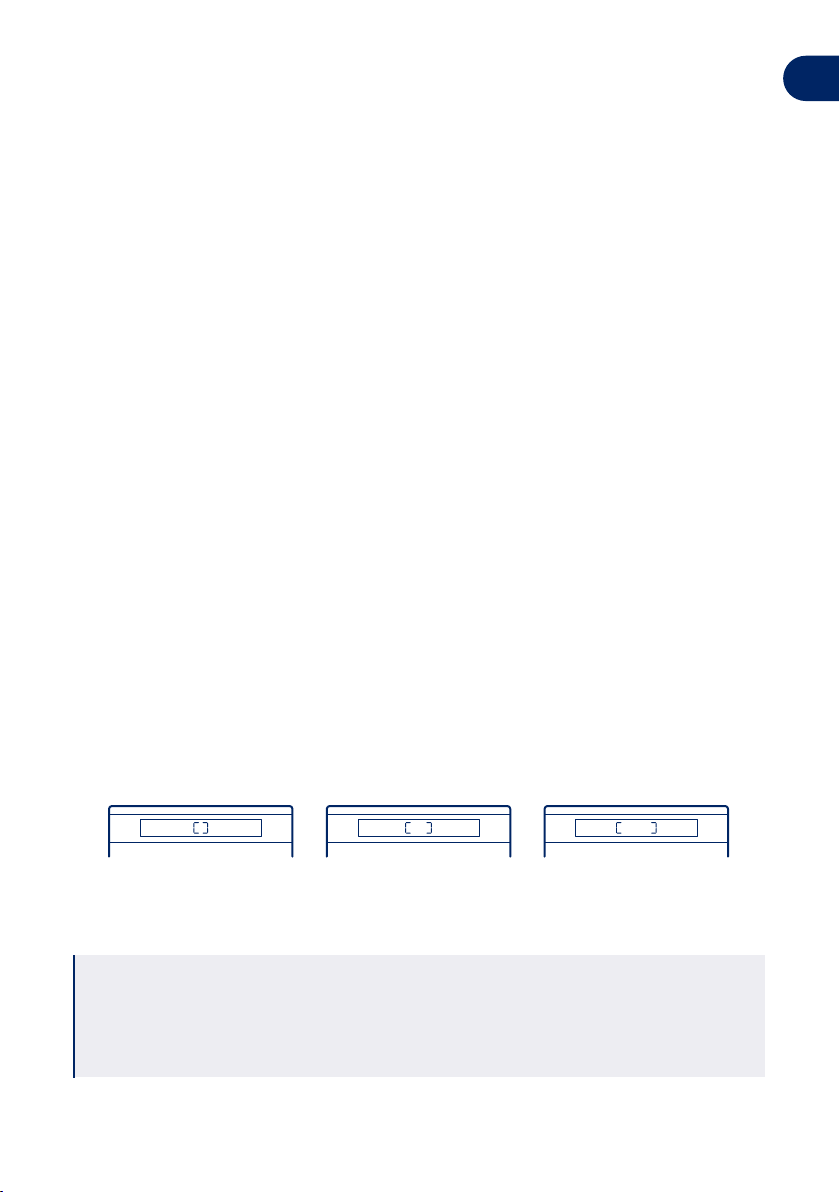

• Step or tap 3 times within 5 seconds in the Slow Down Zone of the tread belt. Keep
heels in touch with the tread belt while you step or tap 3 times.
• The display will illuminate as shown below.
2 brackets gradually become further spaced apart
INCORRECT WAY TO WAKE UP
• If you do not step or tap in the Slow Down Zone
• If you inconsistently step or tap or finish 3 steps or taps in more than 5 seconds.
9
EN

2. The Manual Remote Control Mode
This mode will use the Remote Control to adjust your speed
• Stand in the Constant Zone and hold the Start/Stop Button on the Remote Control
for more than 1 second to start the treadmill.
• Press the Increase Speed Button to speed up increasing speed by 0.1km/hr
• Press the Decrease Speed Button to slow down decreasing speed by 0.1km/hr
• When the speed is reduced down to 1km/hr, the treadmill will stop running automatically.
• To stop the treadmill while walking/running, press the Start/Stop Button for more
than 1 second to stop the treadmill.
SYNCING YOUR WALKSLIM MINI WALK  WITH THE REMOTE CONTROL
Your remote control is synced to the treadmill during manufacture so a re-sync is only
necessary if you are replacing the first remote with another one.
To re-sync your new remote control
1. Remove the battery cover on the backside of the remote, remove the battery out of
the remote and place it back in again into its correct position.
2. Switch the treadmill on by pressing the Start/Stop Button, once the display panel is
lit, press the Mode Switch Button.
3. If the re-sync is not successful, switch the treadmill off, and repeat steps 1 & 2 again.
• The Display Screen will indicate when the Remote Control Mode is used to start
the treadmill
• During your exercise session, the Mode Switch Button can be used to switch
between the 3 Zone Sensor and the Remote Control modes
AUTOMATIC PROTECTION
• If the treadmill is used consistently for more than 99 minutes the unit will turn
off as a safety feature.
Start/Stop
Powers on and off the treadmill
Mode
Switch between the Automatic
(3 Zone Sensor) Mode and the
Manual Remote Control Mode
Increase/Decrease Speed
Increase speed by 0.1km/hr
Decrease speed by 0.1km/hr
EN
10

Warm-Up Exercises
It is recommended to warm up for 5 to 10 minutes before exercise to prevent sports injuries.
Refer to the following stretching exercises and repeat after your treadmill exercise program.
1. Stretch down: Keep knees slightly flexed and your body slowly bent forward, relax
your back and shoulders, touch your toes with your hands as much as possible, and
keep for 10~15 seconds, then relax. Repeat 3 times.
2. Foot tendon stretch: Sit on a clean seat cushion, straighten one leg and keep the
other leg inward to fit the inner side of the straight leg. Try to touch your toes with
your hands for 10 to 15 seconds, then relax. Repeat 3 times for each leg.
3. Stretch the calves and Achilles tendon: Stand close to a wall with your hands on it, with
one foot behind, keep the back leg upright and heels touching the ground, incline to
the wall and keep for 10 to 15 seconds, then relax. Repeat 3 times for each leg.
4. Stretch the quadriceps: Balance yourself with the left hand holding a wall or a desk,
then extend your right hand backwards, grab your right heel and slowly pull it to your
buttocks until you feel the muscles on the front of the thighs in tension, keep for 10 to
15 seconds, then relax. Repeat 3 times for each leg.
5. Stretch the sartorius muscle (muscle inside the thigh): Keep the soles opposite and
sit with the knees outwards. Grasp your feet with your hands and pull in the direction
of your groin, keep for 10 to 15 seconds, then relax. Repeat 3 times.
Storing your Walkslim Mini Walk 670
• The maximum ground clearance is 9cm and the minimum is 4.5cm so you can easily
store the treadmill under a bed/coach or other places that are suitable for its size
(L145 x W62 x H9cm)
• If you prefer to store it upright, the WalkSlim Mini Walk 670 comes with a magnetic
base which holds up to 110kg.
• Magnets are fitted at the end of the footrails. Place the round steel discs (which
are provided) in a suitable position on the wall where you would like to store it, the
magnets will join when out together ensuring the WalkSlim Mini Walk 670 is safely in
position against the wall.
11
EN

Maintenance
Daily Maintenance
• Regular comprehensive cleaning will extend the life of your WalkSlim Mini Walk 670
• Always turn the power off at the power outlet and make sure there is no moisture
before daily cleaning and maintenance.
• Clean dust out regularly and ensure the exposed parts of the tread belt are clean.
• Wear clean sports shoes to avoid any dust or impurities getting into the tread belt
and board.
• Use a damp cloth with soap or detergent to clean the tread belt. Do not use excessive
water and avoid leakage to the electrical parts.
• Disconnect the power cord when the WalkSlim Mini Walk 670 will not be used for a
long time.
• Do not store the treadmill in the bathroom or outside and avoid areas with a lot of
moisture.
Troubleshooting
The treadmill
is not working
• Make sure the power cord is properly secured into the power
outlet and that the switch is turned to the ‘ON’ position.
• Check the Safety Lock is in the correct position.
• Ensure you are completing the three steps forward procedure
to start your Walkslim Mini Walk 670, as explained on Page 8
of this manual.
• Ensure you are not starting too slowly. The interval between
steps cannot be longer than 1.5 seconds and must be
continuous.
• Ensure the Walkslim Mini Walk 670 is not in sleep mode.
• Ensure you have not been using the Walkslim Mini Walk
670 for more than 100 minutes continuously. It will stop
automatically after this time.
The tread belt
is not working
• Insufficient lubrication. Add silicone oil lubricant.
• Tread belt is too tight. This will reduce motor performance
and increase wear of rollers and tread belt. Adjust tread belt
tightness to the correct tension. The tread belt should be able
to be lifted from the base by about 5-7.5cm by hand.
EN
12

The tread belt
is slipping
Tread belt is too loose or too tight. Adjust the tread belt tightness
to the correct tension. The tread belt should be able to be lifted
from the base by about 5-7.5cm by hand. If you observe there
are occassional pauses as you are walking normally, it means the
belt has become loose. Over time the tread belt will loosen due to
wear or stretching and an adjustment must be made.
The Treadmill
will not speed
up slow down
Please contact our Customer Service Centre.
The Display
Screen does
not work
Please contact our Customer Service Centre.
The Treadmill
is losing speed
Add lubricant oil to the underside of the tread belt as per
instructions on page 7 of this manual.
Display Screen
is on but the
Treadmill does
not start
The treadmill has not been started according to the instructions
on pages 7-11 of this manual. If the treadmill still does not start
please contact our Customer Service Centre.
Unreadable
/ Incoherent
Display Screen
Motor is overheating. Turn the power off, unplug and leave for
one hour then restart. If it does not restart please contact our
Customer Service Centre.
The belt is
running to
the left
4. Turn the right screw clockwise or the left screw anticlockwise
by half a turn using the allen key. Start the WalkSlim Mini
Walk 670 to check the new position of the belt.
5. If the belt is still not in the middle repeat the action until
adjusted to a central middle position.
6. After adjusting the belt to the middle, start the WalkSlim Mini
Walk 670, set to the maximum speed and observe the tread
belt to ensure that is running smoothly. If it’s not centralised,
then repeat the adjustment steps again.
Tread belt adjustment holes
13
EN

The belt is
running to
the right
1. Turn the left screw clockwise or the right screw anticlockwise
by half turn using the Allen key. Start the WalkSlim Mini Walk
670 to check the new position of the belt.
2. If the belt is still not in the middle repeat the action until
adjusted to a central middle position.
3. After adjusting the belt to the middle, start the WalkSlim Mini
Walk 670, set to the maximum speed and observe the tread
belt to ensure that is running smoothly. If it’s not centralised,
then repeat the adjustment steps again.
The belt is
skidding
Turn the left and right screw half a turn clockwise at the same
time and then repeat the adjustment until running normally. Do
not tighten the screw excessively.
Error Messages
E0 Power Supply Issue Unplug the WalkSlim Mini Walk 670, leave for
several minutes and then restart. If it does not
restart please contact our Customer Service
Centre.
E02 Motor fan is damaged /
motor is overheating
Turn the power off, unplug and leave for one
hour then restart. If it does not restart please
contact our Customer Service Centre.
E05 Weight is overloaded Follow instructions for the maximum weight
limit (110kgs) and do not overload.
Running belt is too dry Add lubricant into the underside of the tread
belt (Please refer to the instructions on page
7 of this manual)
The motor is wearing
out
Please contact our Customer Service Centre.
E06 High Current Detected Add lubricant into the underside of the tread
belt (Please refer to the instructions on page
7 of this manual).
EN
14

ABODEFIT HEALTH™ WALKSLIM MINI WALK  WARRANTY
Warranty Period: Lifetime Frame, 5 Years Motor, 2 Years Parts & Labour. Vitality 4 Life are the warranty
providers for AbodeFit Health™ products. Vitality 4 Life warrant this product to be free from defects in
materials and workmanship while in normal domestic use for a period of five years on the motor and two
years on other parts (with the exception of a life warranty on the frame) from the original date of purchase.
DO NOT RETURN THE PRODUCT TO THE STORE.
LODGING A WARRANTY CLAIM
Should you experience any issues with your product, please
follow these steps to lodge a warranty claim:
1. Contact your local Vitality 4 Life Service Centre with the
following details:
– Your warranty details including name, email and phone
number
– Product name and model number
– Product serial number, found on the rating label of the
product
– Explanation of how the damage occurred
– Photos of the damage or issue is highly beneficial to
expediting your claim
2. Vitality 4 Life will assess your claim and respond within
24-48 hours.
3. In the event the product is required to be sent to the
Service Centre, the customer is liable for all packing,
freight and insurance costs for transit of the product to
Vitality 4 Life. Subject to the applicable consumer laws in
your jurisdiction.
4. If the product, or one of its parts, qualifies for replacement
or service within the 30-Day period after date of purchase,
Vitality 4 Life will arrange the shipping at no cost to you.
5. Any product sent to a Vitality 4 Life Service Centre must
include a Return Authorization Form. Failure to include this
form may result in the product being rejected from our
warehouse or a delayed service time.
6. Vitality 4 Life will contact you with a quote prior to
undertaking any service work outside of the warranty
coverage.
7. Typical turn-around times to address warranty claims
can be between 10-14 business days, plus shipping,
depending on location and type of damage or warranty
claim.
TERMS OF PRODUCT WARRANTY COVERAGE
Vitality 4 Life provides the Product Warranty coverage
as further described below and limited to the terms and
conditions hereof:
1. If the Product exhibits a defect while in normal domestic
use, within the warranty period; we will, at our option,
either repair or replace the product or defective part free
of charge. The Product must be delivered by insured mail,
in proper packaging to your Service Centre as indicated
on the back of the manual as a condition to any warranty
service obligation.
2. In the event that the warranty period for a product has
expired, or if a Product does not qualify for warranty
service, repair or replacement, consumers may still buy
replacement parts or have products repaired by one of
Vitality 4 Life’s Service Centres. Please contact Vitality 4
Life for further information.
3. Do not send the product back to the Service Centre
without a Return Authorization Form.
4. In no event shall our liability exceed the retail value of the
product. We make no warranty with respect to parts, from
a source other than Vitality 4 Life.
5. In the event that warranty parts or products are provided,
the customer must cover the related shipping costs to
receive goods.
6. All exchanged or substitute parts and products replaced
under warranty service will become the property of Vitality
4 Life. Repaired or replaced products or parts thereof
will be warranted by Vitality 4 Life for the balance of the
original warranty period.
7. (Australia only) Our goods come with guarantees that
cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a
major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have
the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a
major failure.
WARRANTY DOES NOT COVER
1. Damage, accidental or otherwise, to the Product, not
caused by direct defect in factory workmanship or
materials.
2. Damage due to abuse, mishandling, alteration, misuse,
commercial service, tampering, accident, failure to follow
care, operating and handling provisions indicated in the
instructions.
3. Damage caused by parts or service not authorized or
performed by Vitality 4 Life.
4. ‘Normal’ wear and tear that naturally and inevitably occurs
as a result of normal use or aging.
5. Some states do not allow the exclusion or limitation of
incidental or consequential damages. Therefore, the above
limitations may not apply to you in the case of damage
in shipment. If your product was damaged in shipment:
Immediately report this type of damage to the parcel
carrier and have them file an inspection report to contact
the distributor from whom you purchased the product for
further instructions.
6. You have rights and benefits under the consumer laws
in your jurisdiction. Without detracting from these rights
or benefits, Vitality 4 Life excludes all liability in respect
of this product for any other loss which is not reasonably
foreseeable from a failure of this product, which may
include liability for negligence, loss of expenditure
associated with the product and loss of enjoyment.
15
EN

Support & Service Centres
Contact your local distributor for warranty & service
Vitality 4 Life – Australia & New Zealand
E: [email protected]
W: www.vitality4life.com.au
Vitality 4 Life – United Kingdom
E: [email protected].uk
W: www.vitality4life.co.uk
Vitality 4 Life - United States
E: [email protected]
W: www.vitality4life.com
Vitality 4 Life – France
E: [e-mail]
W: www.vitality4life.fr
Vitality 4 Life – Deutschland
E: [email protected]
W: www.vitality4life.de
Vitality 4 Life – Italia
E: [e-mail]
W: www.vitality4life.it
Vitality 4 Life – España
E: [e-mail]
W: www.vitality4life.es
Vitality 4 Life – Netherlands
E: [e-mail]
W: www.vitality4life.co.nl
