ABSCO SHEDS 23141RK User manual

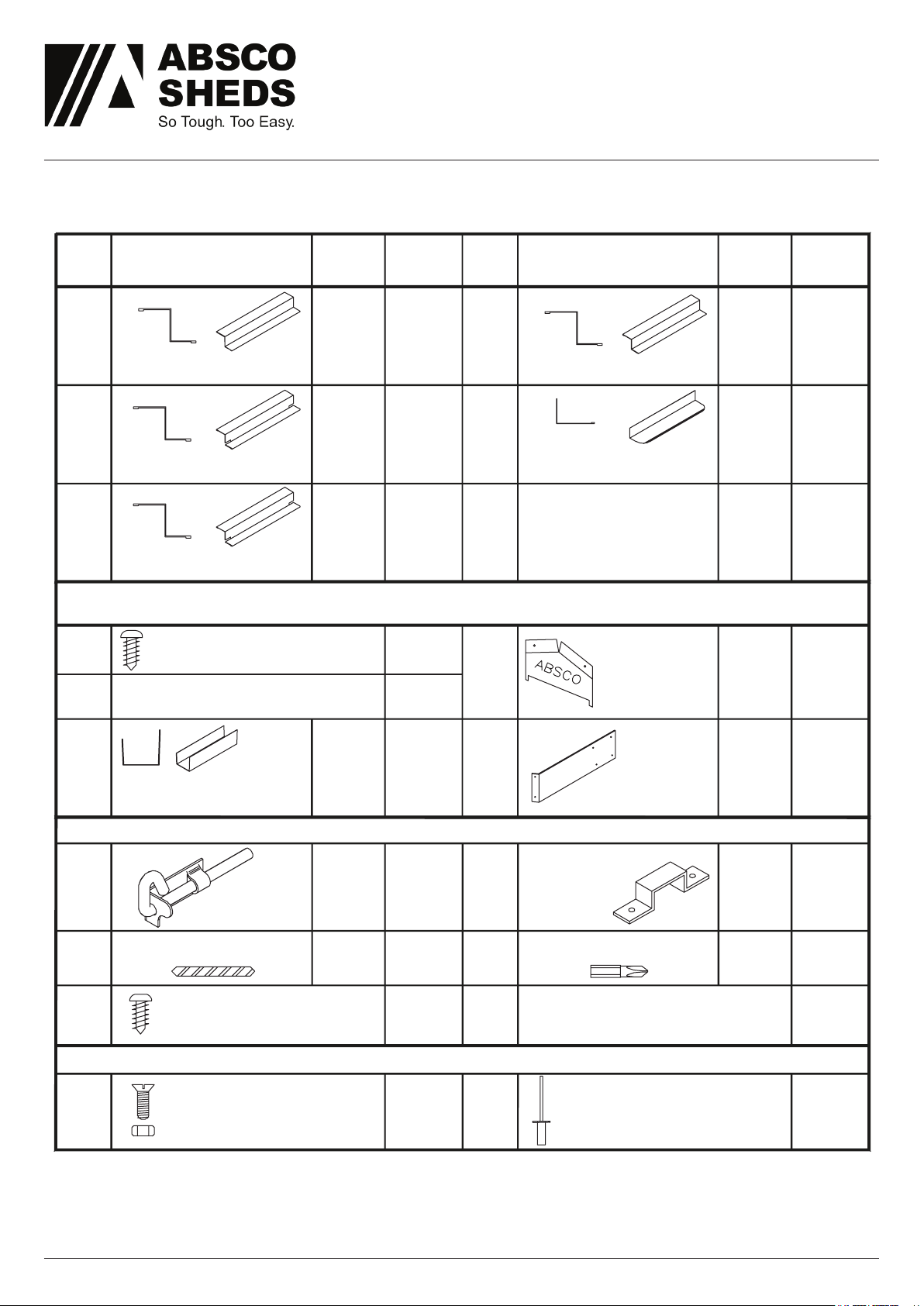

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 1
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
LEAVE A REVIEW
Tell us about your experience and
receive a $20 Coles Gift Card.
Visit www.abscosheds.com.au/review
AU: 1800 029 701
NZ: 0800 466 444
[email protected]
www.abscosheds.com.au
2360mm
1540mm
CONCRETE
SLAB
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: [email protected] or 1800 029 701
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.
TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 3

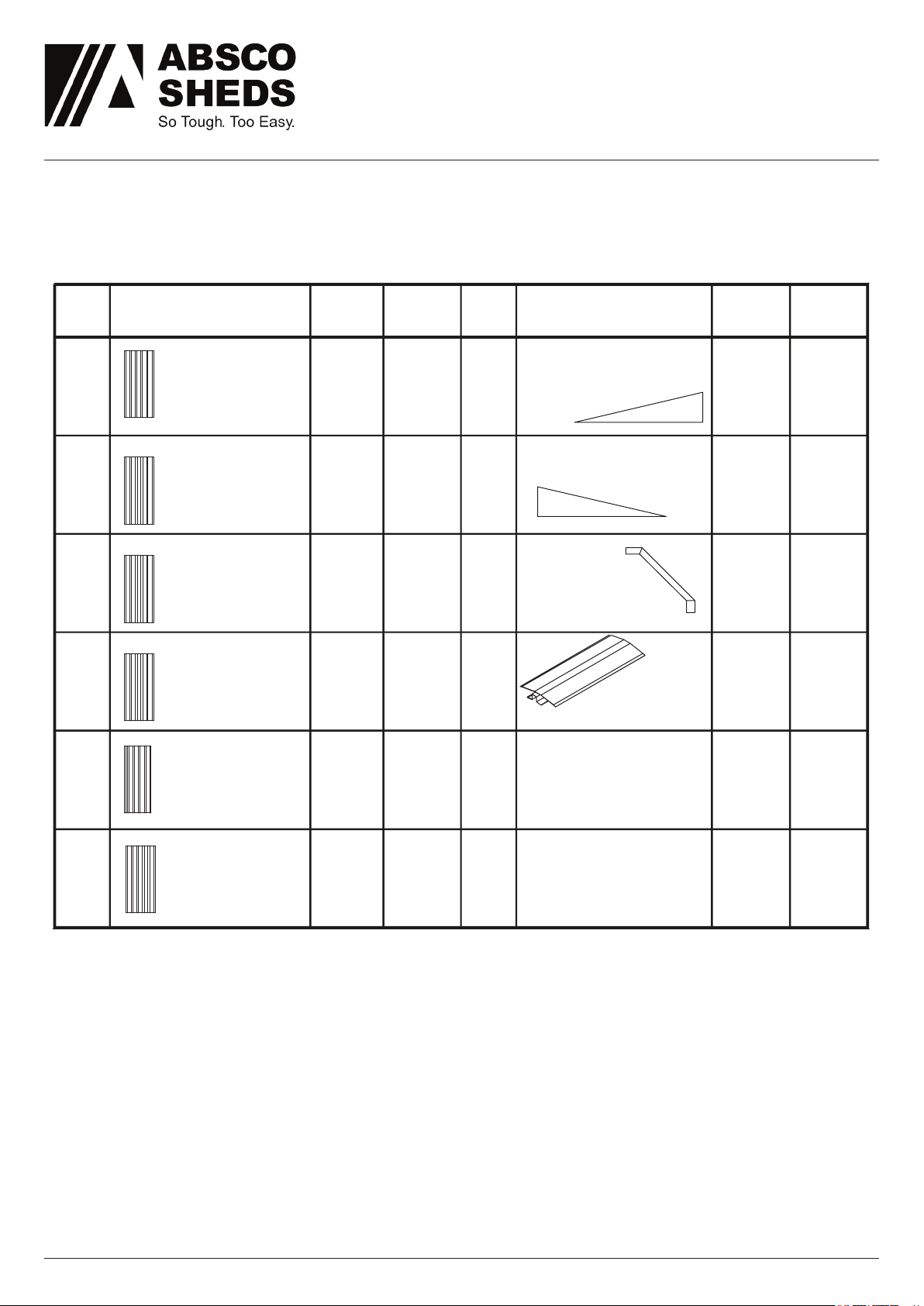

COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
2
1
2
6
1
30A
STEEL SHEET
1785mm X 773mm 31A
32A
B
48L
2STEEL SHEET
1170mm X 773mm 48R
2
GABLE L/H
L=1105mm 17L
2
GABLE R/H
L=1105mm 17R
213B
BRACE
L: 350mm
197C
RIDGE
BEAM
L = 1513mm
STEEL SHEET
1785mm X 773mm
STEEL SHEET
1170mm X 773mm
STEEL SHEET
1785mm X 731mm
STEEL SHEET
1725mm X 773mm
Nominal sheet widths are shown. +/- 2mm is within tolerance.

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 4

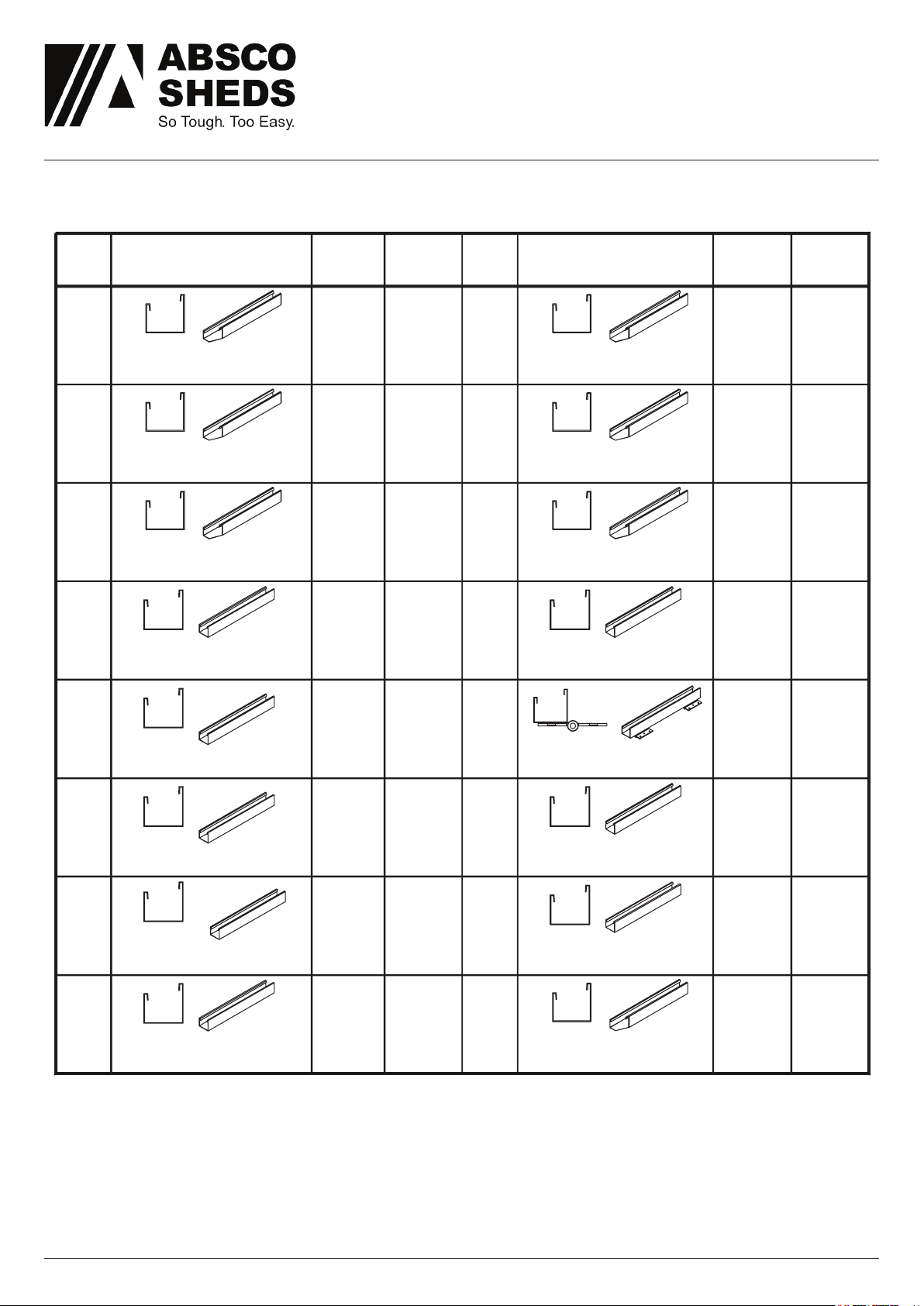

COMPONENT PACKING LIST
1
1
22
22
2
81I
CHANNEL
L = 1439mm
58A
CHANNEL WITH HINGES
L = 1725mm
58B
CHANNEL
L = 1725mm
58C
CHANNEL
L = 773mm
59C
CHANNEL
L = 1439mm
1
CHANNEL
L = 1513mm
81E
78C
CHANNEL
L = 1513mm
79B
CHANNEL
L = 788mm
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
1
1
176AR
CHANNEL
L = 1126.5mm
54CR
CHANNEL
L = 1126.5mm
176BR
CHANNEL
L = 1126.5mm
81DR
CHANNEL
L = 1126.5mm
1
1
176AL
CHANNEL
L = 1126.5mm
54CL
CHANNEL
L = 1126.5mm
176BL
CHANNEL
L = 1126.5mm
81DL
CHANNEL
L = 1126.5mm

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 5
COMPONENT PACKING LIST
4
12A
1
DOOR
STRAP
L: 165mm
14A
2CAP GABLE
L: 170mm
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
21 89A
JAMB L= 1785mm
91A
JAMB L= 1120mm
90B
JAMB L= 788mm
1
89B
JAMB L= 1785mm
186B
LIP TRIM L= 1170mm
CSJ
4CHANNEL JOINER
L= 200mm (7.9")
DOOR
PADBOLT
HASP
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
FAST006
3/16 COUNTERSUNK
SCREWS & NUTS
63.2 x 8mm
BLIND POP RIVETS
6
PSTKSGL - SINGLE DOOR FITTINGS PACK
PACK 6P - SCREW PACK 6
PACK 6P
SCREW PACK 6
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL
FAST007
FAST038
1 1
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 100
PSTKSGL
SINGLE DOOR FITTINGS PACK

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 6

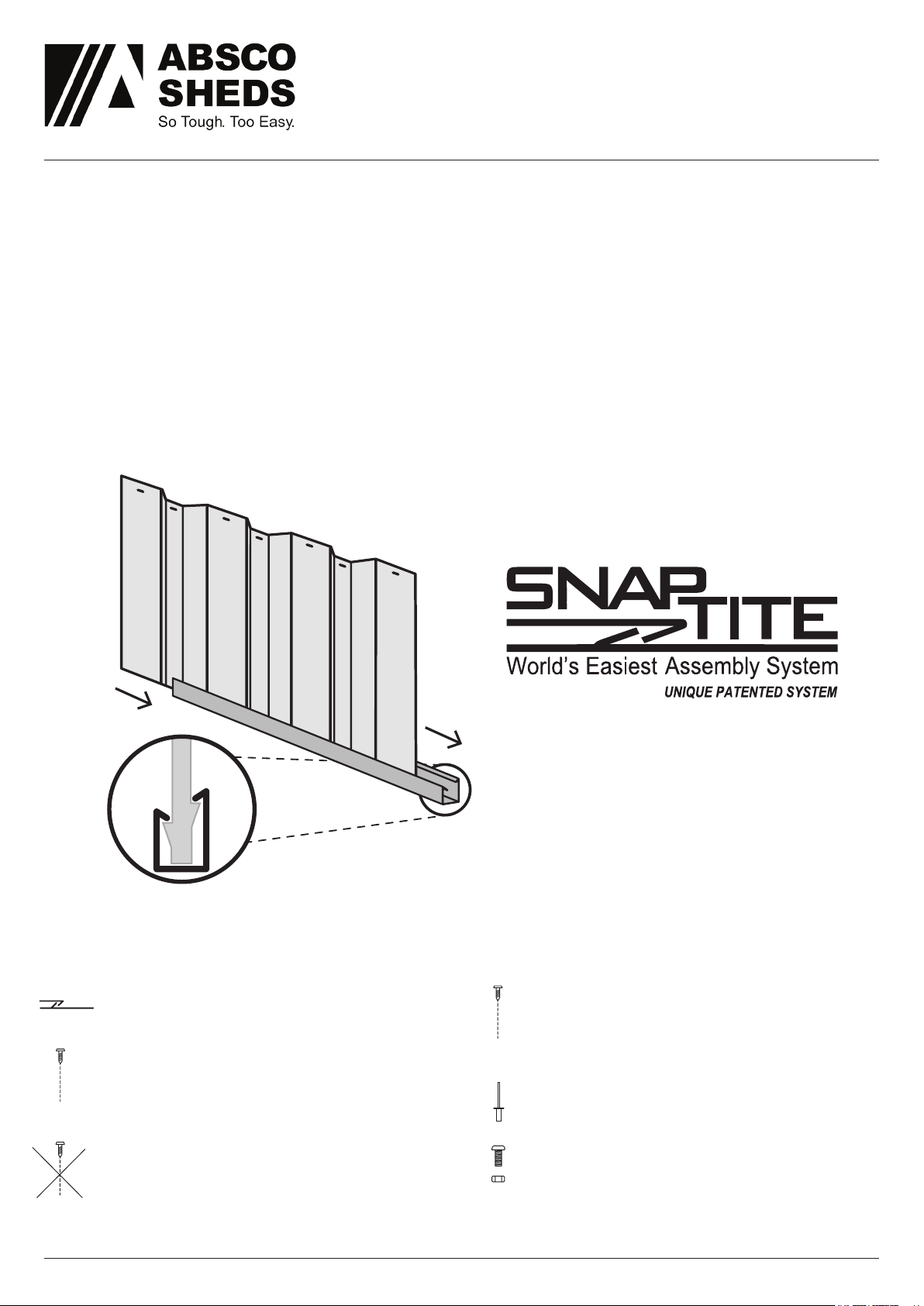

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 7
Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 8
PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 8 x channel sections using 4 x channel joiners (Part CSJ)
=
=
=
=
2253mm (88.7")
1 x 81D
1 x 54C
1 x 76A
1 x 76B
76BL
76BR
76AR
76AL
54CL
54CR
81DL
81DR
1 X 81DR
1 X 81DL
1 X 54CR
1 X 54CL
1 X 76AR
1 X 76AL
1 X 76BR
1 X 76BL

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 9

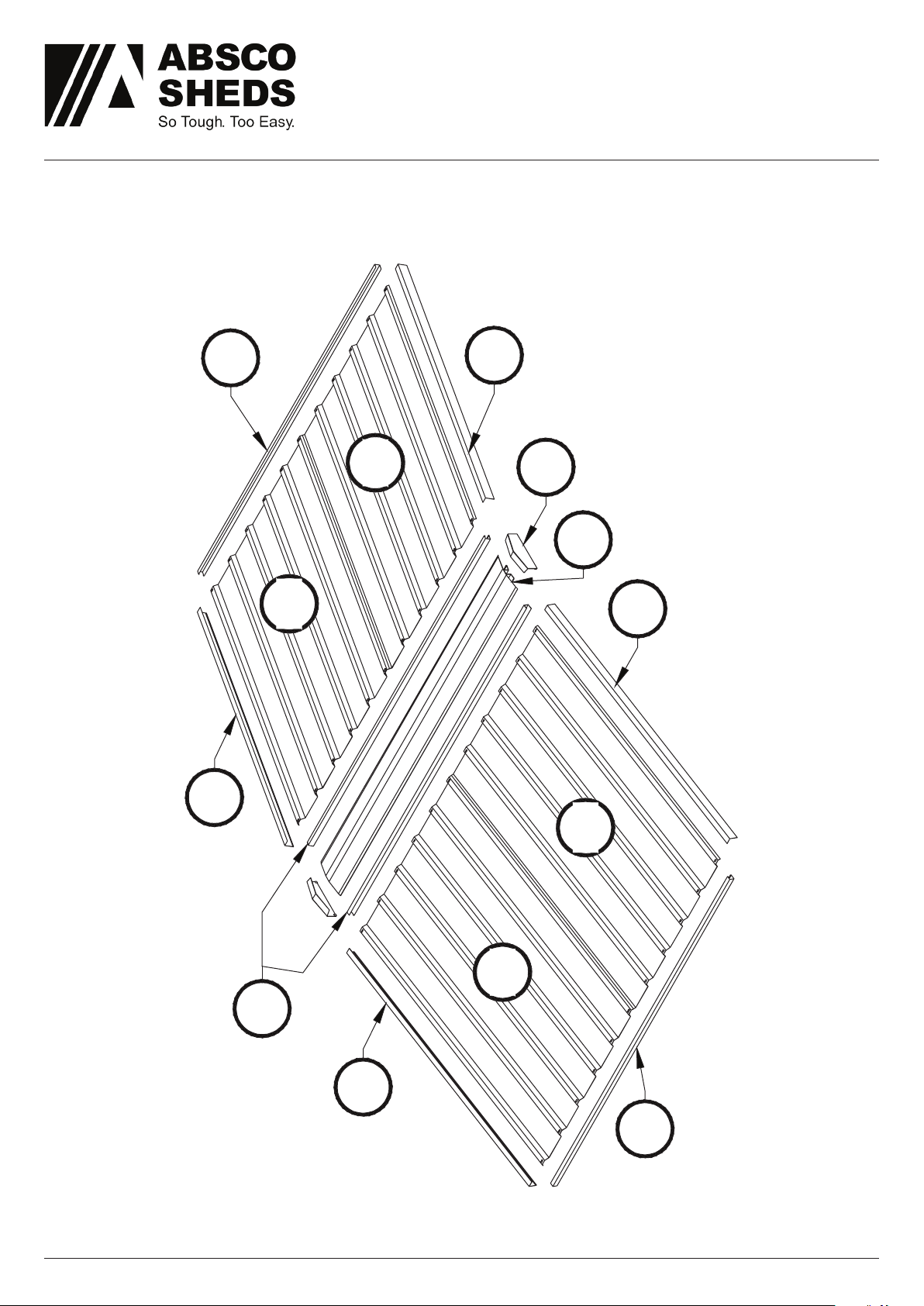

OVERVIEW OF ROOF COMPONENTS
OVERVIEW OF ROOF COMPONENTS
48L
48L
48R
48R
86B
14A
86B
97C
78C
81E
86B
86B 81E

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 10
OVERVIEW OF WALL COMPONENTS
OVERVIEW OF WALL COMPONENTS
32A
32A
30A
31A 13B
30A 32A
32A
32A
32A
B
22A
91A
79B
89B
89A
90B
76A
81I
59C
17R
17L
17L
17R
59C
76B
81D
81I
54C

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 11
REAR PANEL ASSEMBLY
1x required.
30A
31A
30A
76B
81D
SNAP
T
TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 12
ROOF PANEL ASSEMBLY
2x required.
48L
48R
Fit 81E to edge
of sheet with pre-
punched holes.
SNAP
T TE
i
SNAP
T TE
i
86B
81E
86B
78C

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 13
SIDE PANEL ASSEMBLY
2x required.
Small pan
32A
32A
SNAP
T TE
i
SNAP
T TE
i
59C
81I

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 14
FRONT PANEL ASSEMBLY
1x required. 89B
89A
32A
32A
76A
79B
54C
90B
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 15
DOOR PANEL ASSEMBLY
DOOR PANEL ASSEMBLY
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Short flange
of channel
Long
flange of
channel
SINGLE DOOR
58C
58C
SNAP
T
TE
i
SNAP
T TE
i
12A
B
B
58B
58A
D
D
D
D
1x required.

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 16
SINGLE DOOR PANEL
NOTE: Nuts and bolts are also
supplied and may be used instead of
rivets. Use a 4mm drill bit to enlarge
these holes in the jamb
NOTE: The holes to fasten the padbolt hasp are not
pre-punched to allow for proper alignment. Position
the hasp centrally over the padbolt shaft and drill 3mm
holes and secure with screws.
91A
91A
DOOR PANEL ASSEMBLY
B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 17

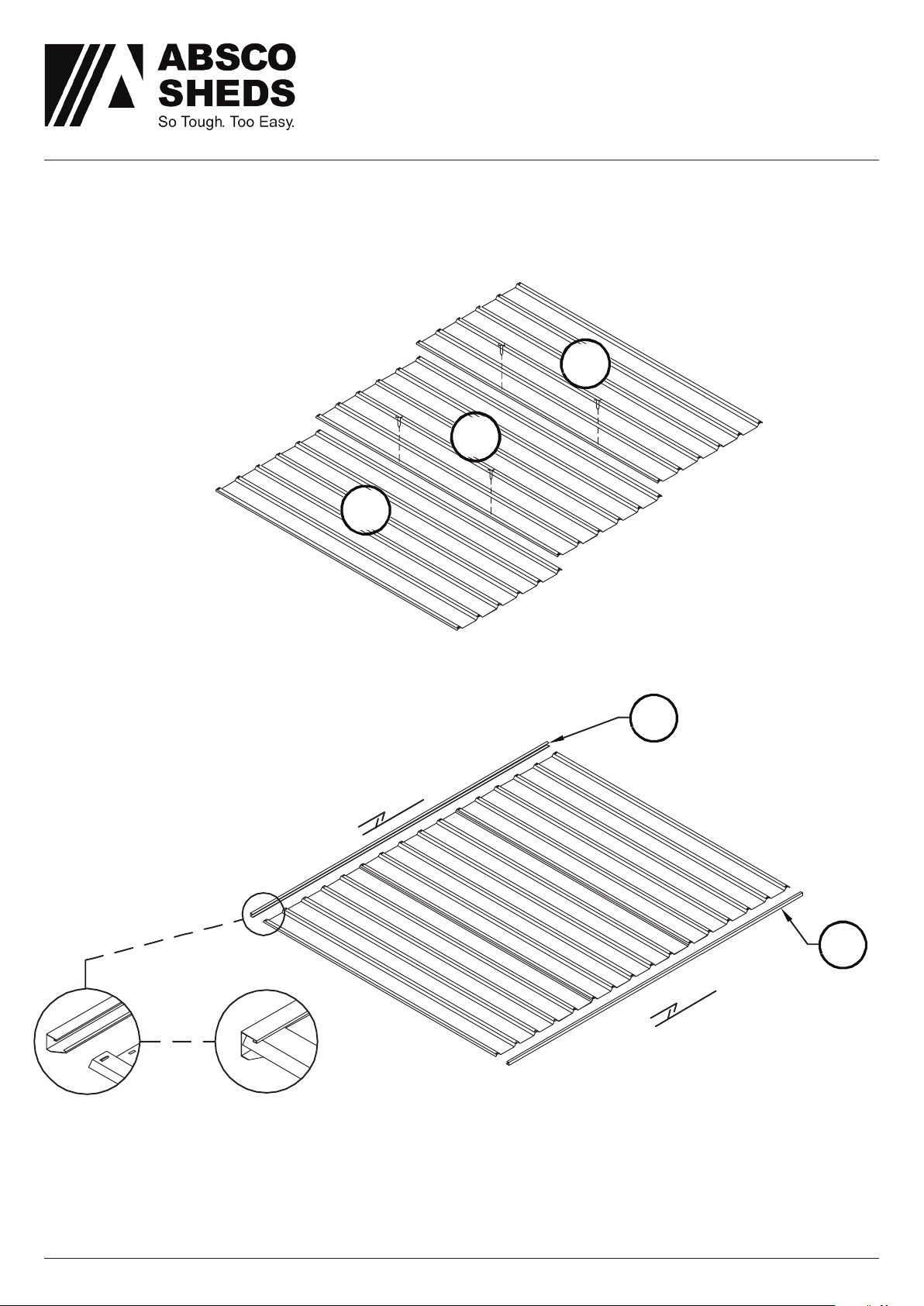

PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall panels
are not upside down. The top channels
of each panel are pre-punched for
attaching roof sheeting. The
base channels are not pre-
punched.
Pre-punched
channel to
match ridge
beam holes
Side wall channels
fit into the
notched rear wall
channels.
Pre-punched holes in roof panel to this side
for connection to front and rear walls.
Orient panel so
channel (78C)
goes into ridge
beam
Channel (81C)
this end
97C
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 18
INSIDE VIEW OF FIXING
INSIDE VIEW OF FRONT WALL
OUTSIDE VIEW
37mm
ROOR OVERHANGS
ALL WALL PANELS
BY 37mm
13A

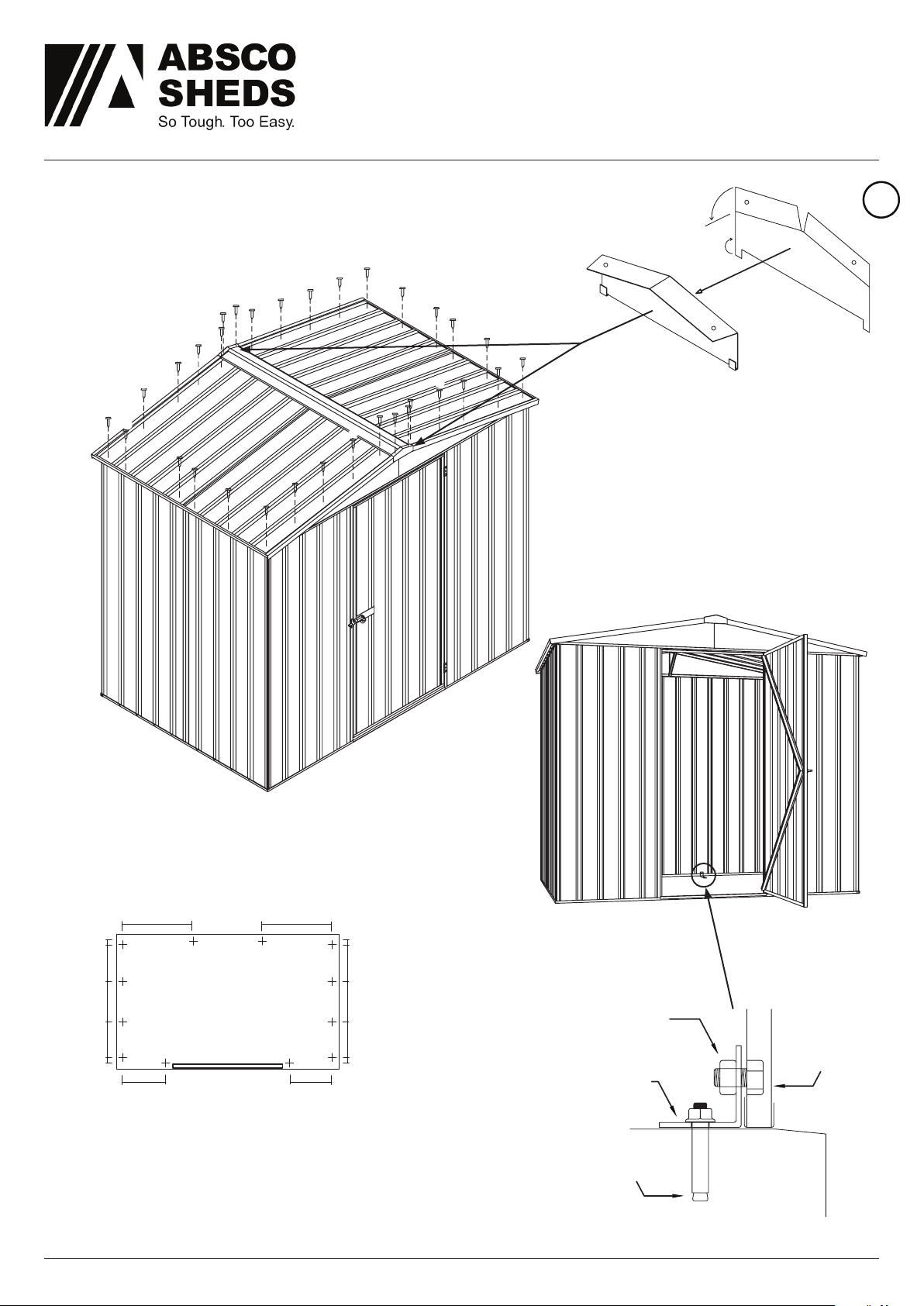

Secure ridge beam to
gable sections with
two screws at each
end. Secure each roof
panel with one screw
in each corner only at
this stage
After attaching both roof panels to walls as
shown above, fit one regent brace to the ridge
beam and front wall as shown. You will have to
remove and replace existing screws at fixing
locations. Repeat this procedure for the rear wall
regent brace

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 19
FINAL CONSTRUCTION
Each anchor consists of one nut, bolt, M10
dynabolt and steel angle.
Drill a 10mm hole into the wall sheet.
Drill a 10mm hole into the concrete.
Bolt and Nut*
M10 4.6/S
Steel Angle*
35 x 35 x 3
M10 Dynabolt*
* Denotes hot dip galvanised finish
Wall Sheet
Slab
14A
Bend the top and bottom
flanges as shown, then hook the
bottom flanges under the top
channel and screw top to the
ridge beam with two screws.
ANCHORING OF
SHED
Location of 12
concrete anchors
700 700
430 430
430 430
1000 1000
50 50
50 50
D
D
D
DD
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 23141RK
2.26mW x 1.44mD x 1.96mH
Model: 23141RK 2/03/21 1.1 20
Absco Gable Roof Shed Notes
• 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifications and
written instructions provided by Absco and/or their representatives.
• 2.G The drawings provided herein are for installation and structural engineering purposes only.
• If discrepancies are discovered within the documentation provided, these shall be brought to the attention
of Absco and written approvals obtained prior to commencing the affected section of work.
• 3.G If in doubt ask.
• 4.G Until approvals from the local authorities are obtained, commencement of construction from these
drawings shall not commence.
• 5.G Unless varied by the project specification, all materials and workmanship shall be undertaken in
accordance with the relevant Australian standards and the by-laws and ordinances of the relevant building
authorities.
• 6.G All dimensions indicated in these drawings shall be verified on site by the installation contractor. Scaling
of drawings shall not be undertaken.
• 7.G Prior to commencing works on site, the contractor shall verify the position of all services in the area to
ensure that the construction does not interfere with any of those services.
• 8.G During installation on site the shed structures shall be maintained in a stable condition with no part
becoming overstressed or permanently deformed.
• 9.G In circumstances where the shed has been installed in a manner which is inconsistent with the installation
manual, structural certification shall be void.
• 10.G The structural components detailed within this installation manual have been designed for the following
loads in accordance with AS/NZS1170 based on a Class 10a, Type 2 structure:
• Roof Live Load: 0.25 kPa uniformly distributed or 1.1 kN concentrated as per AS/NZS1170.1
• Wind Load: Classification N2, Non-Cyclonic to AS4055 where Vu = 40 m/s, Vs = 26 m/s
Windward wall Cpe = 0.7
Leeward Wall Cp,e = -0.3 to -0.5 as applicable based on shed geometry
Side Wall Cp,e = -0.5 to -0.65 as applicable based on shed geometry
Roof Cp,e = -0.5 to -1.3 depending on wind direction
6-12 Activity St, Acacia Ridge QLD 4110
PO Box 119, Acacia Ridge QLD 4110
AU: 1800 029 701
NZ: 0800 466 444
[email protected]
www.abscosheds.com.au
General
