ABSCO SHEDS ECO J23151GECOK Installation guide

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 01

GENERAL INSTRUCTIONS
A NOTE ON SAFETY
·The site for the shed must be level. An uneven surface may result in misalignment of
parts.
·It is recommended that the shed be set on a 100mm concrete slab and anchored down
appropriately (refer to last page for details).
·Anchor sets are not supplied as standard items with this product as some customers
wish to use their own anchoring systems.
·Before commencing any assembly, read through these instructions in
detail to gain a thorough understanding of assembly methods and
associated details.
·Unpack the carton and carefully identify and check off all the parts
against the parts described and illustrated on pages three and four.
·Some parts may have sharp edges. It is advisable to wear gloves when
handling these items and safety glasses if drilling holes. Sensible shoes
are highly recommended.
·Do not erect your shed in windy conditions, ensure that the shed is
securely anchored to a solid foundation immediately after construction is
completed.
·It is highly recommended to erect the shed with two or more people.
TOOLS REQUIRED
SITE PREPARATION
TOOLS OPTIONAL
10mm
(Steel)
10mm
(Masonary)
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 02

COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS
2

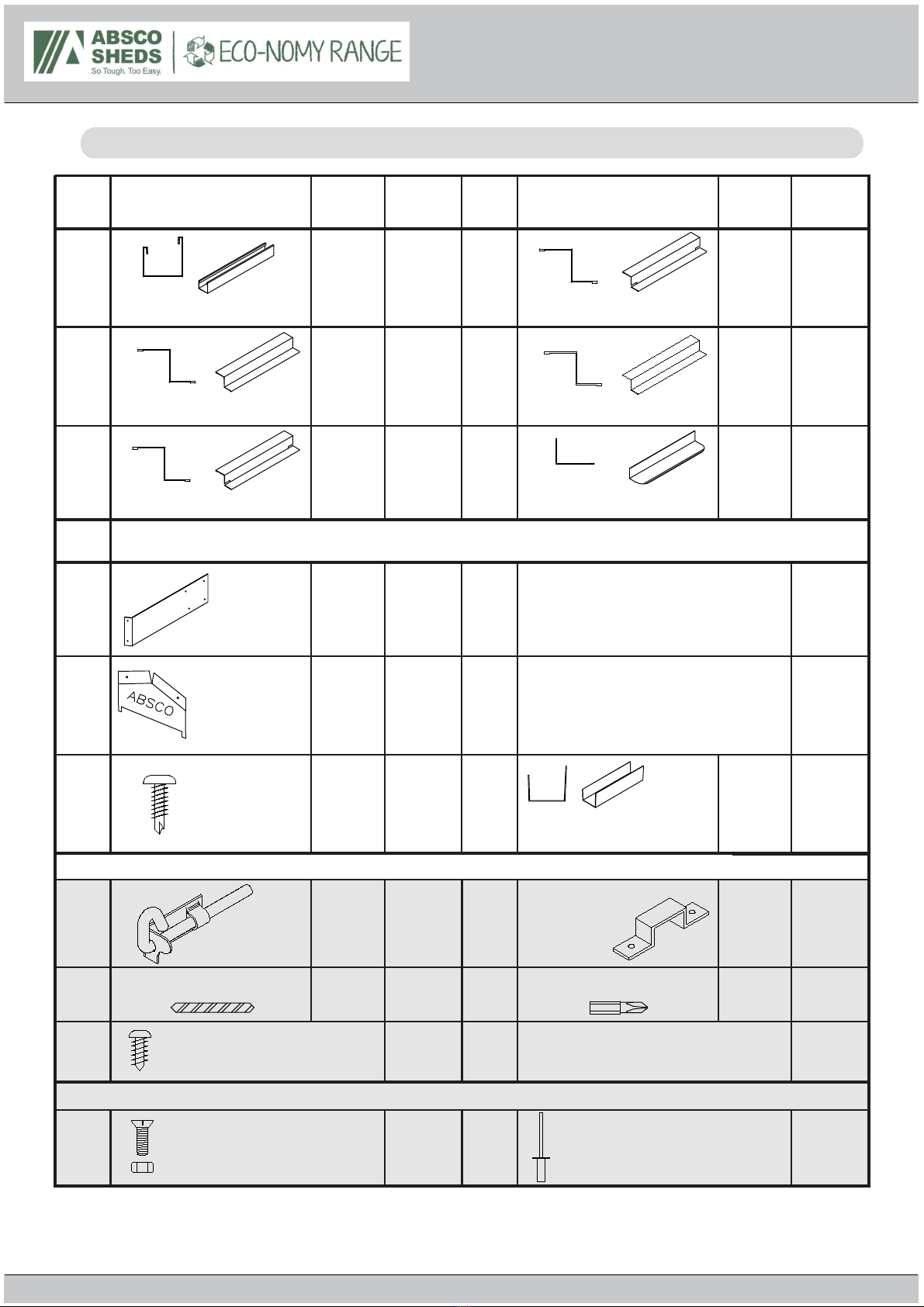

COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
1
2
2
2
1
STEEL SHEET
1785mm X 773mm 31A
1785mm X 773mm 30A
STEEL SHEET
STEEL SHEET
1915mm X 773mm 36L
STEEL SHEET
1915mm X 773mm 36R
STEEL SHEET
1785mm X 731mm 32A
STEEL SHEET
1725mm X 773mm B
15A
PEAK BRACE
2
STEEL SHEET
795mm X 773mm 52A
6
97BL
1
ZARSP
RIDGE
BEAM
1
1
L = 1152mm (47.3")
RIDGE BEAM JOINER
L: 450mm (17.7")
97BR
RIDGE
BEAM
L = 1152mm (47.3")
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 03

2
21
1
2
58B
CHANNEL
L = 1725mm
58A
CHANNEL WITH HINGES
L = 1725mm
58C
CHANNEL
L = 773mm
2
CHANNEL
L = 767mm
82L
CHANNEL
L = 767mm
82R
CHANNEL
L = 1513mm
81E
COMPONENTS - SPLICED CHANNEL & RIDGE BEAM
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY
54AL
54CL
54BL
81DL
81CL
60BL
QTY
54CR
1
1
1
1
2
2
1
1
1
1
2
2
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
54BR
81DR
81CR
60BR
54AR
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
CHANNEL
L = 1126.5 (44.3")
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 04

COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS
1
1
21
4
1
2 1
79B
CHANNEL
L = 788mm
89A
JAMB L= 1785mm
89B
JAMB L= 1785mm
90B
JAMB L= 788mm
91A
JAMB L= 1120mm
12A
DOOR
STRAP
L: 165mm
14A
CAP GABLE
L: 170mm
PSTKSGL
SINGLE DOOR
FITTINGS PACK
1
85A
LIP TRIM L= 795mm
CSJ
8CHANNEL JOINER
L= 200mm (7.9")
1ASSEMBLY
INSTRUCTIONS
10 16mm TEK
SCREWS FAST014
DOOR
PADBOLT
HASP
1
1
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
FAST006
3/16 COUNTERSUNK
SCREWS & NUTS
63.2 x 8mm
BLIND POP RIVETS
6
PSTKSGL - SINGLE DOOR FITTINGS PACK
PACK 6P - SCREW PACK 6
PACK 6P
SCREW PACK 6
1
PHILLIPS DRIVER BIT
3mm DRILL BIT
1 1
DRILL
FAST007
FAST038
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 05

20mm
15mm
QTY = 10pcs.
CHANNEL
PUSH PUSH
CHANNEL
CSJ
INSTRUCTIONS FOR JOINING SPLICED CHANNELS
CSJ
CSJ
HIGH-SIDE
CHANNEL
LOW-SIDE
CHANNEL
CSJ
CSJ
CSJ
= =
= =
==
==
STEP 1.
Position the channels and the CSJ
joiner channel so the center of the
CSJ is in line with the end of each
channel to be joined together.
STEP 2.
Join the first channel to the CSJ by inserting the center
of the CSJ (on an angle) to the end of the channel
where the JOIN>> text is marked. Push down one side
of the CSJ until you hear a 'click'.
STEP 3.
Join the second channel to the CSJ
by positioning the <<JOIN end of the
channel at the center of the CSJ
(on an angle). Push the CSJ into
the channel until you here a 'click'.
=
The joined channels should now
look like the picture above with the
CSJ positioned equally inside of the
joined channels.
FINISHED CHANNEL
=
NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER.
JOIN>> <<JOIN JOIN>>
JOIN>> SJ
JOIN>>
<<JOIN
JOIN>> <<JOIN
J
CSJ
DRILL 4 x 3mm (2 PER A SIDE)
HOLES TO SECURE SECTIONS
TOGETHER.
(THESE SCREWS MAY HAVE TO
BE TEMPORARILY REMOVED
AND REPLACED DURING LATER
ASSEMBLY)
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 06

=
=
=
=
=
=
2 X 60BR
2253mm (88.7")
STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS
2 x 81C
2 x 60B
1 x 54A
1 x 54C
1 x 54B
1 x 81D
NOTE: JOIN TOGETHER 16 X CHANNEL SECTIONS USING 8 X CHANNEL JOINERS (PART CSJ)
81DL
81DR
54BR
54BL
54CL
54CR
54AR
54AL
60BL
60BR
81CR
81CL
2 X 81CR
2 X 81CL
2 X 60BL
1 X 54AR
1 X 54AL
1 X 54CR
1 X 54CL
1 X 54BR
1 X 54BL
1 X 81DR
1 X 81DL
NOTE: SOME CHANNELS HAVE
HOLES IN THEM - YOU WILL NEED
TO RE-DRILL HOLES ON ANY
CHANNEL WHERE THE CSJ
JOINING CHANNEL COVERS
HOLES ON THE CHANNELS
YOU ARE CONNECTING
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 07

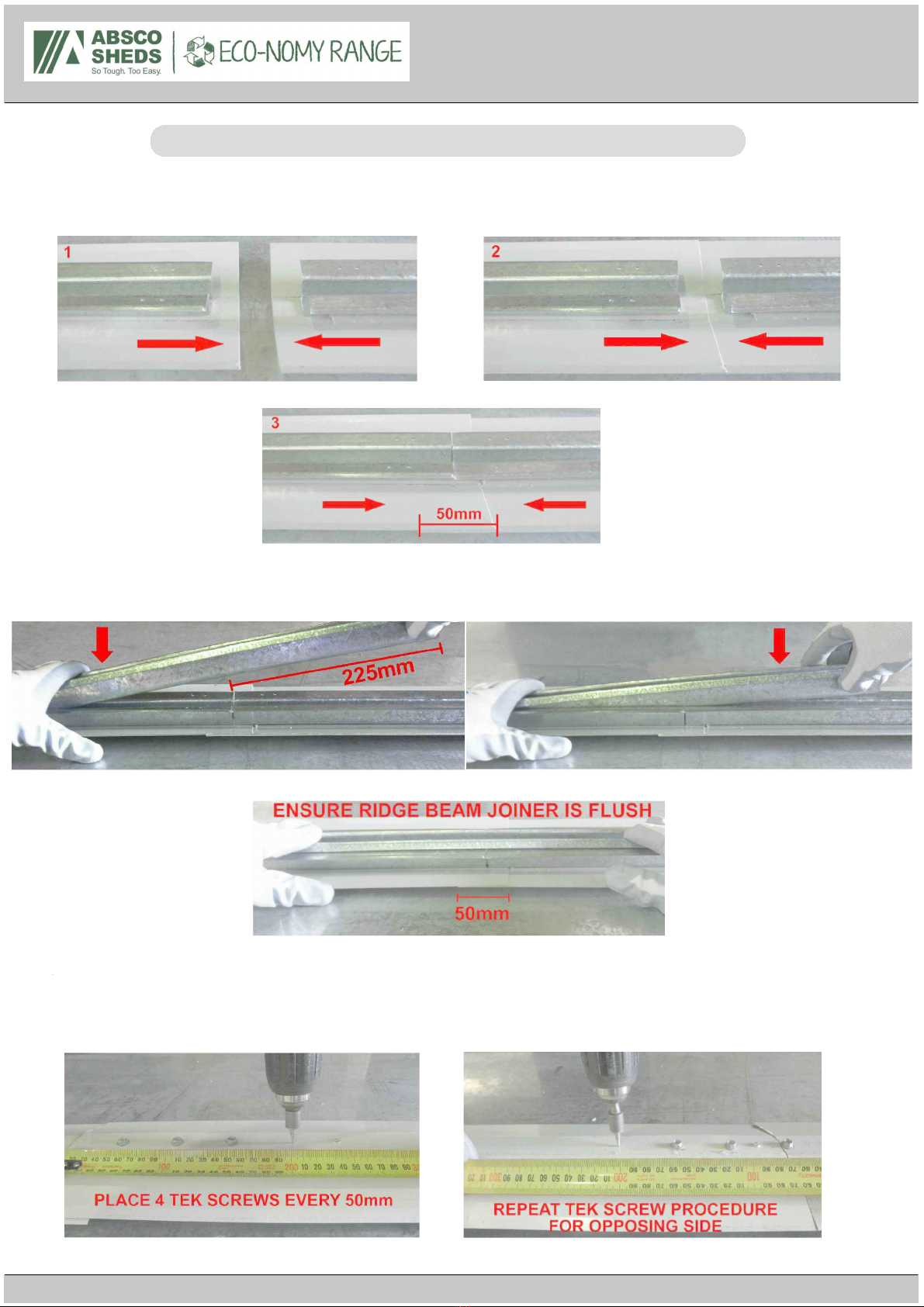

STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP
OF THE RIDGE CAP
STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS.
MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP.
STAGE 3: TURN RIDGE CAP OVER AND MEASURE 250mm FROM THE END OF EACH RIDGE
CAP.
PLACE TEK SCREWS IN 50mm INCREMENTS FROM SAID END.
REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM
INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 08

PHILLIPS DRIVER BIT
QTY. = 1
QTY. = 8
QTY. = 2
QTY. = 1
SELF DRILLING TEK SCREW
PART ZARSP - 450mm LONG
ZARSP
RIDGE BEAM 1126.5mm
PARTS 97BL & 97BR
STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM
PUSH PUSH
97BL
97BR
16mm
200mm 250mm
2253mm OVERALL LENGTH
(PART 97B)
16mm
THE TOP SECTIONS OF
CAPPING WILL OVERLAP
EACH OTHER AT THE
JOIN BY 50mm.
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 09

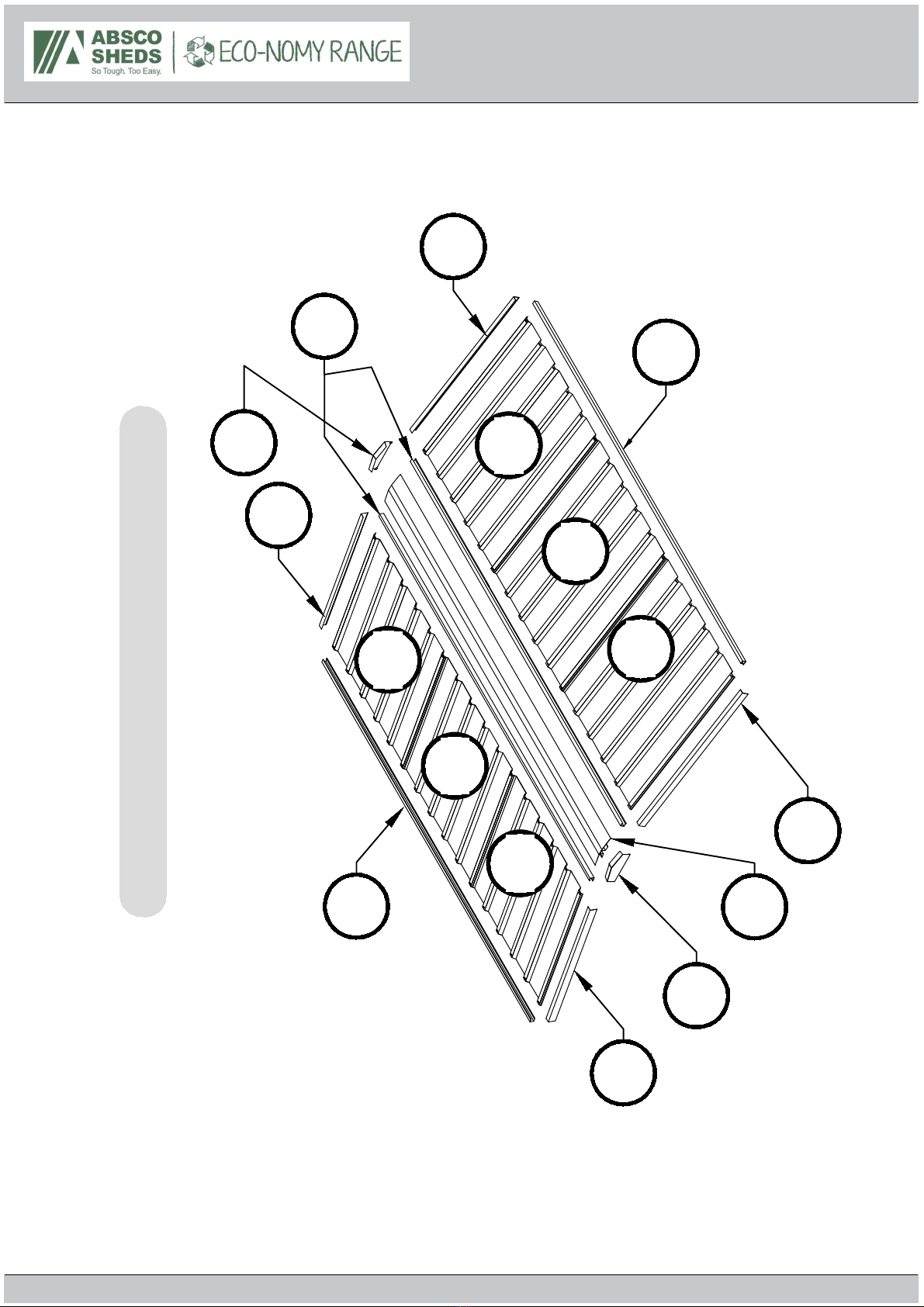

VIEW OF ROOF COMPONENTS
NO.
85A
60B
14A
85A
81C
85A
85A
14A
81C
97B
52A
52A
52A
52A
52A
52A
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 10

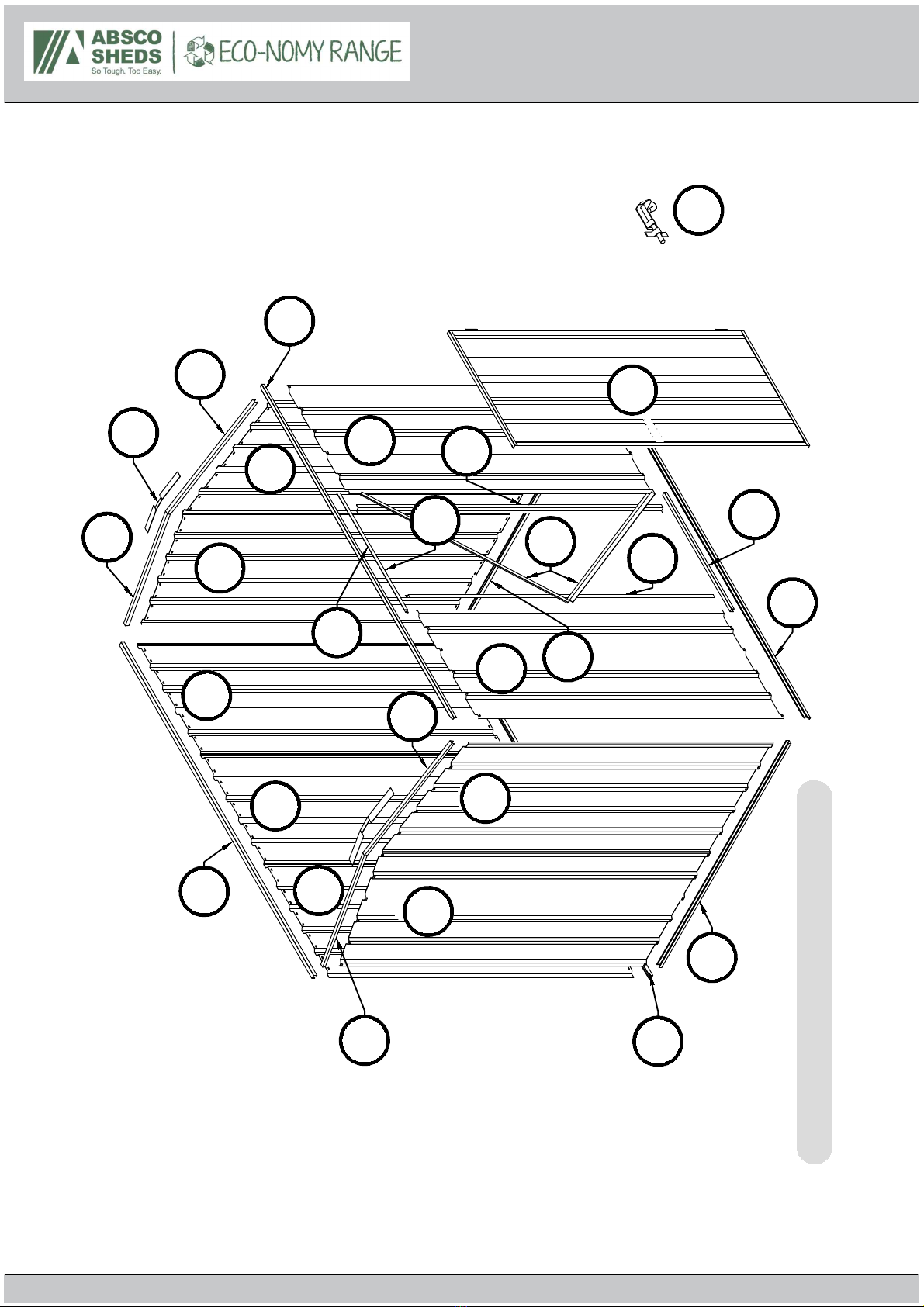

VIEW OF WALL COMPONENTS
36L
36R
82R
31A
30A
30A 36R
54A
32A
B
81E
81D
54B
15A
82R
82L
82L
54C
89B
32A
90B
90B
91A
22A
79B
89A
36L
81E
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 11

ABSCO ASSEMBLY INTRODUCTION
FASTENING SYMBOLS
The snaptite assembly system locks most perimeter channels to all roof and wall
sheets without the need for tools and fasteners.
To pre-assemble the four wall panels
and two roof panels, the perimeter
channels are secured to the top and
bottom of each panel using the
snaptite system, as detailed on the
following pages wherever you see
the symbol.
Position sheets on timbers,
trestles or partly over edge of
concrete slab.
Each perimeter channel must finish flush with the
edges of the sheets.The snaptite system allows
adjustment for this process by simply tapping the
channel along the sheets until each end is neatly
flush. If you need to remove channels from the
panels, pull the channel along the panel from
opposing ends. You may need someone to help
with this.
Join components together with one screw at this
location only, as some channel sections have extra
holes that are not required for this model of garden
shed
Do not join components together at this location yet,
as the screw may obstruct further assembly of other
components
4mm NUT & BOLT SET
3mm POP RIVETS
PUSH
PUSH
HIGH SIDE
HIGH SIDE
PUSH
HIGH SIDE
HIGH SIDE
After joining sheets together, position channel over one end of the sheets, gently
tapping it over the snaptite lugs, working along the sheets to the other end.
HIGH SIDE
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
Join components together by pre-drilling the holes
first. Use one component as a template to mark where
the holes are. Drill with 3mm drill bit.
D
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 12

DOOR PANEL ASSEMBLY
20mm FLANGE
58C
58C
58A
15mm FLANGE
B
B
SNAP
T TE
i
SNAP
T TE
i
58B
12A
ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE
DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 13

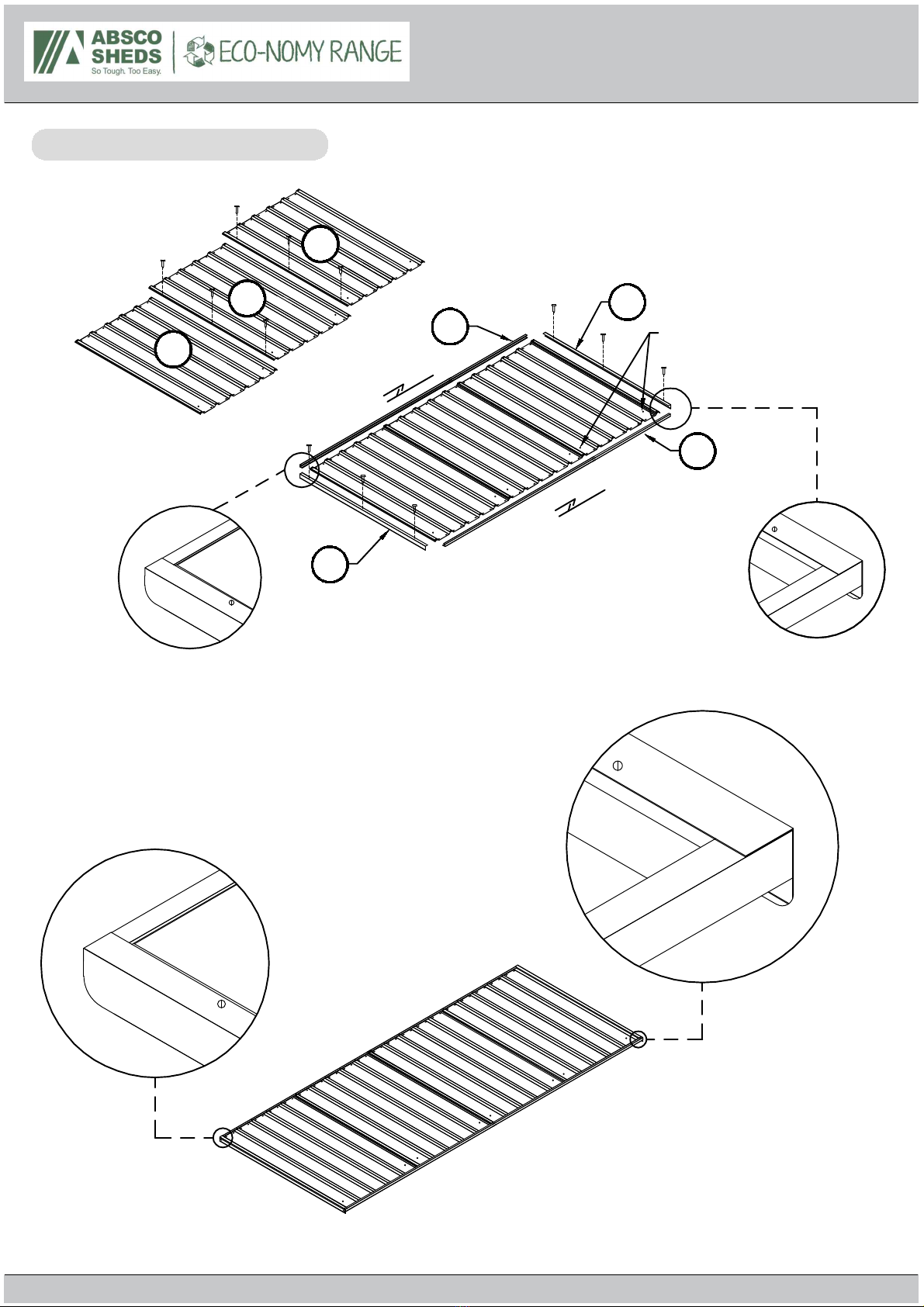

REAR PANEL ASSEMBLY
30A
31A
30A
54B
81D
SNAP
T TE
i
SNAP
T TE
i
INSIDE
OF
SHED
SIDE PANEL ASSEMBLY
(2 Required)
TRIM THE TIP OF EACH
SHEET OR BEND OUT OF THE
WAY TO ALLOW CHANNELS
TO FIT HARD UP TO THE
EDGE OF THE SHEET
36L
36R
82R
81E
15A
82L
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 14

2 x PRE-PUNCHED
HOLES TO THIS
END OF EACH
SHEET WITH PART
NO. 81C FITTED

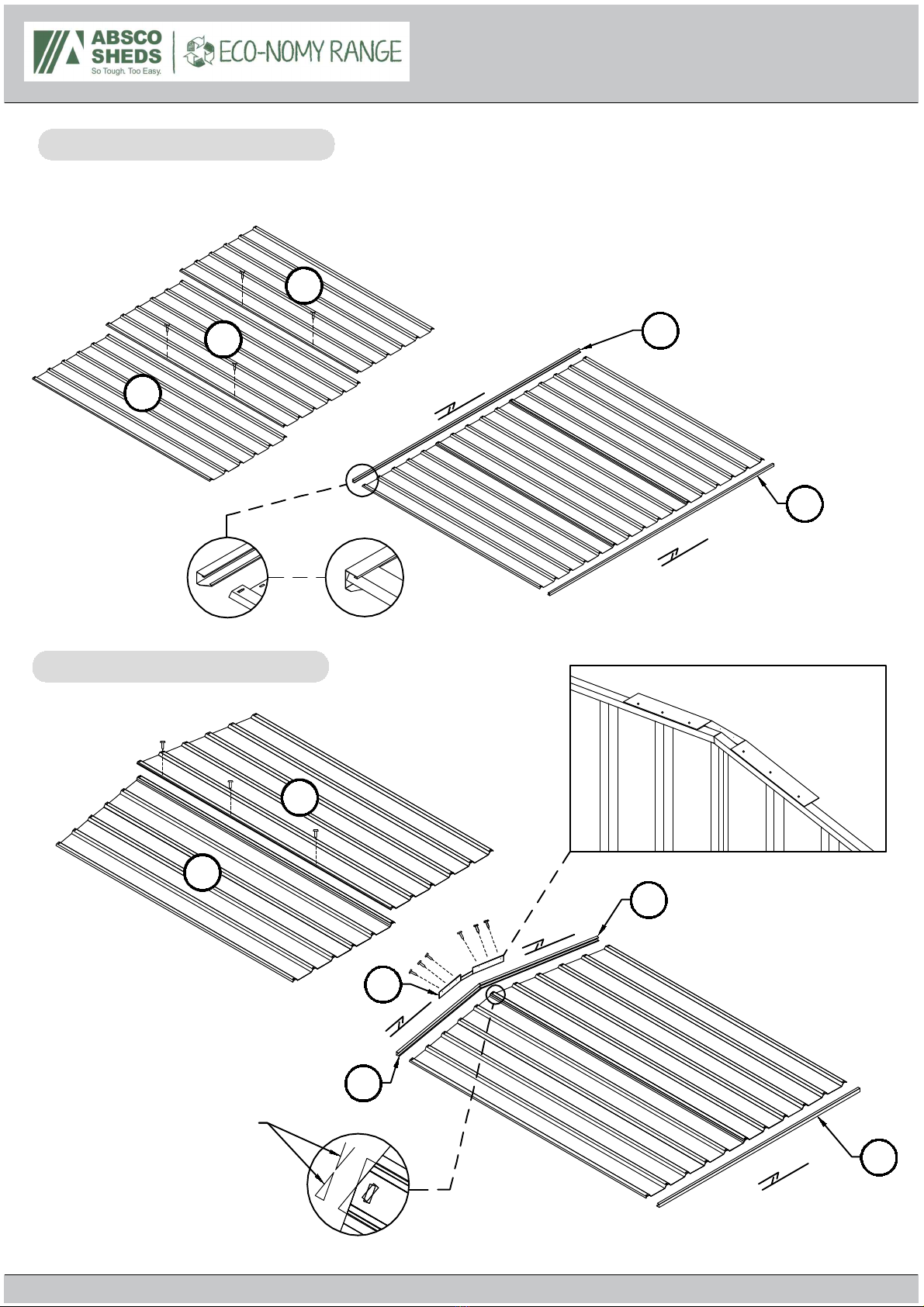

ROOF PANEL ASSEMBLY
(2 Required)
52A
52A
52A
60B
85A
81C
85A
SNAP
T TE
i
SNAP
T TE
i
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 15

FRONT PANEL ASSEMBLY
89B
89A
32A
32A
54A
79B
54C
90B
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
SNAP
T TE
i
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 16

DOOR PANEL ASSEMBLY
NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for
proper alignment. position each hasp centrally over the padbolt shaft, and drill 3mm holes and secure with screws
NOTE: Nuts and bolts (supplied) may be used instead of
pop rivets (supplied) by simply enlarging the hinge hole
sets in the jamb using a 4mm drill bit
91A
91A
B
B
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 17

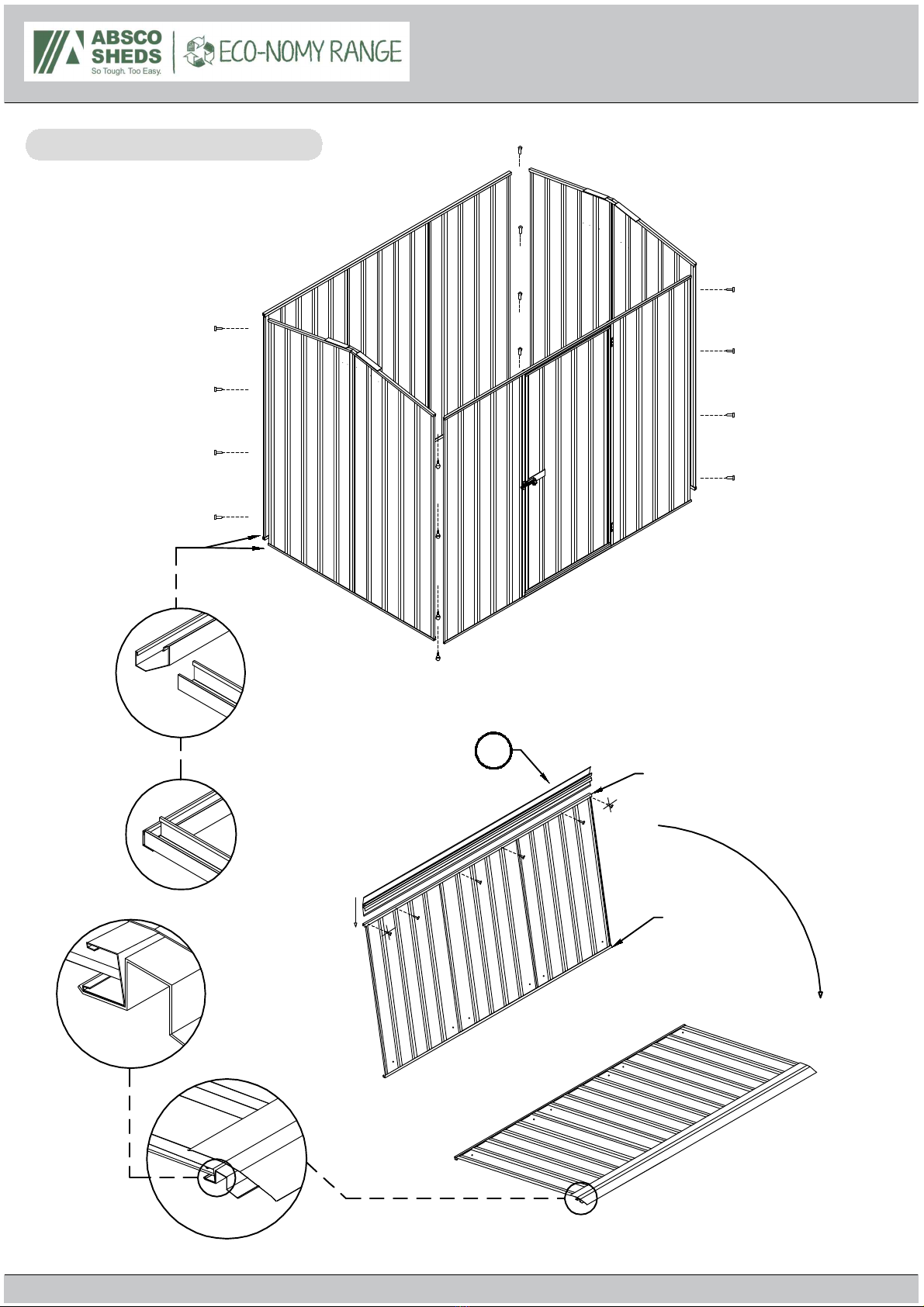

PANEL CONSTRUCTION
NOTE: Take care to ensure that both front
and rear wall panels are not positioned
upside down. the top channel of each
panel is pre-punched for attaching roof
sheets to, the bottom channels are not.
SIDE WALL PANEL CHANNELS
FIT INTO THE NOTCHED
FRONT AND REAR WALL
PANEL CHANNELS CHANNEL TYPE
60B THIS END
CHANNEL
TYPE 81C
THIS END
97B
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 18

SLIDE THE ROOF PANEL INTO
POSITION, AND SECURE WITH
ONE SCREW AT EACH CORNER
ONLY AT THIS STAGE
SECURE PEAK
BRACE TO RIDGE
BEAM AND ROOF
PANEL WITH ONE
SCREW AT EACH
END
MOVE THE OTHER
ROOF PANEL INTO
POSITION AND SECURE
PEAK BRACE TO RIDGE
BEAM AND ROOF
PANEL WITH ONE
SCREW AT EACH END
ROOF CONSTRUCTION
INSIDE VIEW OF FIXING
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 19

DYNABOLT
BOLT & NUT
STEEL
ANGLE
SLAB
WALL
SHEET
FINAL CONSTRUCTION
BEND THE TOP AND
BOTTOM FLANGES AS
SHOWN, THEN HOOK THE
BOTTOM FLANGES UNDER
THE TOP CHANNEL AND
SCREW THE TOP FLANGES
FOR BOTH AS SHOWN
GABLE CAPS
14A
- EACH ANCHOR CONSISTS OF ONE NUT, BOLT,
DYNABOLT AND STEEL ANGLE
- DRILL A 10mm HOLE INTO
THE WALL SHEET
- DRILL A 10mm HOLE INTO THE
CONCRETE
ANCHORING OF SHED
LOCATION OF 12
CONCRETE ANCHORS
replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled
three business days to advise you of the assessment outcome of the claim, which may include your expenses incurred in making
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J23151GECOK 21-11-2017
Absco Industries ECO
Shed Model: J23151GECOK
PAGE 20
