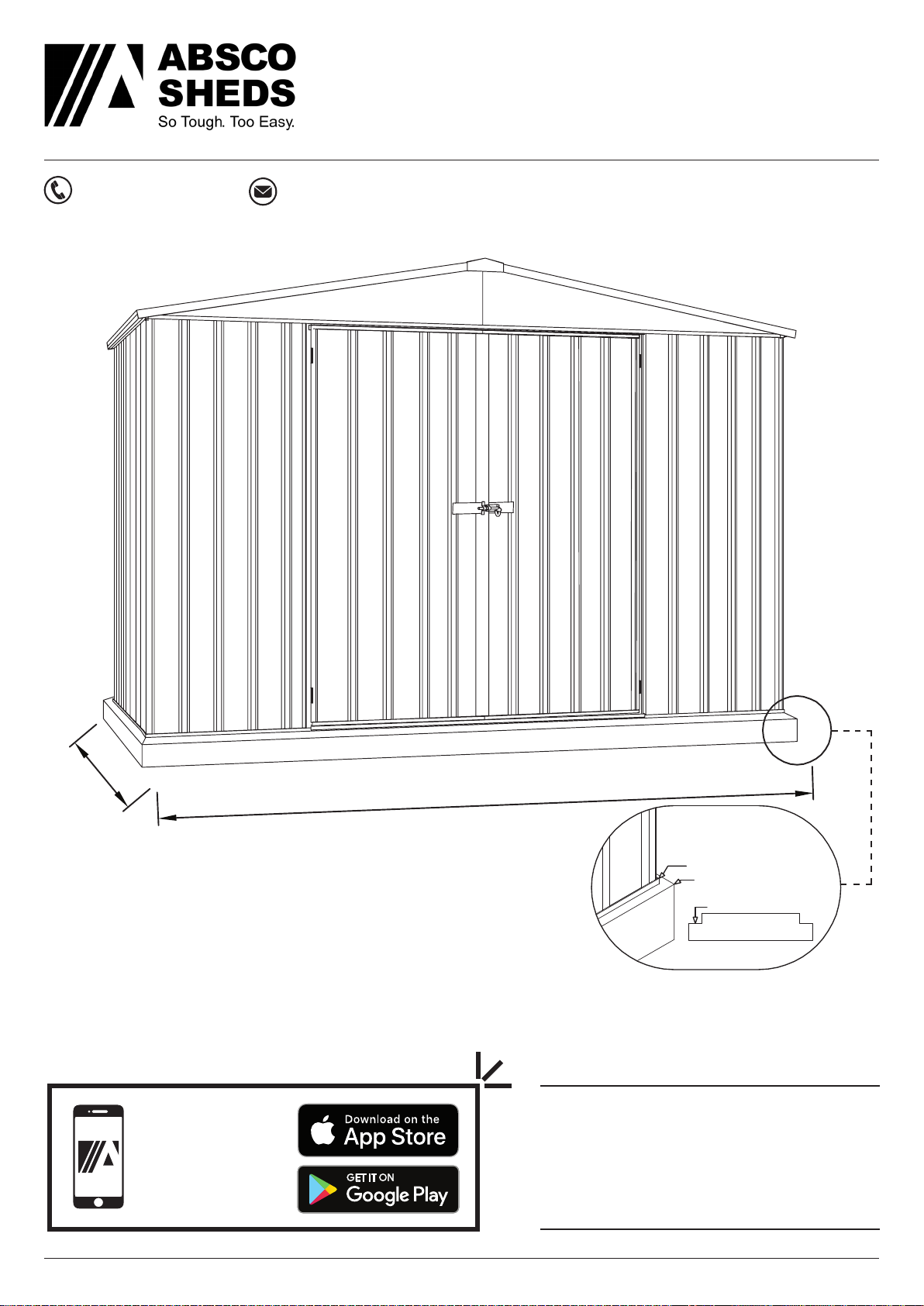

ABSCO SHEDS Regent 30142RK User manual

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 1
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
LEAVE A REVIEW
Tell us about your experience and
receive a $20 Coles Gift Card.
Visit www.abscosheds.com.au/review
AU: 1800 029 701
NZ: 0800 466 444
[email protected]
www.abscosheds.com.au
CONCRETE SLAB
3100mm
1540mm
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2012.
If you require a higher wind rating please contact
us: [email protected] or 1800 029 701
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017
CONCRETE SLAB
2360mm
1620mm
FRONT: 2.26m
SIDE: 1.52m
HEIGHT: 1.95m
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
[email protected]
CONCRETE
REBATED EDGE
BOTTOM CHANNEL
CONCRETE SLAB
75mm WIDE REBATE
100mm
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
Absco Industries
Premier Shed Model: 23151GK
PAGE 01
Printed: 02/08/2021 14:21

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 2
GENERAL INSTRUCTIONS
• Before commencing any assembly, read through these instructions in detail to gain a thorough
understanding of assembly methods and associated details.
• Unpack the carton and carefully identify and check off all the parts against the parts described
and illustrated on "COMPONENTS PACKING LIST" pages.
SITE PREPARATION
• The site for the shed must be level. An uneven surface may result in misalignment of parts.
• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately
illustrated on “FINAL CONSTRUCTION” page.

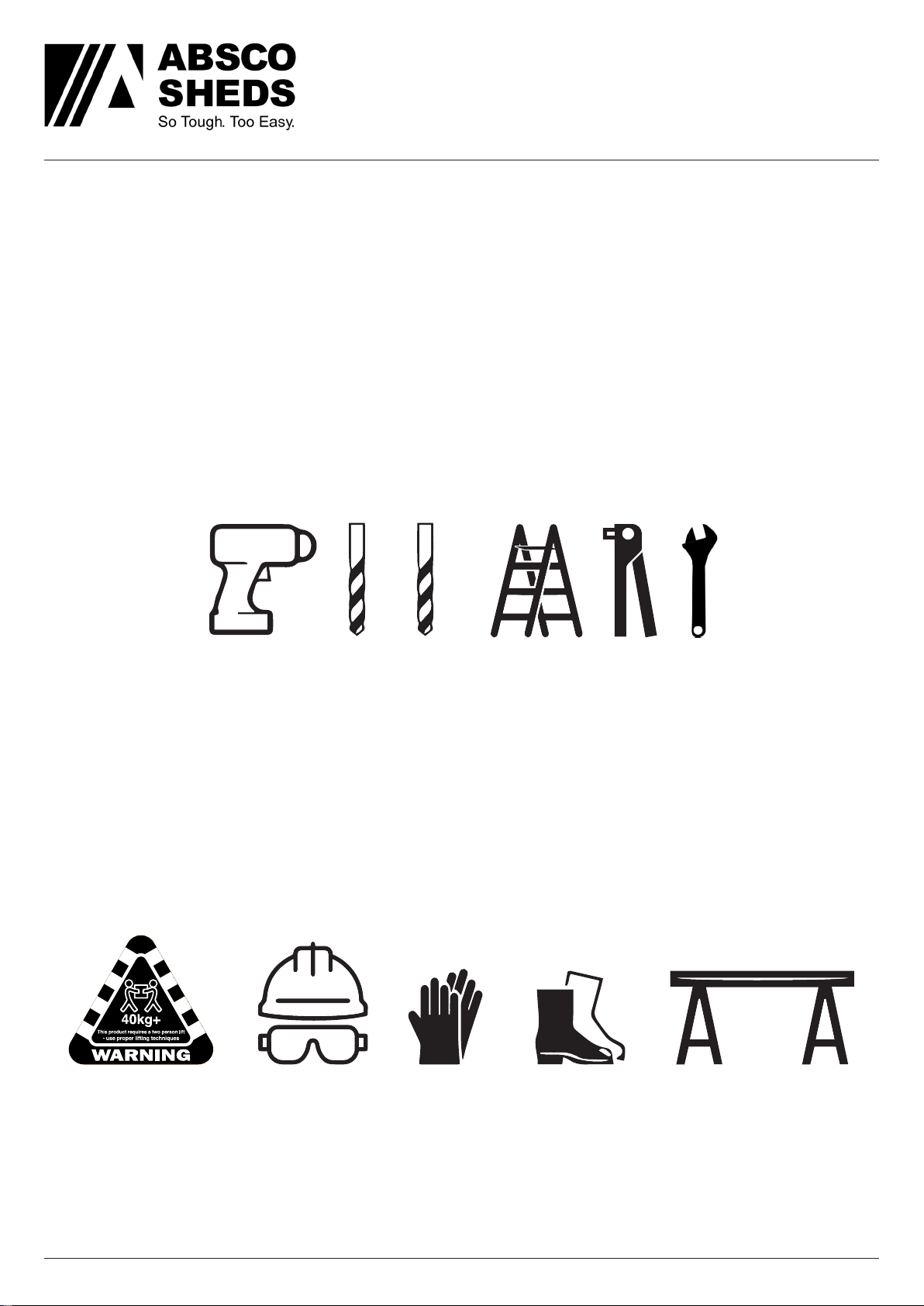

TOOLS REQUIRED
SAFETY NOTES
• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and
safety glasses if drilling holes. Sensible shoes are highly recommended.
• Do not erect your shed in windy conditions.
• Ensure that the shed is securely anchored to a solid foundation immediately after construction is
completed.
• It is highly recommended to erect the shed with two or more people.
RECOMMENDED
3mm drill bit 10mm drill bits metal & masonry

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 3

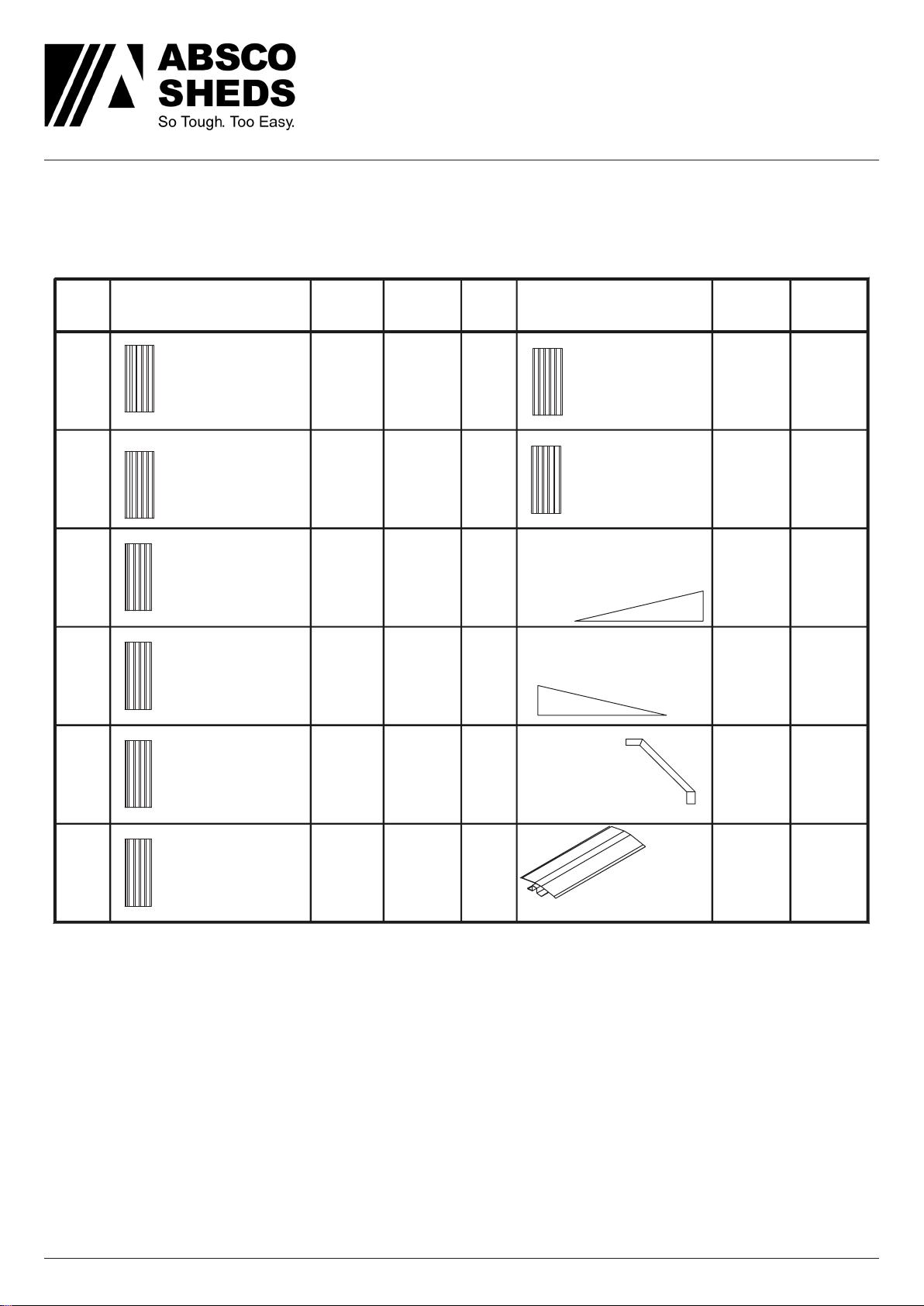

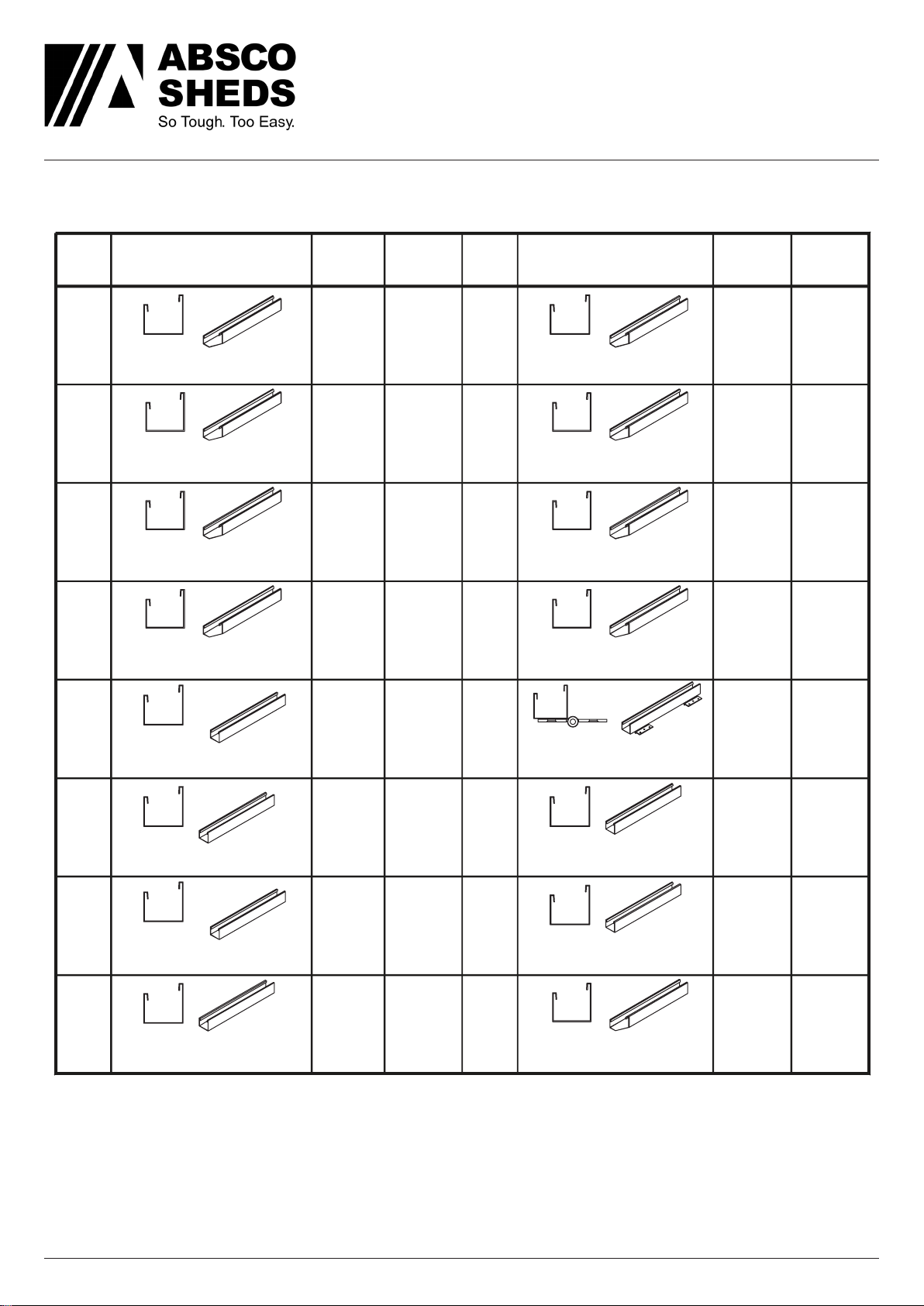

COMPONENT PACKING LIST
Check off all components.
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
2
2
2
22
22
4
1
1
2
1785mm X 773mm 30A
STEEL SHEET
STEEL SHEET
1785mm X 773mm 31A
STEEL SHEET
1546mm X 773mm 44L
STEEL SHEET
1785mm X 711mm 34A
STEEL SHEET
1785mm X 731mm 32A
STEEL SHEET
1725mm X 773mm A
STEEL SHEET
1725mm X 773mm B
GABLE L/H
L=1475mm 16L
GABLE R/H
L=1475mm 16R
13A
BRACE
L: 393mm
STEEL SHEET
1546mm X 773mm 44R
97C
RIDGE
BEAM
L = 1513mm
1
Nominal sheet widths are shown. +/- 2mm is within tolerance.

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 4

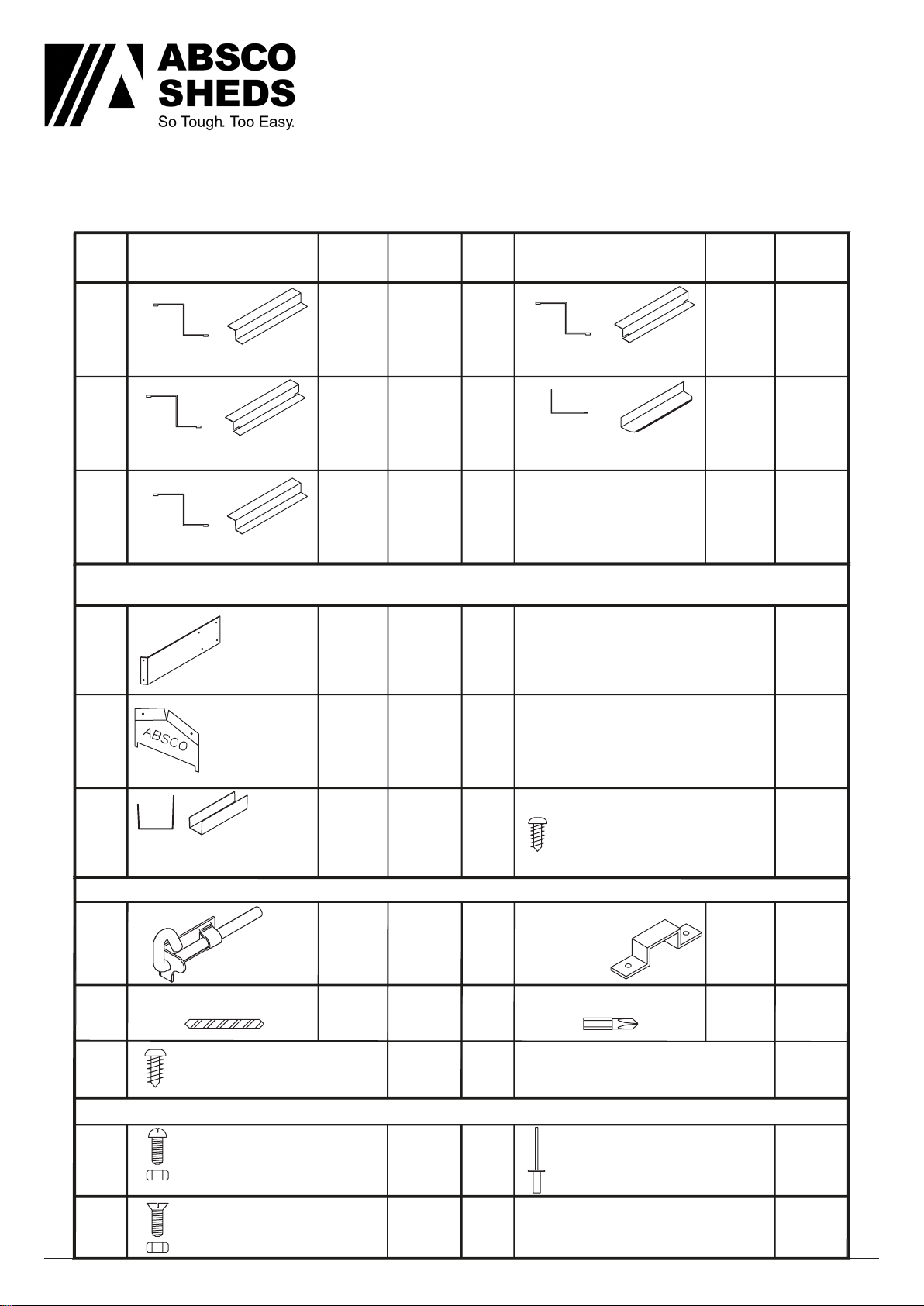

COMPONENT PACKING LIST
1
2
1
4
22 81I
CHANNEL
L = 1439mm
79A
CHANNEL
L = 1568mm
58A
CHANNEL WITH HINGES
L = 1725mm
58B
CHANNEL
L = 1725mm
58C
CHANNEL
L = 773mm
CHANNEL
L = 1513mm
81E
2
59C
CHANNEL
L = 1439mm
CHANNEL
L = 1513mm
78C
2
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
1
1
1
1
77AL
CHANNEL
L = 1496.5mm
55CL
CHANNEL
L = 1496.5mm
77BL
CHANNEL
L = 1496.5mm
81BL
CHANNEL
L = 1496.5mm
1
1
1
1
77AR
CHANNEL
L = 1496.5mm
55CR
CHANNEL
L = 1496.5mm
77BR
CHANNEL
L = 1496.5mm
81BR
CHANNEL
L = 1496.5mm

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 5
COMPONENT PACKING LIST
1
12A
2
DOOR
STRAP
L: 165mm
14A
2CAP GABLE
L: 170mm
1ASSEMBLY
INSTRUCTIONS
COMPONENT
DESCRIPTION
PART
No. CHECK COMPONENT DESCRIPTION
PART
No. CHECK
QTY QTY
INSTRUCTIONS & FITTINGS PACKET
4
4
1
289A
JAMB L= 1785mm
90A
JAMB L= 1568mm
91A
JAMB L= 1120mm
89C
JAMB L= 1725mm
87B
LIP TRIM L= 1546mm
CSJ
4CHANNEL JOINER
L= 200mm (7.9")
1PSTKDBL
DOUBLE DOOR
FITTINGS PACK
DOOR
PADBOLT
HASP
2
3
SELF TAPPING SCREWS
PACKET CONTAINING 220
1
DOOR
PADBOLT
3/16 COUNTERSUNK
SCREWS & NUTS
12
3/16 ROUND HEAD
BOLTS & NYLOCK NUTS
83.2 x 8mm
BLIND POP RIVETS
12
PSTKDBL - DOUBLE DOOR FITTINGS PACK
PACK12P - SCREW PACK 12
PACK12P
SCREW PACK 12
1
PHILLIPS DRIVER BIT
3mm DRILL BIT DRILL FAST038
FAST007FAST006
1 1
1SELF TAPPING SCREWS
PACKET CONTAINING 100

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 6

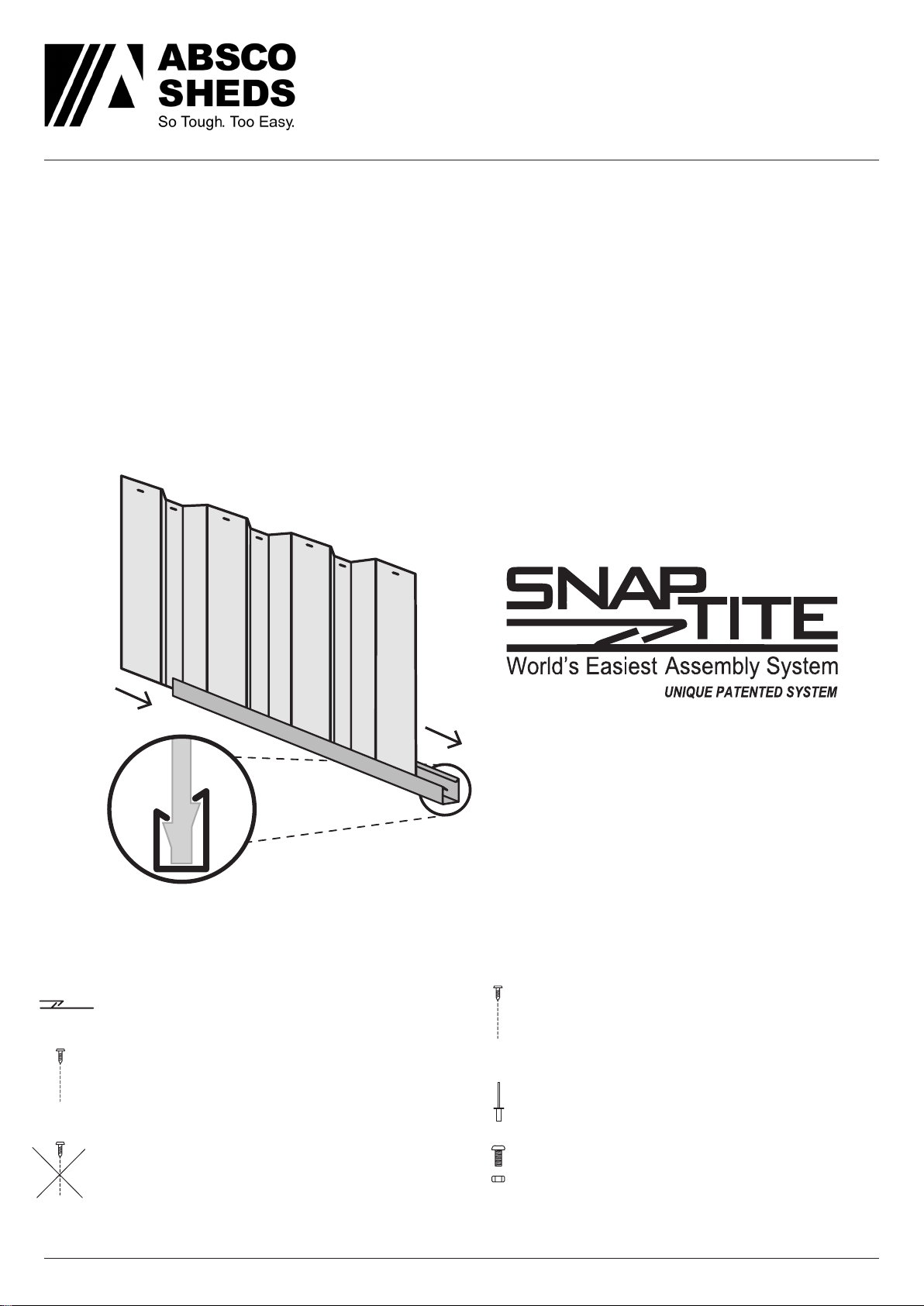

SNAPTiTE ASSEMBLY GUIDE
The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for
tools and fasteners.
To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.
Each perimeter channel must finish flush with the edges of the sheets. Simply tap the channel along
the sheets until each end is neatly flush. If you need to remove channels from the panels, slide it off
from the side.
Channel locks the shed panel into
position without the need for screws!
FASTENING SYMBOLS
Secure channel to sheeting by SNAPTiTE
fastening method.
Join components together with one
screw at this location only, as some
channels have extra holes that are not
required for this model of shed.
Do not join components together at
this location yet, as the screws may
obstruct further assembly of the other
components.
Join components together by pre-drill-
ing the holes first. Use one component as
template to mark where the holes are and
drill with a 3mm drill bit.
3mm pop rivet
4mm nut and bolt set.
D
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 7

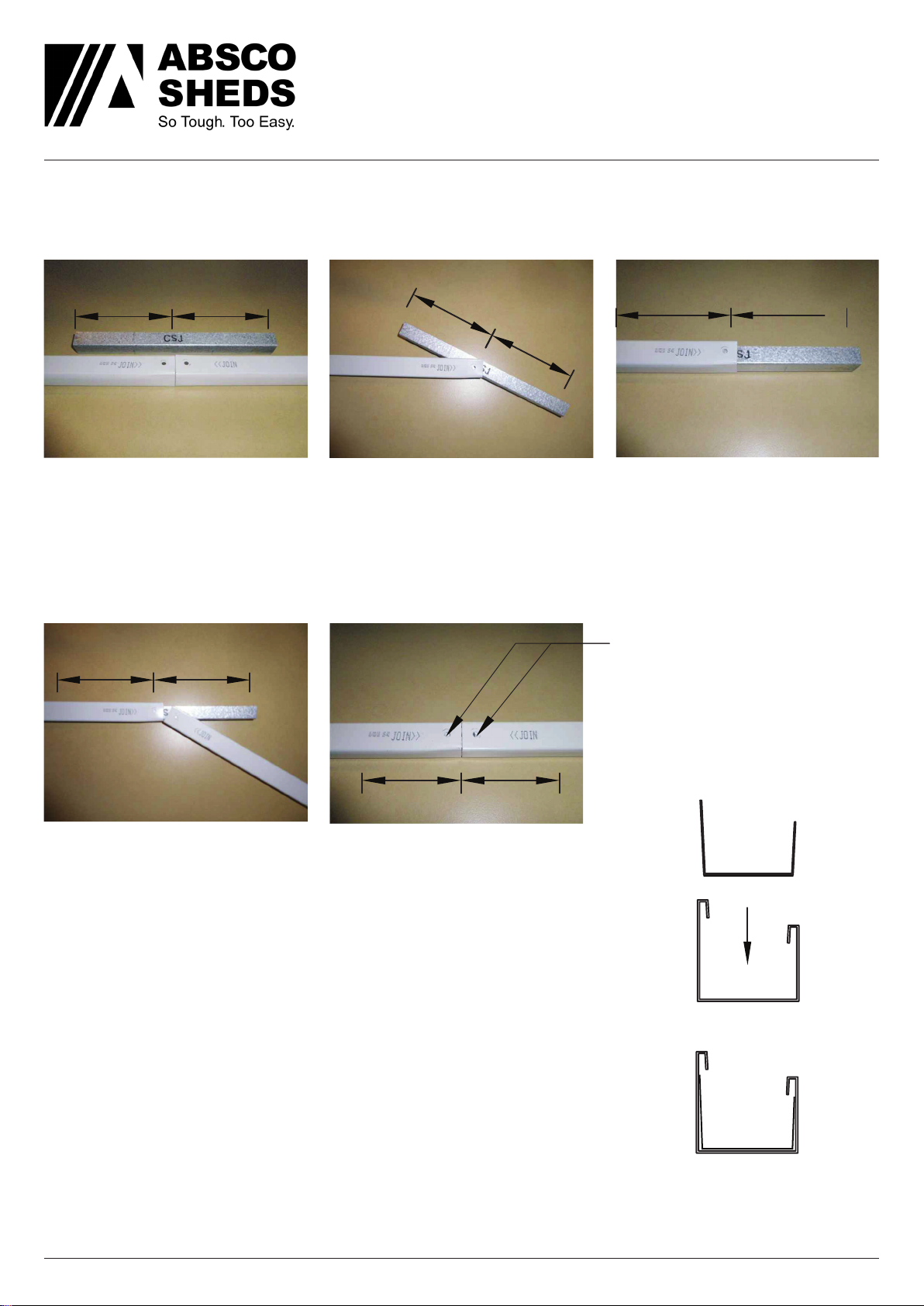

Guide on Joining Spliced Channels
The text marked on all parts must be shown on the same side as each other
Step 1.
Position the channels and the
CSJ joiner so the centre of
the CSJ is in line with the end
of each channel to be joiner
together.
Step 2.
Join the first channel to the CSJ
by inserting the centre of the
CSJ, on an angle, to the end of
the channel where the JOIN>>
text is marked.
Push down one side of the CSJ
until you hear a ‘click’.
Step 3.
Join the second channel to the
CSJ by positioning the <<JOIN
of the channel at the centre of
the CSJ, on an angle. Push the
CSJ into the channel until you
hear a ‘click’.
Finished Channel.
The joined channels should
now look like the picture with
the CSJ positioned equally
inside of the joined channels.
Drill out holes with 3mm drill
bit in CSJ to match the holes
in channel. Drilling of screws
on the joined channels is being
done after sheets are locked on
the spliced channels.
= =
JOIN>> <<JOIN
CSJ
==
JOIN>>
J
==
JOIN>> SJ
= =
JOIN>>
<<JOIN
= =
JOIN>> <<JOIN
Finished Spliced
Channel
Channel
Push
20mm 15mm
CSJ
.
...

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 8

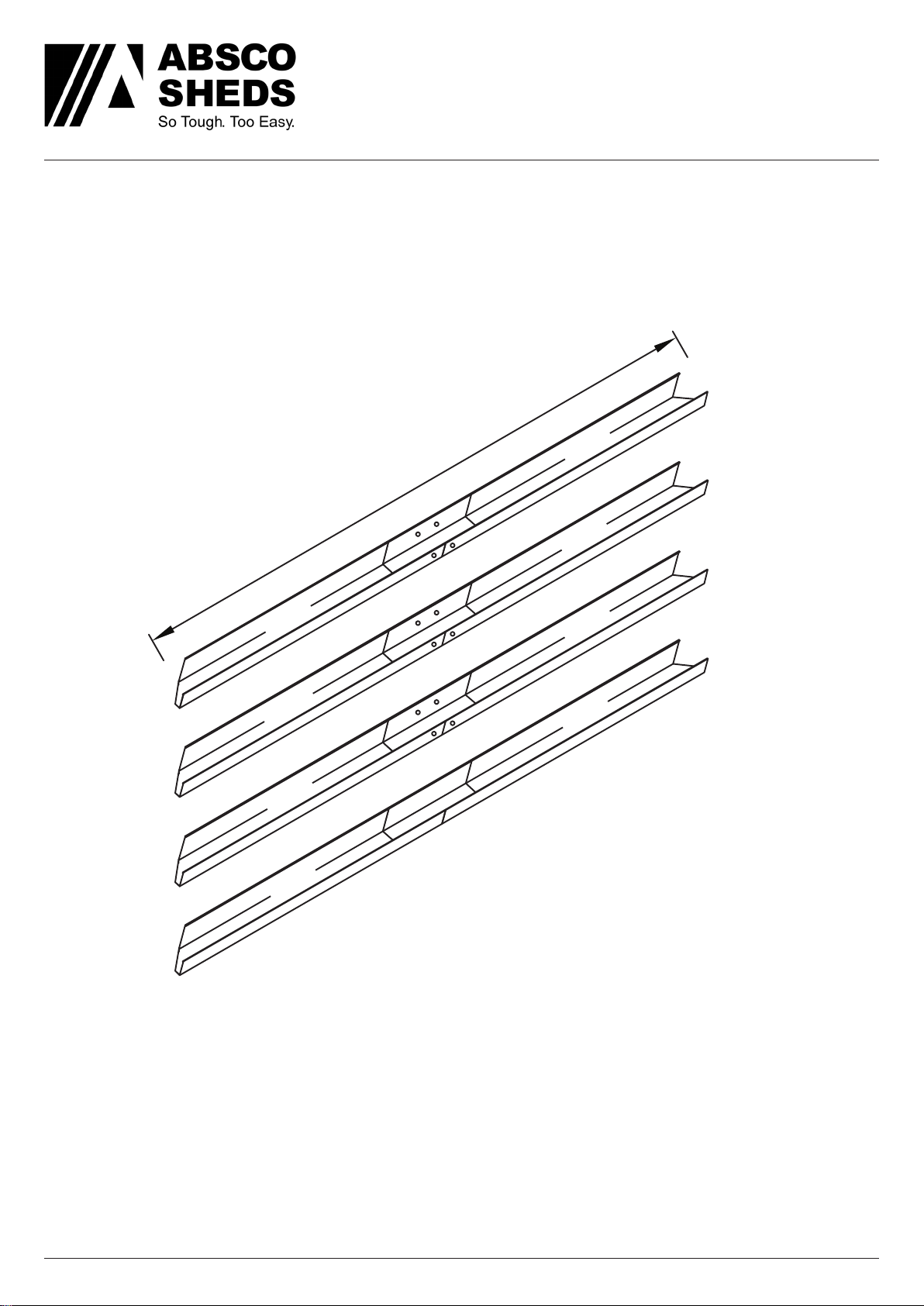

PRE-ASSEMBLY OF SPLICED CHANNELS
NOTE: Some channels may have holes in them - You will
need to redrill holes where CSJ joining channel covers
them.
Join together 8 x channel sections using 4 x channel joiners (Part CSJ)
=
=
=
=
2993mm (117.8")
1 x 77A
1 x 77B
1 x 81B
81BR
81BL
77BL
77BR
77AR
77AL
55CL
55CR
1 X 77AR
1 X 77CL
1 X 77BR
1 X 77BL
1 X 81BR
1 X 81BL
1 x 55C
1 X 55CR
1 X 55CL

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 9
OVERVIEW OF ROOF COMPONENTS
OVERVIEW OF ROOF COMPONENTS
78C
44L
44R
44L
44R
81E
87B
87B
81E
87B
14A
87B
97C
14A

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 10
OVERVIEW OF WALL COMPONENTS
OVERVIEW OF WALL COMPONENTS
32A
32A
30A
31A 13A
31A
30A 32A 32A
34A
34A
A
B
91A
91A
89A
89A
90A
81l
55C
79A
22A
81I
81B
59C
77B
16R
16L
16R
77A
16L
59C

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 11

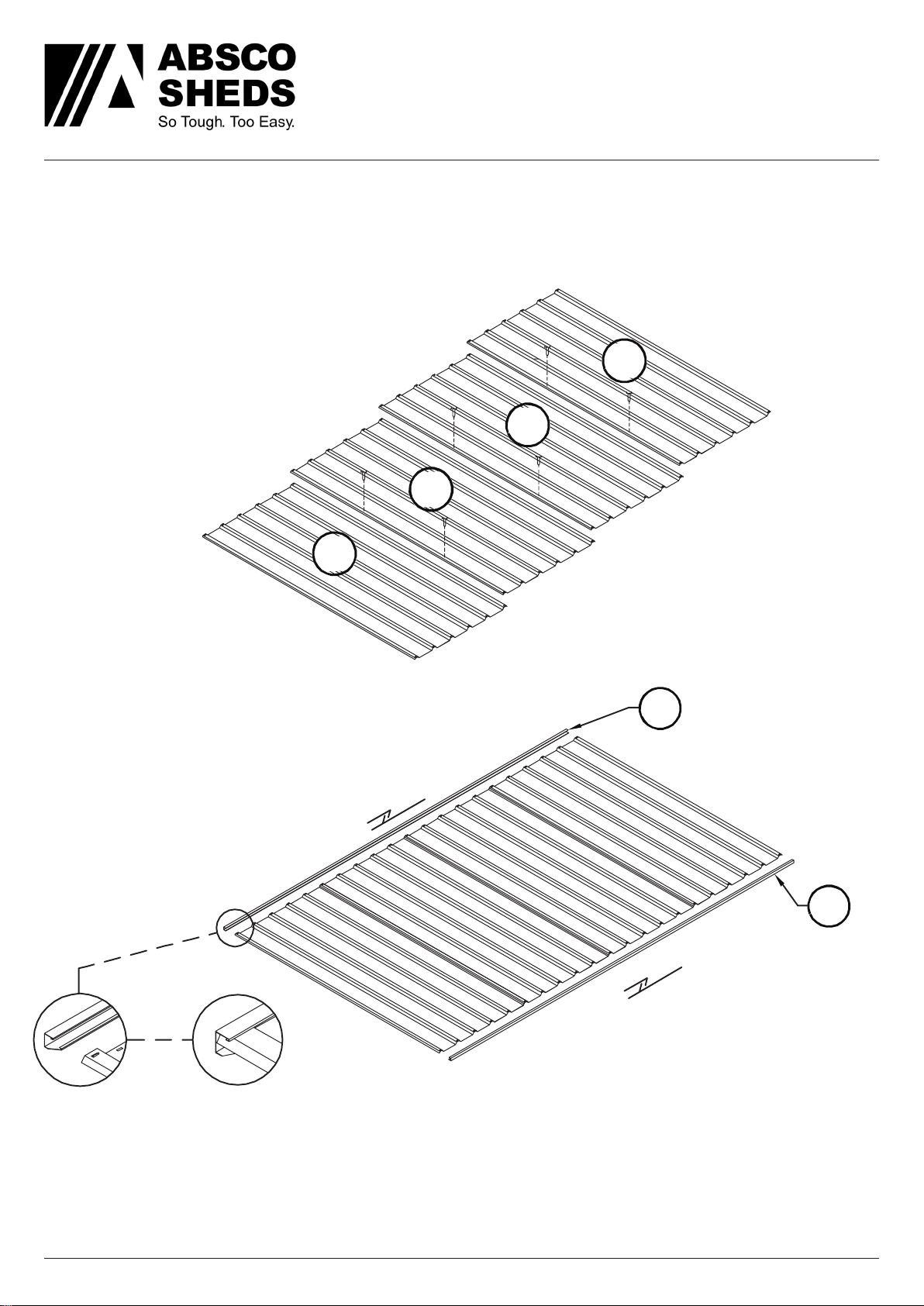

REAR PANEL ASSEMBLY
1x required.
30A
31A
31A
30A
81B
SNAP
T
TE
i
SNAP
T
TE
i
77B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 12

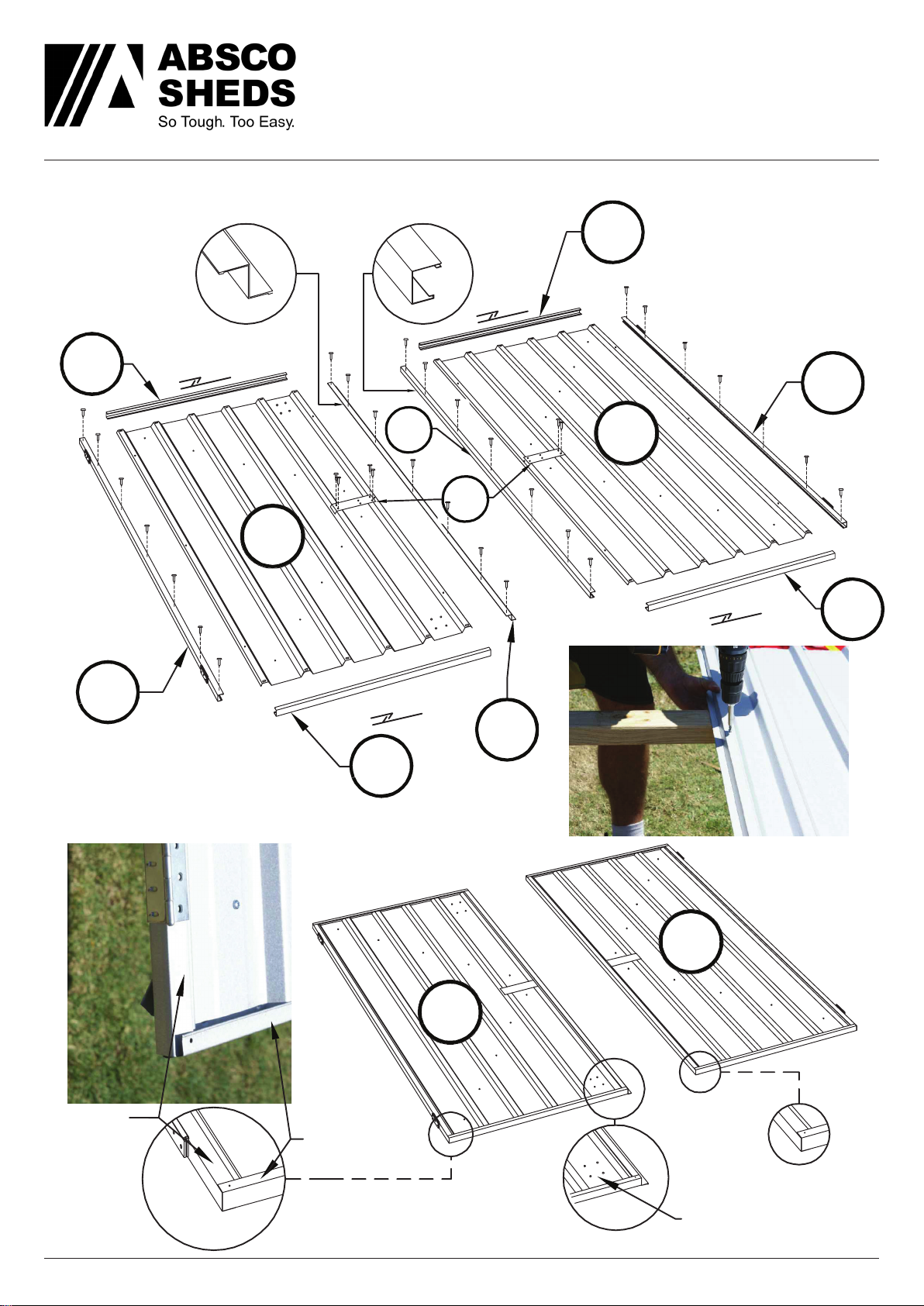

ROOF PANEL ASSEMBLY
2x required.
44L
44R
Fit 81E to edge
of sheet with pre-
punched holes.
SNAP
T TE
i
87B
81E
78C
87B
SNAP
T TE
i
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 13
SIDE PANEL ASSEMBLY
2x required.
SMALL PAN
32A
32A
59C
81I
SNAP
T TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 14
FRONT PANEL ASSEMBLY
89A
89A
34A
1x required.
34A
77A
90A
79A
55C
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T
TE
i
SNAP
T TE
i

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 15
DOOR PANEL ASSEMBLY
58C
58C
58C
12A
58C
58A
58A
A
B
89C
58B
A
B
SNAP
TTE
i
SNAP
TTE
i
SNAP
TTE
i
SNAP
T TE
i
Vertical door channels are
installed in the opposite
orientation compared to the
horizontal door channels.
Four hole set for
padbolt connection.
Short flange
of channel
Long
flange of
channel
D
D
D
D
D
D
D
D
1x required.

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 16

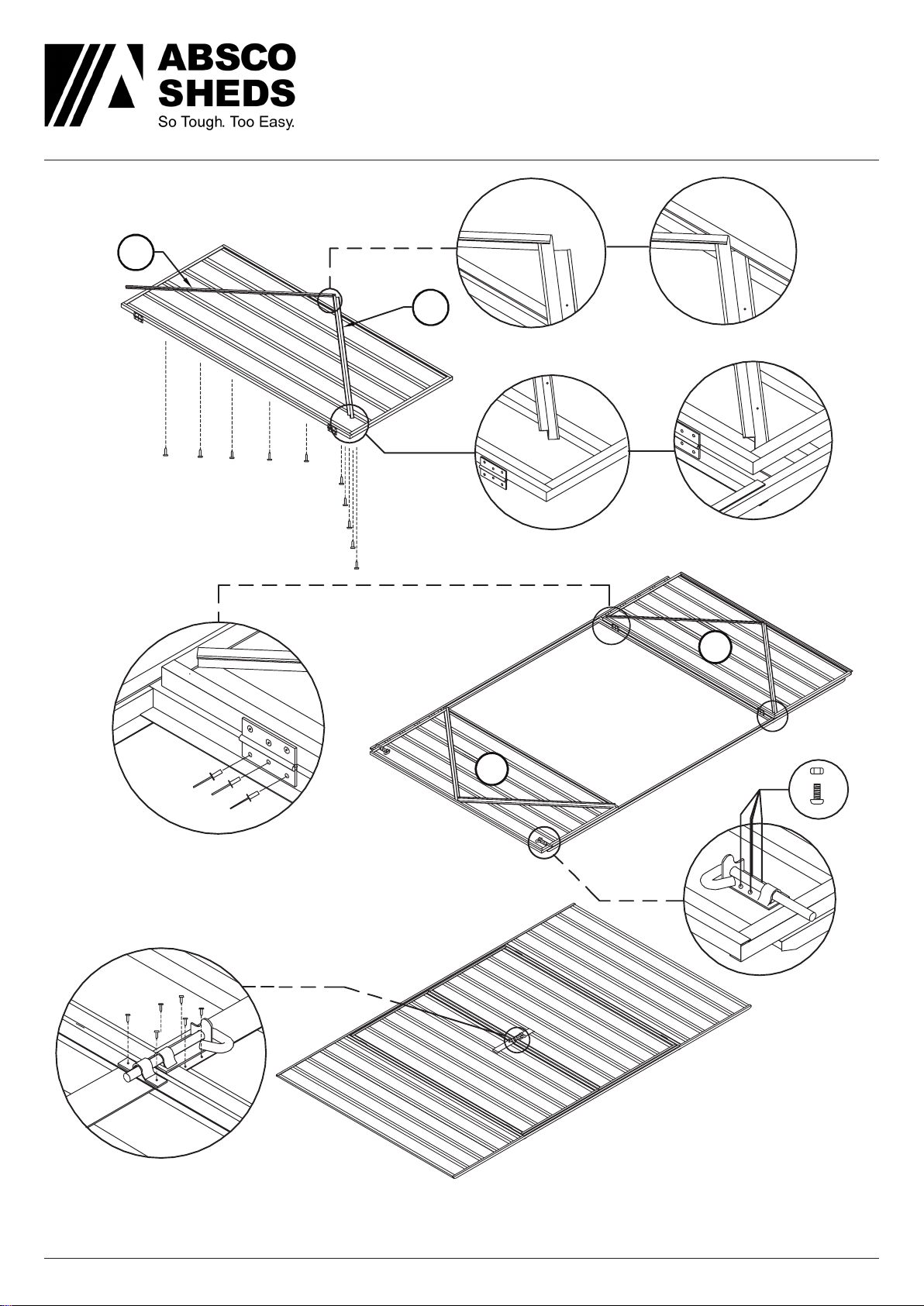

DOOR PANEL ASSEMBLY
Nuts and bolts may be used instead of pop rivets by
drilling out hinge holes using a 4mm drill bit. Both
are supplied.
The two holes required to connect the padbolt hasp for each door have not been pre-punched, to
allow for proper alignment, position each hasp centrally over the padbolt shaft and drill 3mm holes and
secure with screws.
91A
91A
A
B

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 17

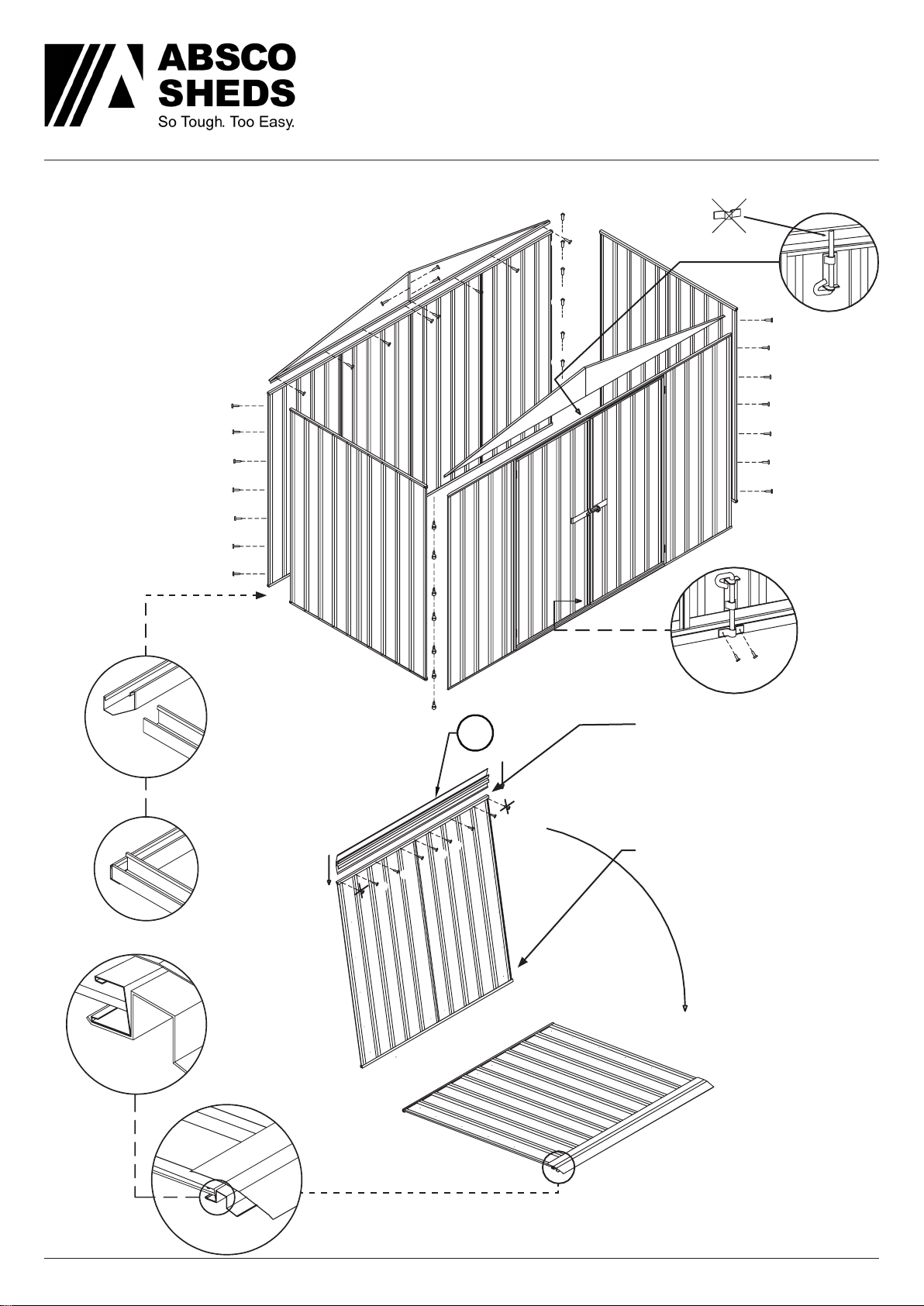

PANEL CONSTRUCTION
NOTE: Take care to ensure that all wall panels
are not upside down. The top channels
of each panel are pre-punched for
attaching roof sheeting. The
base channels are not pre-
punched.
Pre-punched
channel to
match ridge
beam holes
Side wall channels
fit into the
notched rear wall
channels.
Pre-punched holes in roof panel to this side
for connection to front and rear walls.
Orient panel so
channel (78C)
goes into ridge
beam
Channel (81L)
this end
97C
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 18

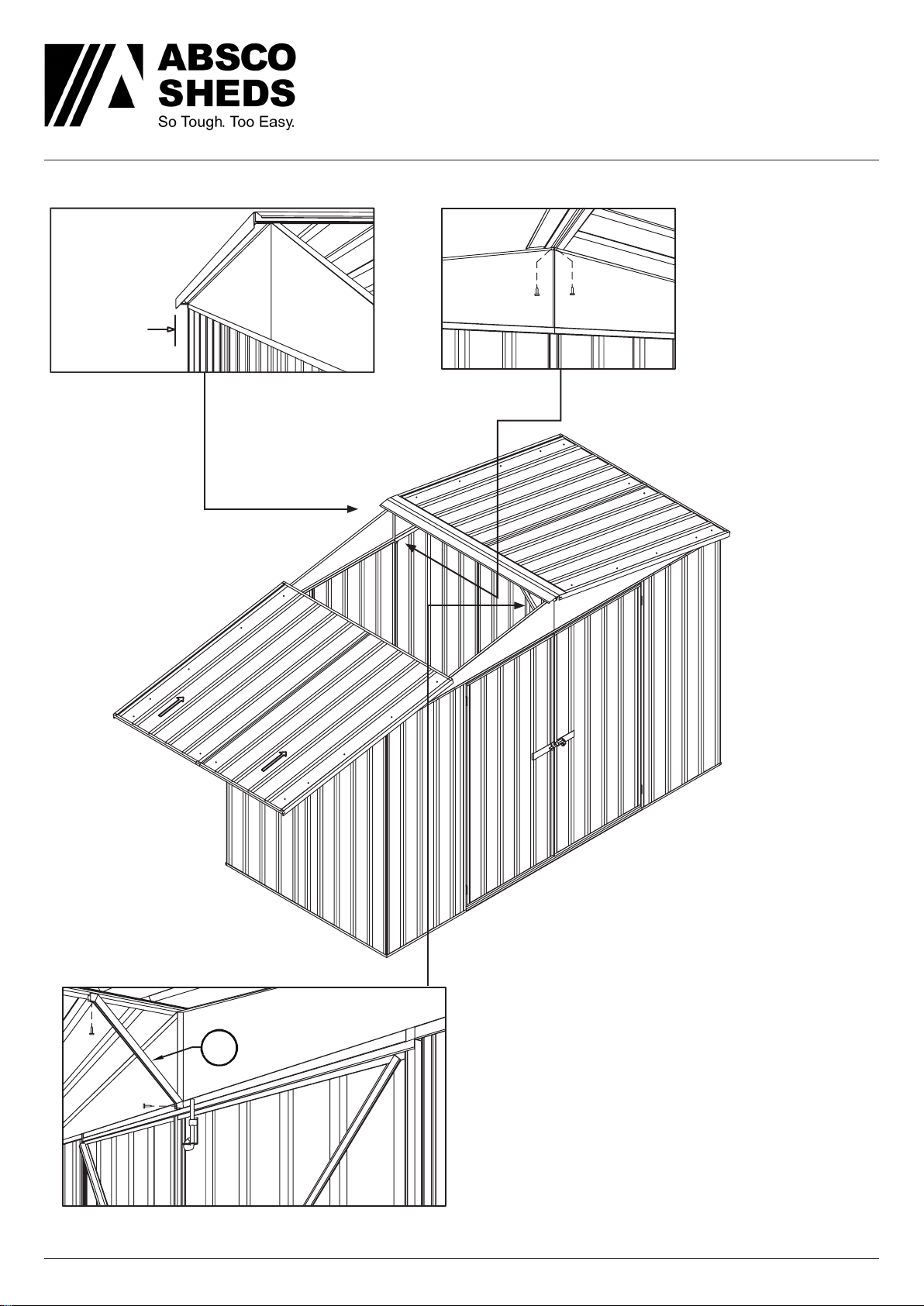

INSIDE VIEW OF FIXING
INSIDE VIEW OF FRONT WALL
OUTSIDE VIEW
37mm
ROOR OVERHANGS
ALL WALL PANELS
BY 37mm
13A
Secure ridge beam to
gable sections with
two screws at each
end. Secure each roof
panel with one screw
in each corner only at
this stage
After attaching both roof panels to walls as
shown above, fit one regent brace to the ridge
beam and front wall as shown. You will have to
remove and replace existing screws at fixing
locations. Repeat this procedure for the rear wall
regent brace

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 19
FINAL CONSTRUCTION
Each anchor consists of one nut, bolt, M10
dynabolt and steel angle.
Drill a 10mm hole into the wall sheet.
Drill a 10mm hole into the concrete.
Bolt and Nut*
M10 4.6/S
Steel Angle*
35 x 35 x 3
M10 Dynabolt*
* Denotes hot dip galvanised finish
Wall Sheet
Slab
14A
Bend the top and bottom
flanges as shown, then hook the
bottom flanges under the top
channel and screw top to the
ridge beam with two screws.
ANCHORING OF
SHED
Location of 12
concrete anchors
1000
700
445 5050
700
1000
445 445 445 5050
D
D
D
D
D
D
D
D
D
D
D
D

Absco Industries Assembly Instruction Manual
ABSCO REGENT SHED
MODEL: 30142RK
3.00mW x 1.44mD x 2.10mH
Model: 30142RK 15/01/21 1.1 20
Absco Gable Roof Shed Notes
• 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifications and
written instructions provided by Absco and/or their representatives.
• 2.G The drawings provided herein are for installation and structural engineering purposes only.
• If discrepancies are discovered within the documentation provided, these shall be brought to the attention
of Absco and written approvals obtained prior to commencing the affected section of work.
• 3.G If in doubt ask.
• 4.G Until approvals from the local authorities are obtained, commencement of construction from these
drawings shall not commence.
• 5.G Unless varied by the project specification, all materials and workmanship shall be undertaken in
accordance with the relevant Australian standards and the by-laws and ordinances of the relevant building
authorities.
• 6.G All dimensions indicated in these drawings shall be verified on site by the installation contractor. Scaling
of drawings shall not be undertaken.
• 7.G Prior to commencing works on site, the contractor shall verify the position of all services in the area to
ensure that the construction does not interfere with any of those services.
• 8.G During installation on site the shed structures shall be maintained in a stable condition with no part
becoming overstressed or permanently deformed.
• 9.G In circumstances where the shed has been installed in a manner which is inconsistent with the installation
manual, structural certification shall be void.
• 10.G The structural components detailed within this installation manual have been designed for the following
loads in accordance with AS/NZS1170 based on a Class 10a, Type 2 structure:
• Roof Live Load: 0.25 kPa uniformly distributed or 1.1 kN concentrated as per AS/NZS1170.1
• Wind Load: Classification N2, Non-Cyclonic to AS4055 where Vu = 40 m/s, Vs = 26 m/s
Windward wall Cpe = 0.7
Leeward Wall Cp,e = -0.3 to -0.5 as applicable based on shed geometry
Side Wall Cp,e = -0.5 to -0.65 as applicable based on shed geometry
Roof Cp,e = -0.5 to -1.3 depending on wind direction
6-12 Activity St, Acacia Ridge QLD 4110
PO Box 119, Acacia Ridge QLD 4110
AU: 1800 029 701
NZ: 0800 466 444
[email protected]
www.abscosheds.com.au
General
