Abus TVCC34010 User manual

TVCC34010
User guide
Version 09/2013
English translation of the original German user guide. Keep for future use!

14
English
Introduction
Dear Customer,
Thank you for purchasing this product.
This device complies with the requirements of the applicable EU directives.
The declaration of conformity can be ordered from:
ABUS Security-Center GmbH & Co. KG
Linker Kreuthweg 5
86444 Affing
GERMANY
To maintain this condition and to ensure risk-free operation, you as the user must observe these operation
instructions!
Before initial start-up, read through the complete operating instructions observing operating and safety
instructions.
All company and product names mentioned in this document are registered trademarks.
All rights reserved.
If you have any questions, please contact your installer or your local dealer!
Disclaimer
This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please
inform us about these on the back of this manual given address.
The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves
the right to make at any time modifications to the product or user manual without a previous announcement.
The company is not liable or responsible for direct and indirect subsequent damages which are caused in
connection with the equipment, the performance and the use of this product.
No guarantee for the content of this document is taken.

15
English
Icon explanation
A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.
An exclamation mark in the triangle points to an important note in this user manual
which must be minded.
This symbol can be found when you are to be given tips and information on operation.
Important safety advice
The warranty will expire for damage due to non-compliance with these operating
instructions. ABUS will not be liable for any consequential loss!
ABUS will not accept liability for damage to property or personal injury caused by
incorrect handling or non-compliance with the safety-instructions.
In such cases the warranty will expire.
The following safety information and hazard notes are not only intended to protect your health, but
also to protect the device from damage. Please read the following points carefully:
There are no components inside the product that require servicing. Dismantling the product
invalidates the CE certification and the guarantee / warranty.
The product may be damaged if it is dropped, even from a low height.
Install the device so that the image sensor is not subjected to direct sunlight. Pay attention to the
installation instructions in the corresponding section of this user guide.
Avoid the following adverse conditions during operation:
Moisture or excess humidity
Extreme heat or cold
Direct sunlight
Dust or flammable gases, vapours, or solvents
Strong vibrations
Strong magnetic fields (e.g. next to machines or loudspeakers)
The camera must not be installed on unstable surfaces
General safety information:
Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc.,
can pose a danger to children if played with.
The surveillance camera contains small parts which could be swallowed, and should be kept out of
reach of children for safety reasons.
Do not insert any objects into the device through the openings.
Only use replacement devices and accessories that are approved by the manufacturer. Do not
connect any non-compatible products.
Please pay attention to the safety information and user guides for the other connected devices.
Check the device for damage before commissioning. Do not put the device into operation if you detect
any damage.
Adhere to the operating voltage limits specified in the technical data. Higher voltages could destroy
the device and pose a health risk (electric shock).

16
English
Safety information
1. Power supply: power supply unit 100–240 V AC, 50/60 Hz /12 V DC, 1,5 A (included in the scope of
delivery)
Only operate this device on a power source which supplies the power specified on the type plate. If you
are unsure which voltage is supplied at the installation location, contact your power supply company.
Disconnect the device from the power supply before carrying out maintenance or installation work.
2. Overloading
Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric
shocks.
3. Cleaning
Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.
Disconnect the device from the power supply while doing so.
Warnings
Observe all safety and operating instructions before putting the device into operation for the first time.
1. Observe the following information to avoid damage to the power cable and plug:
Do not modify or manipulate the power cable or plug.
Do not bend or twist the power cable.
Do not pull the cable when disconnecting the device from the power –always take hold of the
plug.
Ensure that the power cable is positioned as far away as possible from any heating equipment,
as this could otherwise melt the plastic coating.
2. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.
Never open the housing or power supply unit.
Do not insert any metallic or flammable objects into the device.
Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical storms).
3. Disconnect defective devices from the power immediately and contact your specialist dealer.
During the installation into an existing video surveillance system make sure that all devices
are disconnected from the low and supply voltage circuit.
If in doubt allow a professional electrician to mount, install and wire-up your device. Improper
electrical connection to the mains does not only represent at threat to you but also to other
persons.
Wire-up the entire system making sure that the mains and low voltage circuit remain
separated and cannot come into contact with each other in normal use or due to any
malfunctioning.
Unpacking
While you are unpacking the device please handle it with utmost care.
If you notice any damage of the original packaging, please check at first the device.
If the device shows damages, please contact your local dealer.

17
English
Table of contents
1. Intended use ............................................................................................................18
2. Scope of delivery.....................................................................................................18
3. Features and Functions..........................................................................................18
4. Camera description.................................................................................................19
5. Mounting / installation ............................................................................................19
5.1 Mounting the camera...................................................................................19
5.2 Aligning the camera.....................................................................................20
5.3 Power supply...............................................................................................21
5.4 Installing the video cable.............................................................................21
6. Maintenance and cleaning......................................................................................21
6.1 Maintenance................................................................................................21
6.2 Cleaning......................................................................................................22
7. Disposal ...................................................................................................................22
8. Technical Data.........................................................................................................22

18
English
1. Intended use
The dome camera is designed for both daytime and night-time use. Thanks to its protection class IP66 it
can used both inside and outside. The day/night outdoor dome camera is equipped with a high-quality
image sensor. It is used for video surveillance in conjunction with a recording device or surveillance
monitor.
For a detailed description of functions, refer to Section 3, “Features and functions”.

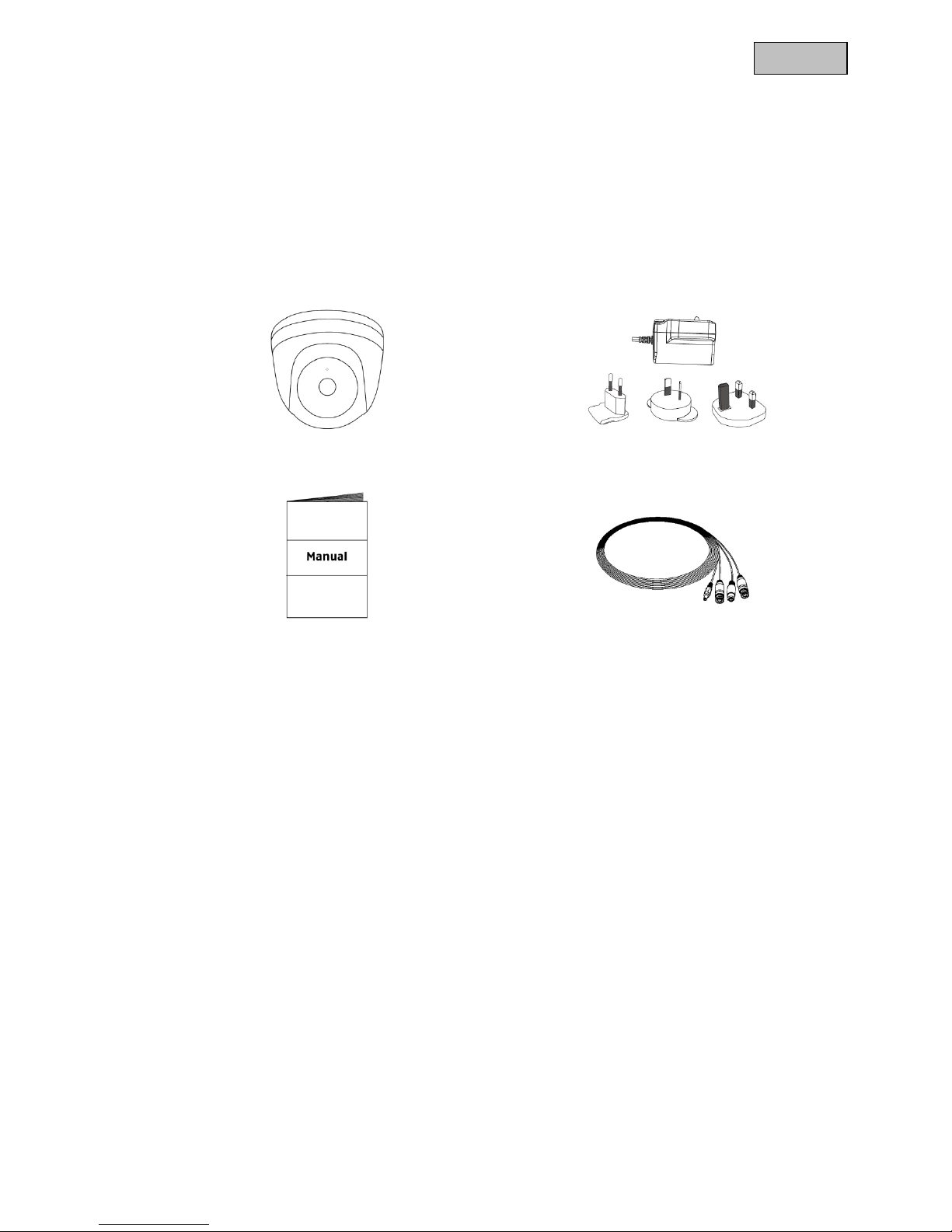

2. Scope of delivery
Day/night mini outdoor dome camera
including mounting material
Power supply unit including EU, Australian and UK
adapters
12 V DC / 1.5 A
Manual
20 m combination cable
3. Features and Functions
Compact day/night vision outdoor dome camera
Various camera installation options –whether indoors or outdoors
Simple design and high protection class (IP66)
Detailed high resolution, thanks to 600 TVL
Includes 20 m combination cable
Ideal for the extension of TVVR30004 or TVVR30104

19
English
4. Camera description
1
Camera cap
2
Base plate
3
Camera body
4
IR LEDs
5
Lens
6
Power supply
7
Video signal
5. Mounting / installation
5.1 Mounting the camera
IMPORTANT!
The camera must be disconnected from the power supply during installation.
Loosen the fixing screws for the camera cap and remove them. Use the accompanying drilling template
for drilling the mounting holes. Secure the base plate with the screws and dowels provided.
1
2
3
4
5
6
7

20
English
Guide the cable through the base plate, and when necessary, through the side opening. Then screw on
the camera cap and secure with the fixing screws.
5.2 Aligning the camera
Loosen the fixing screws in order to align the camera.
The camera can now be aligned in 3 axes.
Please tighten the screws again when finished.
360°
0~90°
0~75°
Incline 75°
Pivot 90°
Rotation 360°

21
English
5.3 Power supply
IMPORTANT!
Before starting installation, ensure that the power supply system voltage and the rated
voltage of the camera are identical.
(1) Video signal (BNC)
(2) Power supply
12 V DC (5.5 x 2.1 mm)
The cameras have a 12 V DC power supply. Ensure correct polarity when connecting. A plug-in power
supply unit (round plug, 5.5 mm x 2.1 mm) is provided for the connection.
5.4 Installing the video cable
In order to transmit the video signal to a converter, monitor, or recorder, a coaxial cable of type RG59
with BNC plug (male) must be connected to the “Video OUT” connection. The cable length to the next
device may not exceed 150 meters. Suitable signal amplifiers can be installed to increase the range.
6. Maintenance and cleaning
6.1 Maintenance
Regularly check the product's physical state, e.g. check for damage of the housing.
If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure
that it cannot be used by mistake. Remove the batteries.
You can assume that safe operation is not possible anymore when
the device shows visible damage,
the device does not function anymore
Please note:
The product is absolutely maintenance-free for you. There are no components on the
inside of the product to be checked or services by you, never open it.
1
2

22
English
6.2 Cleaning
Wipe the product with a clean, dry cloth. If the device is very dirty, you can moisten the cloth with
lukewarm water.
Ensure that no liquids can get into the device.
Do not use any chemical cleaners, since they could damage the housing surface or the
screen (discolorations).
7. Disposal
Important: The EU Directive 2002/96/EC regulates the proper return, treatment and
recycling of used electronic devices. This symbol means that in the interest of
environmental protection the device must be disposed of separately from household or
industrial waste at the end of its service life in accordance with applicable local legal
guidelines. Disposing of used devices can be done at official recycling centers in your
country. Obey local regulations when disposing of material. Further details on returns
(also for non-European countries) can be obtained at your local authority. Separate
collection and recycling saves natural resources and ensures that all the provisions for
protecting health and environment are observed when recycling the product.
8. Technical Data
Model number
TVCC34010
Image sensor
1/3" DIS
Camera type
Day/night outdoor camera
Resolution
600 TVL
Pixels (effective)
720 (H) x 480 (V)
Lens
3.6 mm, fixed lens
Horizontal angle of view
68.4°
Day/night switch
Electromechanical IR-cut filter
Minimum illumination (colour)
0.1 lux
Minimum illumination (IR)
0 lux
Noise reduction
> 52 dB
Electronic shutter control
1/25 ~ 1/15,000 sec.
Backlight compensation
Yes
Video system
PAL / NTSC
IR LEDs
12
IR range
10 m
Connections
Video signal (BNC), power supply (DC)
Power supply
12 V DC
Power consumption
Max. 5 W
Operating temperature
-20 °C –50 °C
Humidity
Max. 90%
Protection class
IP 66
Dimensions (Hx)
89.6 mm x 59.1 mm
Weight
400 g
