Accessible Technologies ProCharger User manual

2018-2020 Mustang GT/Bullitt
Intercooled Supercharger System
Installation Guide

© 2019 Accessible Technologies, Inc.
Accessible Technologies, Inc.
14801 W. 114th Terrace
Lenexa, KS 66215
Phone: [phone]
Fax: [phone]
[e-mail]
All rights reserved. Accessible Technologies Inc. hereby grants permission to use and reproduce this
document for personal use, provided that all copyright information be retained. Reproduction of this
document for unauthorized commercial use is strictly prohibited.
Information in this document is subject to change without notice.
ProCharger is a registered trademark and The Intercooled Supercharging Experts!TM and Designed to
Blow Away the CompetitionTM are trademarks of Accessible Technologies, Inc. and may not be used
without express permission.
Revised 12/19 Part Number PMFW1A-010 Rev. E Printed in the USA
You should also have the following gauges available to properly check the finished installation and monitor
your vehicle’s performance (especially for testing):
• Manifold Boost Pressure Gauge • Fuel Pressure Gauge • Wide Band Oxygen Sensor and Gauge
Gauges should be of a type that can be read from the cockpit while performing a wide-open throttle road
test. Cockpit or hood-mounted gauges are preferable. In order to obtain usable readings, the gauges should
measure pressure at the intake manifold and fuel rail. IF VEHICLE DOES NOT MAINTAIN PROPER FUEL
PRESSURE (50-65 PSI), DECREASE THROTTLE APPLICATION IMMEDIATELY. In some cases, extra vehicle
modifications can strain the stock fuel pump. If your vehicle has difficulty retaining adequate fuel pressure,
contact ATI ProCharger about the availability of an upgraded fuel system.
The engine on which the ProCharger®is to be installed should retain the factory compression ratio. If it
has been modified in any way, please consult ProCharger staff before proceeding with the installation. This
supercharger system is intended for use on STOCK, strong, well-maintained engines/transmissions. Installation
on a worn or troublesome powertrain should be reconsidered. ATI PROCHARGER WILL NOT BE HELD
RESPONSIBLE FOR DAMAGE TO A VEHICLE’S POWERTRAIN. ATI ProCharger is not responsible for ECM
tuning/programming on non-stock vehicles. ATI PROCHARGER recommends verifying that your vehicle has
current ECM updates from the vehicle manufacturer before installation.
For best performance and reliability, always use premium grade fuel (91 octane or higher) and listen closely
for signs of detonation, which might sound like ball bearings rolling around in a tin can. IF DETONATION
SHOULD OCCUR, OR IF YOU ARE UNSURE WHETHER WHAT YOU’RE HEARING IS DETONATION,
DECREASE THROTTLE APPLICATION IMMEDIATELY and please consult ATI ProCharger staff. Detonation
should not be an issue with a properly installed intercooled supercharger system, though OEM factory-shipped
engine and parts inconsistencies are possible on any vehicle.

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide i
Introduction
Congratulations on purchasing your
ProCharger®2018-2020 Mustang GT/Bullitt
Intercooled Supercharger System. Read this
entire manual before you attempt to install
your ProCharger kit. It is imperative that you
follow all of the instructions in the order they
appear in this installation guide. If you have
any questions regarding any aspect of this
installation, call us at [phone].
For best results, we recommend reviewing
the installation instructions beforehand, and
following the installation instructions closely
and in sequence. A detailed packing list has
been provided to assist you in identifying the
components of your ProCharger system.
Warning: Read and understand all
safety precautions in this manual
before installation. Failure to comply
with instructions in this manual could
result in personal injury, property
damage, and/or voiding your warranty.
Warning: Your supercharged Mustang
must always be run on 91 octane or
better gas. The best way to insure
this is to run the tank near empty
(below 1/4) and fill with 91 octane for
several tanks prior to installing the
supercharger.
Required Tools and Supplies
• 3⁄8” Socket Set (standard & metric)
• Torx set
• Open End Wrench Set (standard & metric)
• 5⁄16” Nut Driver
• Hex Bit Set (allen) (standard & metric)
• Flat Screwdrivers
• Phillips Screwdrivers
• Plier Set
• Ford Engine Coolant (Pink)
• Reciprocating Saw/Cut-off Wheel
INTRODUCTION

ii 2018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Introduction
TABLE OF CONTENTS
Introduction .................................................................................................................................. i
Table of Contents..........................................................................................................................ii
Tuning .......................................................................................................................................... 1
Getting Familiar........................................................................................................................... 3
Air Inlet Removal ......................................................................................................................... 4
Fascia Removal ............................................................................................................................ 6
Cooling System Removal ........................................................................................................... 10
Throttle Body............................................................................................................................. 11
ProCharger Bracket and Head Unit............................................................................................ 13
Intercooler & Tubing .................................................................................................................. 17
Cooling System Installation........................................................................................................ 26
Surge System............................................................................................................................. 28
PCV System................................................................................................................................ 30
Air Inlet...................................................................................................................................... 31
Fuel Pump Booster .................................................................................................................... 34
Finishing Up............................................................................................................................... 38
Operation and Maintenance ......................................................................................................39
Limited Warranty ....................................................................................................................... 41
ProCharger Extended Coverage ................................................................................................ 42

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 1
Tuning
TUNING
inTune Programmer
Warning: Voltage fluctuations are a
common cause of reflashing failure.
Be sure your battery is fully charged,
remove the cooling fan and fuel pump
fuses, keep the stereo off, and do not
open or close any doors or windows
while reflashing.
Warning: During a reflashing, either
stay in the vehicle or open a window
prior to reflashing to prevent getting
locked out.
1Remove the inTune programmer from its
box and review the included instructions
for updating your device.
1) Connect the inTune programmer to
your PC with the provided USB cable.
Allow the device to load drivers to the
PC.
2) Run the inTune updater software.
2Connect the inTune programmer to the
OBD-II port located below the steering
column using the OBD-II cable included
with your programmer.
3Upload your stock tune from the ECM to
the inTune programmer:
1) Select Tune Vehicle
2) When prompted turn the key to the
on position without starting the engine
3) Select Advanced Tune
4) Select Install Standard Tune
5) Select Modify Stock Tune
4Follow the on screen prompts. Your
original backup will be saved.
1) Select Backup Only
5Connect the inTune programmer to your
PC with the provided USB cable. A
window will appear showing the inTune
as an additional storage device.
1) Select Open Files
2) Select Tunes
3) Select VIN Folder
4) Click and drag the Original Backup file
to your PC’s desktop or hard drive
6Email the Original Backup file to
[e-mail] with the
ProCharger serial number in the subject
line.
7You will receive the tune for your vehicle
within 24 hours. Save the modified tune
to your desktop or hard drive.

22018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Tuning
8Connect the inTune programmer to your
PC and open the inTune drive:
1) Click and drag the ProCharger Tune file
from your desktop or hard drive to the
inTune drive.
2) Allow the file time to load, do not
disconnect before the file has finished
loading
9Connect the inTune programmer to the
OBD-II port located below the steering
column.
10 Download the modified tune from the
inTune programmer to your vehicle:
1) Select Tune Vehicle
2) Select Advanced Tune
3) Install Custom Tune
4) Select Procharger
5) Select Apply Tune
11 Follow the on-screen prompts:
12 The ProCharger tune will now be written
to your vehicle. This process can take
several minutes.
Troubleshooting:
•If the programmer fails to install the
tune to your vehicle for any reason, it
will enter into “VEHICLE RECOVERY
MODE.” Reprogram the vehicle with
the “RESTORE VEHICLE” option before
attempting to install the ProCharger
Tune again.
13 Install the provided OBD-II port cover
(shown below) into the OBD-II port. This
will alert any person doing service work to
the vehicle to not re-flash the ecm possibly
causing severe engine damage or harm.
OBD-II Port Cover

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 3
Getting Familiar
GETTING FAMILIAR
A
B
C
Read and understand all safety precautions in this manual before installation. Failure to
comply with instructions in this manual could result in personal injury, property damage, and/
or voiding your warranty.
(A) Engine Cover
(B) Factory Air Inlet
(C) Radiator Cover
(D) Mass Air Flow (MAF) Sensor
Completion of this section will configure the
vehicle for system installation:
D

42018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Air Inlet Removal
Models Equipped With a Strut
Tower Bar:
1Use an 8mm to remove the screw
holding the wiring harness to the
passenger’s side strut tower.
2Unhook the plastic wiring harness holder
from the passenger’s side strut tower
stud.
3Use a 15mm to remove the (4) nuts
holding the strut tower bar. Remove
strut tower bar.
All Models:
4Remove the engine oil fill cap. Use flat
screw driver to pop off the (2) round
plastic caps on the engine cover. Use a
10mm socket to remove the nut below
each cover. Remove cover.
5Unplug the MAF connector by extending
the red locking tab and squeezing the
connector. Disconnect the harness from
the front side of the airbox.
AIR INLET REMOVAL
Wiring Harness Screw (Passenger’s Side)
Strut Tower Bar (Passenger’s Side)
Plastic Wiring Holder
Engine Cover Cap

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 5
Air Inlet Removal
6Remove the (1) small hose from the air
inlet tube by squeezing the retaining clip
and pulling back on the hose.
7Disconnect the medium-size PCV hose
by rotating the locking clip up and
pulling back on the hose.
8Use pliars to compress the clamp
holding the large hose to the inlet tube.
Disconnect the hose.
9Using a 7mm nut driver, loosen the inlet
connection to the throttle body.
10 Use a 10mm to remove the screw
holding the air box to the body.
11 Remove airbox and inlet tube assembly.
12 Remove the plastic clip holding the air
tube to the driver’s side strut tower.
13 Locate the tab holding the air tube
to the fuel line. Squeeze the tab to
disconnect.
14 Locate the nut holding the air tube to
the firewall, behind the engine on the
driver’s side. Using a 10mm socket,
swivel, and extensions, remove the nut.
Pull the air tube out of the driver’s side
firewall by pulling gently outwards.
15 Insert the supplied grommet found in the
air inlet bag into the hole in the firewall.
Disconnect Air Inlet Hoses
Small Hose
PCV Hose
Large Hose
Airbox Screw
10mm Screw
Firewall Nut

62018-2020 Mustang GT Intercooled Supercharger System Installation Guide

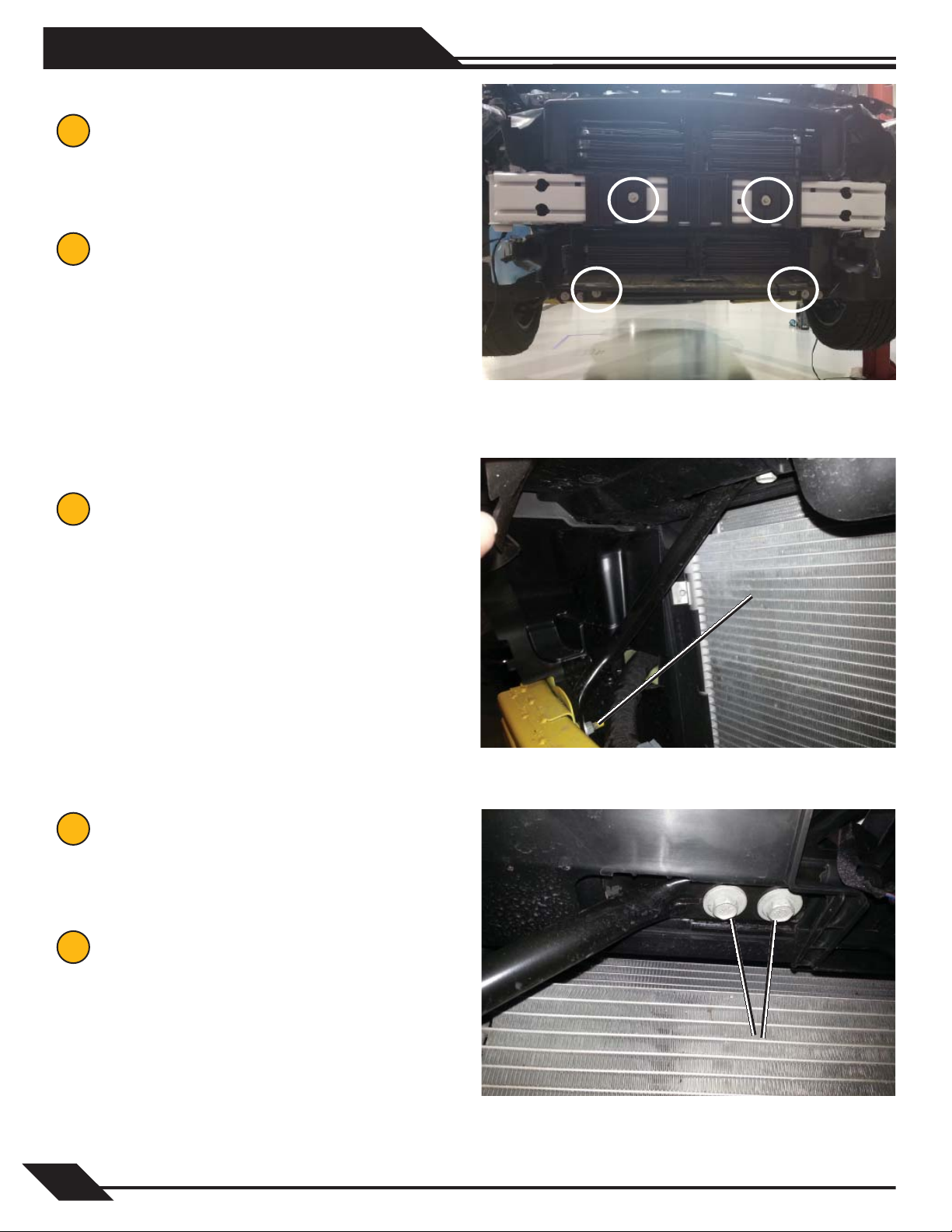

Fascia Removal
FASCIA REMOVAL
1Raise the vehicle just enough to access
the undercladding hardware. Secure with
jack stands.
2
Use a flat screw driver to remove the
(8) plastic clips that secure the radiator
cover. Remove cover.
3Use a flat screw driver to remove the (6)
undercladding plastic push-clips. (3 per
side). And also remove the (2) push pins
in the corners near the front tires.
4Use a 7mm to remove the 18 screws
holding the undercladding. Remove the
undercladding.
5Disconnect the fog light and turn signal
connectors, (1) connector per side.
6Use a flat screw driver to remove the
plastic push-clips holding the wheel liner
to the fascia in front of the tires. (3 per
side).
7Pull back the wheel liner to gain access
to the fascia-to-fender mounting just in
front of the tires. Use a 10mm to remove
the (2) nuts. Push down on the plastic
push clip to remove the plastic stud
housing.
Driver’s Side Push Clips
Push Clips
Remove Undercladding
Fender Nuts

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 7
Fascia Removal
8Push down on the plastic push clip to
remove the plastic stud housing.
9Use an 8mm to remove the (6) screws at
the top of the fascia.
10 There are (2) screws (1 on each side)
under the weather seal near the
headlight. Pull back the weather seal and
use a 5.5mm to remove the screws.
11 Remove the fascia.
If not equipped with active shutters:
12 Remove the radiator air baffle by
pushing down on the (6) clips that hold it
to the plastic fascia mounting structure.
Top Fascia Screws
8mm Screws
5.5mm Screws
Plastic Stud Housing Removed
Remove Air Baffle

82018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Fascia Removal
If equipped with active shutters:
13 Remove the active shutters from the
vehicle by removing the (4) 10mm bolts
and (2) push pins.
14 In order to release it from the vehicle
remove the (2) 5.5mm bolt from the
backside.
Track Pack Models:
15 Use a 13mm to remove the (2) nuts
holding the bumper brace to the back
side of the bumper (each side).
16 Use a 13mm to remove the (2) bolts
holding the bumper brace to the radiator
core support (each side).
17 Remove each side bumper brace.
Radiator Core Support Bolts
Remove Bolts
Bumper Brace Nuts
Remove Nuts
Remove Active Shutters

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 9
Fascia Removal
All Models:
18 2018 Models: Disconnect the ambient
air temperature sensor and its wiring
harness from the front bumper.
19 Remove the driver’s and passenger’s side
plastic radiator shrouds by removing the
(2) push pins and pulling the shrouds out
the front of the vehicle.
2018 Models will be connected by a
panel along the bottom.
20 If equipped, remove condenser end tank
covers.
Passenger’s Radiator Shroud

10 2018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Cooling System Removal
1Use pliars to disconnect the (3) hoses
attached to the coolant reservoir.
2Remove the front 3/8” rubber hose from
the vehicle. Disconnect from the radiator
located below the radiator mount.
3Remove the bottom 5/8” rubber hose
from the vehicle. Disconnect from the
thermostat housing located on the front
of the engine.
Tech Tip: Do not remove the remaing
3/8” rubber hose from the vehicle, it will
be used for new coolant tank installation.
4Use a 10mm to remove the (2) screws
holding the coolant reservoir to the fan
shroud. Save these screws as they will be
used in a later step. Remove the coolant
reservoir.
COOLING SYSTEM REMOVAL
Factory Coolant Reservoir
Front 3/8” Rubber Hose

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 11
Throttle Body
THROTTLE BODY
1Remove the throttle body position
sensor plug from the throttle body by
pulling the red tab outward and then
pulling the plug away.
2Remove the throttle body from the
intake plenum by removing the (4) bolts
using a 13 mm socket.
3Remove the EVAP line on top of the
throttle body routed into the front of the
intake plenum.
4Install the throttle body spacer onto the
intake plenum using the (4) M6-1.5 x 16
mm SHCS.
Tech Tip: The smooth side of the
throttle body spacer should mate against
the intake plenum.
5Install the provided throttle body gasket
into the groove on the throttle body
spacer.
TPS Sensor Plug
Throttle Body Removal
Throttle Body Spacer Installed
Remove Line

12 2018-2020 Mustang GT Intercooled Supercharger System Installation Guide
Throttle Body
6Rotate the throttle body180 degrees
from it’s original position as shown in the
picture. Install the throttle body to the
throttle body spacer using the provided
(4) M10-1.5 x 45 mm SHCS.
7Plug the throttle body position sensor
back into the throttle body. Reinstall the
EVAP line located above the throttle
body.
Throttle Body Installed

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 13
ProCharger Bracket and Head Unit
1Remove the (1) timing cover stud and
ground wire from the timing cover
located at the top right of the passenger
valve cover. Remove the (1) timing cover
bolt from the timing cover located at the
top left of the passenger valve cover.
2Insert the timing cover stud in the
location where the bolt was located.
3Drill the ground lug out to fit the timing
cover bolt. And insert the timing cover
bolt and ground wire in the top location
where the stud was located.
4Loosen but do not remove the (3) water
pump pulley bolts using a 10mm.
5Using a breaker bar and 15mm socket
release the tension from the factory
tensioner and remove the belt from the
vehicle.
6Remove the (3) water pump pulley bolts
and remove the water pump pulley from
the vehicle.
7Remove the (3) timing cover bolts using
a 10 mm socket.
Tech Tip: When installing the main
bracket to the timing cover. Automatic
Transmission: move the transmission
line such that the line will be laying on
top of the bracket after it is installed.
PROCHARGER BRACKET AND HEAD UNIT
Water Pump Pulley
Timing Cover Stud Relocation
Sub Bracket Mounting Holes

14 2018-2020 Mustang GT Intercooled Supercharger System Installation Guide
ProCharger Bracket and Head Unit
Main Bracket Mounted to Head Unit
3/8-16 x 1”
SHCS
5/16-18 x 0.75”
SHCS
8Mount the sub bracket onto the vehicle
by tightening the (3) M8-1.25 x 90 mm
SHCS through the bracket and through
either the 1.75” round spacers or 1.839”
round spacer into the timing cover.
9Tighten the (3) fasteners. Re-install the
water pump pulley by hand tightening
the (3) bolts previously removed.
10 Mount the main bracket to the head unit
in the orientation shown. Loosely tighten
the (4) 5/16-18 x .75 in SHCS and (1) 3/8-
16 x 1 in SHCS through the bracket and
into the head unit.
11 Tighten the (5) fasteners.
1.839” Tube
Spacer
1.75” Tube
Spacer
M8x1.25 x 90mm
SHCS
Sub Bracket Assembly
Sub Bracket Assembly Mounted

2018-2020 Mustang GT Intercooled Supercharger System Installation Guide 15
ProCharger Bracket and Head Unit
12 Mount the main bracket and head unit to
the sub bracket on the vehicle. Loosely
tighten the (3) M10-1.5 x 60 mm bolts
through the washers, bracket, and
1.437” round spacers then into the sub
bracket.
Tech Tip: Route the radiator hose
beneath the procharger. At this point
it may be easier to disconnect the
radiator hose from the thermostat
housing. It will make it easier to access
the bolts.
13 Tighten the (3) fasteners.
Main Bracket Assembly
ProCharger Installed

16 2018-2020 Mustang GT Intercooled Supercharger System Installation Guide
ProCharger Bracket and Head Unit
14 Install the belt onto the vehicle. Tighten
the (3) water pump bolts.
Belt Routing Diagram
Main Bracket Mounted To Sub Bracket
