SETTING UPYOUR PEDOMETER
To record your distance and calories accurately, you will need
to set your stride length and body weight.
CHOOSING A MEASUREMENT SYSTEM
This unit is initially set to use English measurement units
(Miles and Pounds). To change the unit back and forth
between English and Metric units (Kilometers and
Kilograms), press the green RESET button for 5 seconds.
Finding Your Stride Length: Your stride length is the length of
one of your steps, measured from “toe to toe.”To measure,
walk 10 steps with your normal stride and measure the
TOTAL DISTANCE from the toe of your starting step to the
toe of your 10th step (see diagram below). Divide theTOTAL
DISTANCE by 10.This is your stride length. Example: If you
walk 22 feet, your stride length is 2.2 feet.
SettingYour Stride Length: Press the yellow MODE button
until arrow on bottom of display points to “DIST.” Press the
dark blue SET button once to enter setting mode. Display will
shift to show stride (for example, “F 1.95” means stride is set
to 1.95 feet). Press the dark blue SET button to increase stride
length. Press the green RESET button to reduce stride length.
Press the yellow MODE button to exit setting mode.
Setting Your Weight: Press the yellow MODE button until
arrow on bottom of display points to “CAL.” Press the dark
blue SET button once to enter setting mode. Display will
shift to show weight in pounds. For example, “L 165” means
weight is set to 165 lbs. Press the dark blue SET button to
increase weight setting. Press the green RESET button to
reduce weight setting. Press the yellow MODE button to exit
setting mode.
Setting the Clock: Press the yellow MODE button until the
arrow on the bottom of the display points to the clock icon .
Press the dark blue SET button to enter clock setting mode
(clock readout will flash). Press the green RESET button to
advance Hours. Press the dark blue SET button to advance
Minutes. Press the aqua DAY/CUM button to shift between
12 and 24 hour mode. (“H” will show in display for 24 hour
mode.) Press the cream MEMORY button to change the day
of the week setting. Press the yellow MODE button to exit
clock setting mode, or wait a few seconds for pedometer to
automatically exit clock setting mode.
WEARING YOUR PEDOMETER
While gently holding the belt clip open, slide the pedometer
onto your belt or the top edge of your pants or skirt. It should fit
snugly and level, above one knee.
Note: The pedometer should be as vertical as possible. Walkers
with larger stomachs may find it helpful to wear the pedometer
farther back on the body, toward one hip.
The cover must be closed for the pedometer to work.To avoid
losing or dropping your pedometer, use the included leash and
clip to fasten the pedometer securely to your clothing.
Attaching the Leash: Attach the pedometer to the leash by
looping the leash around the pedometer belt clip. Next, clasp
the waistband of your clothing with the attached metal clip.You
can also use a safety pin to fasten the leash to your clothing, or
loop the leash through your belt or belt loop.
ACCUSPLIT, Inc. • 2290M Ringwood Ave. • San Jose, CA 95131
800-965-2008 • 925-226-0888 • FAX [phone] • www.ACCUSPLIT.com • [e-mail]
10 steps
Congratulations on taking the first step to wellness
with your purchase of an ACCUSPLIT pedometer.
It’s easy to set up your new pedometer.
Just follow the steps below, and start walking!
MEMORY PEDOMETER
OPERATING INSTRUCTIONS
ACCUSPLIT®
EAGLE™1691M17
970-047
VIEWING YOUR RESULTS
Once you put on your pedometer with the cover closed, it will
automatically begin to record your steps, distance, calories
burned, and activity time. Repeatedly press the yellow MODE
button to cycle through the pedometer modes:
SCAN →STEPS →DISTANCE →CALORIES →ACTIVITY
TIMER →TIME OF DAY →RATE →SCAN
First, loop the
pedometer clip
Next, loop the metal
clip, then clasp clothing
Or, loop a
badge holder, then
put into pocket
(Badge holder
not included)
Or, loop a belt
or belt loop
Eat Right! Walk More! Live Well!
The ACCUSPLIT Lifestyle

MEMORIES
This pedometer has memories to keep track of your activity
data for today, this week, and last week. The unit stores
your steps, distance, calories, and activity time data for
each of these time periods. It can also display your daily
averages of these measures for the previous week.
To view today’s data, press the aqua DAY.CUM button until
a bar appears underneath the DAY indicator in top right
hand corner of display. Now, repeatedly
press the yellow MODE button to view
steps, distance, calorie, and activity time
values for the day.
ACCUSPLIT
EAGLE
S
E
T
R
E
S
E
T
(2S)
1691M17
TW15MG
STEP DIST CAL PACE
DAY WK PREV
WK-DAY
PREV WK
MODE
M
SUN
0
MY
MEMORY™
Dark Blue:
SET
Green:
RESET Yellow:
MODE
Cream:
MEMORY
Aqua:
DAY/CUM
“Day of Week” indicator
Current mode
arrow indicator
REGISTER NOW Please return
your AE1691M17 Registration to
the Repair Center address in the
warranty, and we will let you know
about future products.
Email (preferred)
User NO-PROOF-OF-PURCHASE LIMITED WARRANTY
See label inside the lid of your pedometer
ACCUSPLIT
EAGLE
S
E
T
R
E
S
E
T
(2S)
1691M17
TW15MG
STEP DIST CAL PACE
DAY WK PREV
WK-DAY
PREV WK
MODE
M
SUN
0
MY
MEMORY™

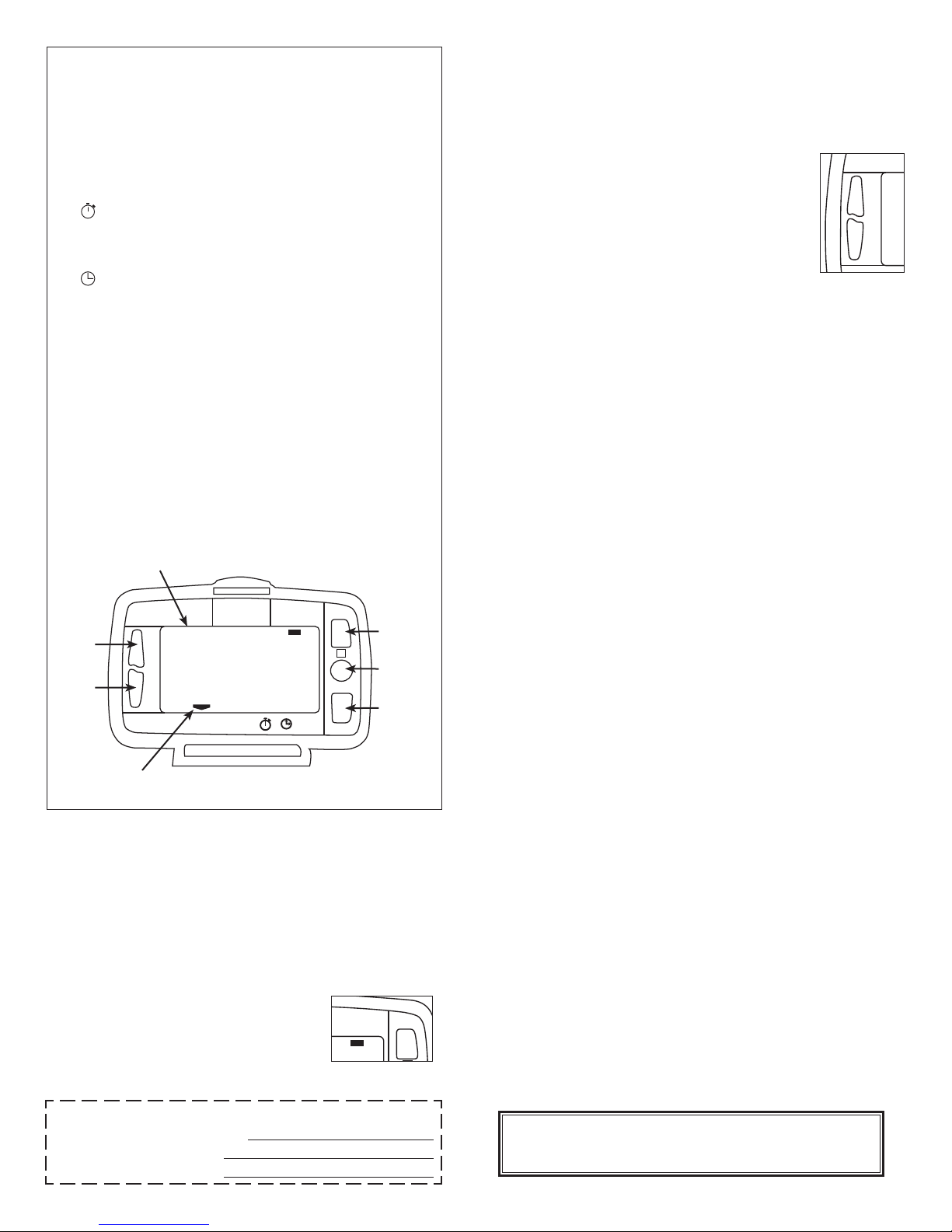

DISPLAY MODES
Press the yellow MODE button to cycle through:
• STEP: STEP mode shows your step count since last
reset, up to 200,000 steps.
• DIST: DISTANCE mode shows distance walked or
jogged since last reset, in miles or kilometers.
• CAL: CALORIE mode shows calories burned
through step activity since last reset.
• : ACTIVITYTIMER MODE shows total activity
time in minutes and seconds then hours and
minutes since last reset.The timer runs automati-
cally whenever steps are being recorded.
• : CLOCK mode shows time of day and day of week.
• PREV WEEK: Pressing the cream MEMORY button
shows average daily or total steps, distance,
calories, or activity time for entire previous week
(see below).
• DAY.CUM: Pressing the aqua DAY/CUM button
shows the total steps, distance, calories, or activity
for the current week (see below).
• SCAN mode: Loops through each display mode,
briefly showing step count, then distance, then
calories.
• RATE mode: Shows current rate of stepping.
Press the dark blue SET button to switch between
displaying Steps Per Minute and Miles Per Hour
(Km Per Hour). (“ML” will show in left display area
in Miles Per Hour mode.)
To view this week’s total data, press the aqua DAY.CUM button
until a bar appears underneath the CUM indicator in top right
hand corner of display. Now, repeatedly press the yellow MODE
button to view steps, distance, calorie, and activity time values
accumulated so far this week.
To view the previous week’s data, you must start
from the steps, distance, calories, or activity timer
mode. Press the cream MEMORY (WK-AVG) button
until a bar appears underneath the WEEK indicator
in the top right hand corner of display, and the
indication “TL” (for Total) appears on the left hand
side of the display. The day of the week indicators
will all start to flash. Now, repeatedly press the
yellow MODE button to view the TOTAL steps, distance,
calorie, and activity time values for last week. Press the cream
MEMORY button once more to view the DAILY AVERAGE of
steps, distance, calories, and activity time for last week. The
indicator on the left hand side of display will change to say
“Avg” (for AVERAGE). To exit back to today’s or this week’s
data, press the cream MEMORY button one more time.
AUTO MOVEMENT SENSOR
1. To filter out random movements, the unit remains in standby
mode until 5 continuous steps are registered. Only then are
the 5 steps calculated in, and an Active indicator “▲”
appears on the upper left of display.
2. When regular walk/run movement stops, after 2 seconds the
timer pauses and the unit switches to standby status (Active
indicator “▲” disappears).
RESETTING YOUR PEDOMETER
Auto Zero Reset:The daily count of steps, distance, calories,
and activity time resets each night automatically at 2:00 AM.
However, the records will remain on the display until you have
taken your first five steps (so that you can manually record them
if desired). At 2:00 AM on Sunday, the previous week’s records
will also be reset to zero, but they remain on the display until
you’ve taken your first five steps of the week. At this point, they
will be transferred to the previous week’s memory.
Manual Zero Reset:You can also manually reset your pedometer
at any time. To reset today’s memories, first press the aqua DAY.
CUM button until the bar indicator appears underneath the DAY
indicator. Next, press and hold the green RESET button for at
least two seconds. To reset the current week’s memories, first
press the aqua DAY.CUM button until the bar indicator appears
underneath the CUM indicator. Next, press and hold the green
RESET button for at least two seconds.
REPLACING THE BATTERY
When the display starts to dim or goes blank, it is time to replace
the battery.Your pedometer uses oneType LR43 (L1142) 1.5 volt
alkaline battery.To replace:
1. Insert a coin into the slot on the bottom of the case, and twist
counterclockwise to loosen the case front. Lift case front away.
2. Using a pen or other thin object, push battery sideways out
of its holder. Replace it with a new battery.The battery’s
positive (+) terminal should be FACE UP while you put it into
the pedometer.
3. Align case front over the pedometer and press gently to snap
cover back into place, starting with top.
ACCUSPLIT
EAGLE
S
E
T
R
E
S
E
T
(2S)
1691M17
TW15MG
STEP DIST CAL PACE
DAY WK PREV
WK-DAY
PREV WK
MODE
M
SUN
0
MY
MEMORY™
TL
