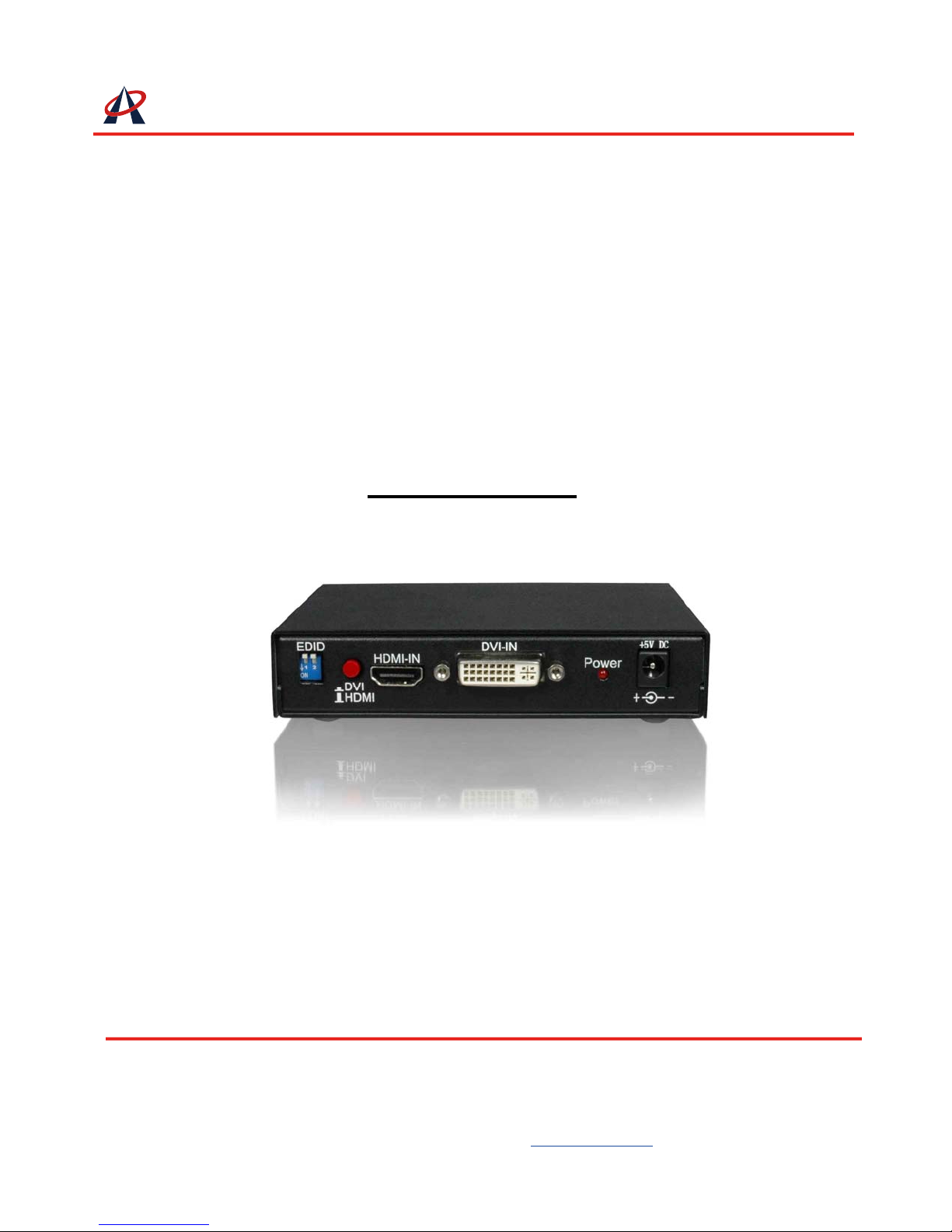

Ace Plus EX-G039 User manual

EX-G039
HDMI/DVI to VGA/Component & Audio
Converter
User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 1 of 9

Safety and Notice
The EX-G039 HDMI/DVI to VGA/Component & Audio Converter has been tested for
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, EX-G039 should be used with care. Please read and follow
the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the
unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
zUse only the power adapter, power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
Introduction
This EX-G039 HDMI/DVI to VGA/Component & Audio Converter offers an easy and instant
approach for converting digital HDMI to analog PC video (VGA) and component video (YPbPr) with
digital audio (S/PDIF) and analog stereo audio. With this module, YPbPr/VGA based receivers such as
LCD monitors or plasma TV can be readily connected to HDMI sources such as DVD players or PS3.
In addition, the embedded HDMI / DVI selector facilitates the switch between the HDMI and DVI input
sources. This cost effective solution automatically upgrades your non-HDMI equipped monitor to
become HDMI enabled, and make high definition video and audio more achievable and accessible.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 2of 9

Features
zHDMI 1.2a & DVI 1.1 compliant
zHDMI video supports up to 1080p
zSupport HD (1080i / 720p) component video output
zSupport up to UXGA PC graphics output
zCoaxial S/PDIF audio output
zStereo analog audio output
zFront panel LED indicators and push button
zEDID learning ability

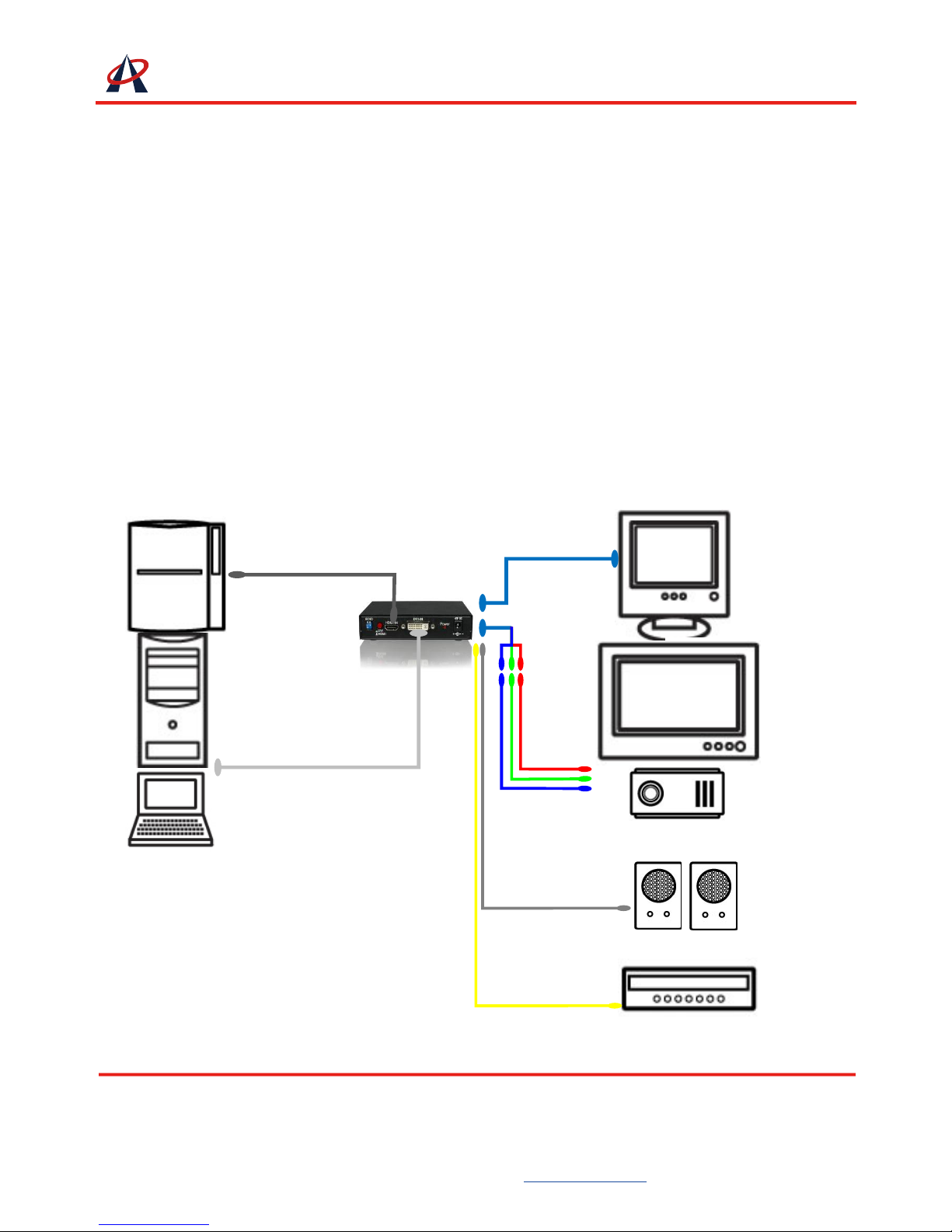

V
GA monito
r
HDMI source
VGA cable
HDMI cable
EX-G039
VGA-to-YPbPr
adapter
HDT
YPbPr or VGA display/projector
DVI source
DVI cable
YPbPr cable
Analog PC Speaker
RCA a
Ea
udio cable
io cablerphone aud
S/PDIF AV Amplifier
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 3of 9

Specifications & Package Contents
Model Name EX-G039
Technical
Role of usage D/A converter
HDMI compliance HDMI 1.2a
DVI compliance DVI 1.1
Video bandwidth Single-link 165MHz [4.95Gbps]
Video support Up to 1080p60, WUXGA [1920x1200@60] & UXGA
[1600x1200@60]
Audio support Stereo audio
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
Input 1x HDMI
1x DVI
Output
1x VGA/Component (through VGA-YPbPr adapter)
1x RCA digital audio
1x 3.5mm analog audio
HDMI connector Type A [19-pin female]
DVI connector DVI-I [29-pin female digital only]
VGA connector HD-15 [15-pin D-sub female]
RCA connector Coaxial socket for S/PDIF digital stereo audio [PCM 48kHz]
3.5mm connector Earphone socket for analog stereo audio
Push button [1] HDMI/DVI input switch / [2] VGA/component output switch
DIP switch 2-pin for EDID learning
Mechanical
Case Metal
Model 128 x 100 x 28mm [5.0”x3.9”x1.1”]
Package 270 x 175 x 80mm [10.6”x6.9”x3.1”]
Dimensions
[L x W x H] Carton 450 x 370 x 300mm [1’5.7”x1’2.6”x11.8”]
Model 425g [15oz]
Weight Package g [oz]
Fixedness Wall-mounting case upon request
Power supply 5V 2A DC
Power consumption 6 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents
1x EX-G039
1x VGA-Component breakout cable
1x 5V power adapter
1x User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 4of 9

Supported Resolutions
PC Graphics (DVI/VGA)
VESA 640x400
@85Hz
VESA 1024x768
@60Hz
VESA 1280x960
@85Hz
1152x864@60Hz
VESA 720x400
@85Hz
VESA 1024x768
@75Hz
VESA 1280x1024
@60Hz
Mac 480-66A
VESA 640x480
@72Hz
VESA 1024x768
@85Hz
VESA 1280x1024
@85Hz
Mac 480-66B
VESA 640x480
@75Hz
VESA 1152x864
@60Hz
VESA 1360x768
@60Hz
Mac 600-66
VESA 640x480
@85Hz
VESA 1152x864
@75Hz
VESA 1440x900
@60Hz
Mac 768-60
VESA 800x600
@60Hz
VESA 1280x768
@60Hz
VESA 1400x1050
@60Hz
Mac 870-75
VESA 800x600
@72Hz
VESA 1280x768
@75Hz
VESA 1400x1050
@75Hz
IBM 6000
VESA 800x600
@75Hz
VESA 1280x768
@85Hz
VESA 1920x1200
@60Hz
NEC 1024-70
VESA 800x600
@85Hz
VESA 1280x960
@60Hz
VESA 1600x1200
@60Hz
SUN 1024-76
Video (HDMI/Component-YPbPr)
EIA 720x480p @59.94(60)Hz
EIA 720x576p @50Hz
EIA 1280x720p @59.94(60)Hz
EIA 1920x1080i
@59.94(60)Hz
EIA 1920x1080p
@59.94(60)Hz
712x484 (NTSC)
702x574 (PAL)
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 5of 9

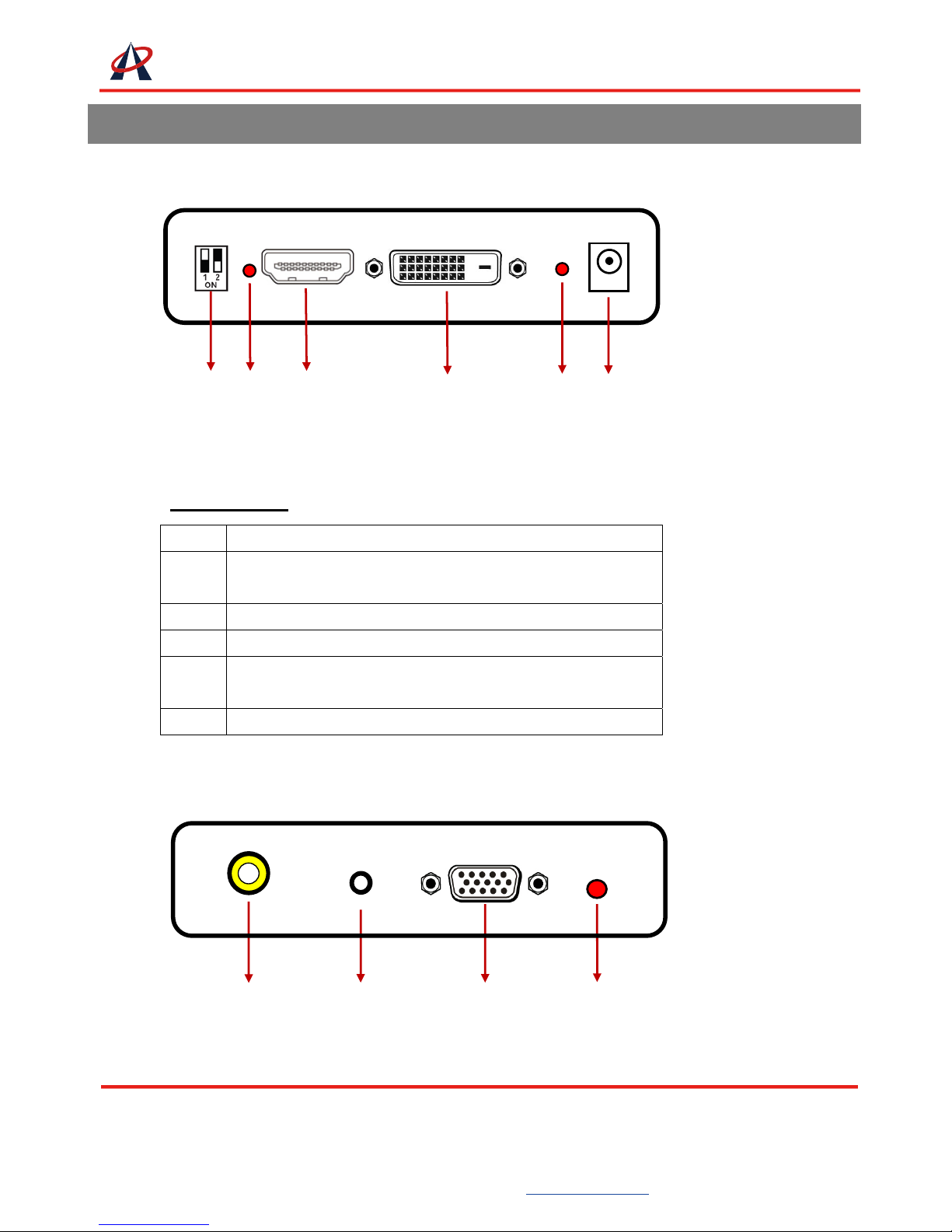

Panel Descriptions
Front Panel
6
5
2
1 3
+5V DC
4
1. DIP switch 3. HDMI input 5. Power indicator
2. HDMI/DVI switch button 4. DVI input 6. 5V DC
DIP Switch
1 Mode
On ªLearn EDID from VGA socket and save EDID to HDMI
socket
Off ©Write back the default EDID to HDMI socket
2
On ªLearn EDID from VGA socket and save EDID to DVI
socket
Off ©Write back the default EDID to DVI socket
Rear Panel
7 8 9
10
7. S/PDIF audio output 9. VGA/Component output
8. Analog audio output 10. VGA/Component switch button
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 6of 9

Hardware Installation
1. Connect HDMI or DVI source to the video input.
2. Connect S/PDIF or stereo audio source to RCA jack or 3.5mm jack.
3. For connecting to VGA display/projector, link VGA cable to the VGA output connector. For
connecting to component video display/projector, link VGA-to-YPbPr adapter first to the VGA
output connector then link a YPbPr cable between the adapter and the display/projector.
4. Power up the EX-G039.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 7of 9
1. Power up the EX-G039. Connect display to VGA/YPbPr Output.
2. To learn EDID for HDMI source, pull down the DIP switch 1 to ON, the red light will be dark and
bright to indicate the EDID learning process is complete. You DON’T NEED to pull up the DIP
switch again unless you want to learn another EDID by pulling DIP switch 1 up and down.
3. To learn EDID for DVI source, pull down the DIP switch 2 to ON, the red light will be dark and
bright to indicate the EDID learning process is complete. You DON’T NEED to pull up the DIP
switch again unless you want to learn another EDID by pulling DIP switch 1 up and down.
EDID Learning

1. Only HDMI enabled TV sets with underscan/overscan* support, the full active video can be
accurately displayed. Some HDMI equipped TV sets may not support this feature. If
underscan/overscan* is NOT supported, the top, bottom, left and right border of the active video
may be screened, and the S/PDIF audio may not sound right.
2. Analog stereo audio can merely support 2-channel audio. This version does NOT support
8-channel analog audio applications.
3. S/PDIF audio input supports 2-channel stereo audio input only.
4. S/PDIF supports only 48KHz audio sample rate. Other than this rate, the input digital audio should
be adjusted to 48KHz in order to get audio signal correctly sent.
*The underscan mode displays the full video frame, which reveals content on the edge that is
recorded. In overscan, the field monitor zooms in to the area that would be visible on most
televisions. Set the field monitor to underscan if your video will be viewed on a computer monitor
or shown with a projector and also to look for light stands, microphones, and other unwanted
objects on the edges of your shot. Set it to overscan to see how the video will look on a television.
Notice
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
Page 8of 9

Limited Warranty
The SELLER warrants the EX-G039 HDMI/DVI to VGA/Component & Audio Converter to be
free from defects in the material and workmanship for 1 year from the date of purchase from the
SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year
warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not
been subjected to accident, disaster, abuse or any unauthorized modifications including static
discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and
cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
Also, the technical information contained herein regarding the EX-G039 features and specifications is
subject to change without further notice.
