Ace Plus EX-G067C User manual

EX-G067C
Miniature HD/SD-SDI to Component Converter
User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 1 of 8

Safety and Notice
The EX-G067C Miniature HD/SD-SDI to Component Converter has been tested for
conformance to safety regulations and requirements, and has been certified for international use.
However, like all electronic equipments, EX-G067A should be used with care. Please read and follow
the safety instructions to protect yourself form possible injury and to minimize the risk of damage to the
unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
zUse only the power adapter and power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 2of 8

Introduction
The EX-G067C HD/SD-SDI to Component Converter provides high quality 12 bit conversion
between SDI digital video input and Component analog video output. Plus, with two extra retimed SDI
loop-outs, EX-G067C can also treated as an advanced SDI splitter. The EX-G067C supports both
SD-SDI and HD-SDI formats including SMPTE 259M, SMPTE 292M, and SMPTE 296M. The
miniature SDI converter with mounting ears provides users the most convenient and cost effective way
to complete the SDI conversion to the most popular component format with high quality guarantee!
Features
zExcellent quality 12-bit D/A conversion
zSupported high-definition (HD) formats: 1080i @50/59.94/60Hz, 1035i @50/59.94/60Hz, 720p
@50/59.94/60Hz
zSupported standard-definition (SD) formats: NTSC @59.94Hz, PAL @50Hz
zAuto HD/SD-SDI detection
zTwo equalized and retimed loop outputs
zEasy installation
zExternal DIP Switch Configuration
Application Diagram Here
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 3of 8

Specifications & Package Contents
Model Name EX-G067A EX-G067C EX-G067B
Technical
SDI standards SD-SDI & HD-SDI
Auto HD/SD-SDI
Detection Yes
Video bandwidth [1.485Gpbs & 1.485/1.001Gbps]
Video support [HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30
[SD] [email protected], PAL@50Hz
Audio Support N/A N/A Up to 8 Channels
Input signal [SD-SDI] SMPTE 259M
[HD-SDI] SMPTE 292M, 296M
Output signal HDMI (video only) /
Component video Component video
Component video
Balanced/Unbalanced
Audio
Output impedance 75Ω
Video DAC conversion 12 bits
Audio DAC conversion 24 bits
Synchronization mode Internal or external
synchronization Internal synchronization Internal synchronization
Cable equalization [HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Loop-out 2 equalized SDI loop-outs 2 equalized and re-clocked
SDI loop-outs
2 equalized and
re-clocked SDI
loop-outs
PCB stack-up 6-layer board [impedance control — differential 100Ω; single 50Ω]
Input 1x BNC [SDI]
Output
1x HDMI/DVI
1x Component
2x BNC [SDI]
1x Component
2x BNC [SDI]
8x RCA/XLR
1x Component
2x BNC [SDI]
BNC connector 75Ωinter-locked socket
HDMI connector Type A [19-pin female]
VGA connector HD-15 [15-pin D-sub female]
DIP switch
8-pin [output format / color
space / gain control /
pedestal]
None
4-pin [Audio Mute /
Audio Group /
Reserved / Reserved]
Mechanical
Housing Metal case
Model 160 x 110 x 25mm
[6.3”x4.3”x1”]
Package 270 x 175 x 80mm
[10.6”x6.9”x3.2”]
Dimensions
(L x W x H)
Carton 450 x 370 x 300mm
[1’5.7”x1’2.6”x11.8”]
Model 418g [0.9 lbs]
Weight Package 1031g [2.3 lbs]
Fixedness Inter-locked power supply
Power supply 5V 4A DC
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 4of 8

Power consumption 10 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents
1x EX-G067A
1x 5V power adapter
1x VGA-to-component
breakout cable
1x HDMI-to-DVI adapter
1x User Manual
1x EX-G067C
1x 5V power adapter
1x User Manual
1x EX-G067B
1x XLR Adaptor
1x 5V power adapter
1x User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 5of 8

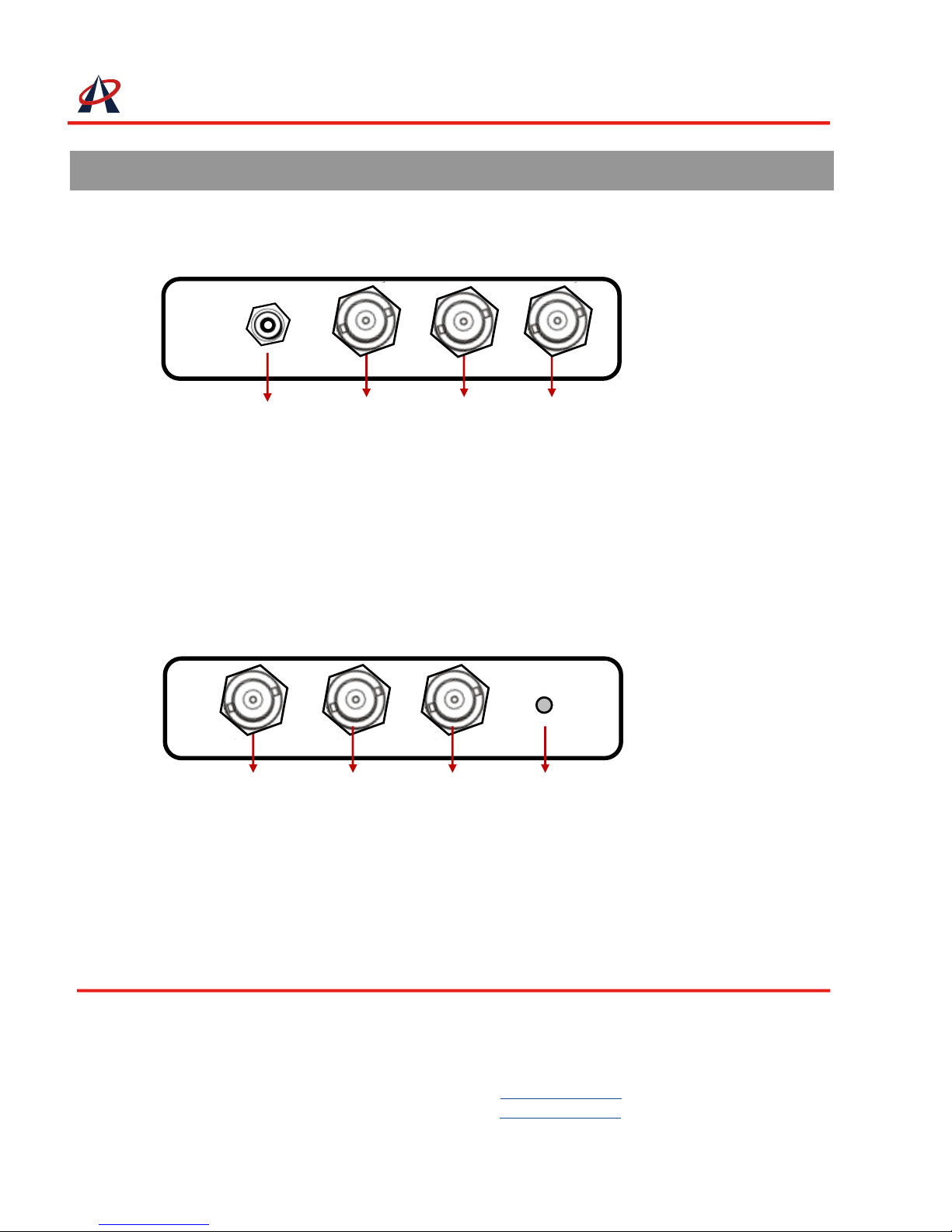

Panel Descriptions
Front Panel
23
4
1
1. 5V power 4. HD/SD-SDI input
2. HD/SD-SDI output #1
3. HD/SD-SDI output #2
Rear Panel
8 7 6
5
5. Component Output Pr 8. Signal Detection LED
6. Component output Pb
7. Component output Y
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 6of 8

Supported Resolutions
HD INPUT
720p @ 50Hz SMPTE 296M -3
720p @ 60 / 59.94Hz SMPTE 296M -1, -2
1080i @ 25Hz SMPTE 274M -6
1080i @ 30 / 29.97Hz SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11
1080p @ 25Hz SMPTE 274M -9
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8
SD INPUT
NTSC
PAL B,D,G,H,I
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 7of 8

Limited Warranty
The SELLER warrants the EX-G067C Miniature HD/SD-SDI to Component Converter to be
free from defects in the material and workmanship for 1 year from the date of purchase from the
SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year
warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not
been subjected to accident, disaster, abuse or any unauthorized modifications including static
discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day warranty and
cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
Also, the technical information contained herein regarding the EX-G067C features and specifications
is subject to change without further notice.
