Ace Plus EX-G066B User manual

EX-G066B
HDMI to 3G/HD/SD-SDI Mini Converter
User Manual
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 1 of 8
ACE PLUS CORP.

Safety and Notice
The EX-G066B HDMI to 3G/HD/SD-SDI Mini Converter has been tested for conformance to
safety regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the EX-G066B should be used with care. Please read and follow the safety
instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep away the objects that might damage the device and assure that the placement of this unit is
on a stable surface.
zUse only the power adapter, power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 2of 8

Introduction
The EX-G066B Mini HDMI to 3G/HD/SD-SDI Converter provides a professional way to convert
HDMI to 3G/HD/SD-SDI in real time. The conversion between SDI and HDMI is pure digital and
guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support,
7.1 channel or 5.1 channel audio becomes available. The EX-G066B offers low jitter SDI output for
daisy chain. With the use of EX-G066B, the most popular uncompressed video interface in the
consumer world is readily available for professional SDI equipments!
Features
zSupported formats:
NTSC [email protected], PAL 625@50, [email protected], 720p@24, 720p@25, [email protected], 720p@30,
720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60, [email protected],
1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected], 1080p@60
Bit Rate: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 270 Mbps
zAuto 3G/HD/SD-SDI detection
zHDMI 1.2 supported
zSDI compliant outputs
zExternal DIP Switch Configuration
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 3of 8

Specifications & Package Contents
Model Name EX-G066A EX-G066B
Technical
SDI standards SD-SDI, HD-SDI & 3G-SDI
Auto 3G/HD/SD-SDI
detection Yes
Video bandwidth [2.97Gpbs & 2.97/1.001Gbps]
Video support
[3G] 1080p50/59.94/60 (4:2:2)
[HD] 720p50/59.94/60, 1080p24/30,1035i50/59.94/60, 1080i50/59.94/60
[SD] [email protected], PAL@50Hz
Input signal
[SD-SDI] SMPTE 259M
[HD-SDI] SMPTE 292M, 296M
[3G-SDI] SMPTE-424M
Output signal SDI
Output impedance 75Ω
Synchronization mode Internal synchronization or external synchronization
Eye pattern characteristics Extra low alignment jitter 0.05UI at HD
Cable equalization
[3G-SDI] up to 90m (300ft)
[HD-SDI] up to 150m (500ft)
[SD-SDI] up to 300m (1000ft)
Audio support Yes (up to 7.1ch)
PCB stack-up 4-layer board [impedance control —
differential 100Ω; single 50Ω]
6-layer board [impedance control —
differential 100Ω; single 50Ω]
Input 1x HDMI
Output 2x BNC [SDI] 1x BNC [SDI]
BNC connector 75Ωinter-locked socket
HDMI connector Type A [19-pin female]
DIP switch 4-pin [video format / audio format /
audio group / reserved]
2-pin [video format / audio format /
audio group ]
Mechanical
Housing Metal enclosure
Model 107 x 74 x 25mm [2.9”x4.2”x1”]
Package 200 x 140 x 75mm [7.9”x5.5”x3”]
Dimensions
(L x W x H) Carton
Model 220g [7.7oz]
Weight Package 500g [19.4oz]
Fixedness Inter-locked power supply
Power supply 5V 4A DC
Power consumption 3 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
Package Contents 1x EX-G066A 1x 5V power supply unit
1x User Manual
1x EX-G066B
1x 5V power supply unit
1x User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 4of 8

Supported Resolutions
3G-SDI Output
1080p @ 50/ 59.94 /
60Hz
SMPTE 424M, SMPTE
425M
HD-SDI Output
525p @ 59.94Hz SMPTE 293M,
ITU-BT.1358
625p @ 50Hz ITU-BT.1358
720p @ 50Hz SMPTE 296M -3
720p @ 60 / 59.94Hz SMPTE 296M -1, -2
1080i @ 25Hz SMPTE 274M -6
1080i @ 30 / 29.97Hz SMPTE 274M -4, -5
1080p @ 24 / 23.98Hz SMPTE 274M -10, -11
1080p @ 25Hz SMPTE 274M -9
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8
SD-SDI Output
NTSC
PAL B,D,G,H,I
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 5of 8

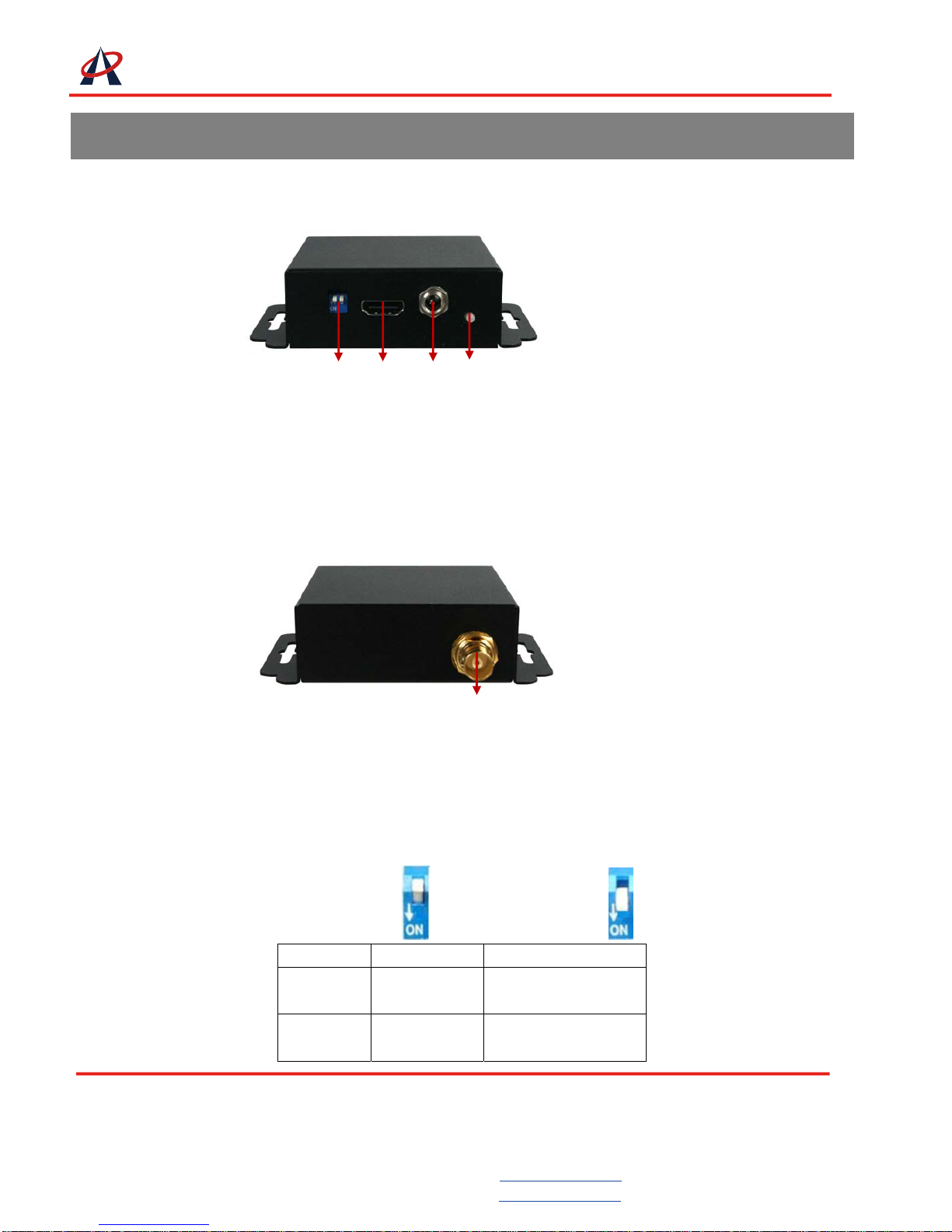

Panel Description
Front Panel
1.DIP Switch
2. HDMI input
3. Interlocked +5V power jack
4. Lock LED
Rear Panel
5. 3G/HD/SD-SDI output
Bottom Panel
A 4-pin DIP switch is used for user interface, and users can access this switch from the bottom of
the unit.
Pin OFF (©): PinON(ª):
Pin # 12
OFF (©) Default
EDID Audio group 1&2
ON (ª) Update
EDID Audio group 3&4
5
4
1
3 2
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 6of 8

Notice
1. EX-G066B mainly embeds the audio channels in audio group 1&2 or 3&4. Please adjust DIP
switch pin 2 for setup.
2. EX-G066B supports only audio sample frequency 48kHz.
3. While stereo audio is chosen, only the first pair of HDMI audio will placed into CH 1 & 2 of Group 1
or 3, dependent upon pin 3.
4. In order to keep the compatibility of HDMI to most monitors, EX-G066B features EDID learning
ability. The operation is shown in the EDID learning section.
EDID Learning
1. Turn off EX-G066B and set the pin 1 of DIP switch of EX-G066B to ON [ª].
2. Connect the TV monitor thru HDMI port to EX-G066B, and then turn on EX-G066B.
3. The LED of EX-G066B will dim and light again, which indicates the EDID learning process is
finished.
4. Connect EX-G066B to the HDMI source through a HDMI cable and enjoy the experience.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: [phone]
FAX: [phone]
Website: www.ace-plus.com
www.ace-plus.tw
Page 7of 8

The SELLER warrants the EX-G066B HDMI to 3G/HD/SD-SDI Mini Converter to be free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period,
The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized modifications including static discharge and power
surge. This warranty is offered by the SELLER for its BUYER with direct transaction only. This
warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of
reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations,
any other implied warranty or fitness or merchantability for any particular purpose, all of which are
expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a
30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
Also, the technical information contained herein regarding the EX-G066B features and specifications
is subject to change without further notice.
