Acer DMZ220 User manual

Product information
For detailed product information, please go to www.acer.com.
For service and support information, or to download the User
Guide, drivers and applications, please follow the instructions
below:
1. Go to www.acer.com and click Support > DRIVERS AND
MANUALS.
2. Select appropriate items from Group > Series > Products.
3. Select the operating system from the drop-down menu.
© 2014 All Rights Reserved
Acer Liquid Z220, Liquid M220 Quick Guide
Model: Z220, M220
This revision: 01/2015
Acer Liquid Z220, Liquid M220 Smartphone
Model number:____________________________________
Serial number: ____________________________________
Date of purchase: _________________________________
Place of purchase: ________________________________
Android is a trademark of Google Inc. Use of this trademark is
subject to Google Permissions.

Unpacking your smartphone
Your new smartphone comes packed in a protective box. Carefully
unpack the box and remove the contents. If any of the following items
is missing or damaged, contact your dealer immediately:
• Your new Acer smartphone
• USB cable
• AC adapter
• Headset
Getting to know your smartphone
Views
3
2
6
7
9
1
5
4
8
Note
In-box content varies depending on country and region.

Charging the battery
For initial use, you need to charge your smartphone for eight hours.
After that you can recharge the battery as needed.
Connect the AC adapter cord to the micro USB connector on your
smartphone.
No. Item Description
1 3.5 mm headphone jack Connects to stereo headphones.
2 Micro USB connector Connects to a USB cable/charger.
3 Smartphone speaker Emits audio from your smartphone; suitable for
holding to your ear.
4 Front-facing camera Use for self-portrait images and online video chat.
5 Touchscreen 4-inch capacitive touchscreen to display data,
smartphone content and enter information.
6 Volume up/down button Increases or decreases the smartphone volume.
7 Power button Press to turn the screen on/off or enter sleep
mode; press and hold to turn the smartphone on
or off.
8 Camera A camera for taking high-resolution images.
9 Flash LED flash for camera.

Specifications
Performance
• 1.2 GHz dual-core processor
• System memory:
• ROM 8 GB eMMC + RAM 1 GB
• Android operating system
Display
• 4" TFT LCD, capacitive touchscreen
• 480 x 800 resolution
Multimedia
Formats supported:
USB connector
• Micro USB connector
• USB client
• DC power-in (5 V, 0.5 A)
Note
Specifications may vary depending on region and configuration.
Type Formats
Image JPEG, GIF, PNG, BMP
Audio playback MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Ringtone MP3, AMR, AAC LC, AAC+, eAAC+, Vorbis, FLAC,
MIDI, WAVE
Video recording H.263, H.264, MPEG4
Video playback H.263, H.264, MPEG4, VP8

Connectivity
• Bluetooth 4.0
• IEEE 802.11b/g/n
• GSM 850 / 900 / 1800 / 1900 MHz
•HSPA / WCDMA
•850 MHz (B5) / 1900 MHz (B2)
• HSPA+ / GPRS / EDGE
•GPS
*Frequency depends on model.
Camera
• 5 MP rear camera (Auto focus)
• 2 MP front camera (Fixed focus)
Expansion
• microSD memory card slot (up to 32 GB)
Battery
• 1300 mAh Lithium-ion battery
Note
Length of battery operation will depend on power consumption which is
based on system resource use. For example, constantly using the backlight
or using power-demanding apps will shorten battery life between charges.

Dimensions
Height 125.3 mm
Width 64 mm
Thickness 9.57 mm
Weight 120 g (with battery)

Setting up for the first time
Inserting the SIM cards and microSD card
1. Turn off the phone by pressing and holding the
power button.

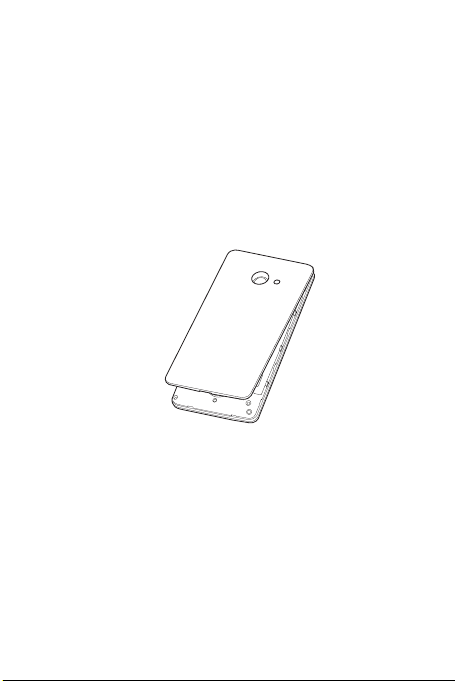

2. Insert your fingernail into the notch located at
the bottom of the phone and remove the
cover as illustrated.

3. Insert the SIM or microSD card as shown.
4. Align the gold-colored connectors on the
battery with the connectors at the top of the
battery compartment and insert the battery.
microSD card
SIM 1
Micro SIM 2

5. Replace the cover by aligning the tabs on the
cover into the slots on the phone. Gently
press the cover until it snaps in place.

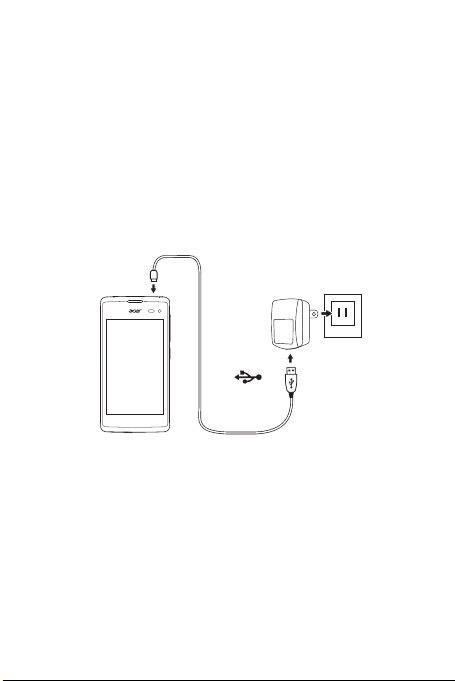

Charging your phone
For initial use, you need to charge your smartphone for
eight hours. After that you can recharge the battery as
needed.
Connect the AC adapter cord to the micro USB
connector on your smartphone. Plug the AC adapter
into any AC outlet and charge the device.
It is normal for the phone to heat up when charging or
during long periods of use.
All phones are factory tested before release.
Resetting and restarting the phone
Open Settings from the Applications menu, then tap
Backup & reset. Tap Factory data reset and then tap
Reset phone. Tap Erase everything to format your
phone.
If your phone is no longer responding, press and hold
the power button and volume up button simultaneously
for 8 to 10 seconds to reset the phone.
