Acer M900 User manual

1
Acer M900
Quick Guide

Acer M900 Smartphone Quick Guide2
© 2009 All Rights Reserved
Acer M900 Smartphone Quick Guide
First issue: March 2009
Acer M900 Smartphone
Model number: __________________________________
Serial number: ___________________________________
Date of purchase: ________________________________
Place of purchase: ________________________________

3

Acer M900 Smartphone Quick Guide4

5
Table of Contents
Unpack your smartphone . . . . . . . . . . . . . . . . . . . . . . 7
Get to know your smartphone . . . . . . . . . . . . . . . . . . 8
Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
LED indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Open the battery compartment . . . . . . . . . . . . 11
Insert the SIM and replace the battery . . . . . . 11
Remove the SIM card and battery . . . . . . . . . . . . . . 12
Charge the battery . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power LED status during charging . . . . . . . . . . 13
Turn on for the first time . . . . . . . . . . . . . . . . . . . . . 14
Install add-on applications . . . . . . . . . . . . . . . . 14
Set up fingerprint security . . . . . . . . . . . . . . . . 15

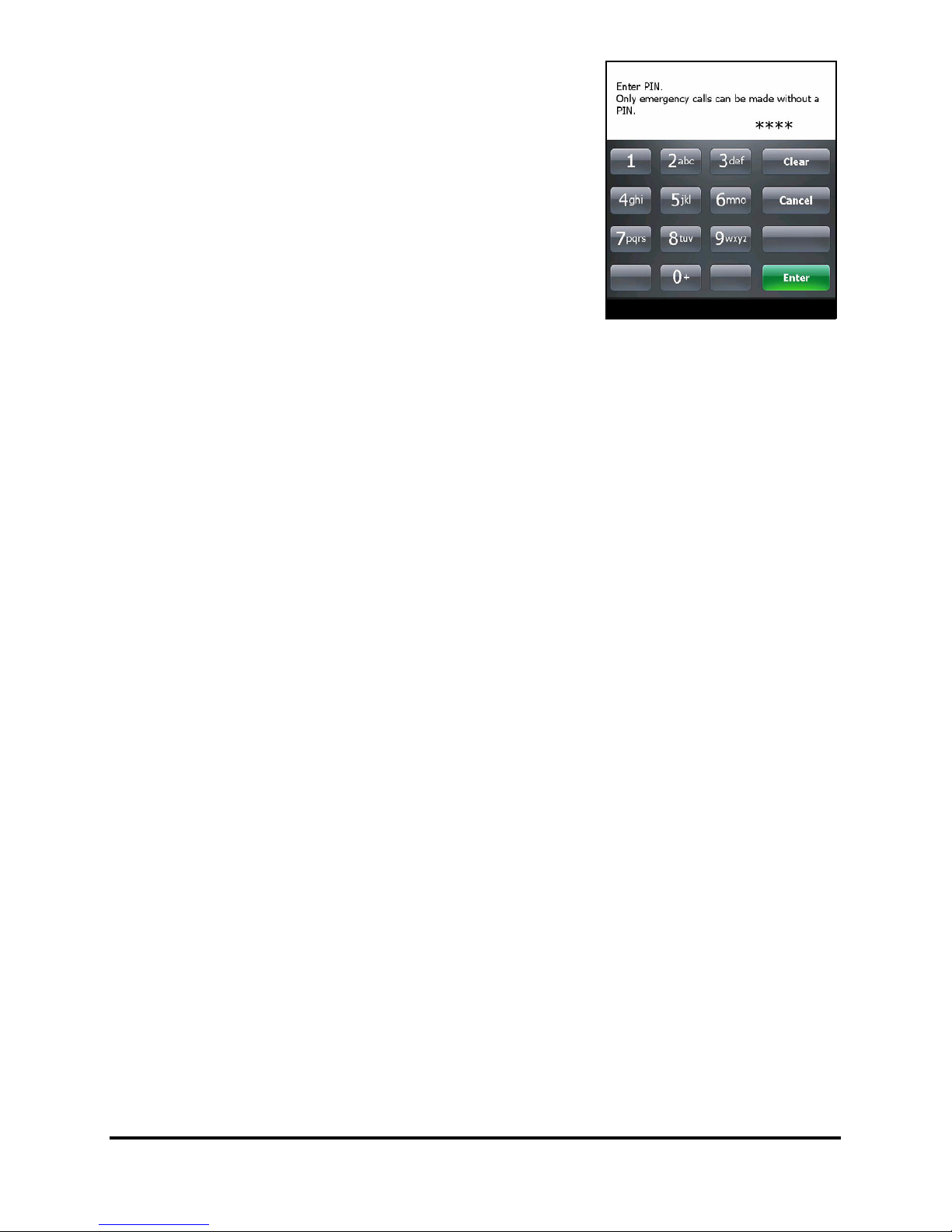

Enter your PIN code . . . . . . . . . . . . . . . . . . . . . 16
Activating a new SIM card . . . . . . . . . . . . . . . . 16
The Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

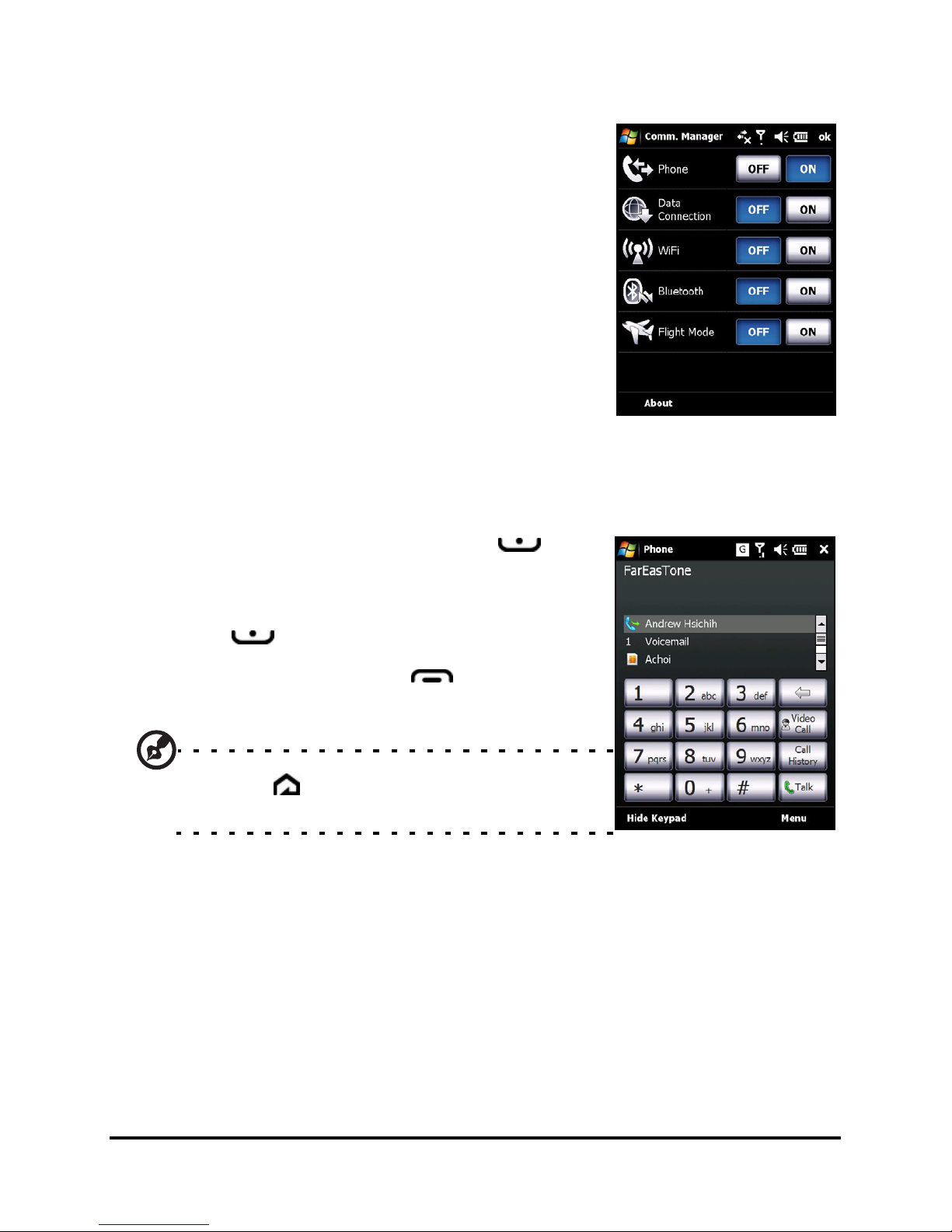

Before making a call . . . . . . . . . . . . . . . . . . . . . . . . . 19
Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connect to your PC and synchronizing data . . . . . . 20
Use the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Use the stereo headset . . . . . . . . . . . . . . . . . . . . . . . 22
Use a Bluetooth headset . . . . . . . . . . . . . . . . . . . . . . 22

Acer M900 Smartphone Quick Guide6

7Unpack your smartphone
Unpack your smartphone
Your Acer M900 Smartphone comes packed in a cardboard
box. Carefully unpack the box and remove the contents. If any
of the following items are missing or damaged, contact your
dealer immediately:
• Acer M900 Smartphone
•Stylus
• Battery
• Quick Start Guide
• Getting Started CD
•USBcable
• AC adapter
• Headset (not shown)

Acer M900 Smartphone Quick Guide8
Get to know your smartphone
Views
No. Item Description
1 Mini USB connector Connect to a USB cable/headphones/
charger.
2 3-way rocker wheel Scroll through items on the display. Press
inwards to activate the selected item.
3 Micro SD card slot Expand your device’s memory capacity.
4 Video conference
camera
Camera for video calls.
5 Light sensor Senses ambient light to adjust screen
brightness for comfortable viewing.
6 Bluetooth/WLAN/GPS
indicator
Indicates Bluetooth, WLAN and GPS status.

9Get to know your smartphone
7 Phone speaker Emits audio from your smartphone; suit-
able for holding to your ear.
8 Charge indicator Indicates battery charge status.
9 Touchscreen 800 x 480 pixel screen to display data,
phone content and enter information.
10 Talk/send button Activate phone/dial/view recently dialed
numbers/answer a call.
11 End button
Press to end a call/disconnect GPRS; press
and hold to turn the phone function on/off.
12 GPS button Activate the GPS viewer.
13 Back button Return to the Home screen.
14 Fingerprint reader Secure your phone using Biometrics; navi-
gate through items on the screen.
15 Microphone Internal microphone.
16 Stylus Use to enter information or select items
on the touch screen.
17 Power button Press to turn the screen on/off or enter
sleep mode; press and hold to turn the
Smartphone off.
18 Record button Press to launch the recording toolbar.
19 Reset pinhole Insert the stylus into this hole to reset the
device.
20 Camera button Activate the camera or take a picture.
Press down halfway to auto-focus.
21 Speaker Emits audio from your smartphone; suit-
able for handsfree use.
22 Main camera A 5-megapixel camera for taking high-res-
olution images.
23 Flash Used to illuminate an object when taking
photos in low-light conditions.
24 Battery cover Covers the battery/SIM card bay.
25 Lower locking panel Moves up and down to lock the battery
cover in place.
No. Item Description

Acer M900 Smartphone Quick Guide10
LED indicators
Bluetooth/WLAN/GPS indicator:
Charge indicator:
LED
Color
State Description
White Flashing GPS active
Amber Flashing WLAN connected
Blue Flashing Bluetooth on
LED
Color
State Description
Red Flashing Battery is low and needs recharging/alarm
notification (missed call, new message, etc.)
Steady Battery is charging
Green Flashing Phone is active
Steady Battery fully charged
